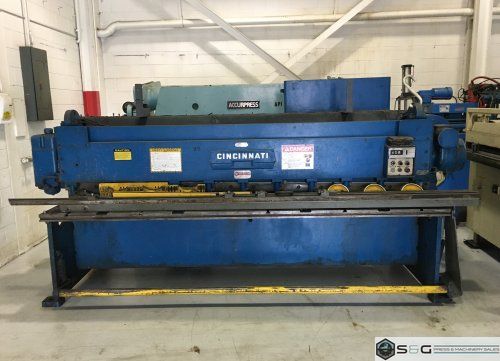

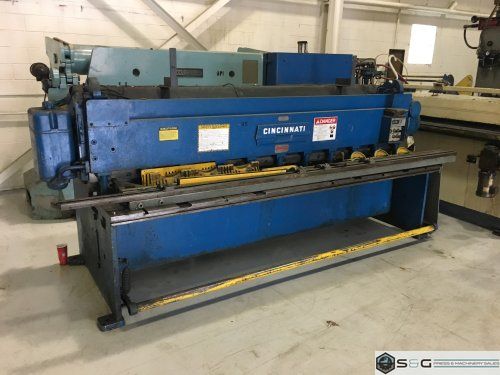

10 ga x 10' Cinciannati Shear, Model# 1010,

Brand

Cincinnati

Model

10 ga. x 10' Cincinnati Power Shear

Year

1969

Stock #

2377

Condition

Used

Request a Quote

Specifications

Standard Specifications:
Capacity In Mild Steel .................... 10 ga.
Cutting Length ............................ 10'
Motor HP .................................. 5
Strokes per Minute ........................ 65
Back Gauge Range .......................... 36"
Number of Hold Downs ...................... 11
Hold Down to Blade Edge ................... 5/8"
Standard Distance Under Holddowns ......... 1/4"
Total Holddown Force ...................... 7 tons
Rake Angle ................................ 7/32" /Ft.
Size - Four Edge Blades ................... 1" x 3"

Approximate Floor Space .... 158" W x 82" D x 79" H
Approximate Weight ......... 13,000 lbs.
Equipped With:
- 10' Squaring Arm
- 36" Front Operated Power Back Gauge
- 2' Support Arm
