1000 ton Verson S4-1000-144-84T Straight Side Mechanical Stamping Press For Sale

Preliminary Specifications
1000 ton Verson Metal Stamping Press
Straight Side Double Crank Mechanical
Press Model S4-1000-144-84T
1000 - ton Capacity
20" Stroke
60" Shut Height
14" Motorized Adjustment
144" LR x 84" FB Bed Area
144" LR x 84" FB Slide Area
13-26 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Wintriss Die Protection
Wintriss Tonnage Monitor
Wintriss Programmable Out Puts
Knockouts in Ram
60" Wide Windows
12" Thick Bolster Plate
Motor and Controls

Overall Height Above the Floor 21' 3" tall

Can be seen under power in a plant!  Click the link below for a video of the press running.

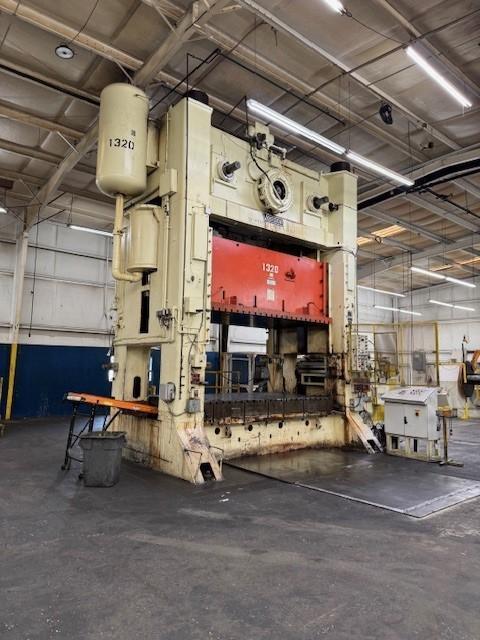

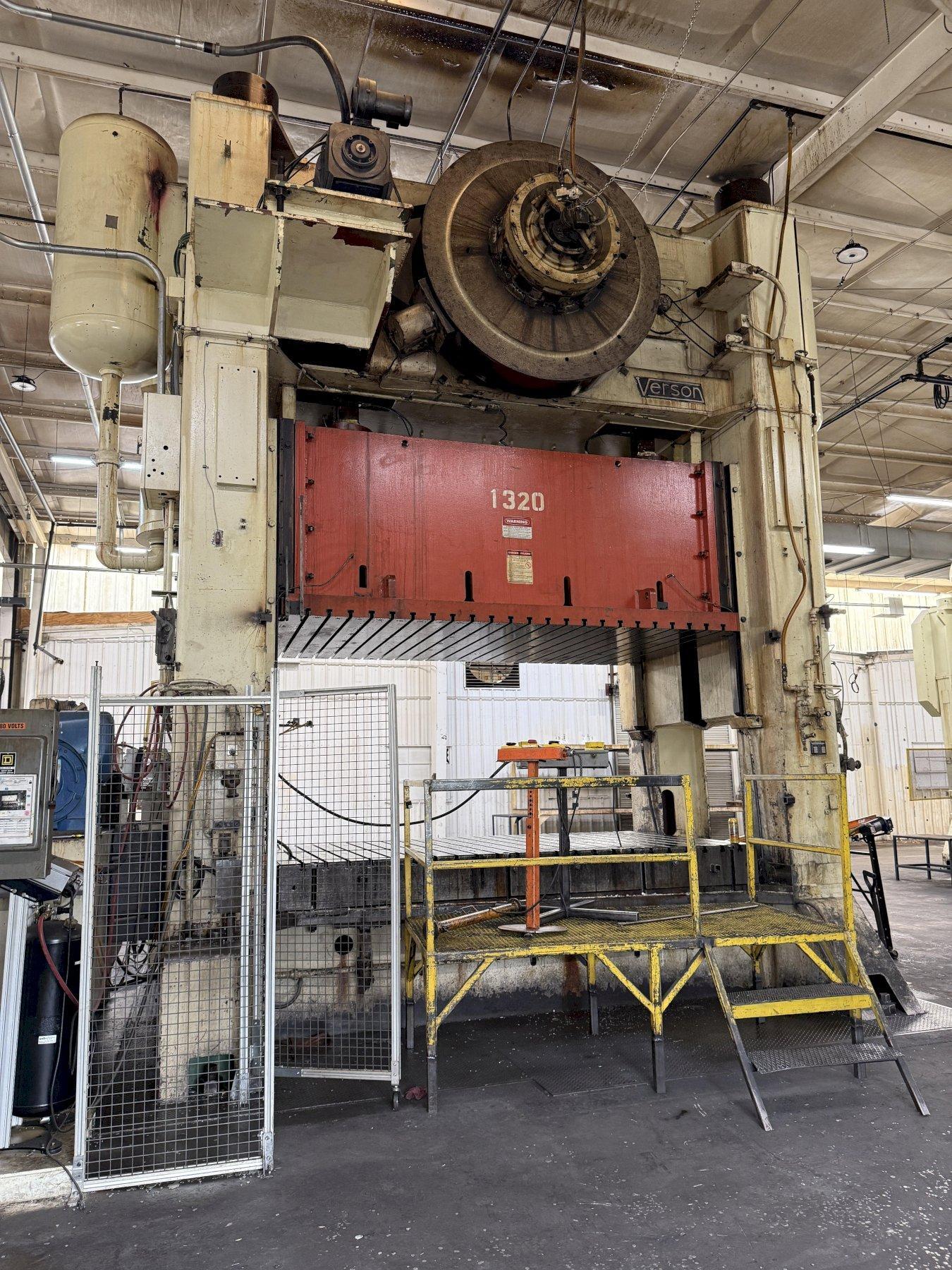

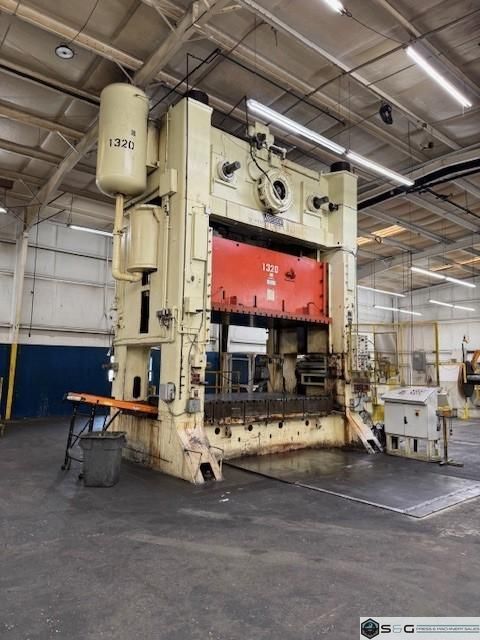

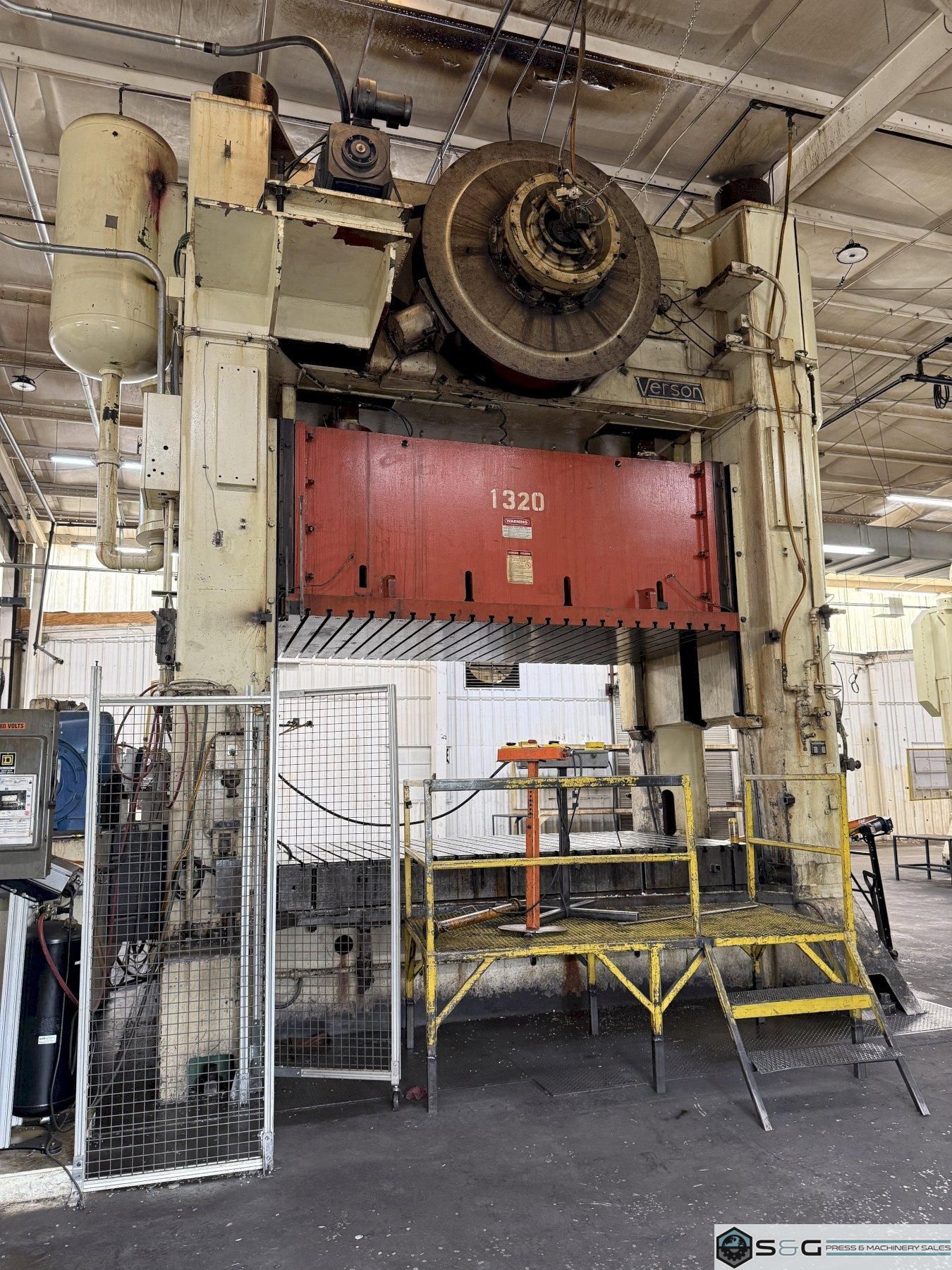

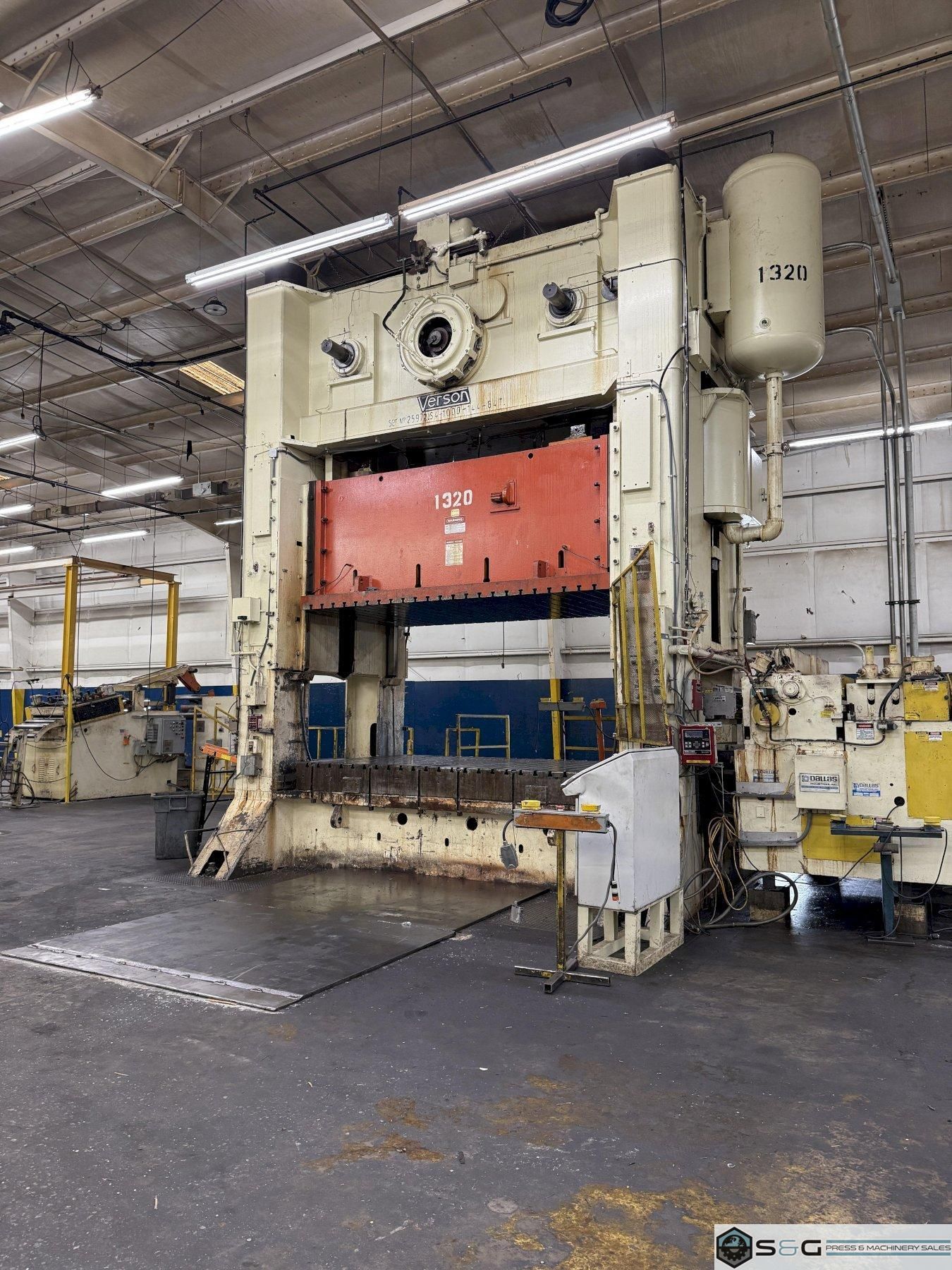

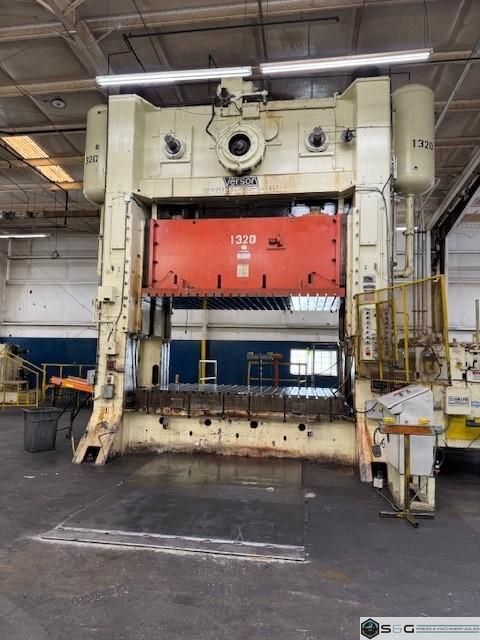

The Verson S4-1000-144-84T is a powerful 1000-ton mechanical metal stamping press. As a straight-side, four-point press, it is designed for precision and stability during heavy-duty operations. The "S4" in its model name signifies it has four-point suspension, which distributes the force evenly across the large bed area of 144 by 84 inches. With a stroke of 20 inches, it is capable of handling deep draw stamping applications. It operates at a variable speed, making it adaptable to different production needs.
