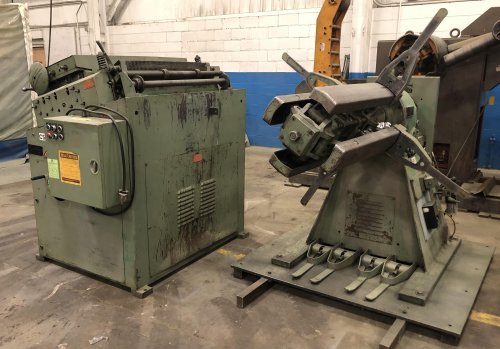

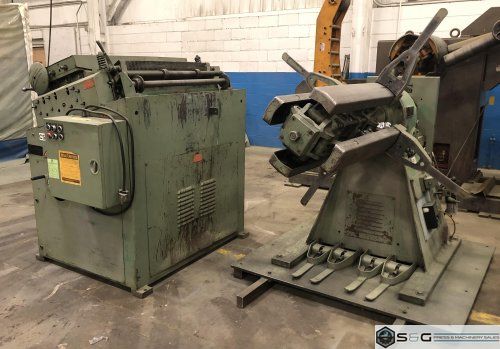

10000 Lbs. LITTELL Coil Reel and Straightener

Standard Specifications
10,000 lbs Coil Capacity
32" Max. Coil Width
.080" Max. Stock Thickness at Full Width
.125" Max. Stock Thickness at 12" Width
60" Max. Coil O.D.
20-24" Expansion Range

Equipment and Features
Coil Reel Model No. 90-36
Four leaf mandrel
Adjustable coil keeper arms
Hydraulic mandrel expansion
Electric drag brake mounted on main spindle
Adjustable pull off tension

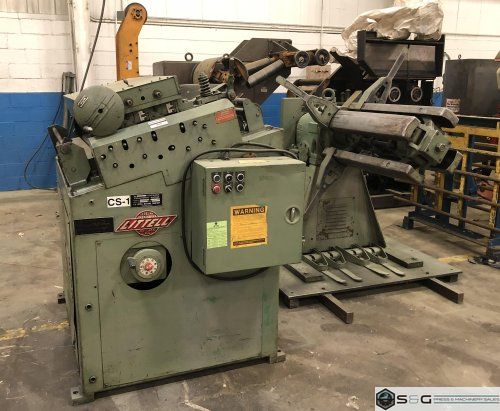

Powered Straightener Model No. 432-7PDL
Entry pinch rolls x 4" diameter
Seven straightening rolls x 3.125" diameter
Individual or unison upper roll adjustments
Adjustable entry stock edge guides
Upper roll depth indicators
Inclined straightening head
Variable speed drive
Jog forward and reverse
Auto / Run cycle
Loop control
