10,000 lbs. x 26" Minster "Conventional" Servo Coil Feed Line, Year 1995


MEF-526 / MS-20-26-7 / MR10-26S



Stock #





Coil Weight

10000 pounds

Coil Width

26 inches

Coil Thickness

.090 inches

Standard Specifications
Minster "Conventional" Servo Coil Feed Line
10,000 lbs. Maximum Coil Capacity
26" Maximum Coil Width
Stock Thickness Capacities:
.090" @ 26" Maximum Thickness at Full Width
.180" @ 5" Maximum Coil Thickness

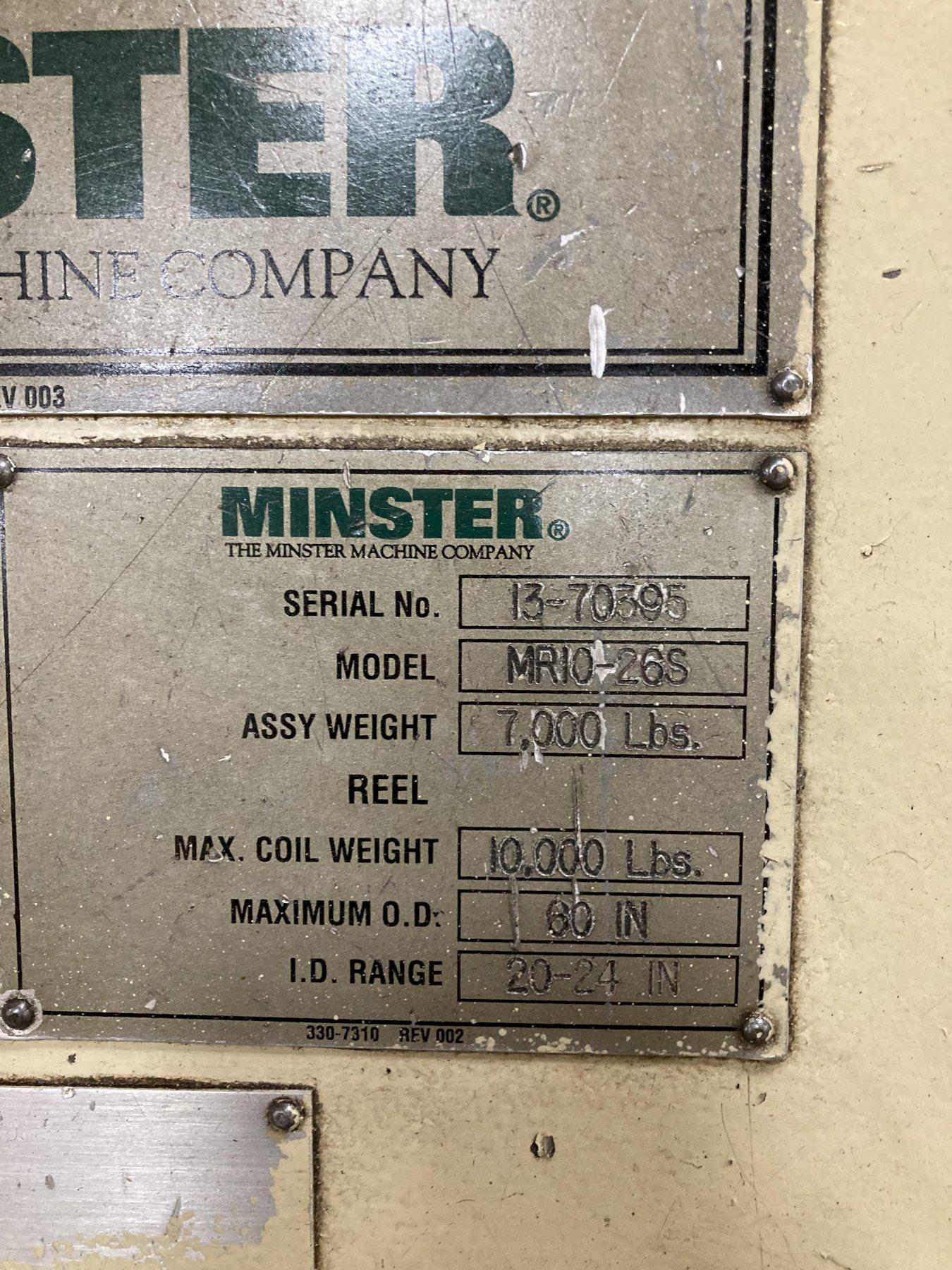

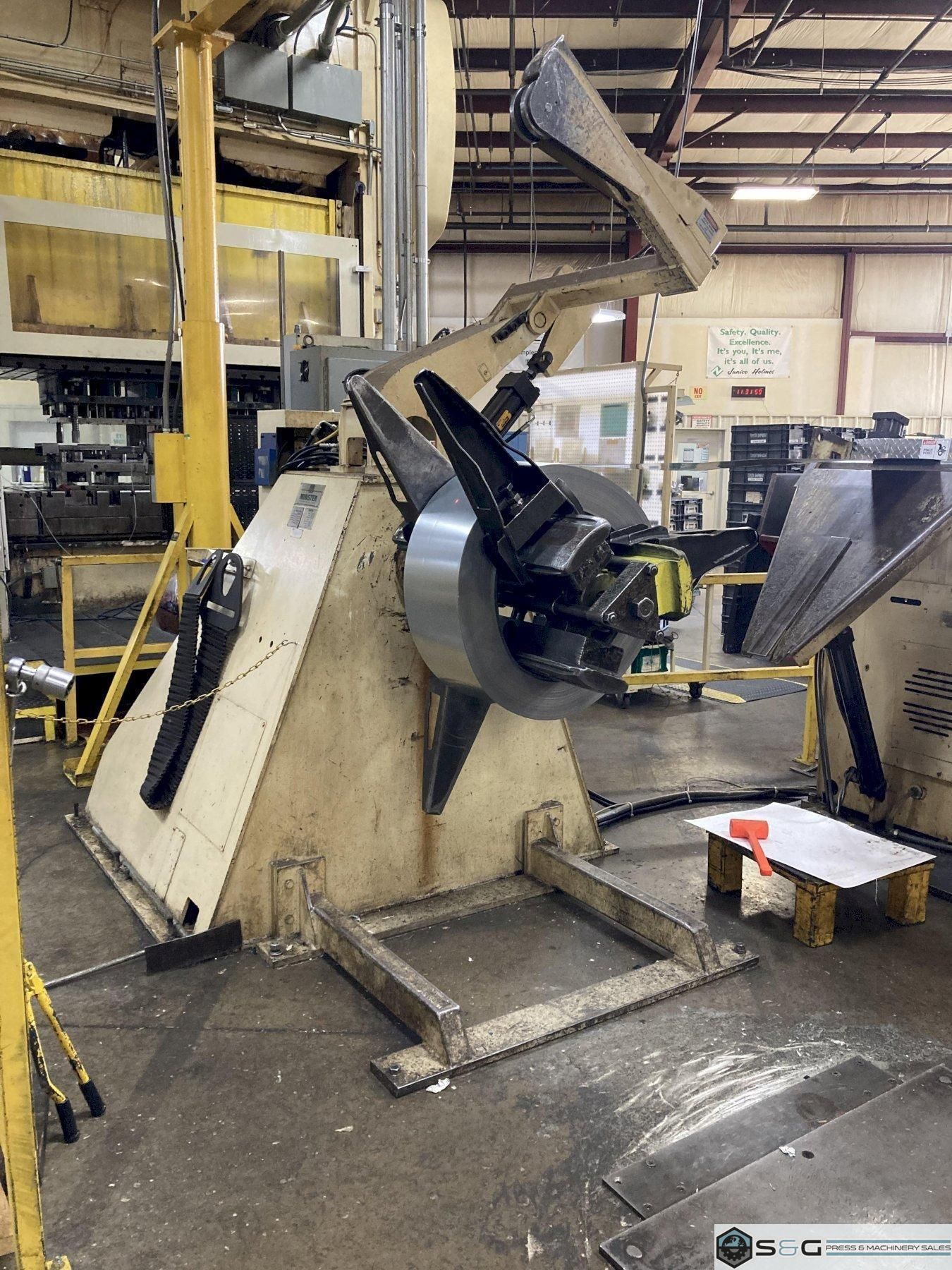

MINSTER Coil Reel Model No. MR10-26S
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Fail-safe brake during power off / loss
Jog drive for threading
Coil hold down arm with driven end wheel

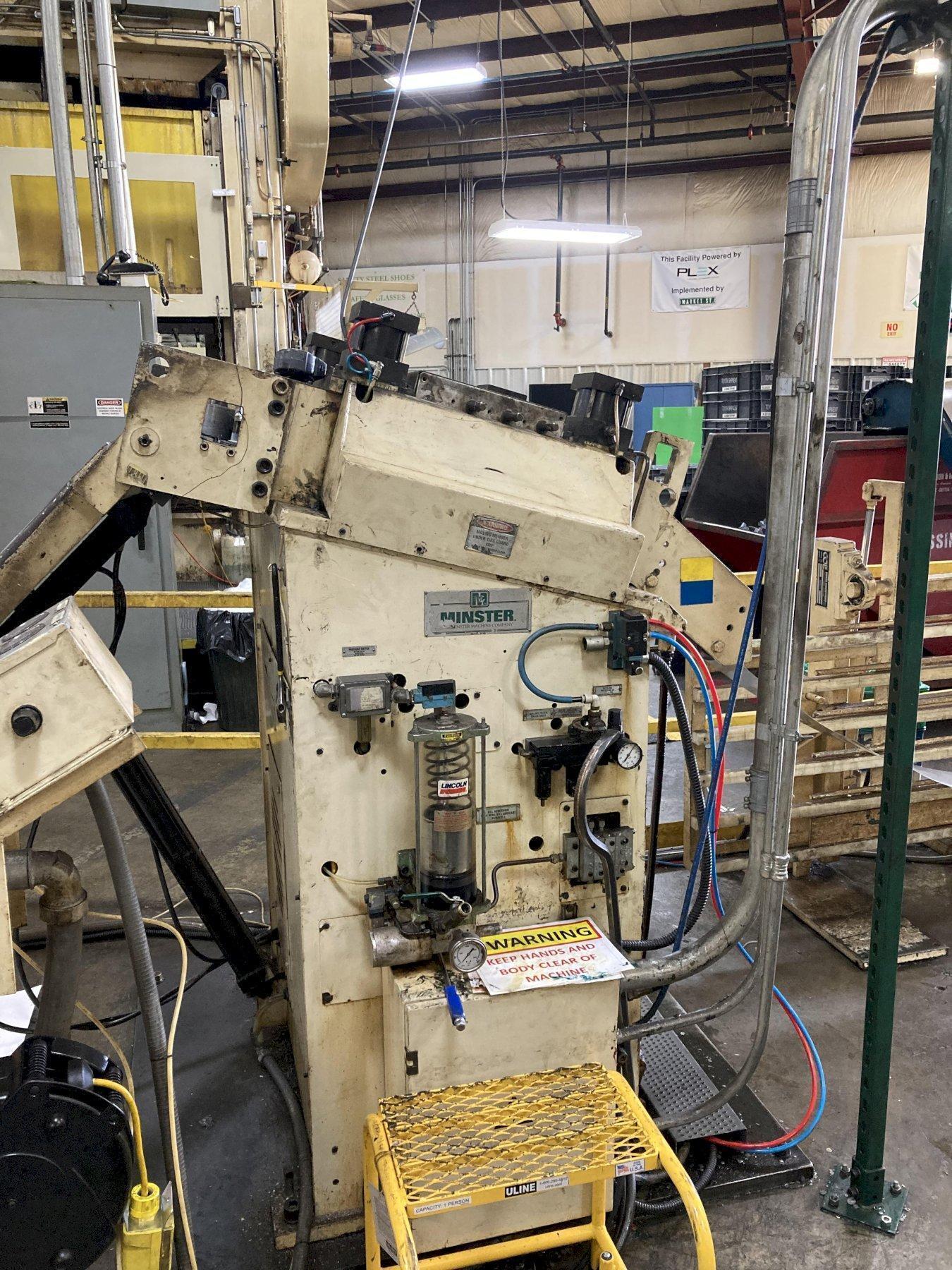

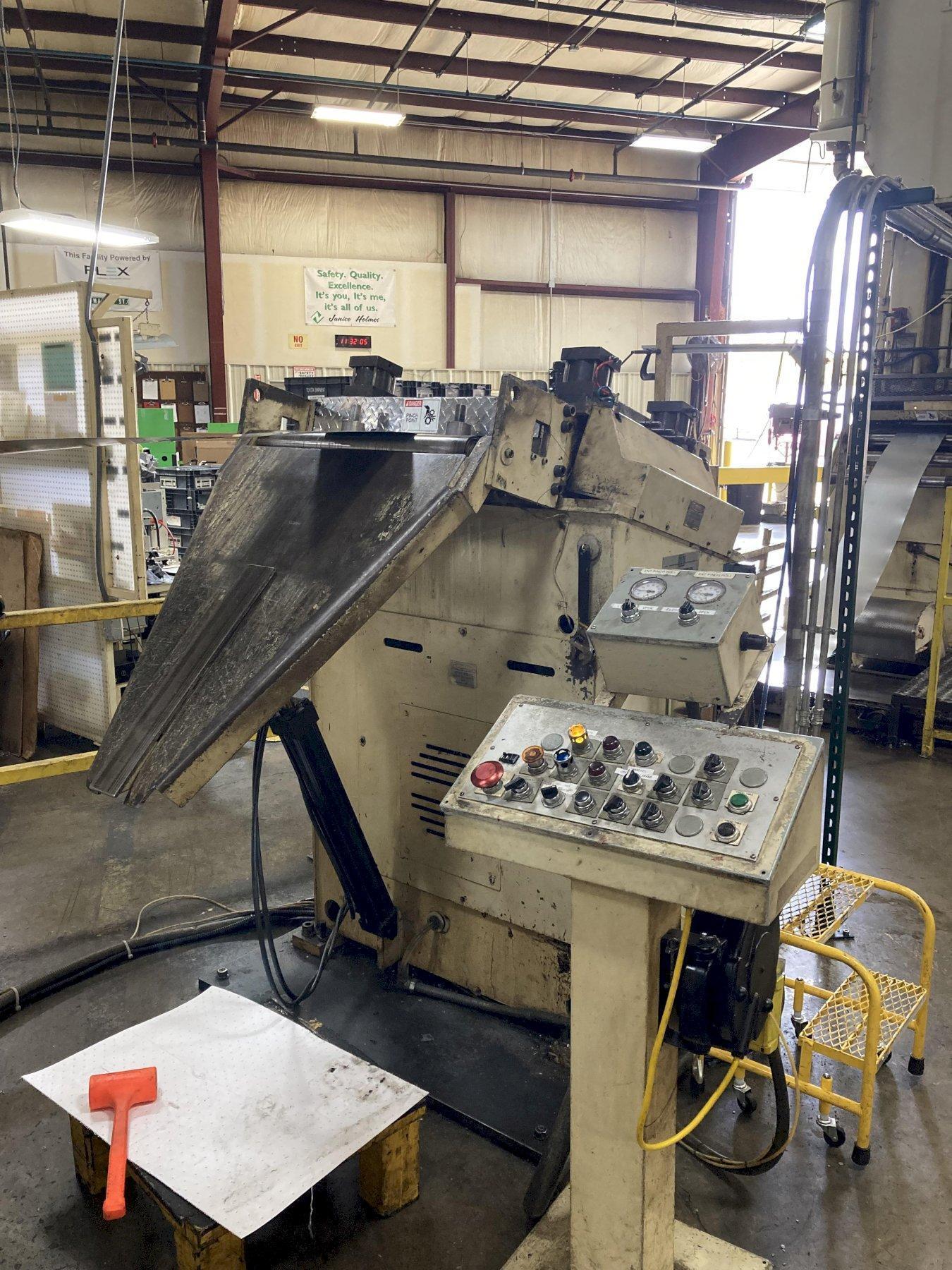

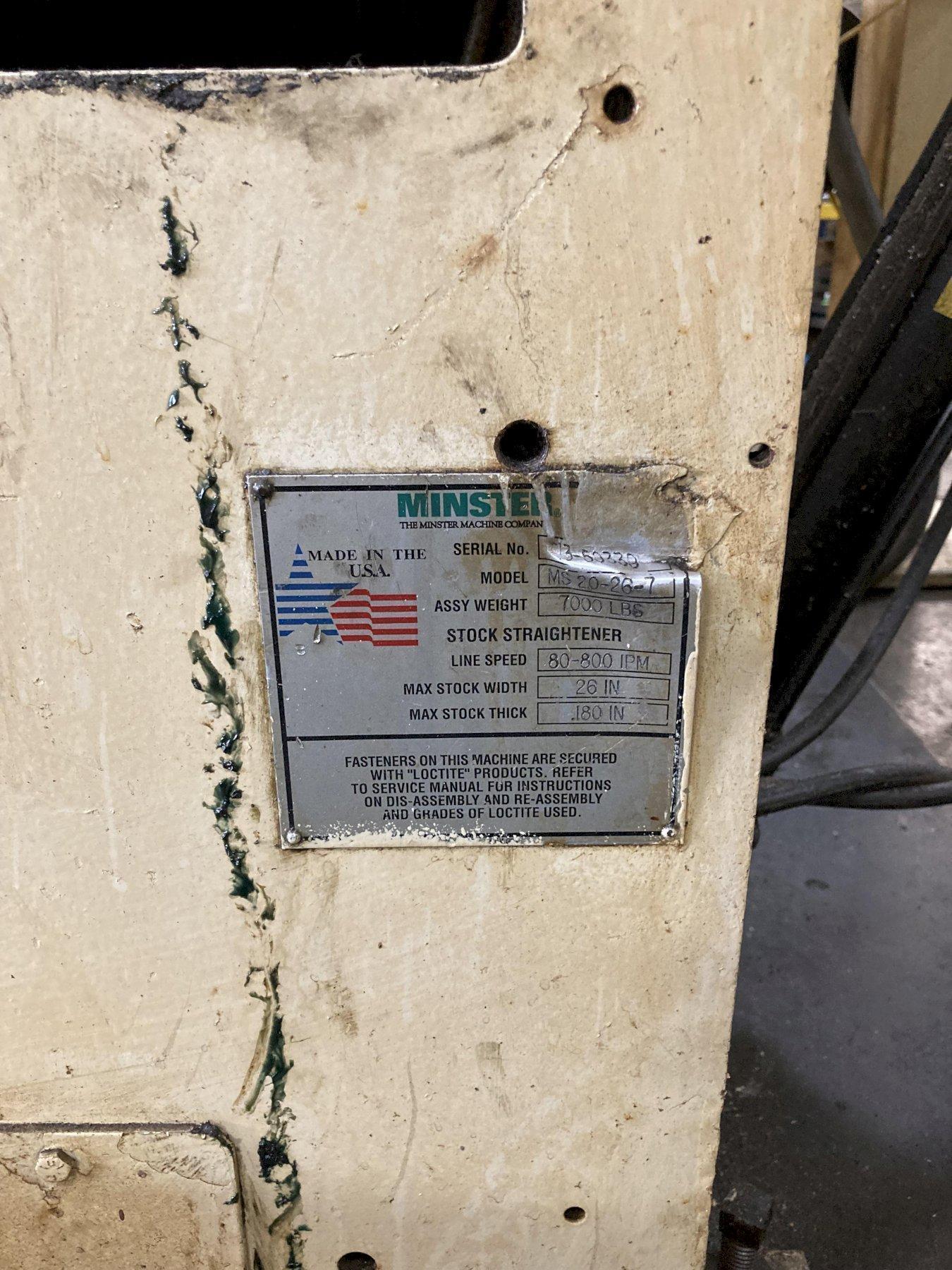

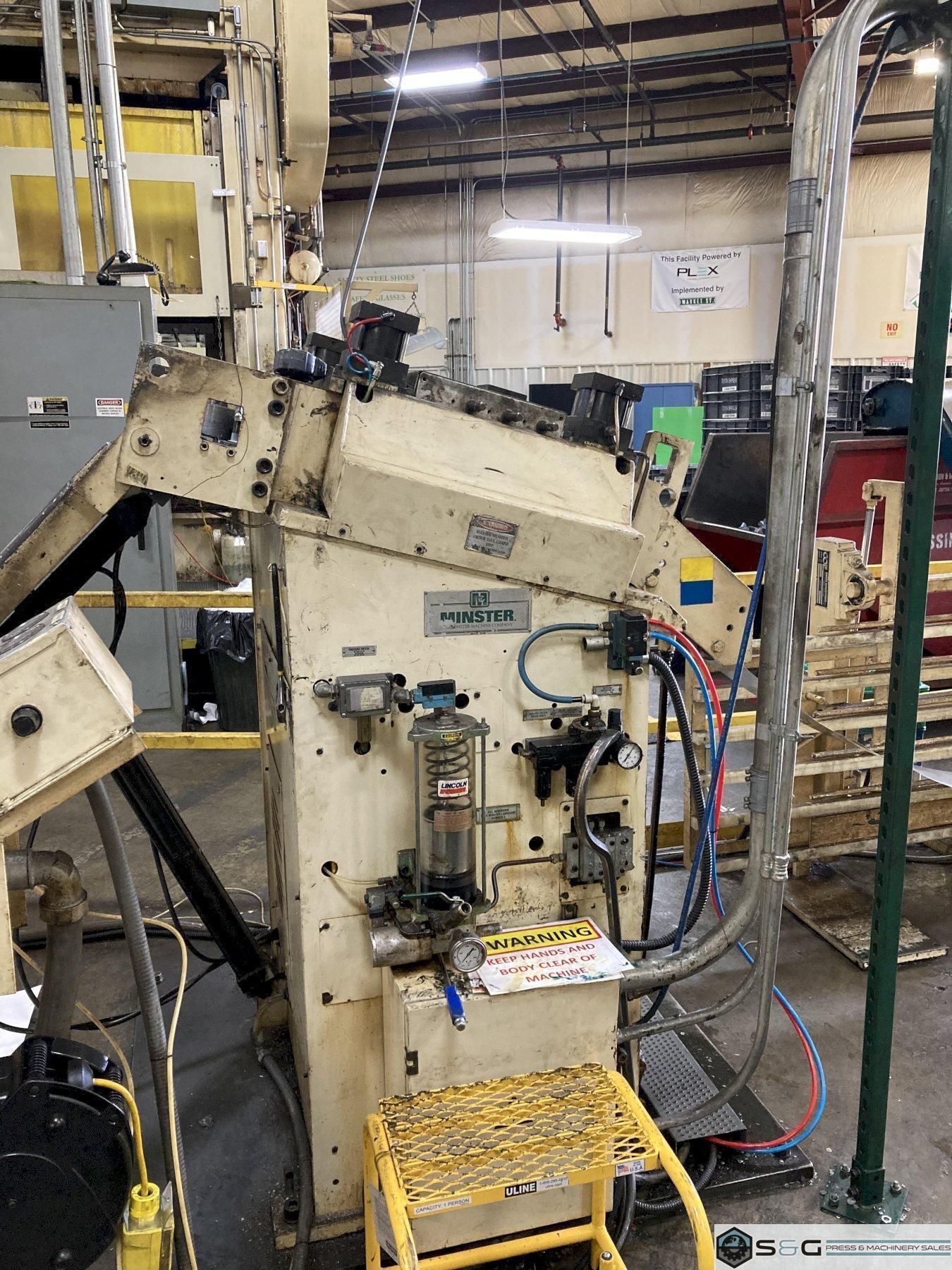

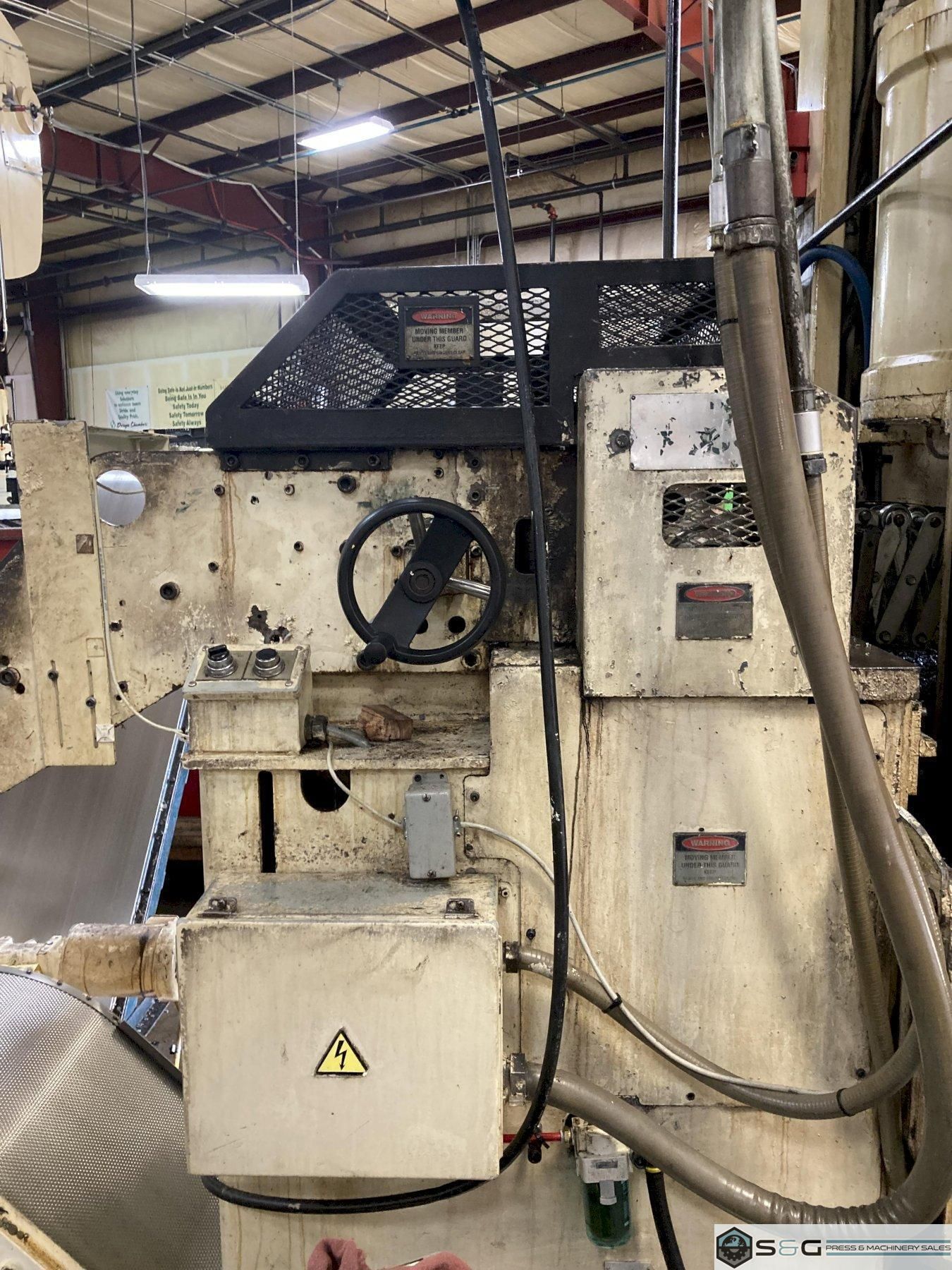

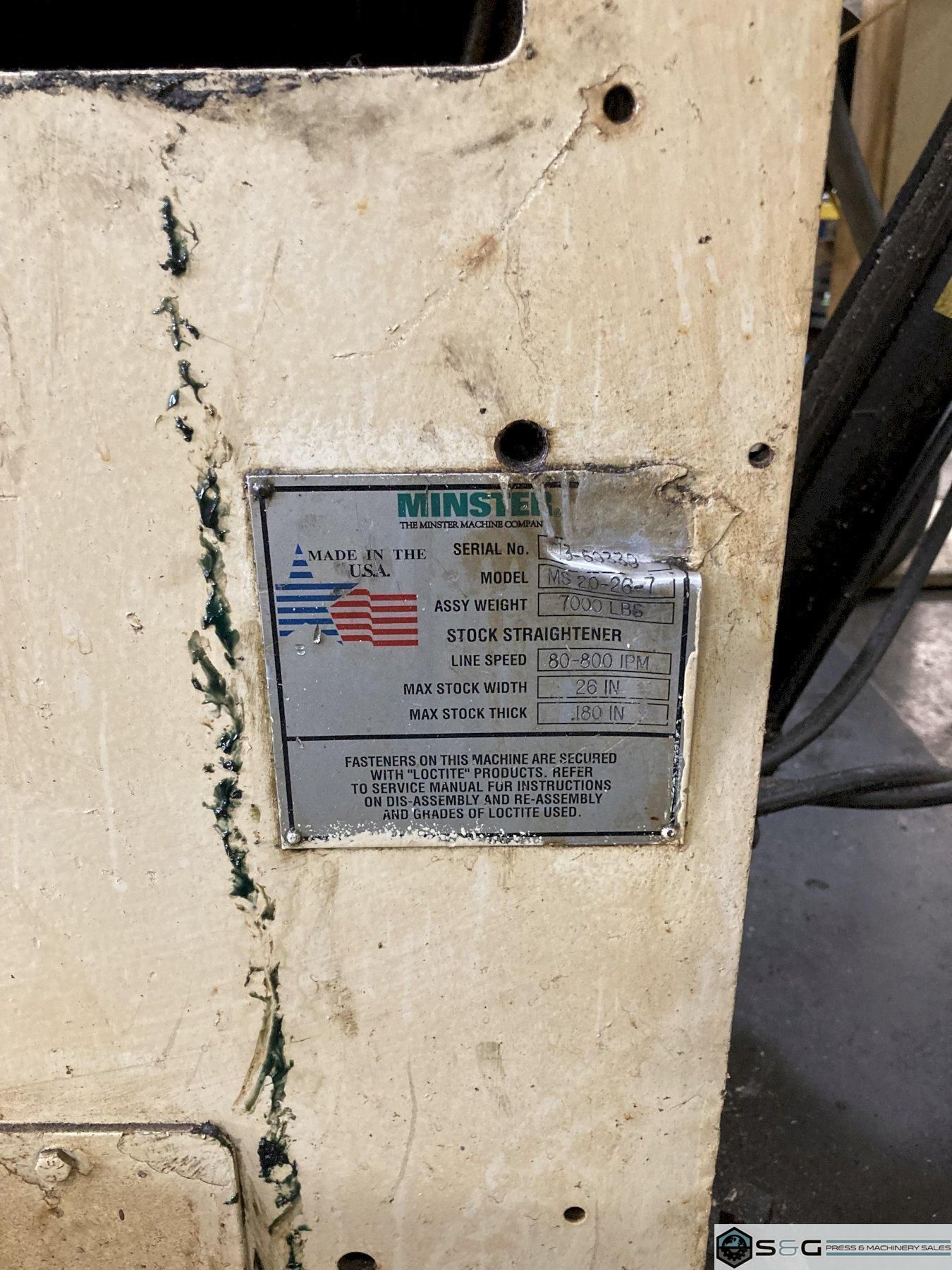

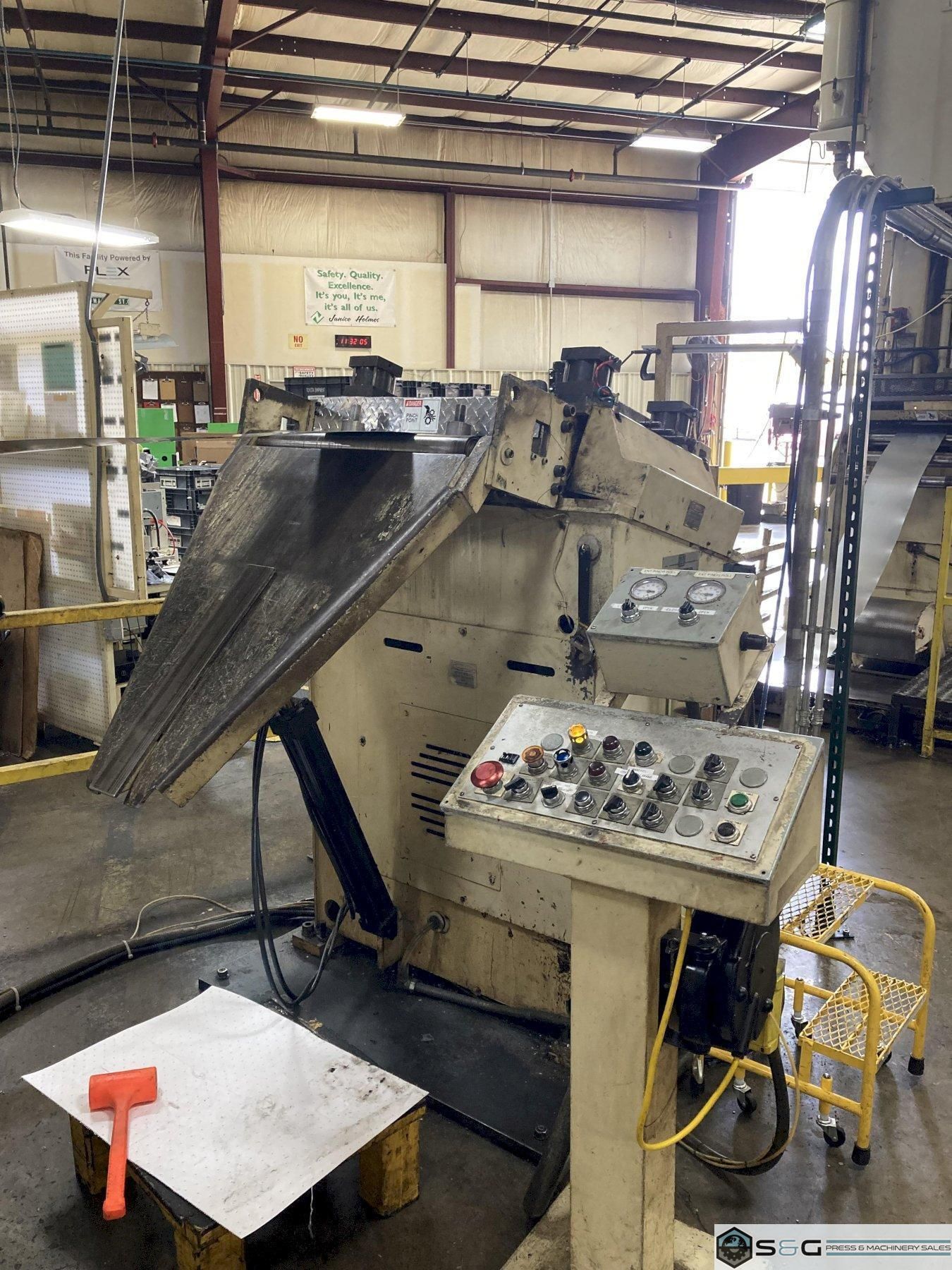

MINSTER Powered Coil Straightener Model No. MS-20-26-7
Seven straightening rolls
Individual upper straightening roll adjustments
Individual upper roll adjustments
Pinch rolls with air operated adjustments
Stock peeler table
Adjustable stock width edge guides

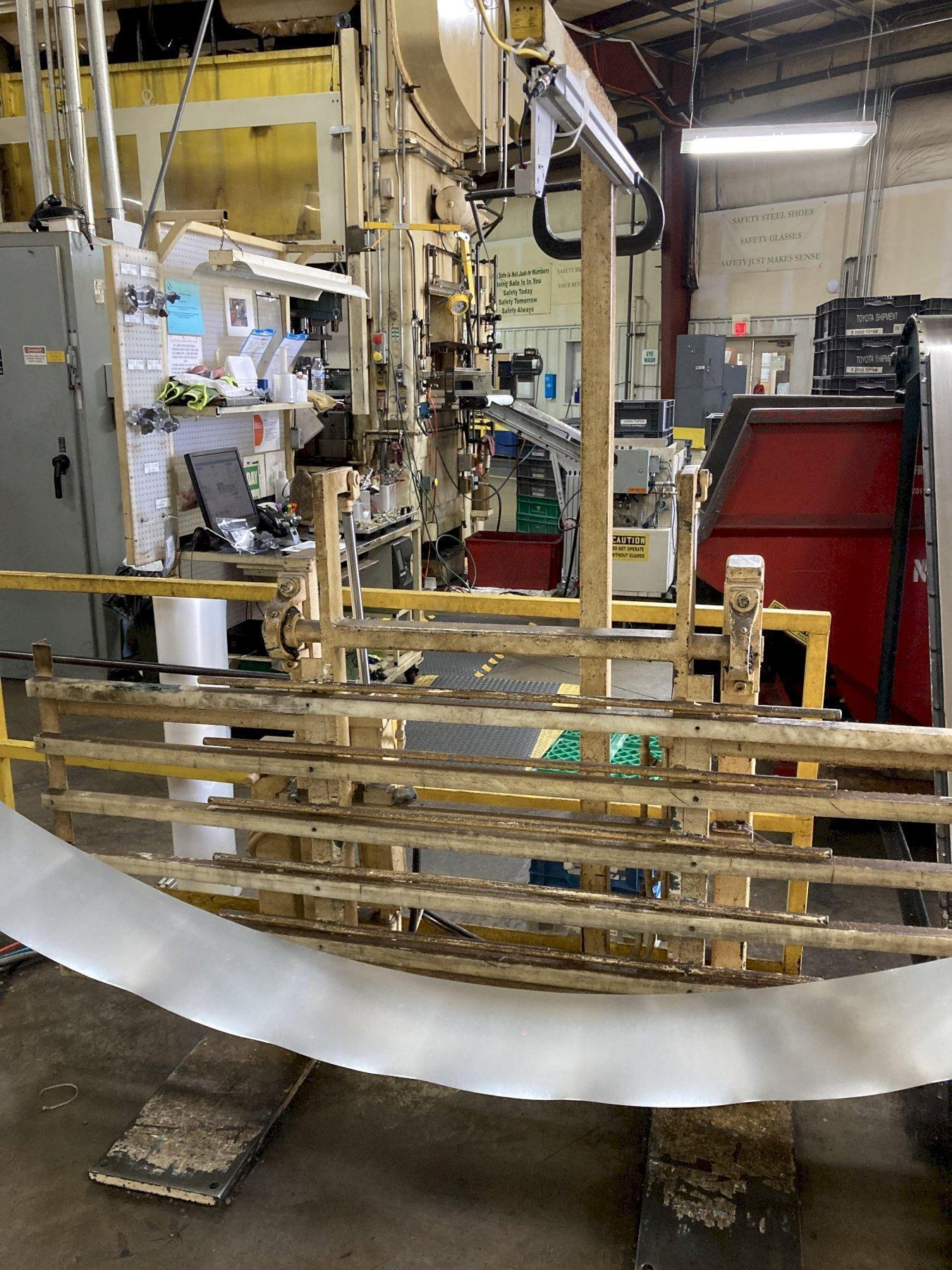

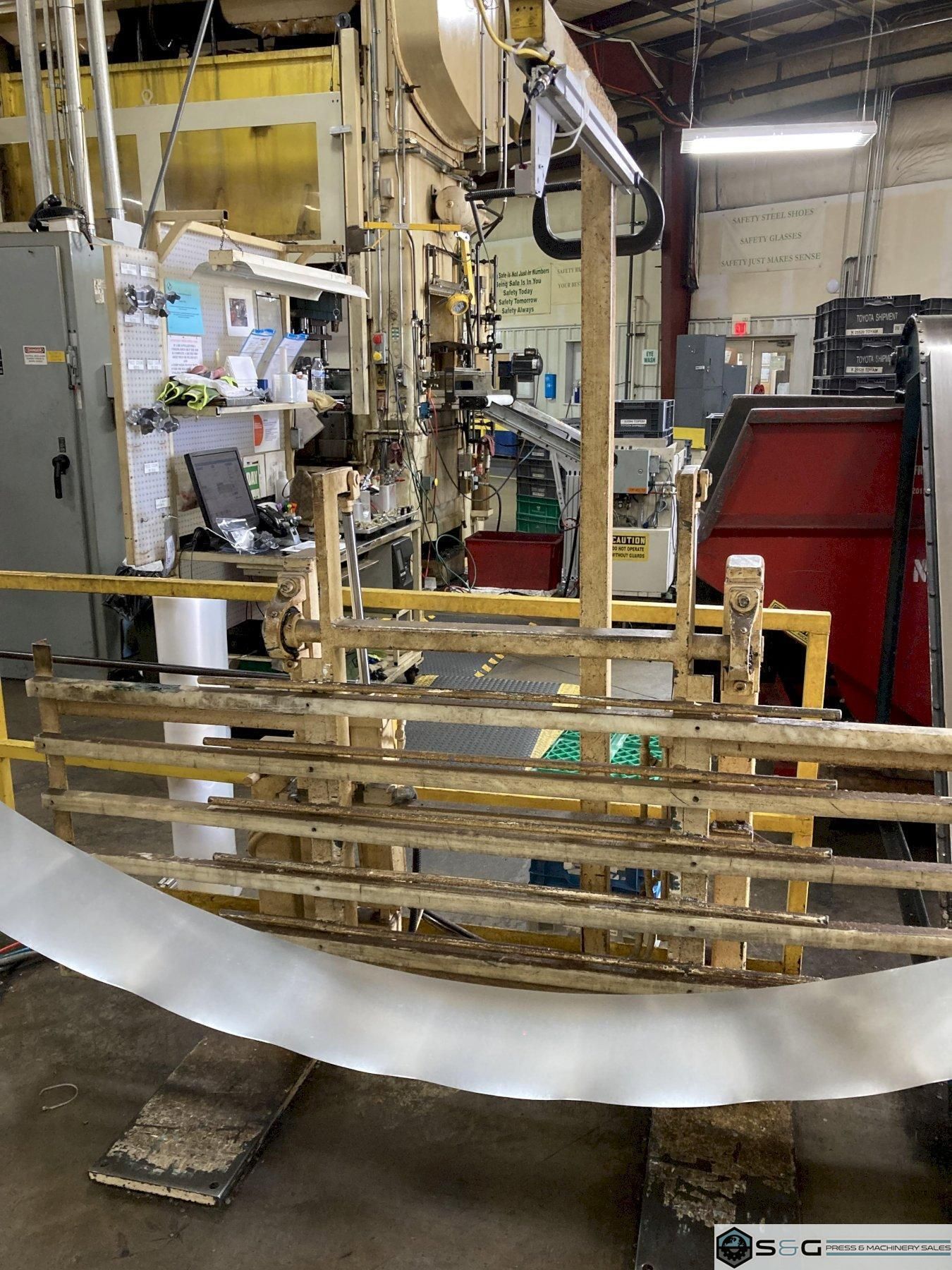

Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations
Jog forward and reverse

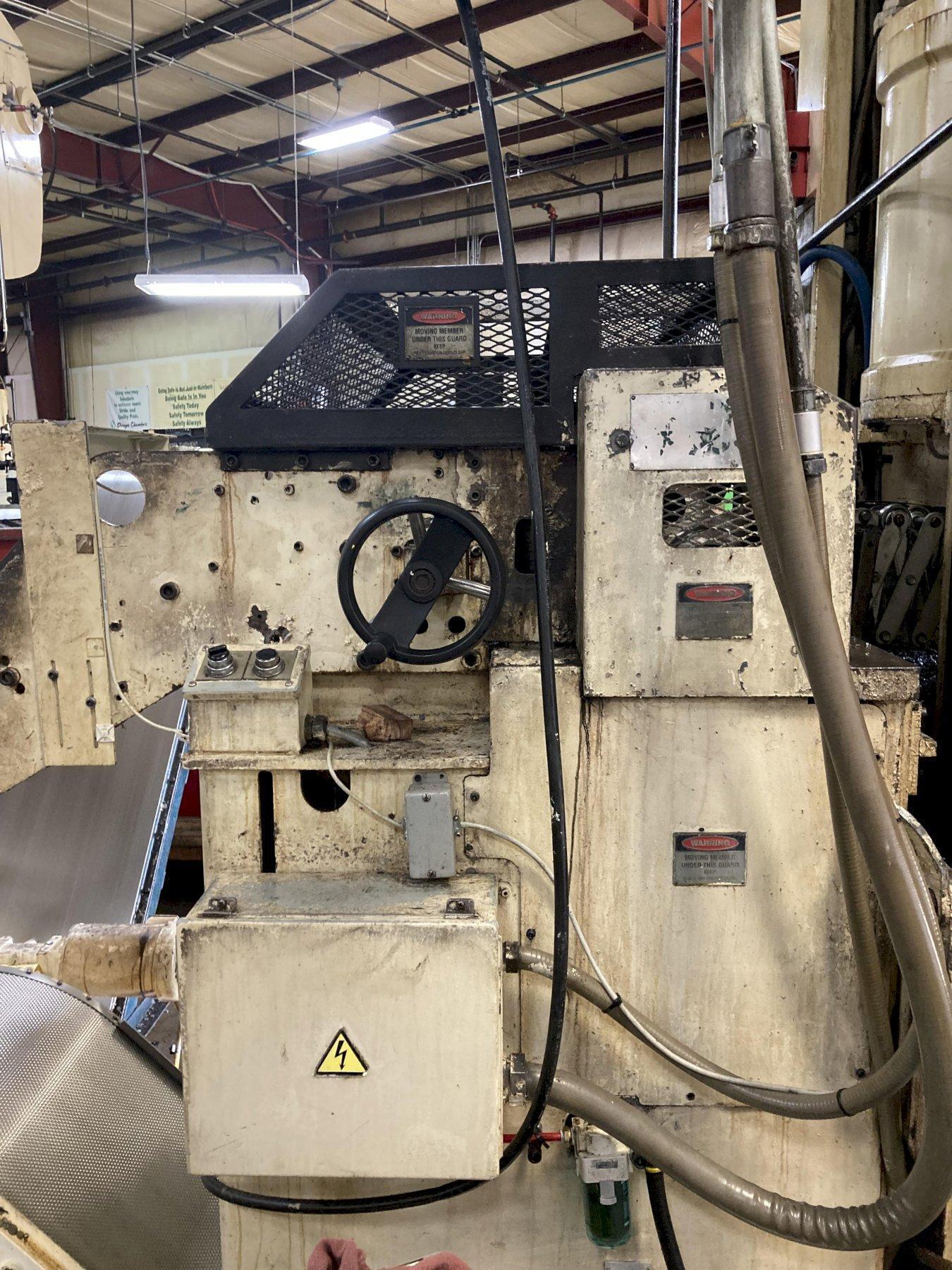

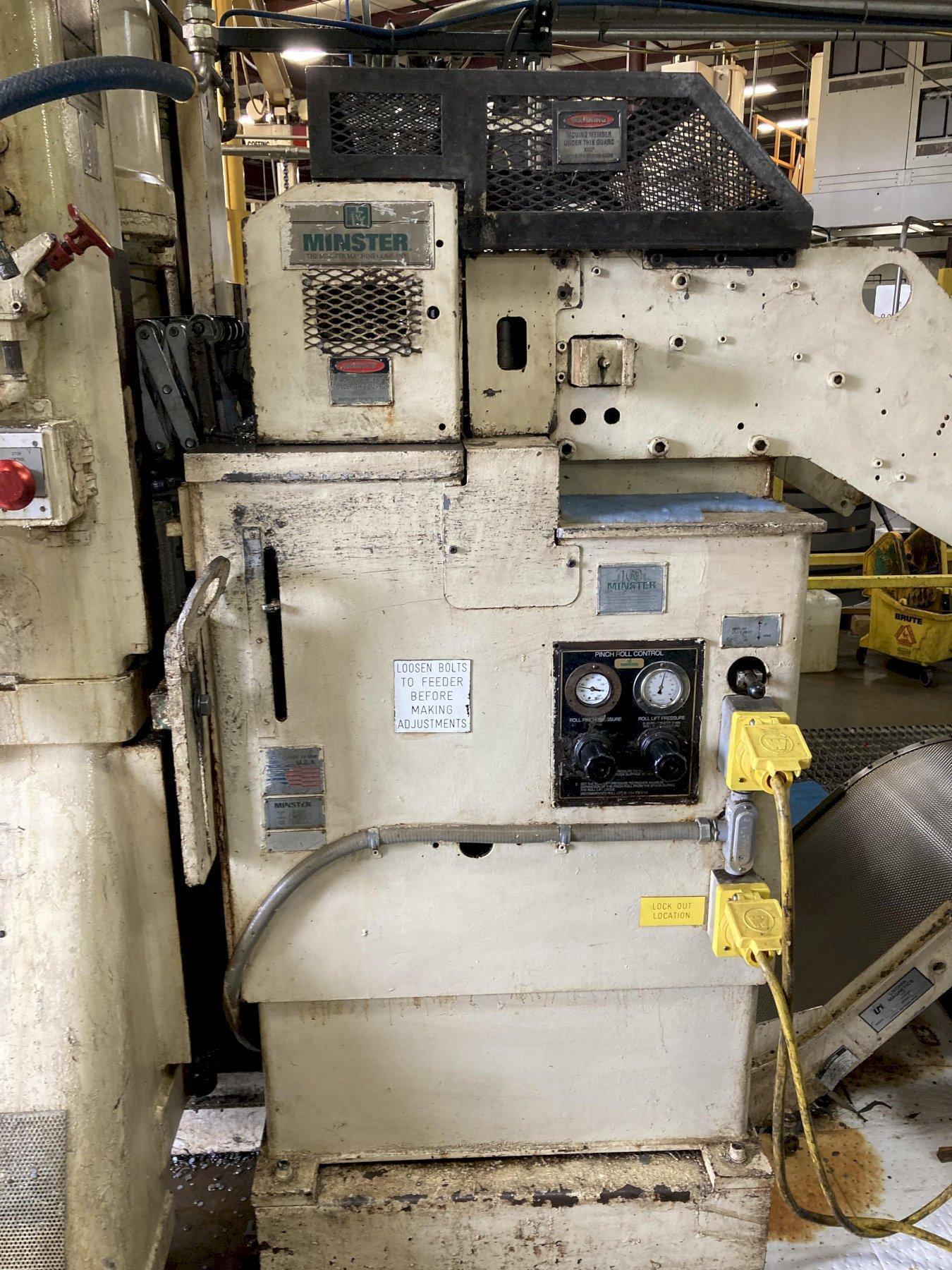

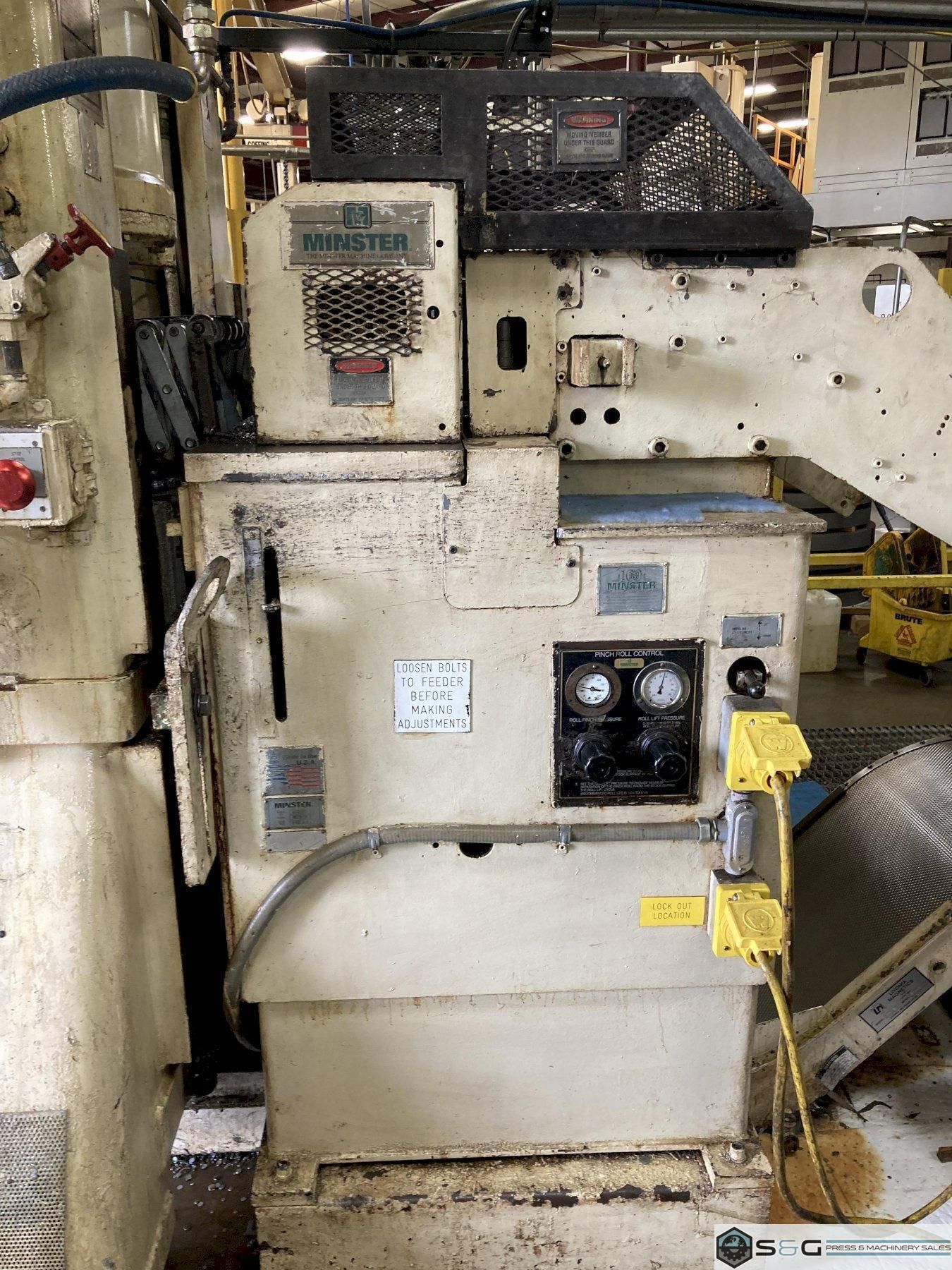

MINSTER Servo Roll Feed Model MEF-526
Five inch diameter upper and lower feed rolls
Piloting upper feed roll (pneumatically actuated)
Hand crank adjustable stock width edge guides
Entry cascade loop support rollers
Cabinet base mounted with adjustable pass line
Motorized pass line adjustment
Servo drive and controls

Attached:  See a Minster Line Layout Drawing

This 10,000 lbs. x 26" Minster Coil Feed Line Can Be Seen Under Power in the S&G Press Livonia Michigan Warehouse.
