10,000 lbs x 30" Littell Coil Reel #90 and 30" Littell Powered Straightener

Brand

LITTELL

Model

#90 and 430-7PDL

Year

None

Stock #

2819

Condition

Used

Specifications

Coil Weight

10000 pounds

Coil Width

30 inches

Coil Thickness

.060 inches

Standard Specifications:

10,000 lbs Max Coil Weight Capacity
36" Stock width capacity
.060" x 30" Wide Stock thickness capacity
.156" x 12" Wide Maximum Stock thickness capacity:
20" - 24" Expansion range:
72" Coil O.D. capacity

Littell Coil Reel and Powered Straightener Features:

Littell Pull Off Coil Reel Un-coiler, Model No.: 90-30,
Four leaf mandrel with hydraulic expansion
Adjustable coil keeper arms
Air brake mounted on main spindle
Adjustable pull off tensioning
Threading drive for jog forward and reverse
Self contained hydraulic unit

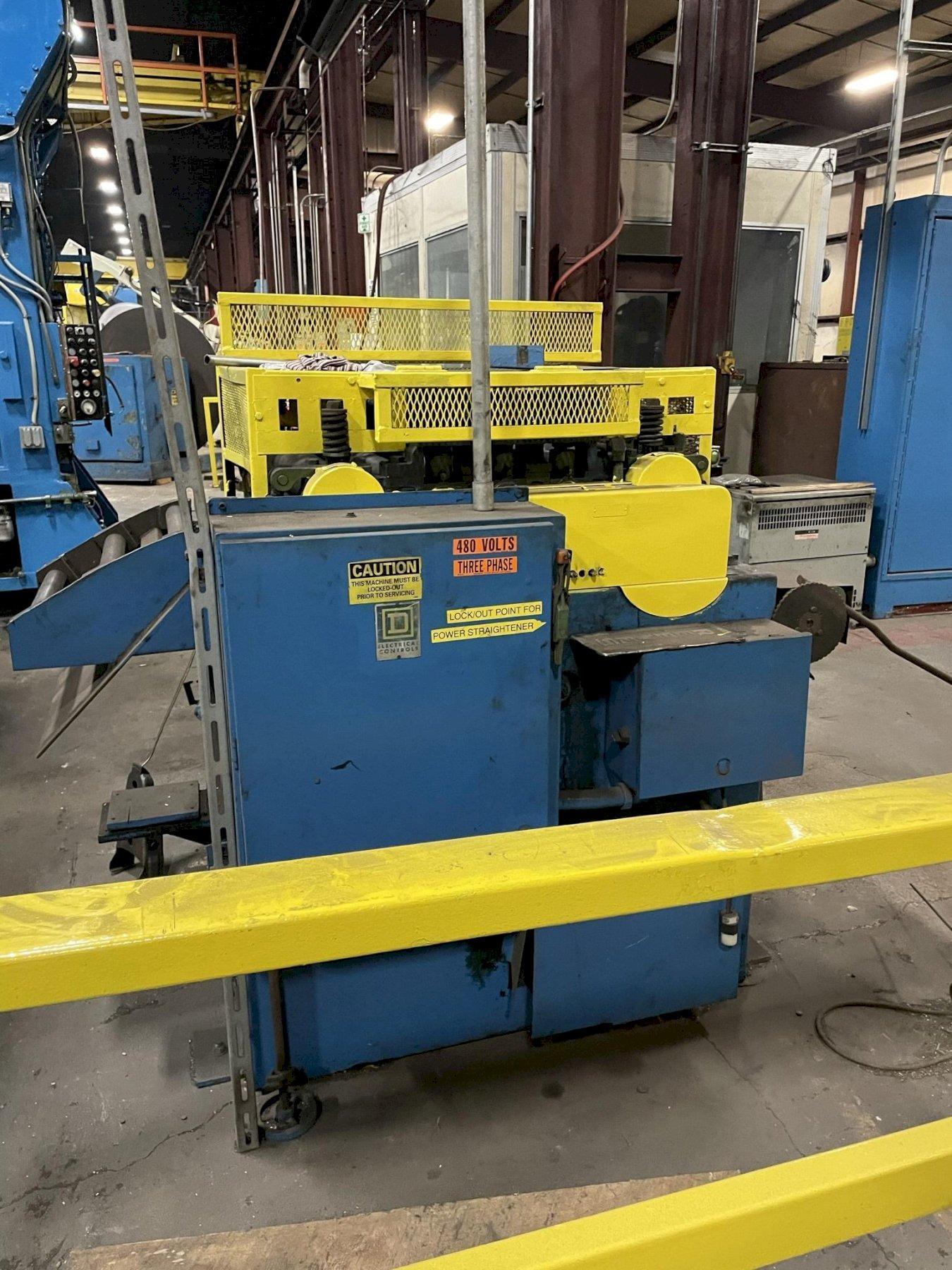

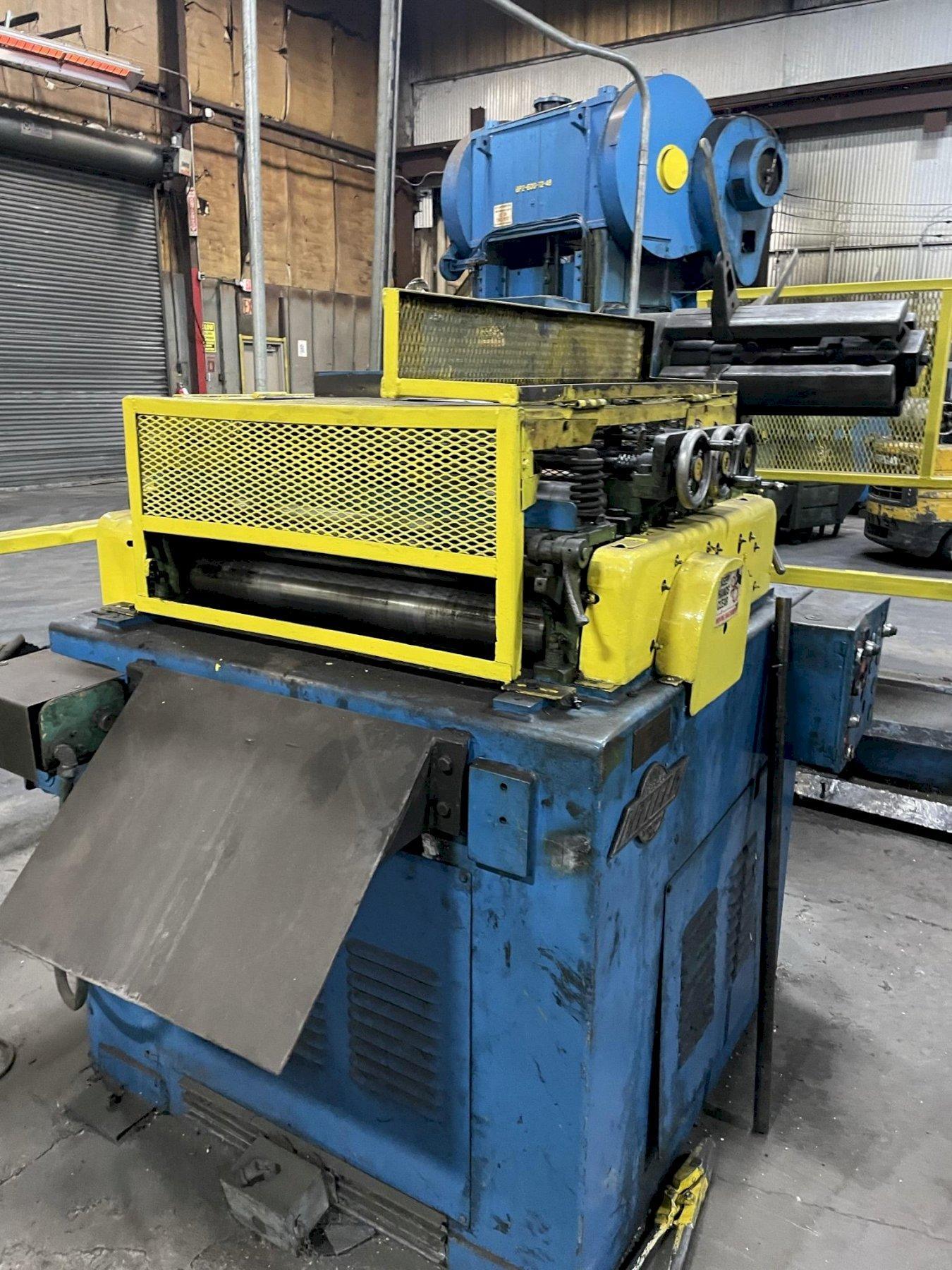

Littell Powered Coil Straightener Model No. 432D-7PD
Entry and exit powered coil straightener pinch rolls with manual adjustment
Seven powered coil straightening rolls
Motorized individual or unison upper powered coil straightener roll adjustments
Air operated coil hold down arm with motorized cat track
Adjustable stock width edge guides
Exit cascade loop support rollers
Lubrication system
Variable speed
Remote hand held pendant control for jog forward and reverse
Auto/Run cycle

Can be purchased as individual pieces or as combination Reel and Straightener.  Ask your salesperson for individual pricing!
