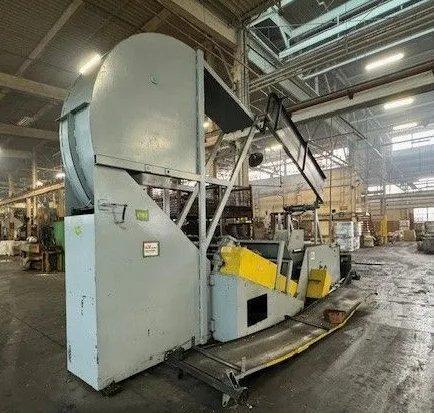

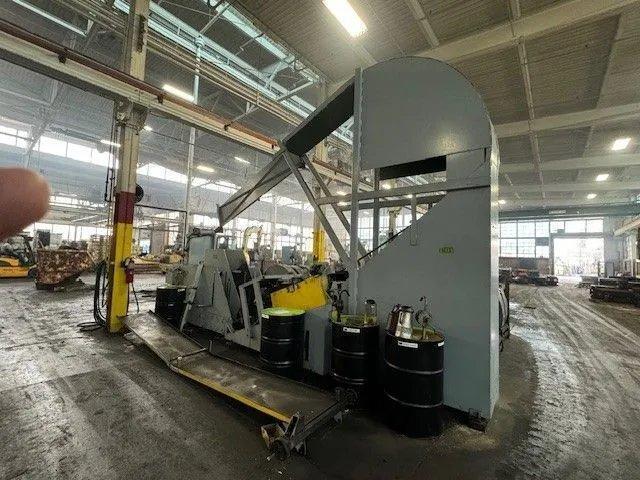

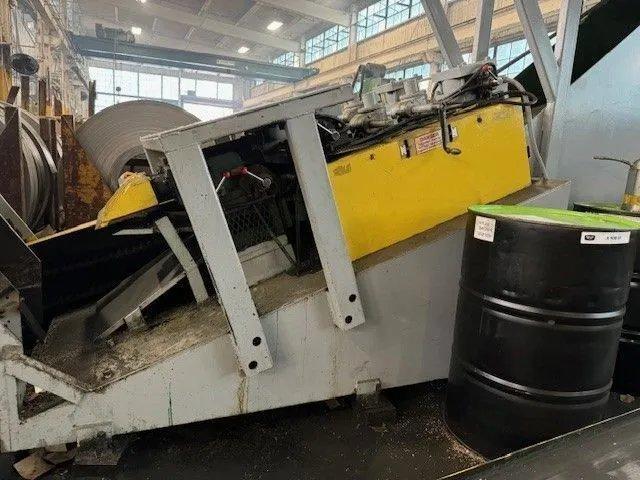

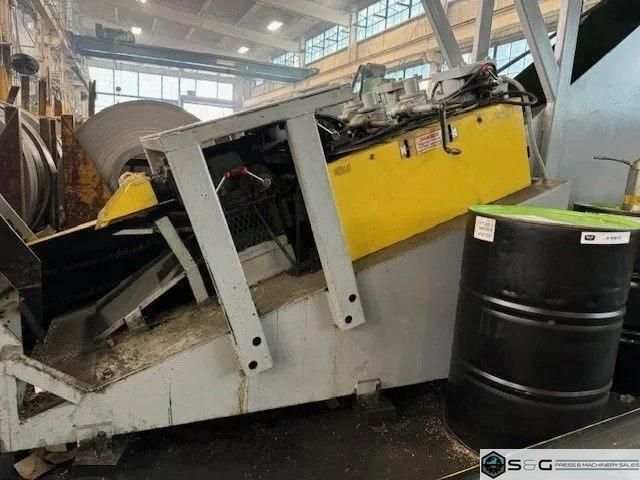

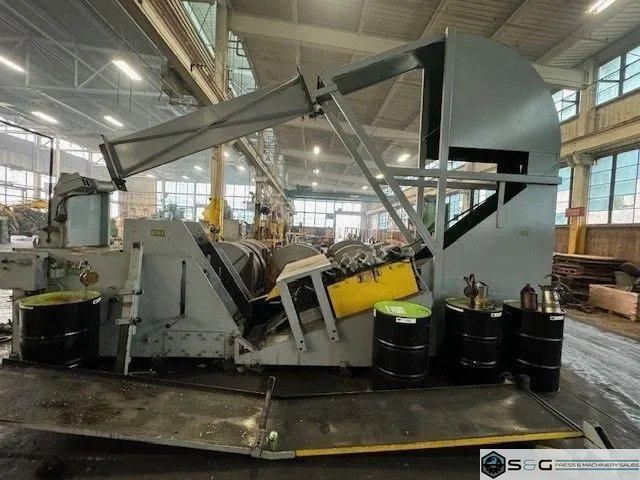

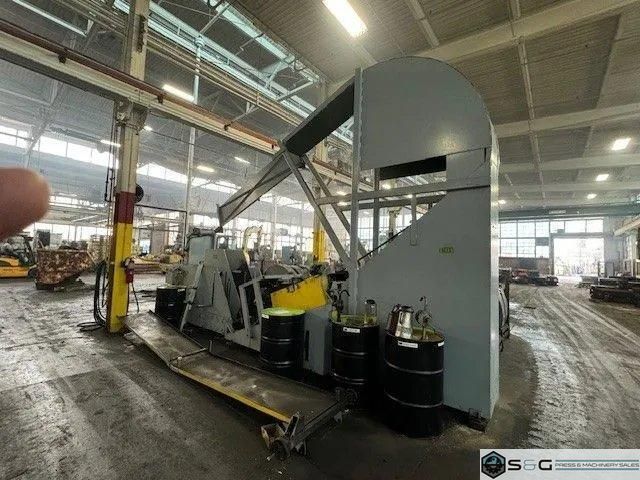

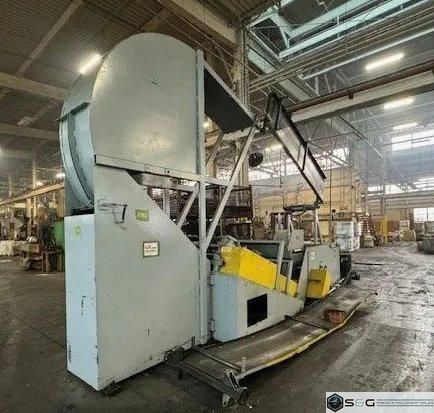

12,000 lbs. x 18" x .375" Coe Press Equipment Coil Cradle Straightener, Heavy-Duty Model # CPCC-12018 and CPPS-500-18

Serial Number - D111448

12,000 lbs. Maximum Coil Weight

18" Maximum Coil Width

72" Maximum Coil O.D.
.312" Maximum Stock Thickness @ 18" Width

.375" Maximum Stock Thickness @ 12" Width

Right To Left Feed Direction



Equipment and Features

(5) 5" Diameter Straightening Rolls

Air Operated Entrance Threading Roll - 6" Bore Cylinders
Air Operated Exit Threading Roll - 8" Bore Cylinder

6" Diameter Nest Rolls with 3" Journals

Heavy Duty Design 5" Bore Air Operated Stock Peeler

3" Thick Adjustable Side Plates with Rolls

Central Lubrication System

14' Material Deflector

15 H.P. Variable Speed Drive

Jog, Forward and Reverse

Remote Pendant Jog Control

Air Operated Material Ramp and Extension Model CPMD-12018
Independently Adjustable Inside Plates - 60" High

15-45 FPM Pay Off Rate

Exit Vertical Edge Guides

Independently Adjustable Breaker Rolls

Loop Control Arm - Automatic Operation

Quoted Price includes:  Cleaning, Sanding and Painting to customer specification.



Can be seen under power in the S&G Press Livonia Warehouse!



Heavy Duty Coe Press Equipment Coil Cradle Straightener - Used Coil Feed Equipment For Sale

More Thick Capacity Coil Cradle Straighteners From S&G Press

Heavy Duty Coe Press Coil Cradle Straighteners excel in robust material handling. They offer superior straightening, reduced downtime, and enhanced precision for thick gauge coils. Their durable build increases production efficiency and ensures consistent, high-quality output in demanding manufacturing environments.  Reverse Loop Coil Cradle Straighteners aid in safe processing of thick, high-strength materials.
