12,000 lbs. x 24" x .375" Coe Press Equipment Coil Cradle Straightener, Heavy-Duty Model # CPCC-12024 and CPPS-500-24

Heavy Duty Coe Press Equipment Coil Cradle Straightener
Model CPCC-12024 & CPPS-500--24
Serial Number - D111448
12,000 lbs. Maximum Coil Weight
24" Maximum Coil Width
72" Maximum Coil O.D.
.375" Maximum Stock Thickness @ 24" Width
Right To Left Feed Direction

Equipment and Features

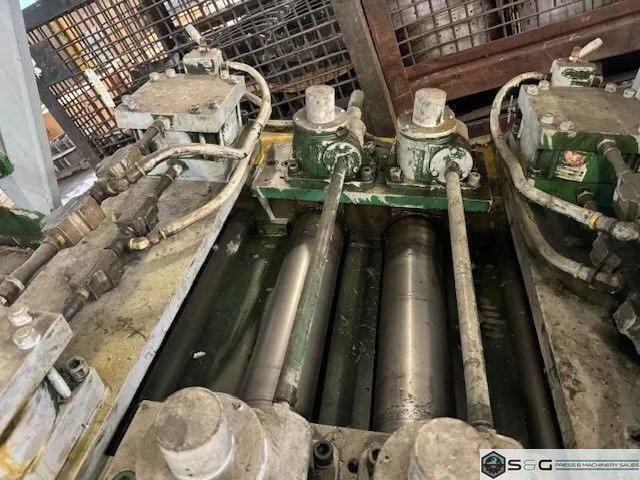

(5) 5" Diameter Straightening Rolls
Air Operated Entrance and Exit Threading Roll - 8" Bore Cylinders
6" Diameter Nest Rolls with 3" Journals
Heavy Duty Design 5" Bore Air Operated Stock Peeler
3" Thick Adjustable Side Plates with Rolls
Central Lubrication System
14' Material Deflector
20 H.P. Variable Speed Drive
Jog, Forward and Reverse
Remote Pendant Jog Control
Air Operated Material Ramp and Extension Model CPMD-12024
15-45 FPM Pay Off Rate
Exit Vertical Edge Guides
Independently Adjustable Breaker Rolls
Loop Control Arm - Automatic Operation

Can be seen under power in the S&G Press Livonia Warehouse!
