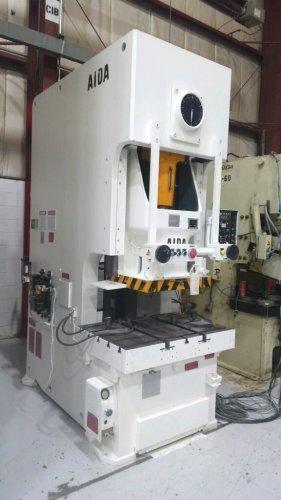

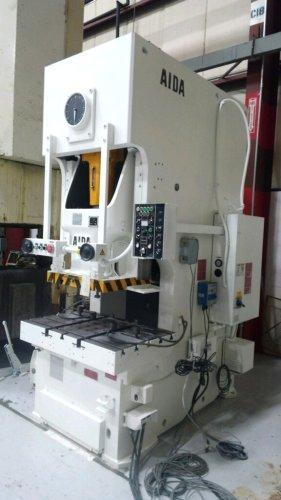

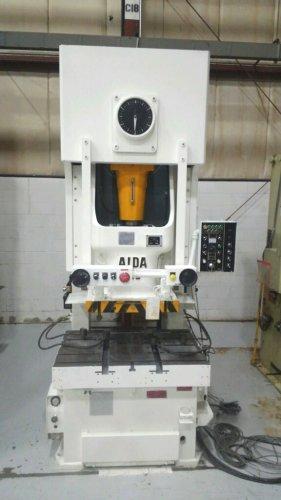

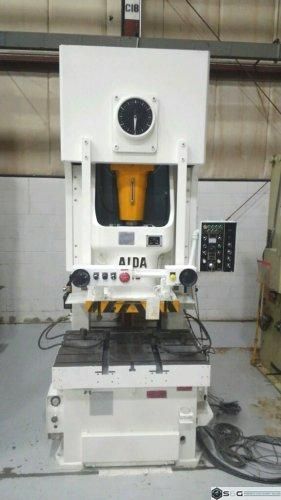

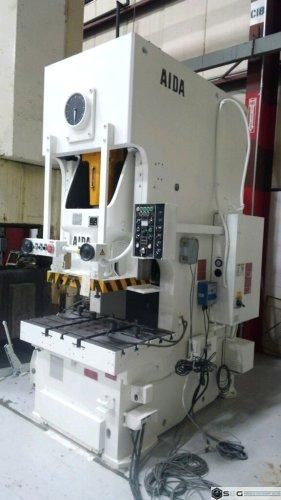

150 Ton AIDA NC1-150(2) OBS Press

Brand

AIDA PRESSES

Model

NC1-150(2)

Year

1996

Stock #

2529

Condition

Used

Specifications

Tonnage

150

Stroke

7.87 inches

Shut Height

19.67 inches

Adjustment

3.93 inches

Bed Size

48" LR x 28.8" FB

Ram Area

48" LR x 28.8" FB

SPM

30 - 55 VSPM


Standards Specifications
150 ton Metric Capacity
165 US Ton Capacity
7.87" Stroke
15.74" Die Height (Over Bolster)
3.93" Motorized Adjustment
48" LR x 28.8" FB Bed Area
48" LR x 28.8" FB Slide Area
30-55 VSPM

Equipment and Features
Aida Wet Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Hydraulic Overloads
AC Variable Frequency Drive
Quill mounted flywheel
Taper fit of main gear to crankshaft
Ball Socket Connection Configuration
Floor Standing
Overall Height:  10'3" Tall

Can be seen under power!
