15,000 lbs. x 24" Coe Press Equipment Coil Reel and Straightener For Sale, Model CPR-PO-15024 & CPPS-350

Standard Specifications
15,000 lbs. Maximum Coil Capacity
24" Maximum Coil Width
.156" x 24" Stock Thickness at Full Width
.250" x 18" Maximum Coil Thickness
72" Maximum Coil O.D.
19-24" I.D. Range

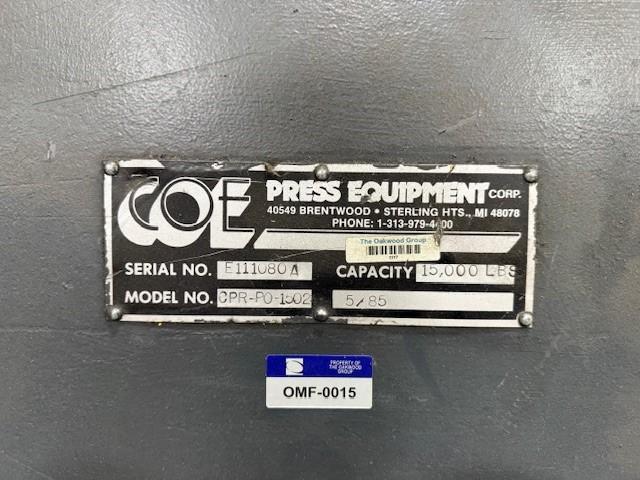

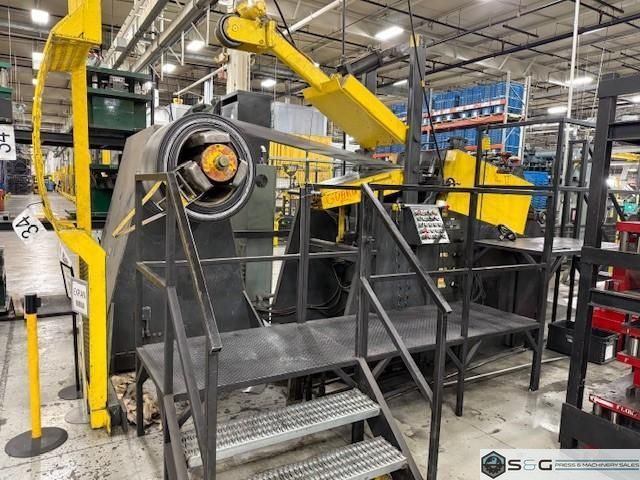

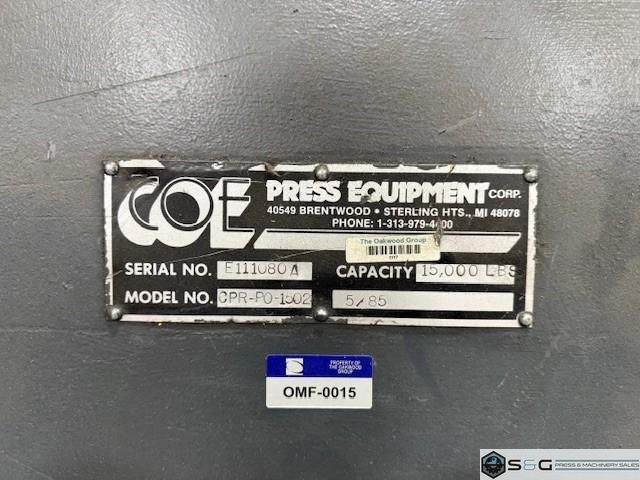

Coe Press Coil Reel Model # CPR-PO-15024
Three Leaf Mandrel Pads
Hydraulic Thread Drive
Hydraulic Mandrel Expansion
Adjustable Coil Guides
Coil Hold Down Arm with Motorized End Wheel
Air Brake Mounted on Main Spindle with Pressure Regulator
Threading Drive for Jog/Forward/ Reverse
Remote Jog Control on pendent
Self Contained Hydraulic Pump Unit

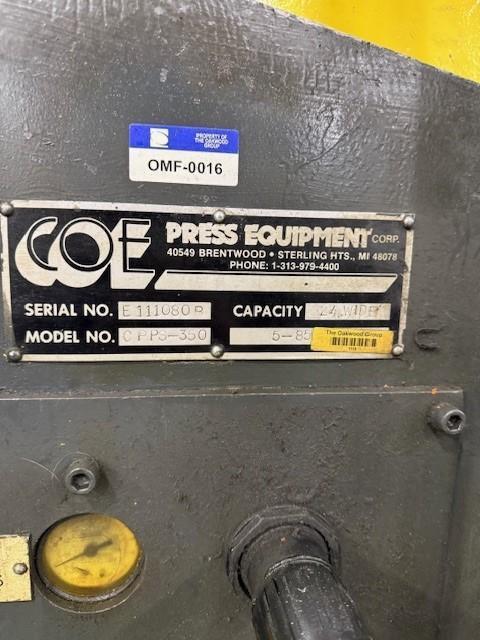

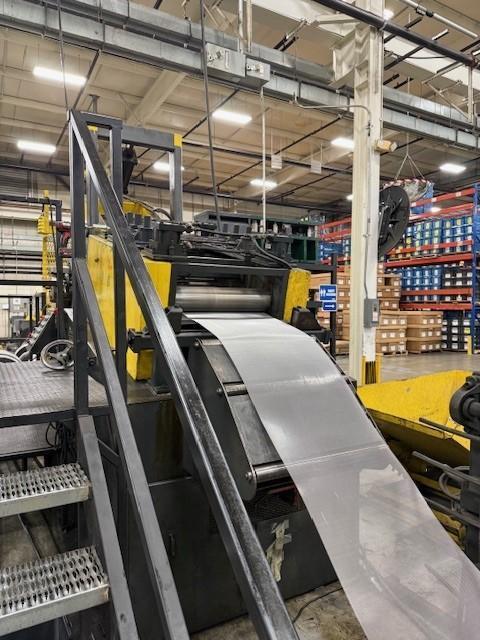

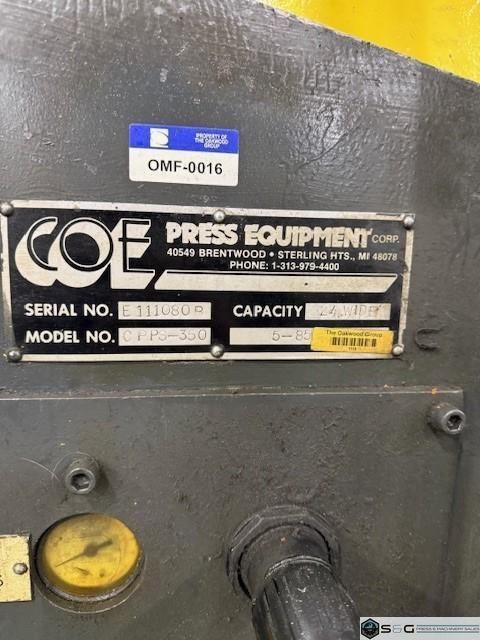

Coe Press Powered Coil Straightener # CPPS-350-24
7 Straightening Rolls x 3.5" Diameter
Entry and Exit Pinch Rolls with Air Operated Upper Roll Adjustments
Independently Adjustable Breaker Rolls
- Raise and lower by 2 ton Jacks
Adjustable Stock Width Edge Guides
Automatic Lubrication System
Inclined Head with Exit Cascade Loop Support Rolls
Air Operated Stock Peeler - Threading - De-Bending Station
Air Operated Hold Down Arm
Motorized Neoprene End Wheel
Air Operated peeler table with Spade Extension
Auto / Run Cycle
Loop Controls

Available to be seen under power in the S&G Press Livonia Michigan Warehouse.

This Coe Press Equipment 24" Wide Coil Reel and Straightener system offers robust capabilities for metal coil processing. The Coe Press Equipment CPR-PO-15024 coil reel boasts a 15,000 lbs. capacity, accommodating coils up to 24" wide and 72" in outer diameter, with a 19-24" inner diameter range. Its hydraulic thread drive, mandrel expansion, and motorized hold-down arm ensure smooth and controlled coil handling, while adjustable coil guides and an air brake enhance operational safety and precision. A remote jog control and self-contained hydraulic unit further streamline operation.

Complementing the reel is the Coe Press CPPS-350-24 powered coil straightener, capable of processing material up to .156" thick at full width or .250" thick for 18" wide stock. Featuring seven 3.5" diameter straightening rolls, air-operated pinch rolls, and independently adjustable breaker rolls, it ensures excellent material flatness. The system includes an automatic lubrication system, adjustable edge guides, and an inclined head with exit cascade loop support for efficient material flow. An air-operated stock peeler, threading/de-bending station, and motorized neoprene end wheel facilitate seamless coil threading, making this a comprehensive and automated solution for demanding coil applications.
