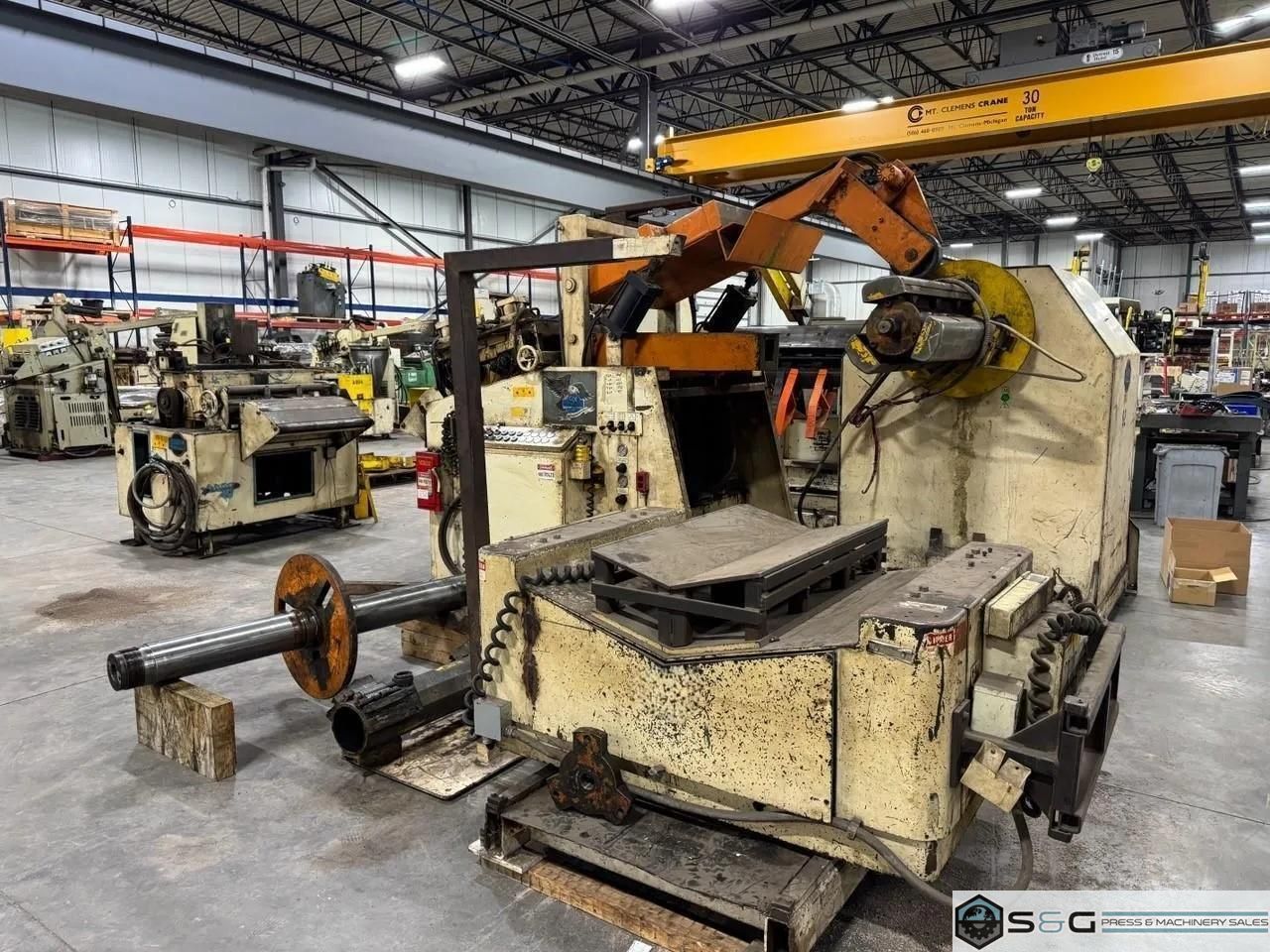

COE CPR4-36 / CPPS-350-36-PO / CPR-15036
None
3012
Used
Specifications |
|||
|---|---|---|---|
| Coil Weight | 15000 pounds |
||
| Coil Width | 36 inches |
||
| Coil Thickness | .090 inches |
||
|
Coe Press Equipment Coil Feed Line Stock Width Capacity: 36 inches
Max Stock Thickness Capacity At Full Width: .090 inches
Stock Thickness Capacity: .090" x 36" Wide
Stock Thickness Capacity: .187" x 12" Wide

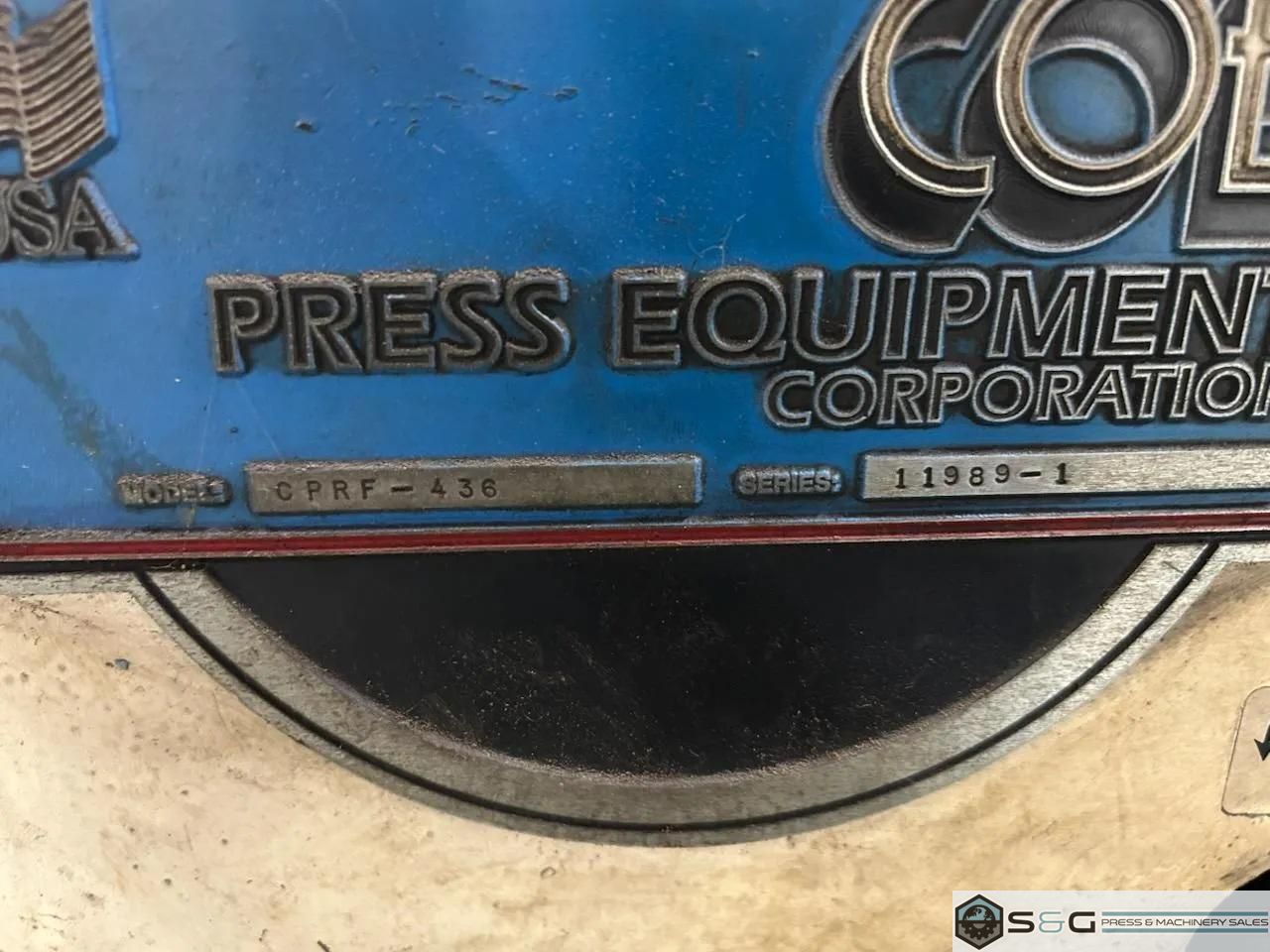

Coe Press Servo Roll Feed Model No. CPRF-436
Four inch diameter upper and lower feed rolls
Piloting upper feed roll
Adjustable stock width edge guides
Entry cascade loop support rollers
Cabinet base mounted with adjustable pass line

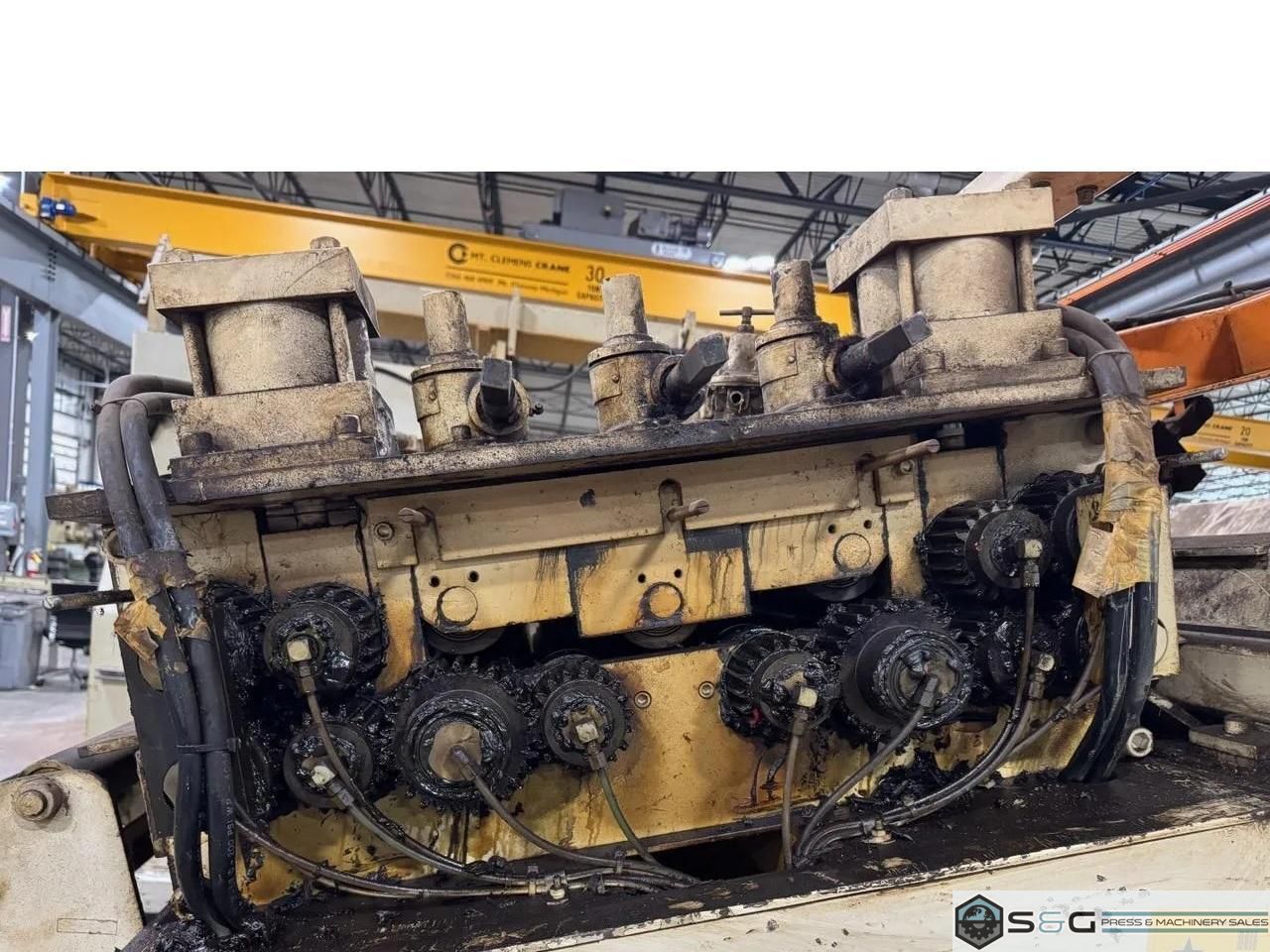

Coe Press Powered Coil Straightener Model No. CPPS-350-36-PO
Seven straightening rolls x 3.5" diameter rolls
Entry and exit pinch rolls
Stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table
Adjustable edge guides

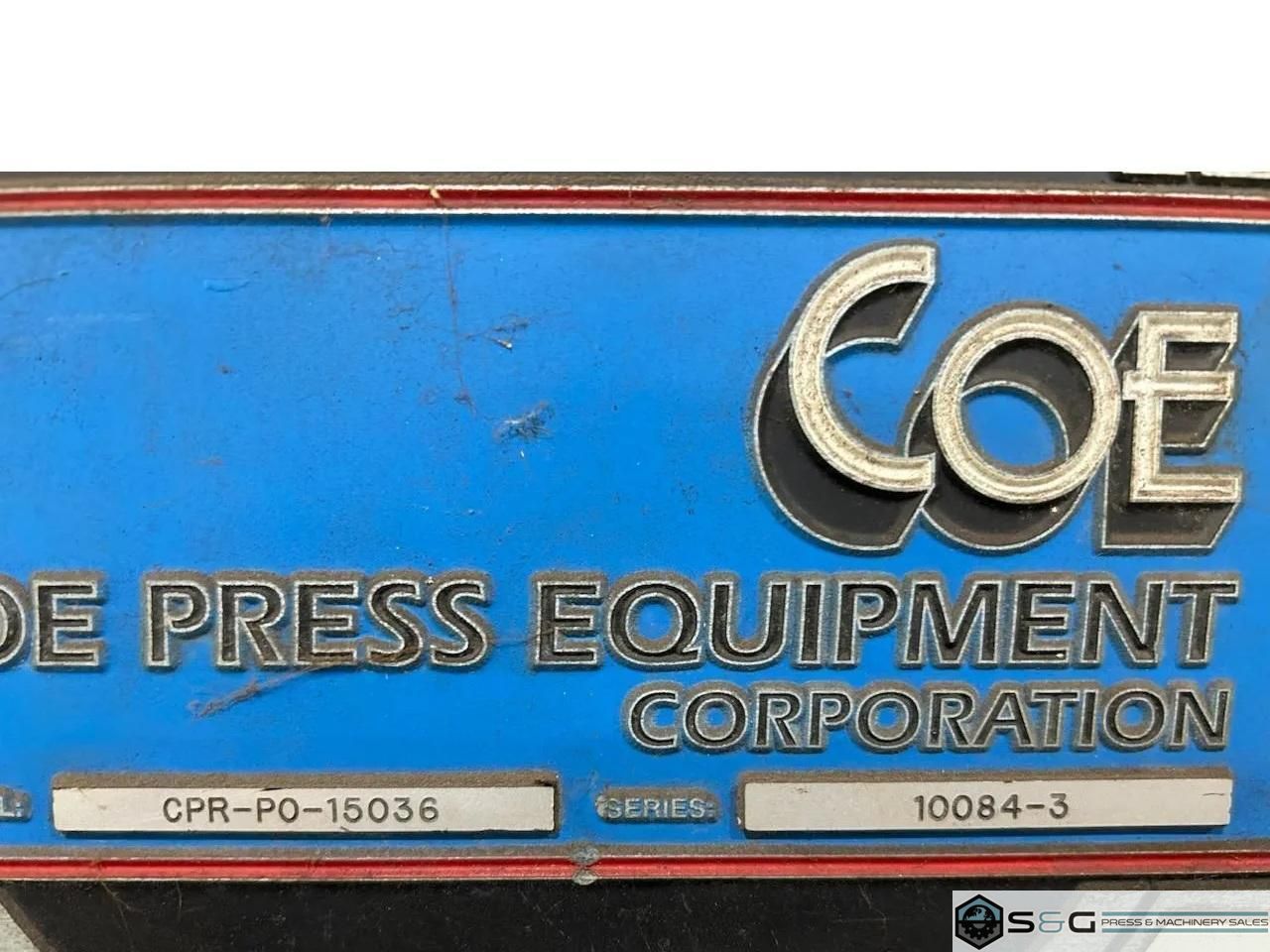

Coe Press Coil Reel Model No. CPR-150-36-PO
Three leaf mandrel
Hydraulic expansion
Jog drive
Air brake for tensioning
Traveling coil load car
Price Includes: The quoted price includes a completely new servo control system, custom-built, professionally installed, and fully tested by Coe Press Equipment to ensure seamless integration and performance. Reel and Straightener: These units will undergo a comprehensive 100% cycling and mechanical validation process. The scope of work also includes thorough cleaning, precision sanding of the rolls, and professional painting to your specific color requirements. |
|||
Attachments |
||
|---|---|---|
|
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information. |
||
Machine Tags |
||
|---|---|---|
No tags were found on this machine. |
||
Highlights |
||
|---|---|---|
| - Efficient COE CPR4-36 Coil Feed Line - Precise COE CPPS-350-36-PO Coil Straightener - Reliable COE CPR-15036 Servo Feed - Handles 15,000 lbs. coils effortlessly - Accommodates 36" coil width - Suitable for .090" coil thickness - Upgraded with new controls for enhanced performance - Ideal for metal stamping and fabrication applications |
||
