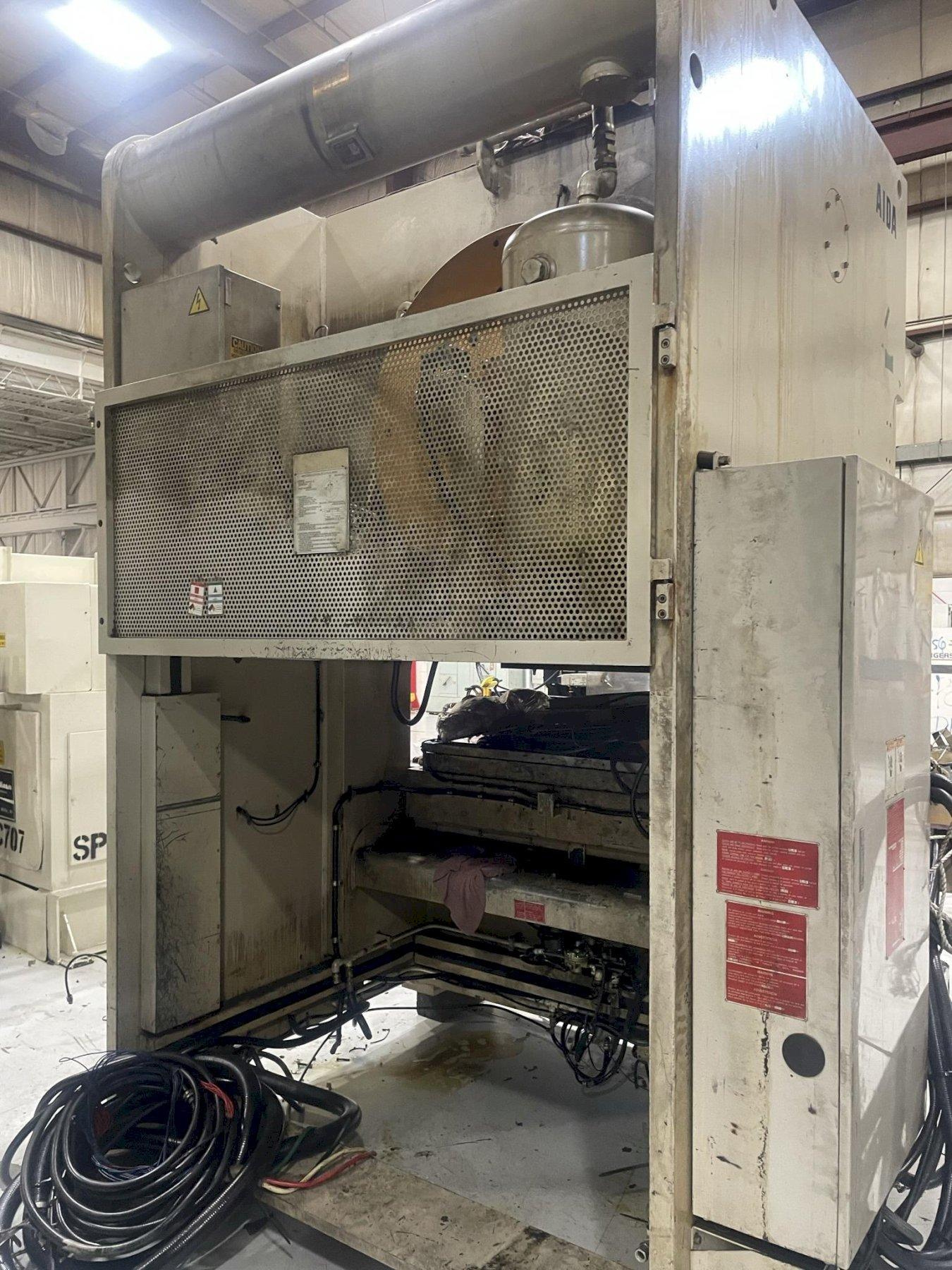

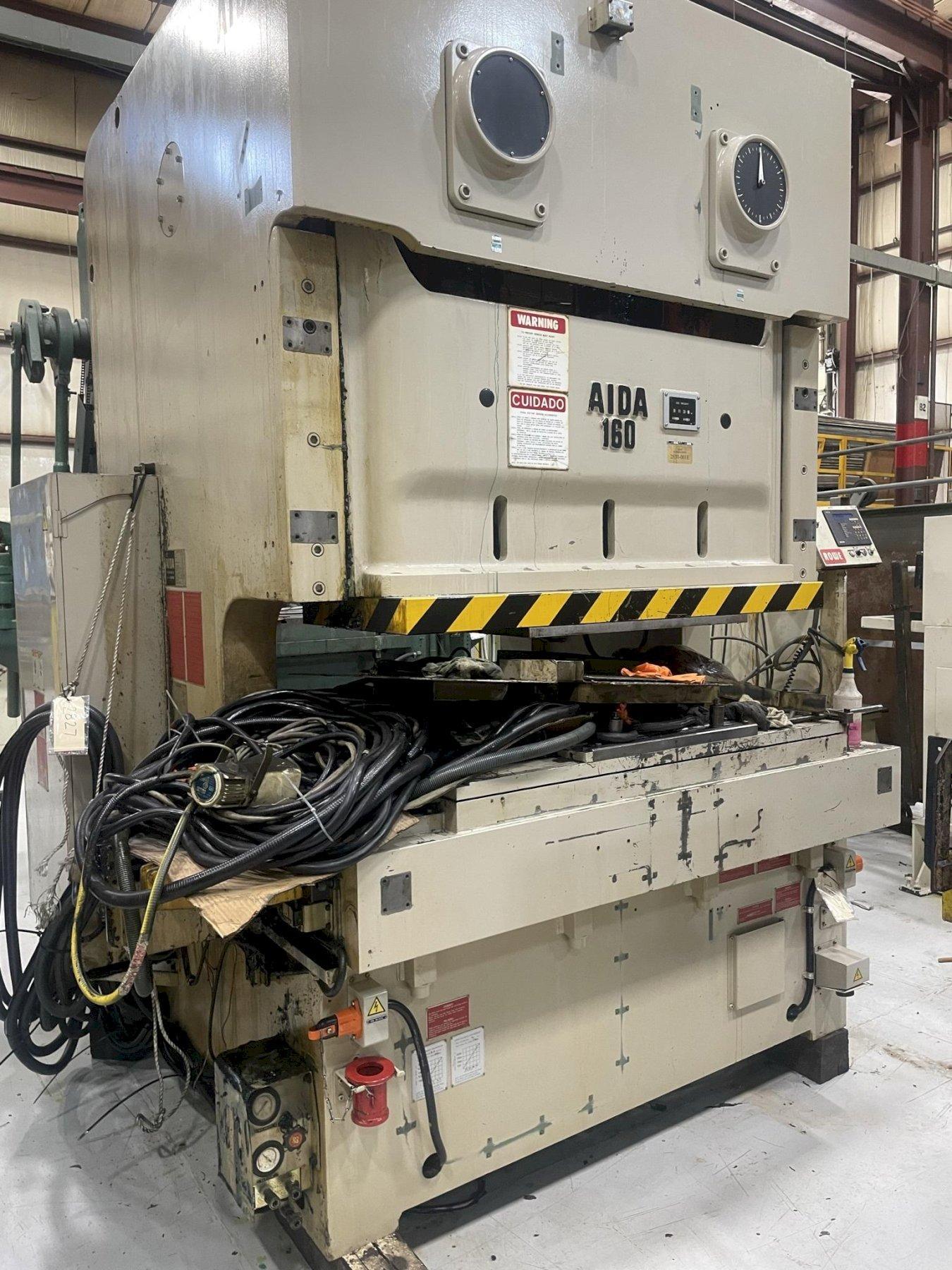

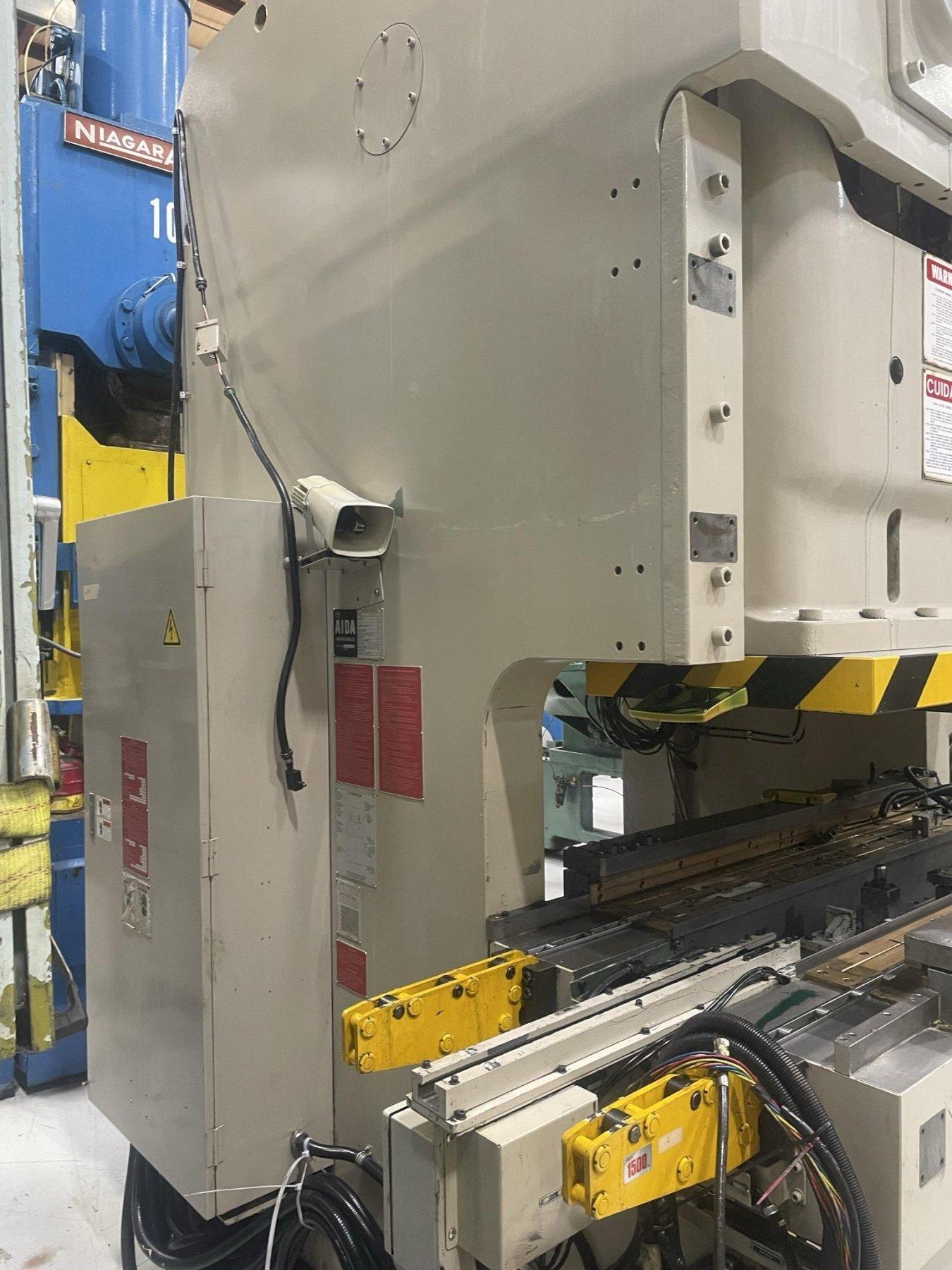

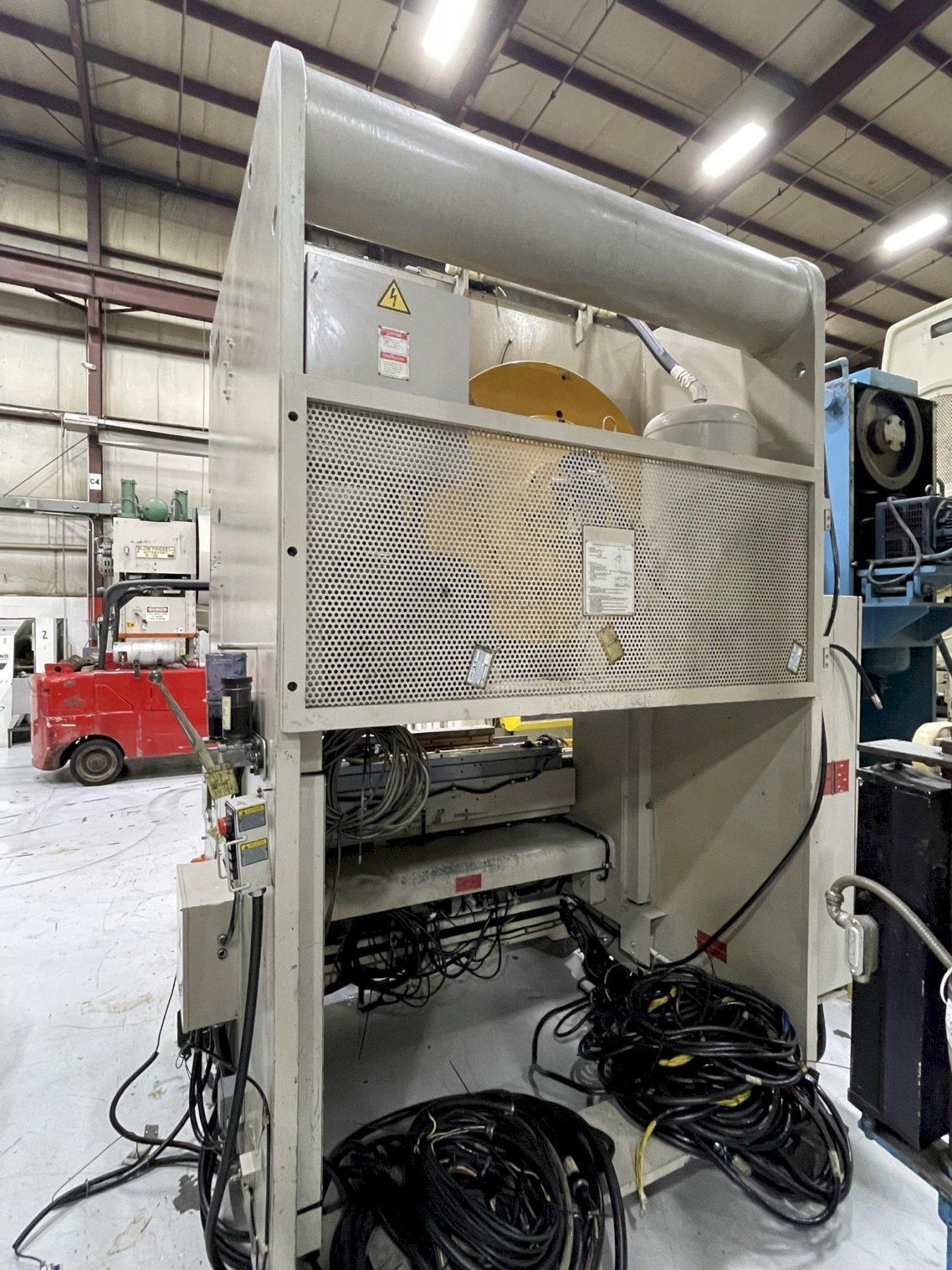

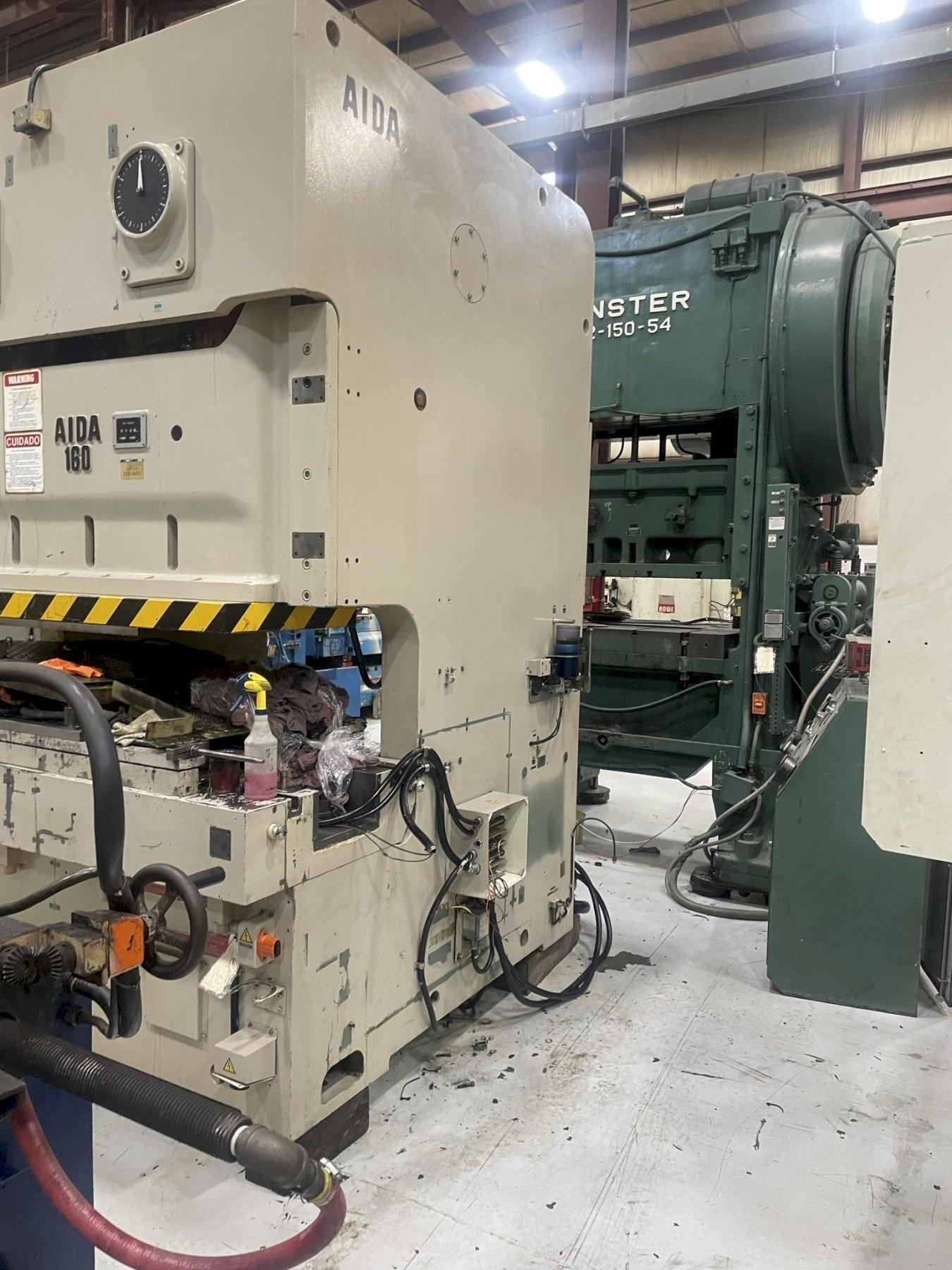

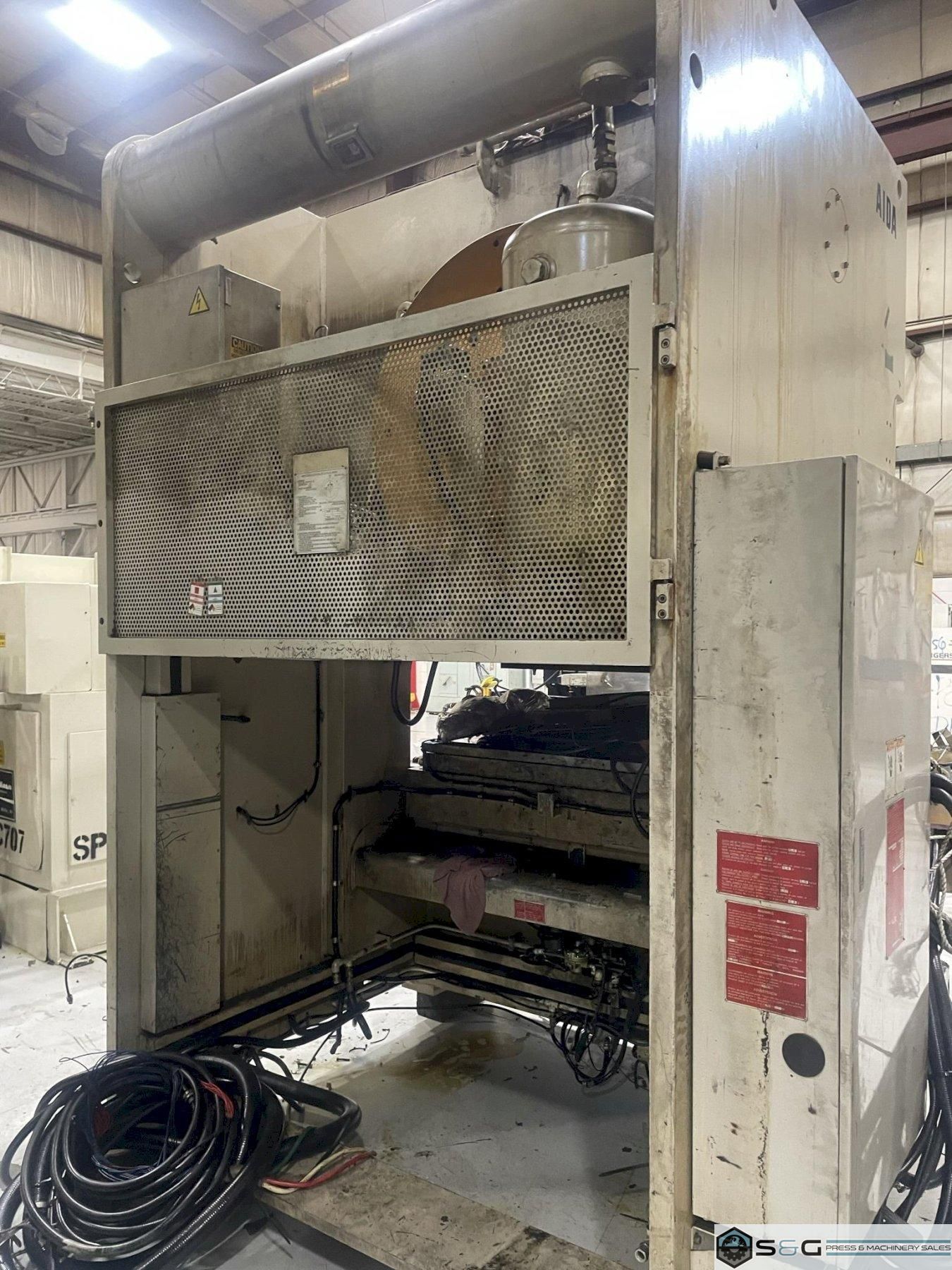

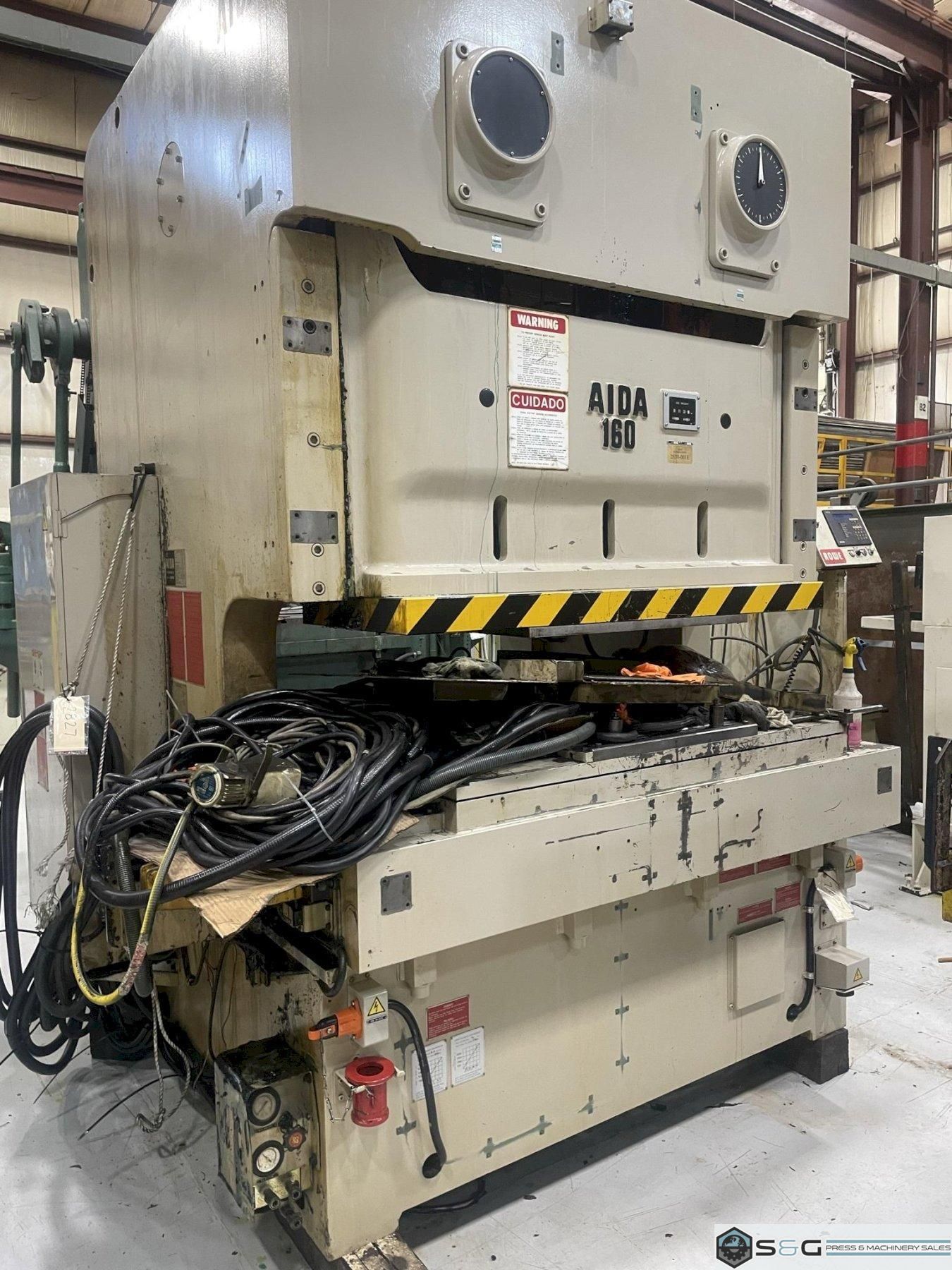

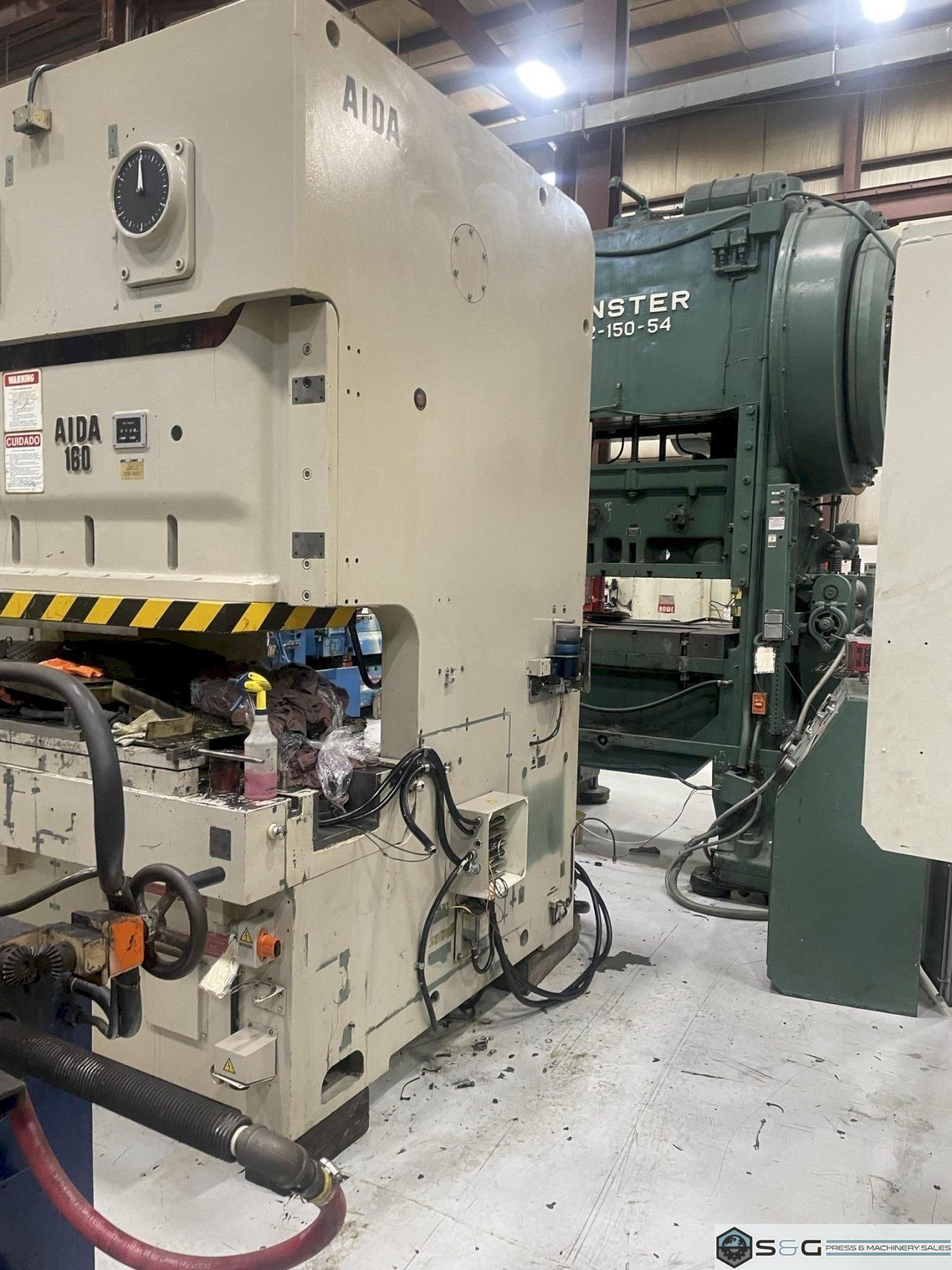

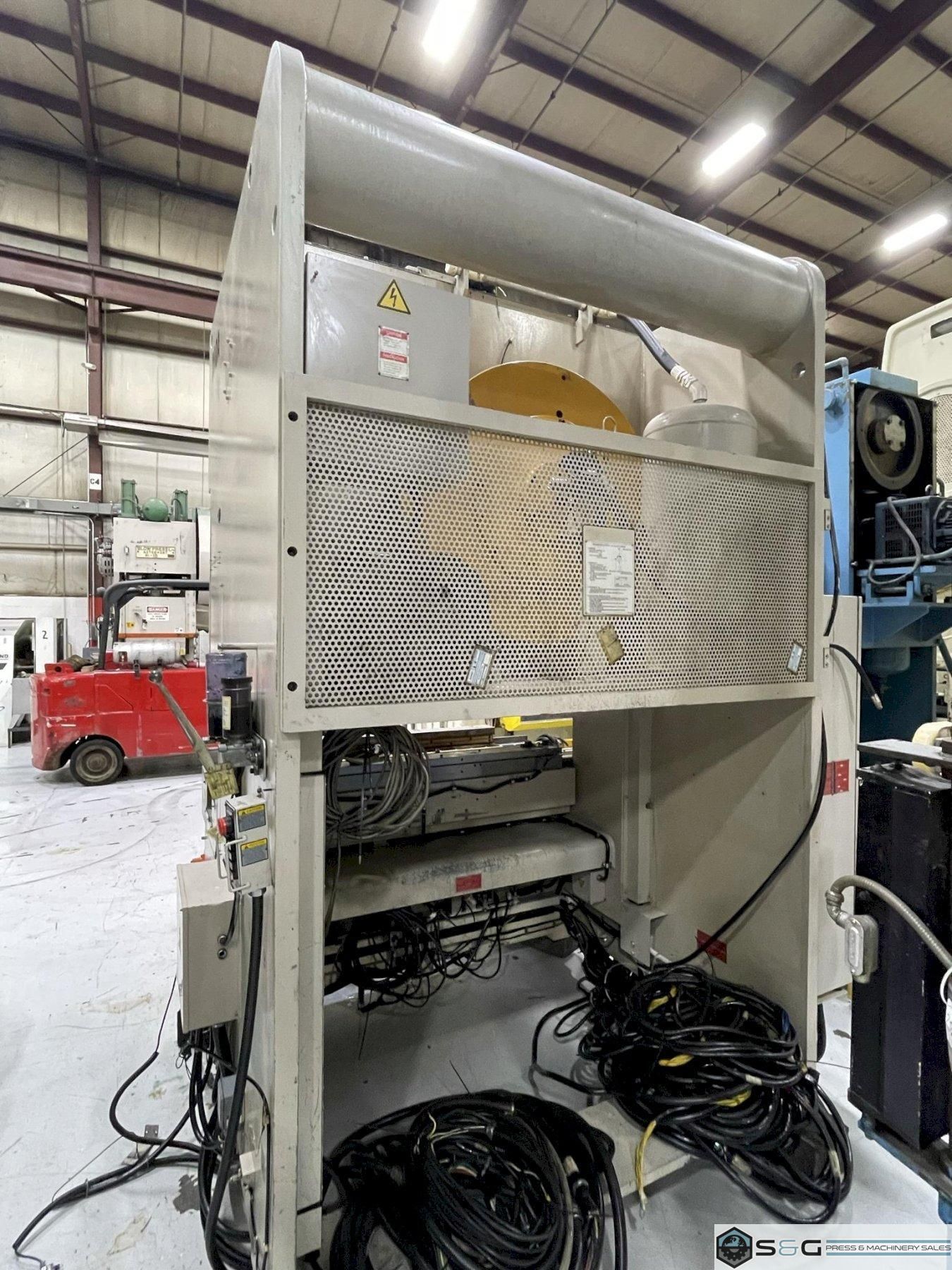

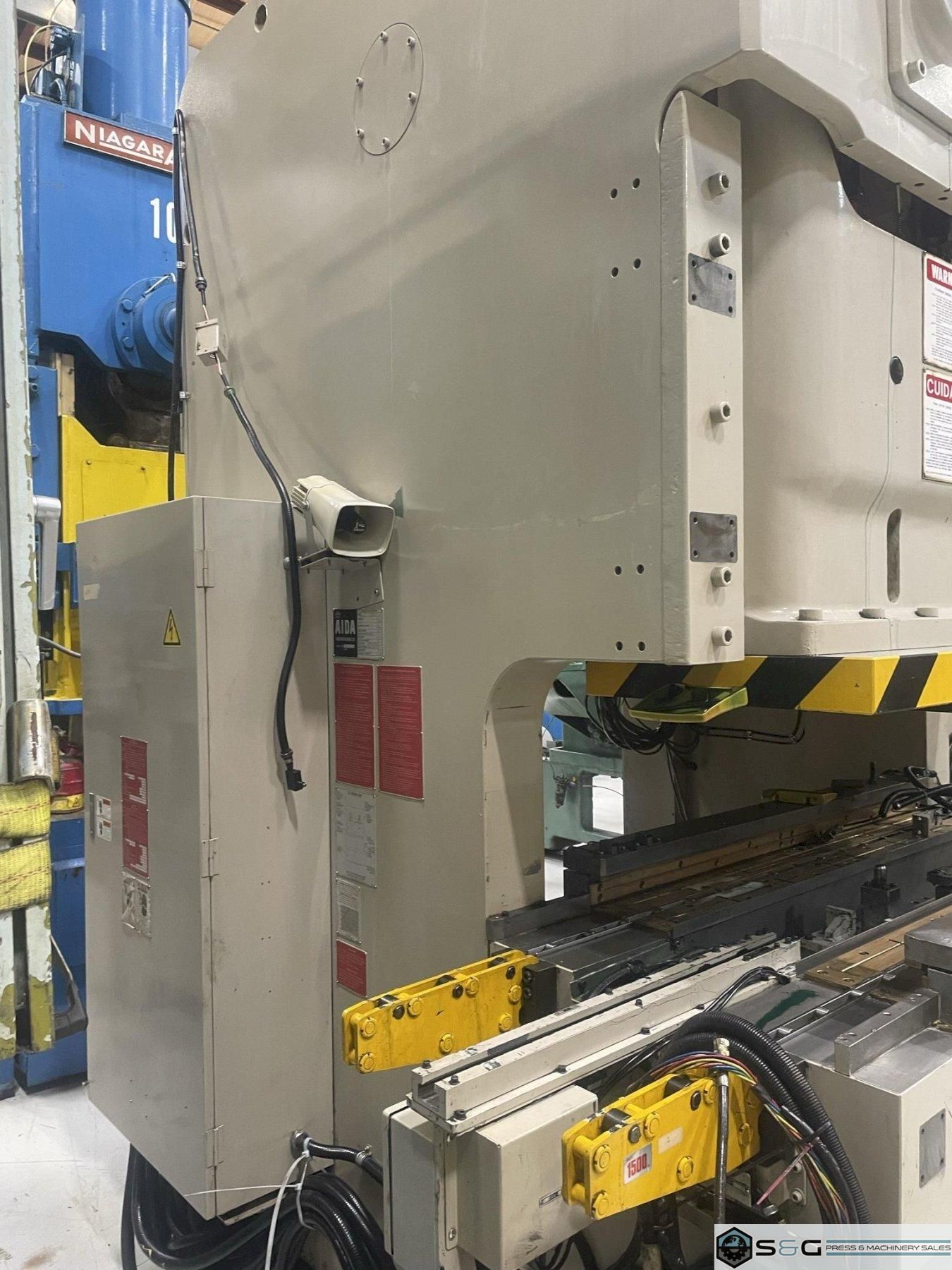

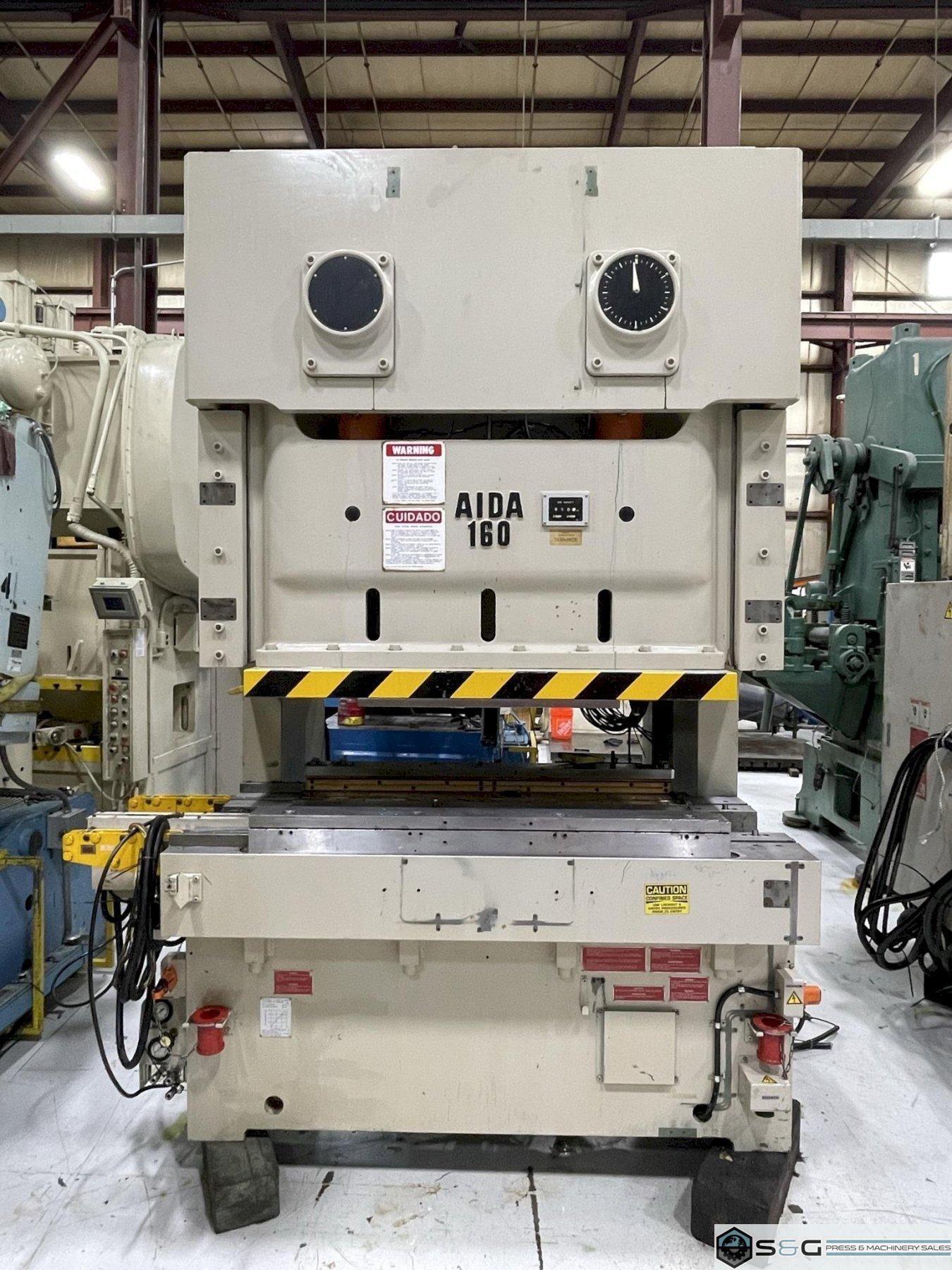

160 ton Aida (Metric) Used Metal Stamping Press Model# NC2-160 (1) Double Crank Gap Press For Sale, Year 1995

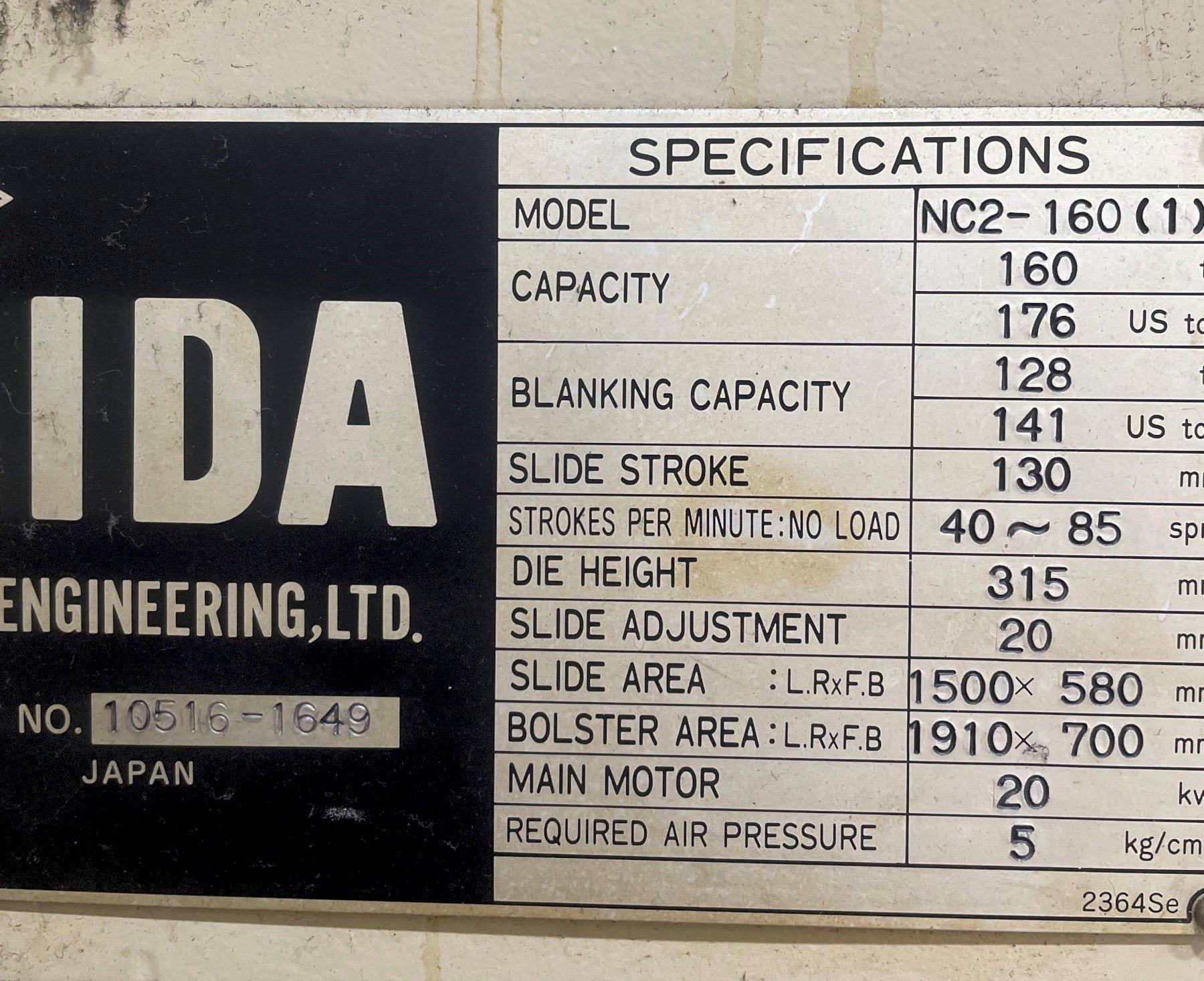

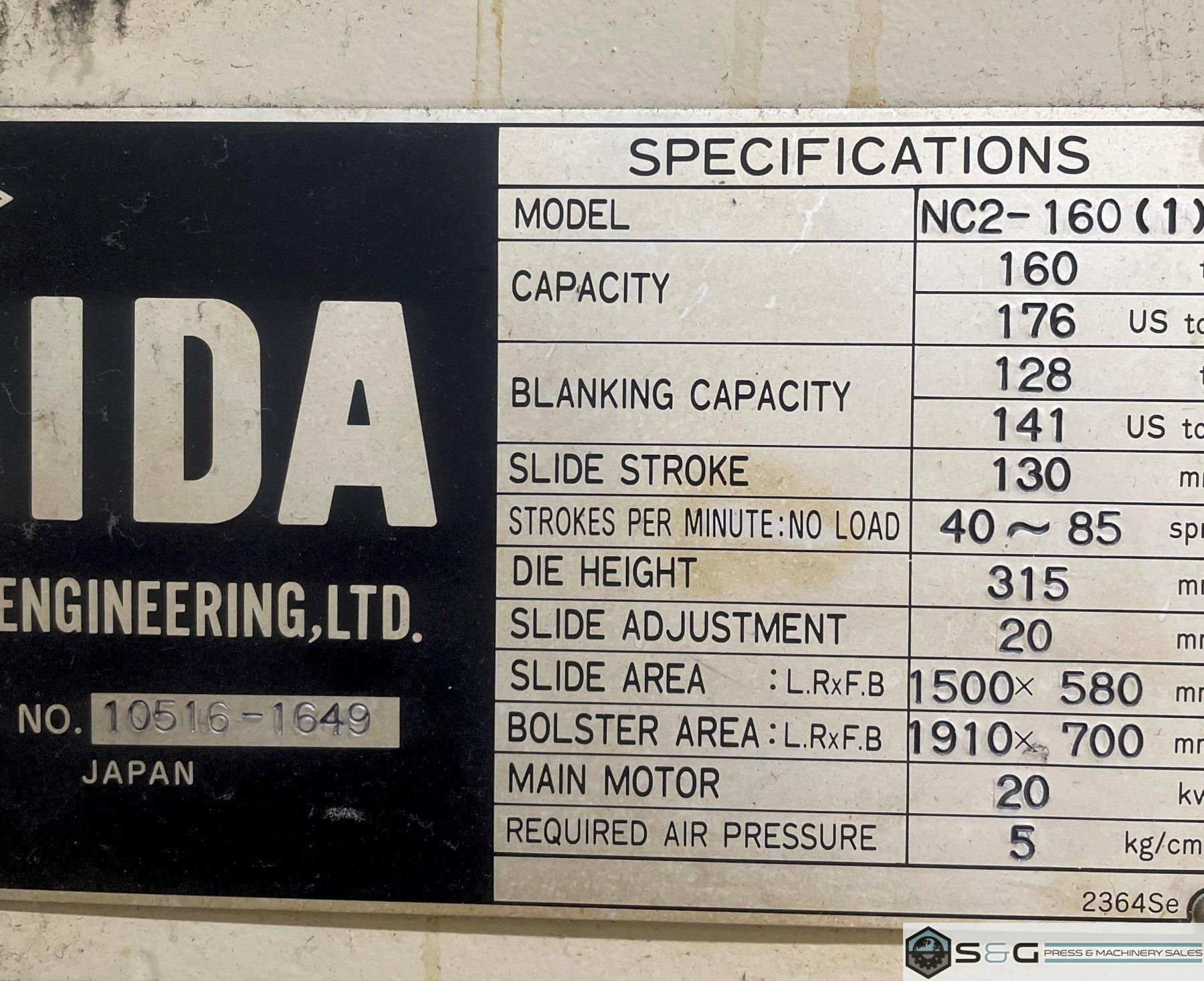

Standard Specifications
Used Aida Press Model NC2-160 (1)
Double Crank Gap Mechanical Press
Serial Number/ 10516-1889
160 ton Capacity (Metric)
176 - ton Capacity US
5.12" Stroke
18.9" Shut Height on Bed
12.4" Die Height on Bolster
3.94" Motorized Adjustment
75.2"  LR x 27.6" Bed Area
59" LR x 22.8" FB Slide Area
40-85 VSPM

Equipment and Features
Crank Motion 2 Point Press
Air Counterbalances
Recirculating Lube System
Aida Wet Clutch and Brake
6-Point Full Length Bronze
Hydraulic Overloads
T-Slotted Ram and Bolster Plate
Black Max Link Lite Light Curtains
Aida Press Controls with Panel View Touch Screen
6.5" Bolster Plate
Vibro Dynamic Floor Pads
20 HP Main Motor
Flush Floor Mount
