E2-400-96-48 Hevi-Stamper
1986
2997
Used
Specifications |
|||
|---|---|---|---|
| Tonnage | 400 |
||
| Stroke | 12 inches |
||
| Shut Height | 32 inches |
||
| Adjustment | 6 inches |
||
| Bed Size | 96 x 48 |
||
| Ram Area | 96 x 48 |
||
| SPM | 35-70 VSPM |
||

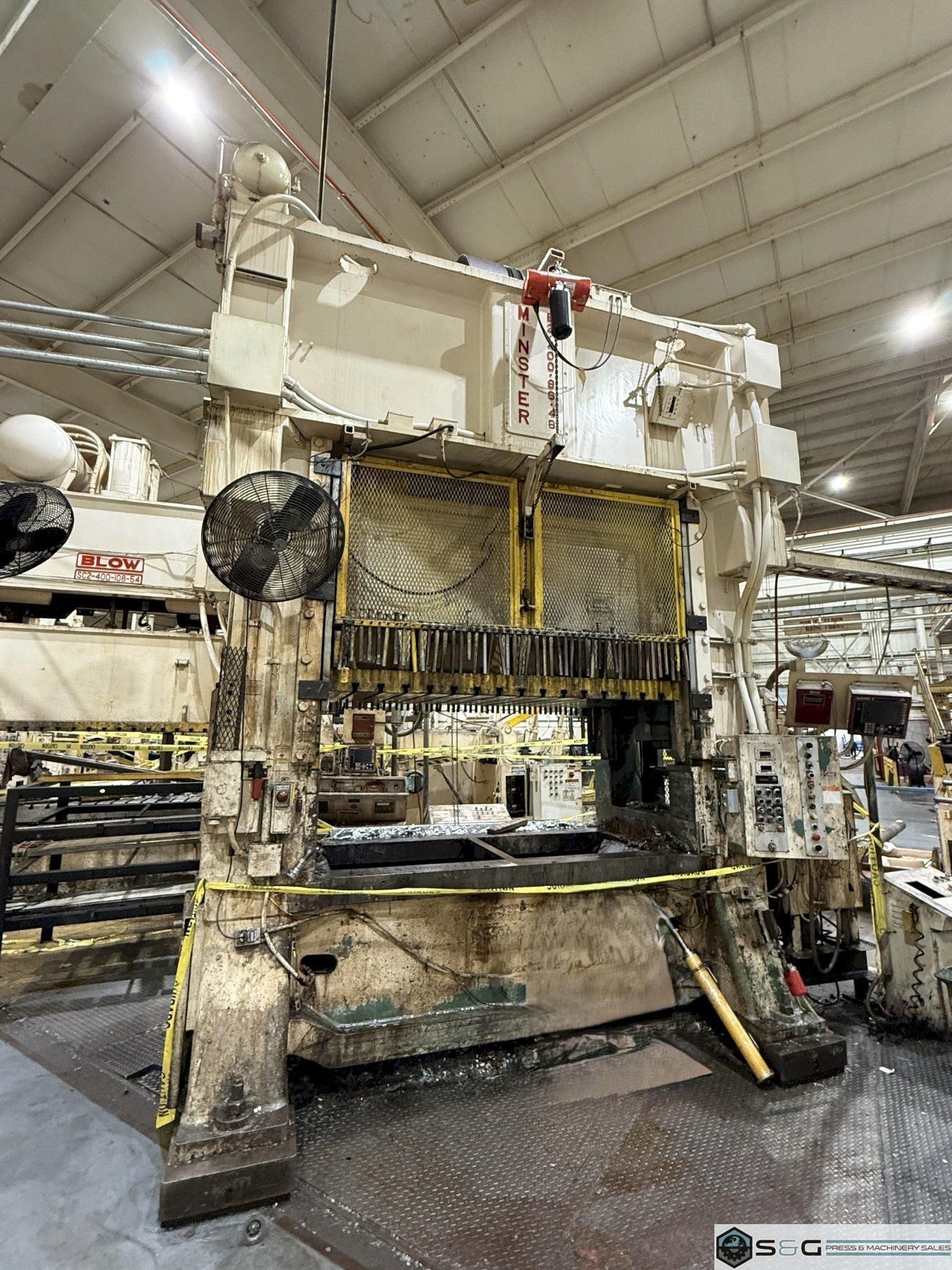

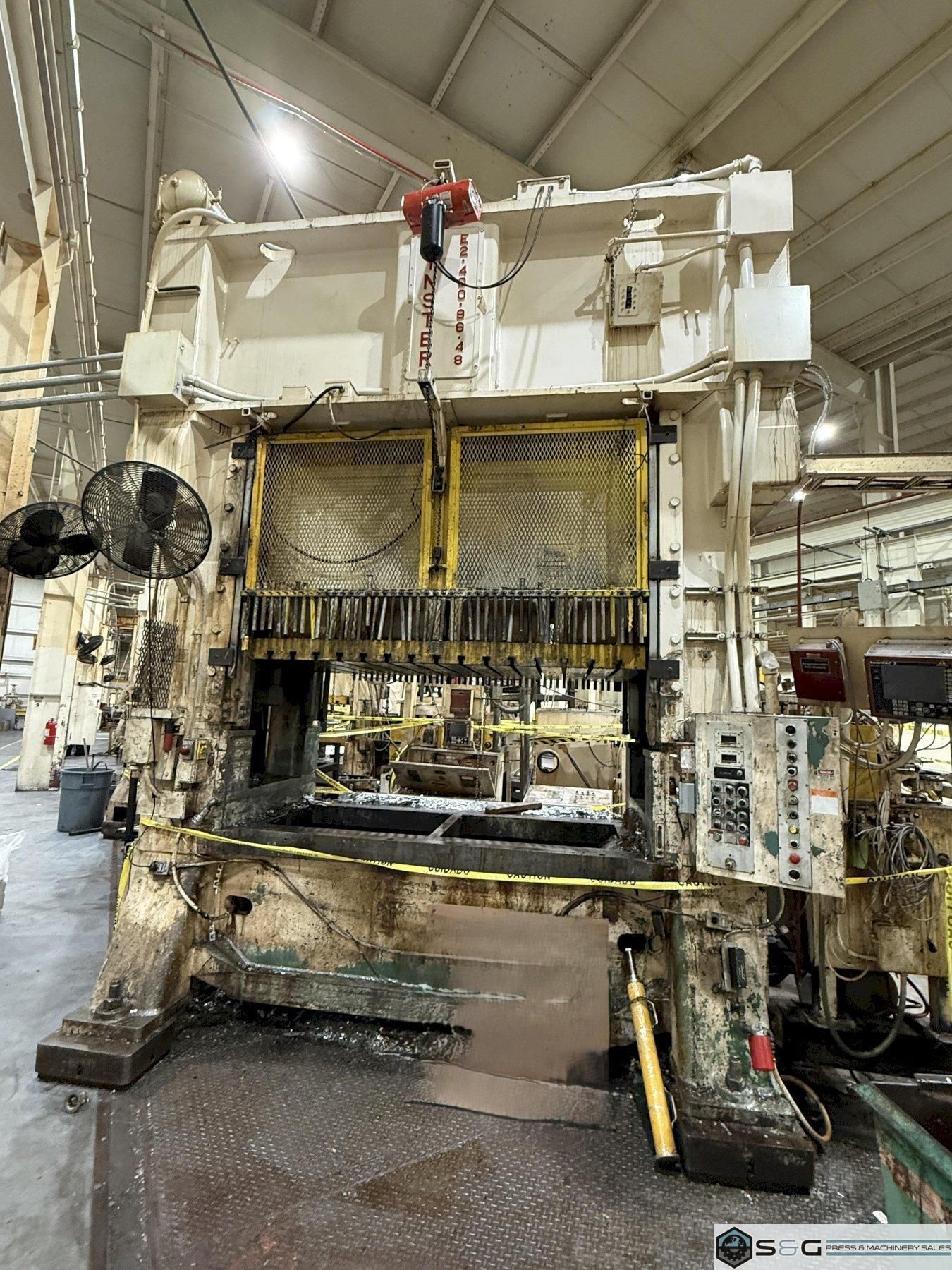

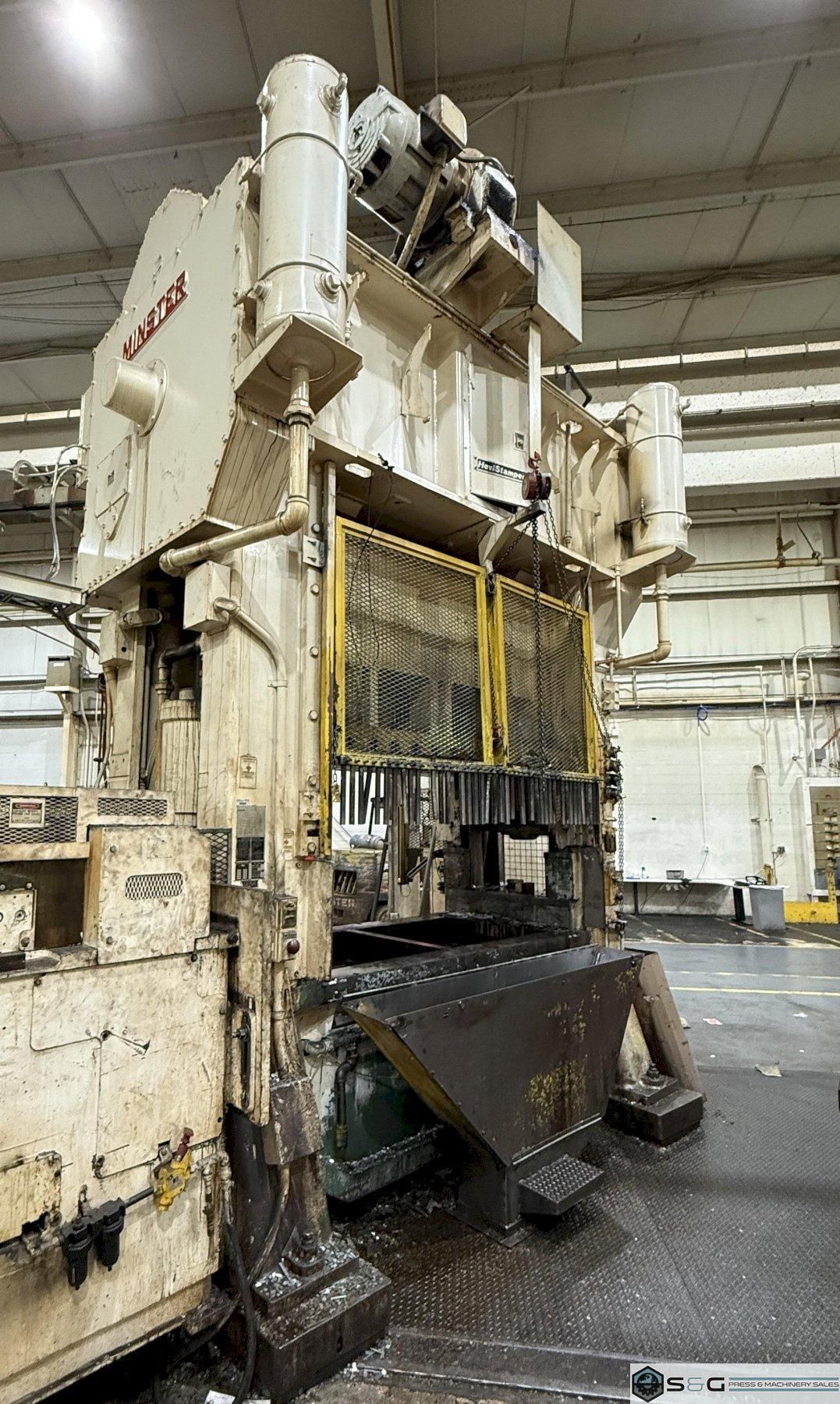

400-ton Minster Hevi-Stamper Model E2-400-96-48Straight Side Mechanical Stamping Press400-ton Capacity 12" Stroke 32" Shut Height On Bed 25" Shut Height Over Bolster 6" Motorized Adjustment 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 0-70 Variable Strokes Per Minute Equipment and Features Minster Pneumatic Clutch and Brake Air Counterbalances Minster Monitor Flow Lubrications System T-Slotted Ram and Bolster Plate 7" Thick Bolster Plate Wintriss Smart Pak 2 Press Controls 33" Wide Windows Vibro Dynamic Floor Pads 8-Point Adjustable Gibbing Single Geared - Twin End Drive Floor Standing This 400-ton Minster can be seen in operation at the plant upon request. Boost your shop’s productivity with this elite 400-ton Minster Hevi-Stamper (E2-400-96-48), the industry benchmark for high-speed straight side mechanical presses. Engineered for precision metal stamping, this 1985 workhorse features a generous 96" x 48" bed area and a versatile 12" stroke, making it the ideal solution for complex progressive die applications. Equipped with Wintriss Smart Pak 2 controls, 8-point gibbing, and a variable speed drive reaching 0-70 SPM, this Minster E2 press ensures unmatched rigidity and tool life. This floor-standing, high-capacity mechanical press includes a Monitor Flow lubrication system, a T-slotted bolster and motorized adjustment for rapid setups. Don't miss this rare opportunity to acquire a legendary Minster stamping press—available for immediate inspection under power! Watch the 400-Ton Minster in Action – Click Here! |
|||
Attachments |
||
|---|---|---|
|
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information. |
||
Machine Tags |
||
|---|---|---|
| 400 ton Mechanical Press, 400 ton Press For Sale, 400 ton Minster Press, 400 ton Straight Side Press For Sale, 400-ton Metal Stamping Press, 400-ton Minster Hevi-stamper Press, Used 400 ton Stamping Press For Sale, Used Minster Press For Sale, Minster Metal Stamping Press | ||
