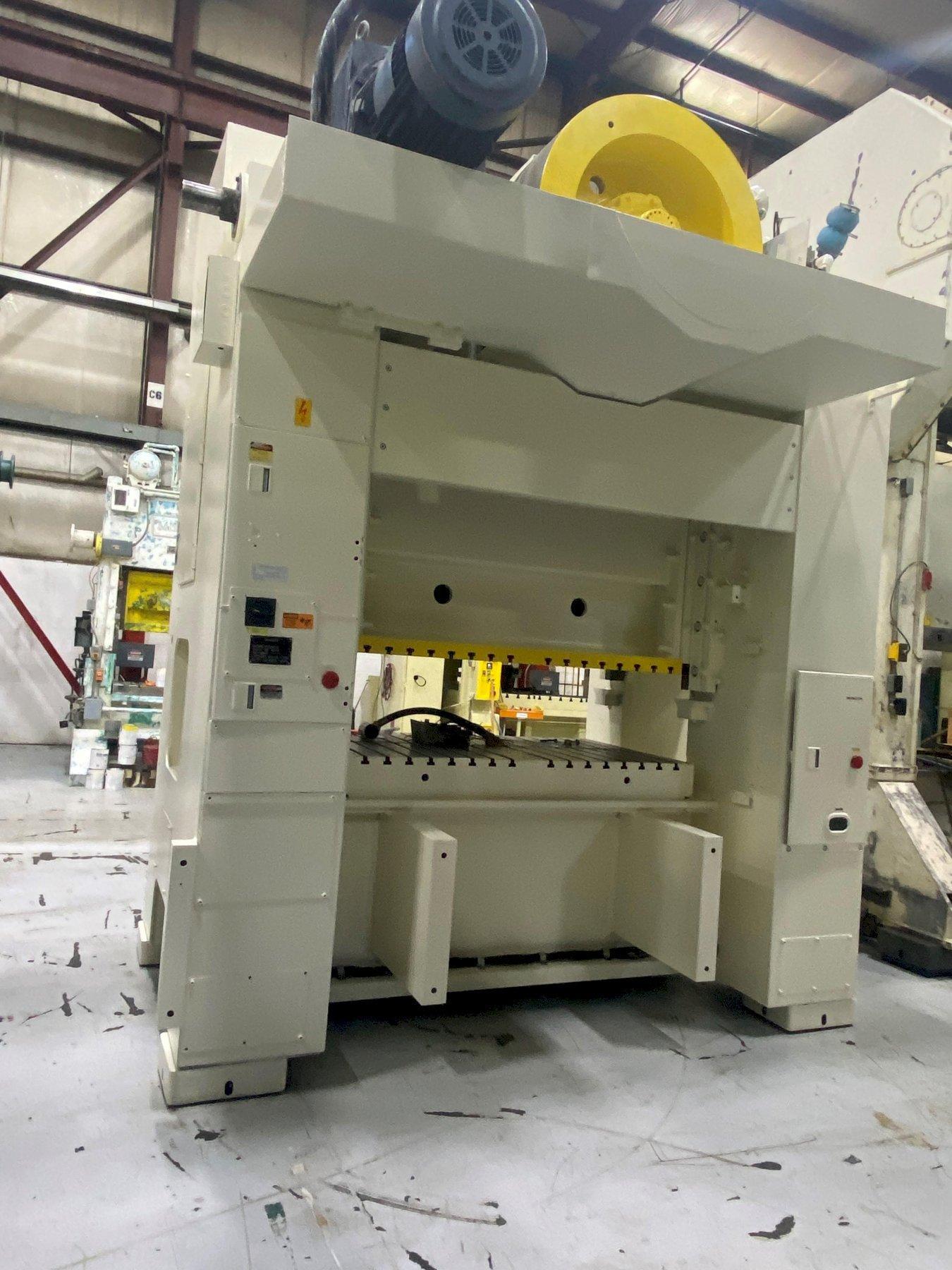

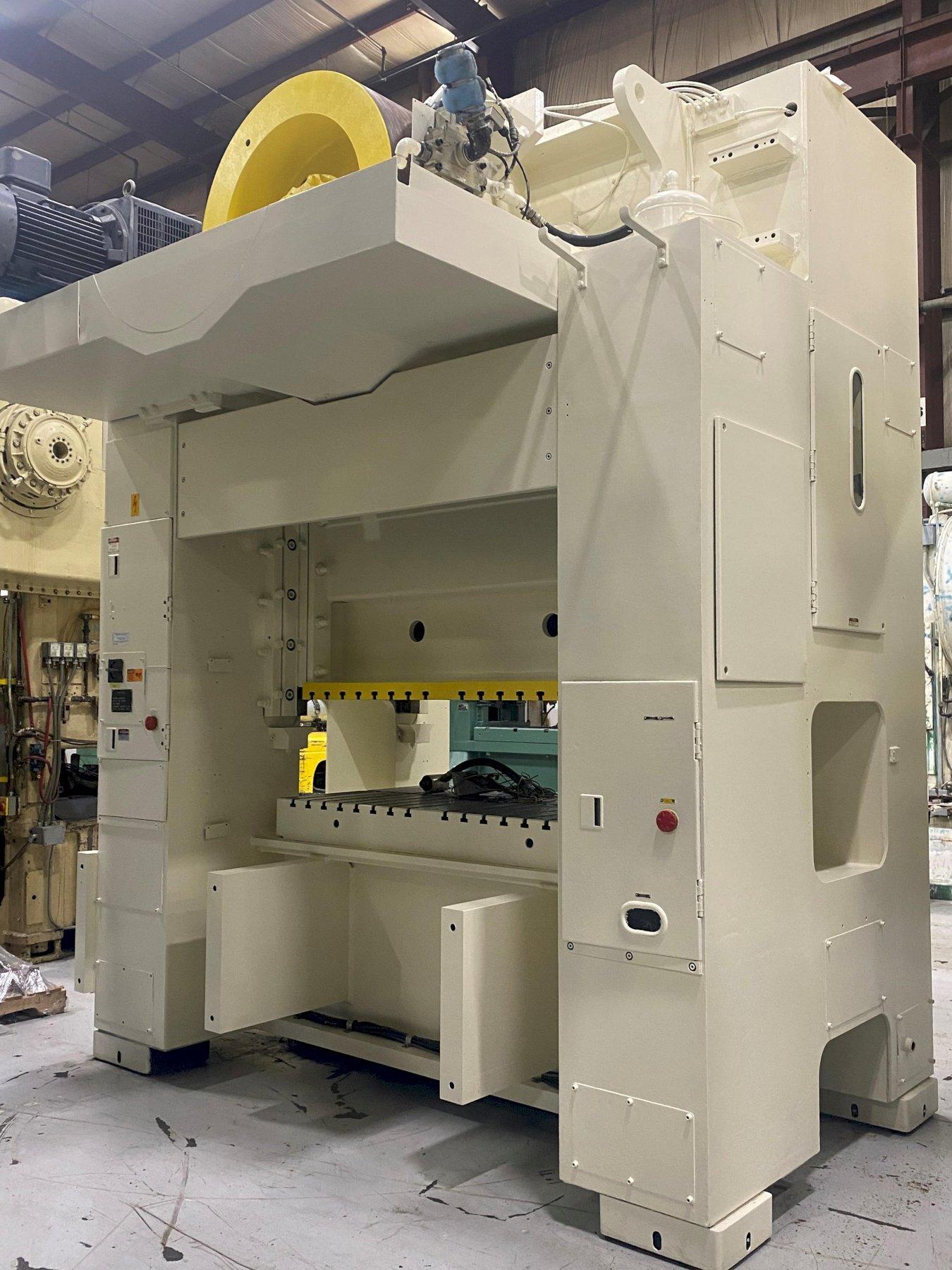

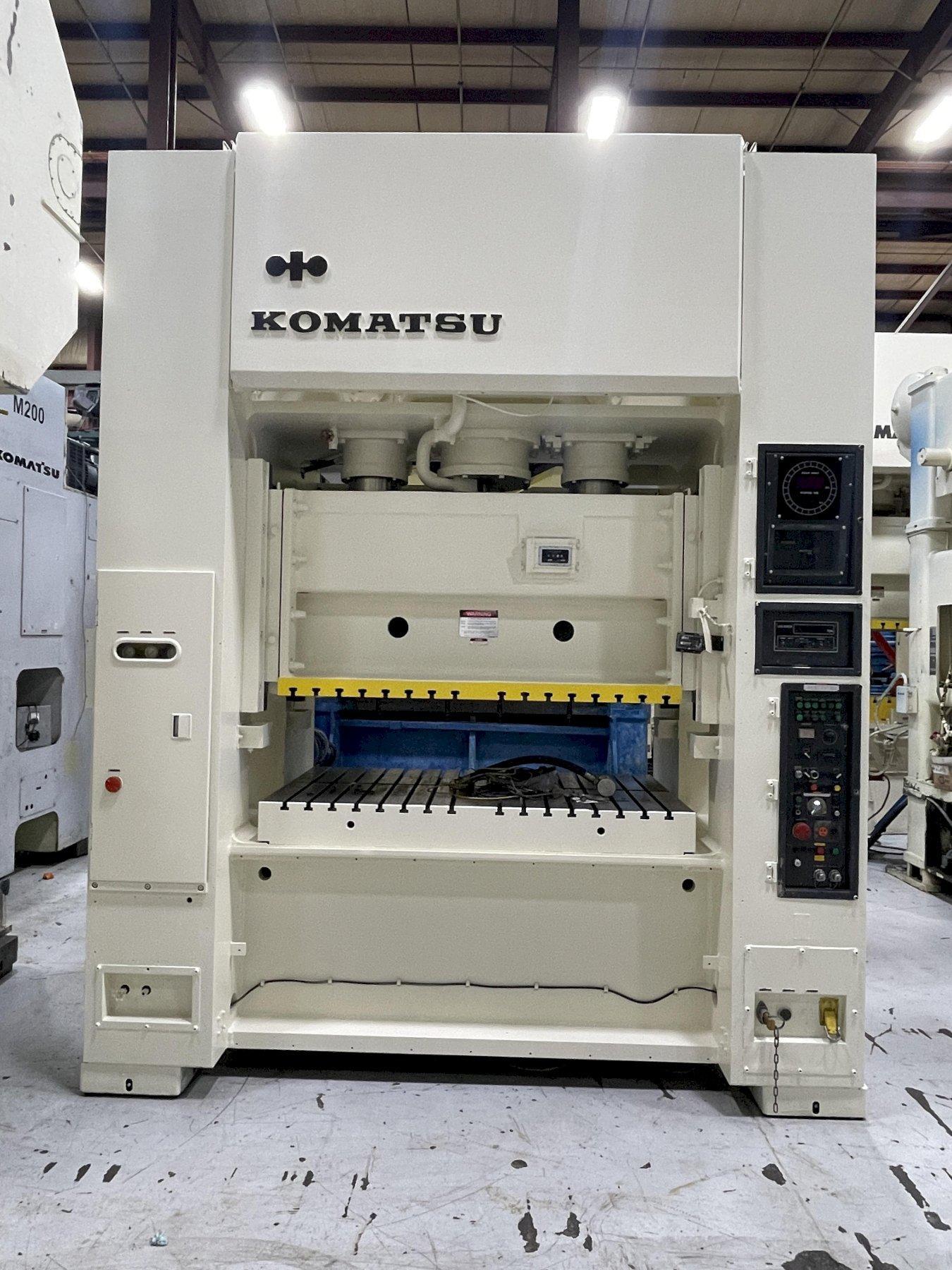

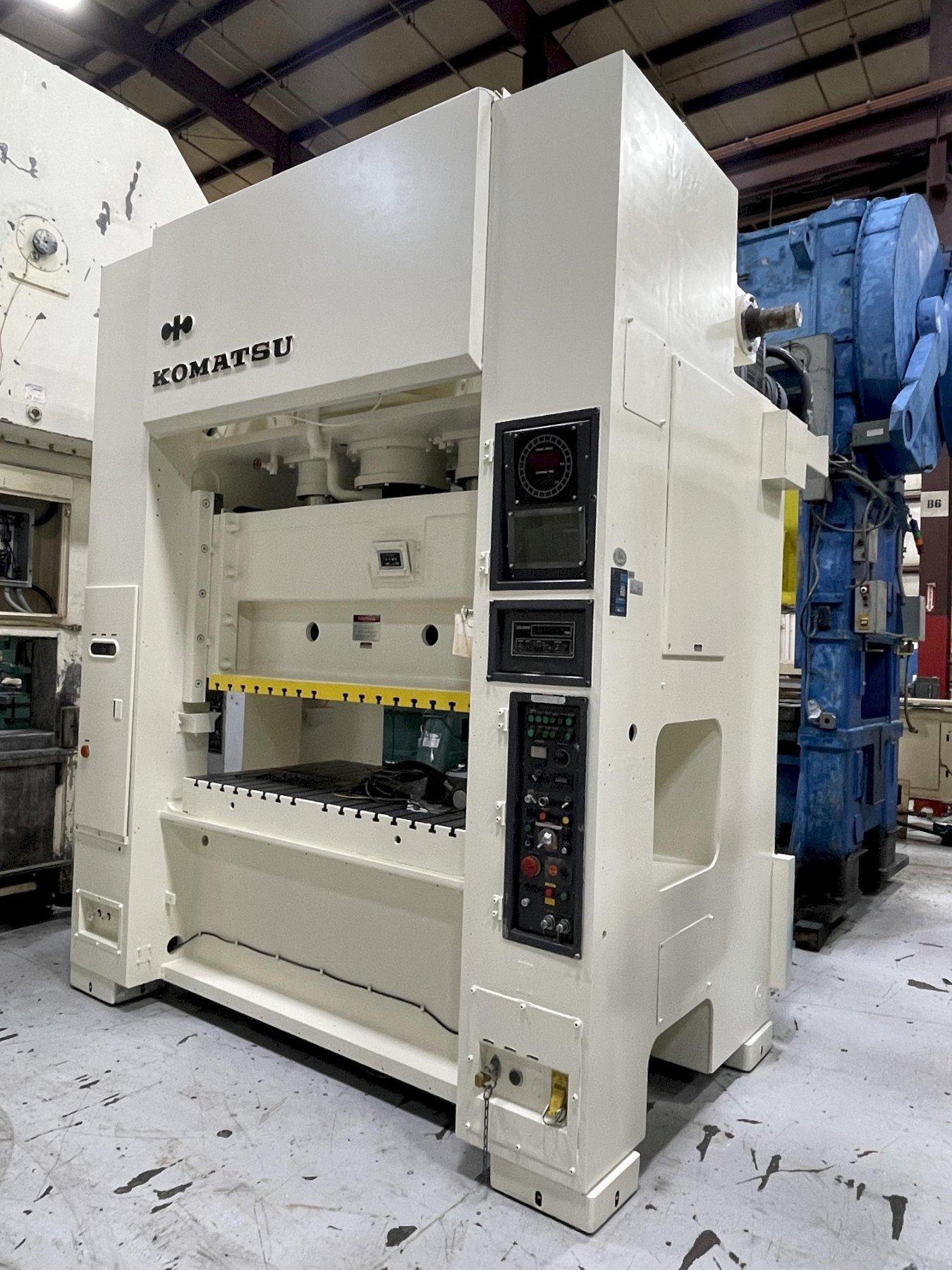

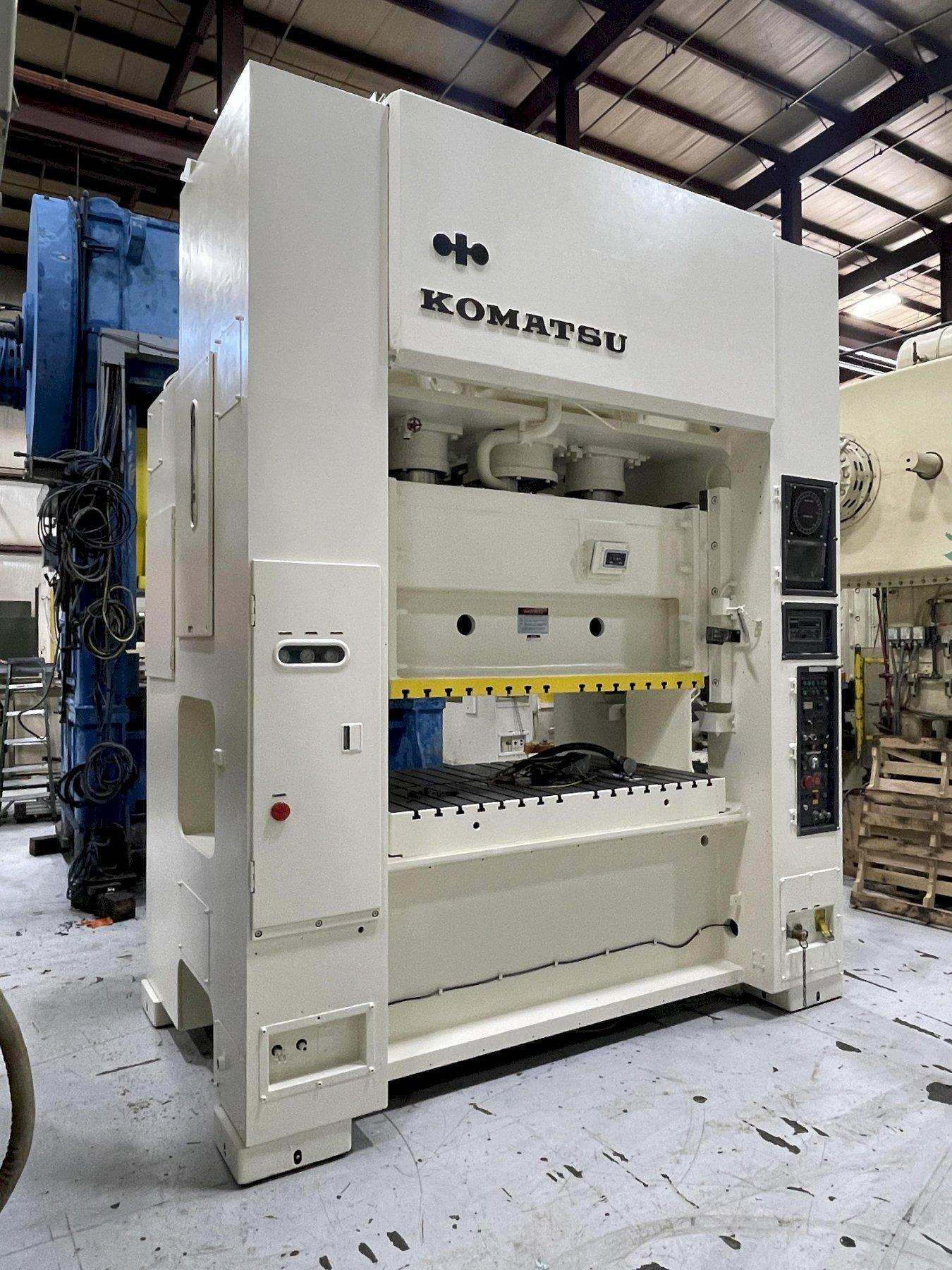

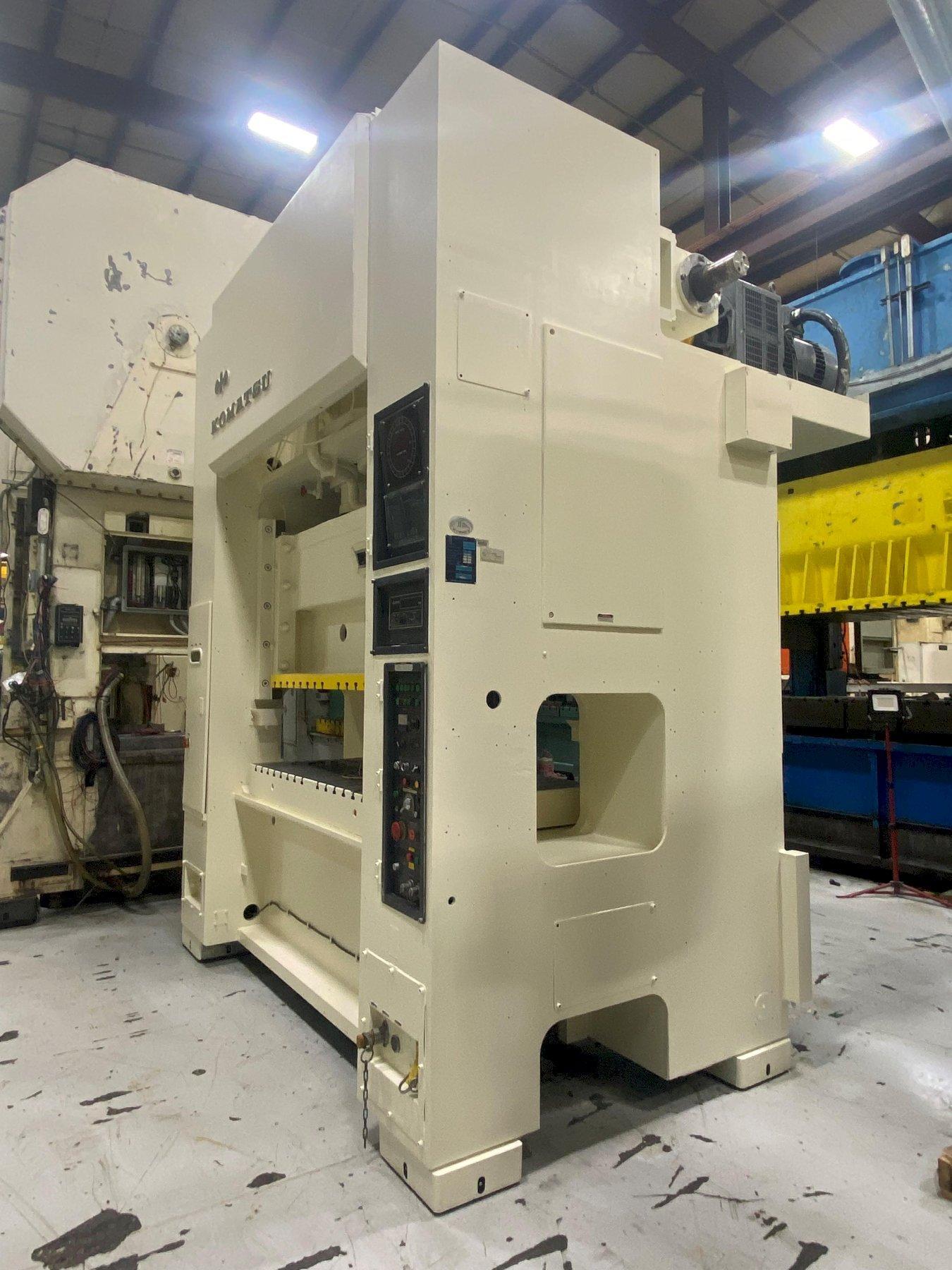

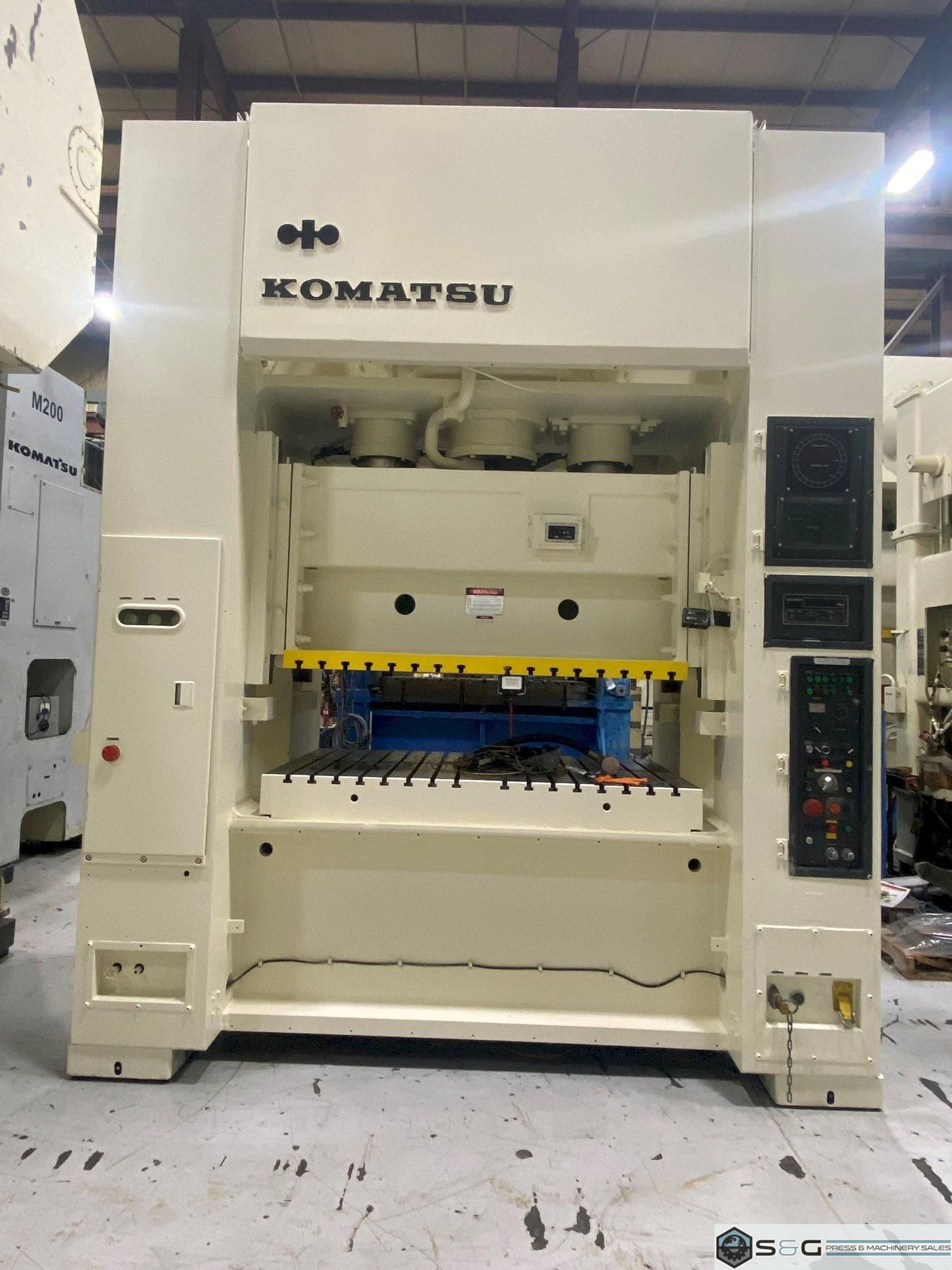

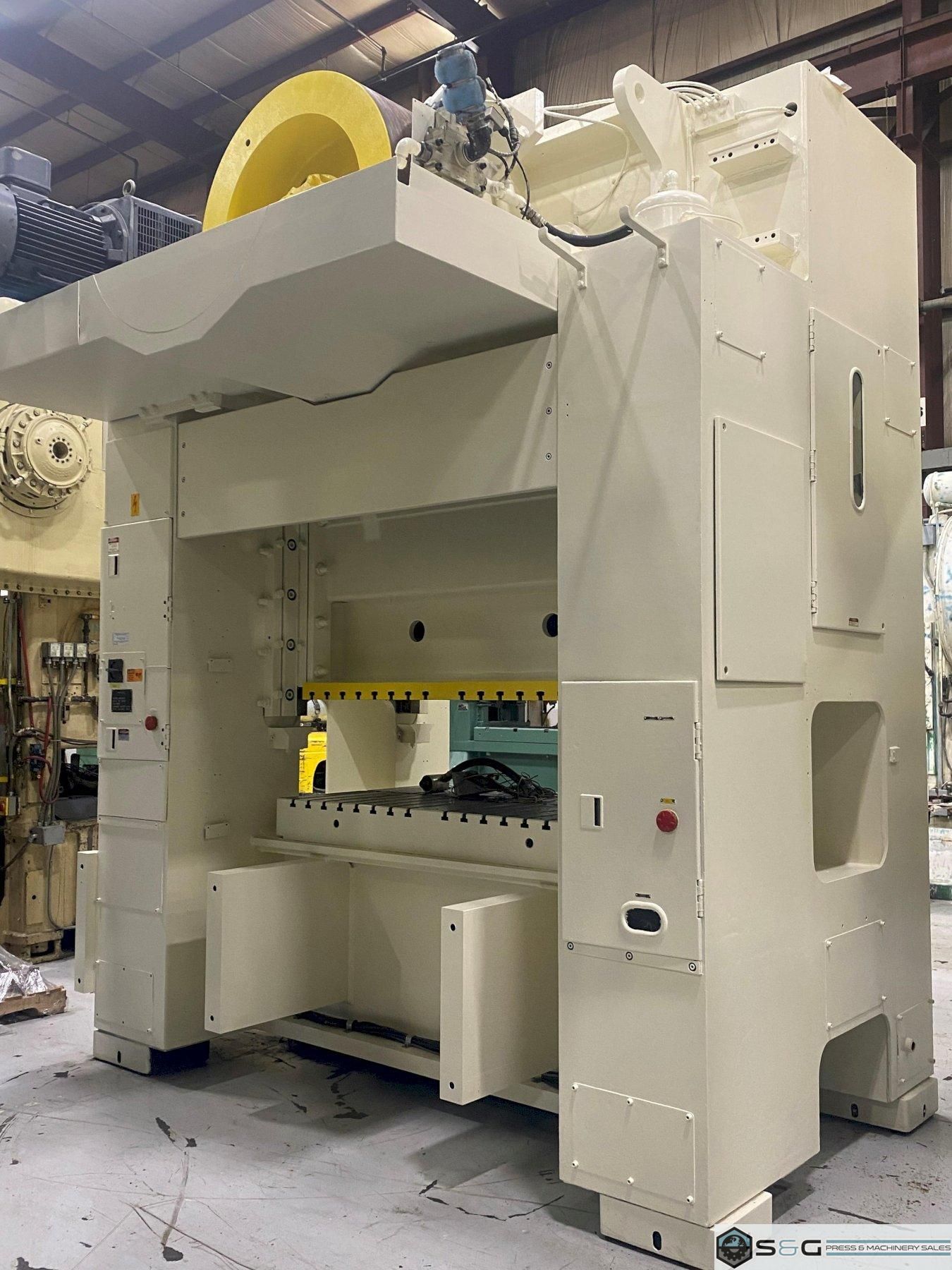

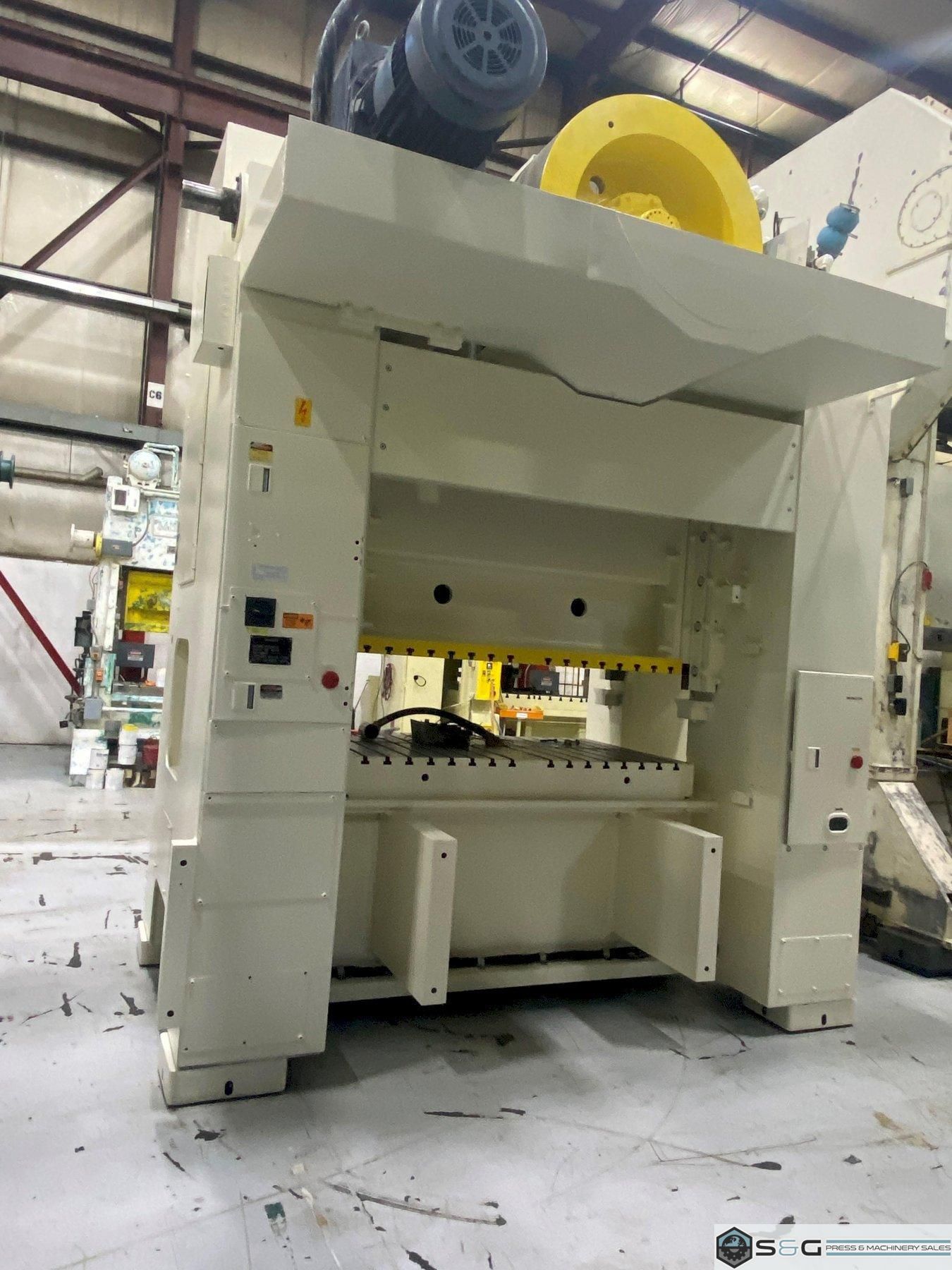

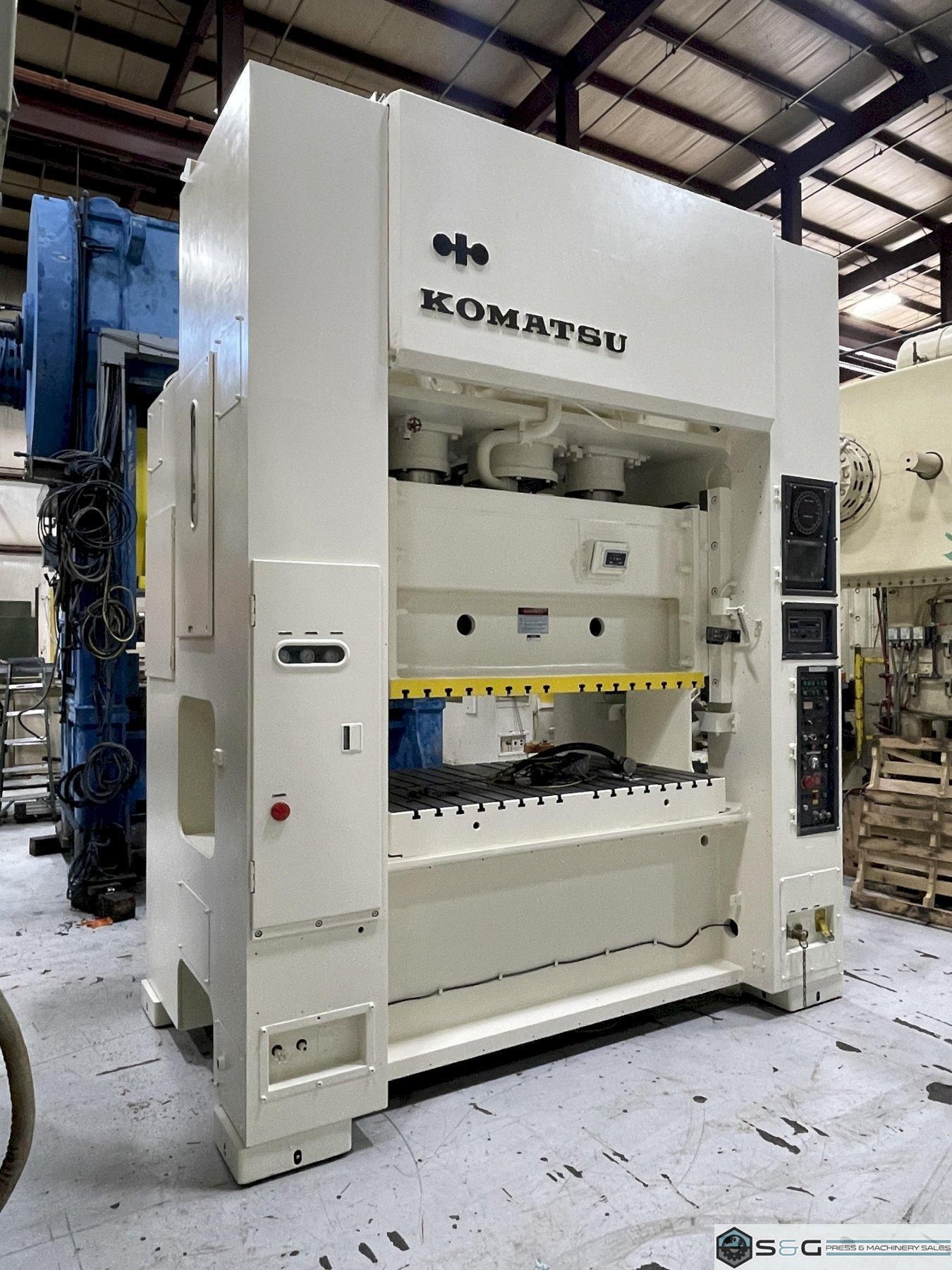

200-ton Komatsu Model E2M200 Straight Side Metal Stamping Press For Sale, Year 1988

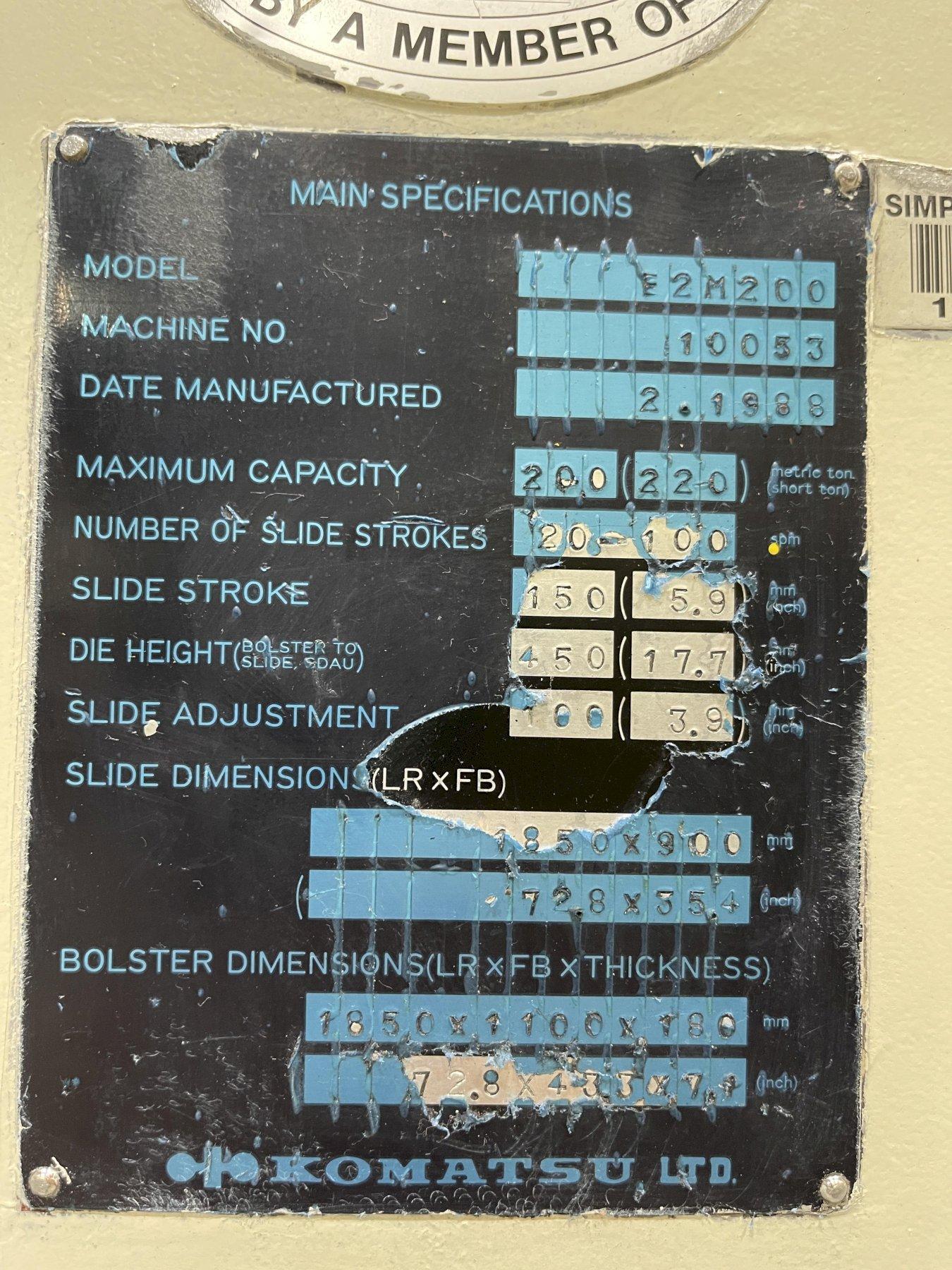

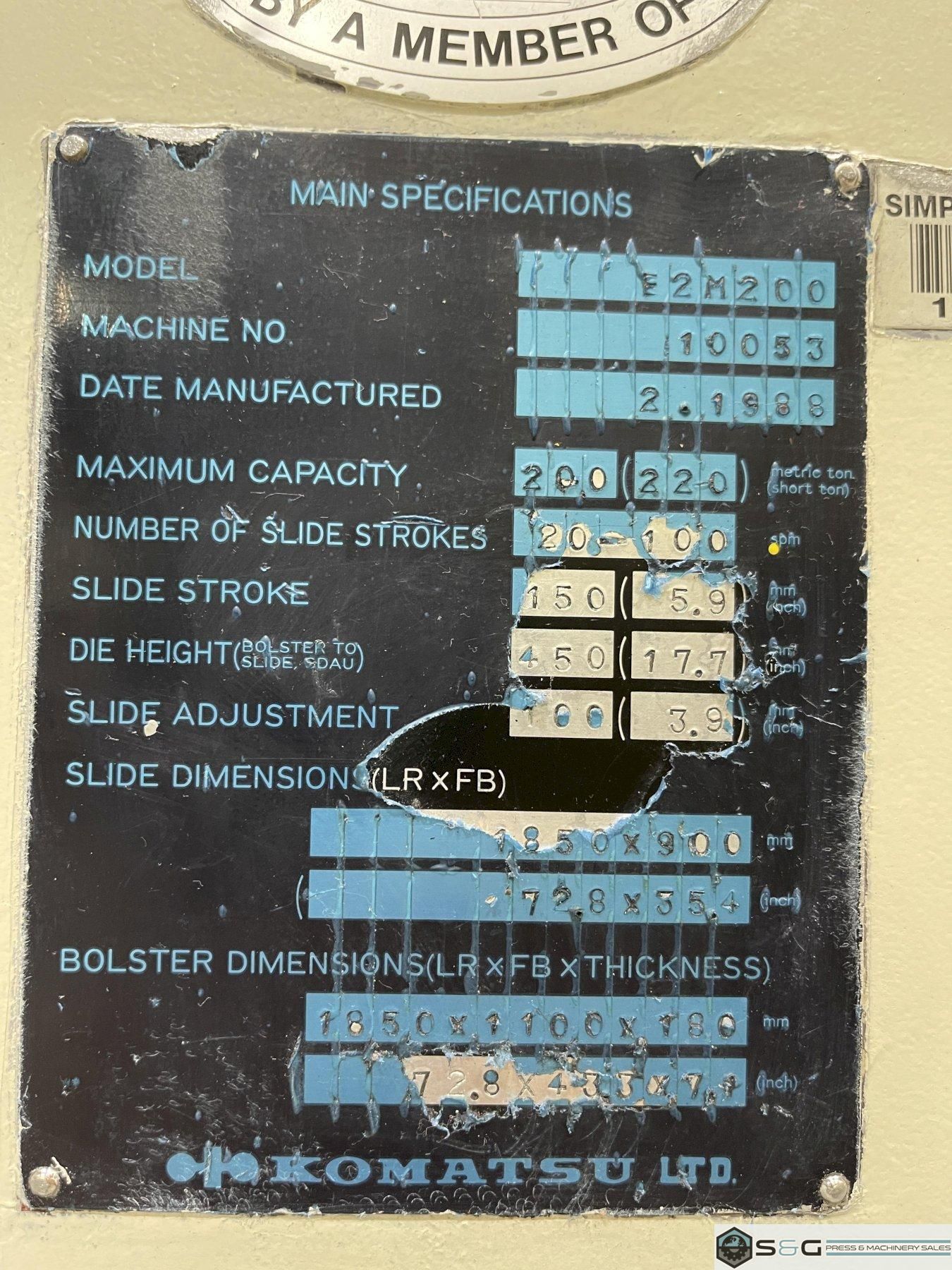

Standard Specification
Used Komatsu Metal Stamping Press
Model E2M200 sn/ 10053
200-ton Metric Capacity
220-ton US Capacity (Short)
5.9" Stroke
24.8" Shut Height on Bed
17.7" Die Height on Bolster
3.9" Motorized Adjustment
72.8" LR x 35.4" FB Slide Area
72.8" LR x 43.3" FB Bed Area
20-100 VSPM

Equipment and Features
Hydraulic Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Komatsu Press Controls
Light Curtains
Hydraulic Overload Protection
Plunger Guided to maintain parallelism and horizontal accuracy of slide for extends die life.
Unitized Frame of Cast Steel Construction
T-Stand Palm Button Station
8 Point Gibs
7.1" Thick Bolster Plate
25.6" Wide WIndows (to be confirmed)
Vibro Dynamic Isolation Pads
Floor Standing

This 200-ton Komatsu Metal Stamping Press can be seen under power in the S&G Press Livonia Warehouse!
