20,000 lbs. Coe Press Equipment Motorized Coil Reel Model #CPR-20048 with Load Car

20,000 lbs. Coe Press Equipment Motorized Coil Reel Model #CPR-20048 with Load Car

Type

Centering Reels

Brand

COE PRESS EQUIPMENT

Model

CPR-20048

Year

None

Stock #

2931

Condition

Not specified

Request a Quote

Let's Talk

Specifications
Coil Weight	20000 pounds
Coil Width	48 inches
Coe Press Motorized Coil Reel Model No.: CPR-20048, Serial No.: 19417-2 Coe Press Motorized Coil Reel Specifications: Coil weight capacity: 20,000 Lbs. Coil width capacity: 48" Expansion range: 20" - 24" (To be confirmed) Coil O.D. Capacity: 60" Equipment and Features Three leaf mandrel coil reel Hydraulic mandrel expansion Stand alone hydraulic unit Air operated coil hold Up arm with motorized end wheel Traveling coil load car Powered lift and travel Motorized payout Variable speed drive Jog forward and reverse Auto/Run cycle Operators pedestal control station Loop control Click here to see more Coe Press Coil Feed Equipment Coil Reels in Stock at S&G Press High-Capacity Coe Press Motorized Coil Reel for Sale Boost your metal stamping efficiency with this robust Used Coe Press Motorized Coil Reel, Model No. CPR-20048. Designed for heavy-duty applications, this reel boasts a substantial 20,000 lbs coil weight capacity and handles coil widths up to 48 inches. With a 60-inch coil O.D. capacity and a versatile expansion range (20-24" confirmed upon request), it accommodates various material sizes. Key features include a three-leaf mandrel, hydraulic mandrel expansion with a stand-alone unit, and an air-operated coil hold-up arm with a motorized end wheel. The integrated traveling coil load car with powered lift and travel simplifies material handling. Experience precise control with motorized payout and a variable speed drive, making this Coe coil reel an ideal solution for optimizing your coil feeding operations.

Specifications

Coil Weight

20000 pounds

Coil Width

48 inches

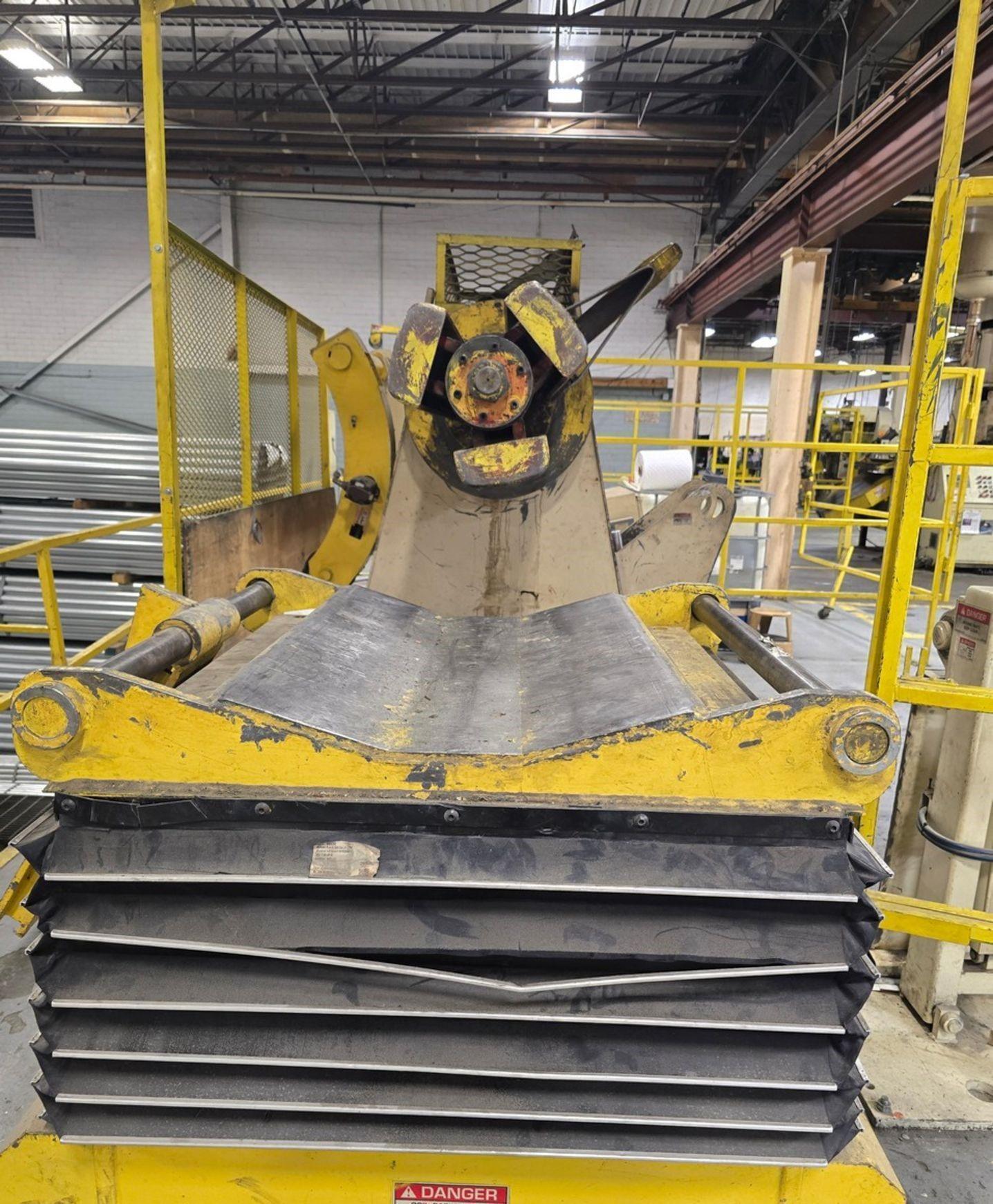

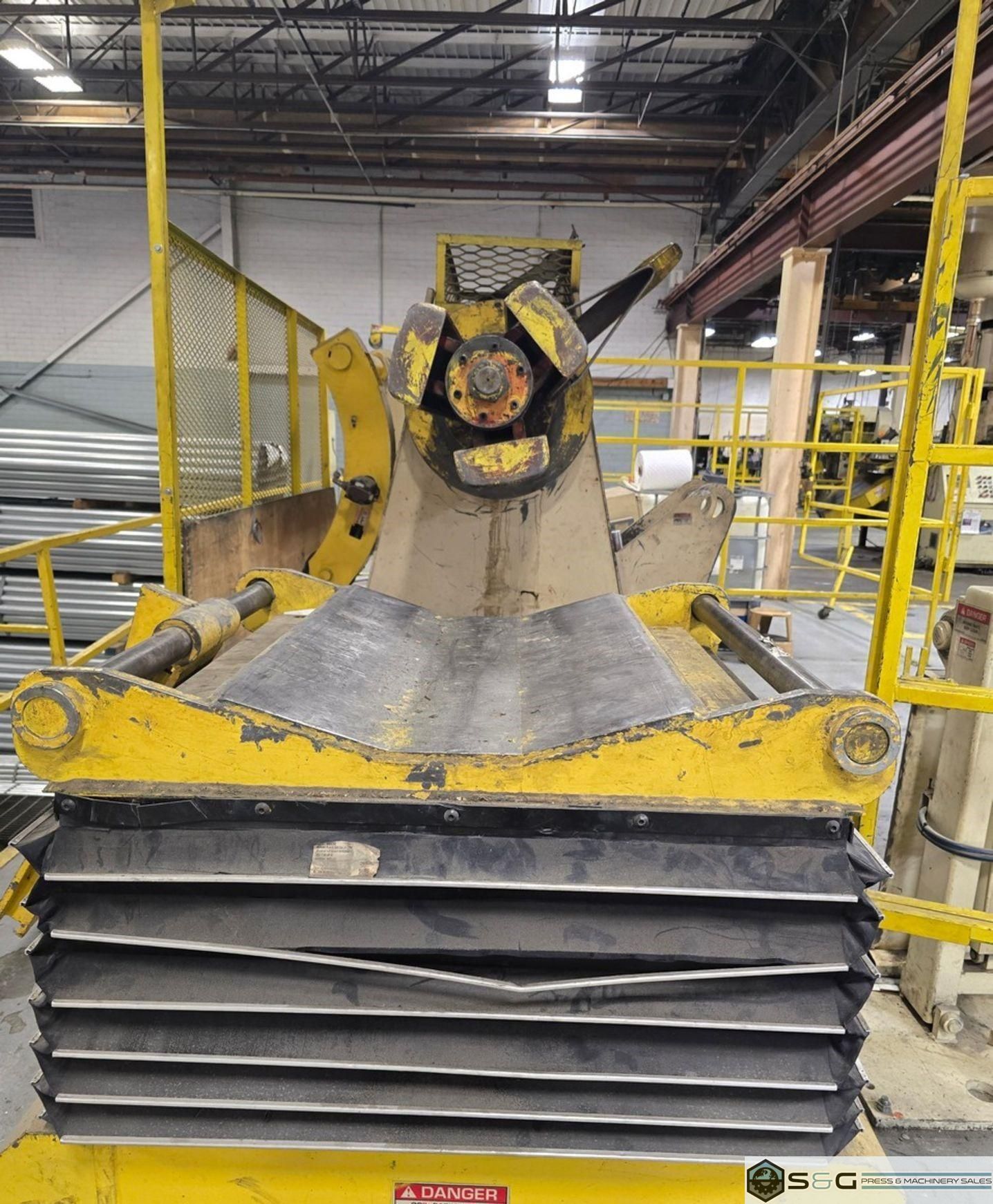

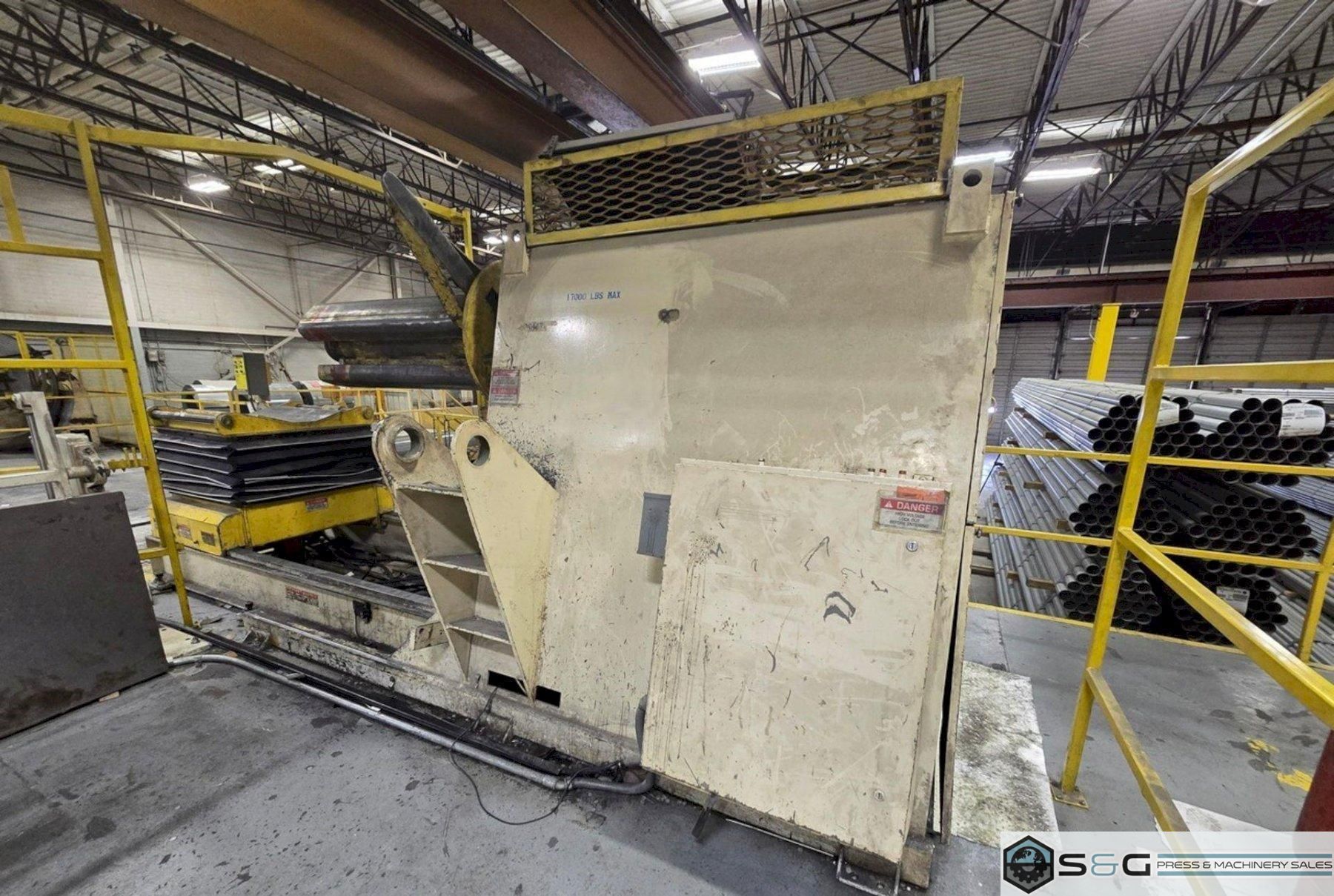

Coe Press Motorized Coil Reel
Model No.: CPR-20048, Serial No.: 19417-2
Coe Press Motorized Coil Reel Specifications:

Coil weight capacity: 20,000 Lbs.

Coil width capacity: 48"

Expansion range: 20" - 24" (To be confirmed)

Coil O.D. Capacity: 60"

Equipment and Features

Three leaf mandrel coil reel

Hydraulic mandrel expansion

Stand alone hydraulic unit

Air operated coil hold Up arm with motorized end wheel

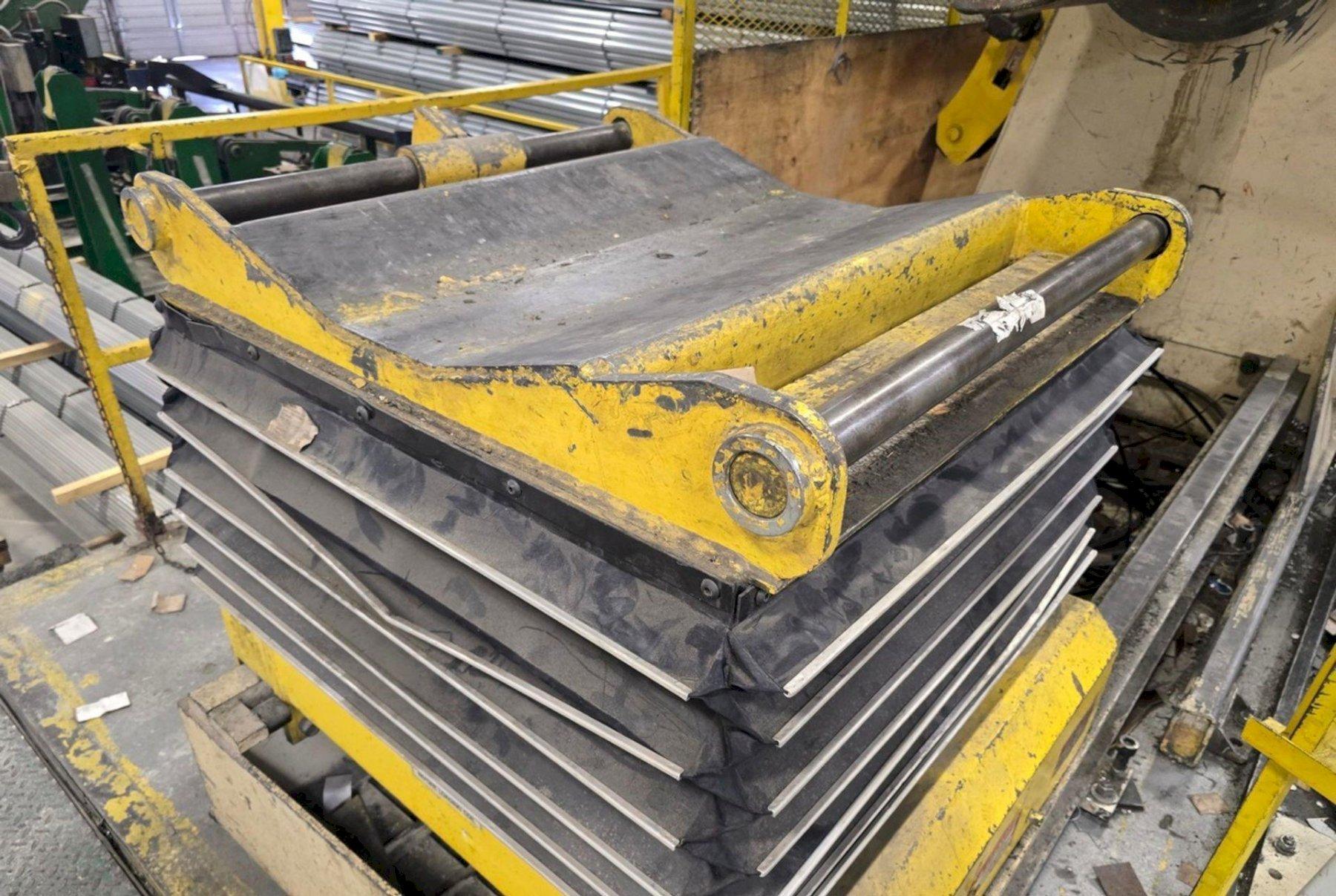

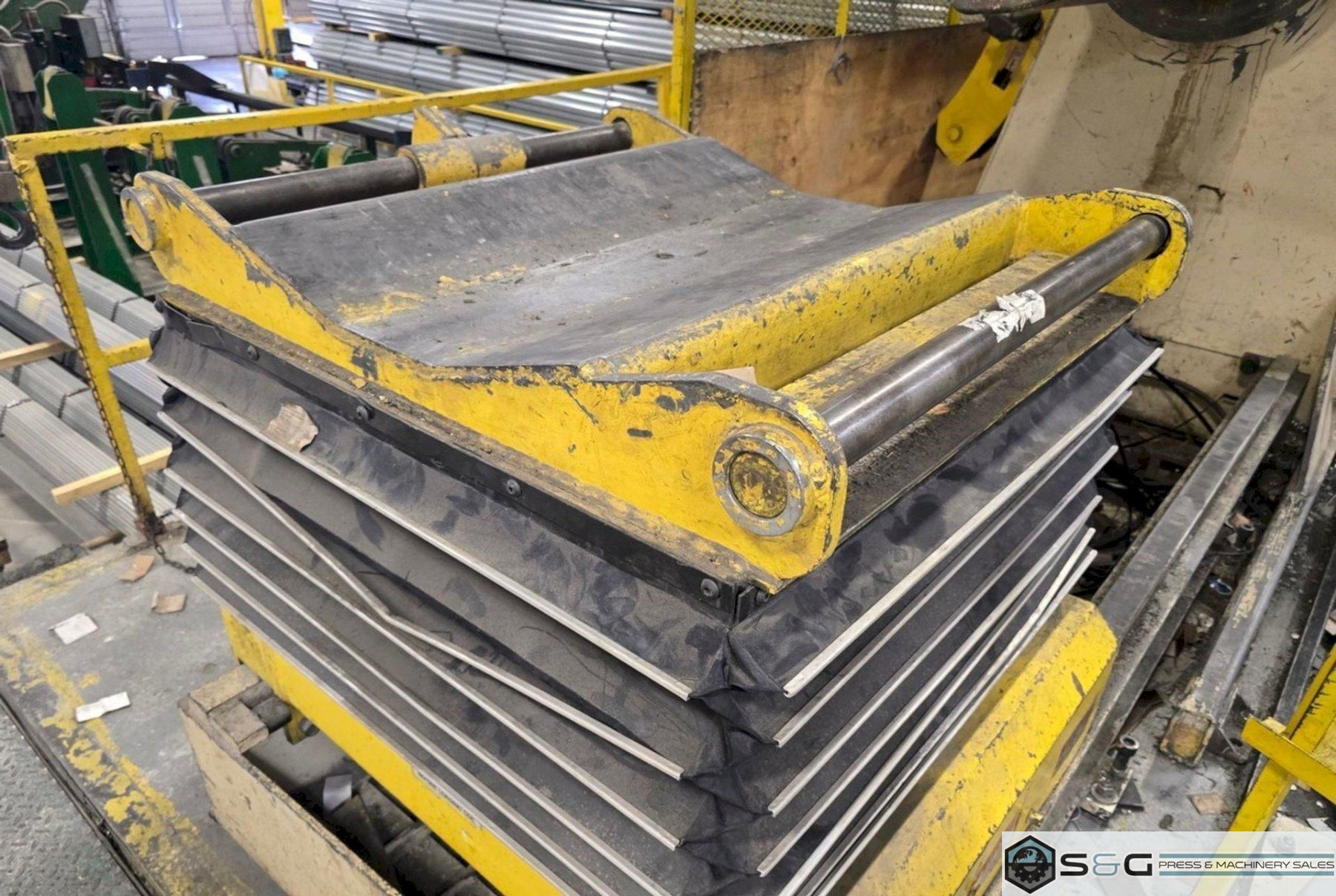

Traveling coil load car

Powered lift and travel

Motorized payout

Variable speed drive

Jog forward and reverse

Auto/Run cycle

Operators pedestal control station

Loop control

Click here to see more Coe Press Coil Feed Equipment

Coil Reels in Stock at S&G Press

High-Capacity Coe Press Motorized Coil Reel for Sale

Boost your metal stamping efficiency with this robust Used Coe Press Motorized Coil Reel, Model No. CPR-20048. Designed for heavy-duty applications, this reel boasts a substantial 20,000 lbs coil weight capacity and handles coil widths up to 48 inches. With a 60-inch coil O.D. capacity and a versatile expansion range (20-24" confirmed upon request), it accommodates various material sizes.

Key features include a three-leaf mandrel, hydraulic mandrel expansion with a stand-alone unit, and an air-operated coil hold-up arm with a motorized end wheel. The integrated traveling coil load car with powered lift and travel simplifies material handling. Experience precise control with motorized payout and a variable speed drive, making this Coe coil reel an ideal solution for optimizing your coil feeding operations.

Attachments
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information.
