R-150-36 & PS 3.5 x 7-36
2005
2973
Very Good
Specifications |
|||
|---|---|---|---|
| Coil Weight | 20000 pounds |
||
| Coil Width | 36 inches |
||
| Coil Thickness | .125 inches |
||
|
15,000 lbs. Maximum Coil Capacity

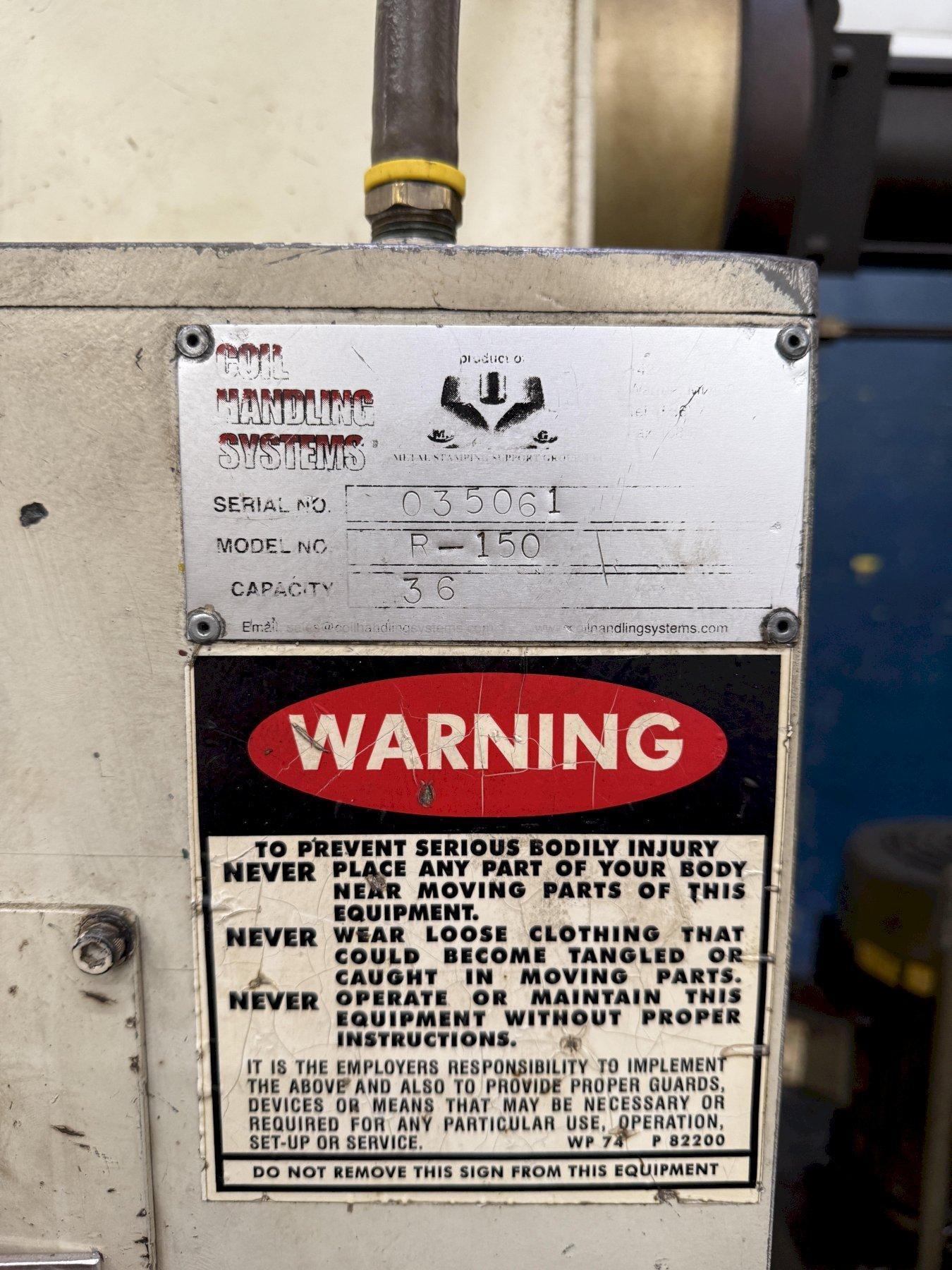

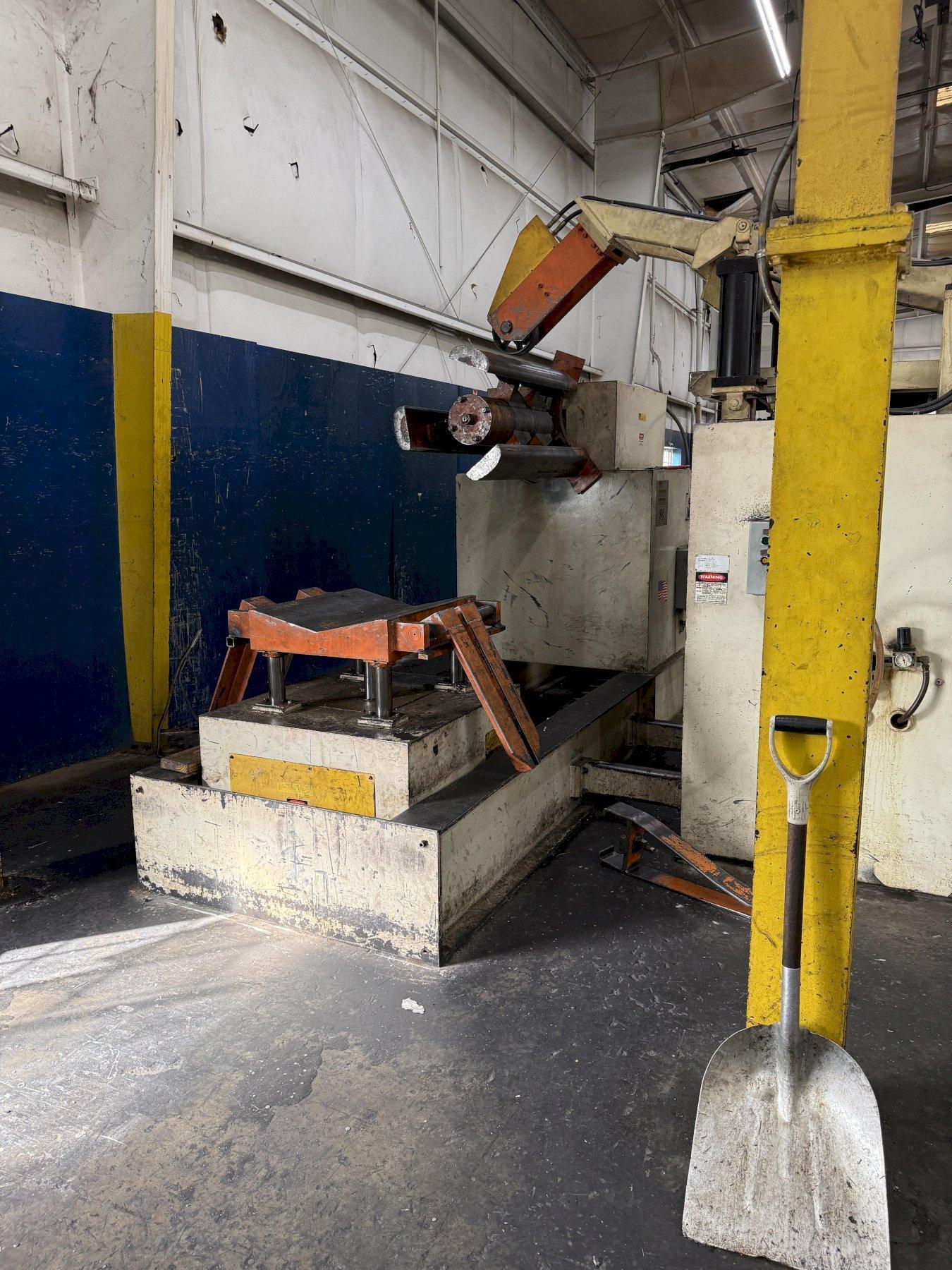

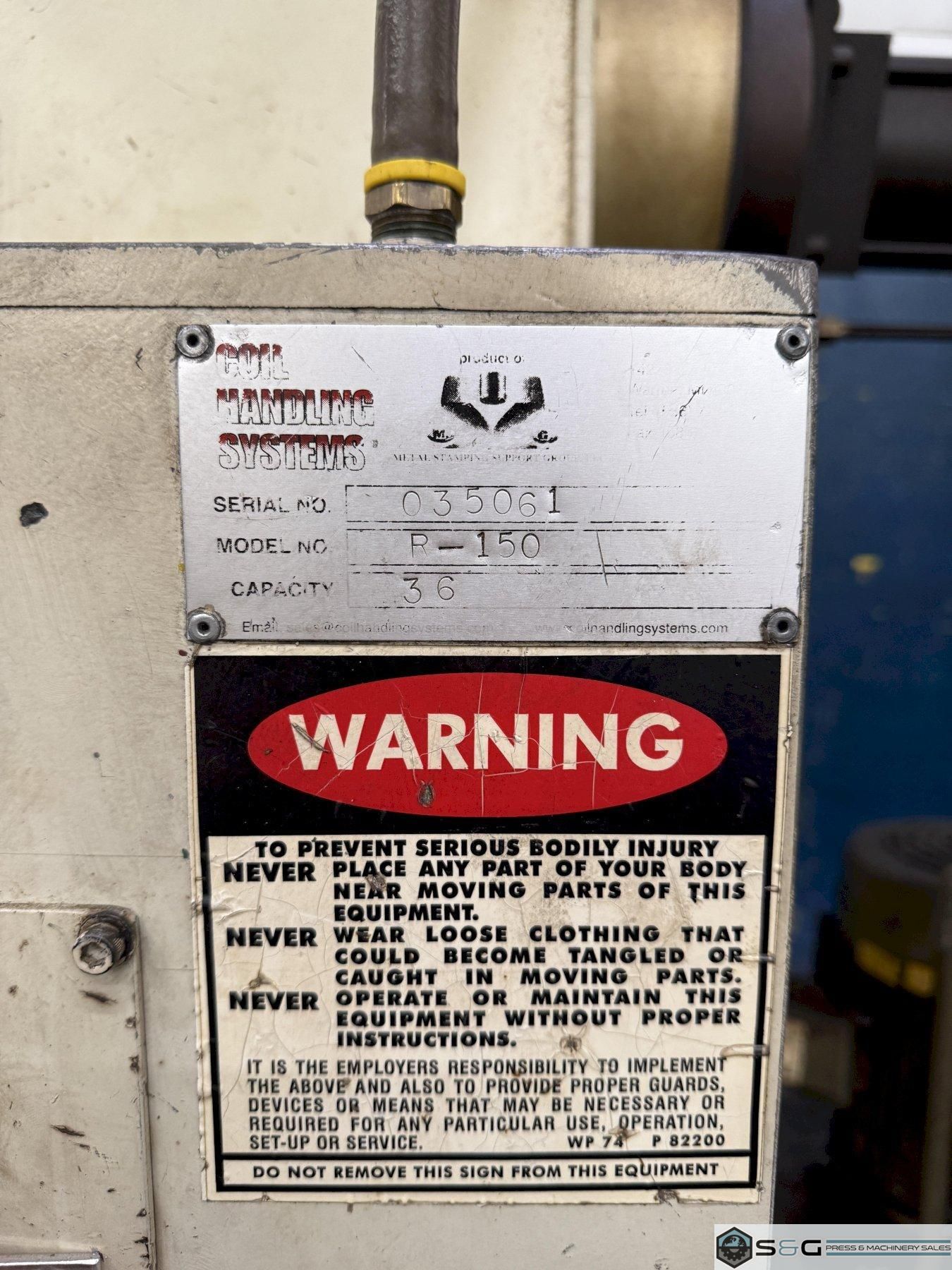

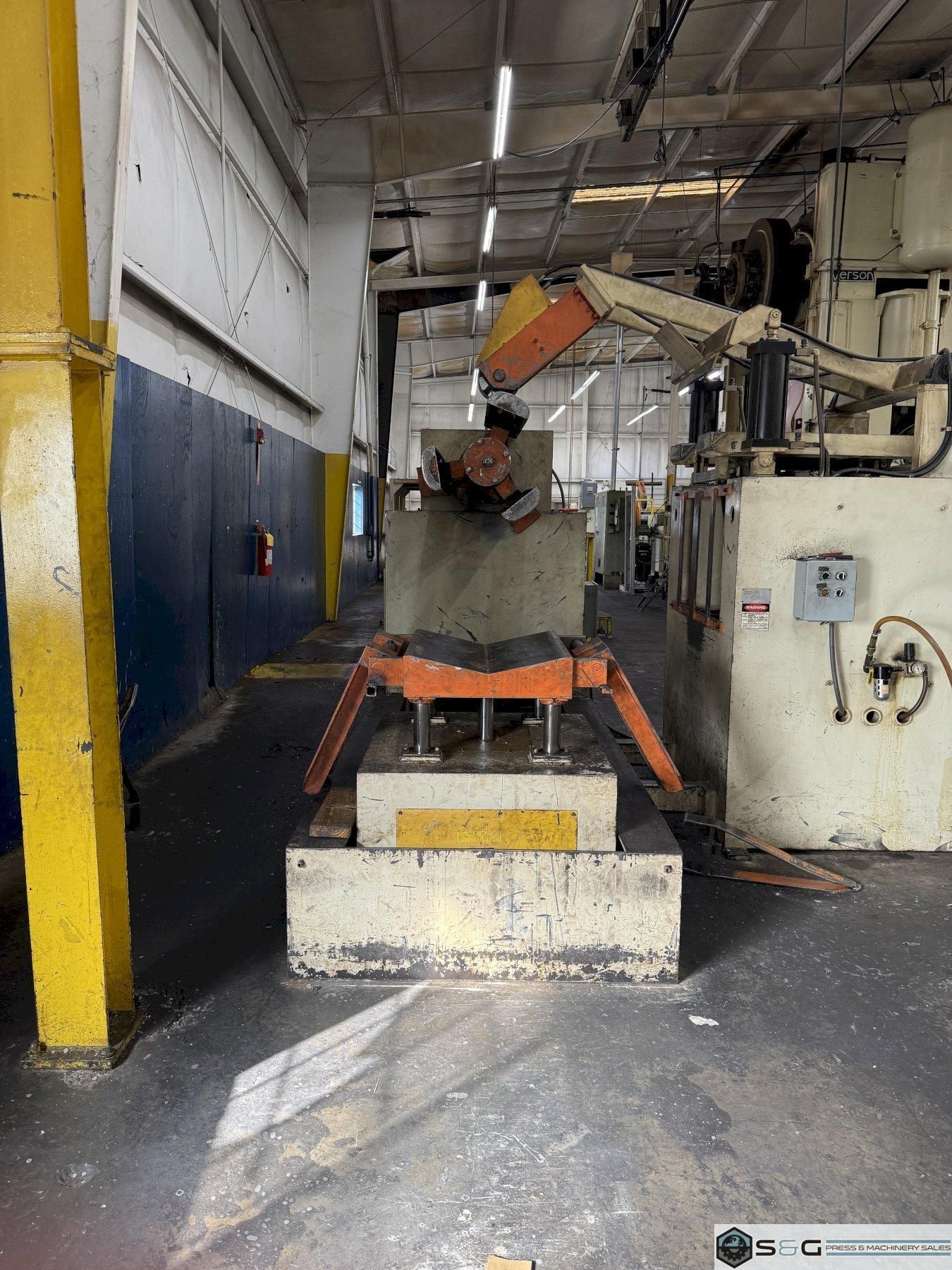

.125" @ 36" Maximum Coil Thickness at Full Width .210" @ 18" Capacity .250" @ 12" Maximum Coil Capacity CHS Automation Coil Reel Model # R-150-36 Three Leaf Mandrel Pads
Hydraulic Thread Drive
Hydraulic Mandrel Expansion
Adjustable Coil Guides
Coil Hold Down Arm with Motorized End Wheel
Air Brake Mounted on Main Spindle with Pressure Regulator
Threading Drive for Jog/Forward/ Reverse
Remote Jog Control on pendent
Self Contained Hydraulic Pump Unit

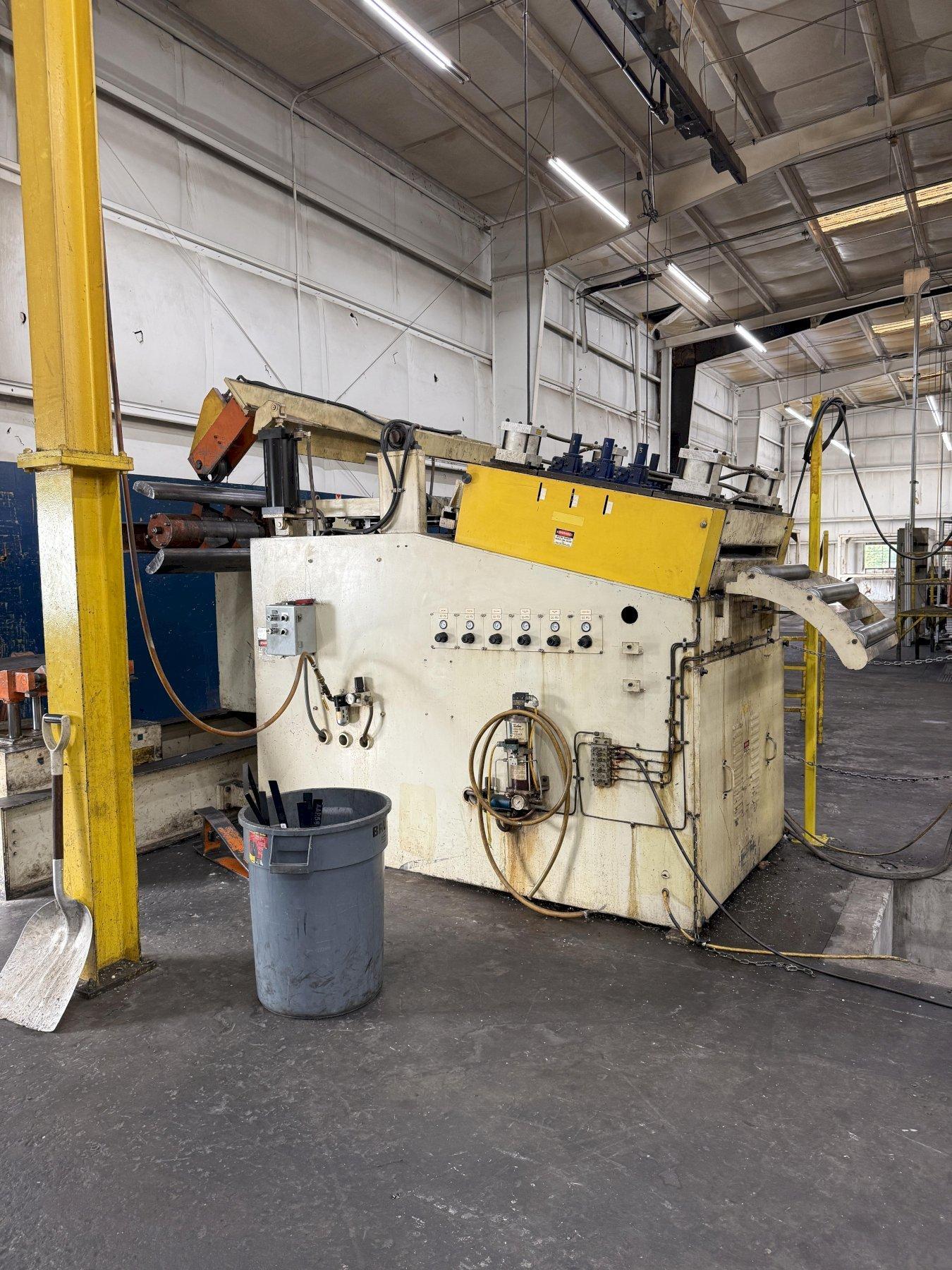

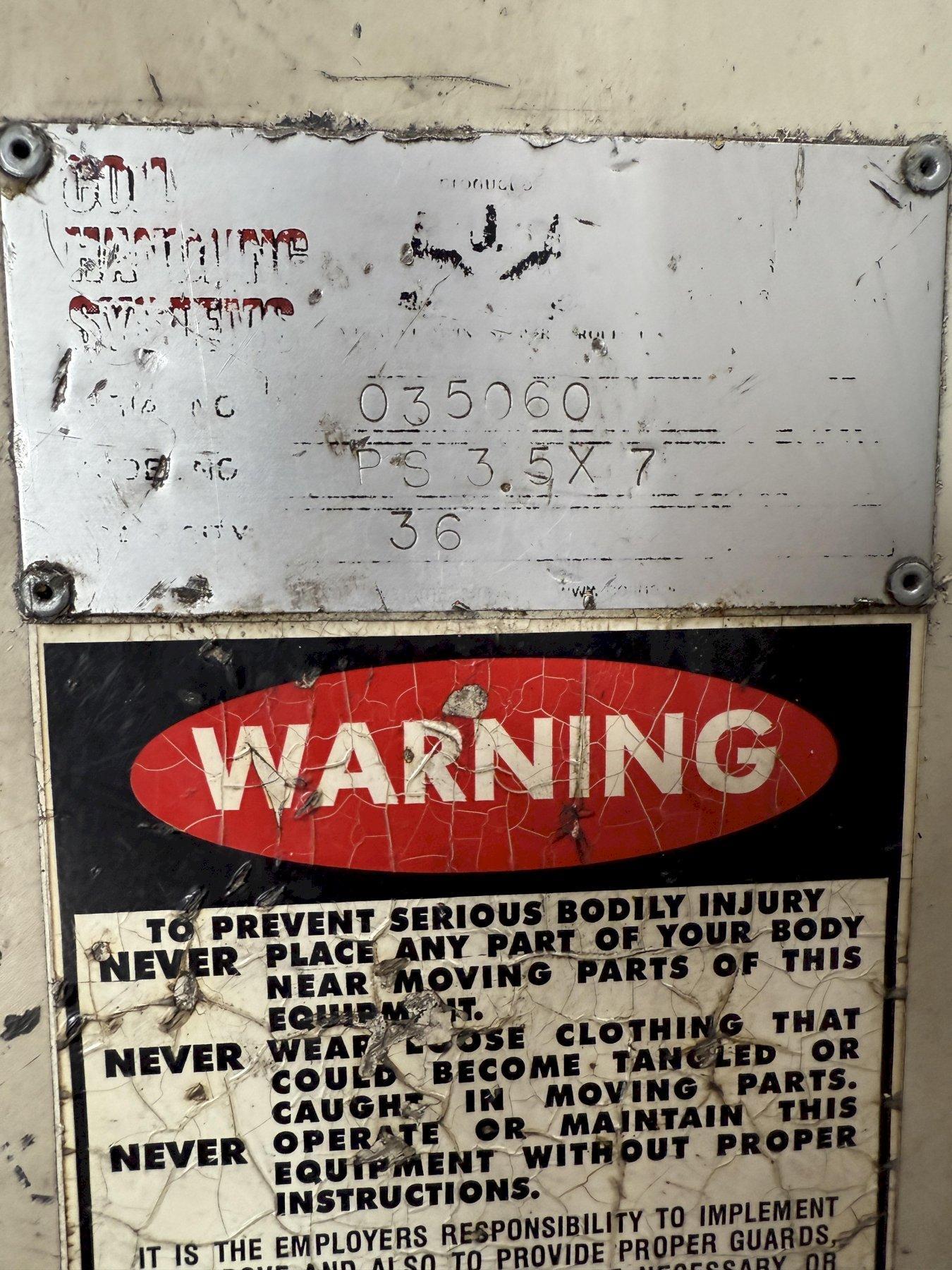

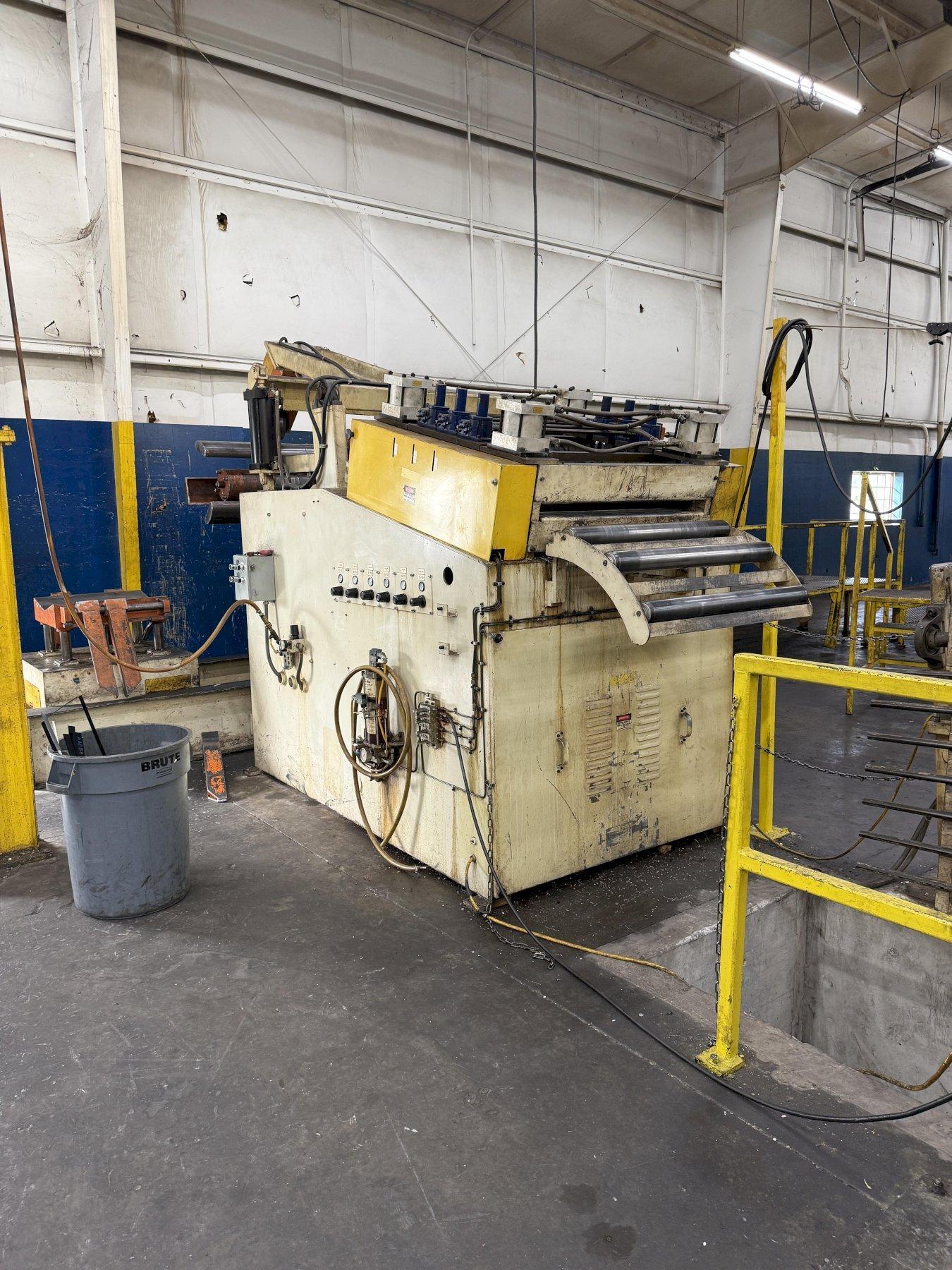

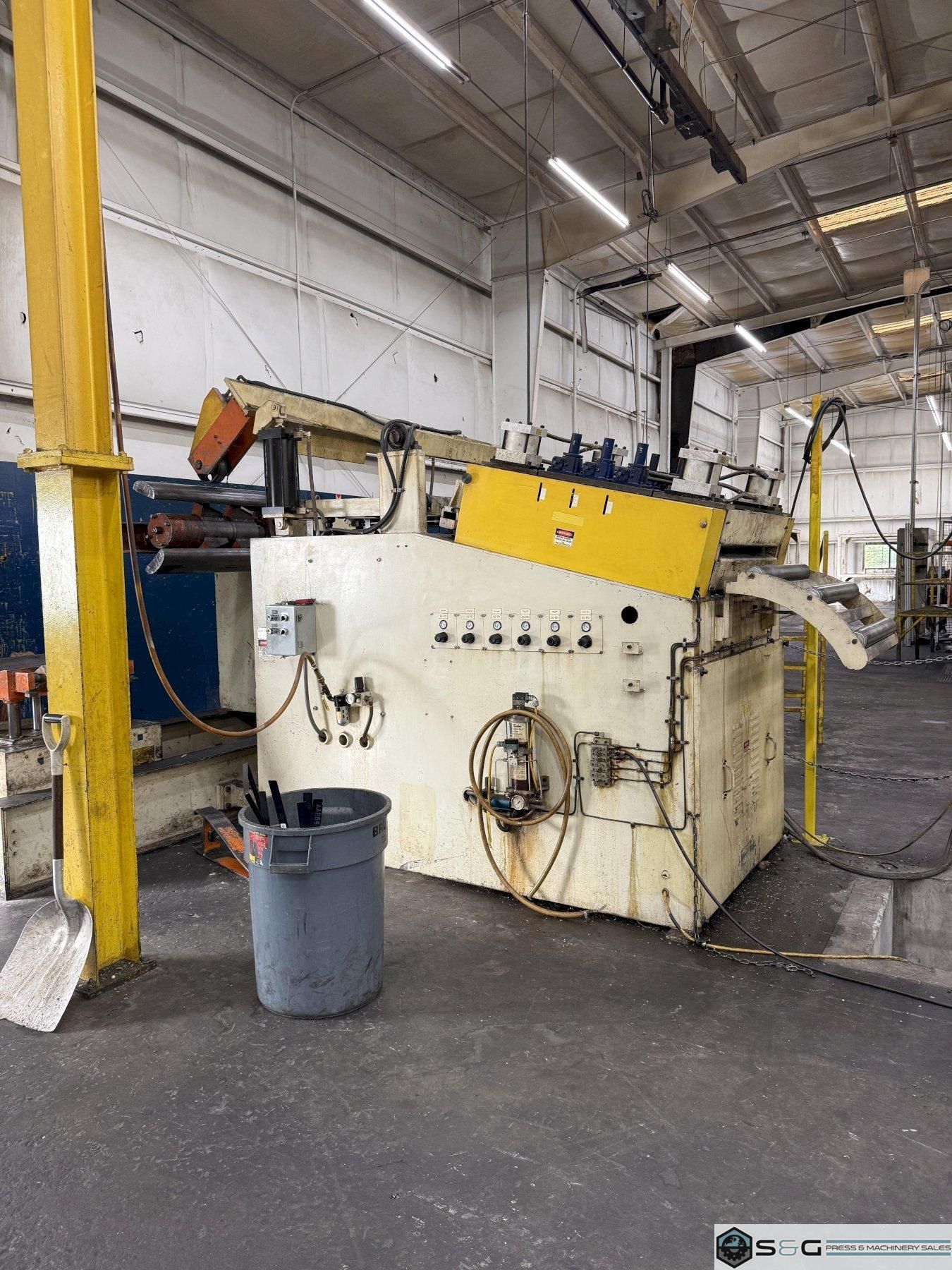

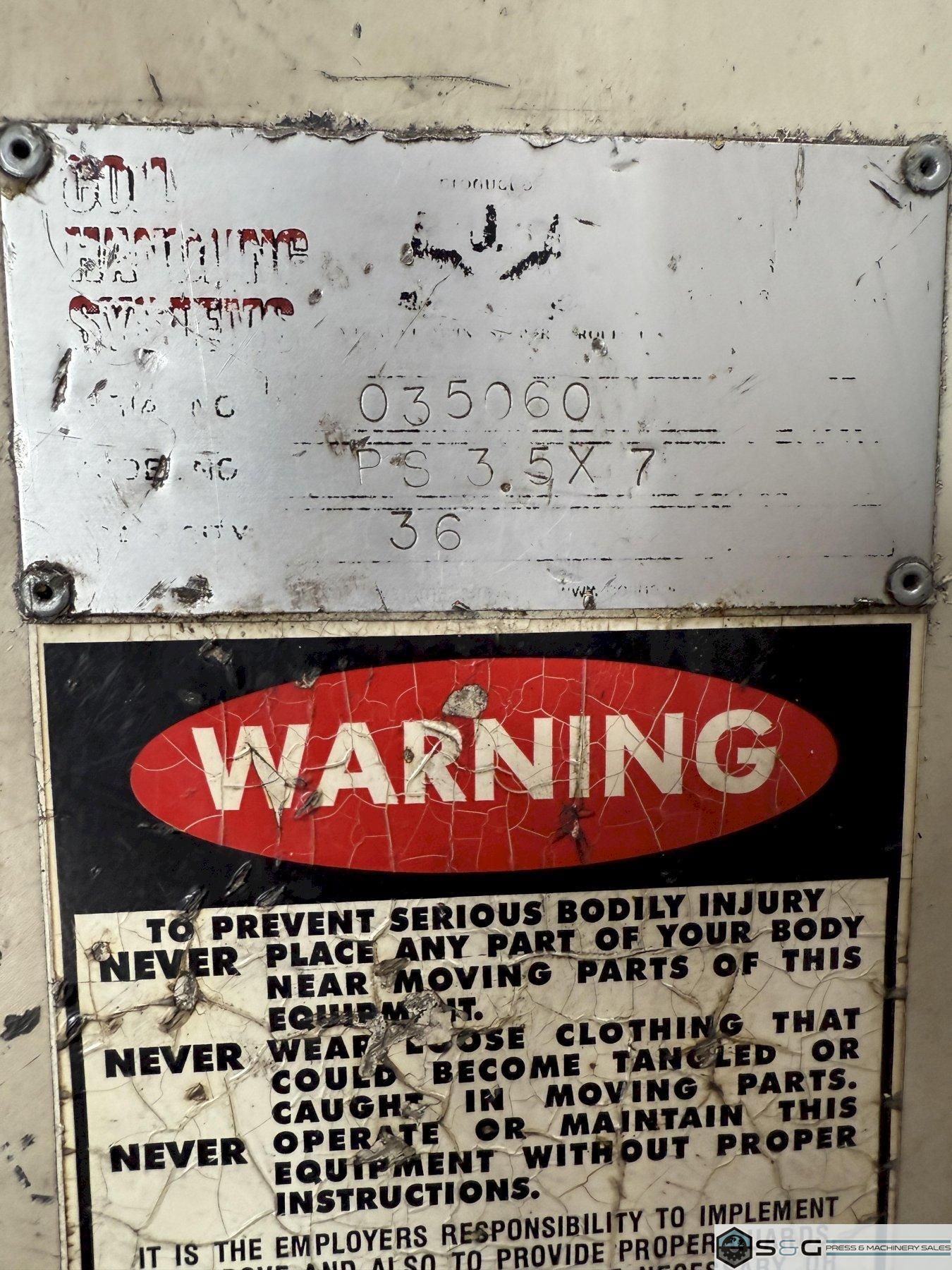

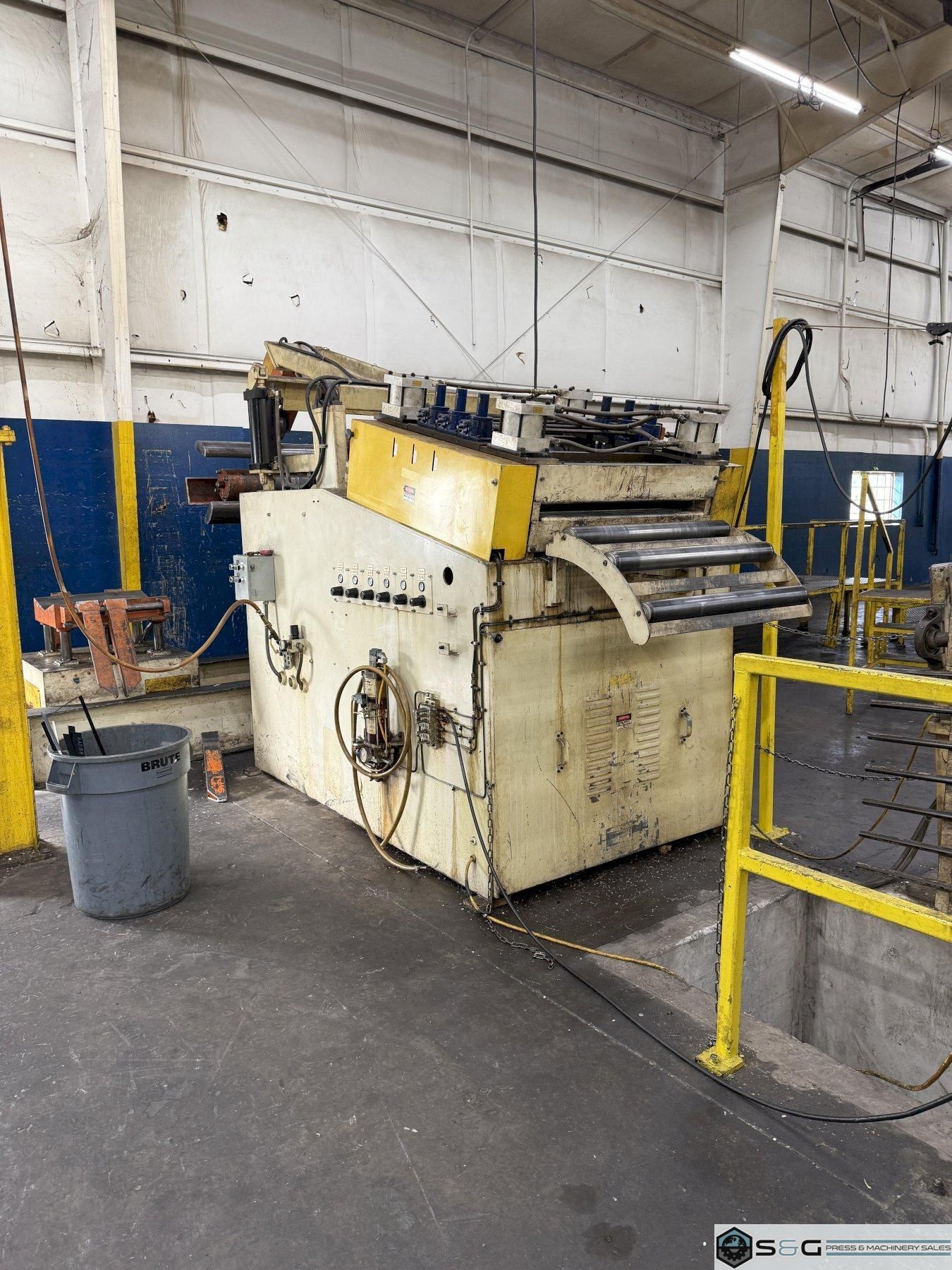

Traveling Coil Load Car Power Lift and Travel CHS Automation Powered Coil Straightener # PS 3.5 x 7 - 36
7 Straightening Rolls x 3.5" Diameter
Entry and Exit Pinch Rolls with Air Operated Upper Roll Adjustments
Independently Adjustable Breaker Rolls
Adjustable Stock Width Edge Guides
Inclined Head with Exit Cascade Loop Support Rolls
Air Operated Stock Peeler - Threading - De-Bending Station
Air Operated Hold Down Arm
Motorized End Wheel
Air Operated peeler table with Spade Extension
Auto / Run Cycle
Loop Control
|
|||
