20,000 lbs x 48" wide Littell Reel and Precision Powered Straightener

Brand

LITTELL

Model

S200-48 & 348-15PDL

Year

None

Stock #

2588

Condition

Not specified

Request a Quote

Specifications

Coil Weight

20000 pounds

Coil Width

48 inches

Max Stock Thickness Capacity At Full Width

0.040 inches

Max Dia. of Coil

72 inches

Standard Specifications
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 48"
Stock thickness capacity: .040" x 48" Wide
Stock thickness capacity: .125" x 18" Wide

Expansion range: 20" - 24"
Coil O.D. capacity: 60"

Equipment and Features
Littell Coil Reel Model No. S200-48
Three leaf mandrel
Hydraulic mandrel expansion
Coil keeper arms
Air brake mounted on main spindle
Adjustable tensioning
Threading drive for jog forward and reverse
Traveling coil load car
Powered lift and travel

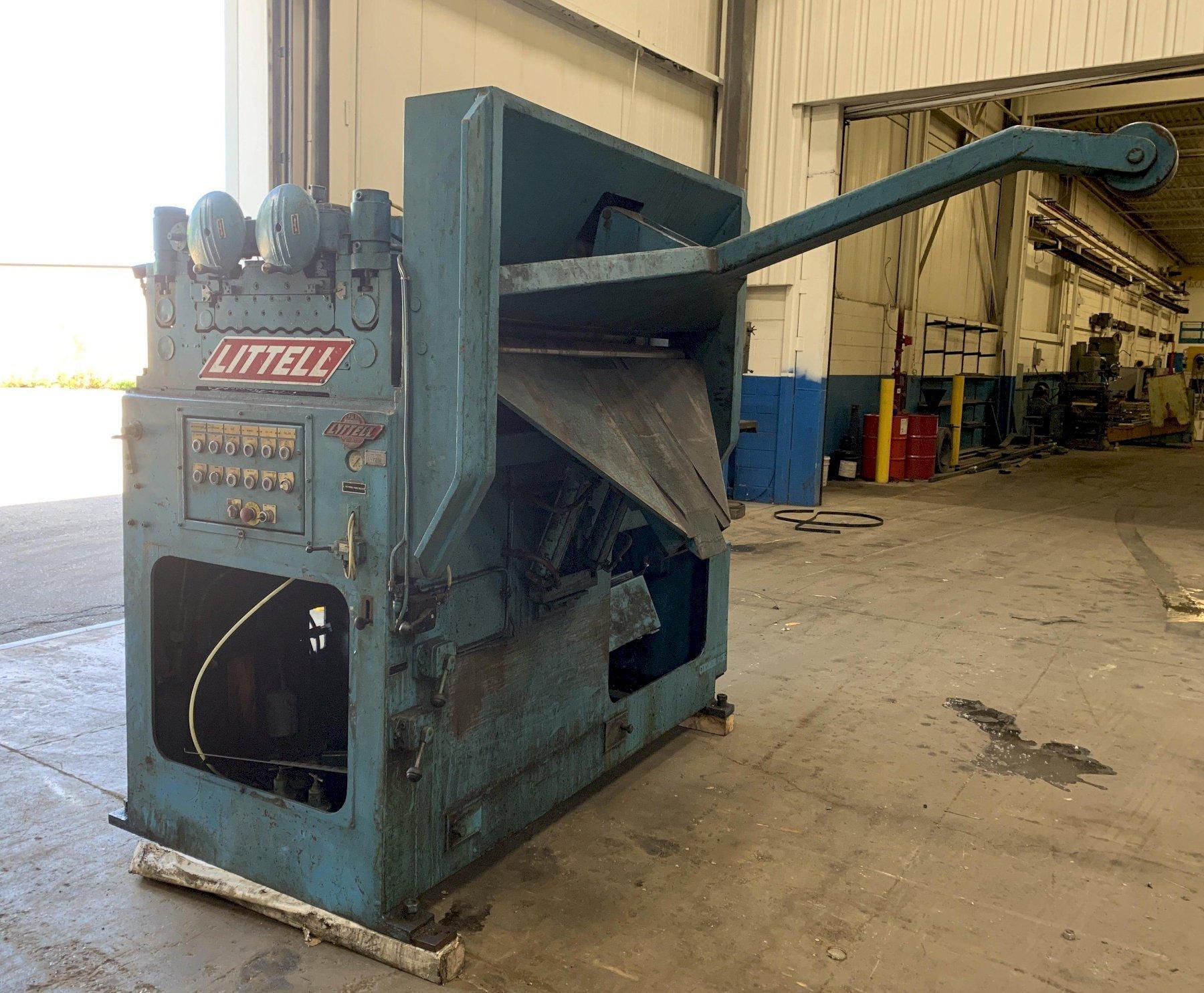

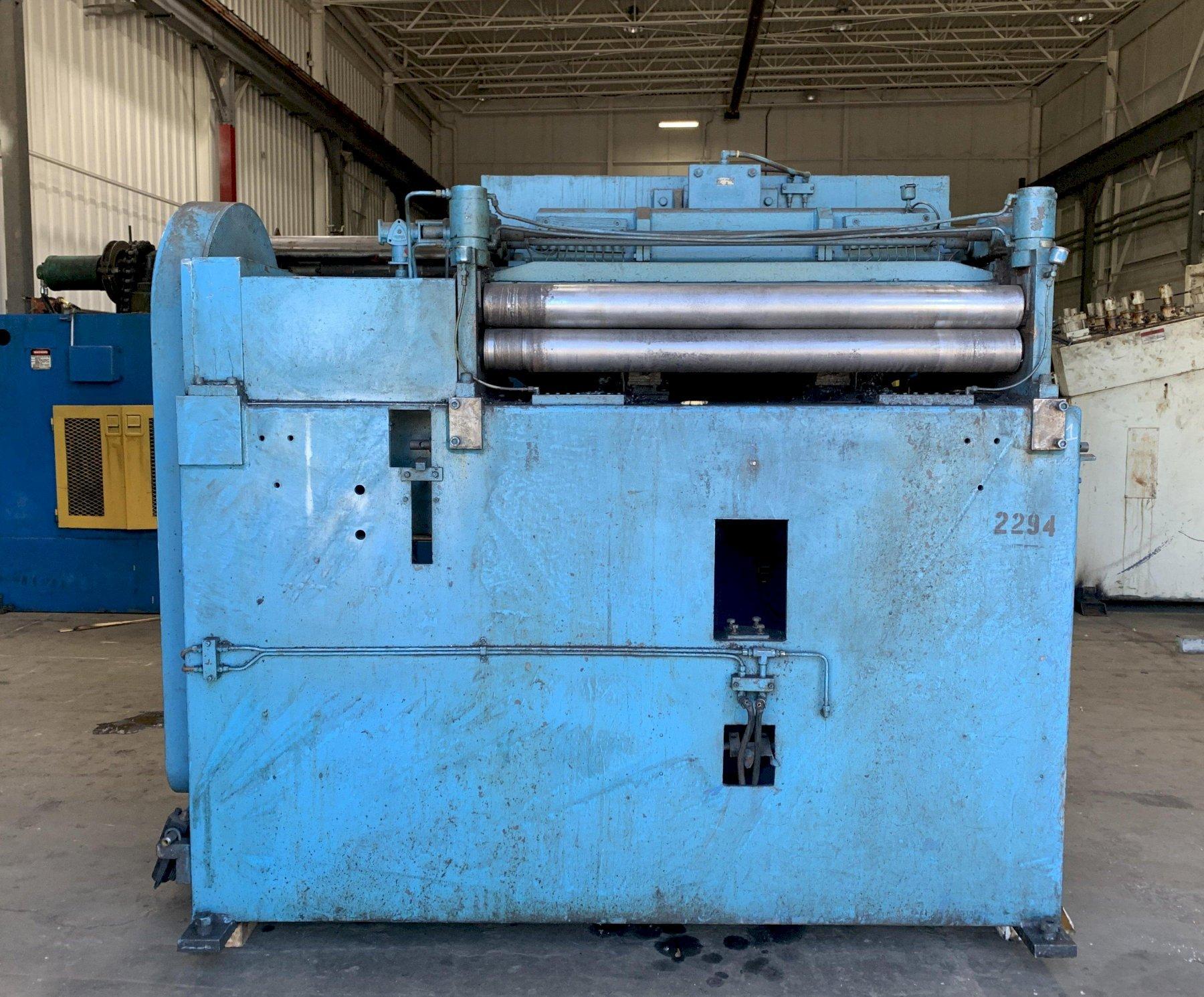

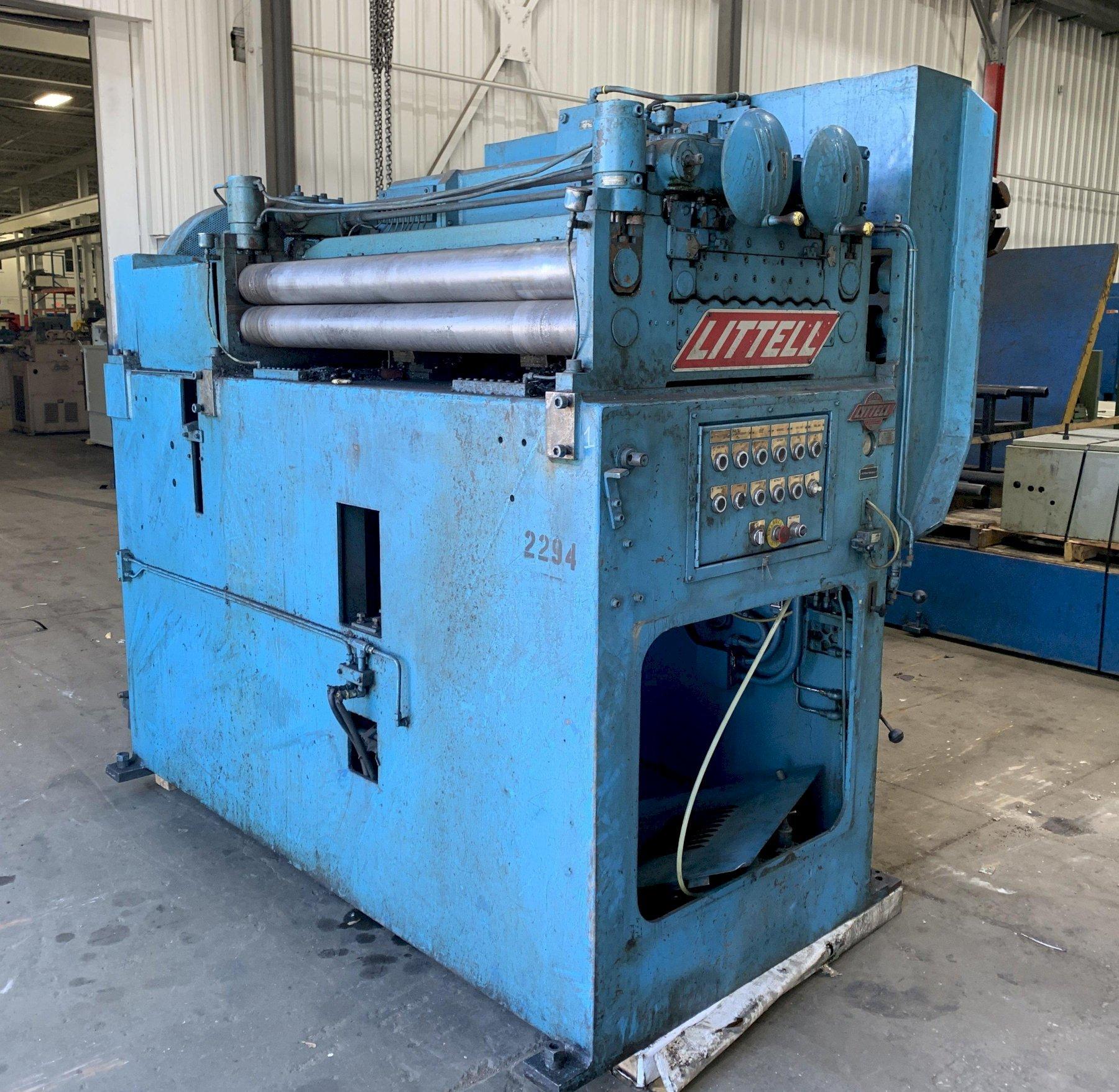

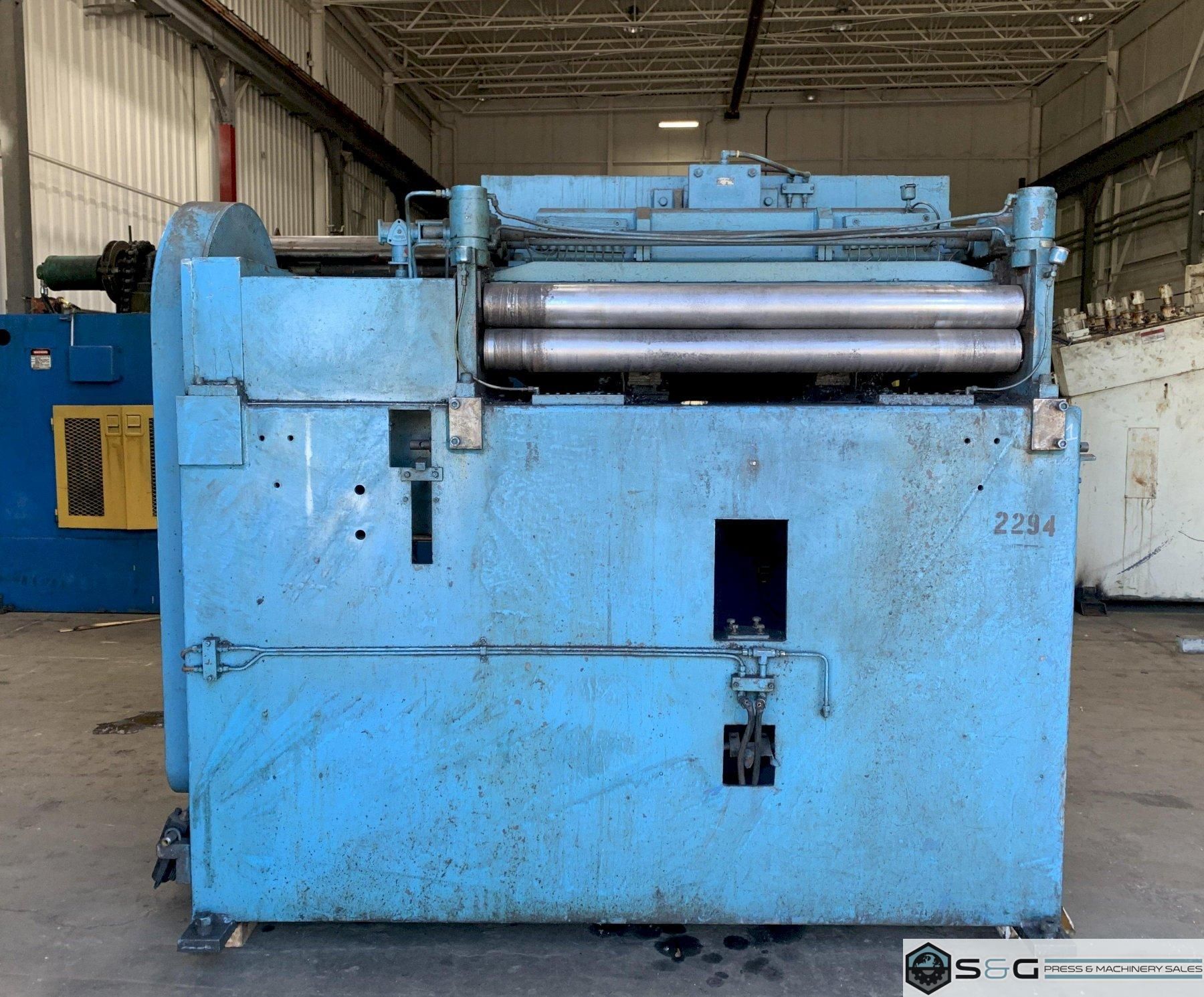

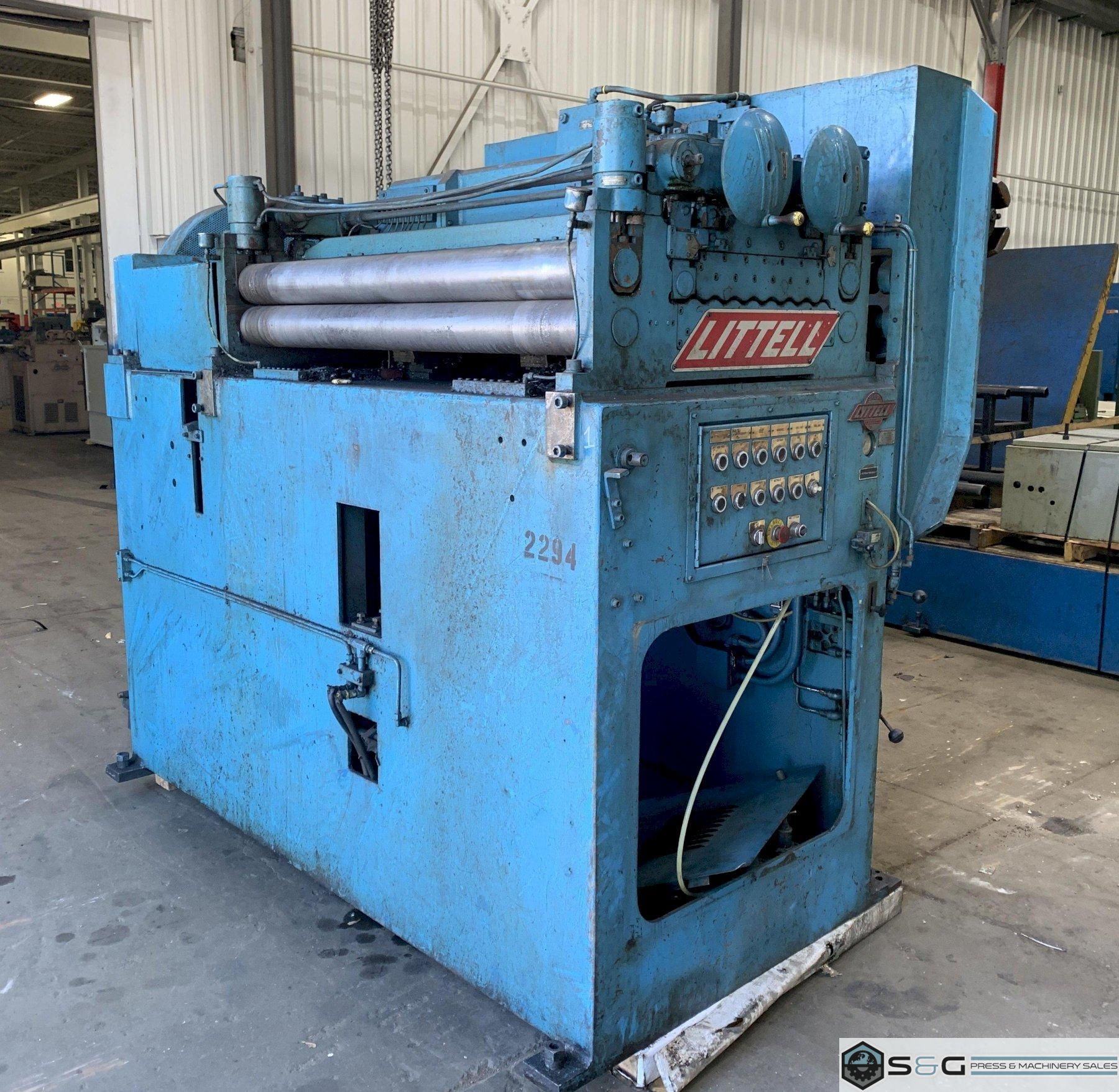

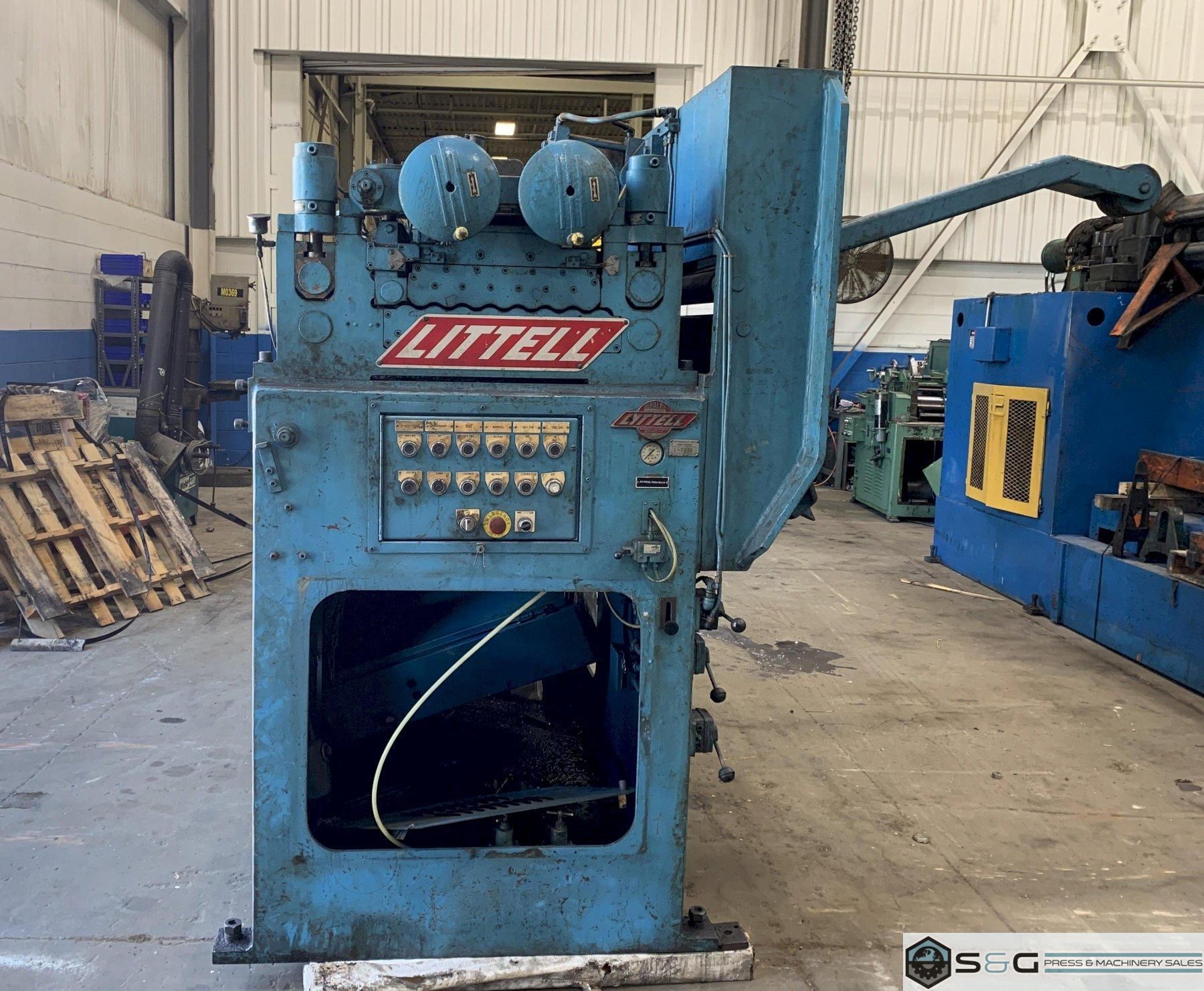

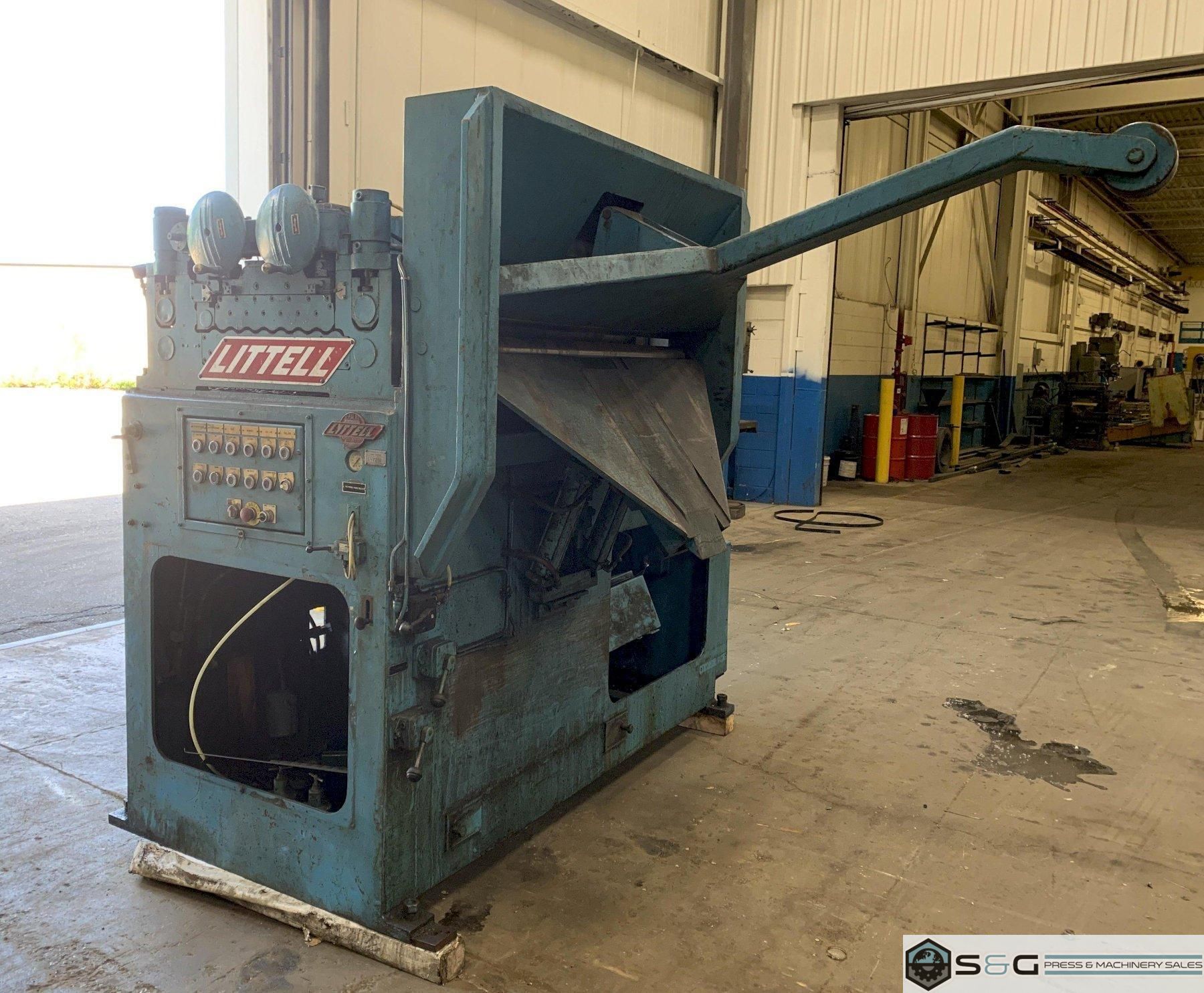

Littell Powered Straightener
Entry and exit pinch rolls x 4.25" diameter
Air operated pinch roll adjustment
Fifteen straightening rolls x 2.75" diameter
Heavy duty back ups on on upper and lower rolls
Bank type upper straightening roll adjustments
Exit overshot roll for fine tuning

Adjustable stock width edge guides
Flat top design
Coil hold down arm with non-motorized end wheel

Stock peeler table with spade extension
Integrated coil end de-bender
Variable speed drive
440 Volt Operator's control station
Jog forward and reverse
Auto/Run cycle
Loop control

Emergency stop
