20,000 lbs. x 60" Wide CHS Automation / Littell Conventional Coil Feed Line

Brand

Not Listed

Model

S200-60 Reel / 662-7SPD Str / DRF 6-60 Servo Feed

Year

None

Stock #

2971

Condition

As-Is

Specifications

Coil Weight

20000 pounds

Coil Width

60 inches

Coil Thickness

.110 inches

Preliminary Specifications
Littell and CHS Automation "Conventional Coil Feed Line"
20,000 lbs. Capacity x 60" Wide Coil Line For Metal Stamping

Coil Feed Line Consisting of:

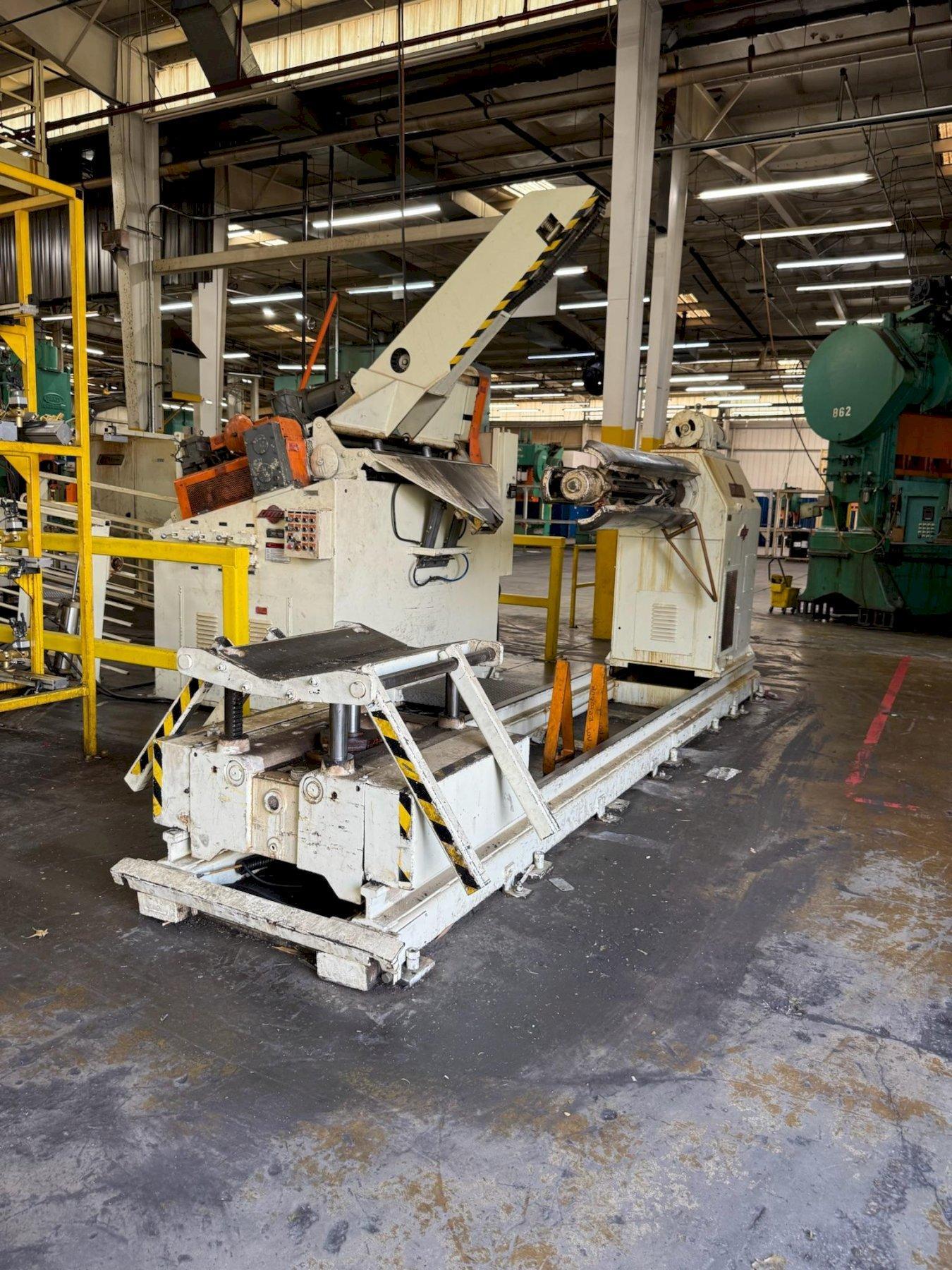

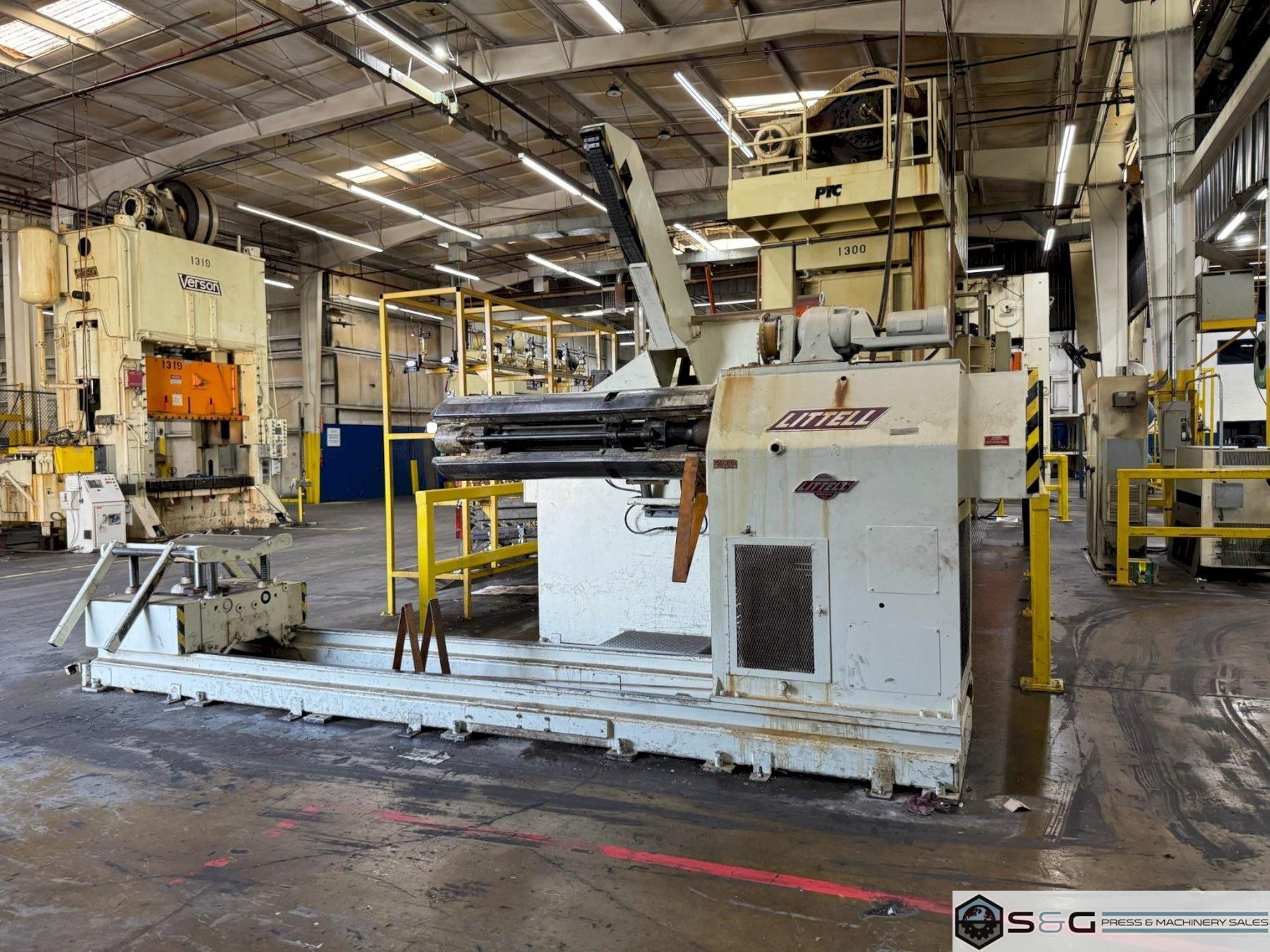

Littell Model S200-60 Coil Reel with Coil Car sn/ 82384-77
20,000 lbs. Maximum Coil Capacity
60" Maximum Coil Width
Three Leaf Mandrel Reel
Hydraulic Coil Reel Mandrel Expansion
Air Brake Mounted on Main Spindle
Adjustable tensioning
Motorized Thread Drive for Jog Forward and Reverse

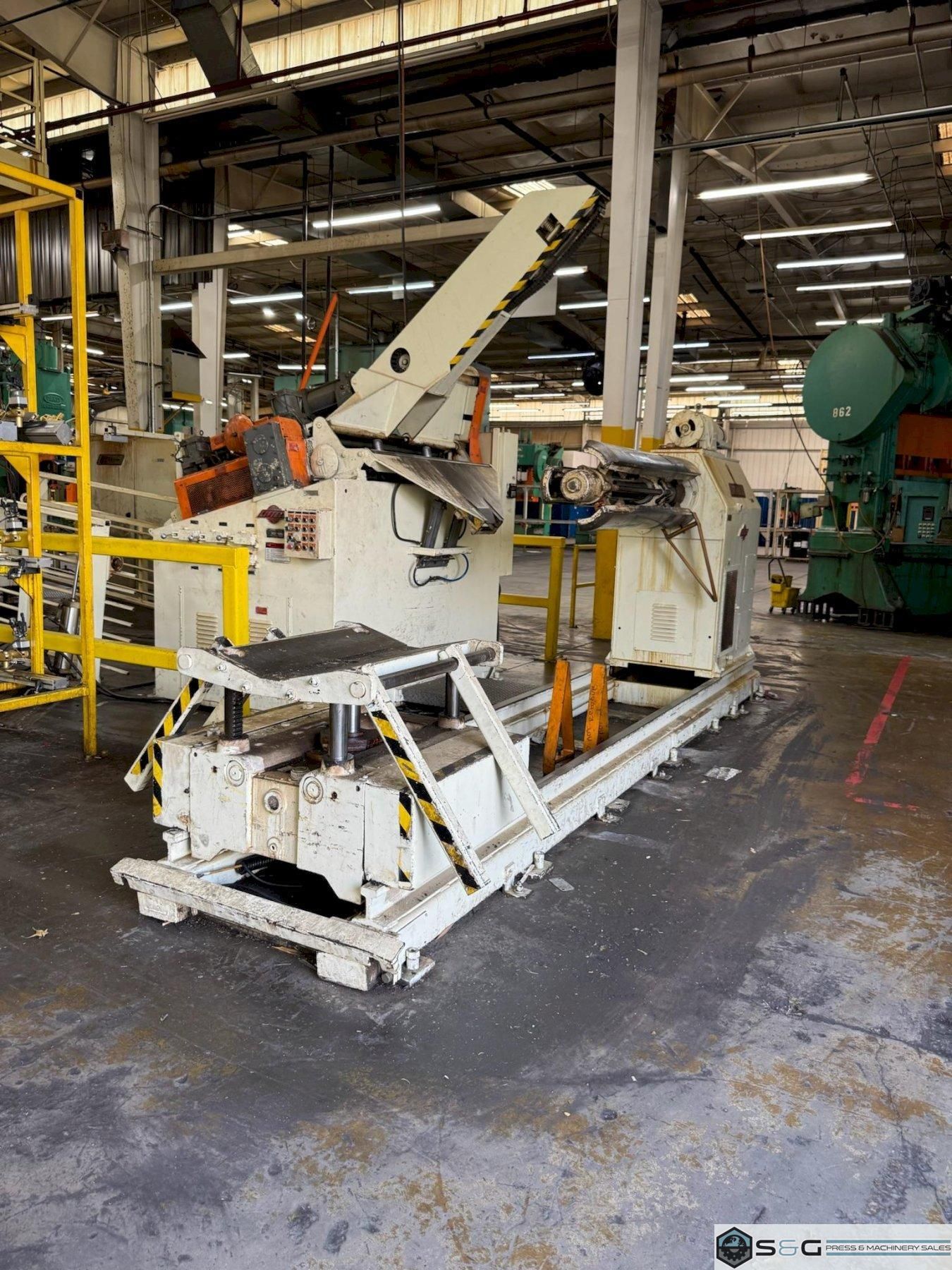

Traveling Coil Car with all hydraulics
Powered Lift and Travel
Keeper Arms

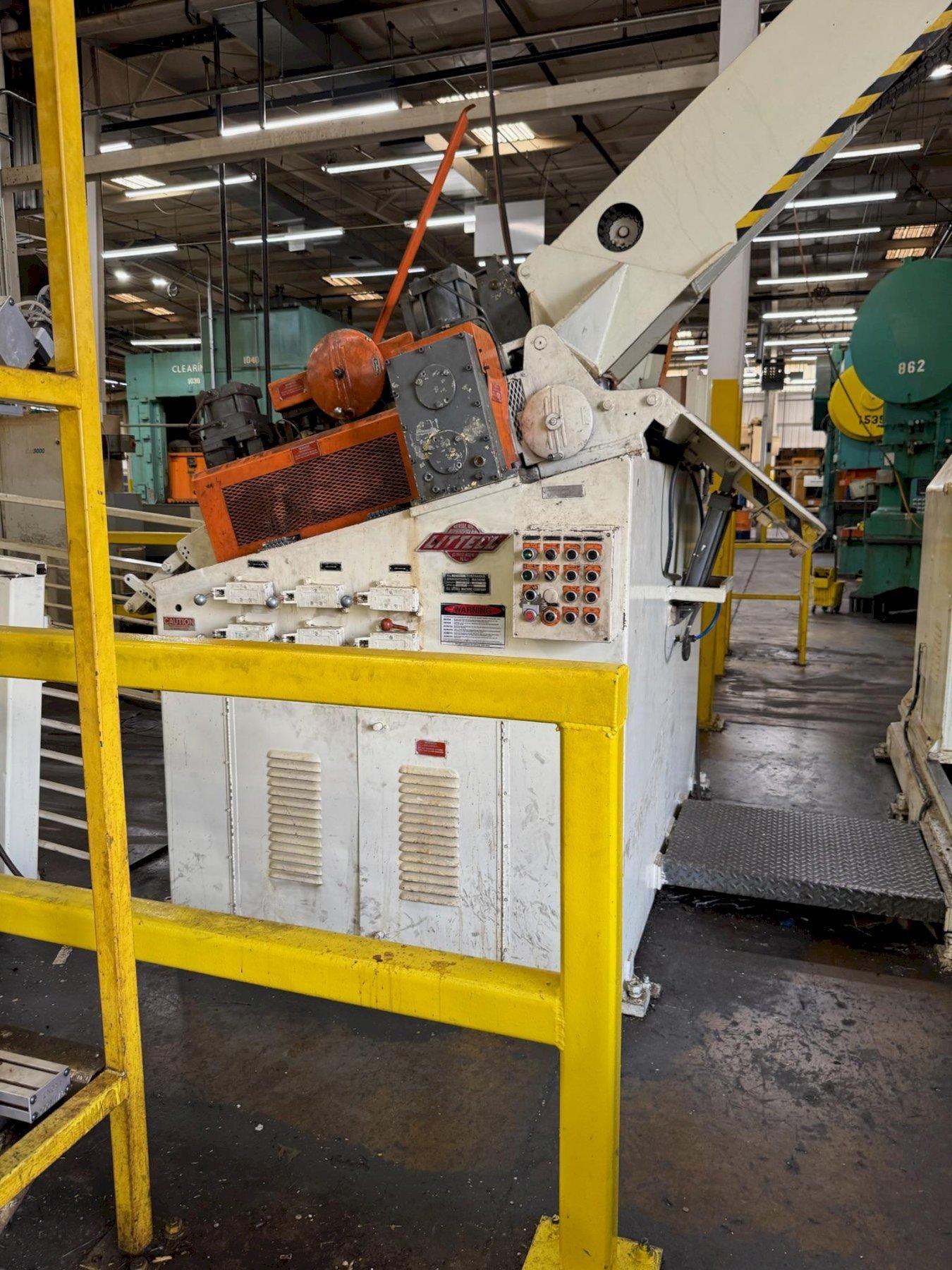

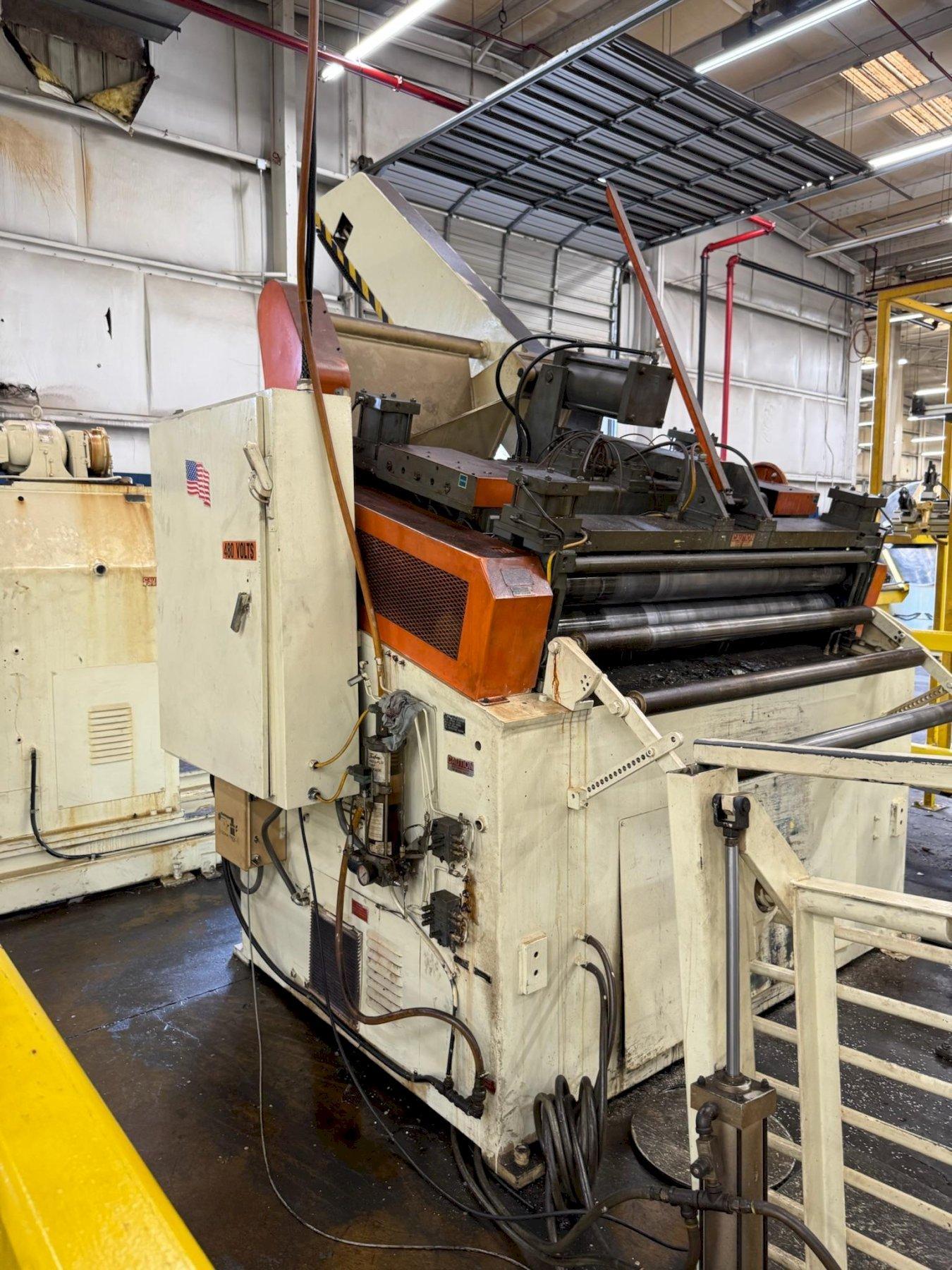

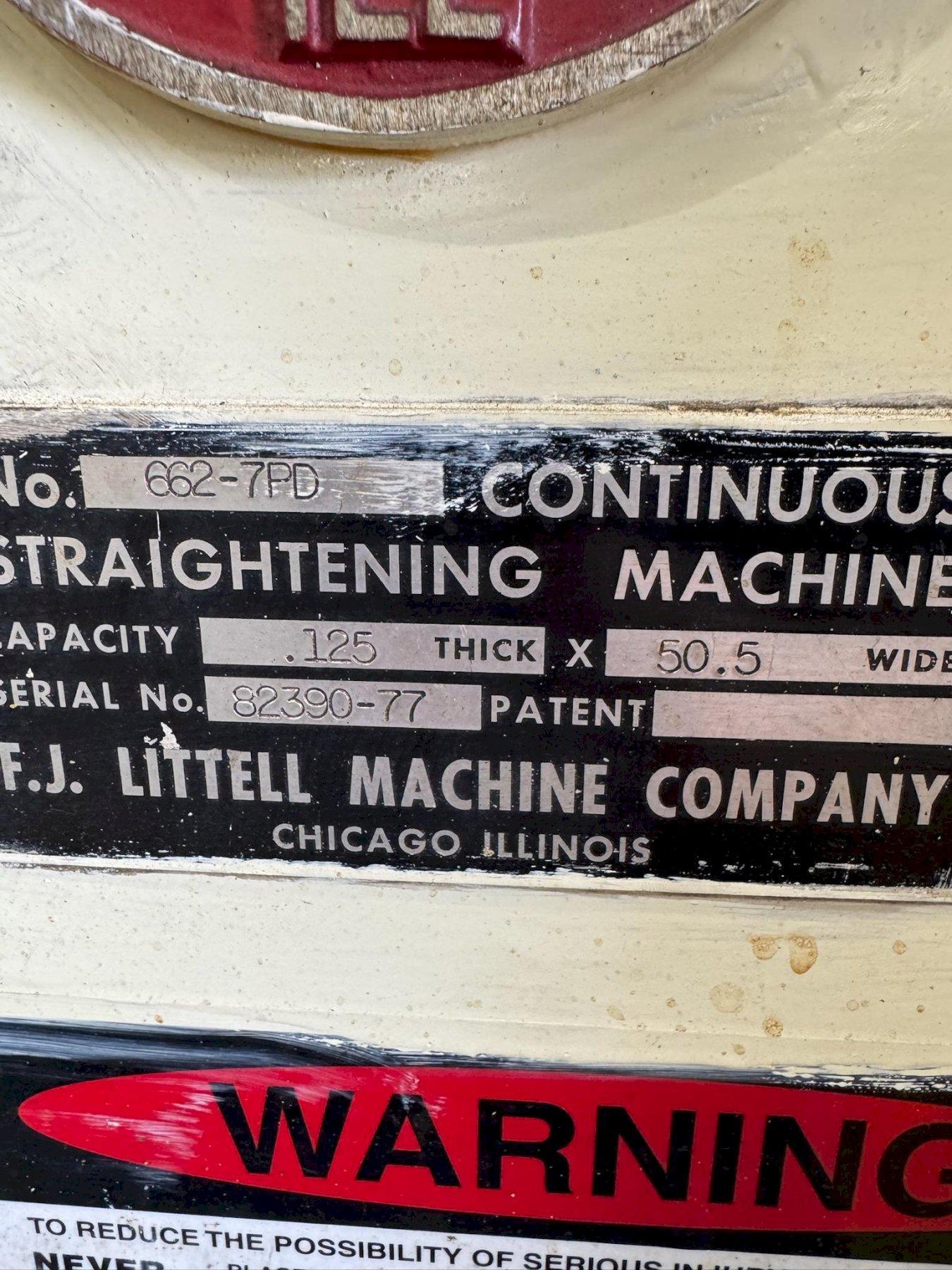

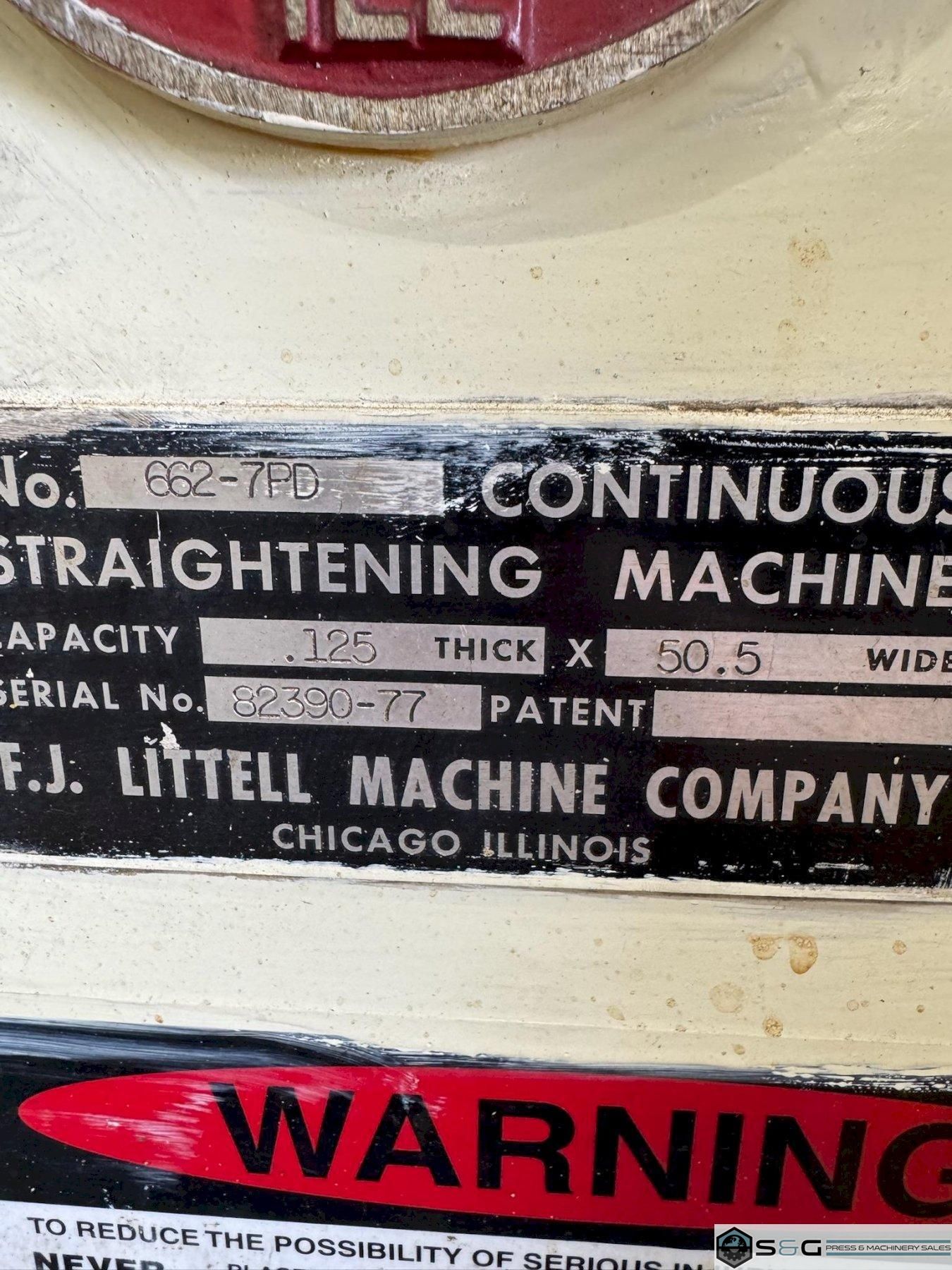

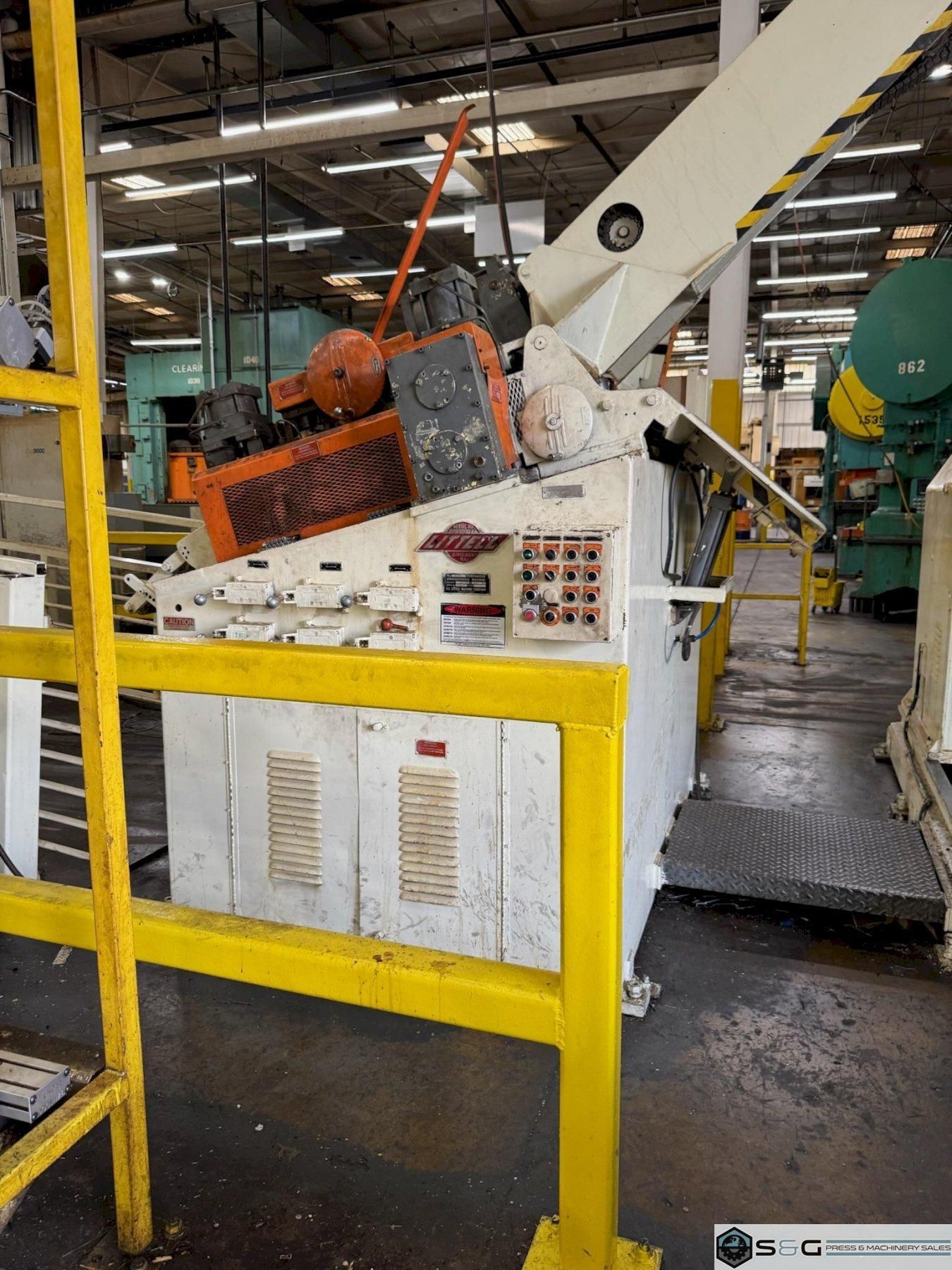

Littell Model #662-7PD sn/ 82390-77
60" Maximum Coil Width
50.5" Width @ .125" Thick Capacity

Entry and exit powered coil straightener pinch rolls x 6" diameter
Air operated powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 4.25" diameter
Upper coil straightening roll adjustments
Dial depth indicators for upper coil straightening roll positioning
Adjustable stock width edge guides
Inclined powered coil straightener head design
Coil hold down arm with motorized cat track
Stock peeler table with spade extension
Jog forward and reverse
Auto/Run cycle
Laser Loop control

CHS Automation Double Sided "Bomb Bay" Threading Tables

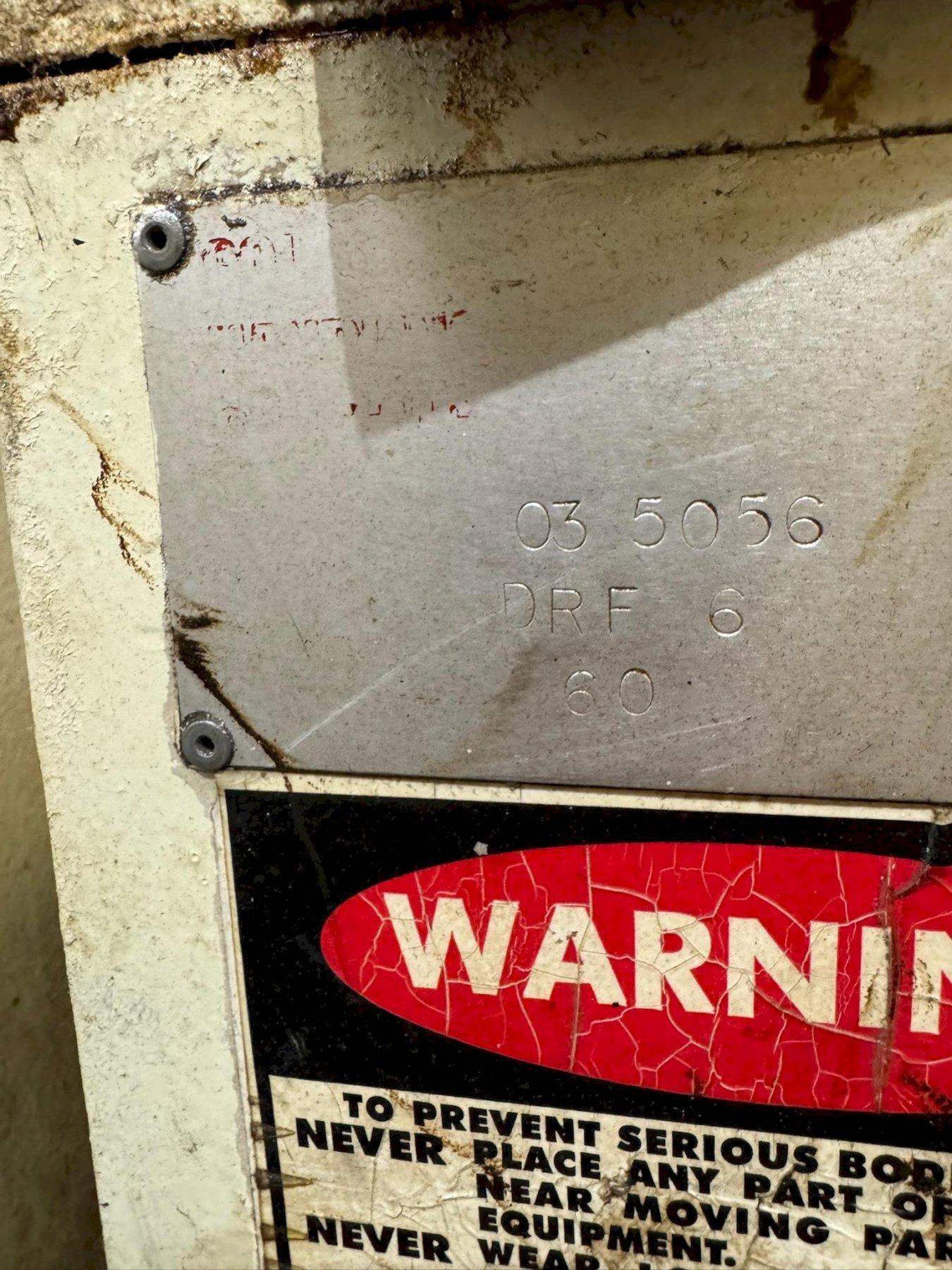

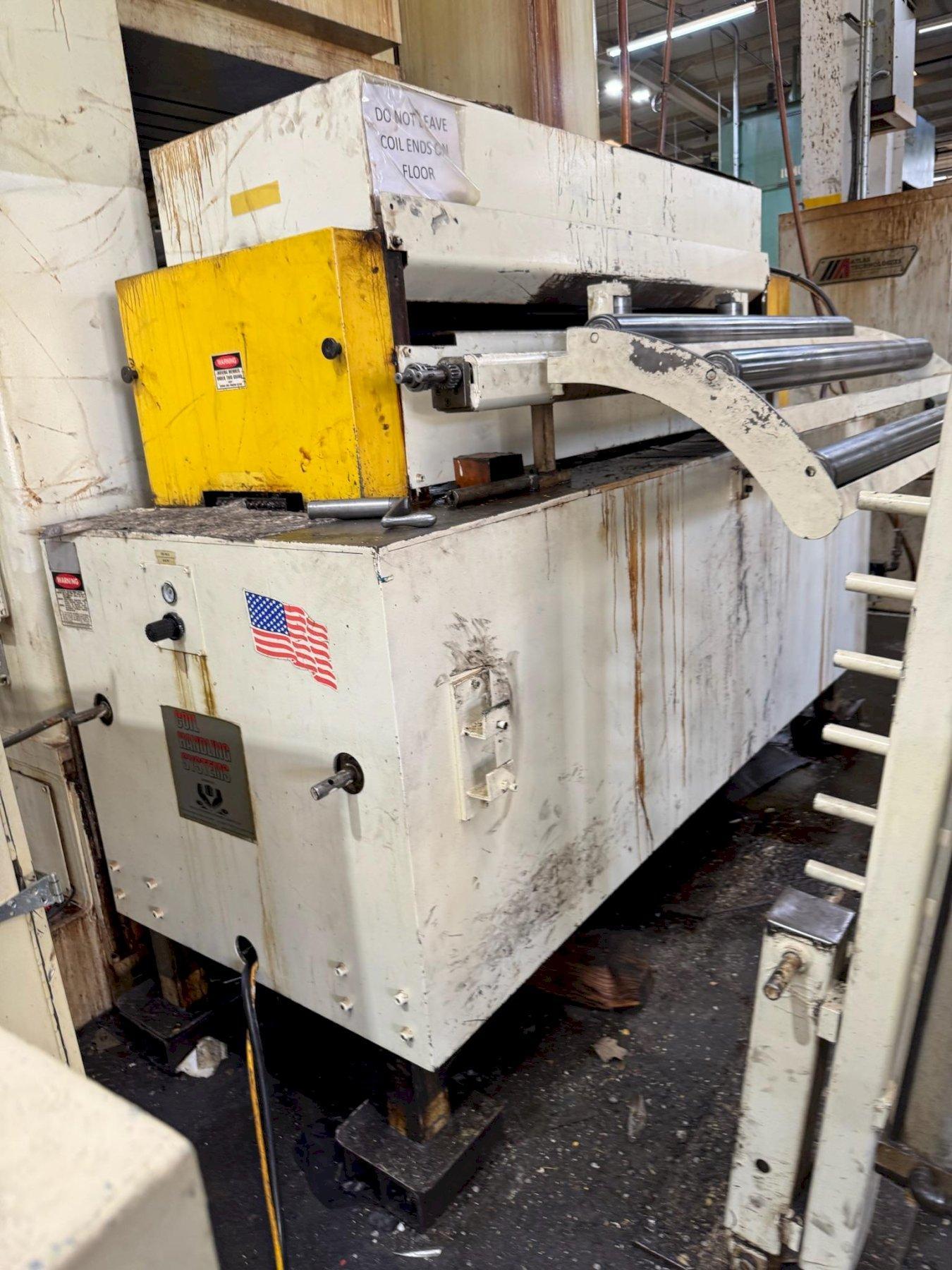

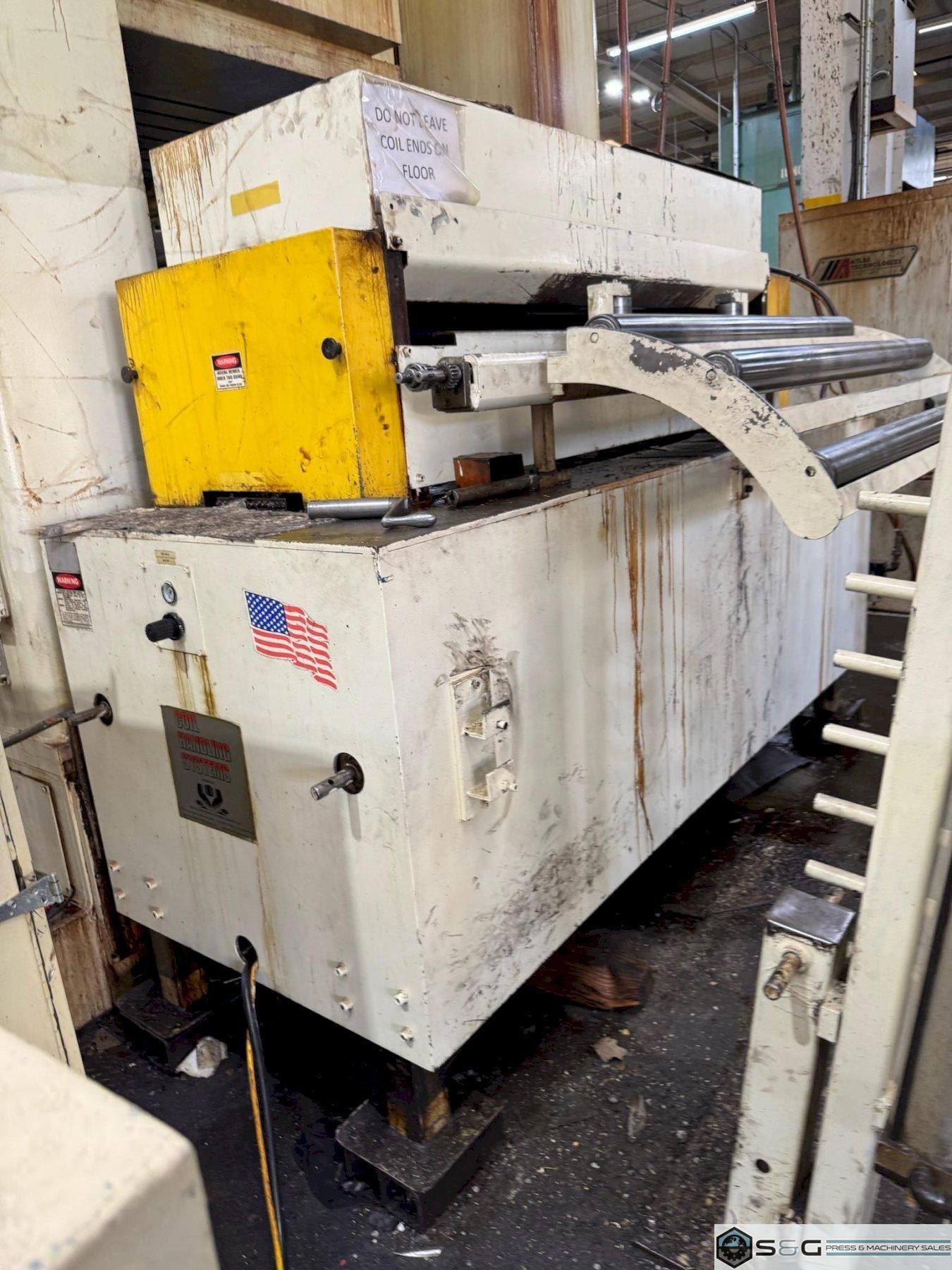

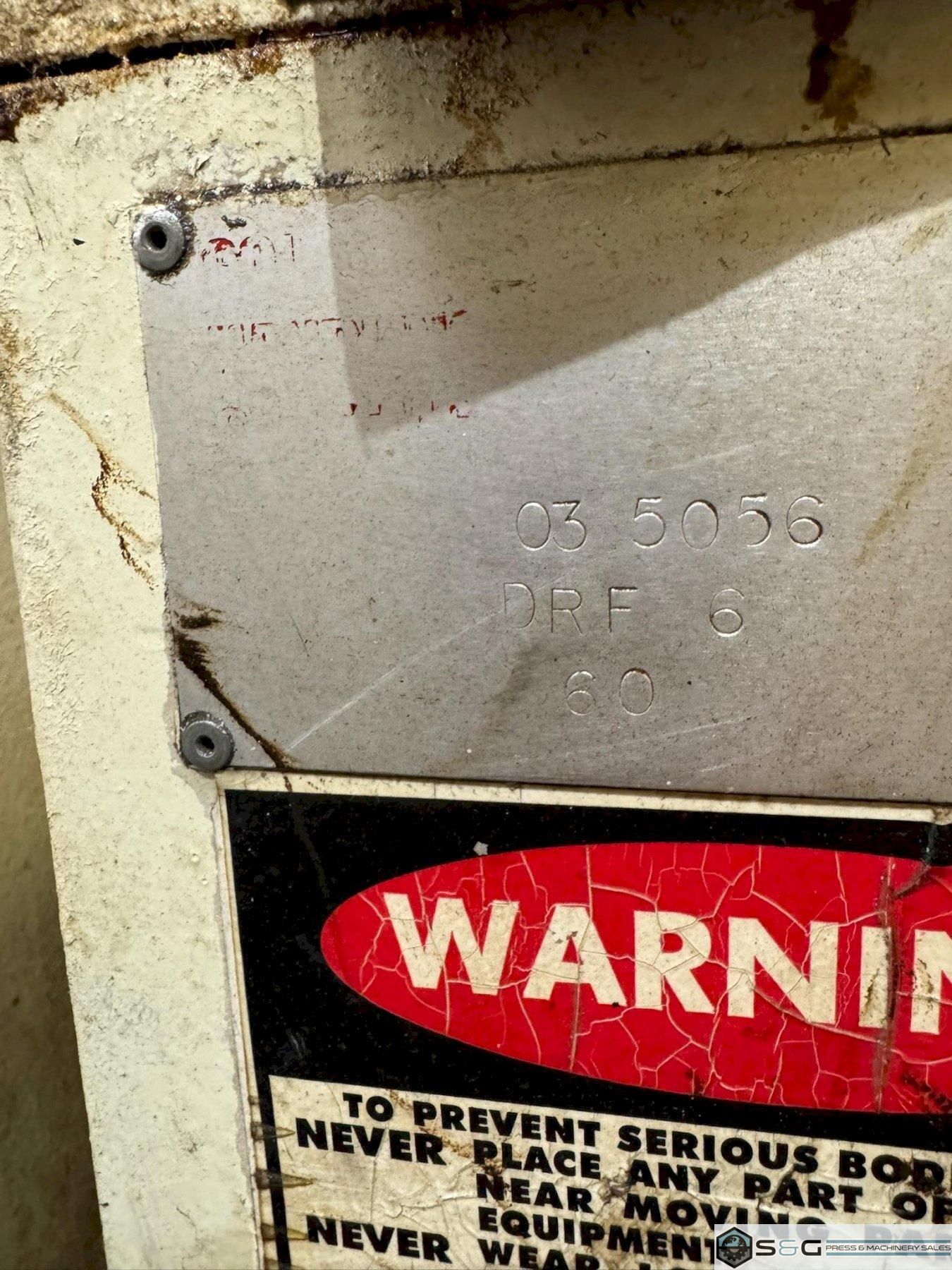

CHS Automation DRF-660 Servo Feed s/ 03-5056
6" Diameter Feed Rolls
Matte Chrome finish on Servo Feed Rolls
Air operated upper servo feed adjustment for piloting
Entry side cascade material support rolls
Centralized lubrication
Cabinet base mounted with adjustable pass line height

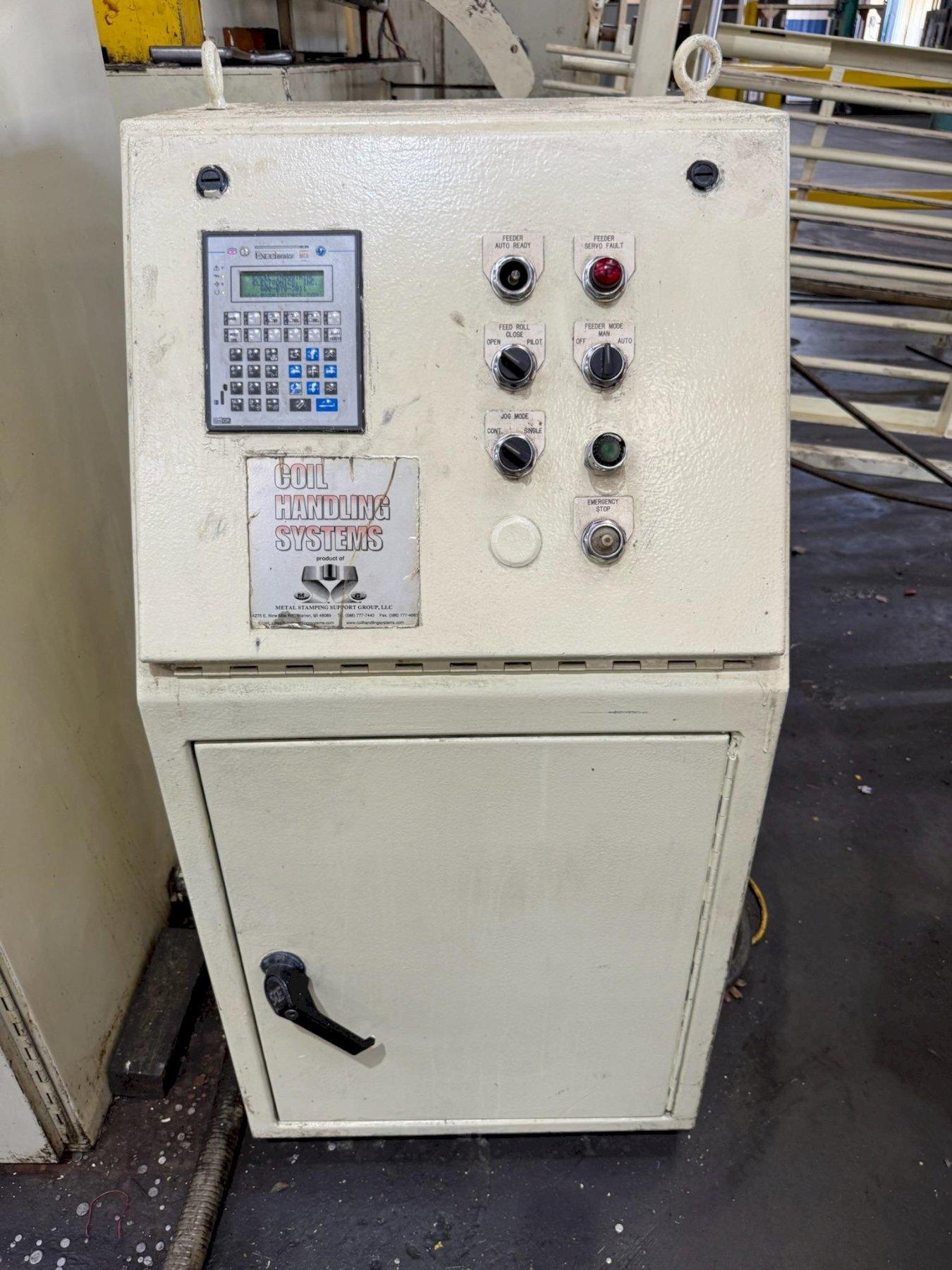

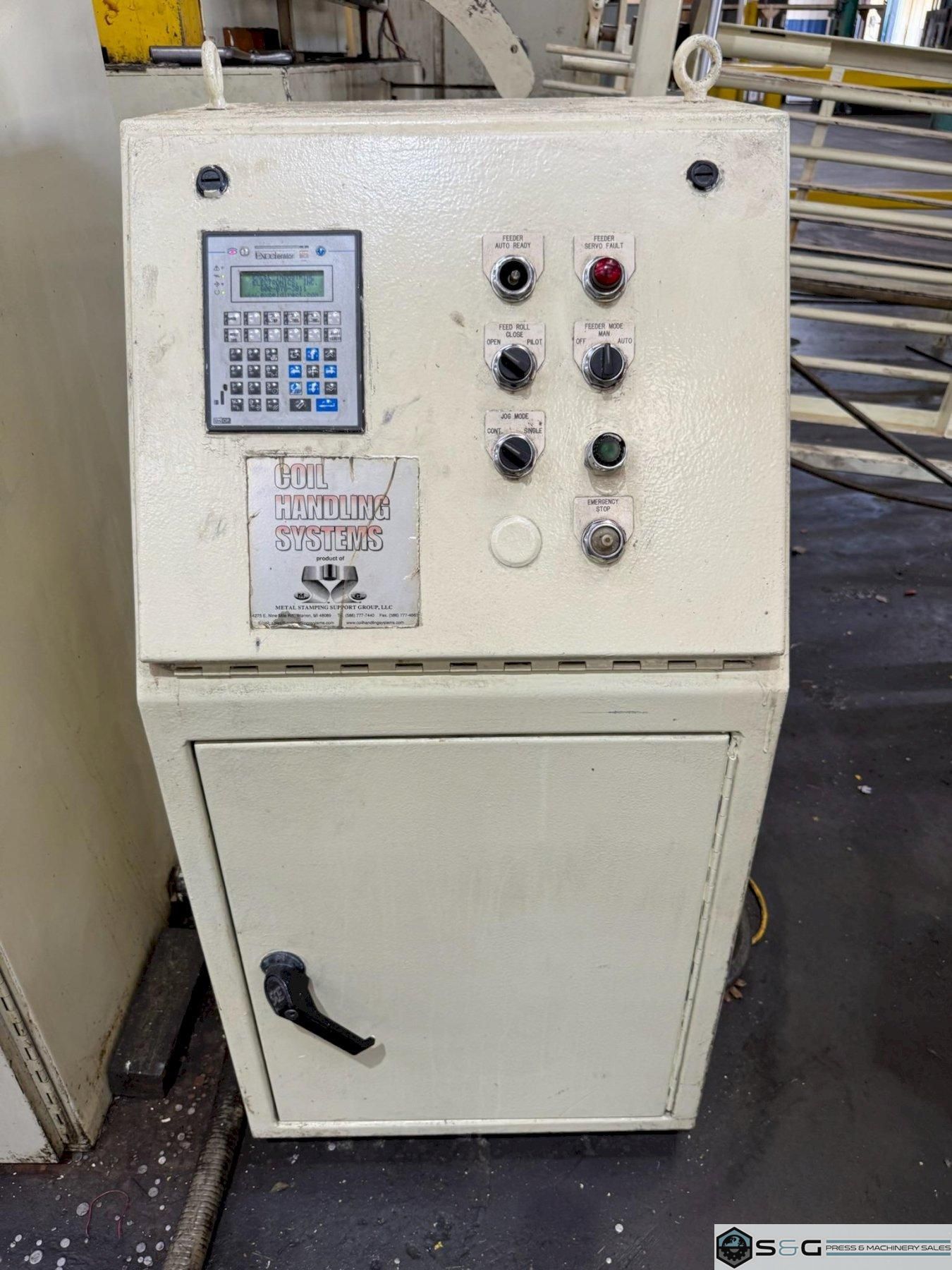

AC Servo Roll Feed and Controls
480 Volt
