MRH20-38S & MSH30-32-7
2007
2889
Used
Specifications |
|||
|---|---|---|---|
| Coil Weight | 24000 pounds |
||
| Coil Width | 32 inches |
||
| Coil Thickness | .156 inches |
||
|
Standard Specification
Minster Coil Reel and Minster Power Straightener
24,000 lbs. Coil Weight Capacity
32" Maximum Coil Width
.156" Material Thickness @ Full Width
.315" Maximum Thickness @ 5" coil Width
Line Speed 40-1200 in/min
20-24" I.D. Range
72" Coil O.D.

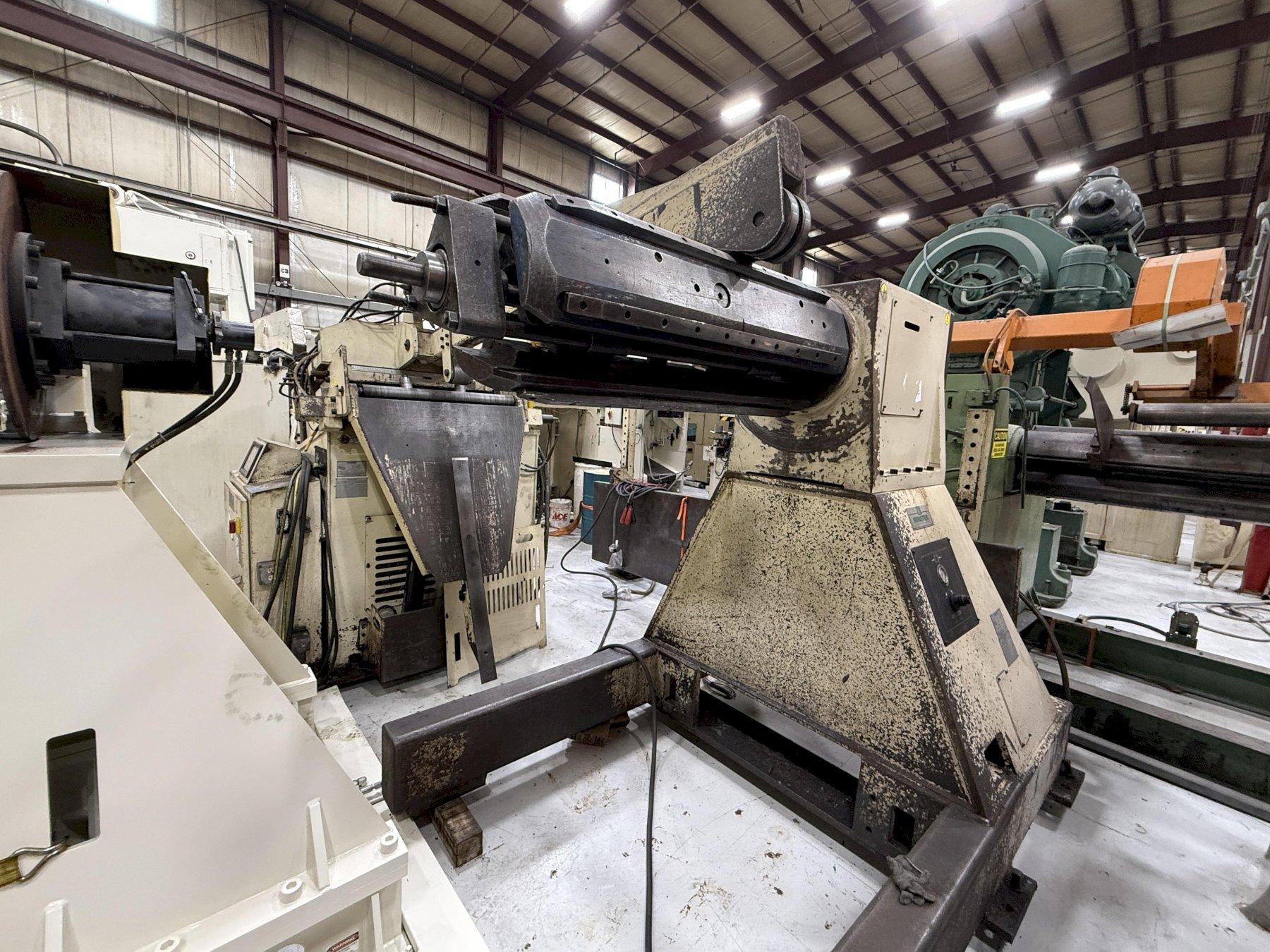

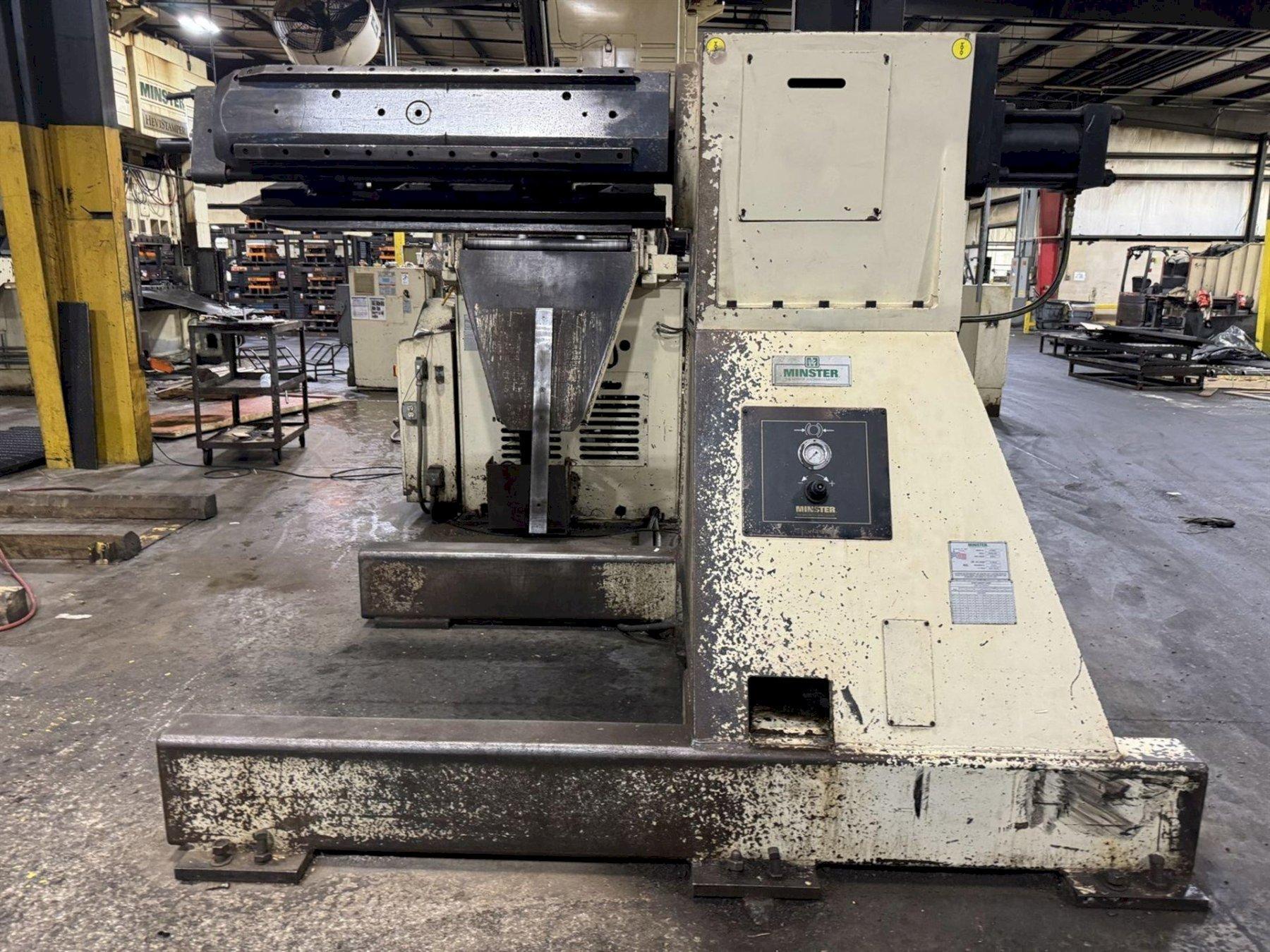

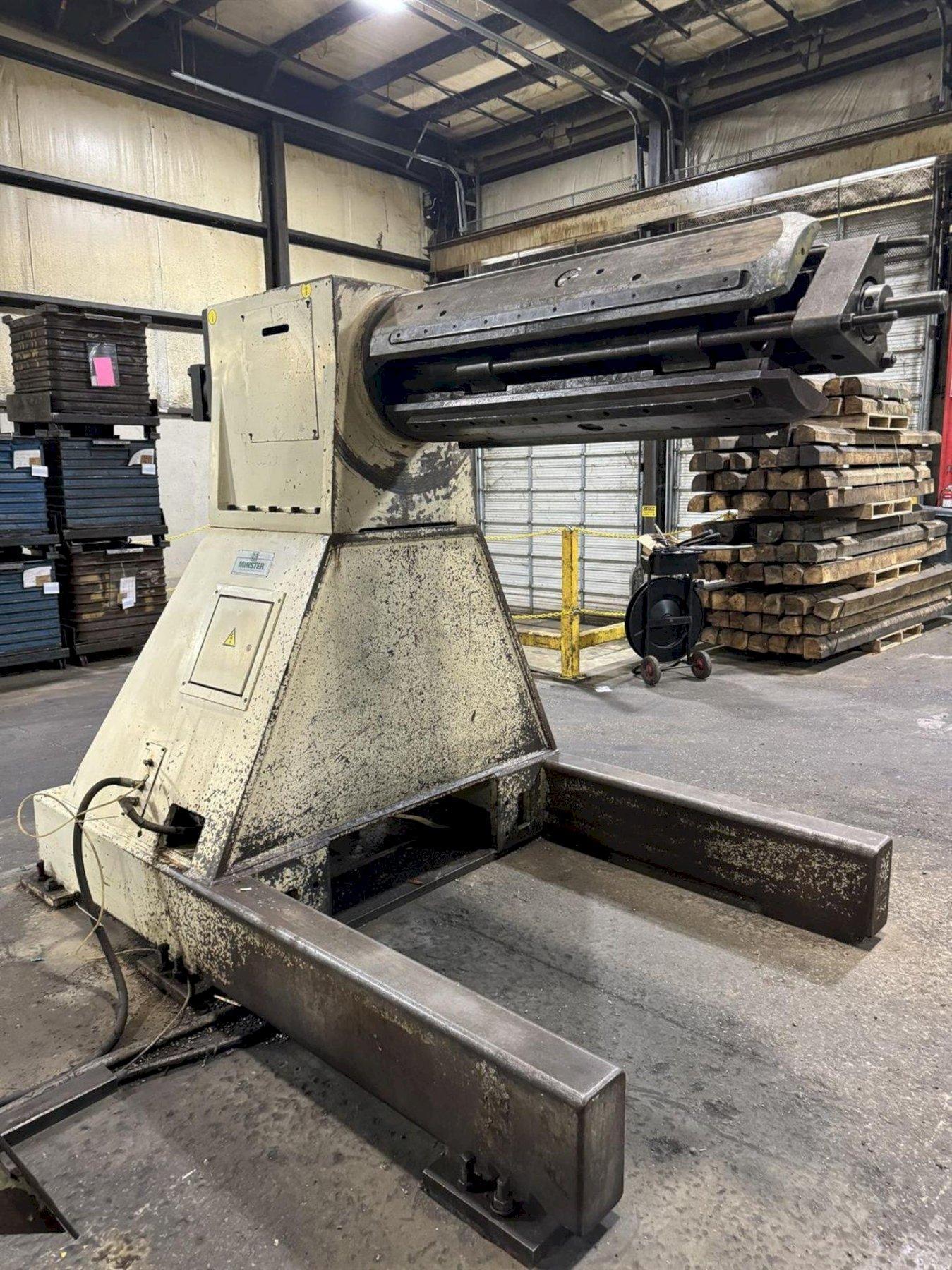

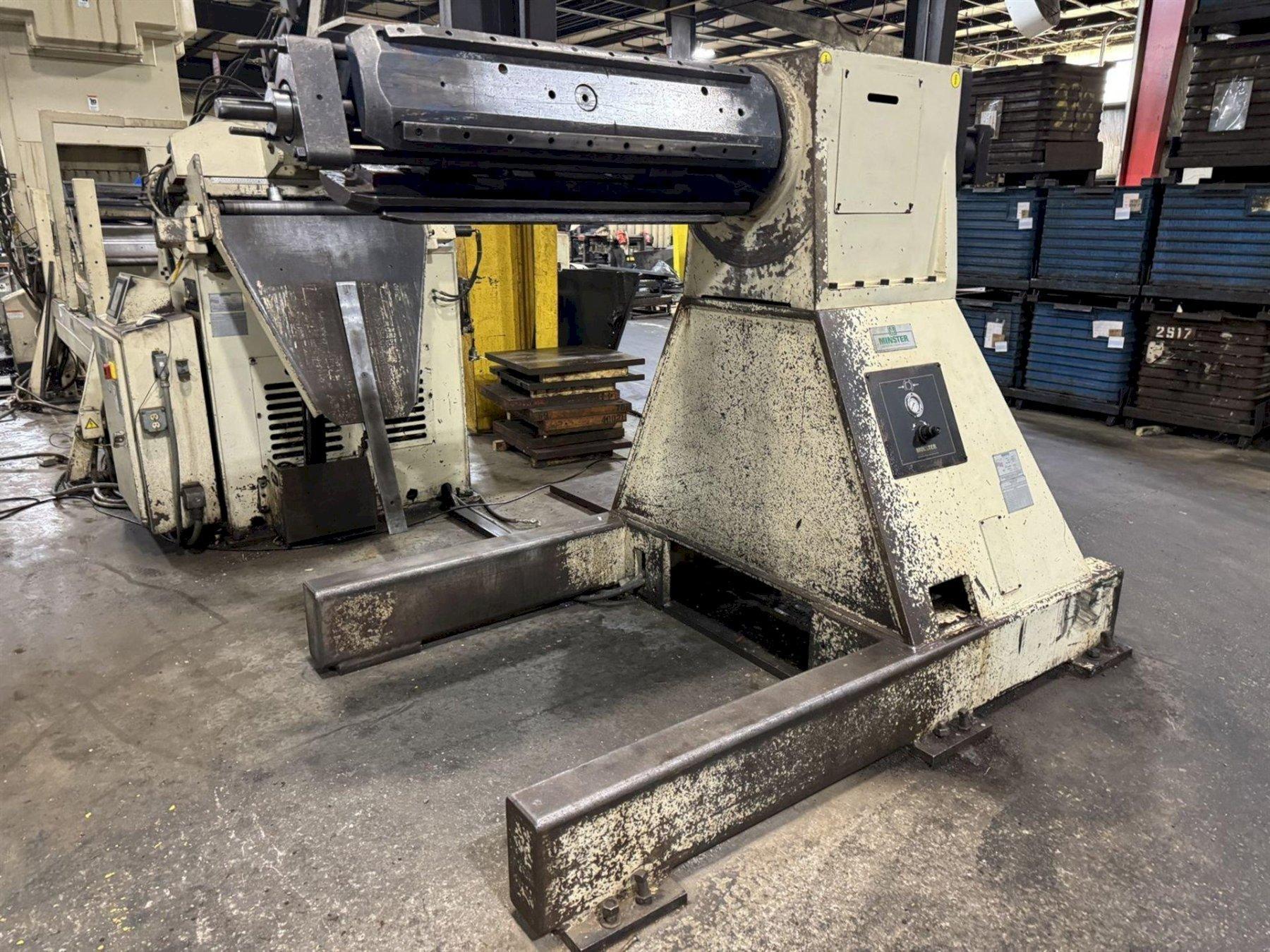

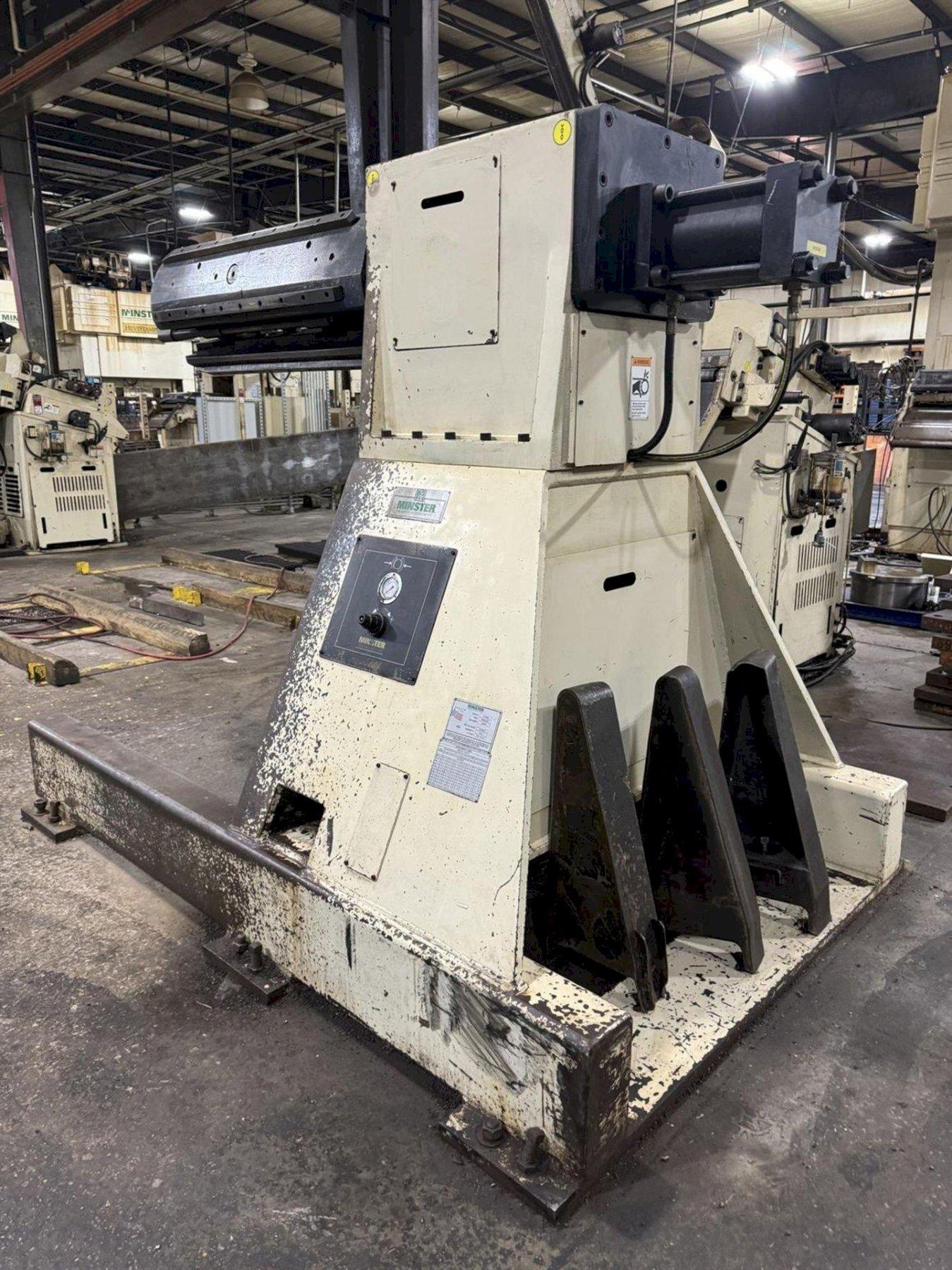

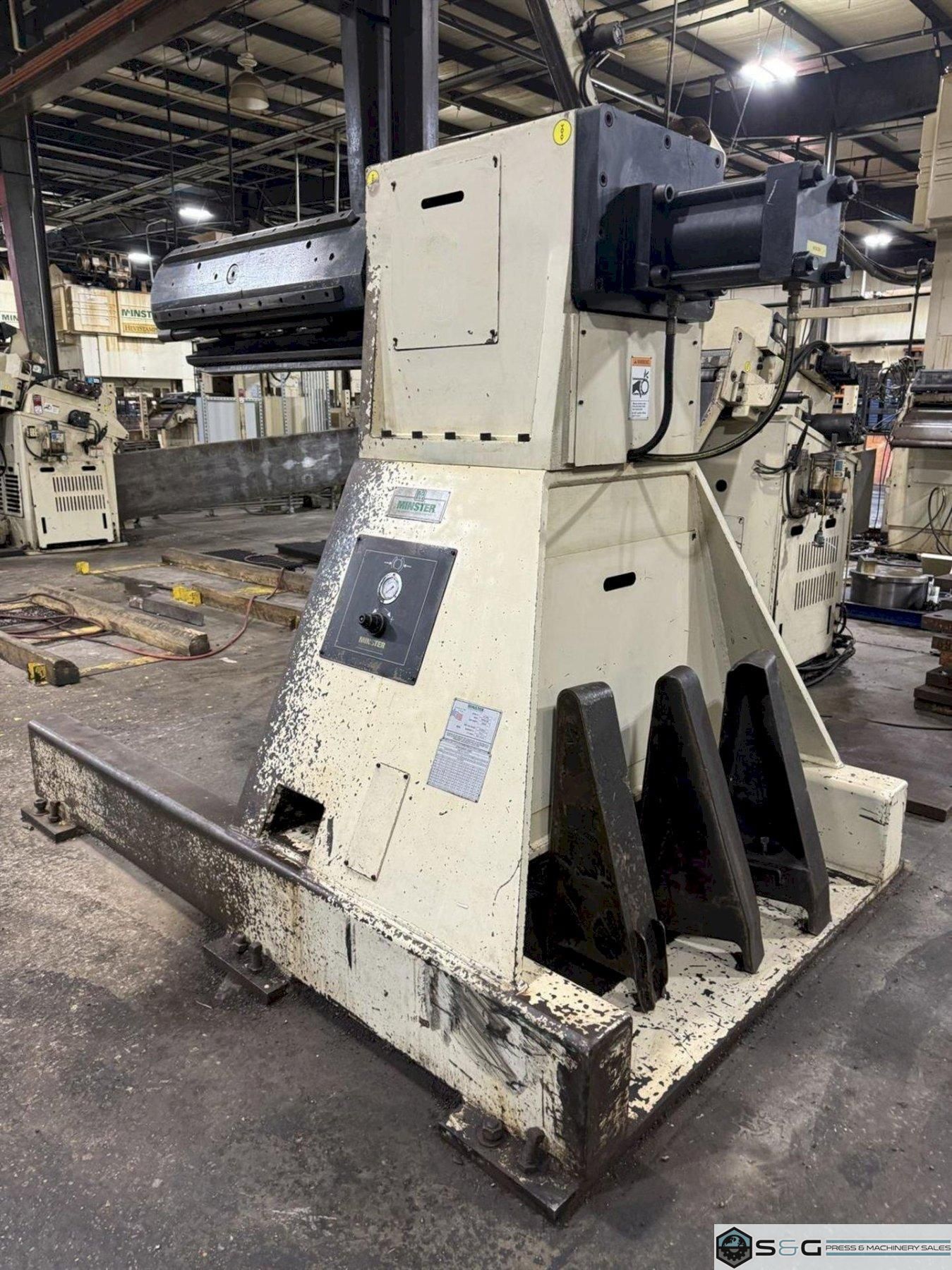

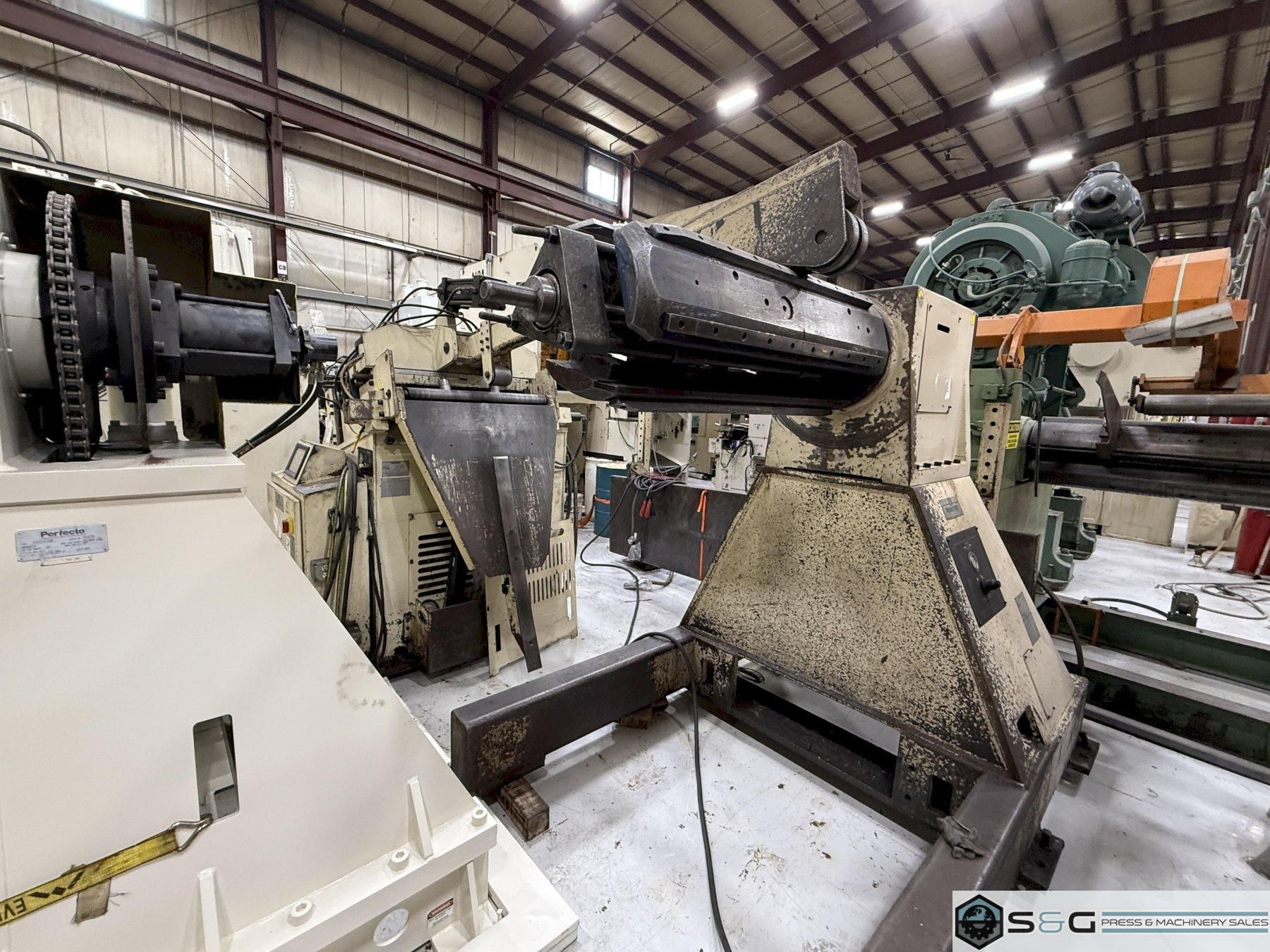

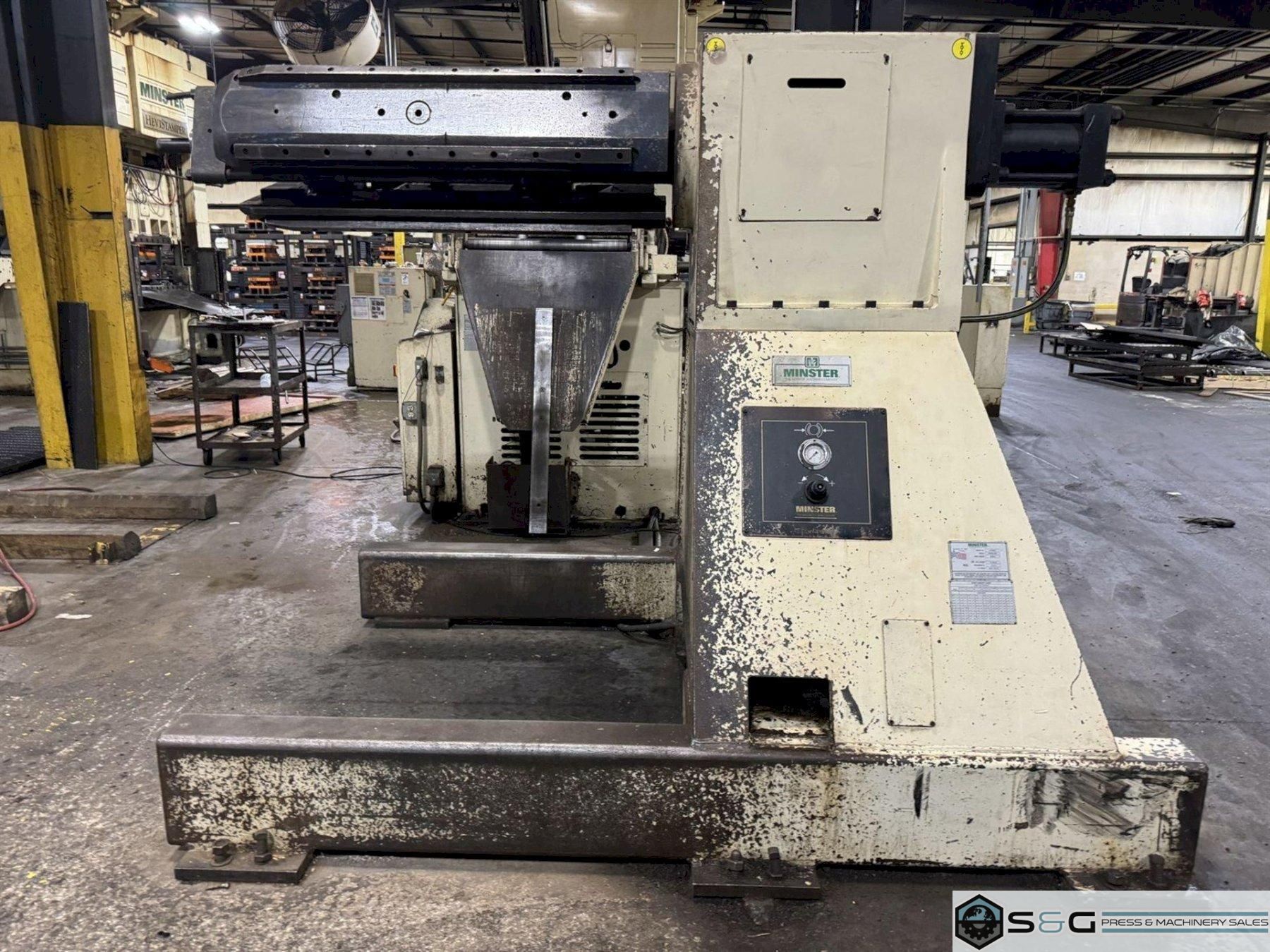

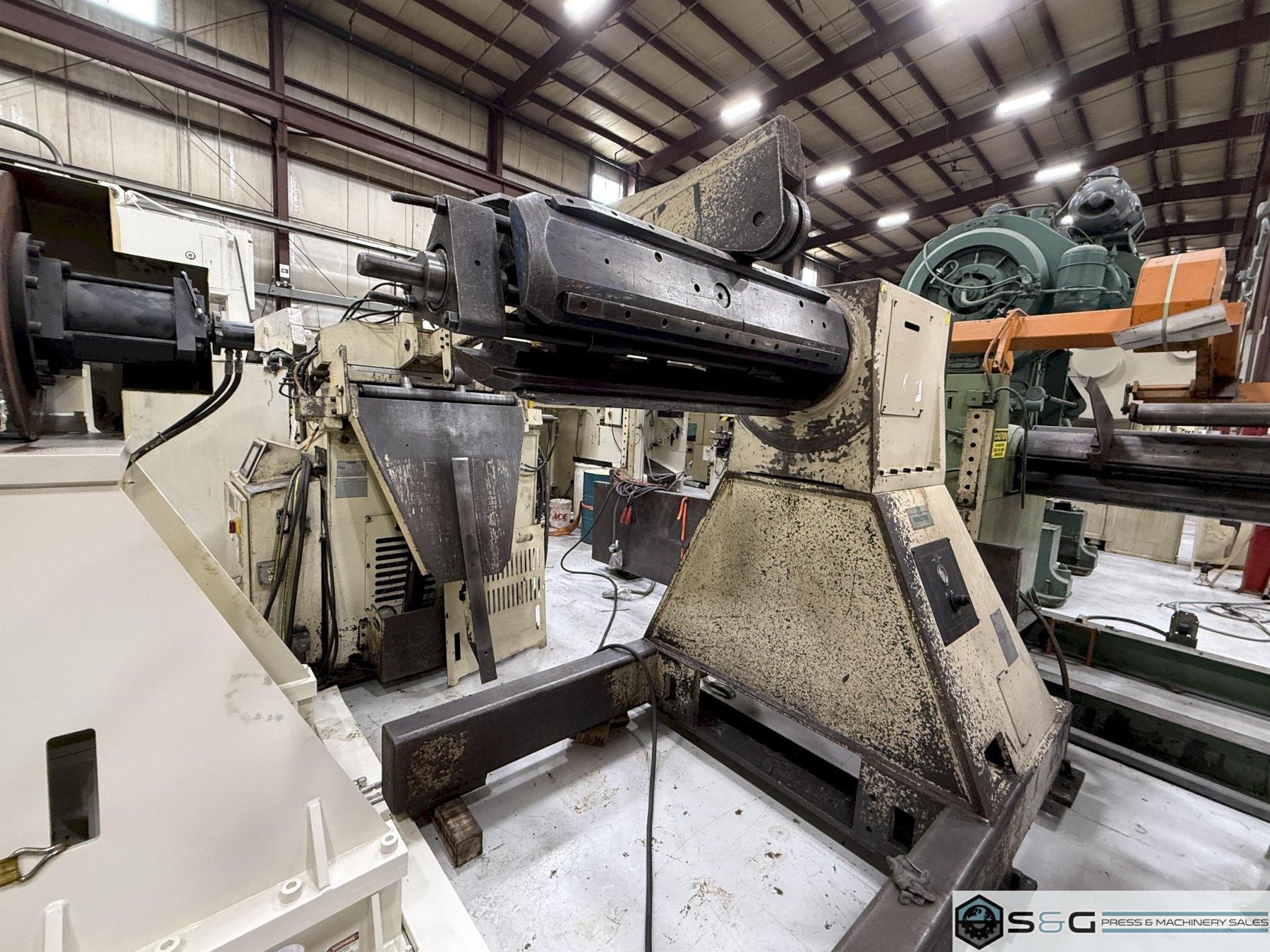

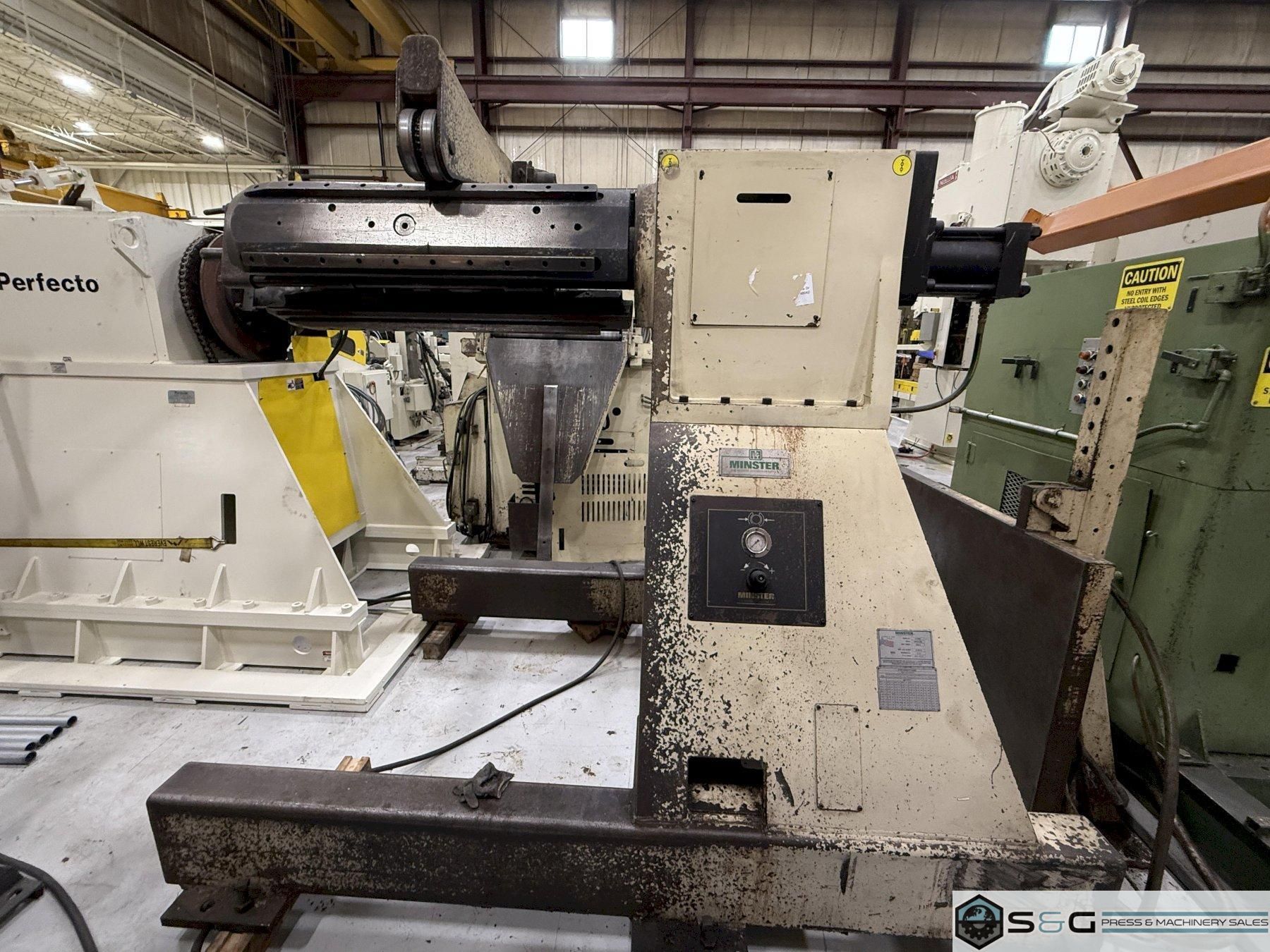

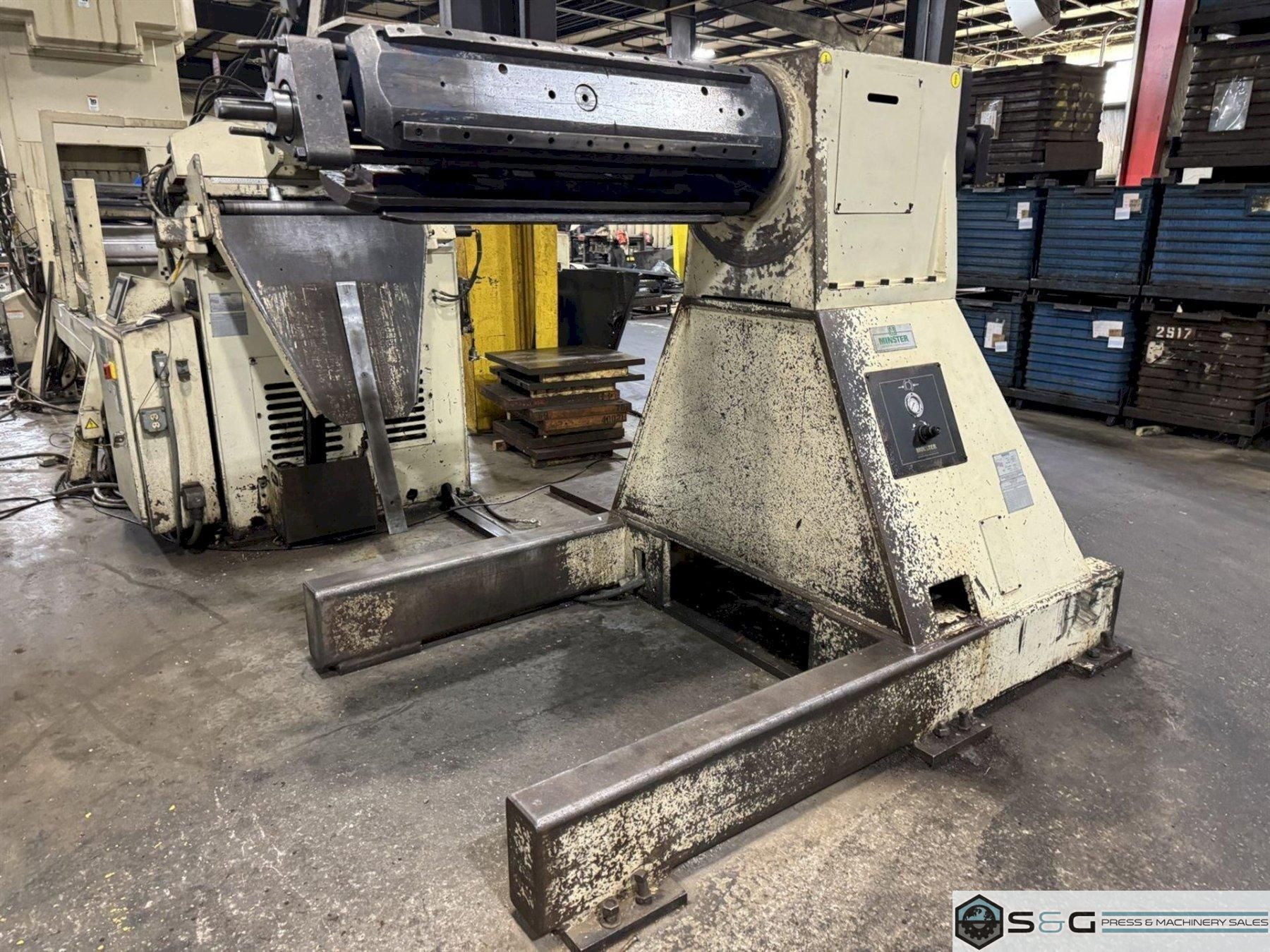

Minster Coil Reel Model MRH20-38S
Serial Number 13-70984
Three Leaf Mandrel with Coil Keeper Arms
Hydraulic Mandrel Expansion
Air Brake Mounted on Main Spindle
Adjustable Tensioning
Threading Drive for Jog / Forward / Reverse

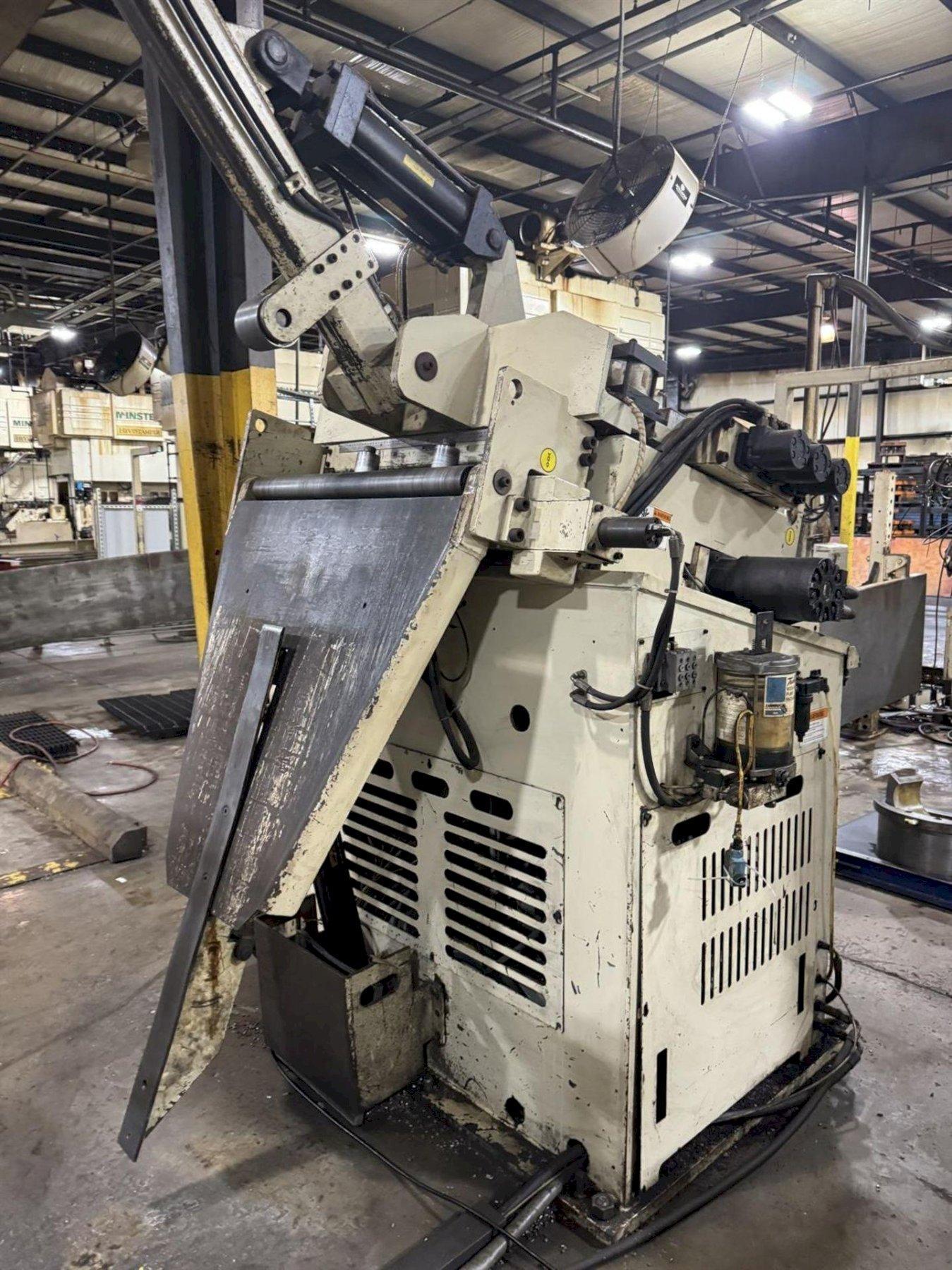

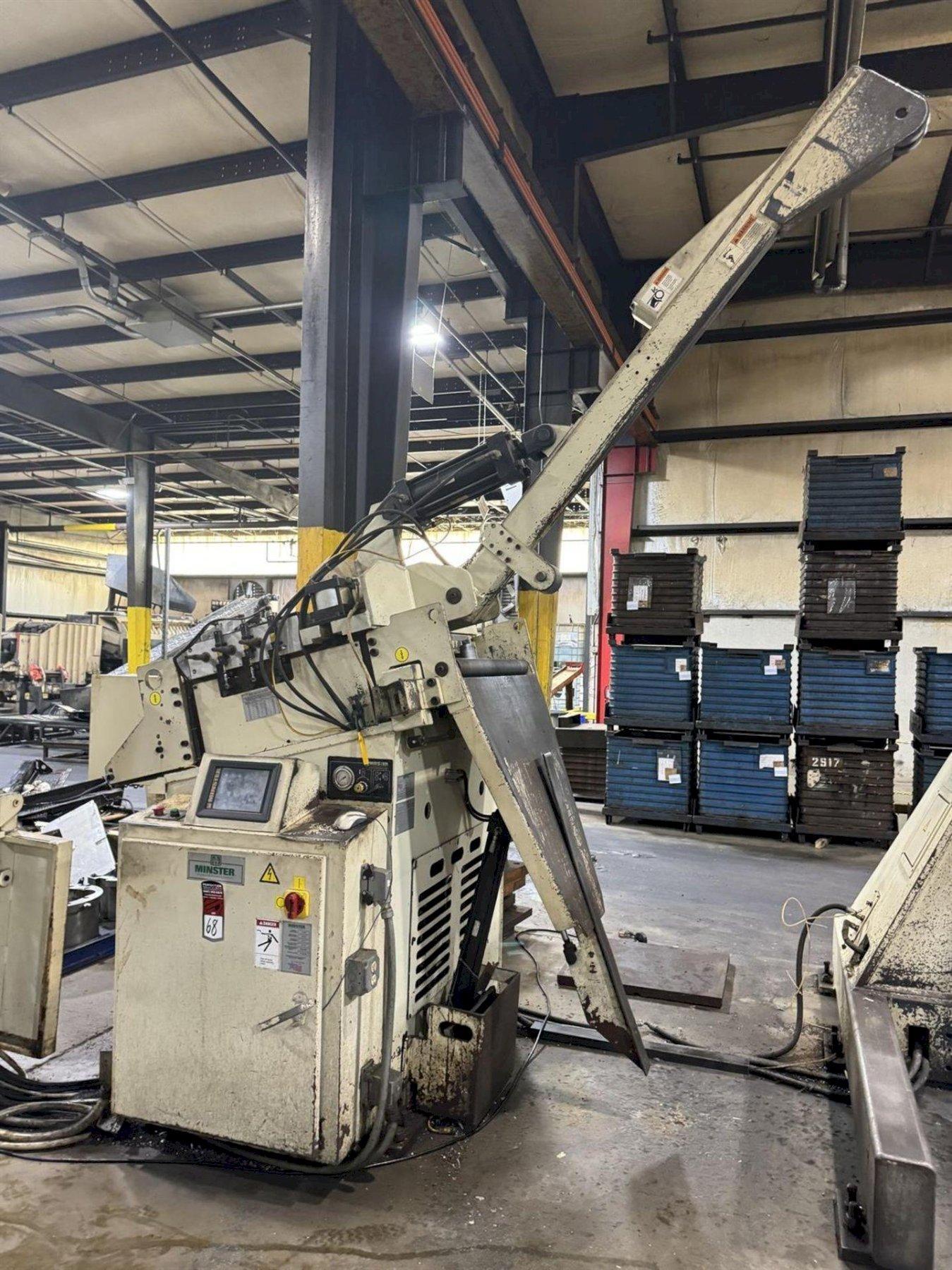

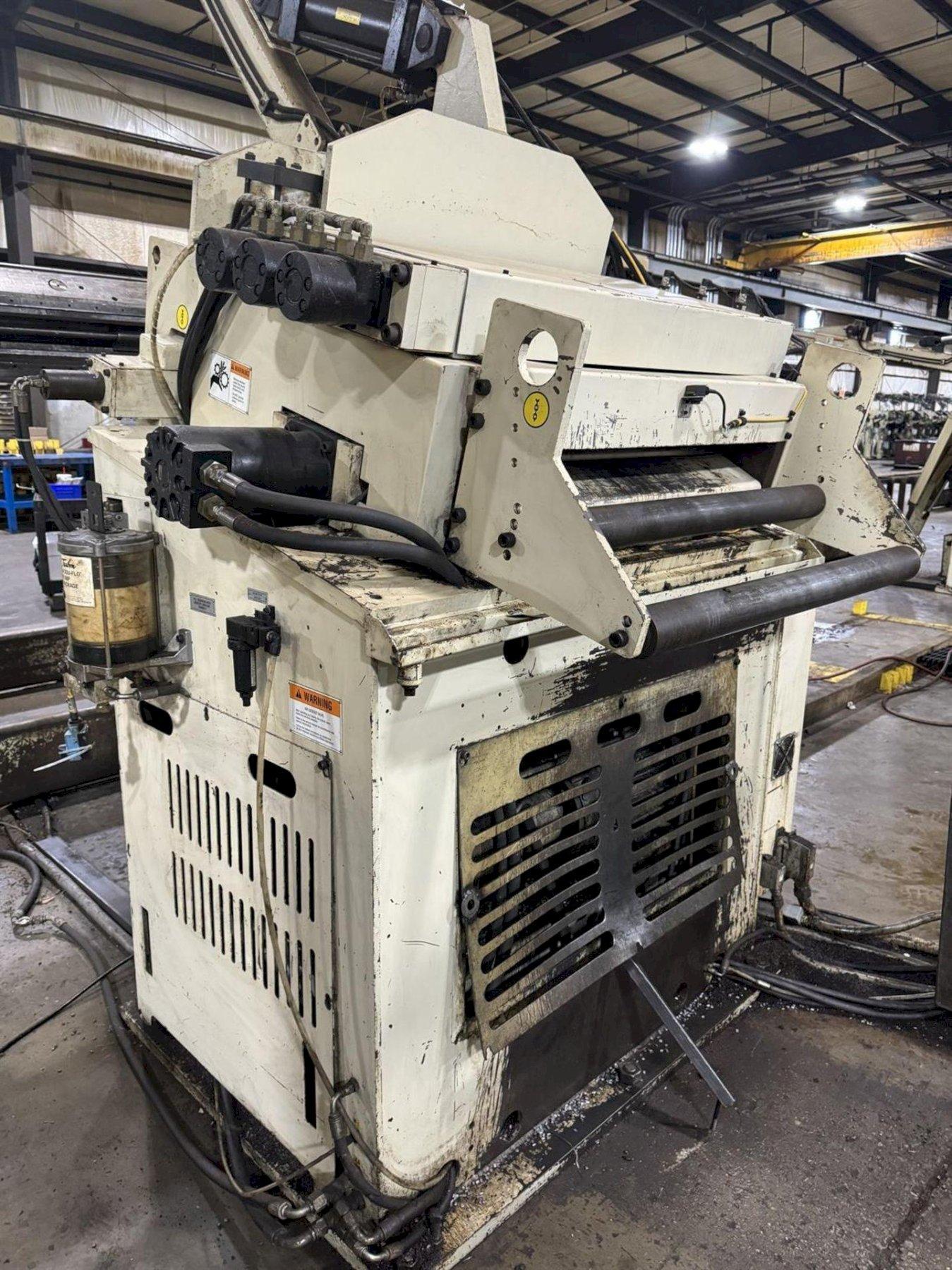

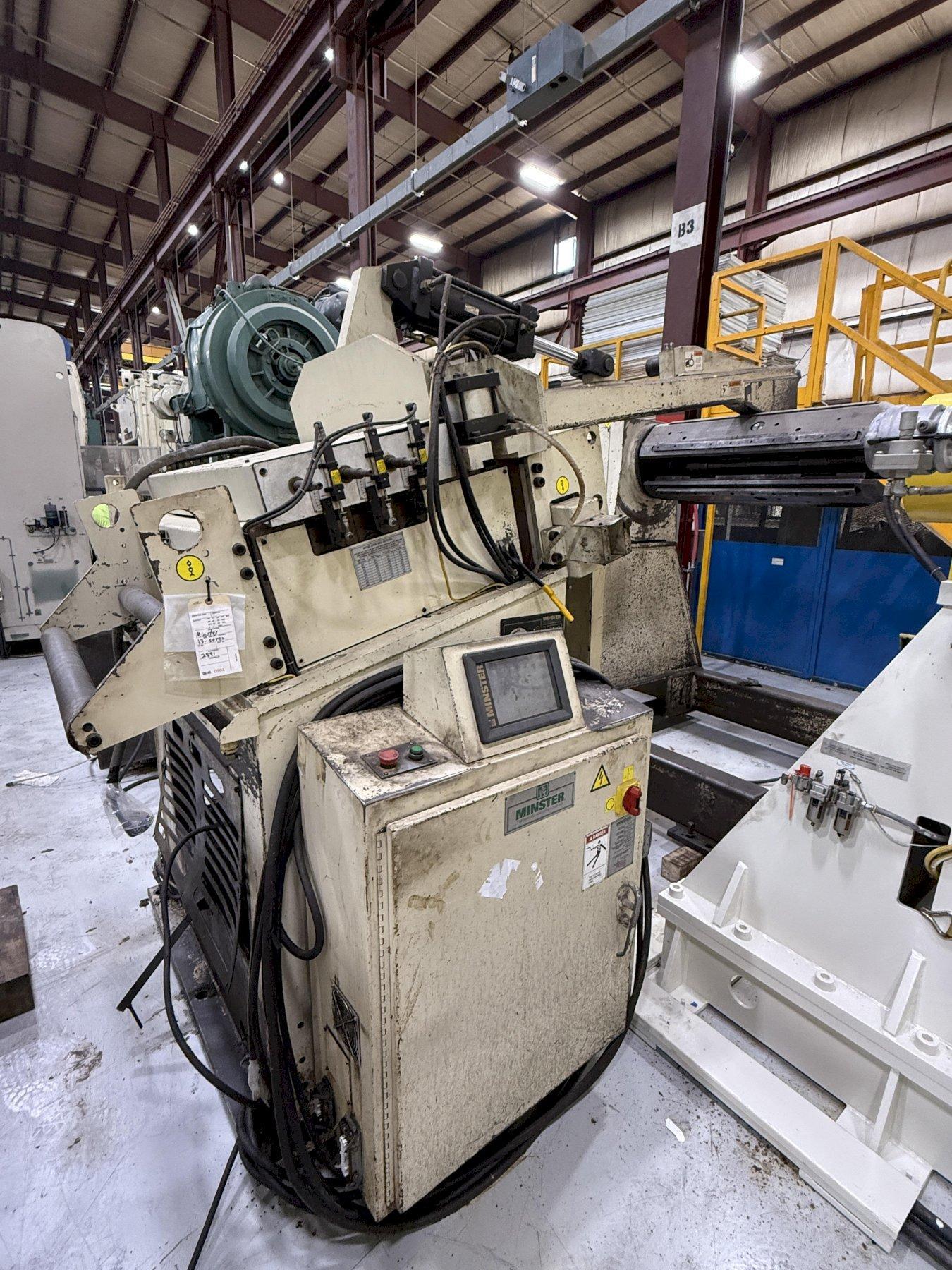

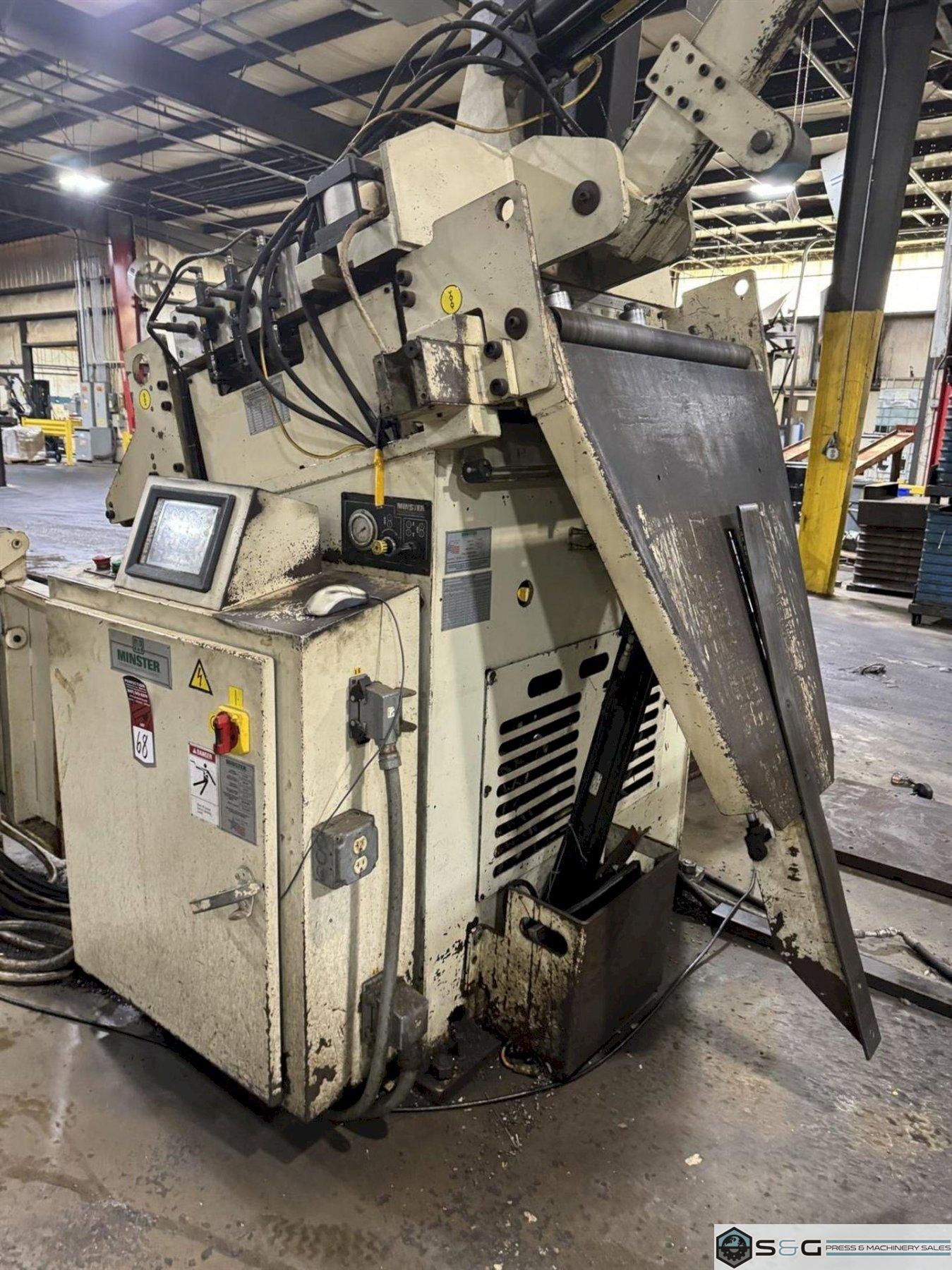

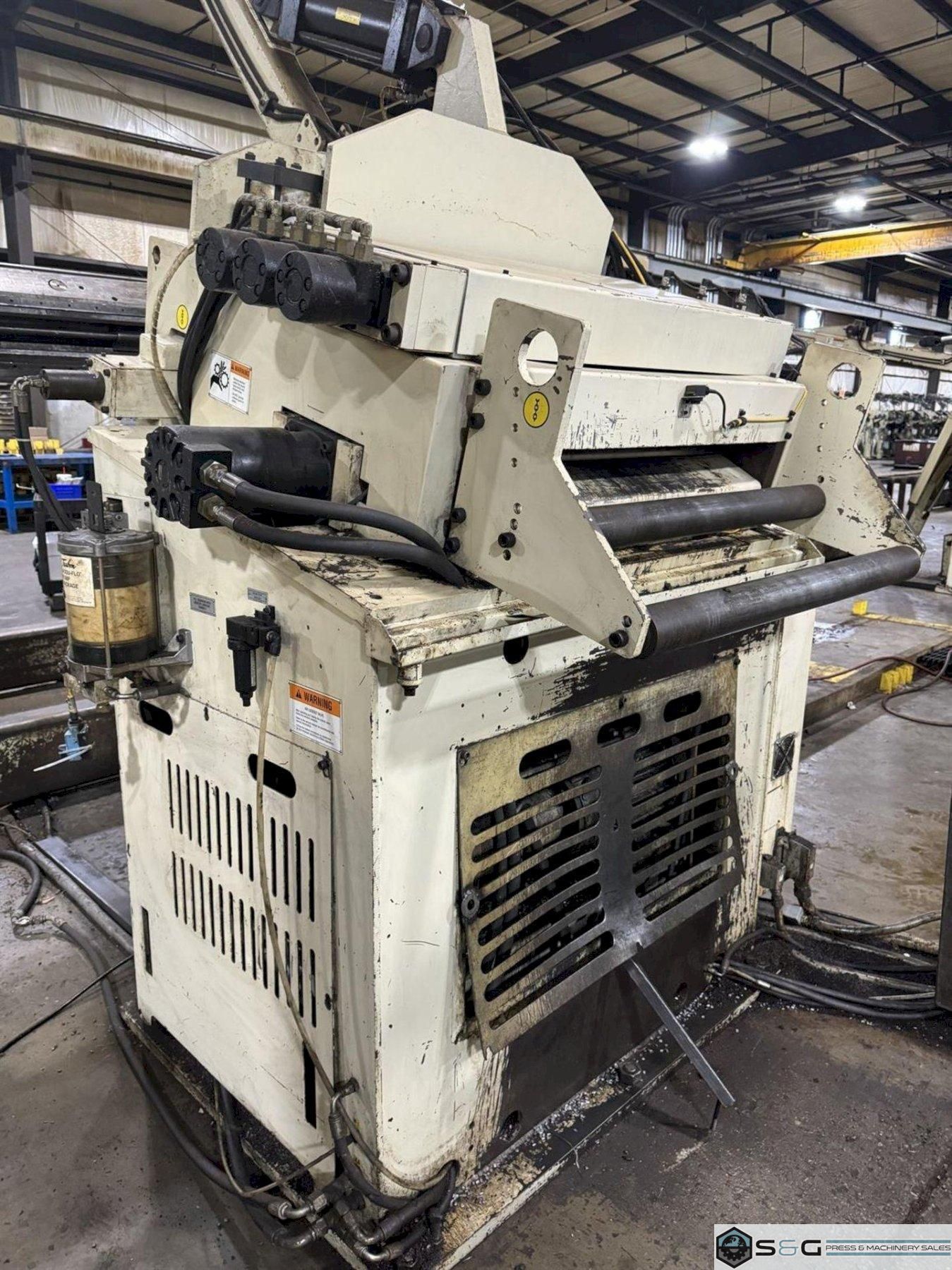

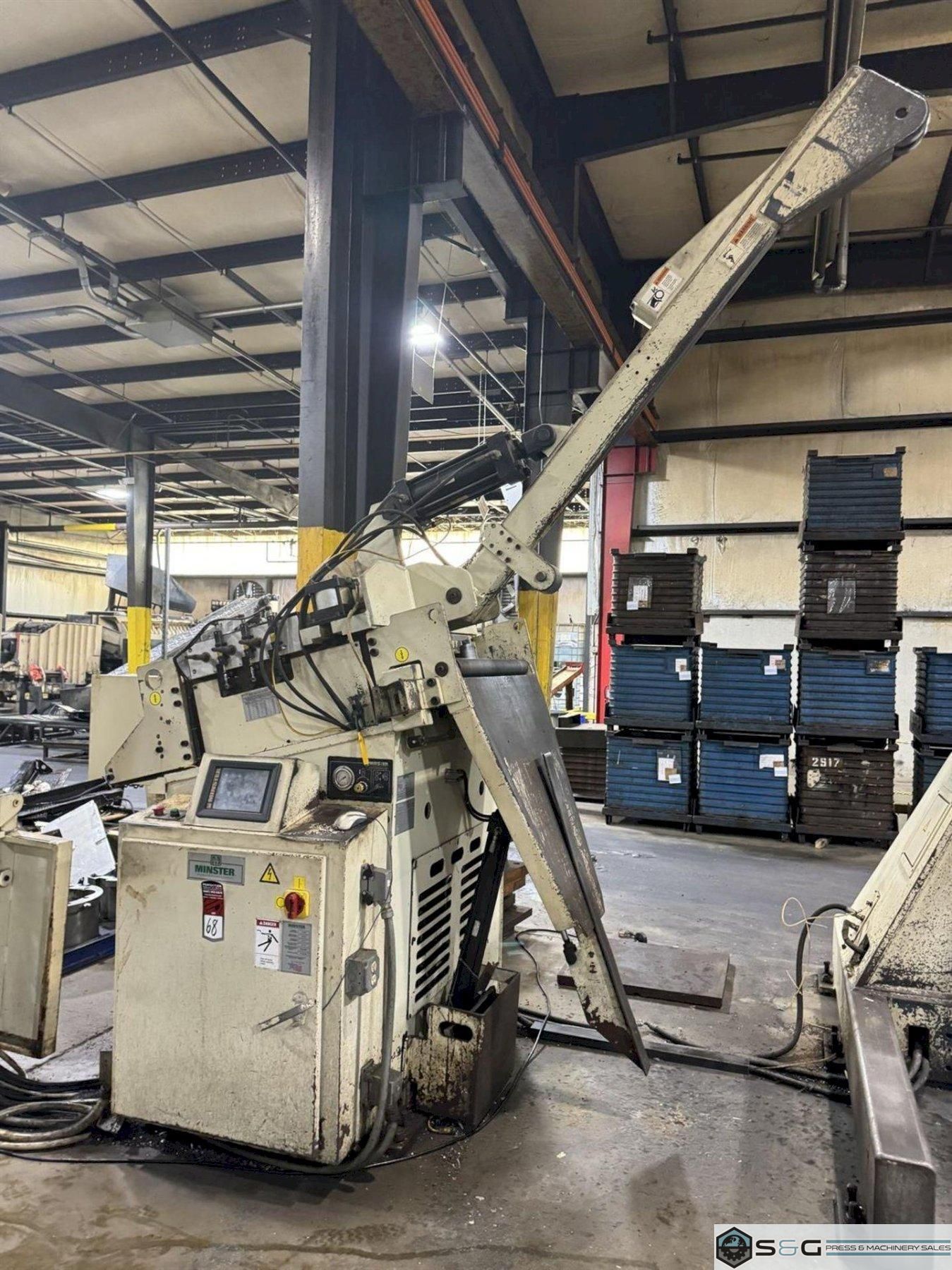

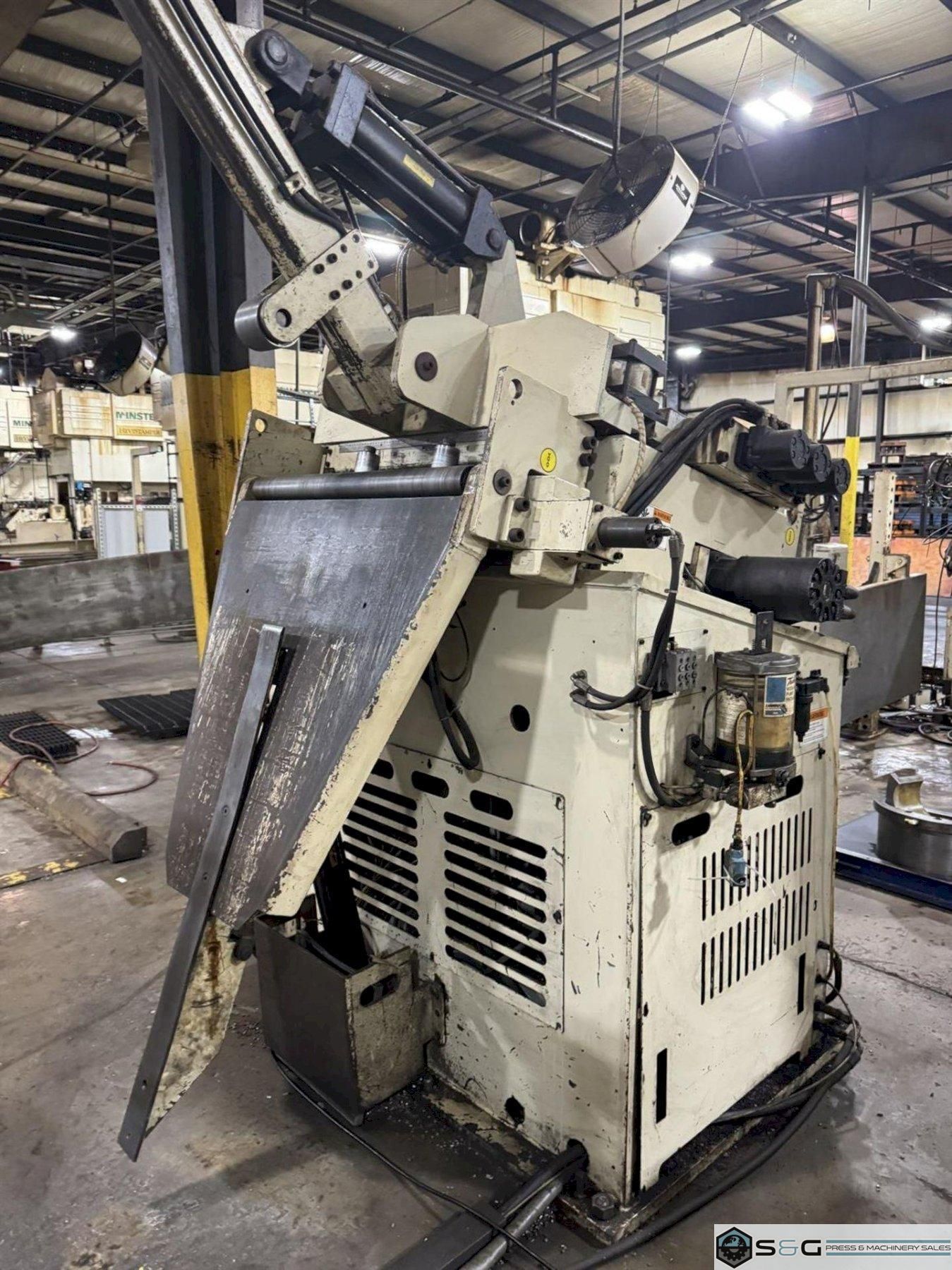

Minster Powered Straightener Model MSH-30-32-7
Serial Number 13-50824
Seven Powered Straightening Rolls x 3" Diameter Entry Pinch Roll Assembly x 5" Diameter
Motorized Upper Straightening Roll Adjustment
Air Operated Upper Pinch Roll Adjustment
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Coil End De-bender Roll
Exit Cascade Loop Support Rollers
Variable Speed Drive

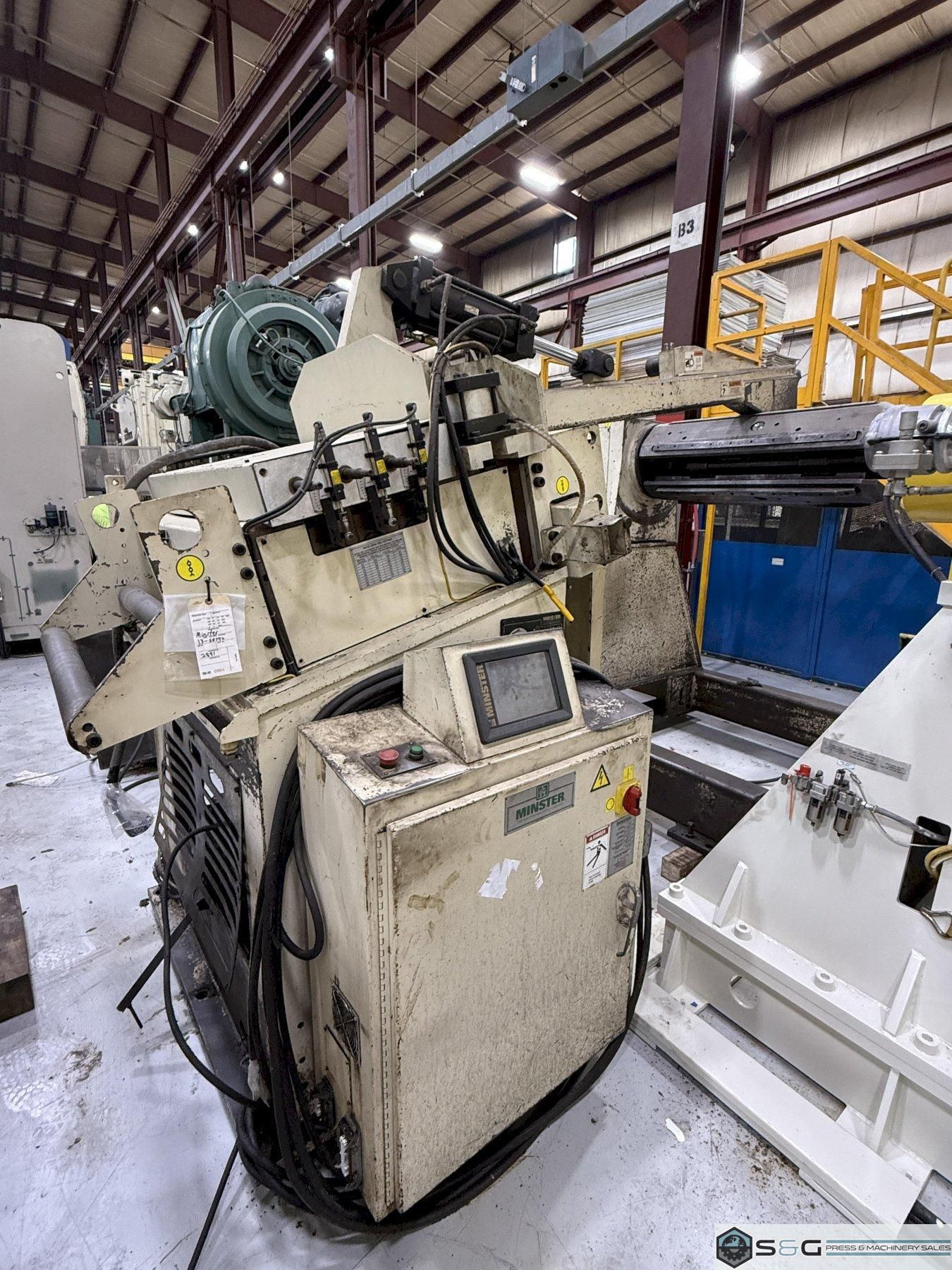

Operator's Control Station
Jog Forward and Reverse with Pendant Remote
End of Stock Sensor
Auto / Run Cycle
Variable Speed Loop Controls

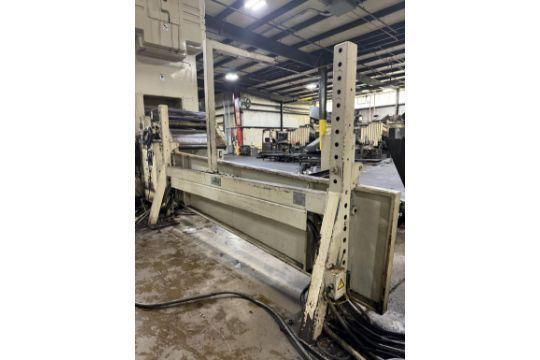

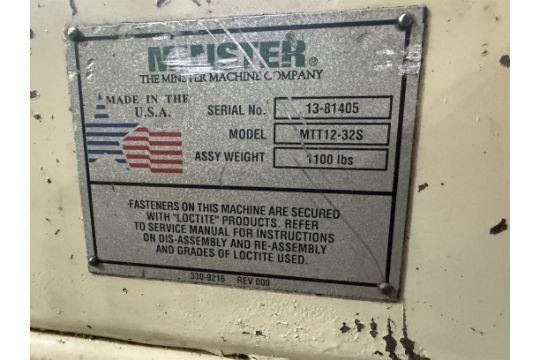

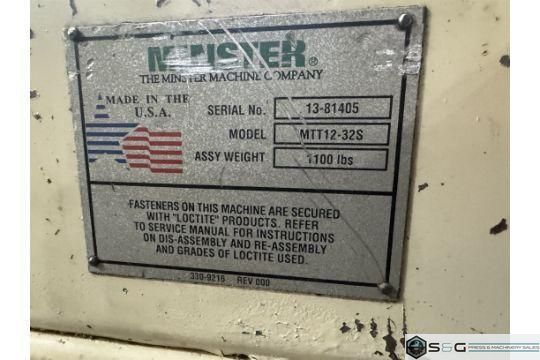

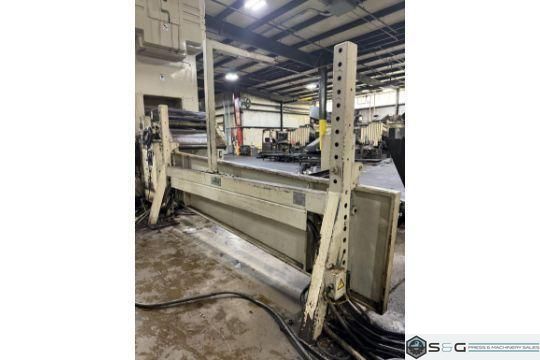

Minster Threading Table Model MTT-12-32-S Serial Number 13-81430
Air Actuated 144" Length of Table
32" Maximum Stock Width
Bomb Bay Type
Minster Coil Feed Equipment for Metal Stamping |
|||
Attachments |
||
|---|---|---|
|
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information. |
||
