CPR-PO-2512 and CPPS-PO-300-12
None
2818
Not specified
Specifications |
|||
|---|---|---|---|
| Coil Weight | 2500 pounds |
||
| Coil Width | 12 inches |
||
| Coil Thickness | .156 inches |
||
|
Standard Specifications:
Coil weight capacity: 2,500 Lb (Per Side)
Stock width capacity: 12"
Stock thickness capacity: .156" x 12" Wide
Expansion range: 16" - 20"
Coil O.D. capacity: 60"
Equipment and Features

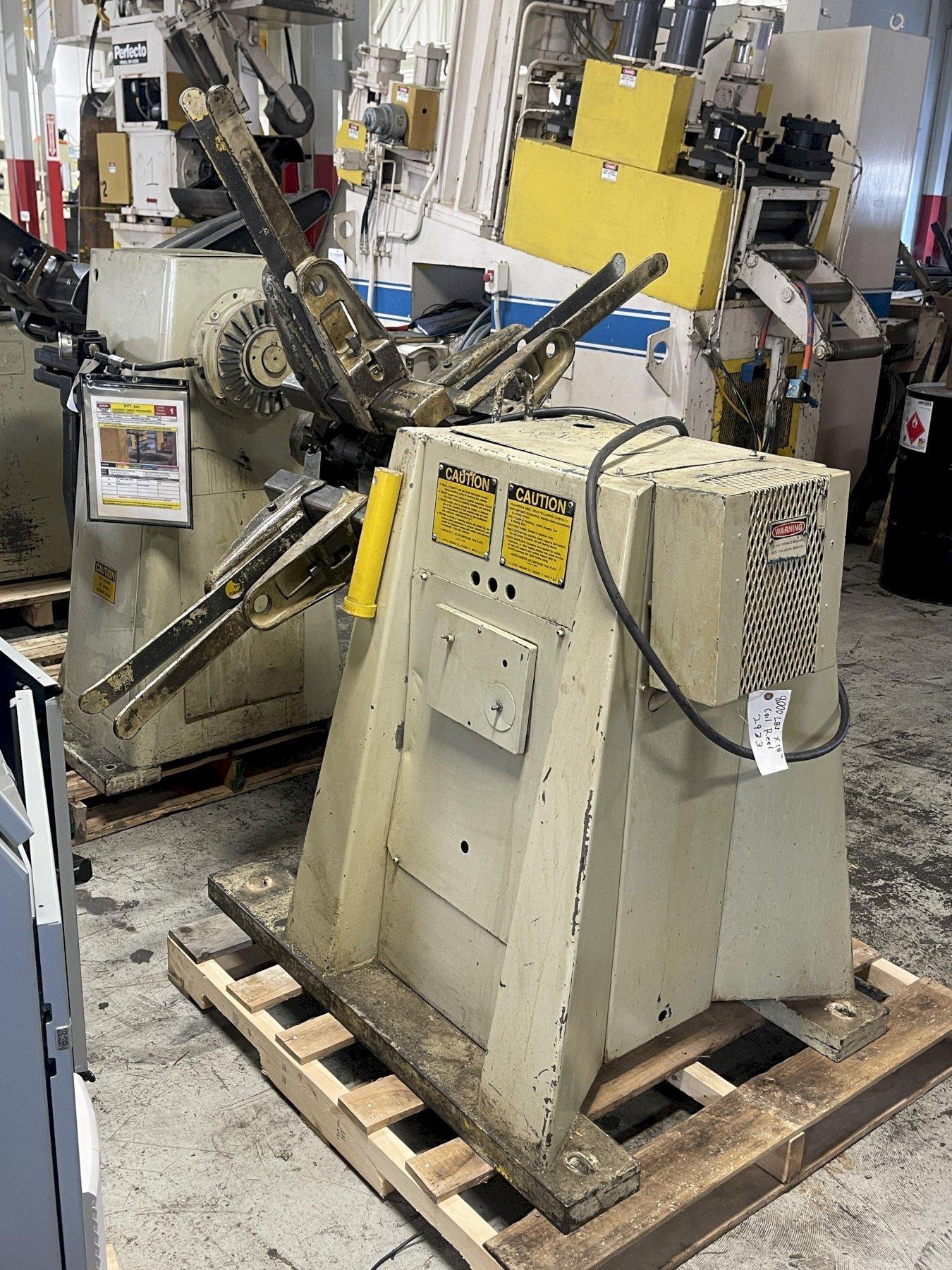

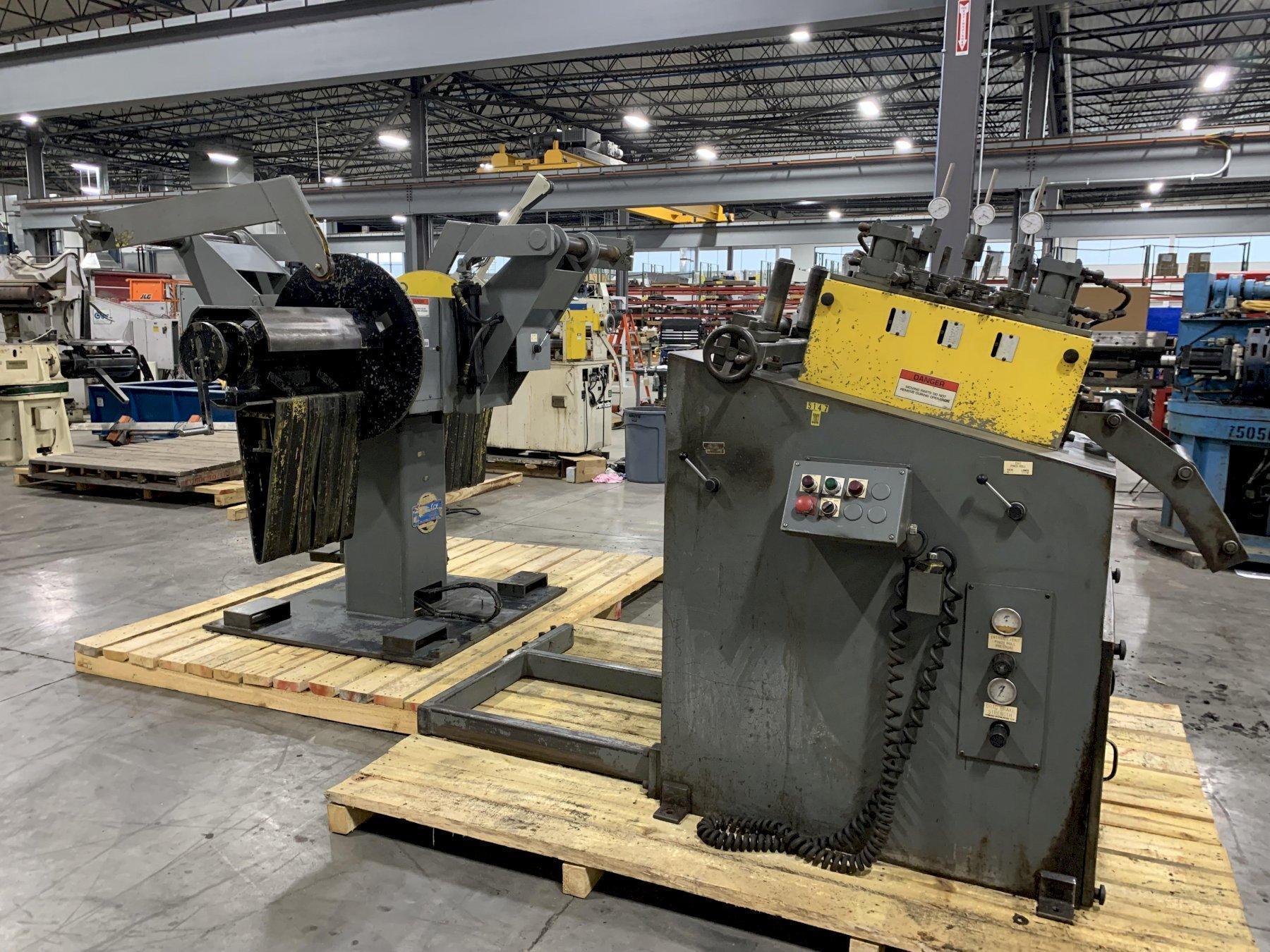

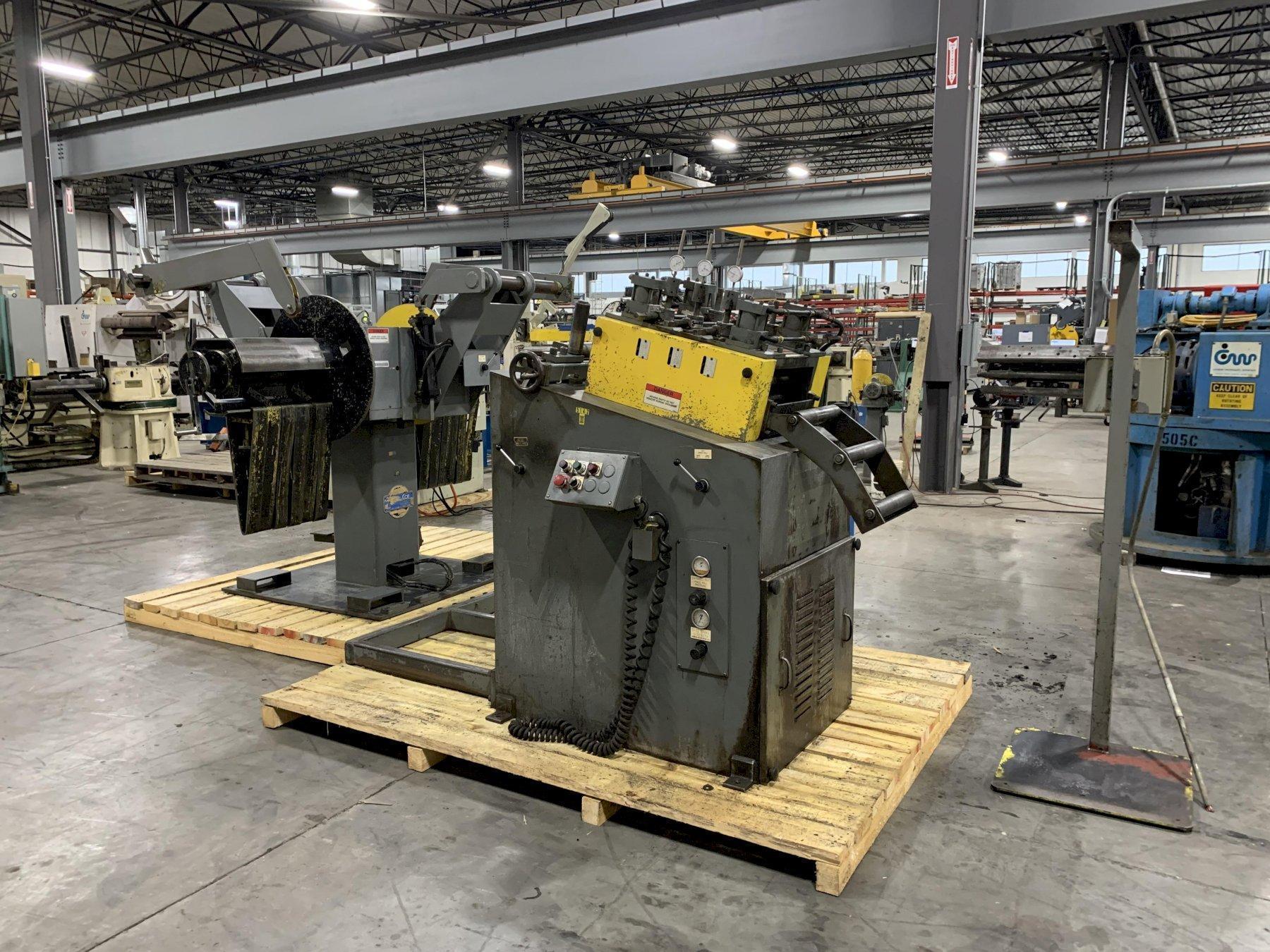

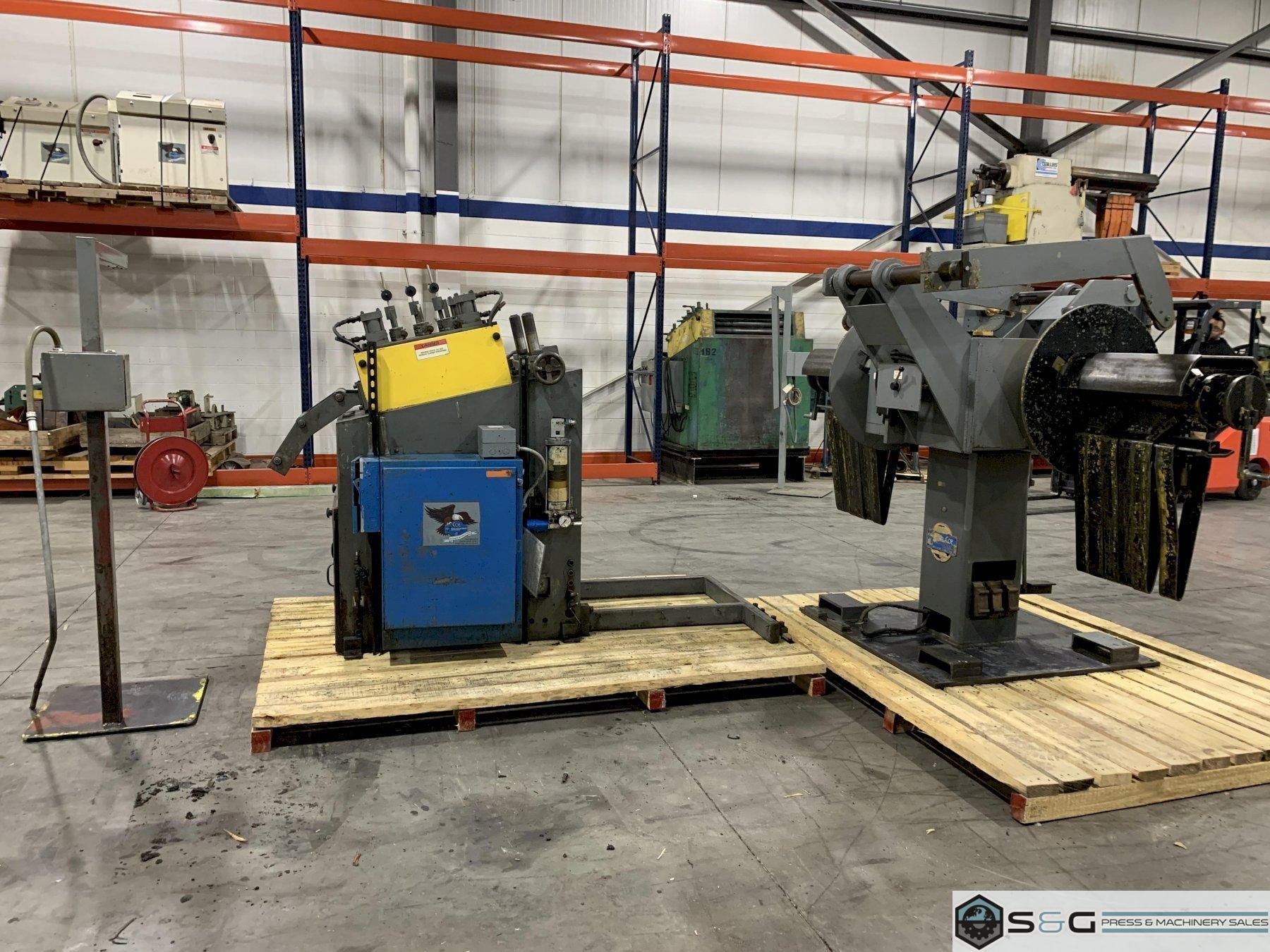

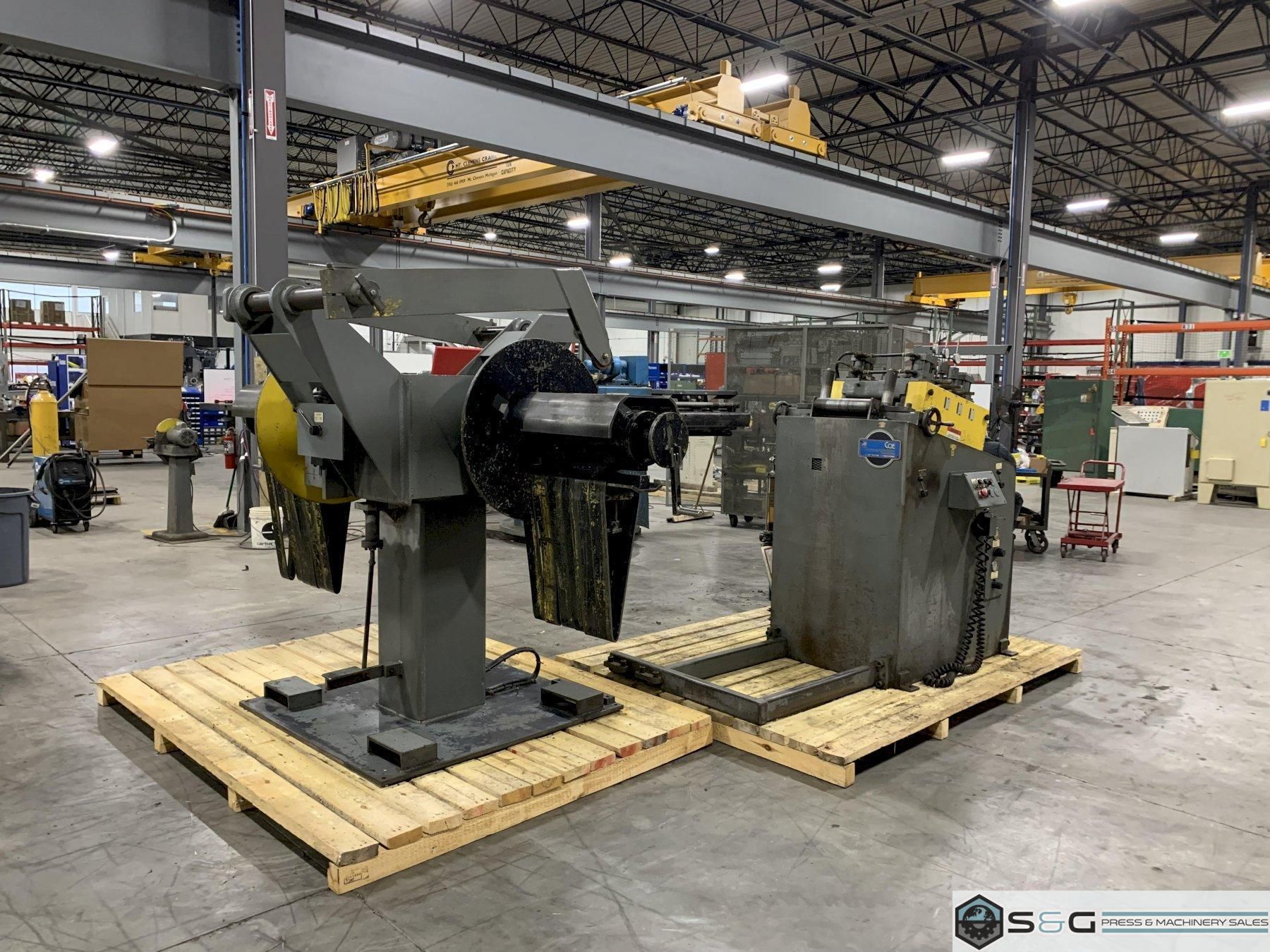

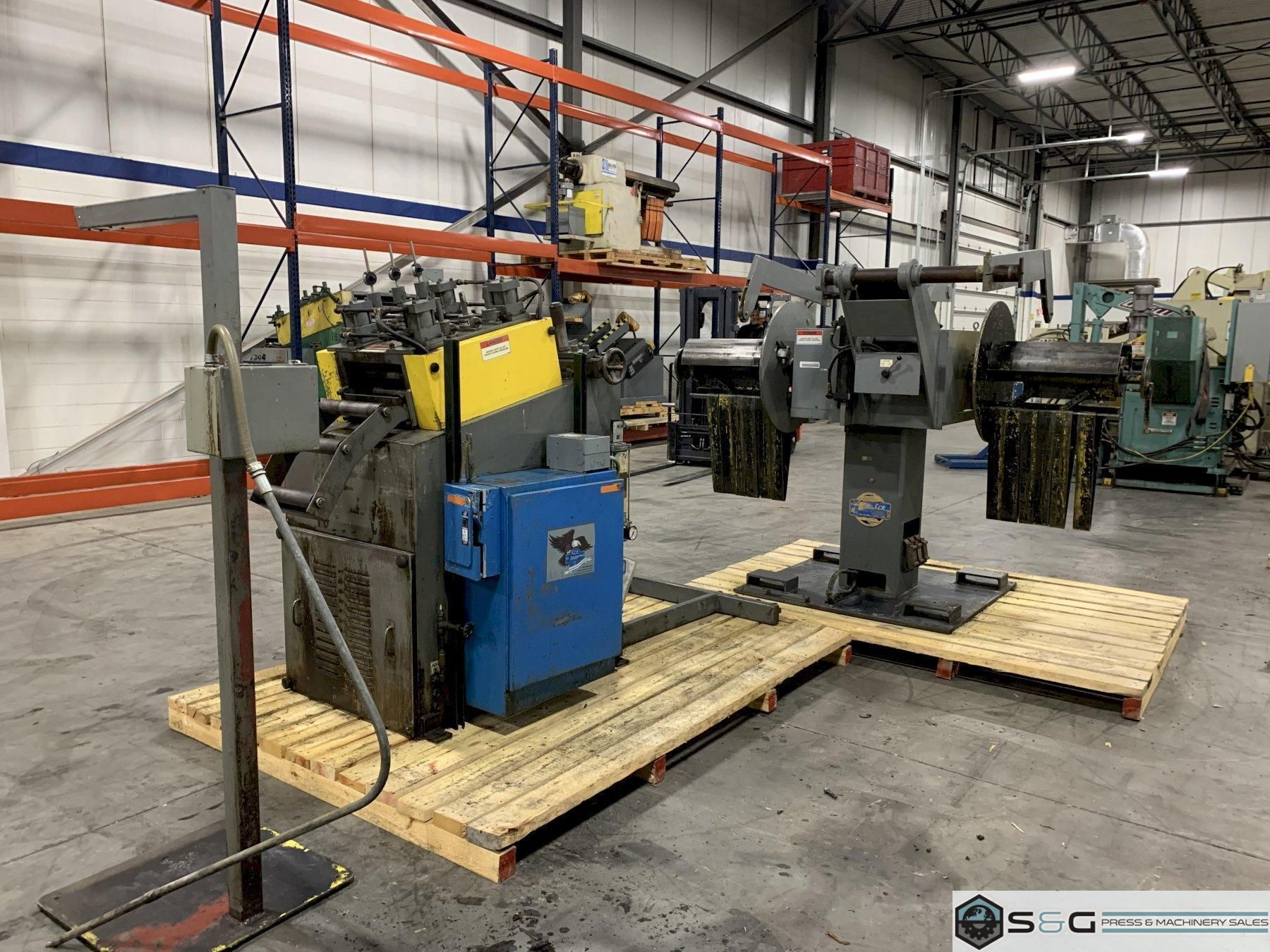

Metal Stamping Coe Press Double End Pull Off Coil Reel Model No.: CPR-PO-2512
Three leaf mandrels
Full Set Of Coil Keeper Arms
Manual mandrel expansions
Air brakes (adjustable pull off tensioning)
Manual rotation for mandrel indexing
Manual foot pedal release for turret locking pin
Dual coil hold down arms (air operated via hand valve)

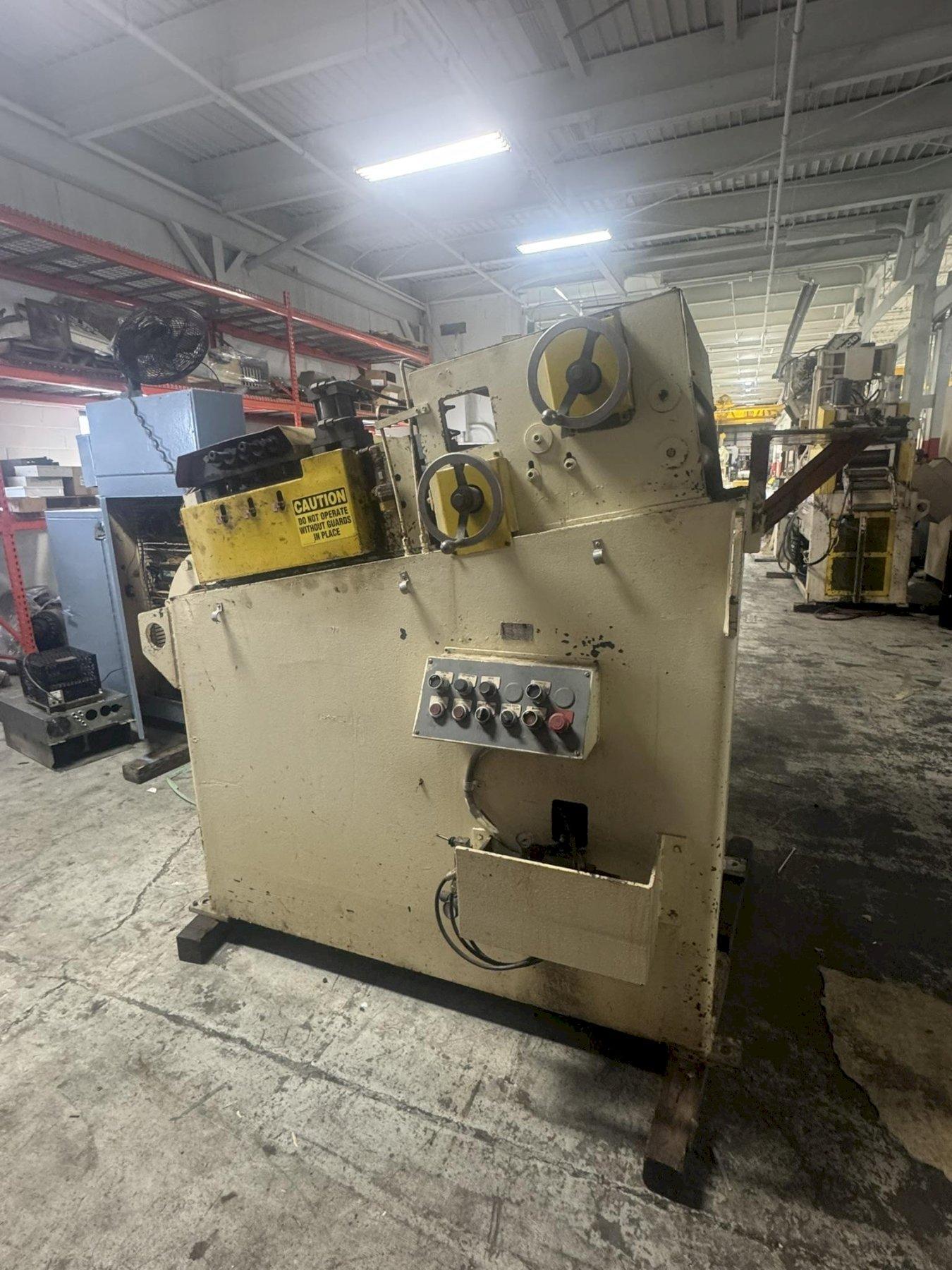

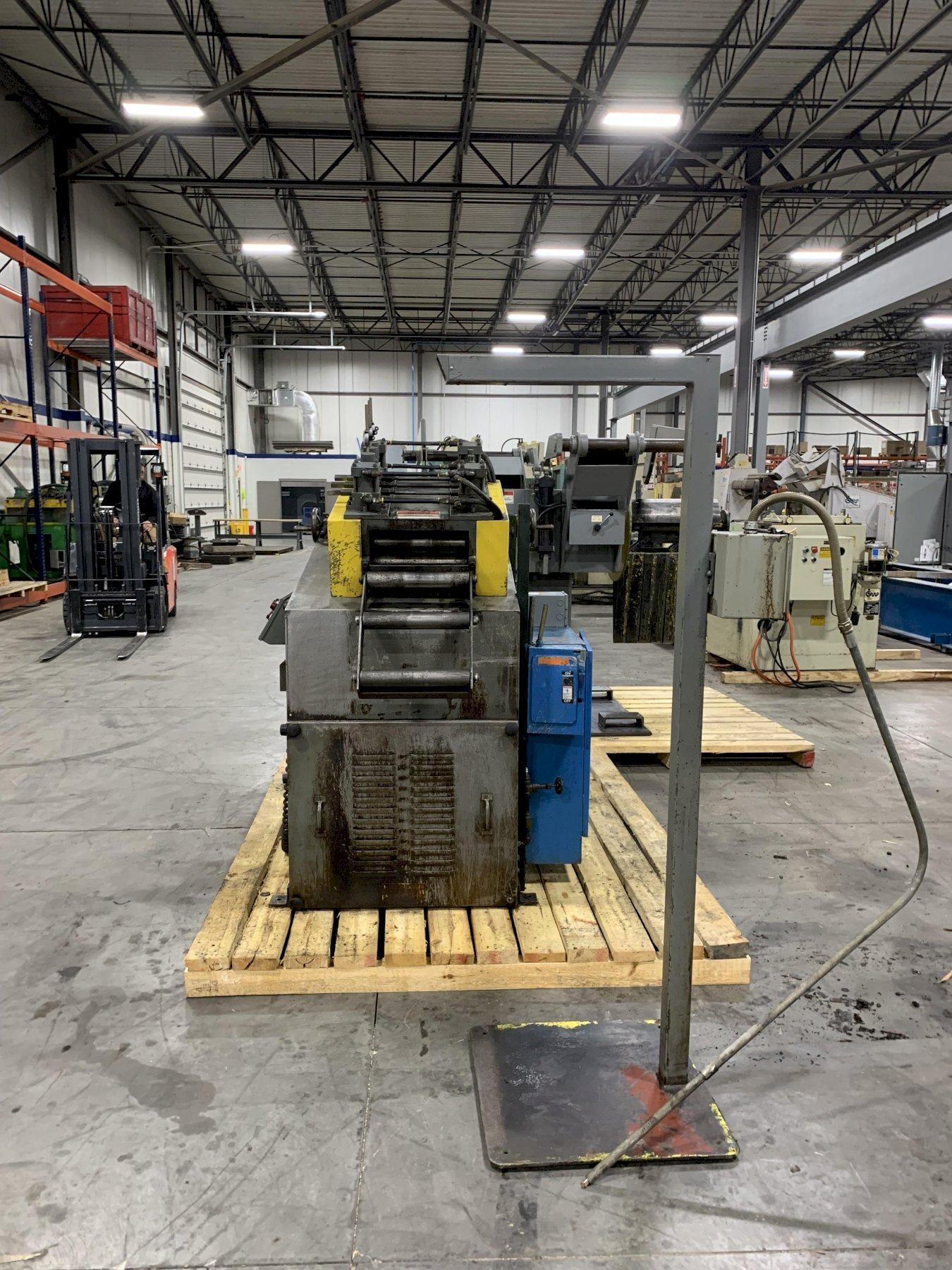

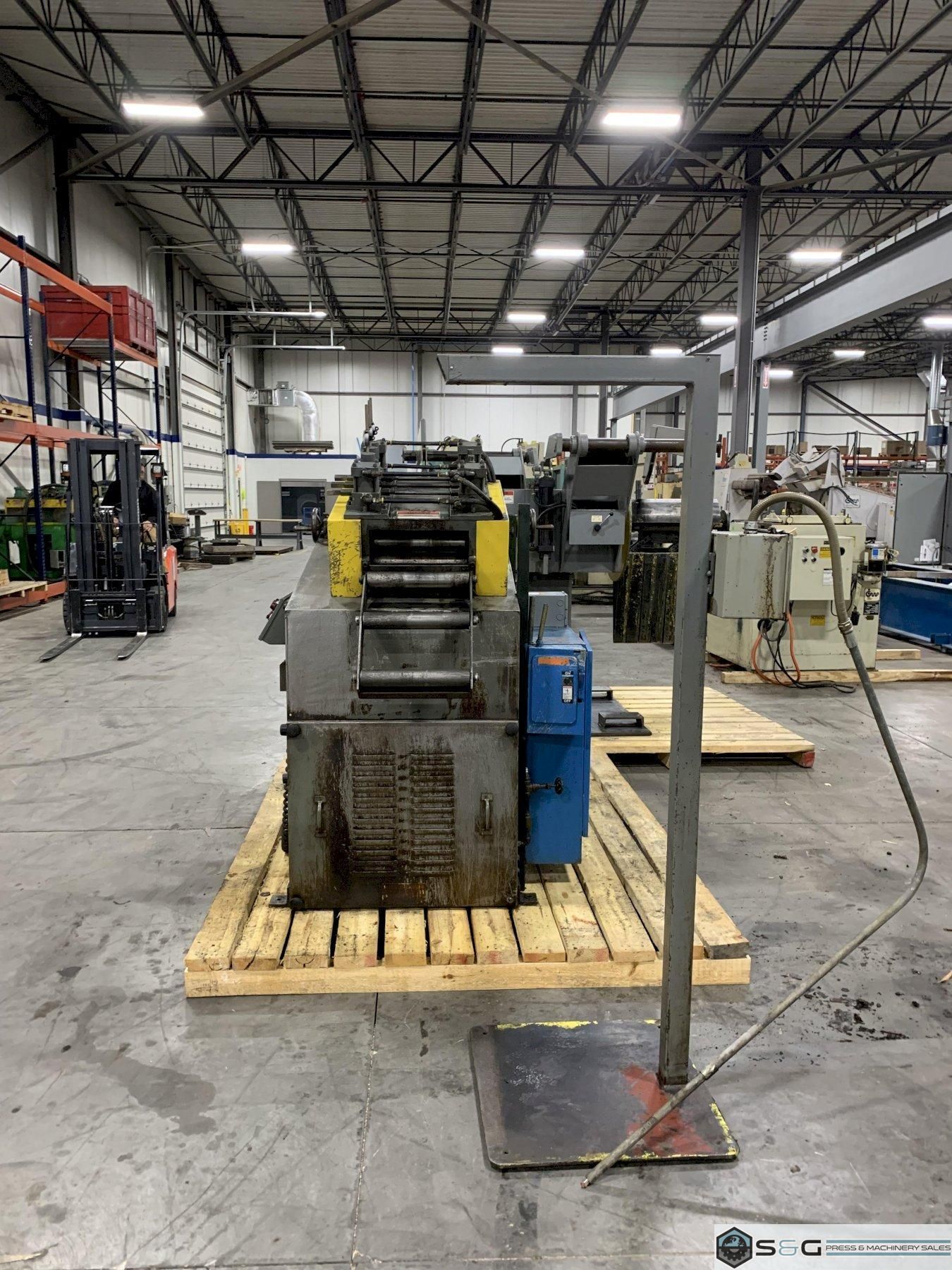

Metal Stamping Coe Press Powered Coil Straightener Model No.: CPPS-PO-300-12
Seven straightening rolls x 3.00" diameter
Dial depth indicators for upper straightening roll position
Manual upper straightening roll adjustments
Entry and exit pinch rolls with air operated actuation
Inclined head
Adjustable entry stock width edge guide
Exit cascade loop support rollers
Automatic lubrication system

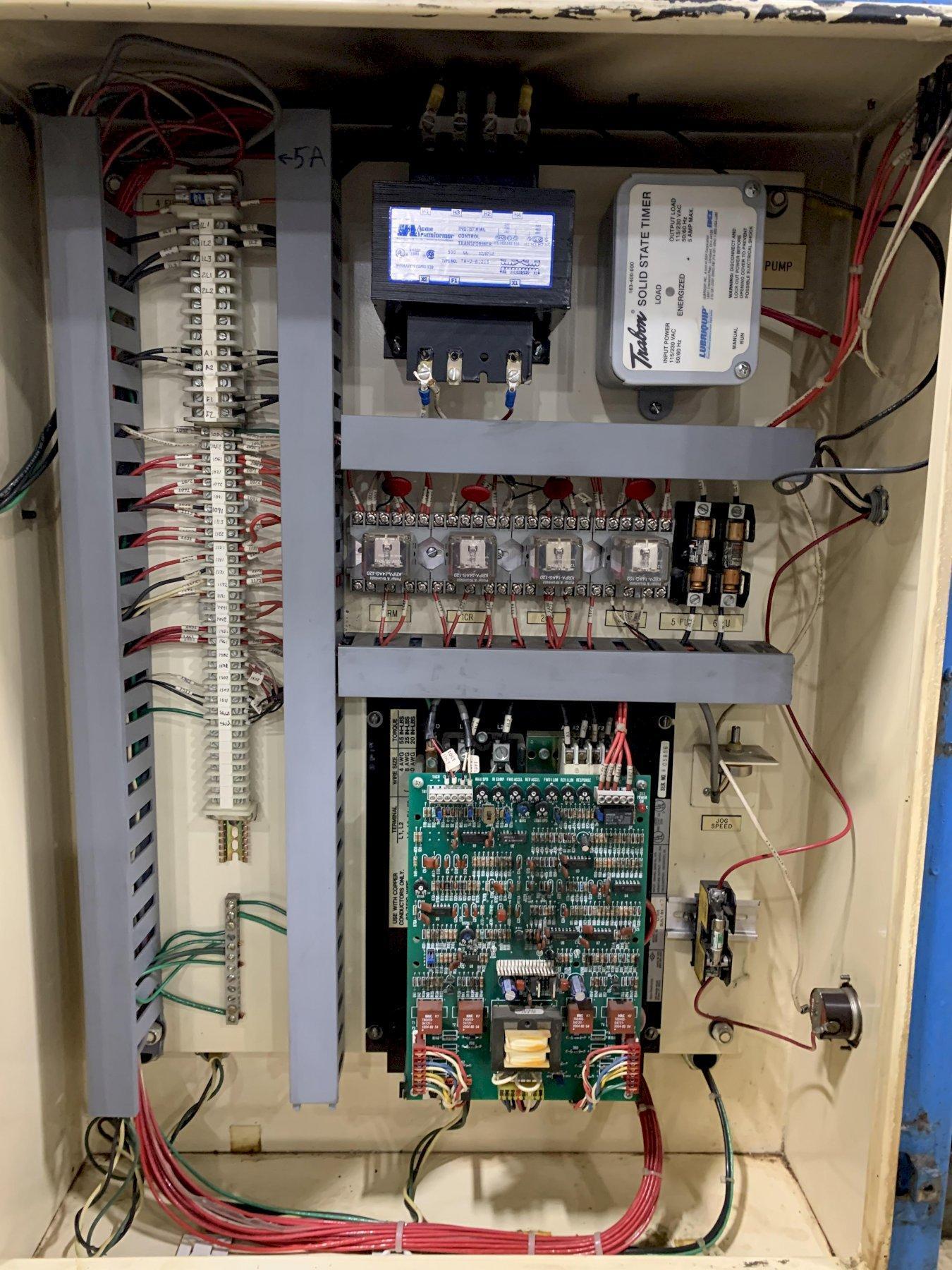

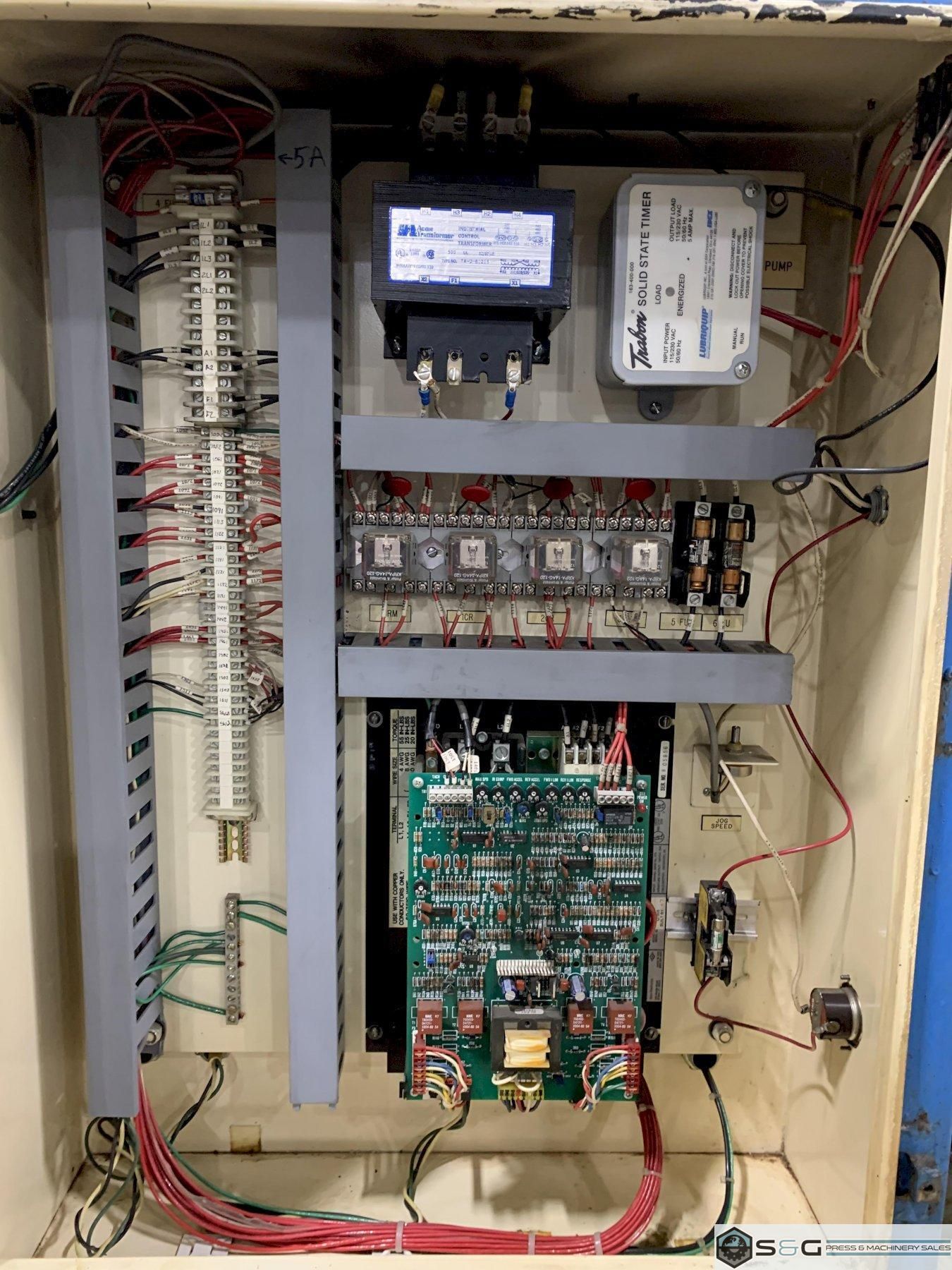

Variable frequency drive and control system
Jog forward and reverse
Auto / run cycle
Variable speed loop
|
|||
