30,000 lbs. x 72 inch Coe Press Equipment "Conventional" Servo Coil Feed Line For Sale. Can Be Seen Under Power!

Type

Coil Feed Lines

Brand

COE PRESS EQUIPMENT

Model

CPR-PO-30072 / CPPS-305-72

Year

None

Stock #

2999

Condition

Used

Request a Quote
Let's Talk

Specifications
Coil Weight

30000 pounds
Coil Width

72 inches
Coil Thickness

.090 inches

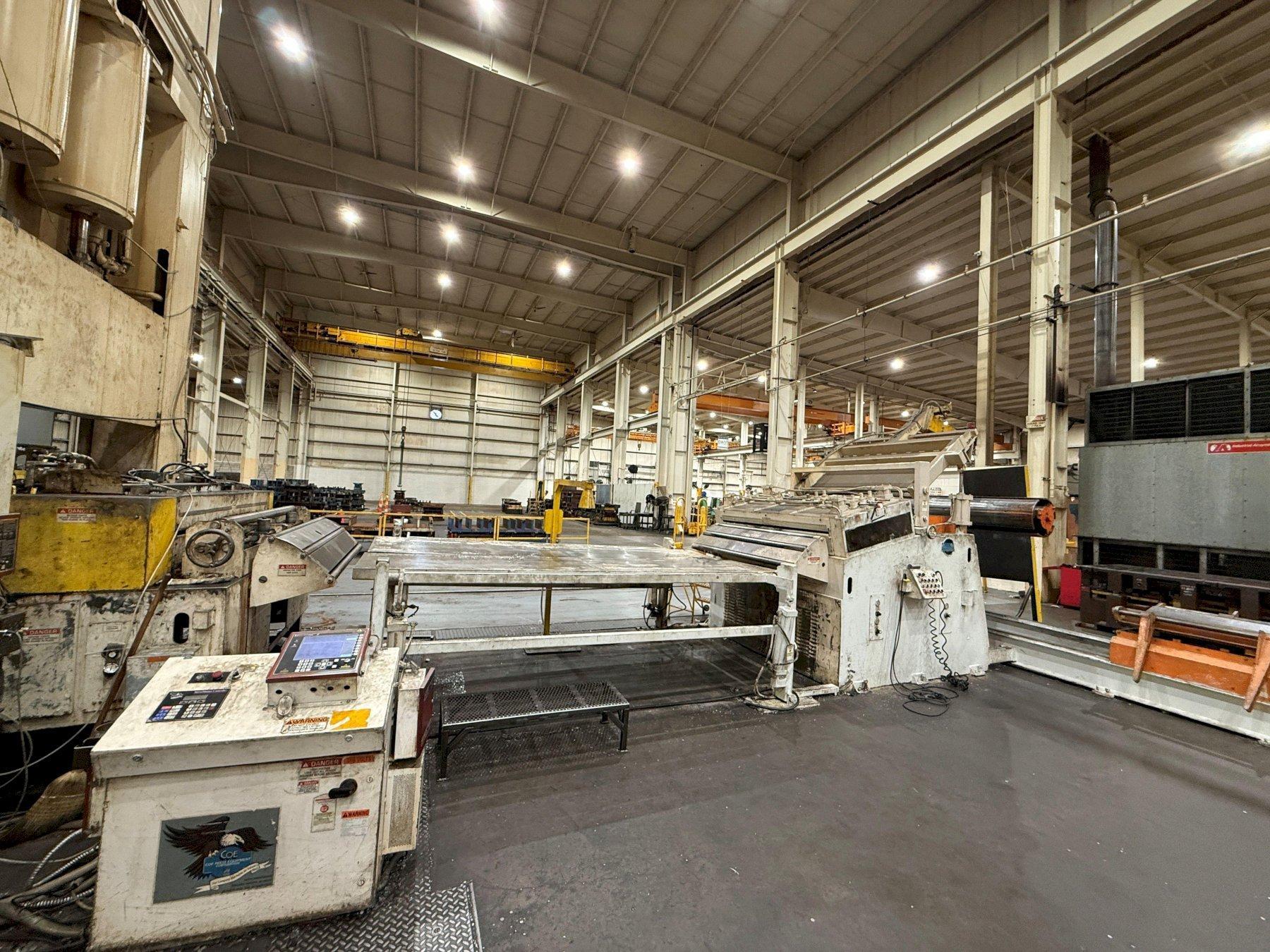

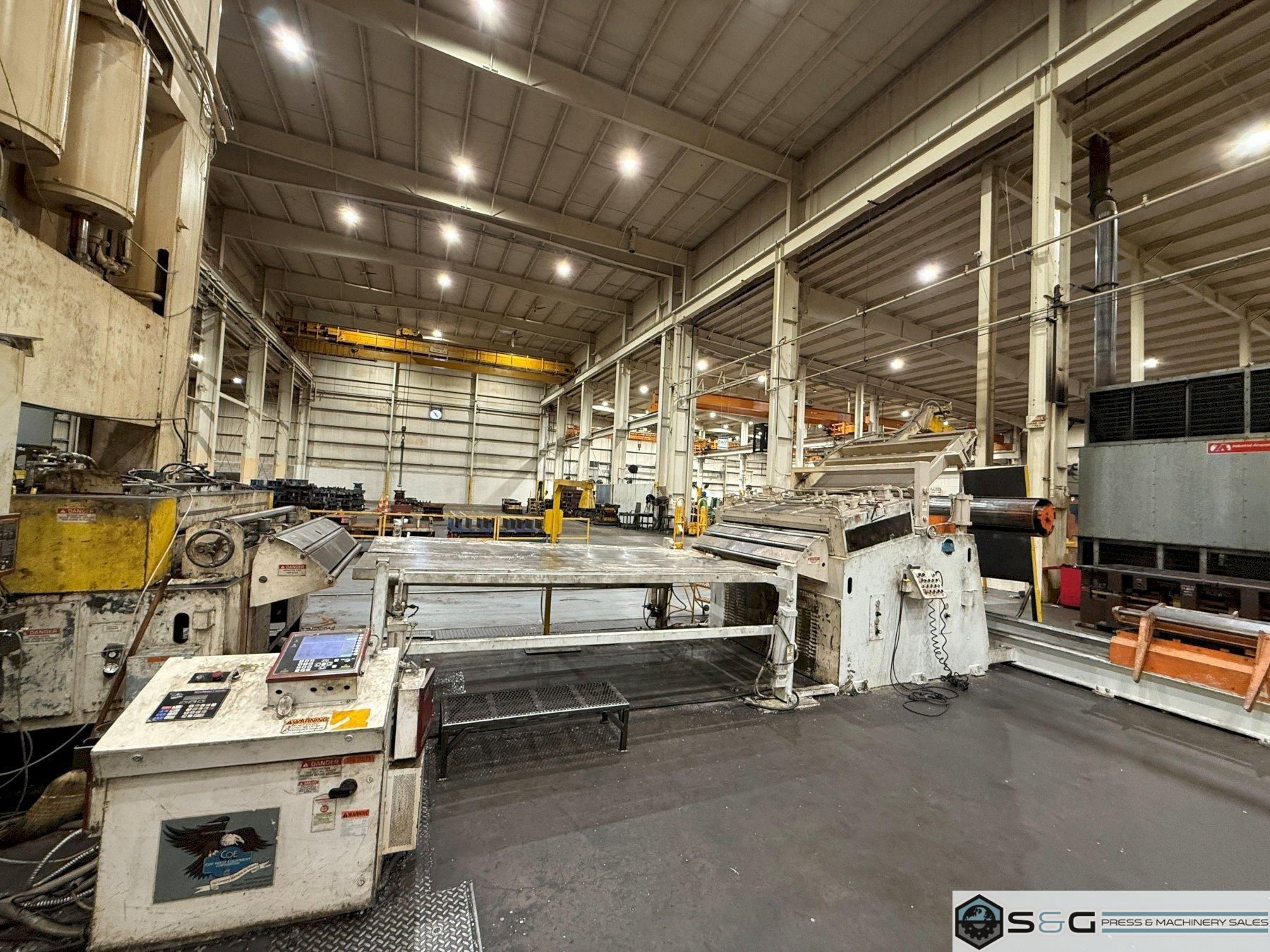

30,000 lbs. x 72" Coe Conventional Servo Coil Feed Line

Coe Press Equipment Model #CPR-PO-30072 / CPPS-305-72 / CPRF-772

30,000 lbs. Maximum Coil Weight
72" Maximum Coil Width
.090" @ 72" Maximum Thickness at Full Width
.125" @ 36" Maximum Coil Thickness
72" Maximum Coil O.D.
20-24" Coil I.D. Range
Right To Left Feed Direction

Coe Press Equipment Coil Feed Line Consisting of:

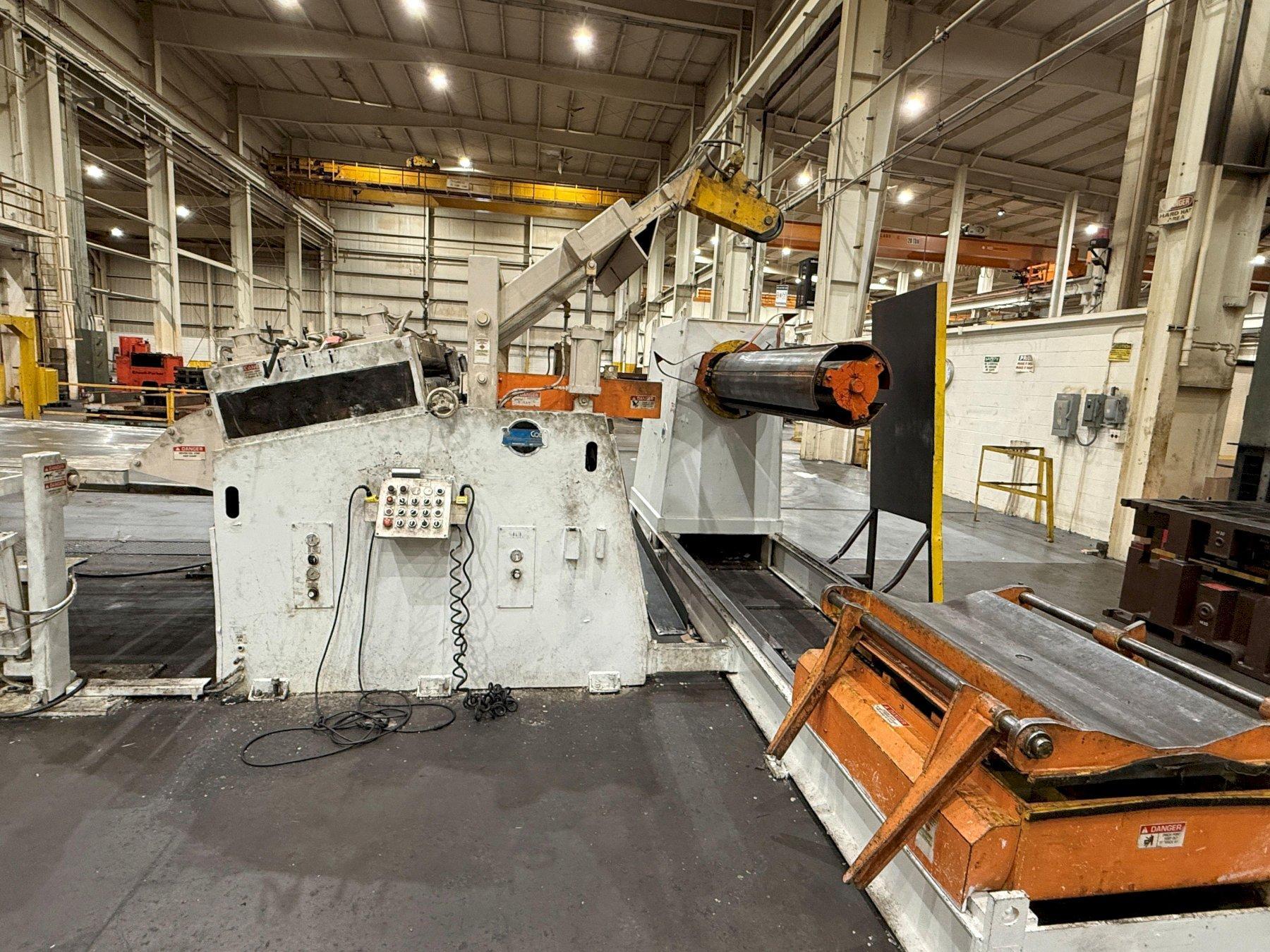

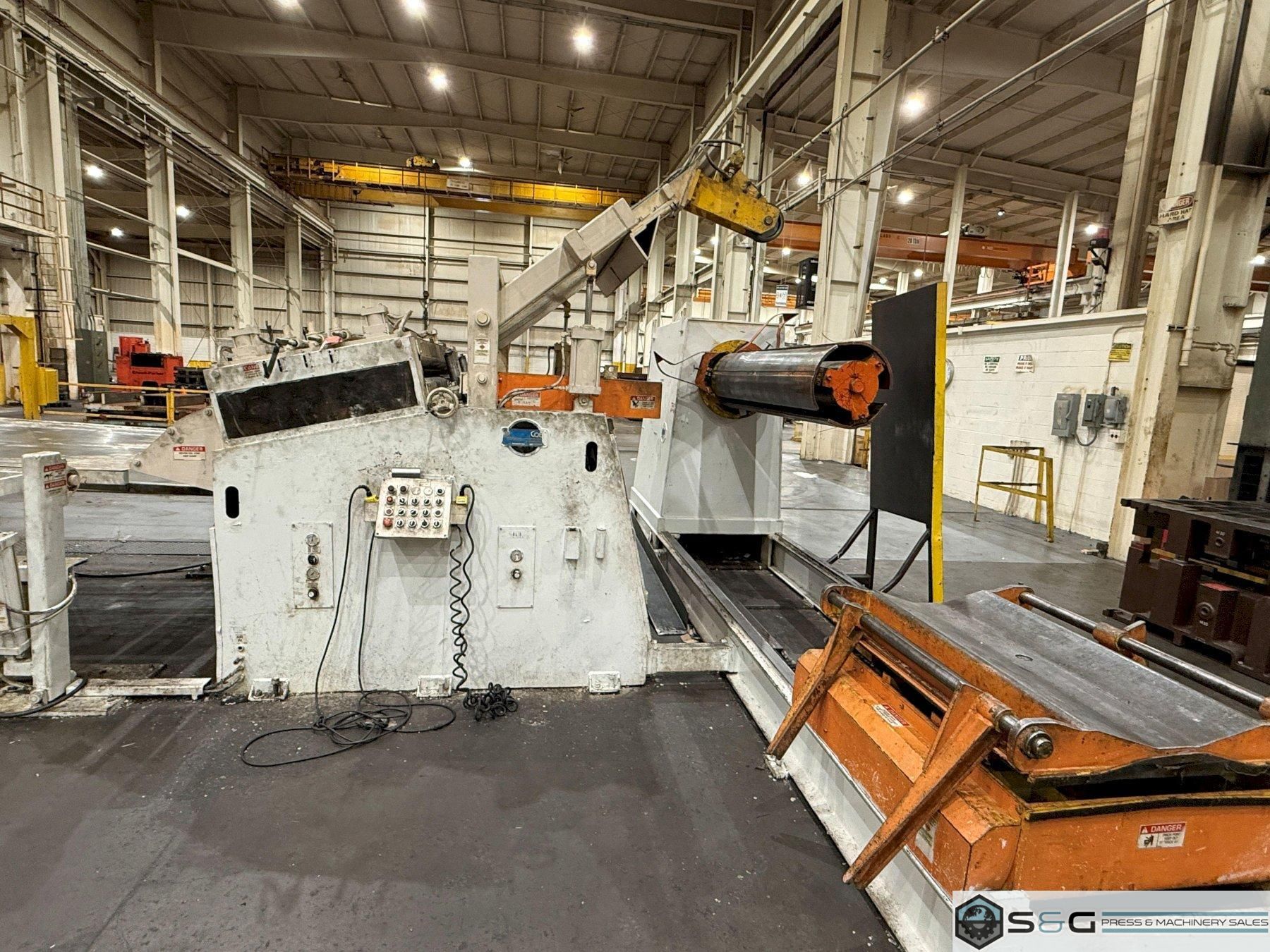

Coe Coil Reel Model No. CPR-PO-30072
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Jog drive for threading
Travelling Coil Load Car
Hydraulic Lift for Coils
Spindle Jog Forward/Reverse

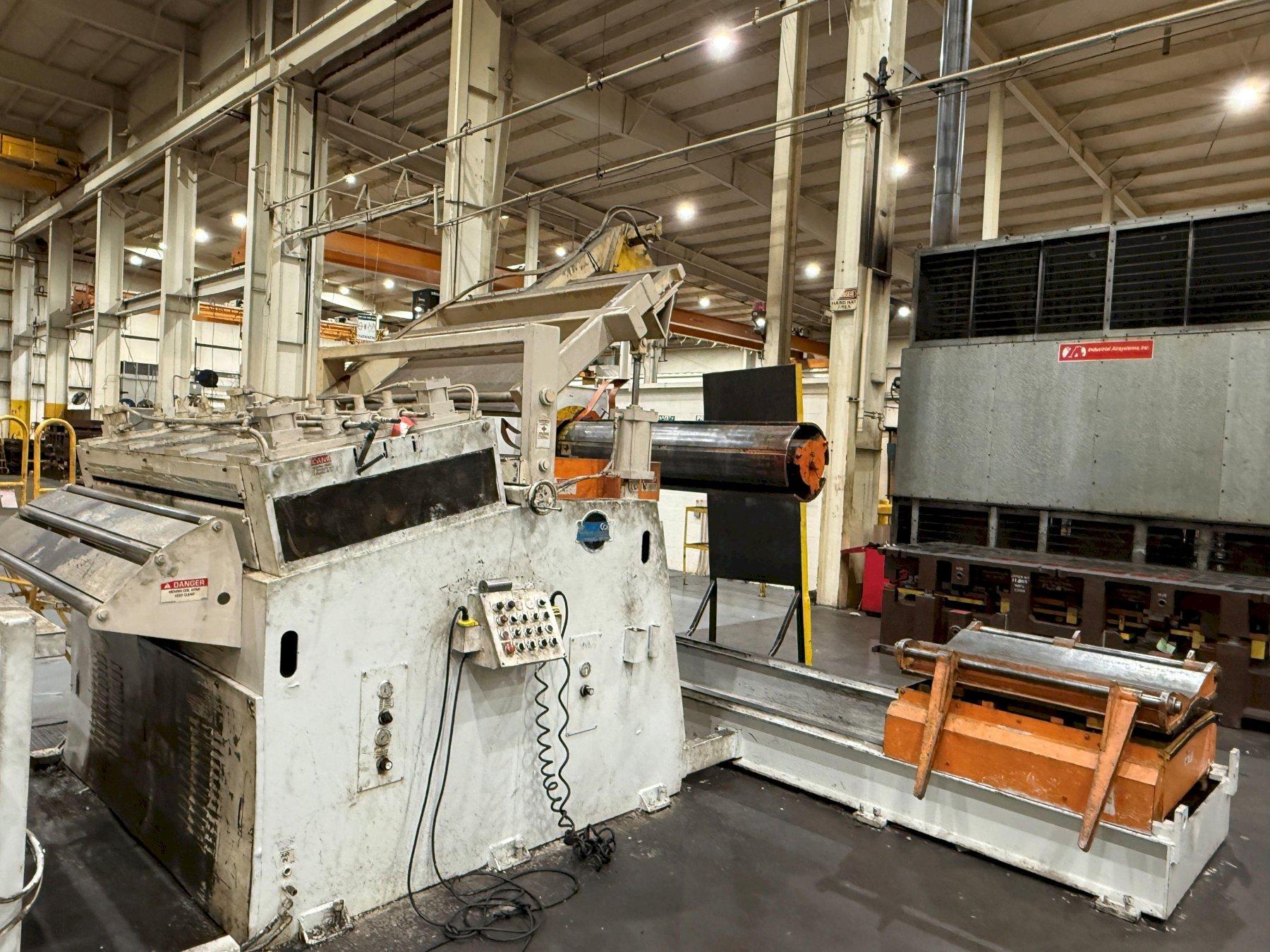

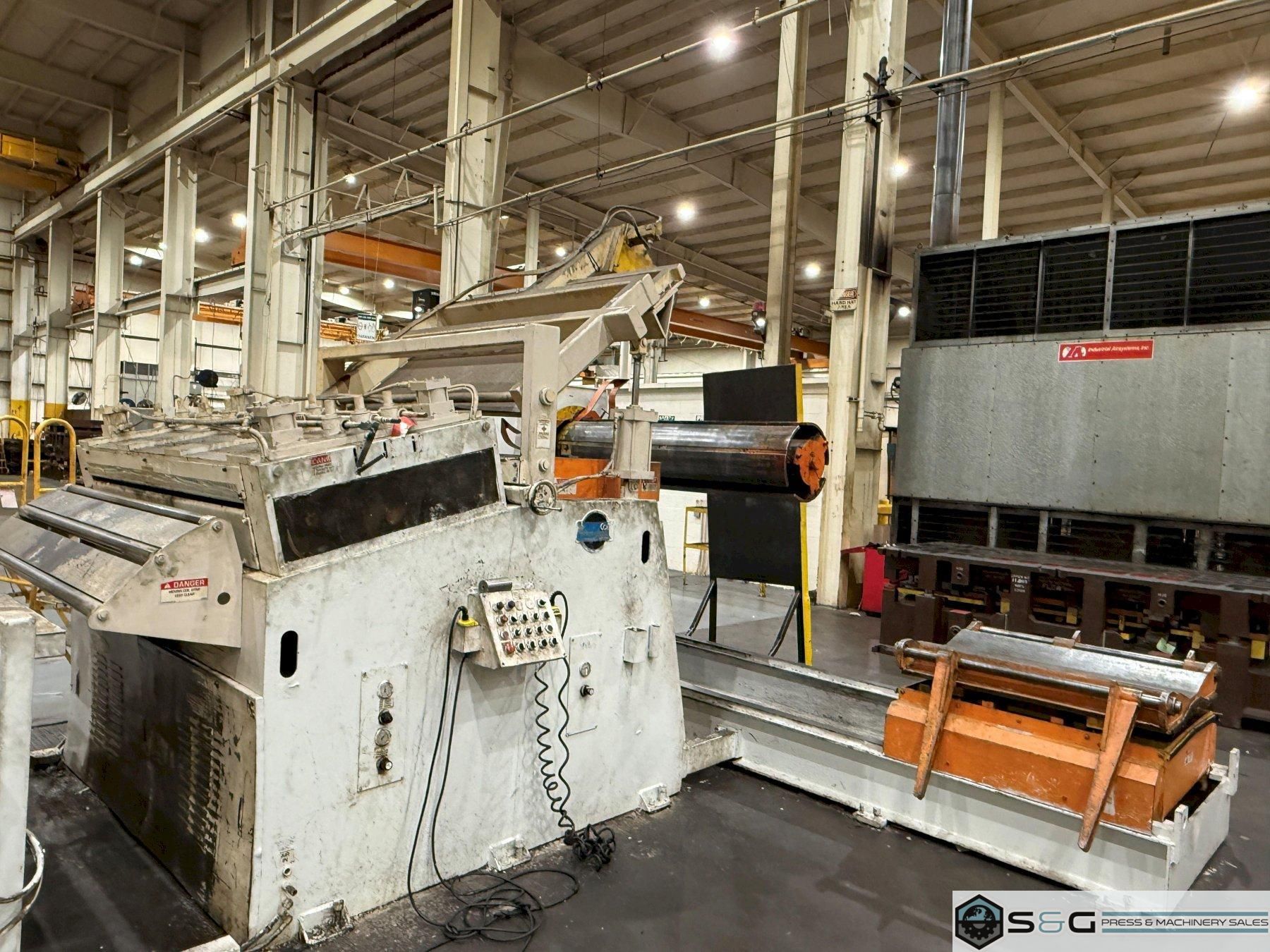

Coe Powered Coil Straightener Model No. CPPS-305-72
Seven straightening rolls x 3” diameter
Siko Indicators above rolls
Allen Bradley Powerflex 700 Variable Speed Drive
30 HP AC Drive Assembly
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Peeler/Threader/Debender Unit
Motorized End Wheel
Exit and Entry Pinch Rolls
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations

Air Operated Dual-Sided Thread Table
Ultrasonic Loop Control

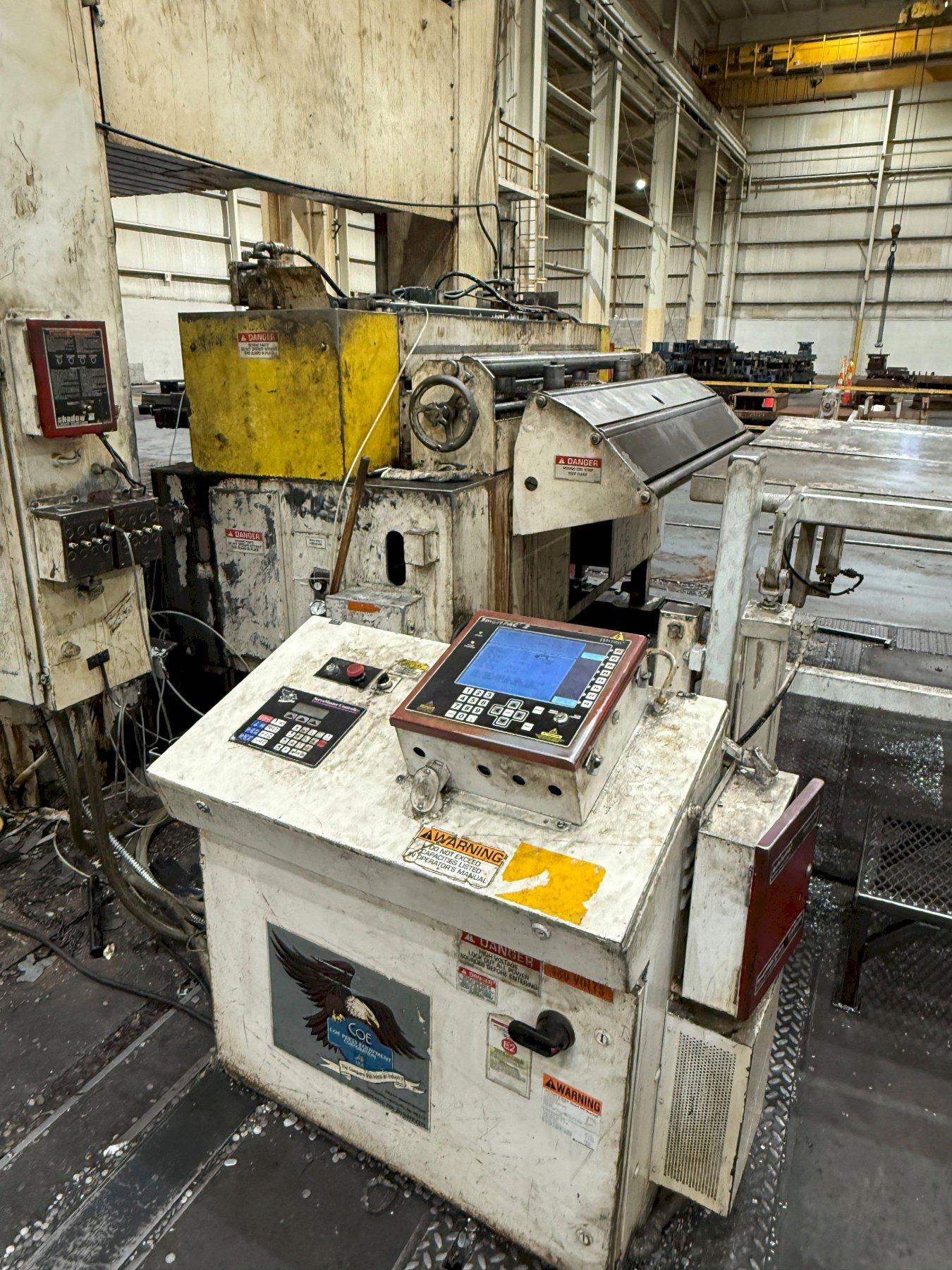

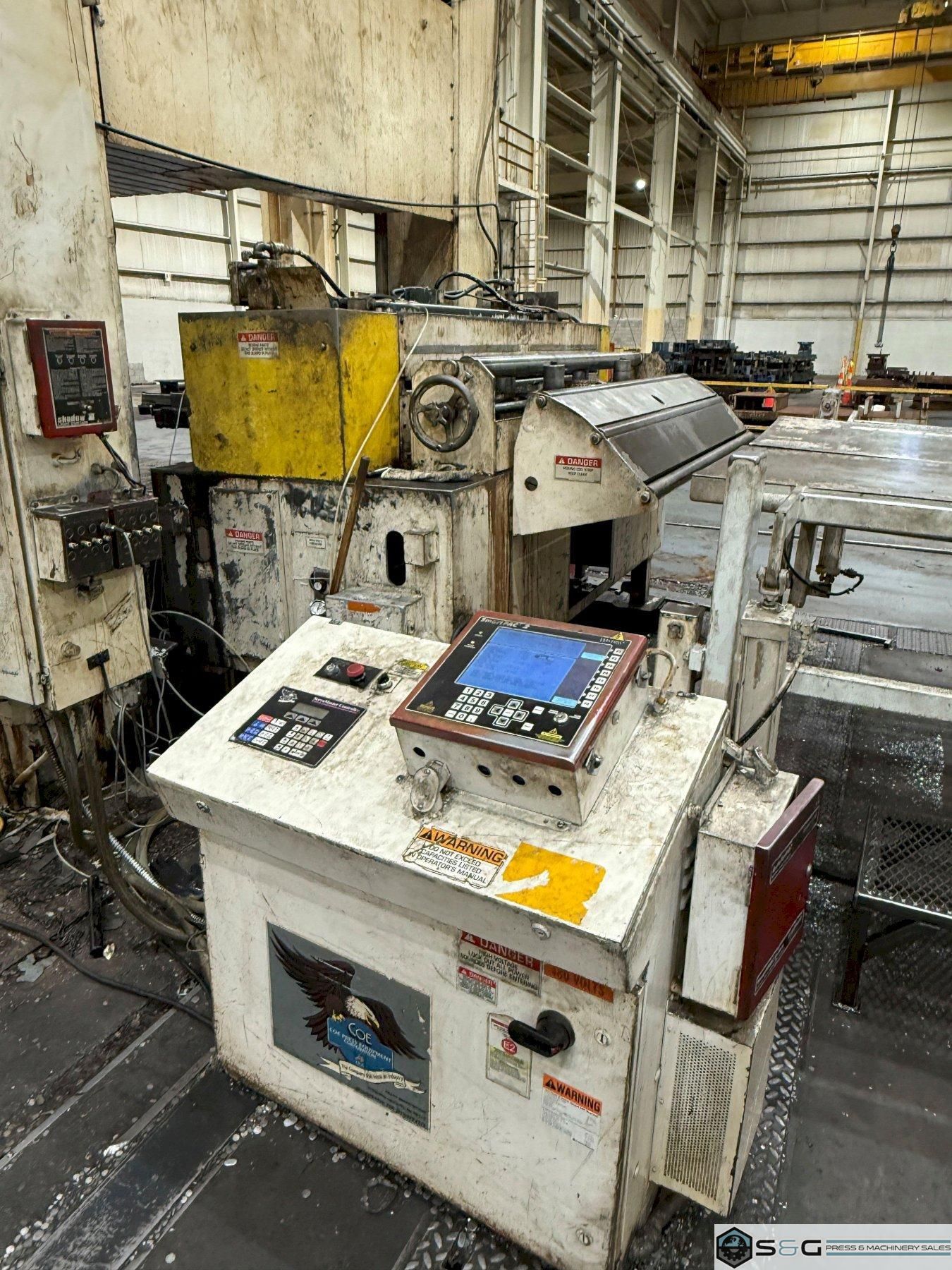

Coe Cabinet Mounted Feeder-Model CPRF-772
Coe Servo Master Control Console
Adjustable Base Feeder (+/- 4”)
7” diameter Feed Rolls
Entry Edge Guides
Entry Cascade Rollers
Motors and Controls

Optimize your high-capacity stamping with this 30,000 lbs. x 72" Coe Press Equipment servo coil feed line. This heavy-duty conventional coil line includes a Coe CPR-PO-30072 reel with a traveling load car, a CPPS-305-72 powered straightener featuring 7 rolls, and a CPRF-772 cabinet-mounted servo feeder. Engineered for precision, it handles 72" wide material up to .090" thickness and 36" wide up to .125". Equipped with Allen Bradley Powerflex drives, hydraulic mandrel expansion, and ultrasonic loop control, this used Coe feed line ensures seamless automated production. Enhance your metalforming efficiency with this robust, right-to-left Coe servo feed system, built for demanding industrial environments.
