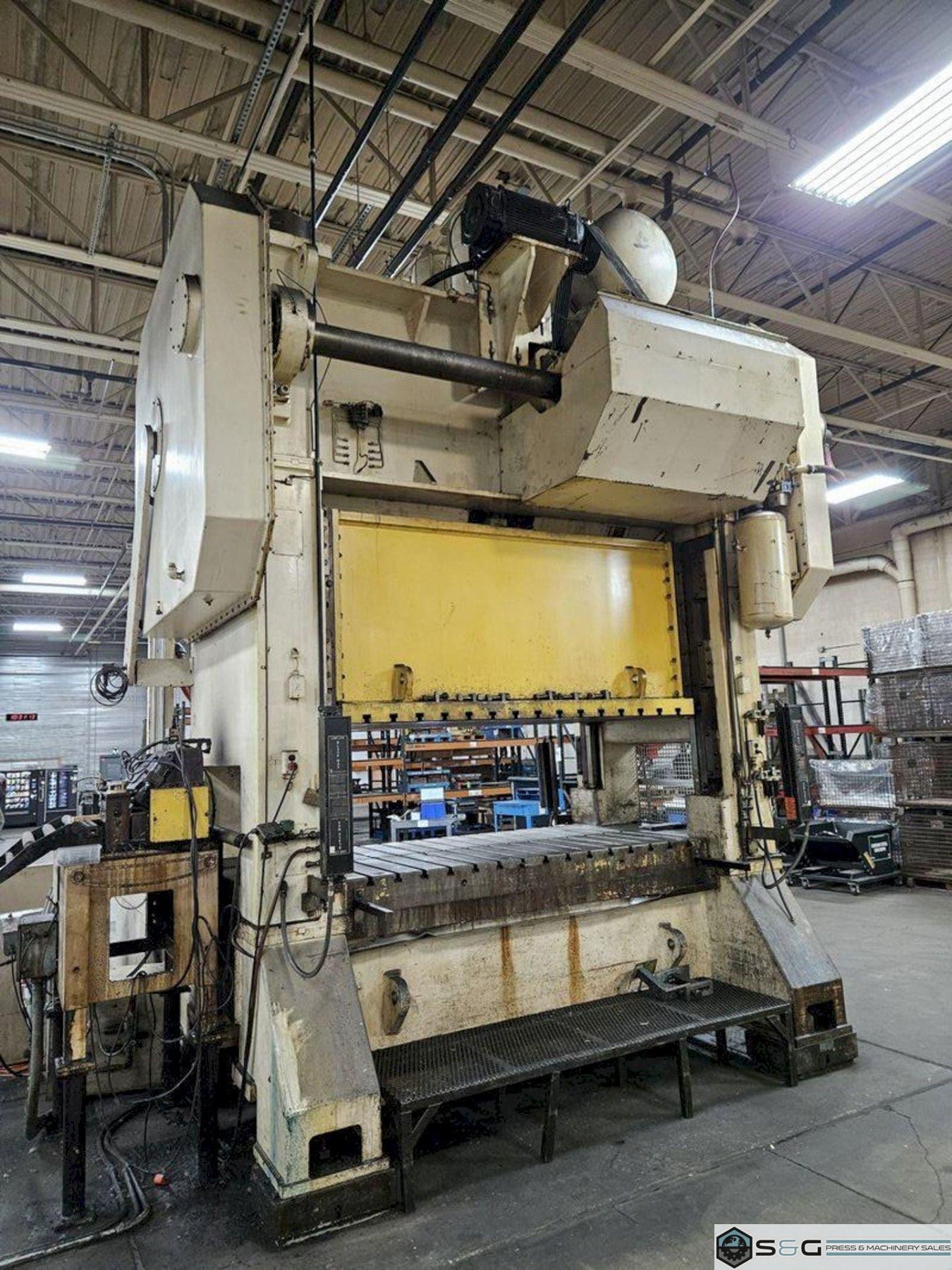

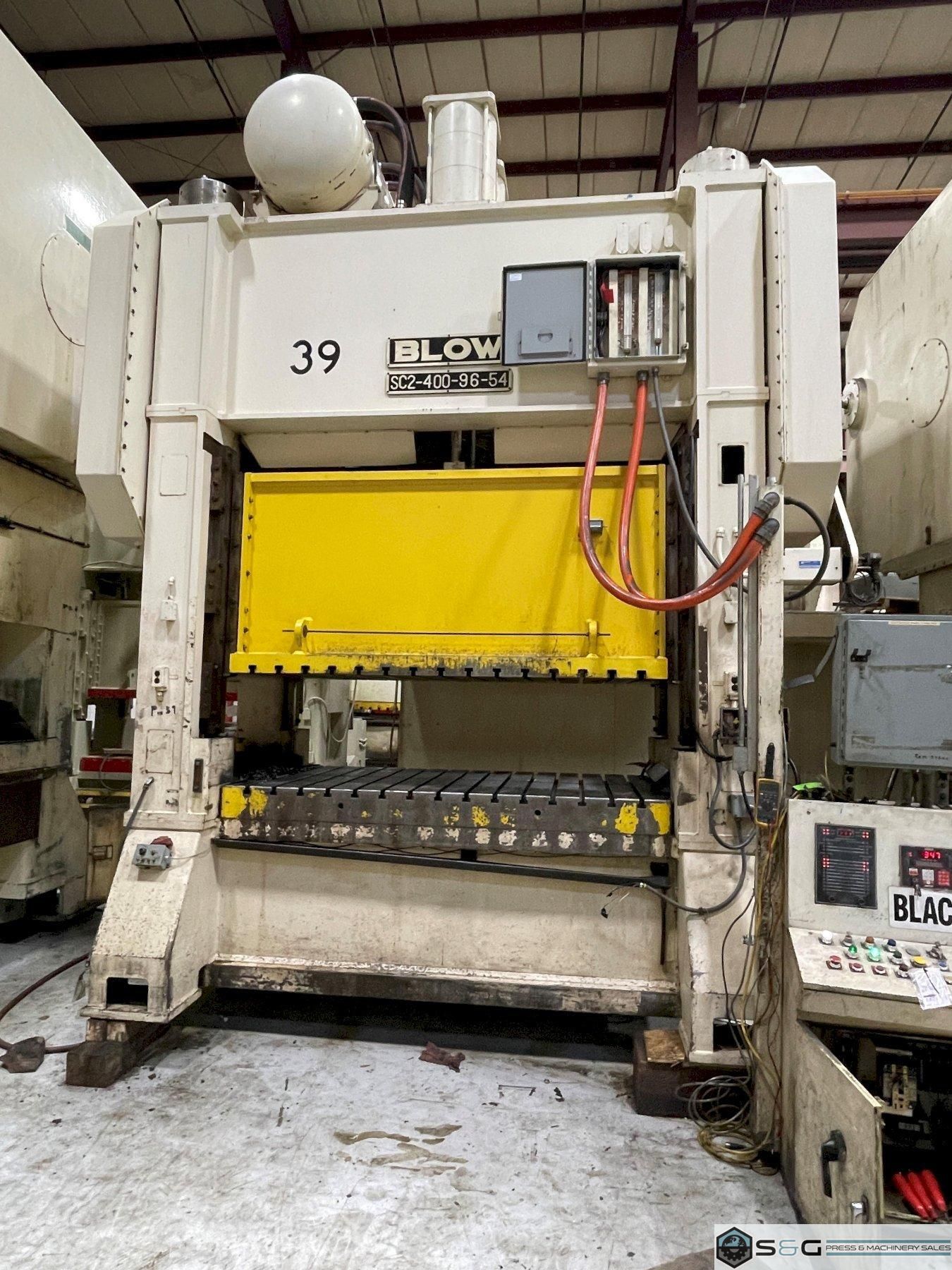

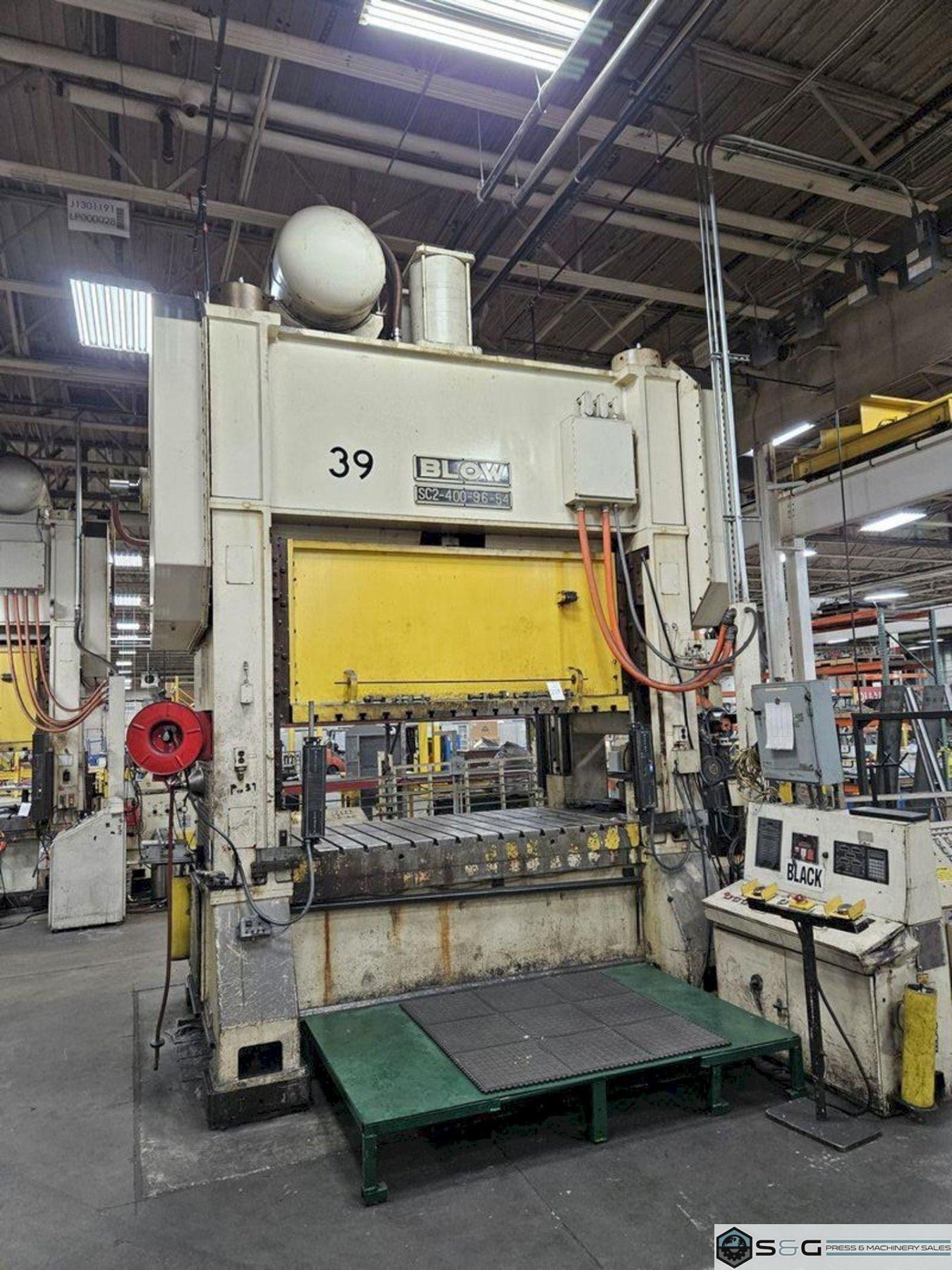

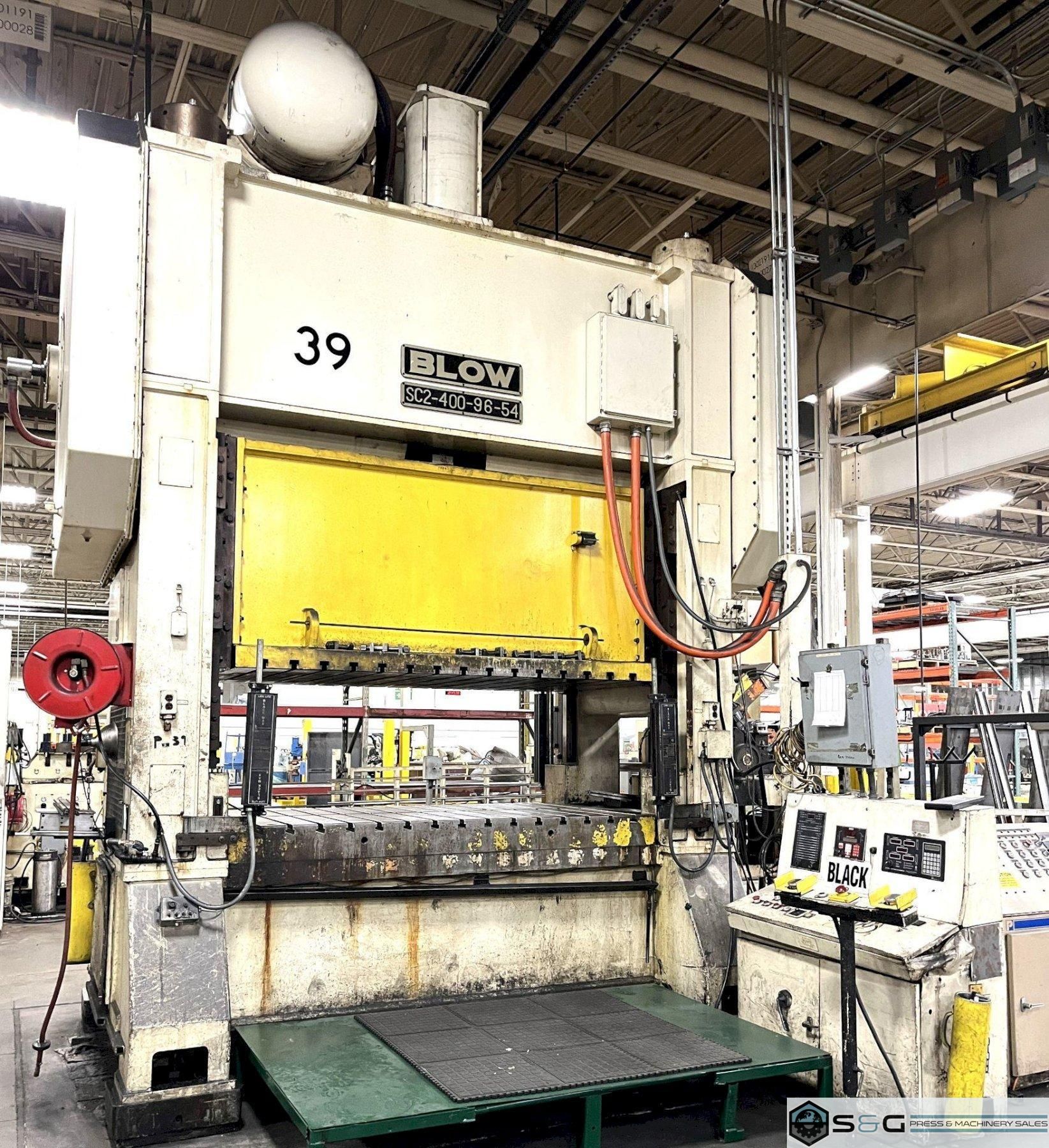

400-ton Blow Press Model #SC2-400-96-54 Straight Side Mechanical Metal Stamping Press For Sale, Year 1994

Standard Specifications

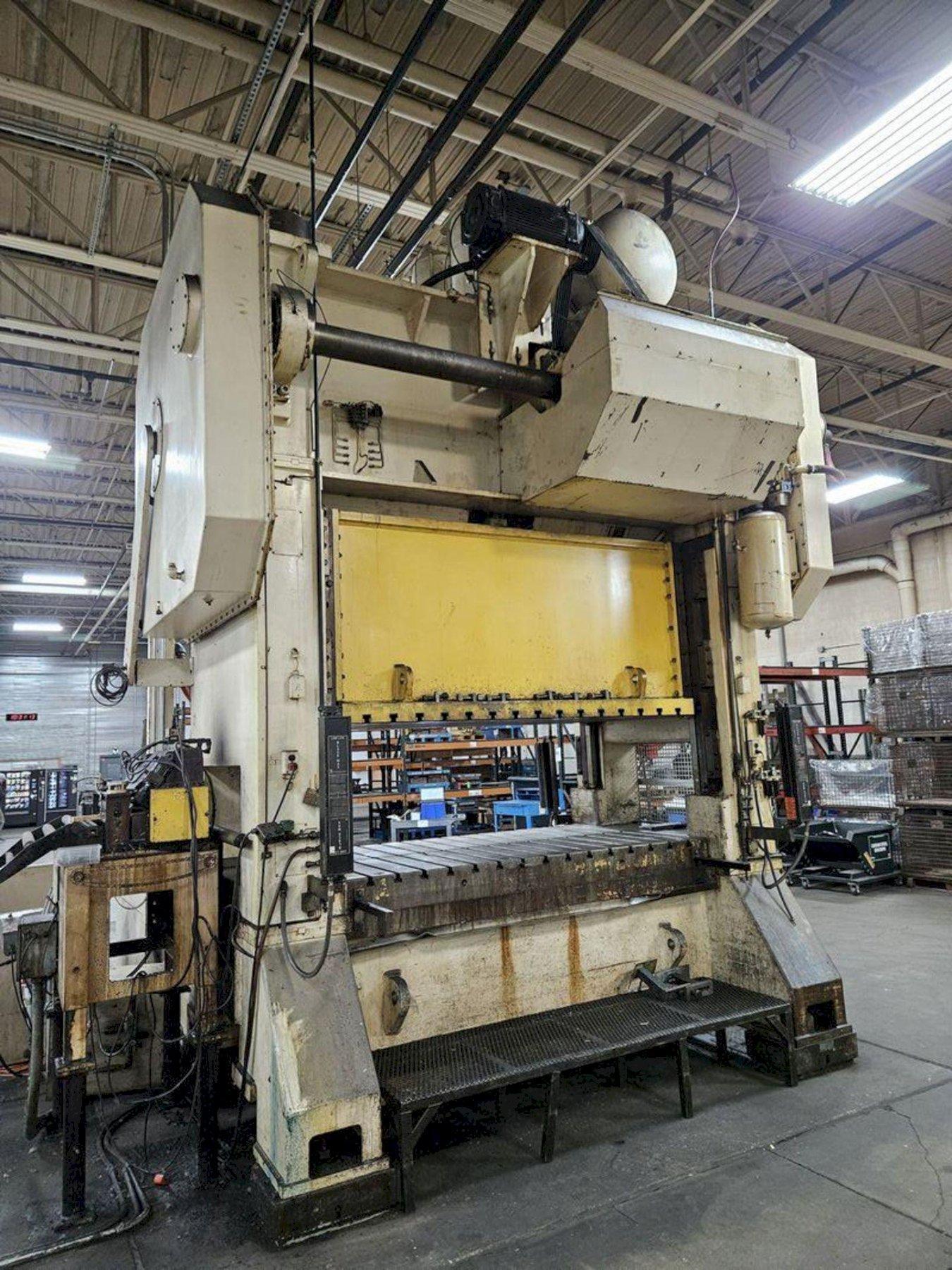

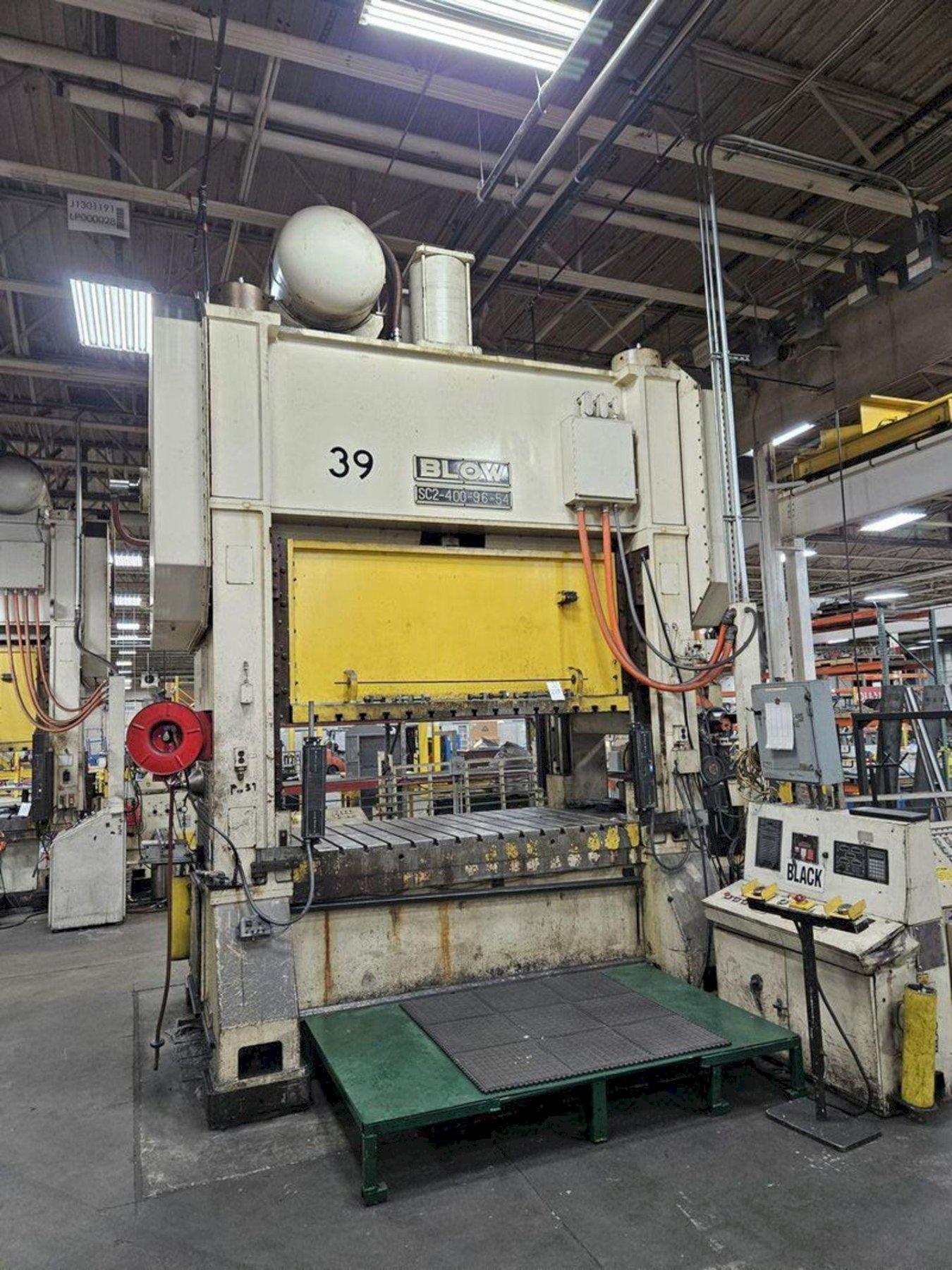

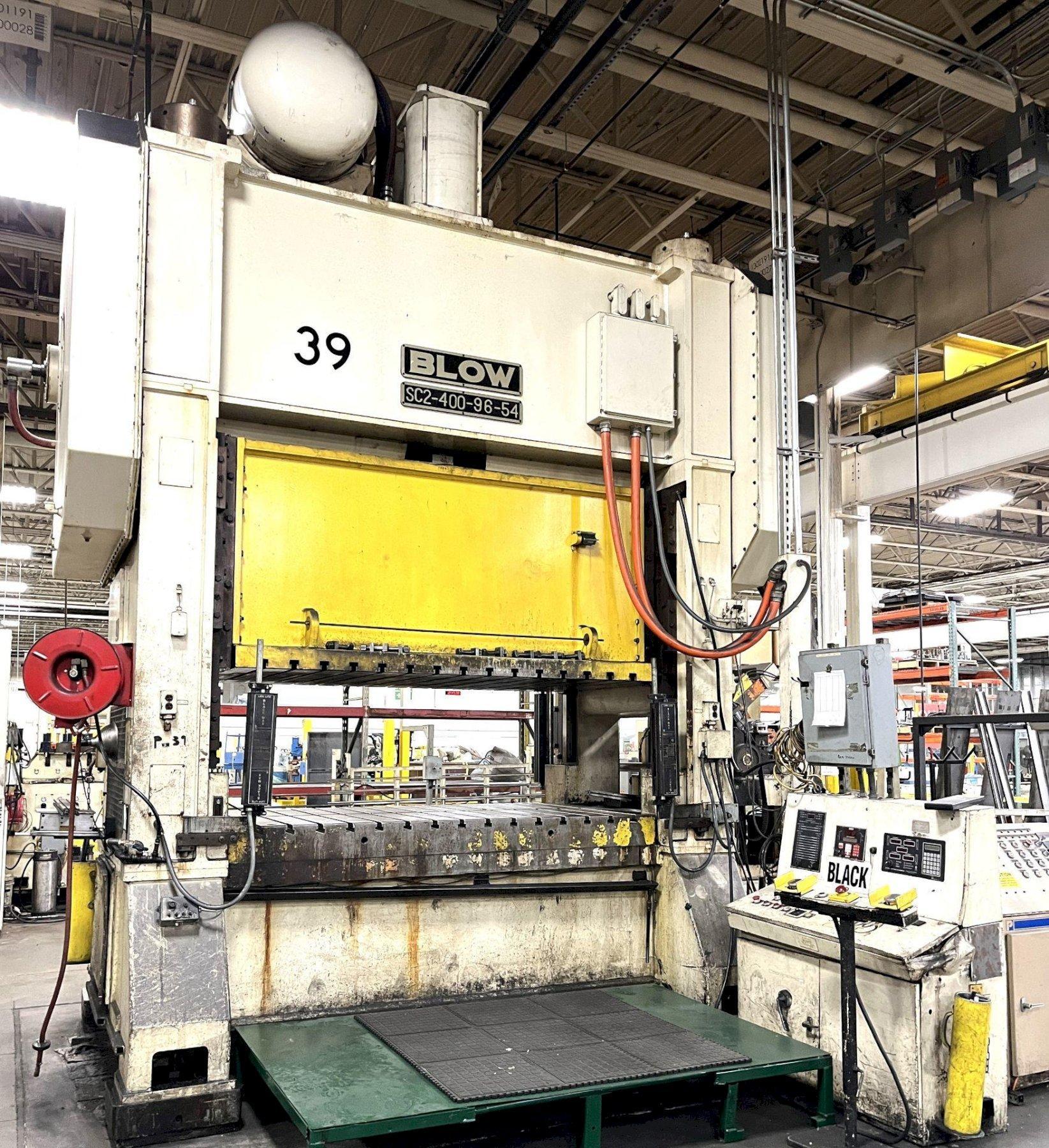

Used Blow Straight Side Mechanical Press

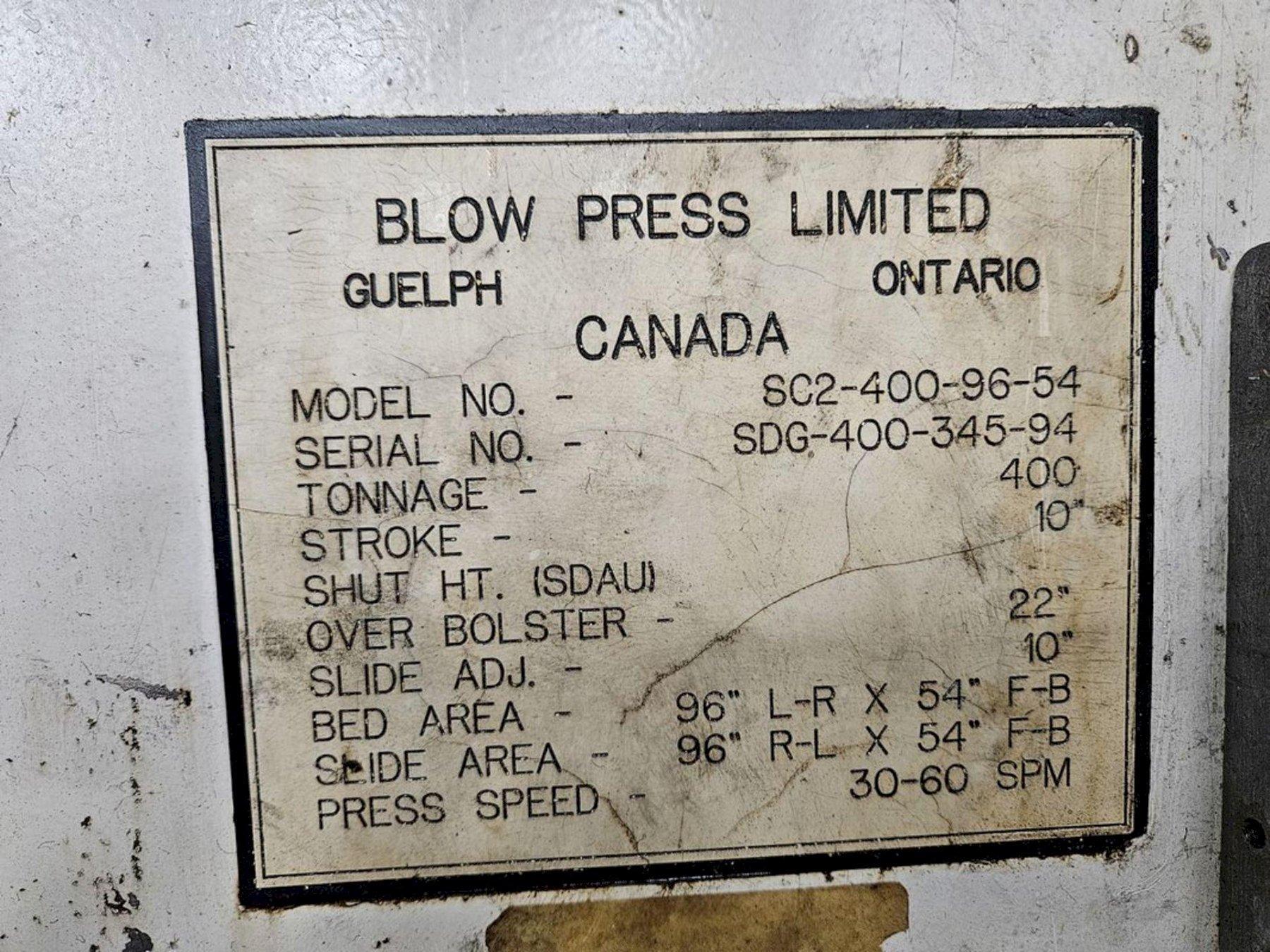

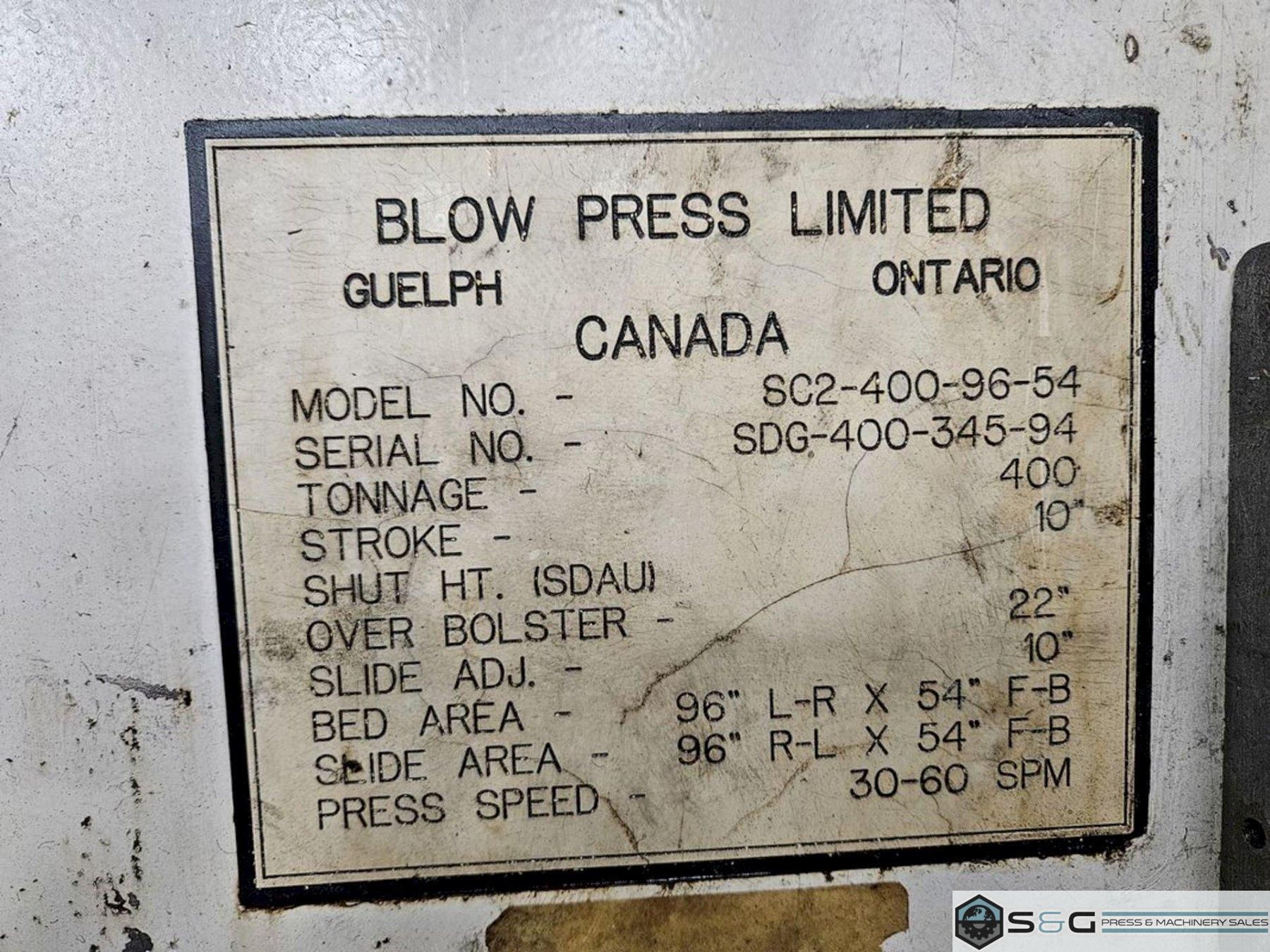

400-ton Blow Model # SC2-400-96-54
Serial Number SDG-400-345-94
400-ton Capacity @ .5" off Bottom
10" Stroke
29" Shut Height over Bed (SDAU)
22" Die Height over Bolster (SDAU)
10" Motorized Adjustment
96" LR x 54" FB Bed Area
96" LR x 54" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System

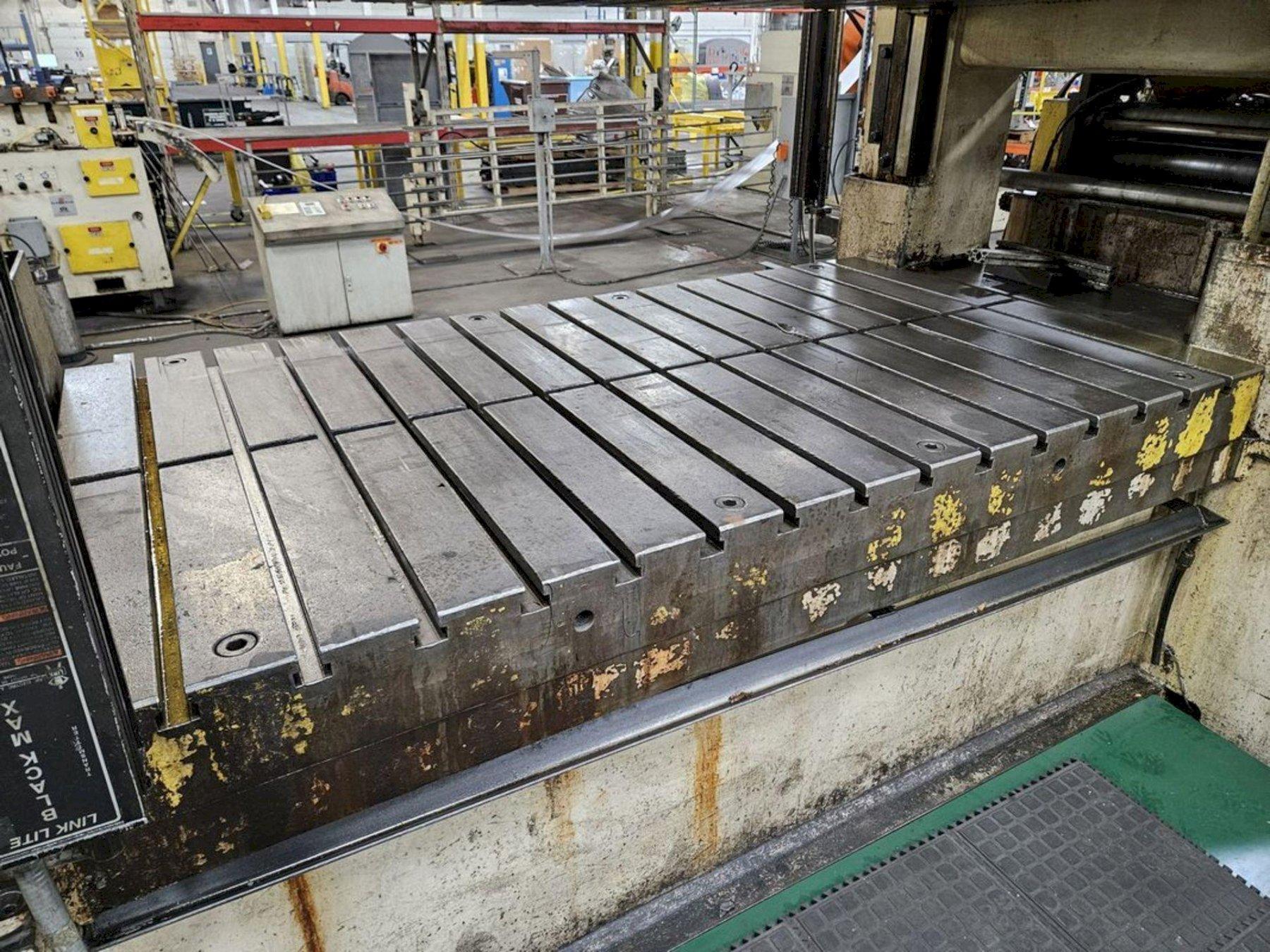

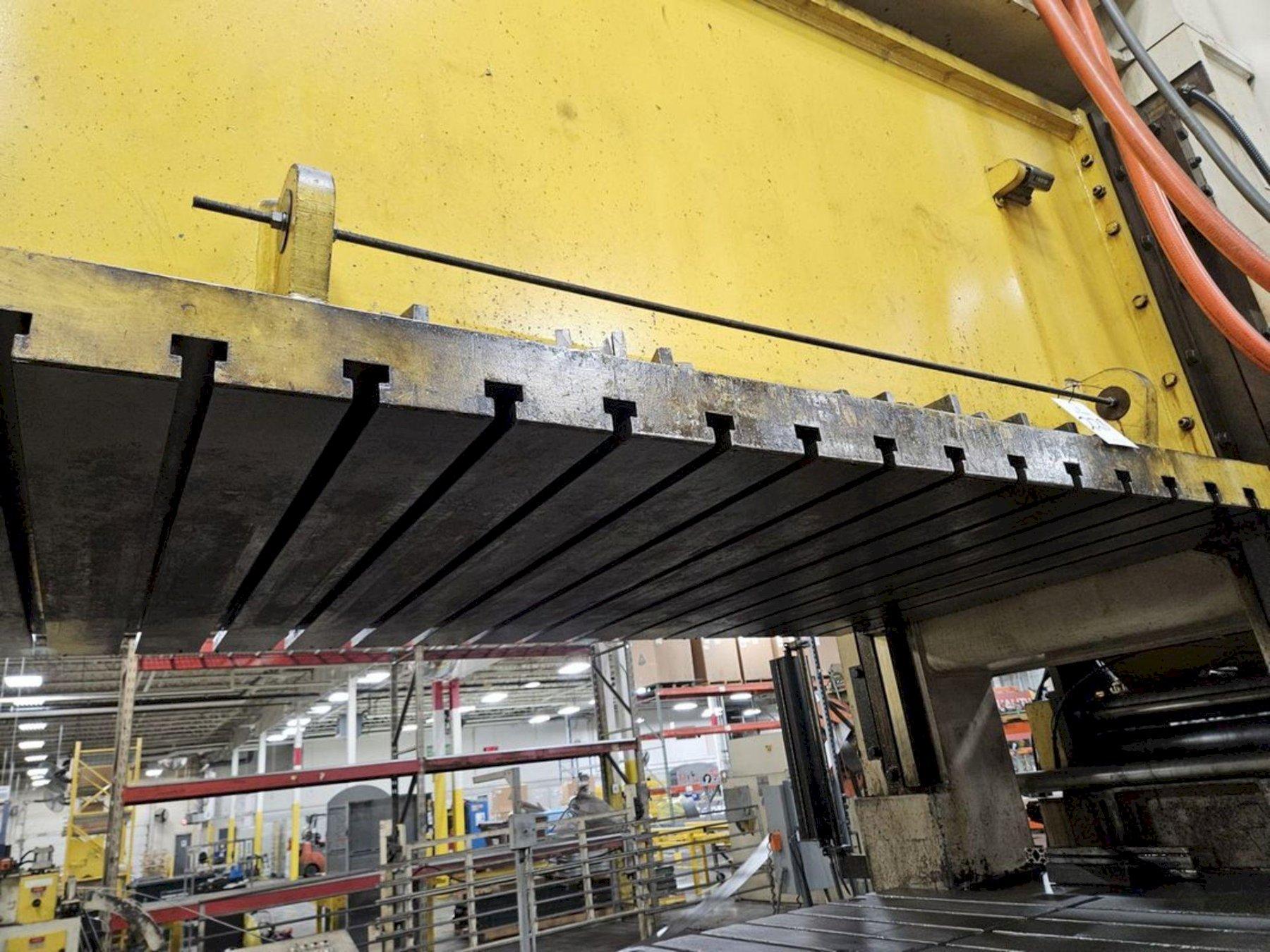

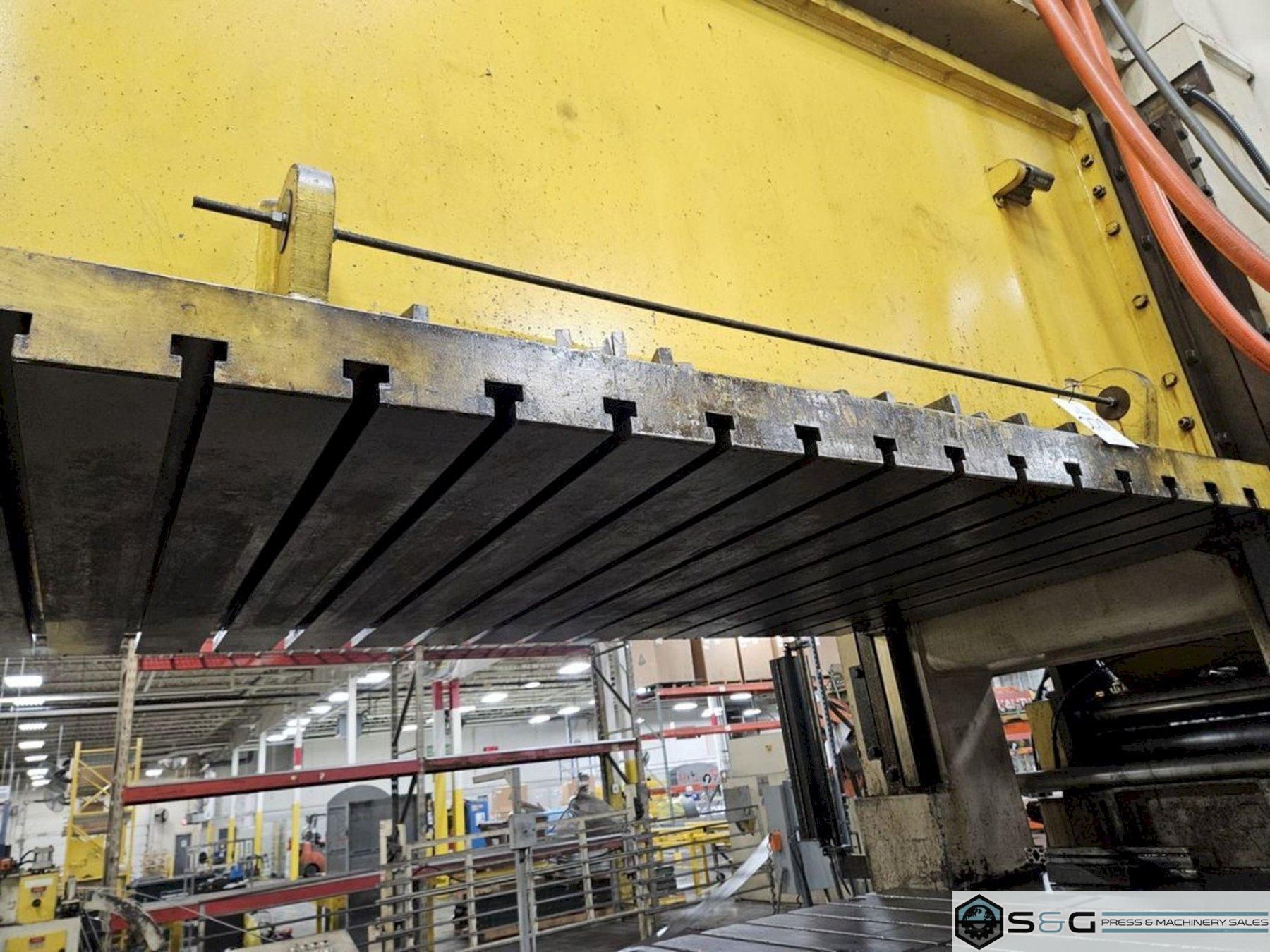

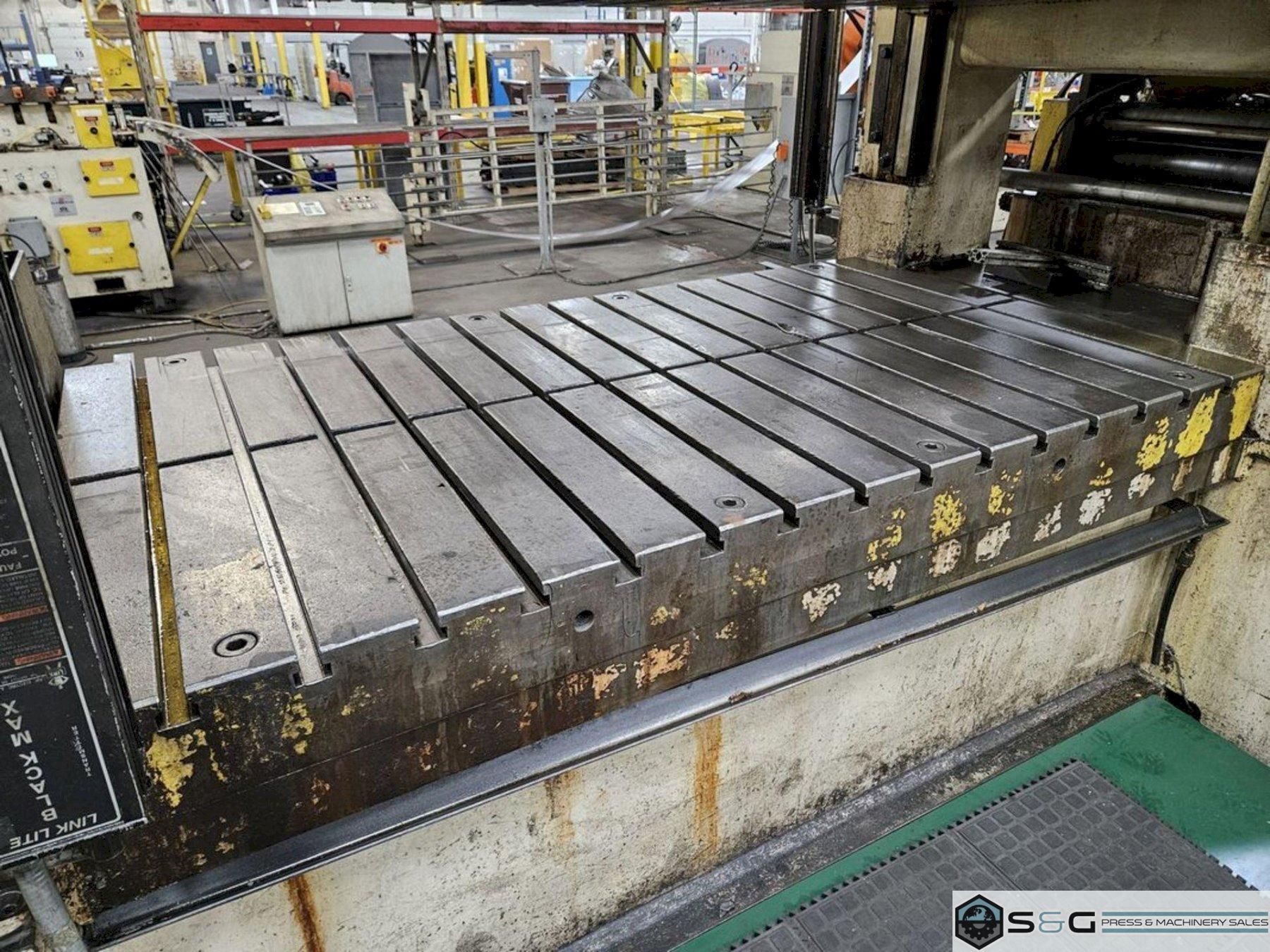

T-Slotted Ram and Bolster
7" Thick Bolster Plate
Hydraulic Tie Rod Nuts
OmniLink 501 Press Control
Gemco PLS Brake Monitor
Link System Tonnage Monitor - 4 Channel
Black Max Light Curtains (Front, Back Horizontal)

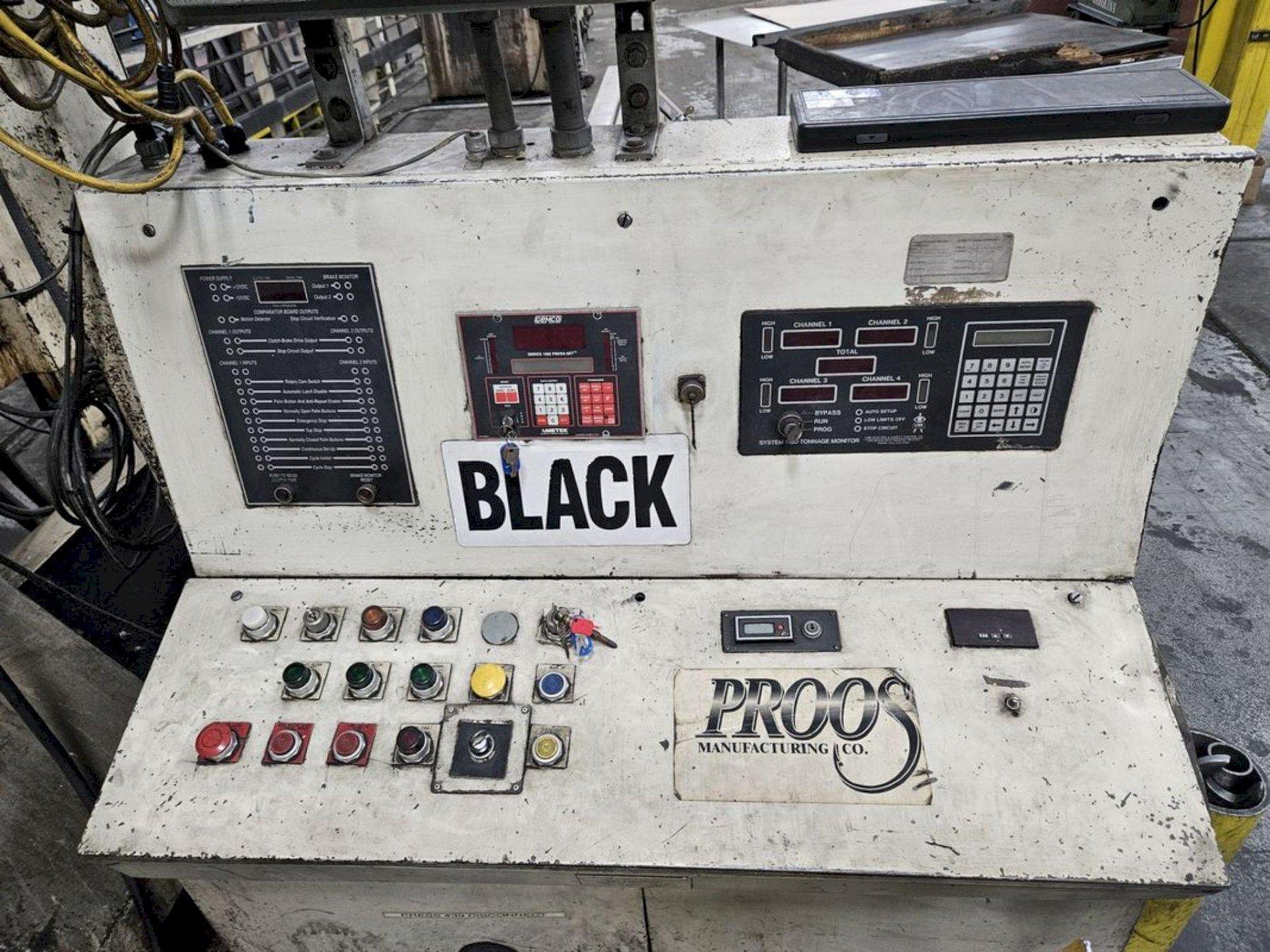

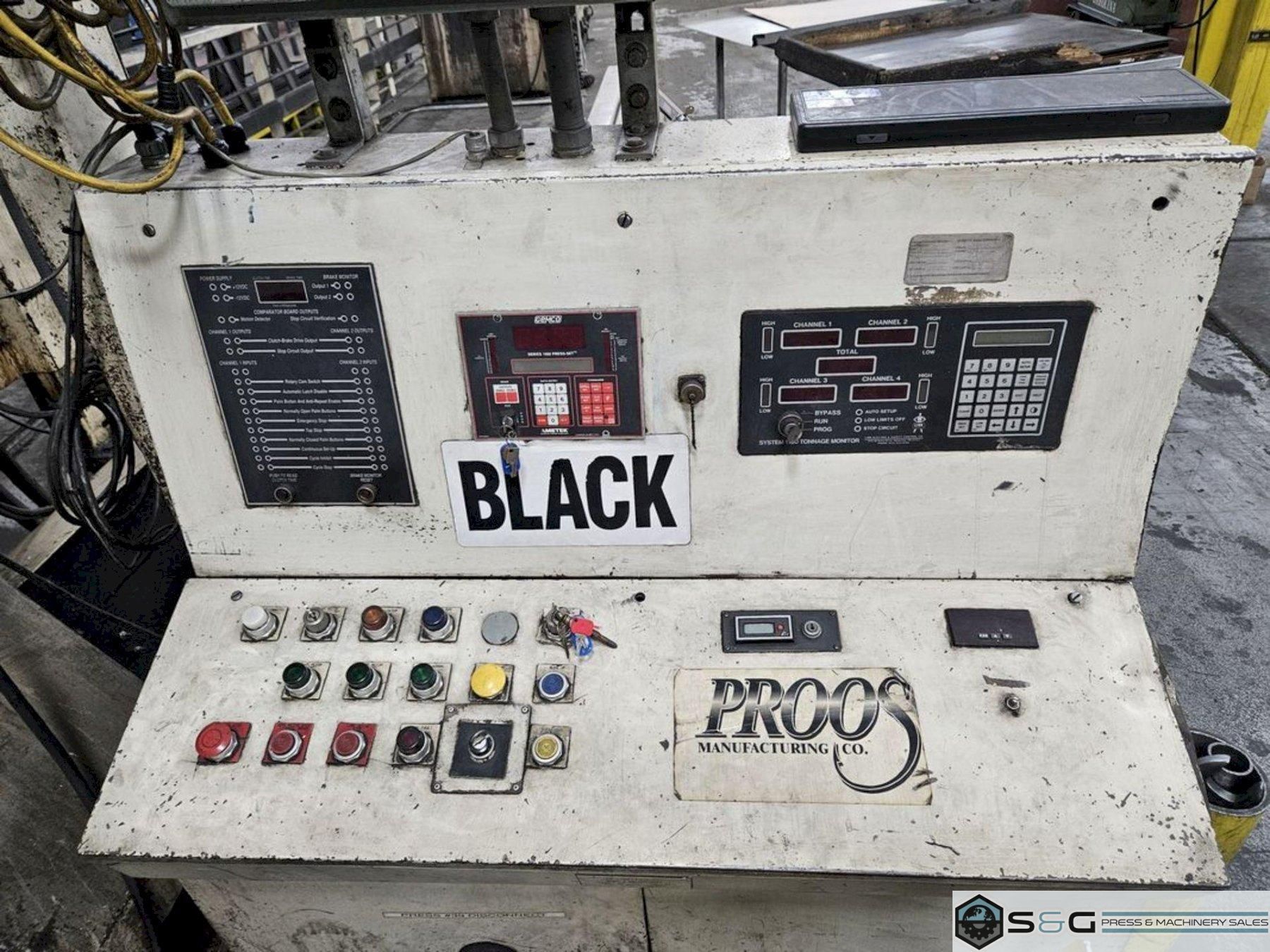

Free Standing Console Controls
38" Wide Windows
Vibro Dynamic Isolator Pads
Floor Standing

Maximum Overall Height from floor to highest point:  18' 6" Tall

This Used 400-ton Blow Press can be seen under power upon request in the S & G Press Livonia MI Warehouse!
