400-ton Blow SC2-400-108-54 Straight Side Mechanical Stamping Press For Sale, Year 2001

Standard Specifications
Used Blow Straight Side Mechanical Press
400-ton Blow Model # SC2-400-108-54
Serial Number SDG-400-541-01
400-ton Capacity @ .5" off Bottom
10" Stroke
35" Shut Height over Bed (SDAU)
28" Die Height over Bolster (SDAU)
10" Motorized Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
20-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
7" Thick Bolster Plate
Hydraulic Tie Rod Nuts

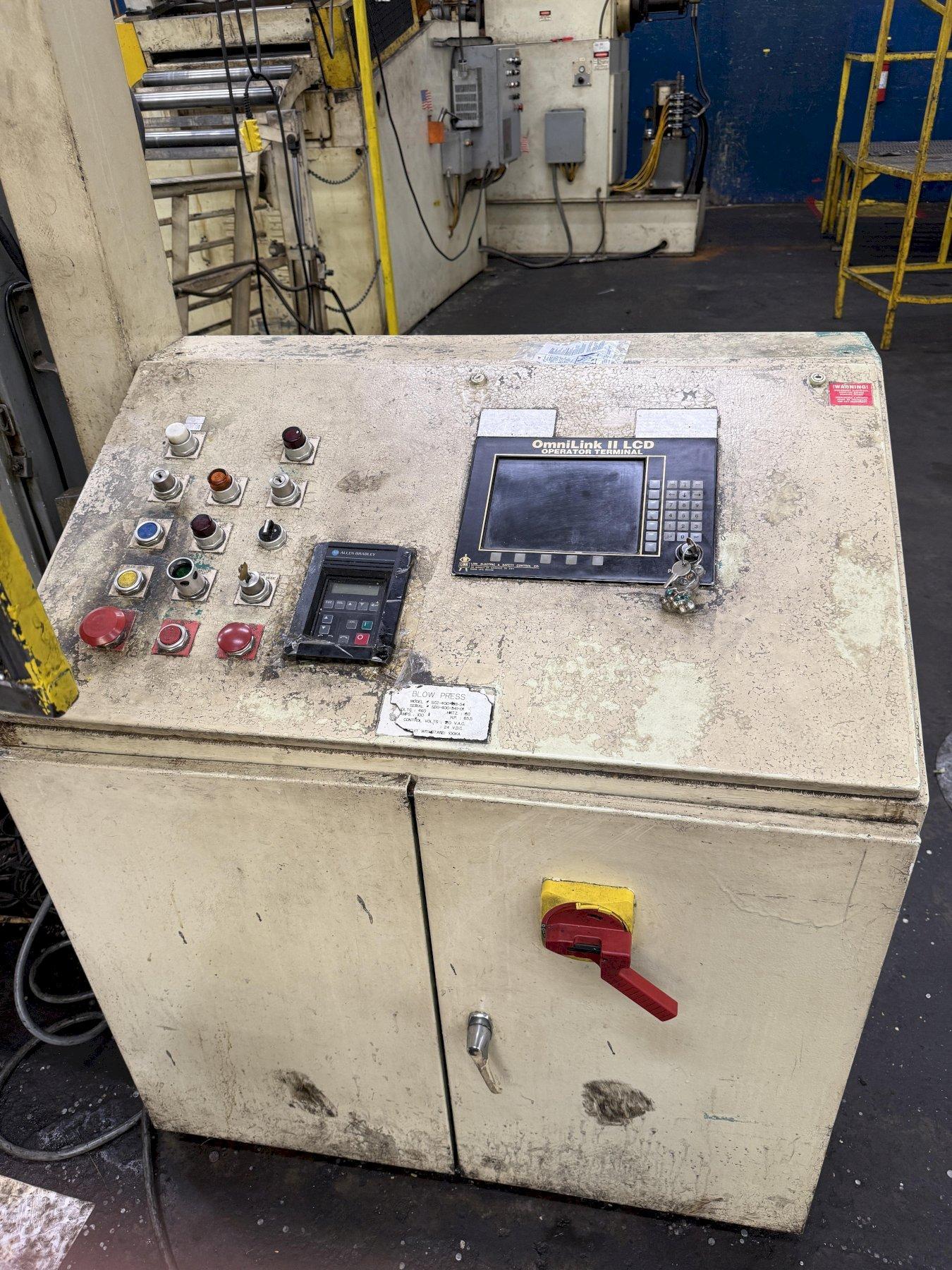

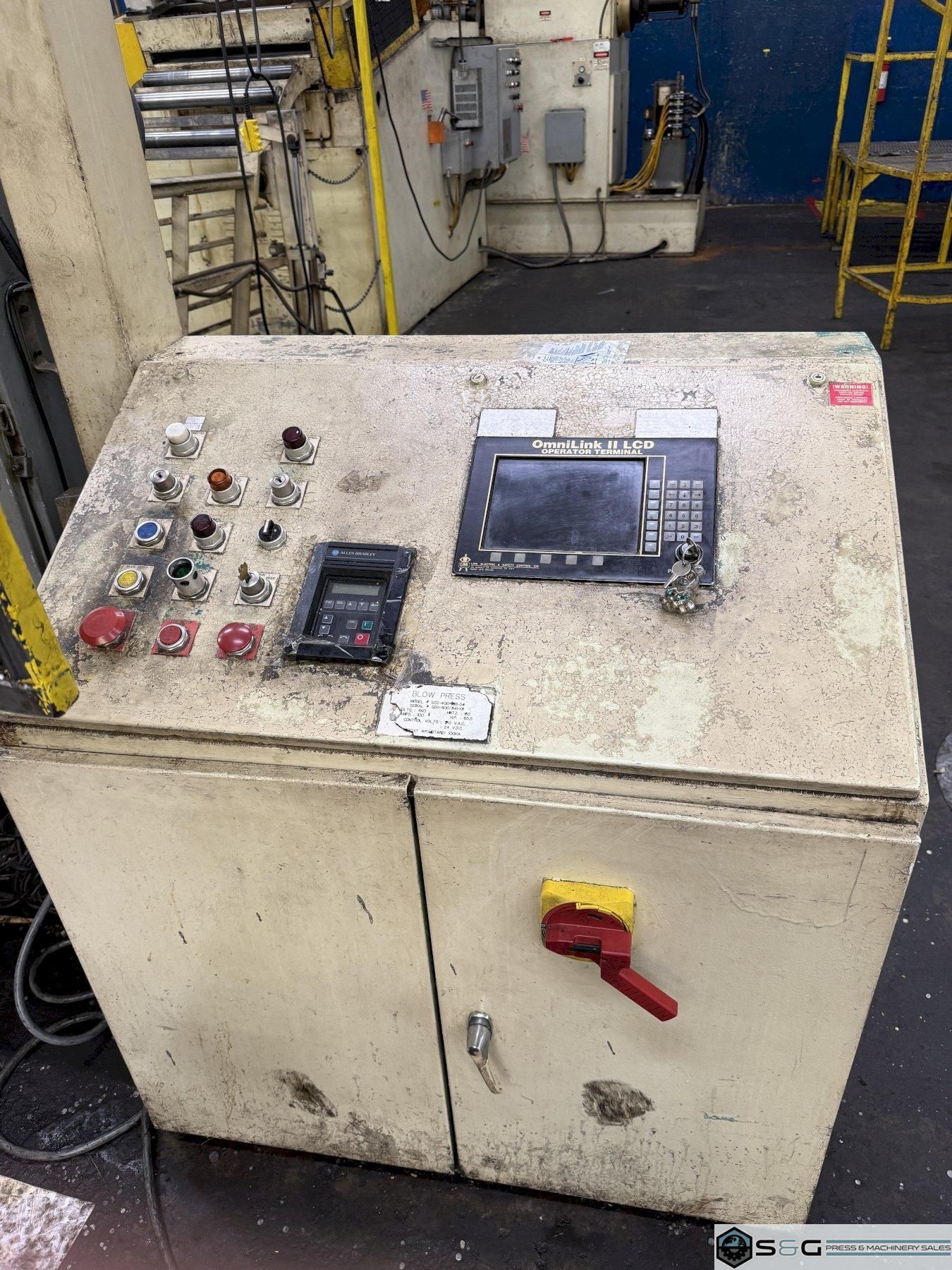

Omni-Link II LCD Operator Terminal
Free Standing Console Controls
38" Wide Windows
Vibro Dynamic Isolator Pads
Floor Standing

Weight:  148,000 lbs.
Overall Height: 221.5" Tall

This Used 400-ton Blow Press can be seen under power upon request in the S & G Press Livonia MI Warehouse!

High-Performance Used 400-Ton Blow Straight Side Mechanical Stamping Press

Maximize your production with this heavy-duty, Used 400-Ton Blow Straight Side Mechanical Press for sale. Ideal for metal stamping and progressive die operations, this double crank press offers superior rigidity and precision. The robust Blow Model SC2-400-108-54 features an expansive 108" LR x 54" FB Bed Area, perfect for large or tandem tooling setups.

Key specifications for serious buyers include a powerful 400-ton capacity (at 0.5" off bottom), 10" stroke, and a quick 20-60 VSPM variable speed range. Equipped with a reliable Air Clutch/Brake, Hydraulic Tie Rod Nuts, and a modern Omni-Link II LCD Operator Terminal, this machine is ready for immediate integration. The massive 148,000 lb. frame and Vibro Dynamic Isolator Pads ensure stable, high-quality operation.

Located and available for inspection under power at the S & G Press Livonia MI Warehouse. Contact us today to request a quote for this exceptional Used 400-Ton Blow Press.
