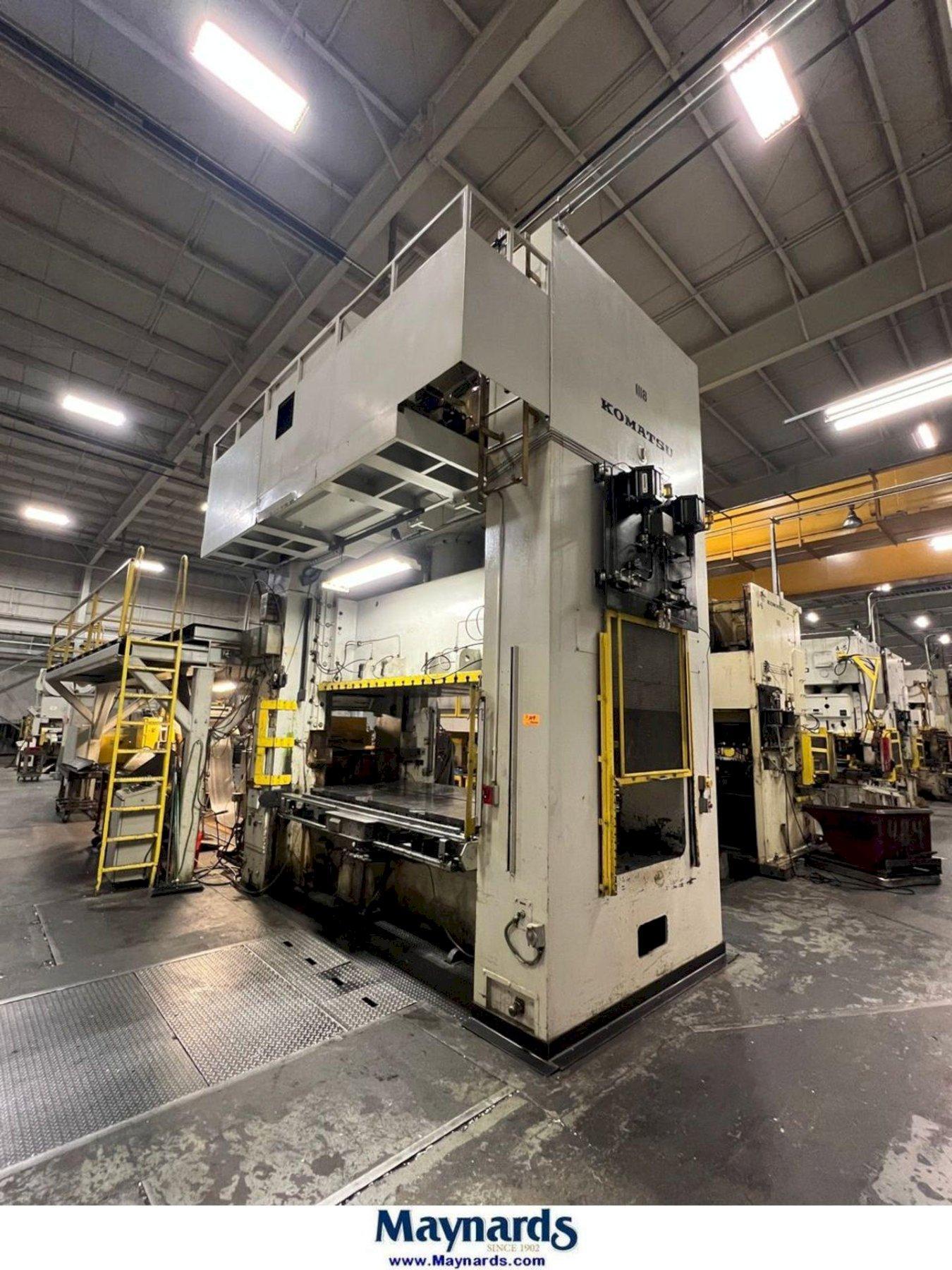

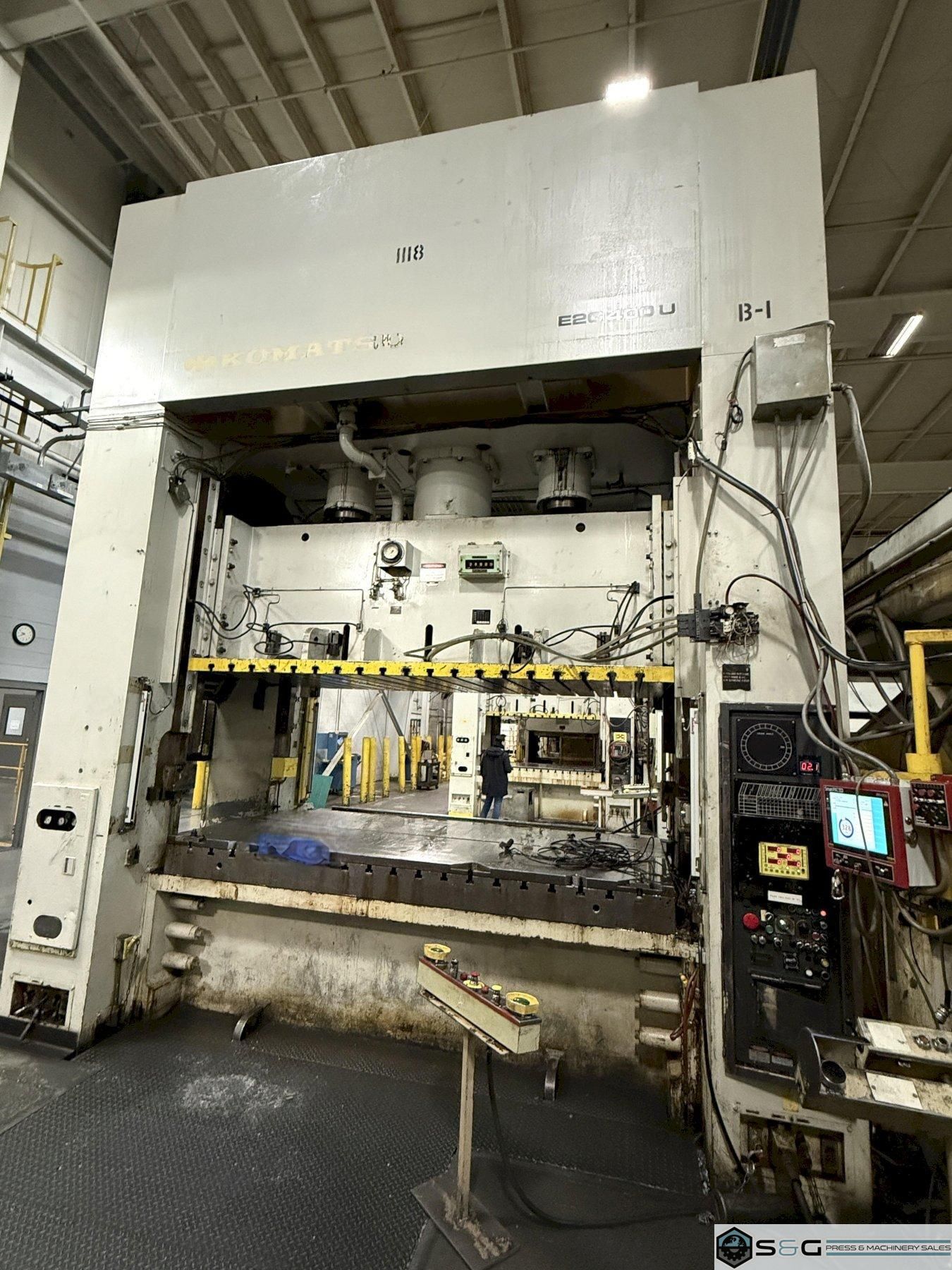

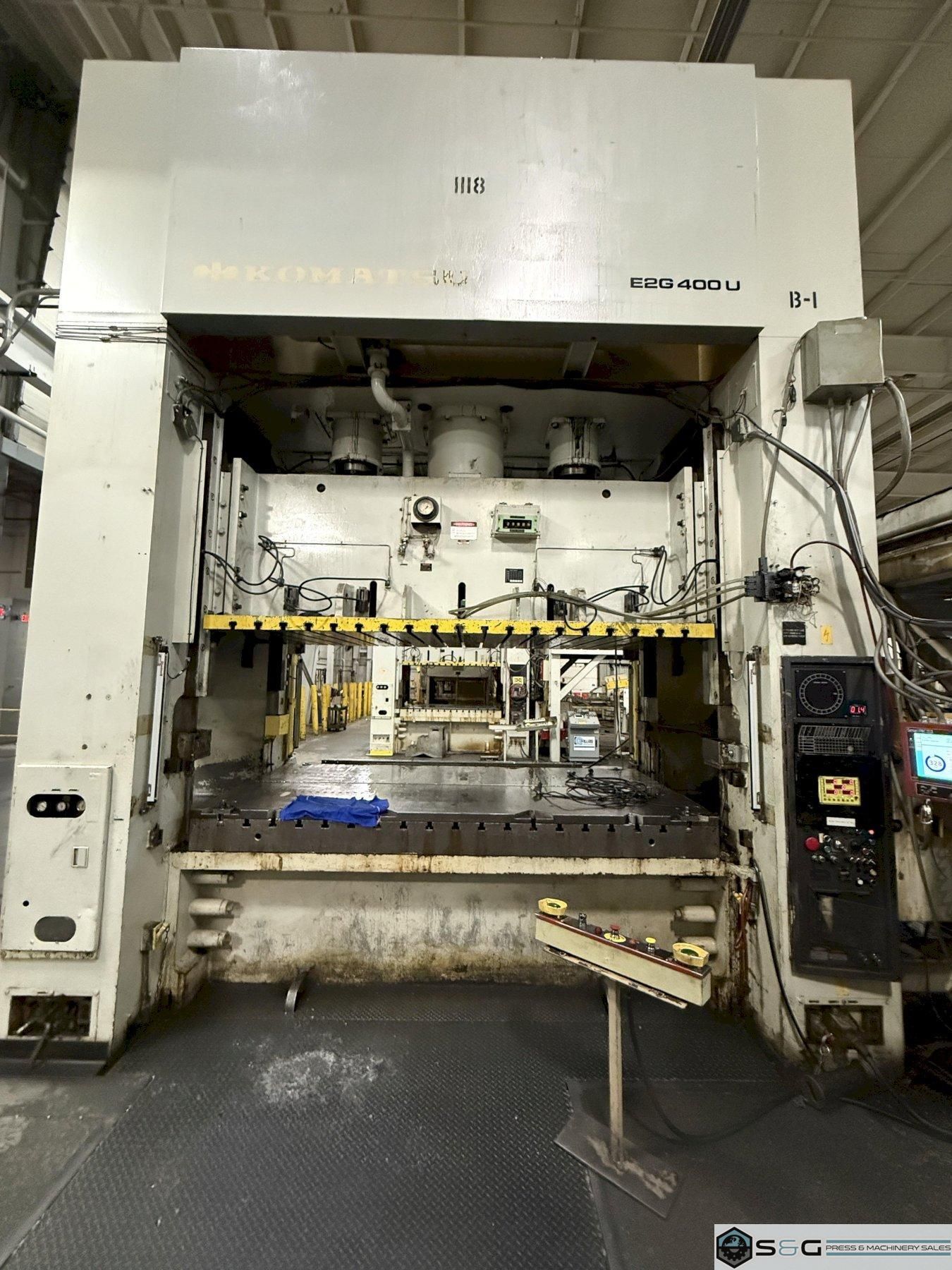

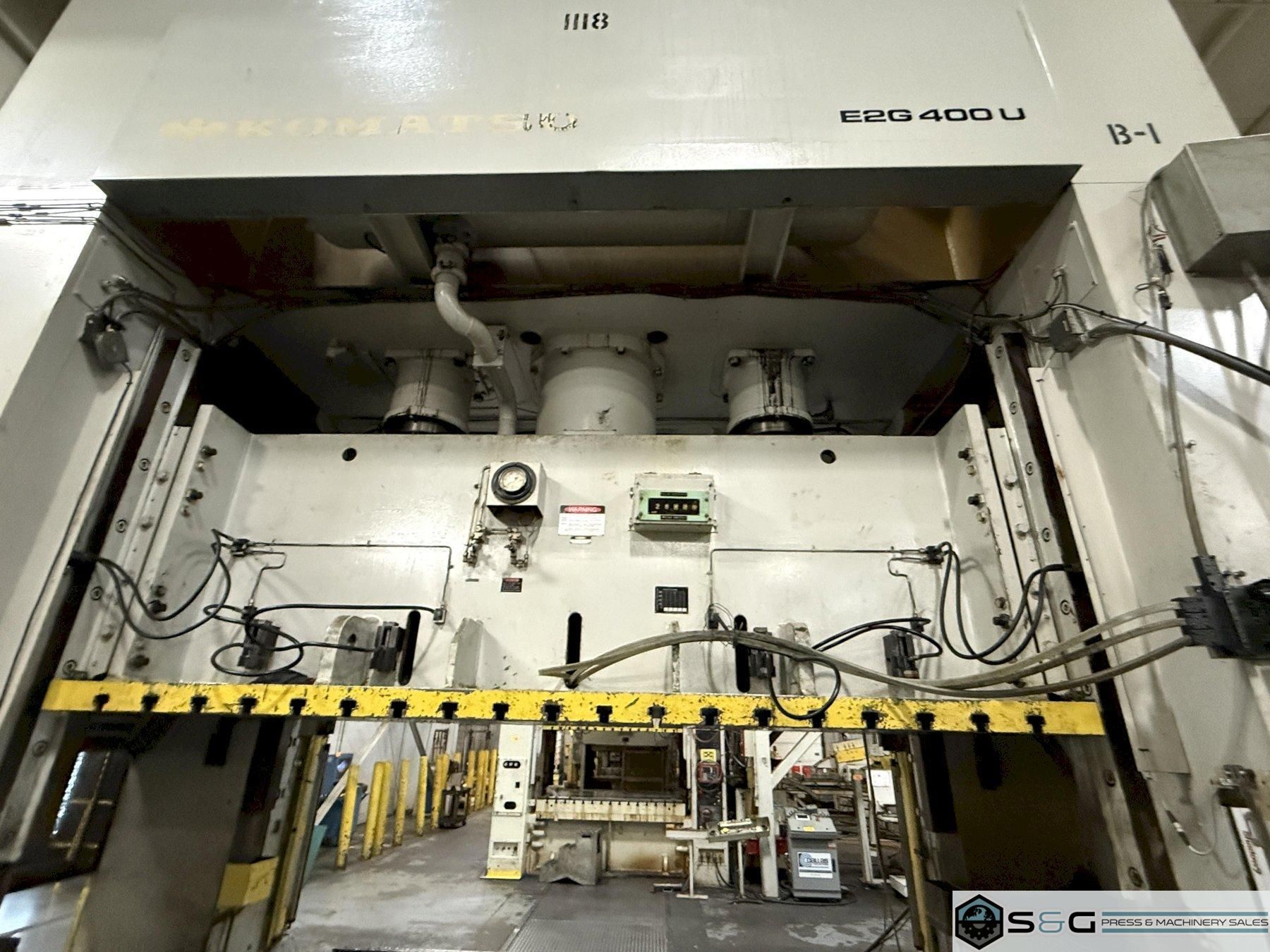

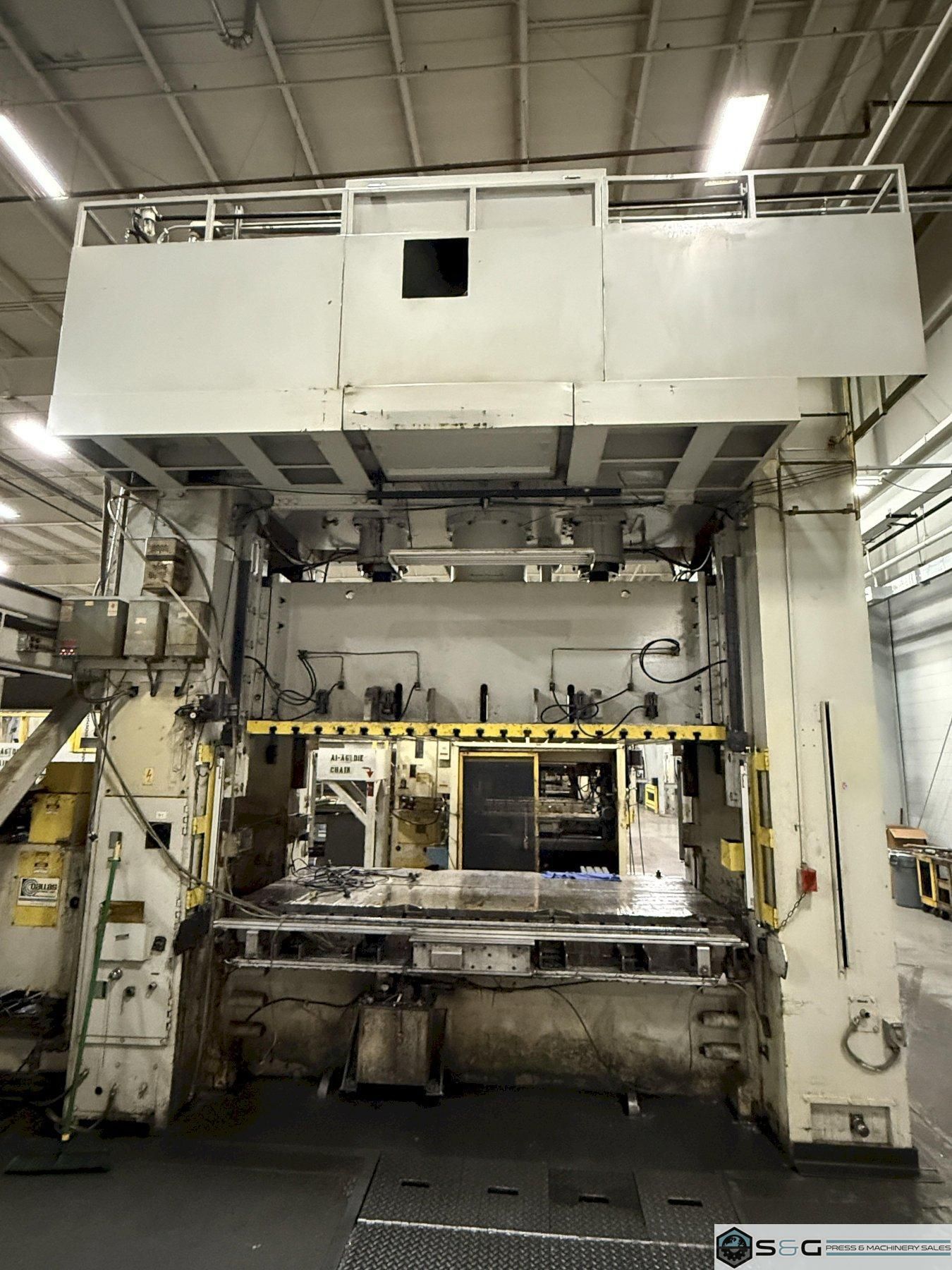

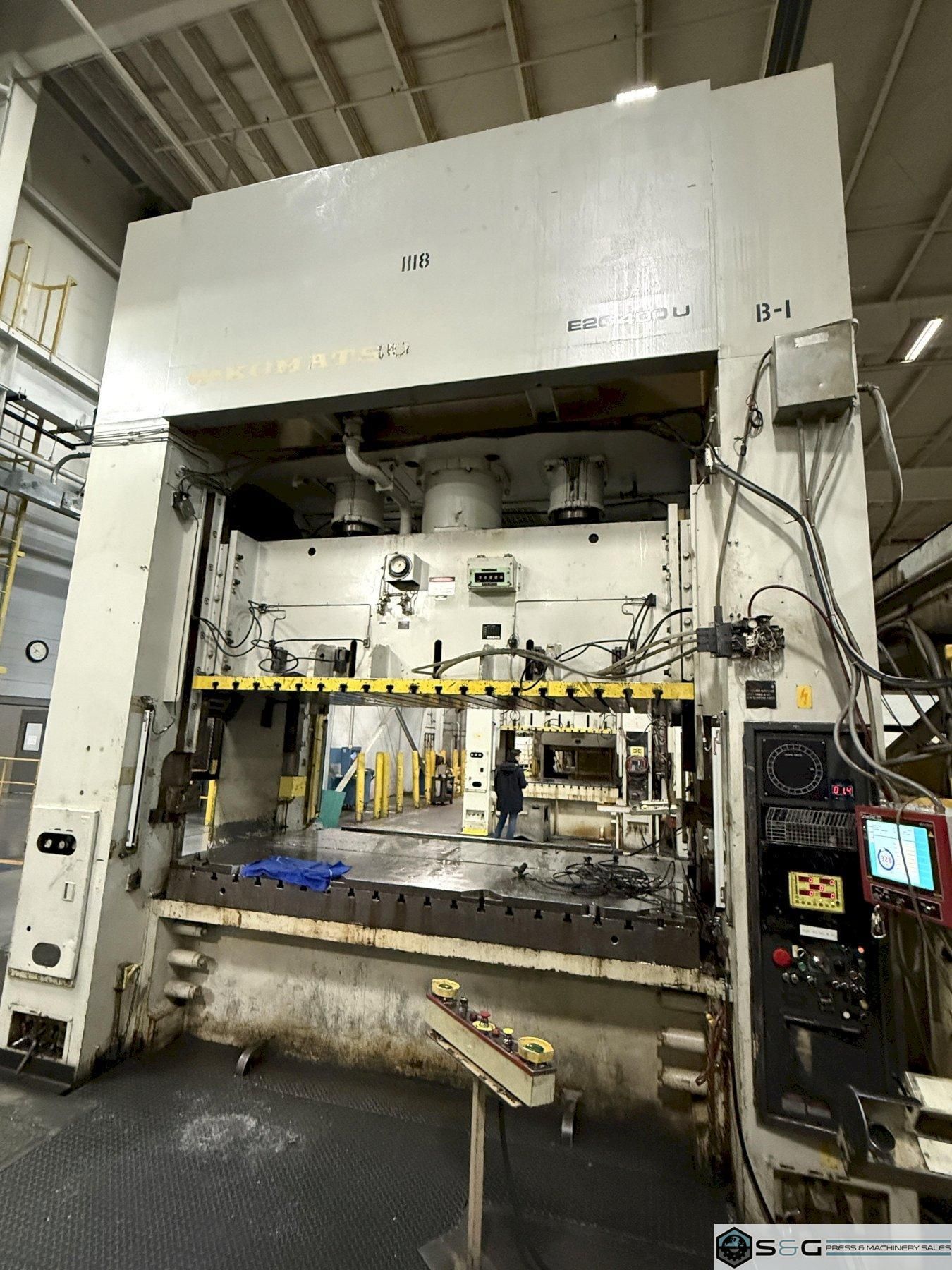

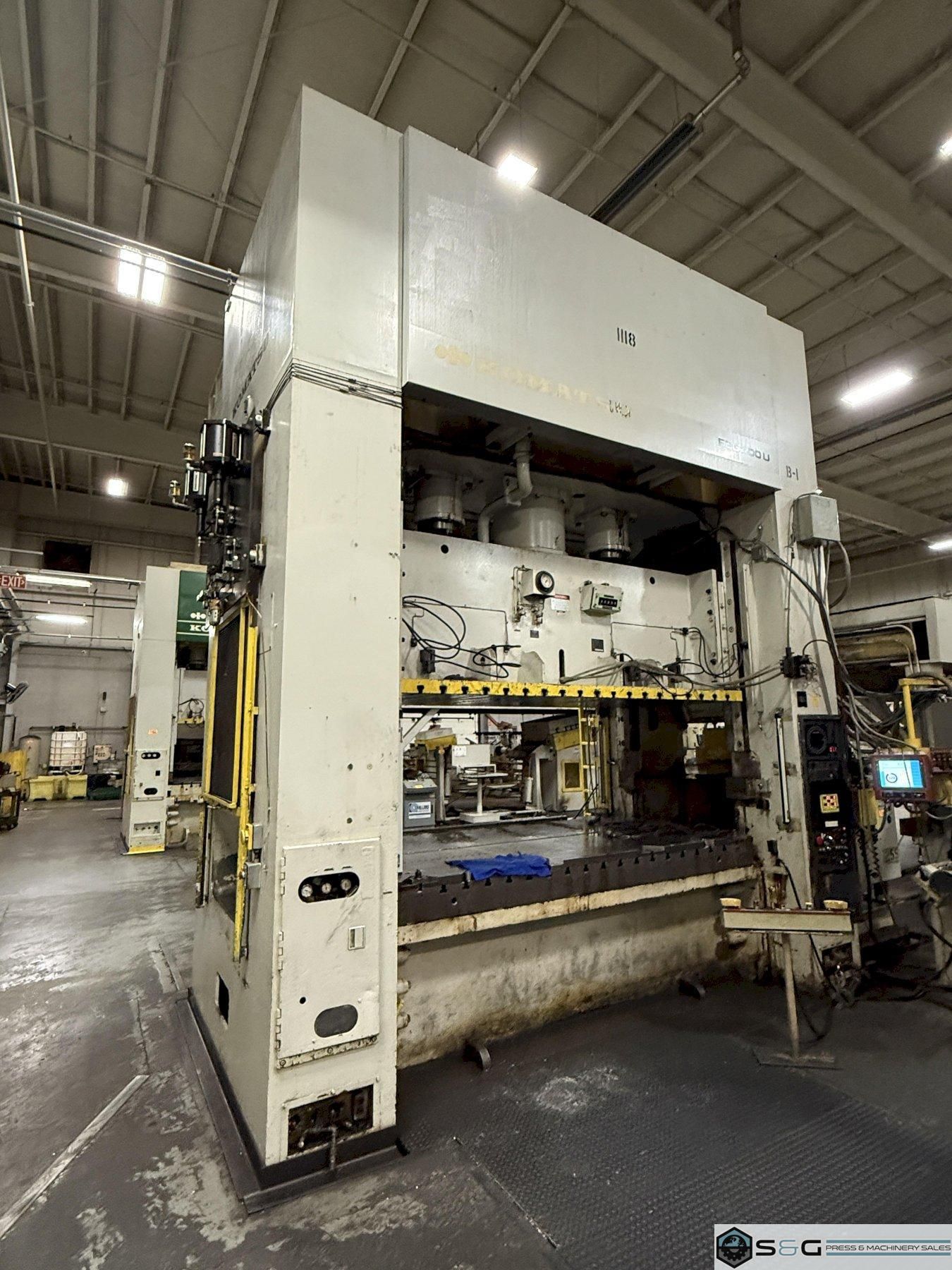

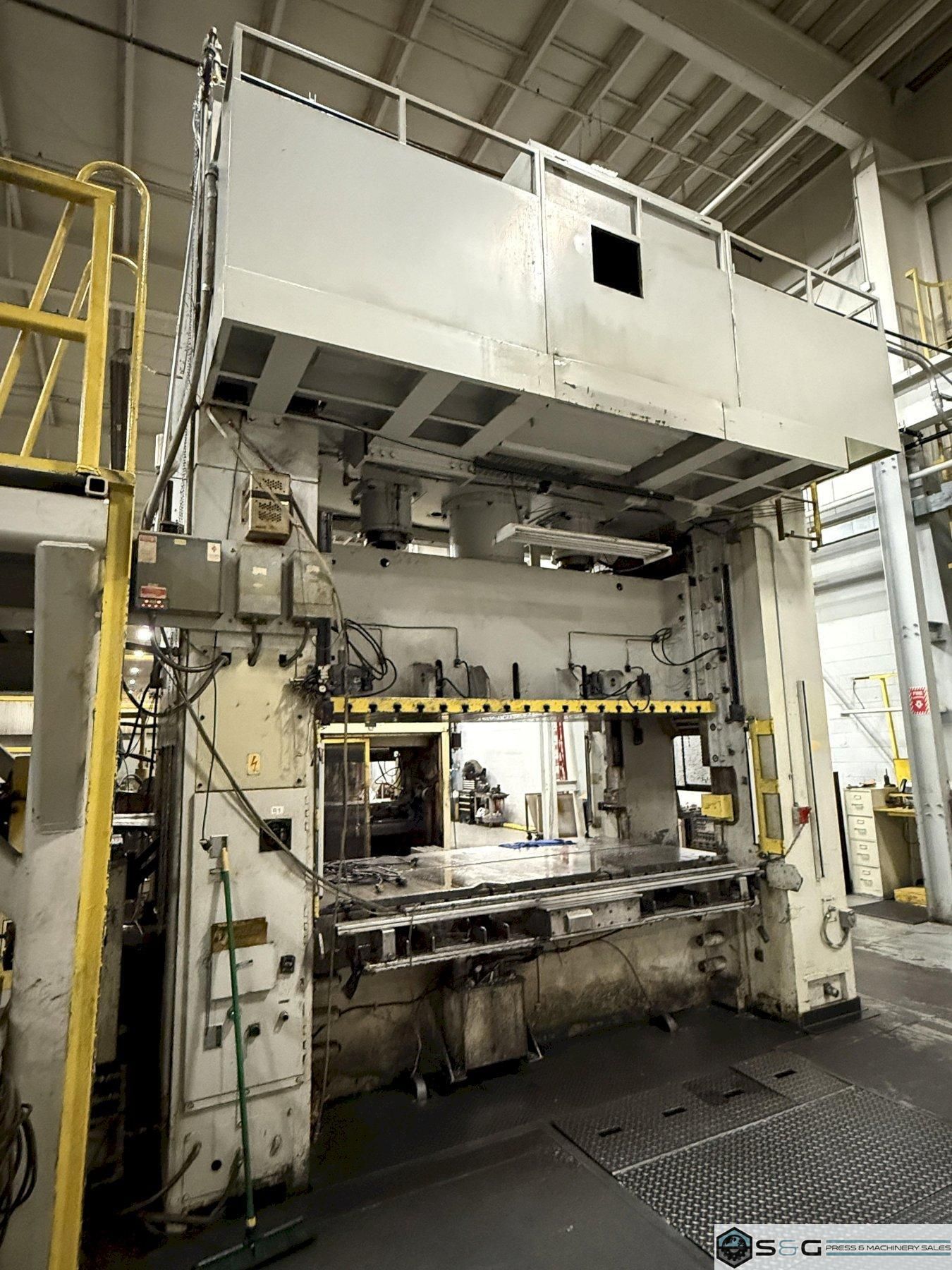

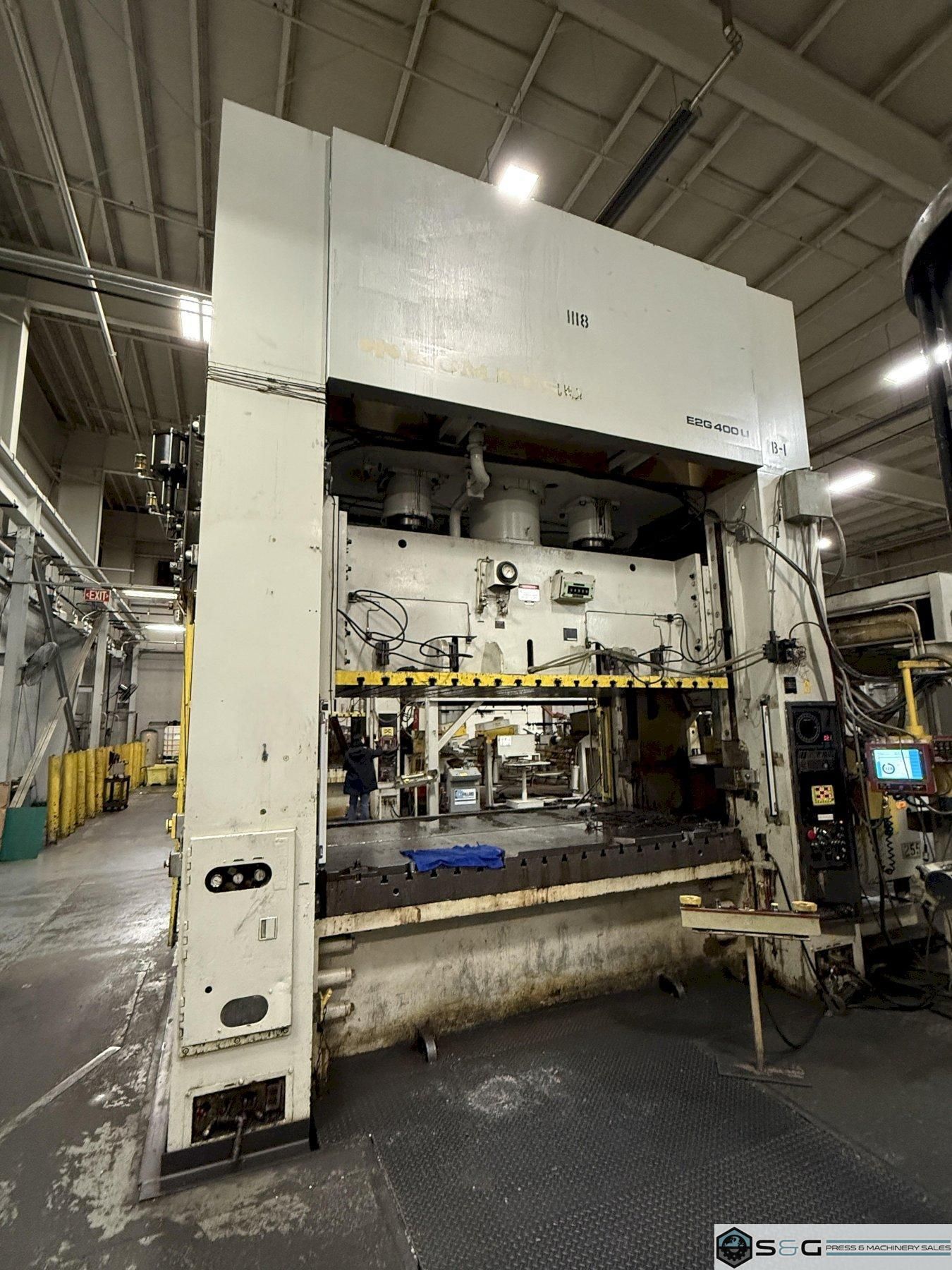

400-ton Komatsu Model# E2G-400 Used Straight Side Mechanical Stamping Press For Sale

400-ton Komatsu Model# E2G-400
Used Straight Side Mechanical Stamping Press
Year 1990

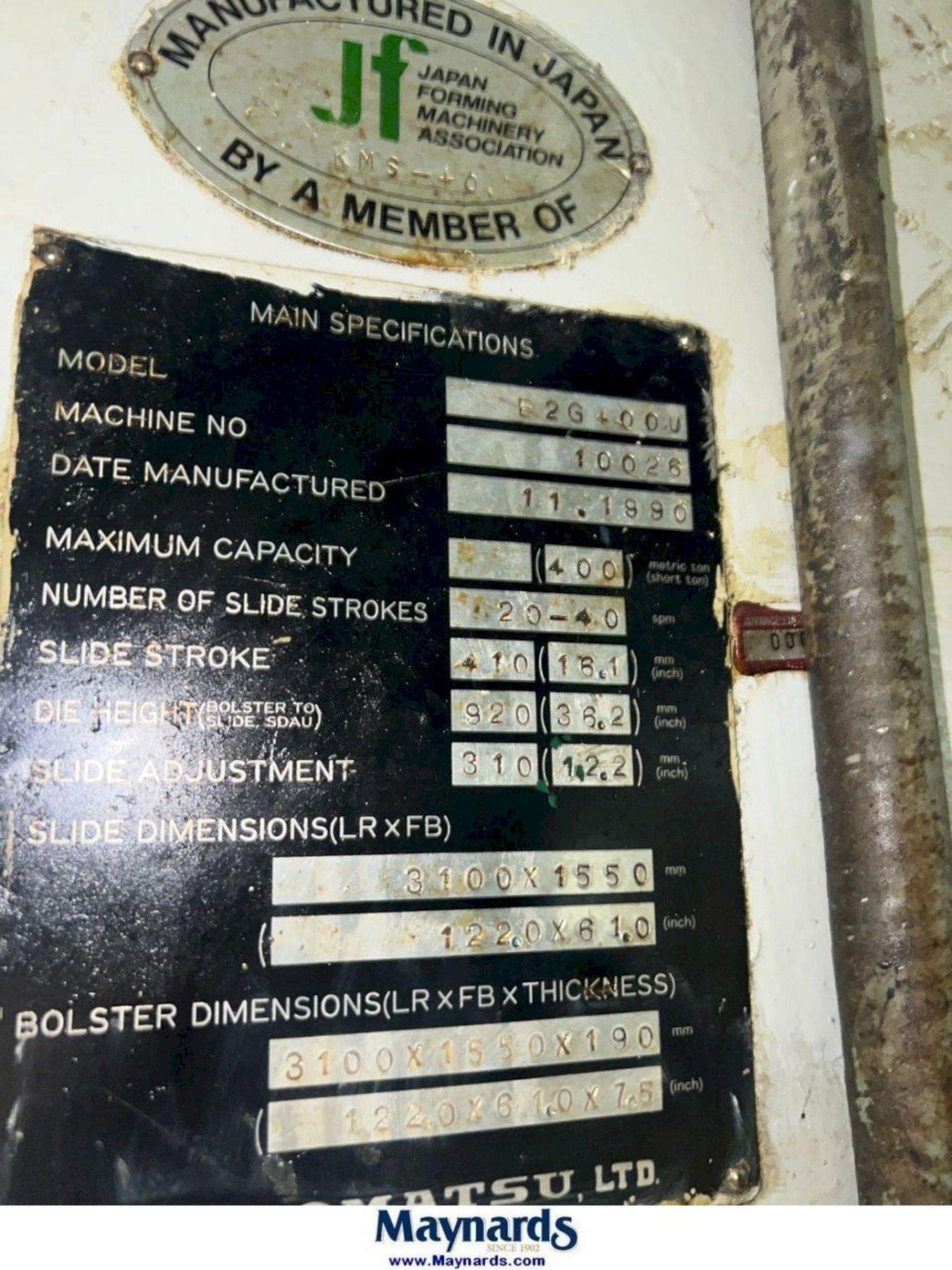

Standard Specifications
400-ton Capacity
Rated @ 1/2" Above Bottom
16.1" Stroke
36.2" Shut Height On Bolster
43.2" Shut Height On Bed
12.2" Adjustment
122" LR x 61" FB Bed Area
122" LR x 61" FB Slide Area
20-40 VSPM

Equipment and Features
Hydraulic (Air Actuated) Clutch and Brake
Air Counterbalances
Recirculating Lubrications System
T-Slotted Ram and Bolster
7.5" Thick Bolster Plate
Hydraulic Overloads
Variable Speed Motor

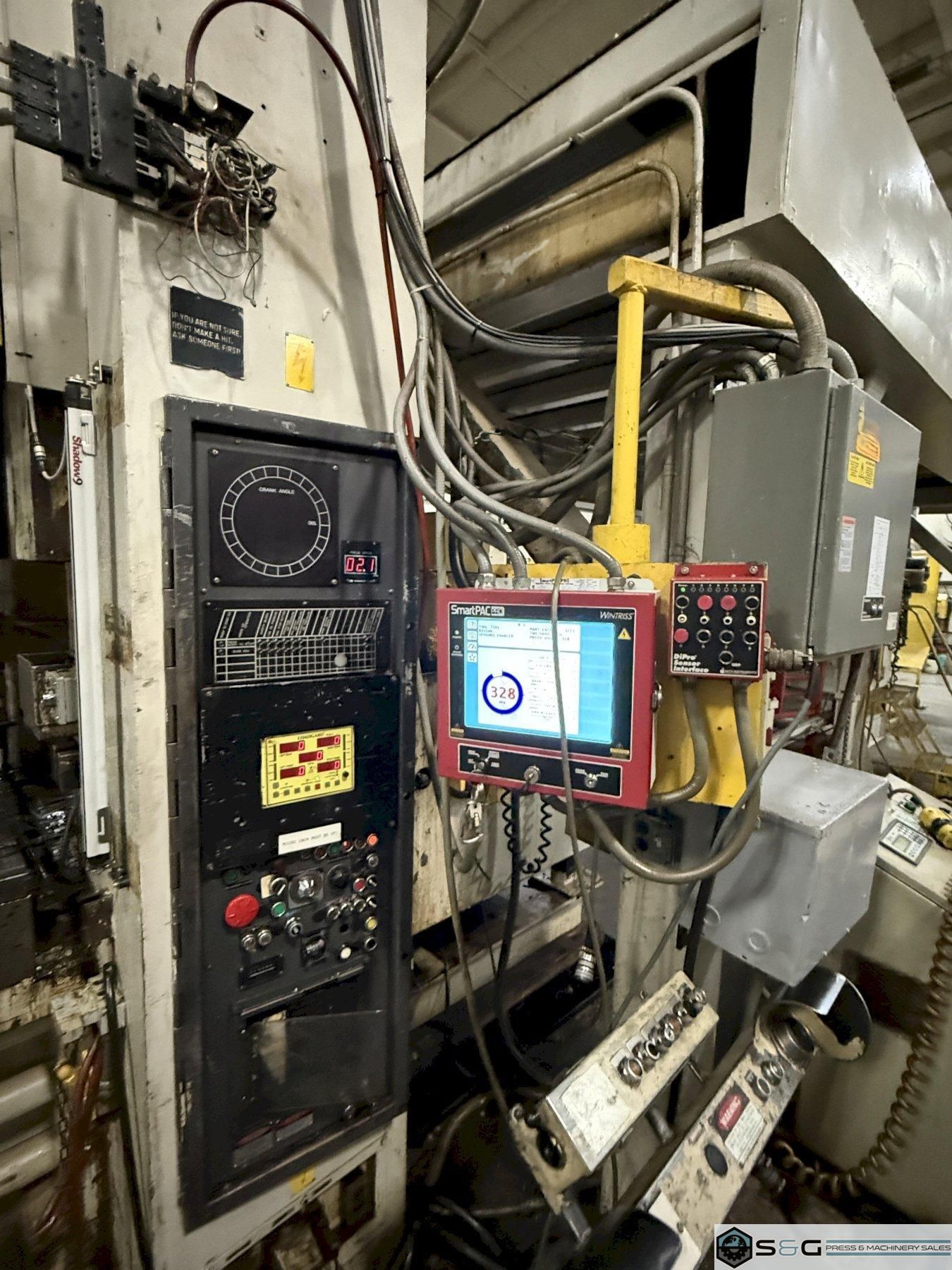

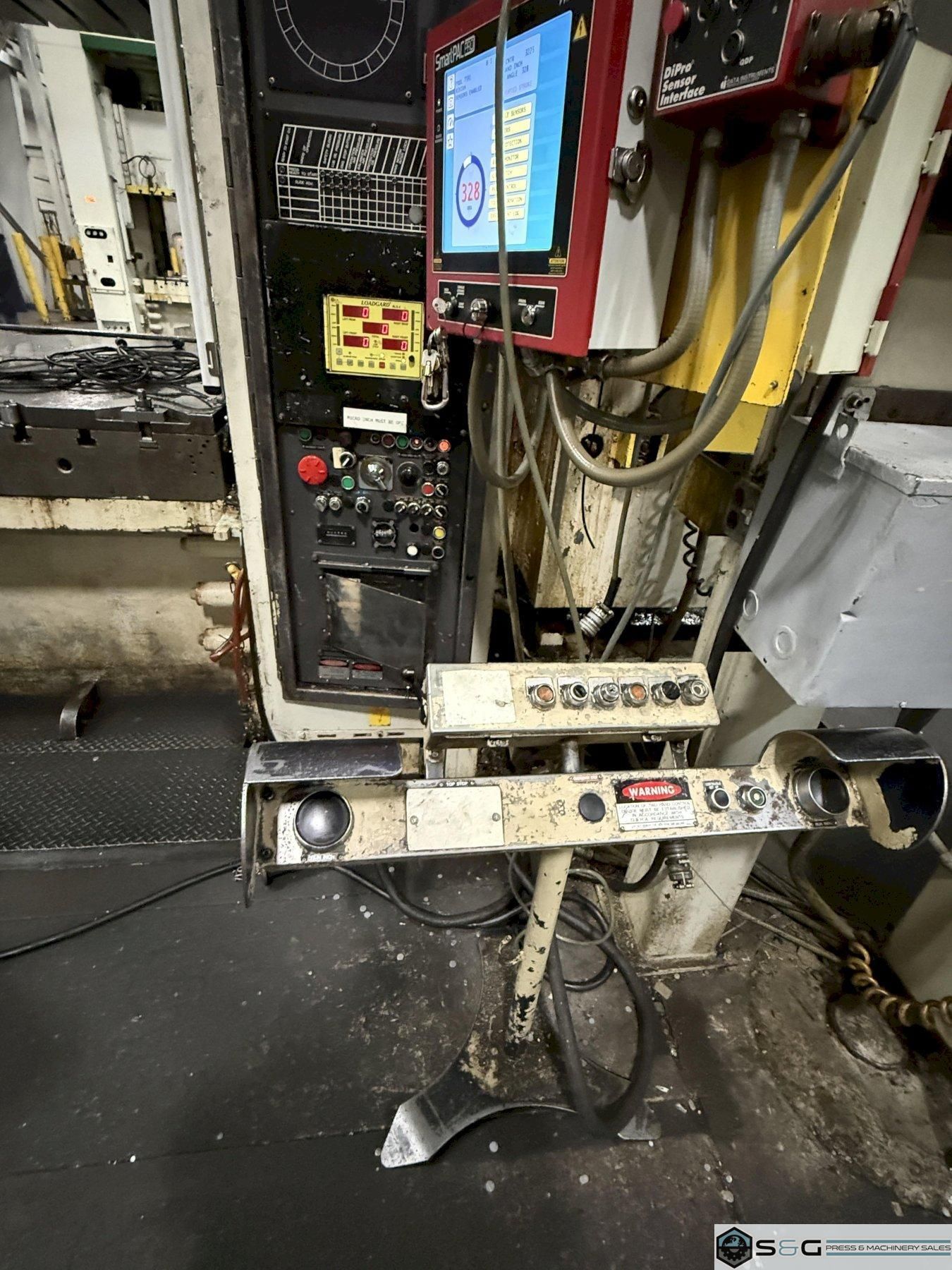

Wintriss Smart Pak Pro Press Controller
DSI 2 Wintriss Die Protection (8 Inputs)
Wintriss Light Curtains
Wintriss Palm Button Station
75 HP Main Motor
480V / 60 HZ / 3 Phase
42" Wide Windows
Vibro Dynamic Isolation Pads
Floor Standing

Dimensions
21' 1" Overall Height
180" LR  x 128" FB Footprint

Can be seen under power in the S&G Press Livonia Michigan Warehouse!

Optimize your production capacity with this 400-ton Komatsu E2G-400 Straight Side Mechanical Stamping Press. This 1990 floor-standing press offers a massive 122" x 61" bed and slide area, a 16.1" stroke, and a variable speed of 20-40 VSPM.

Engineered for precision and heavy-duty output, it features a 75 HP main motor, 8-point gibbing, and a Wintriss Smart Pak Pro controller with 8-input die protection. This used Komatsu press is fully equipped with hydraulic overloads, Vibro Dynamic isolation pads, and 42" wide windows, making it a turnkey solution for high-capacity metalforming and stamping operations.

Why Buy This Komatsu 400-Ton From S&G Press?

Purchasing a 400-ton machine is a significant investment. At S&G Press, we remove the guesswork from the process by offering unique advantages that most equipment brokers can't match:

• See It Under Power: This machine is located in our Livonia, Michigan warehouse and is available for inspection under power. We want you to see the smooth cycle, hear the motor, and verify the Wintriss controls yourself before you commit.

• Zero Foundation Costs: This is a floor-standing unit. Unlike many 400-ton presses that require expensive, permanent pit excavations, this E2G-400 can be installed directly on your factory floor, saving you tens of thousands in facility prep.

• Complete Package with Extras: We include high-value add-ons like Vibro Dynamic Isolation Pads and Wintriss Light Curtains, ensuring your installation is safe, stable, and compliant from day one.
