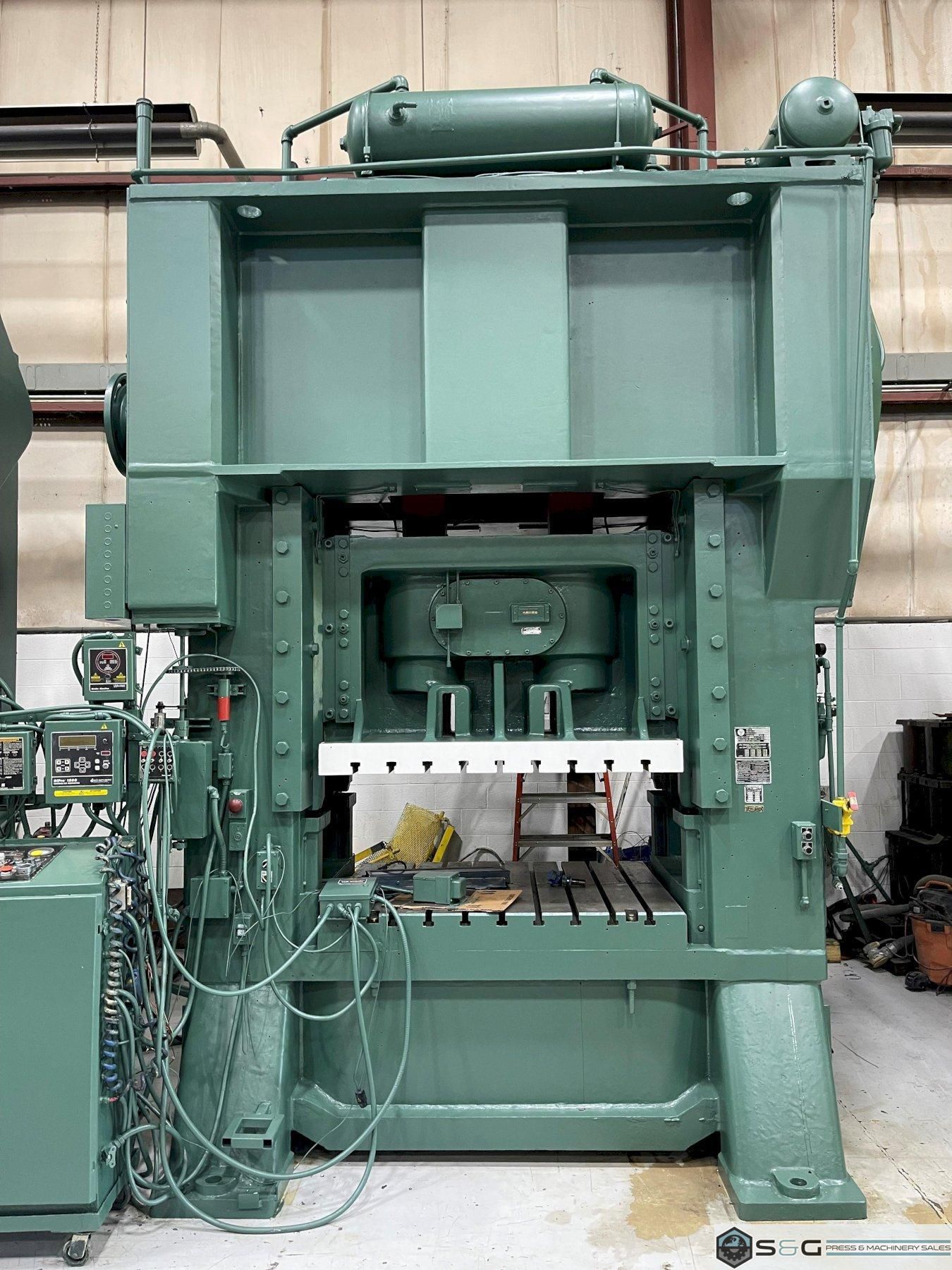

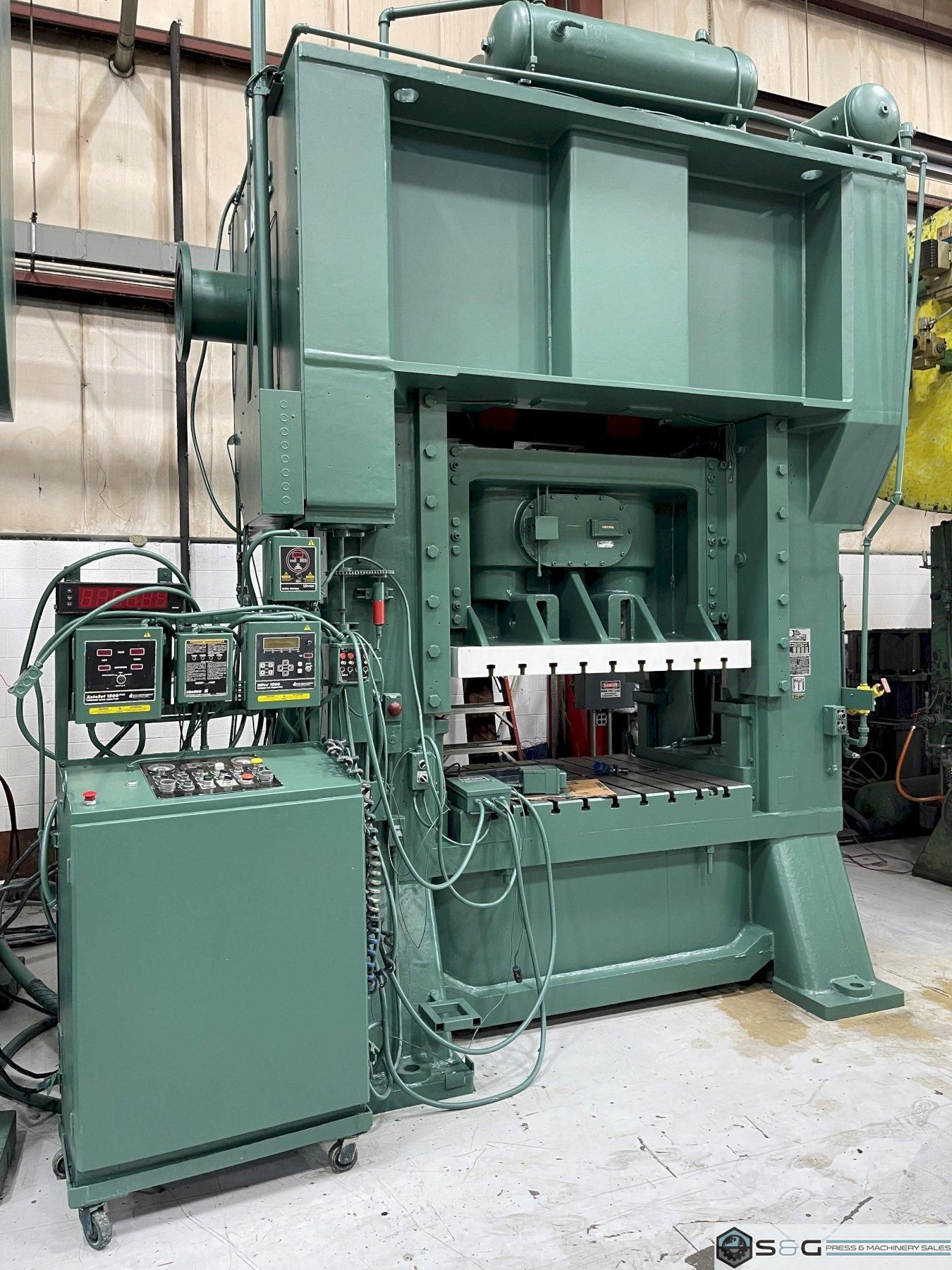

400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully Rebuilt!
400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully Rebuilt!
  • 400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully Rebuilt!
  • 400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully Rebuilt!

400 ton Minster E2-400-60-48 Hevi-Stamper Straight Side Mechanical Metal Stamping Press, Fully Rebuilt!

Type

Presses, Straight Side, Double Crank (Single Action)

Brand

MINSTER PRESSES / FEED EQUIPMENT

Model

E2-400-60-48

Year

None

Stock #

2672

Condition

Reconditioned

Request a Quote
More 400-500 ton presses
Let's Talk

Specifications
Tonnage

400

Stroke

6 inches
Shut Height

28 inches
Adjustment

6 inches
Bed Size

60" x 48"

Ram Area

60" x 48"

SPM

35-70 VSPM

Standard Specifications
Rebuilt 2024 Minster Hevi-Stamper
Straight Side Mechanical Press Model E2-400-60-48
All Mechanical Work Completed!
400 ton Capacity
6" Stroke
28" Shut Height
22" Die Height
6" Motorized Adjustment
60" LR x 48" FB Bed Area
60" LR x 48" FB Slide Area
35-70 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Wintriss Shadow V Light Curtains
Wintriss DiPro 1500
Wintriss Brake Monitor
Wintriss Palm Button Station
Free Standing Console Controls
24" wide Windows
Vibratory Leveling Pads
Floor Standing

Foot Print:
104.5" Wide x 78" Deep x 188" Tallest Point

Price includes full Mechanical Rebuild, New Lube and New Air Systems.  Scope of Work Can Be Provided Upon Request.

This Rebuilt Minster Hevi-Stamper Mechanical Metal Stamping Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Refurbished Straight Side Mechanical 400 ton Minster Press For Sale

Attachments
Minster General Assembly Drawing E2-400-60-48.pdf Download
400-ton Minster Hevi-stamper E2-400-60 Mechanical Scope of Work.pdf Download
