CMKS A125 2D 1300 15T
2022
2924
Like New
Specifications |
|||
|---|---|---|---|
| Coil Weight | 33000 pounds |
||
| Coil Width | 51 inches |
||
| Coil Thickness | .177 inches |
||
|
CoilTech Space Saver Coil Feed Line Specifications:
Coil weight capacity: 33,000 Lbs.
Coil width capacity: 51.18
Stock thickness capacity: .177" x 51.18" Wide
Stock thickness capacity: .312" x 15.60" Wide
Expansion range: 18.89" - 20.47"
Coil O.D. capacity: 62.99"

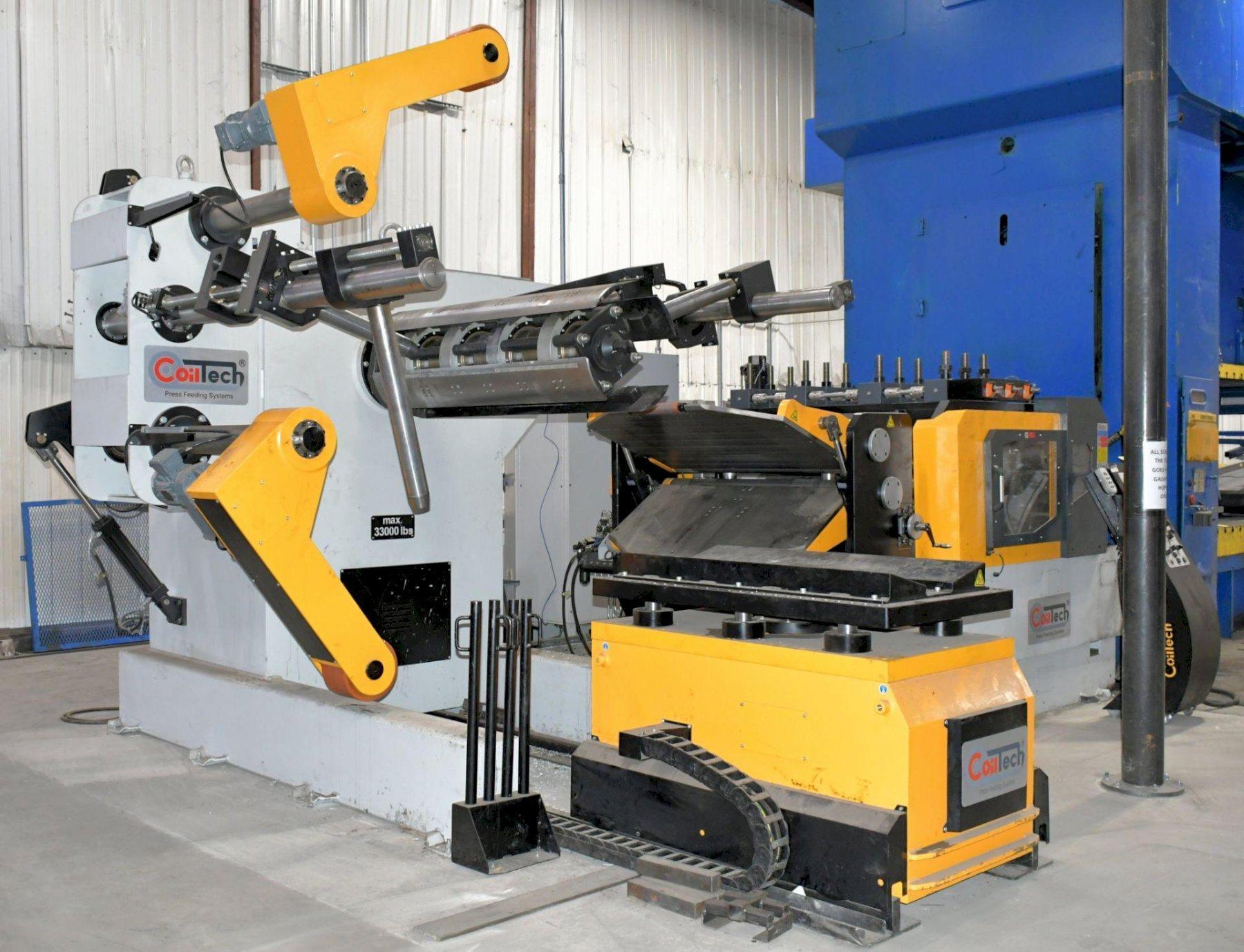

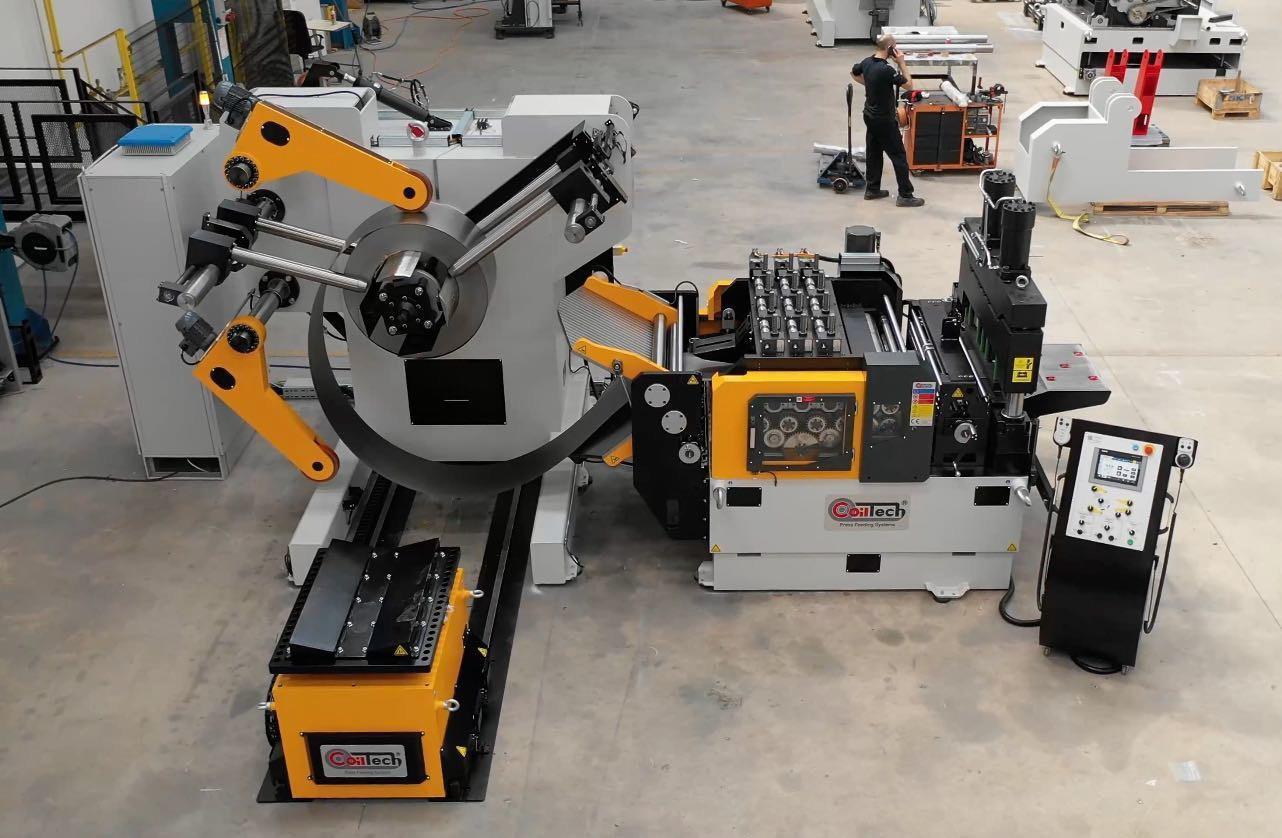

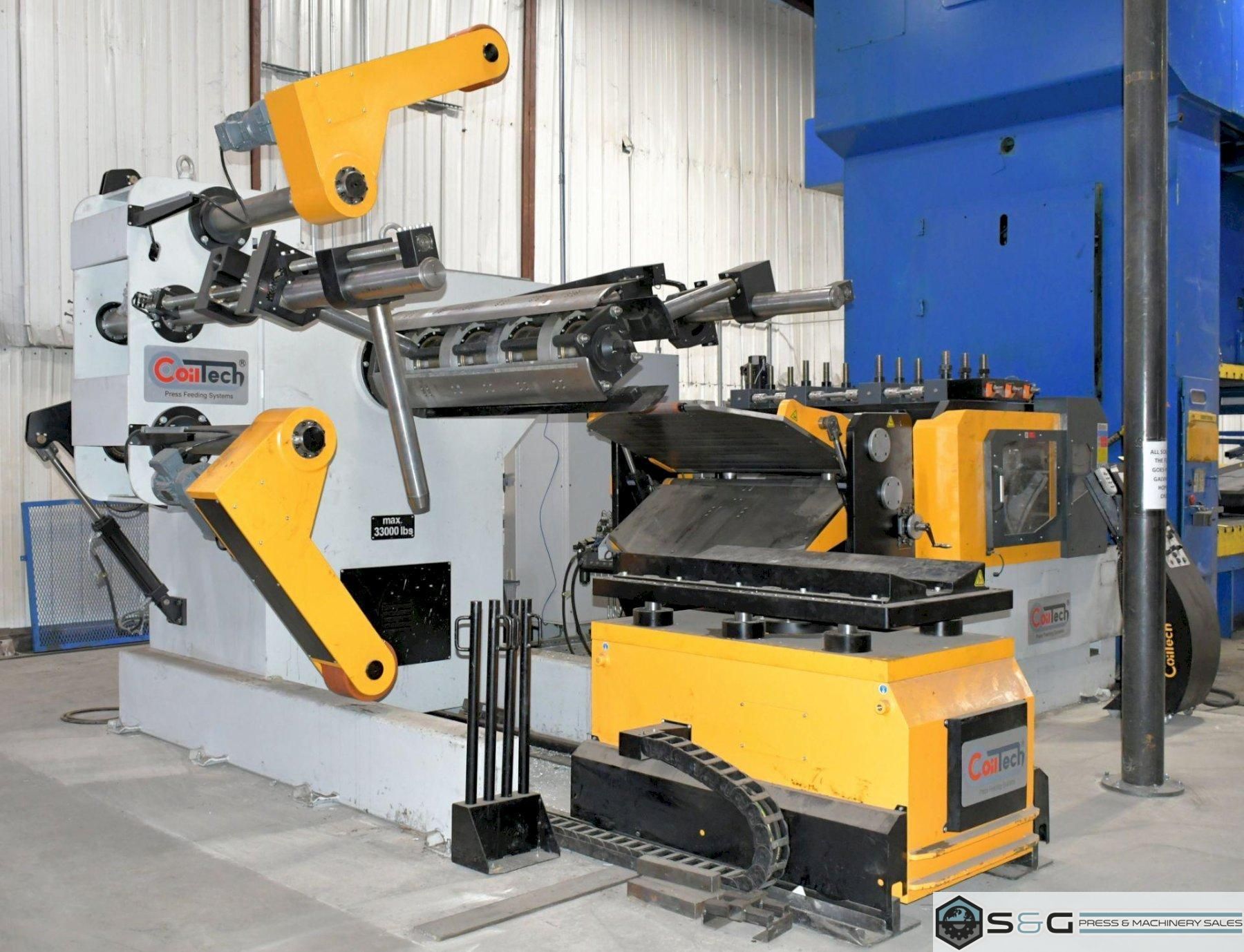

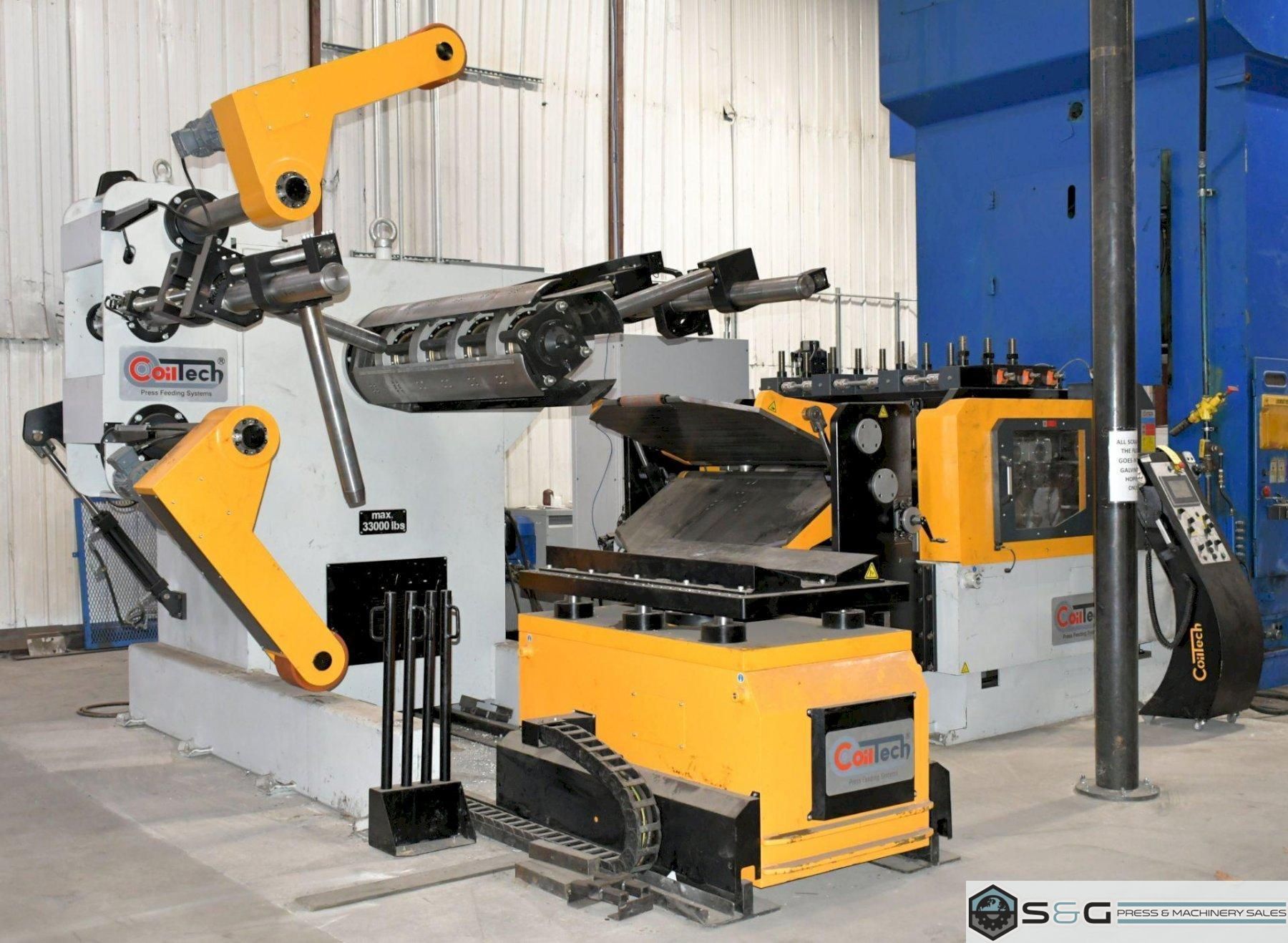

Serial Number 8240 CoilTech Space Saver Coil Feed Line Equipment

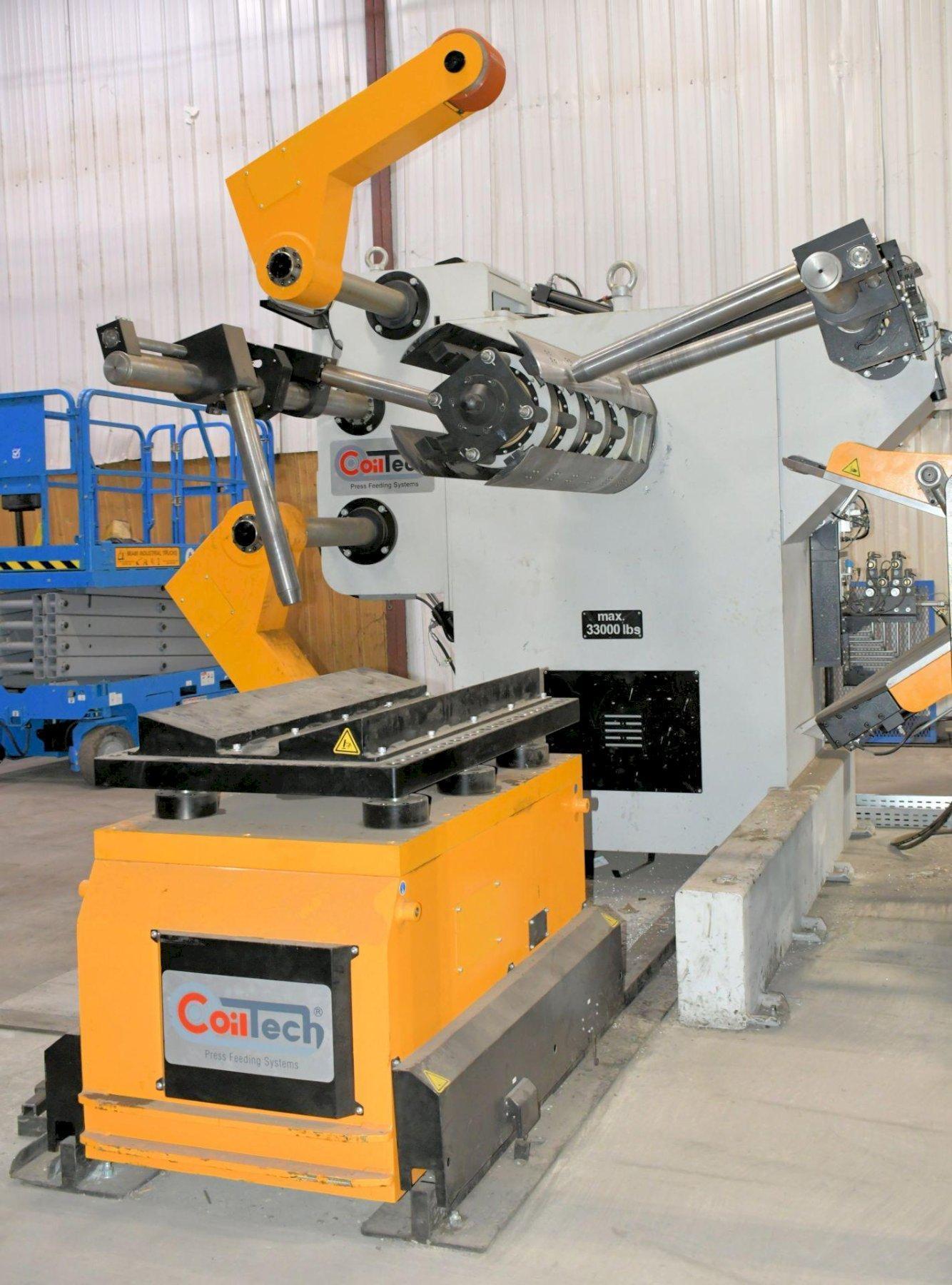

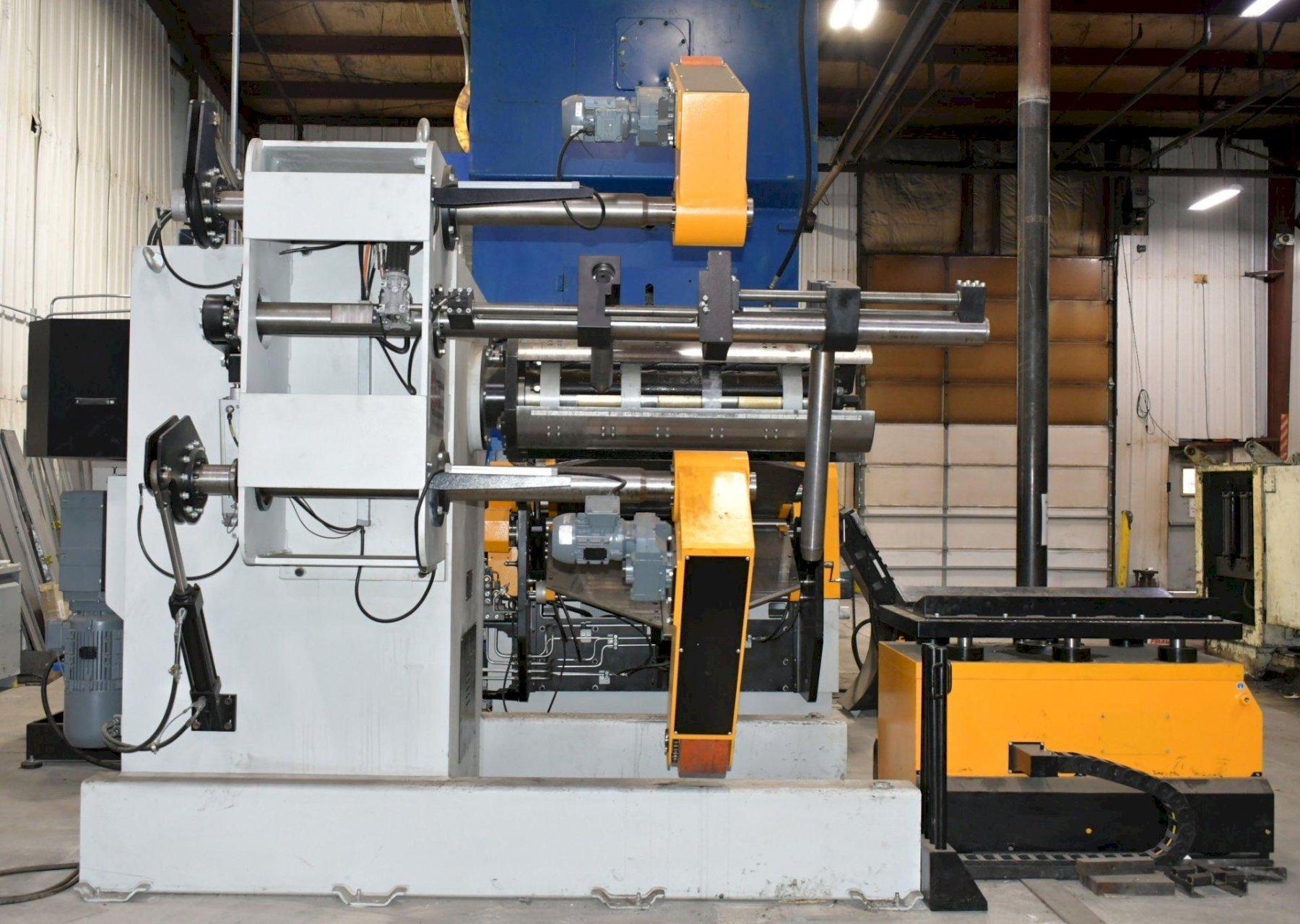

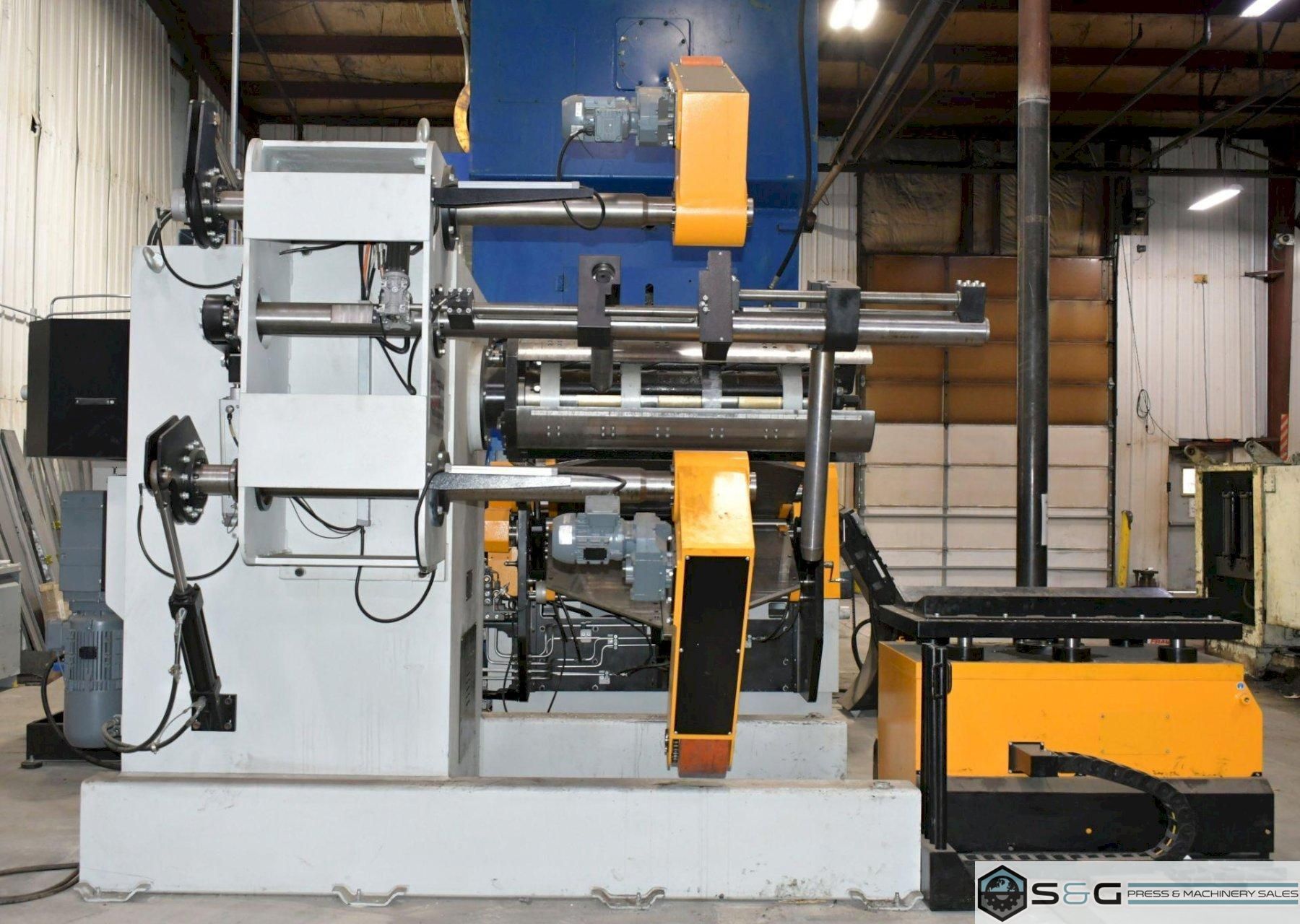

Model: CMKS-A125-2D-1300-15T CoilTech Motorized Coil Reel
4 leaf mandrel assembly
Hydraulic mandrel expansion
Coil hold down arm with motorized end wheel
Coil hold up arm with motorized end wheel
Motorized coil restrictor guides
Traveling coil load car
Powered lift and travel
Narrow coils supports
Jog forward and reverse
Stand alone hydraulic power unit

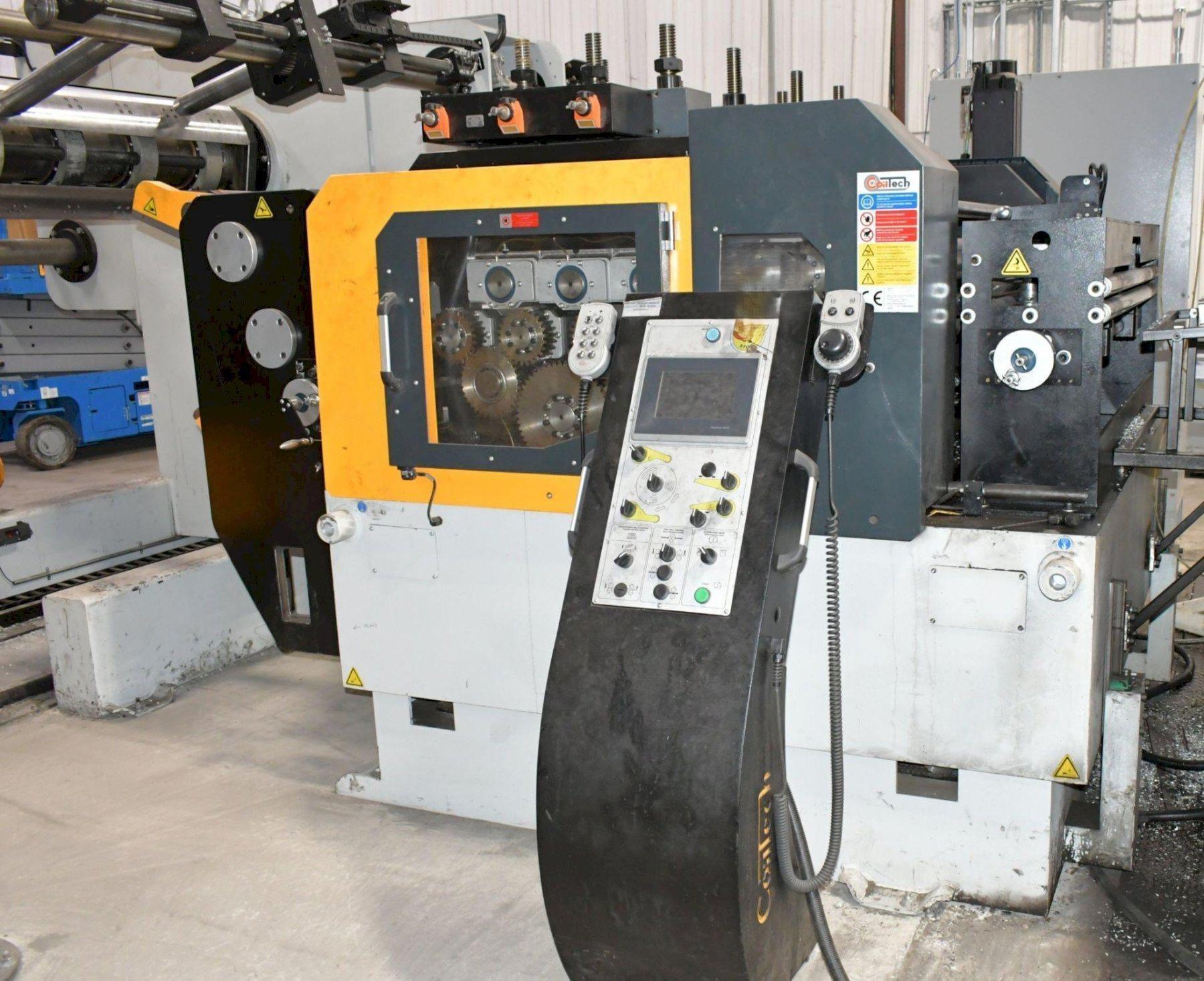

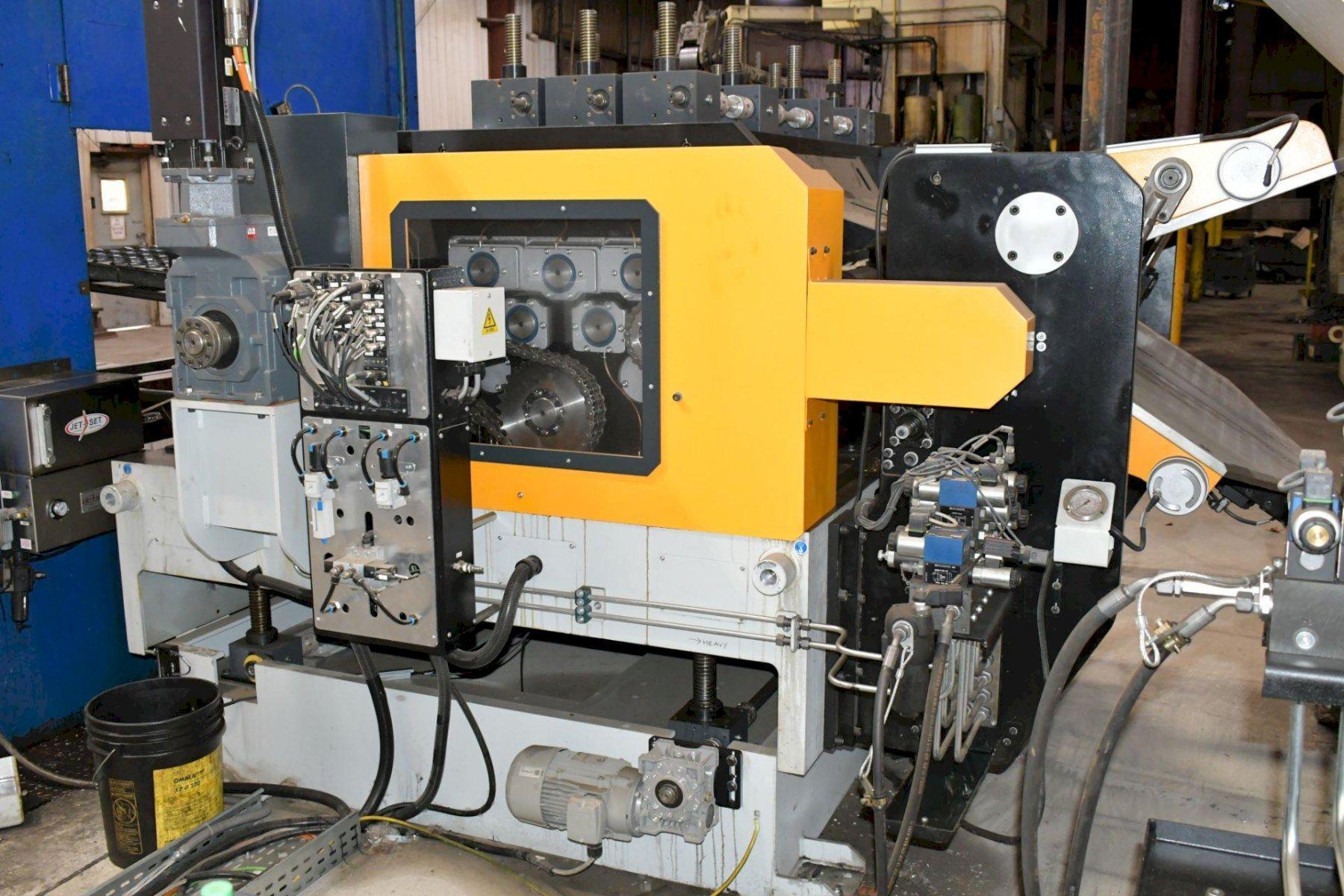

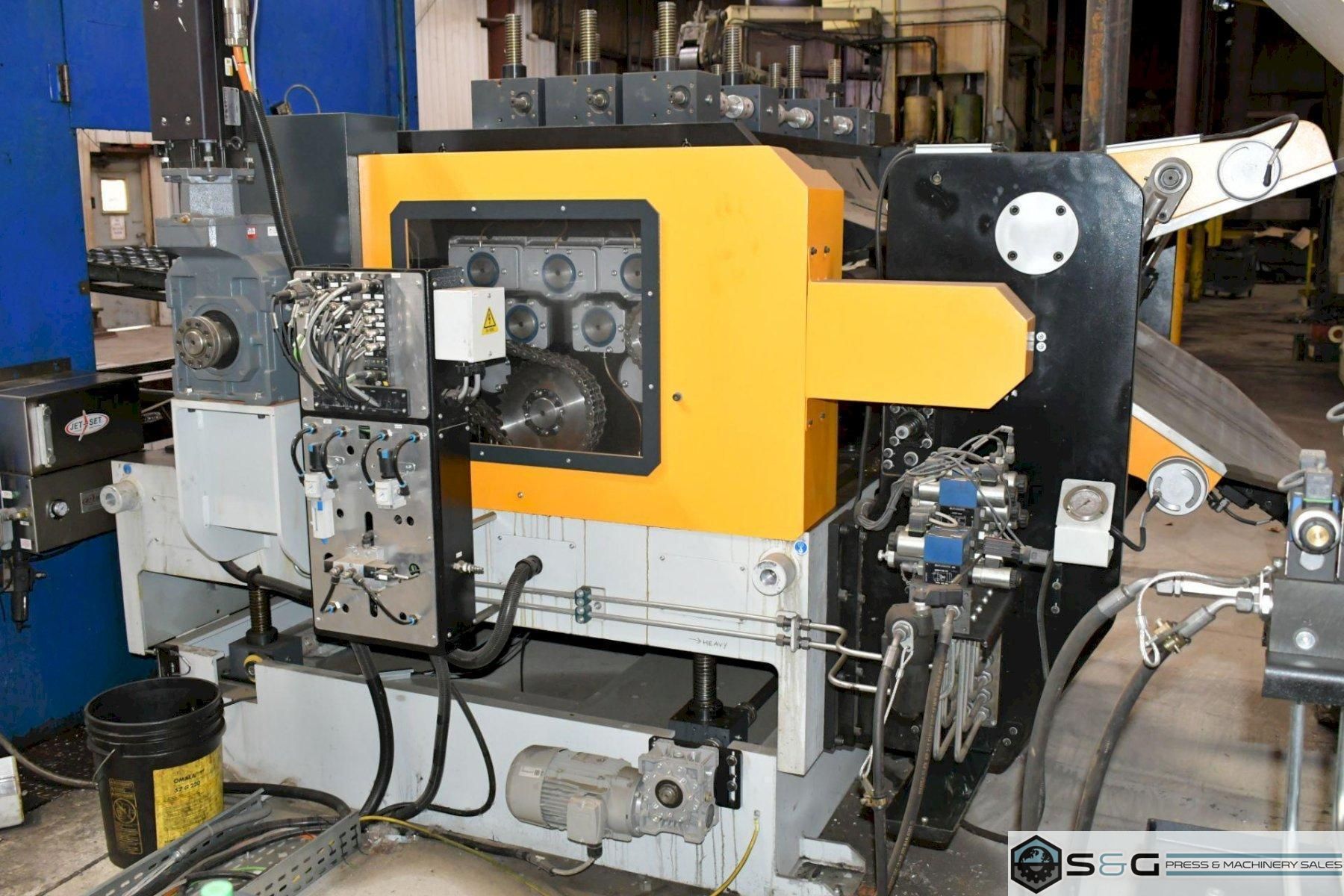

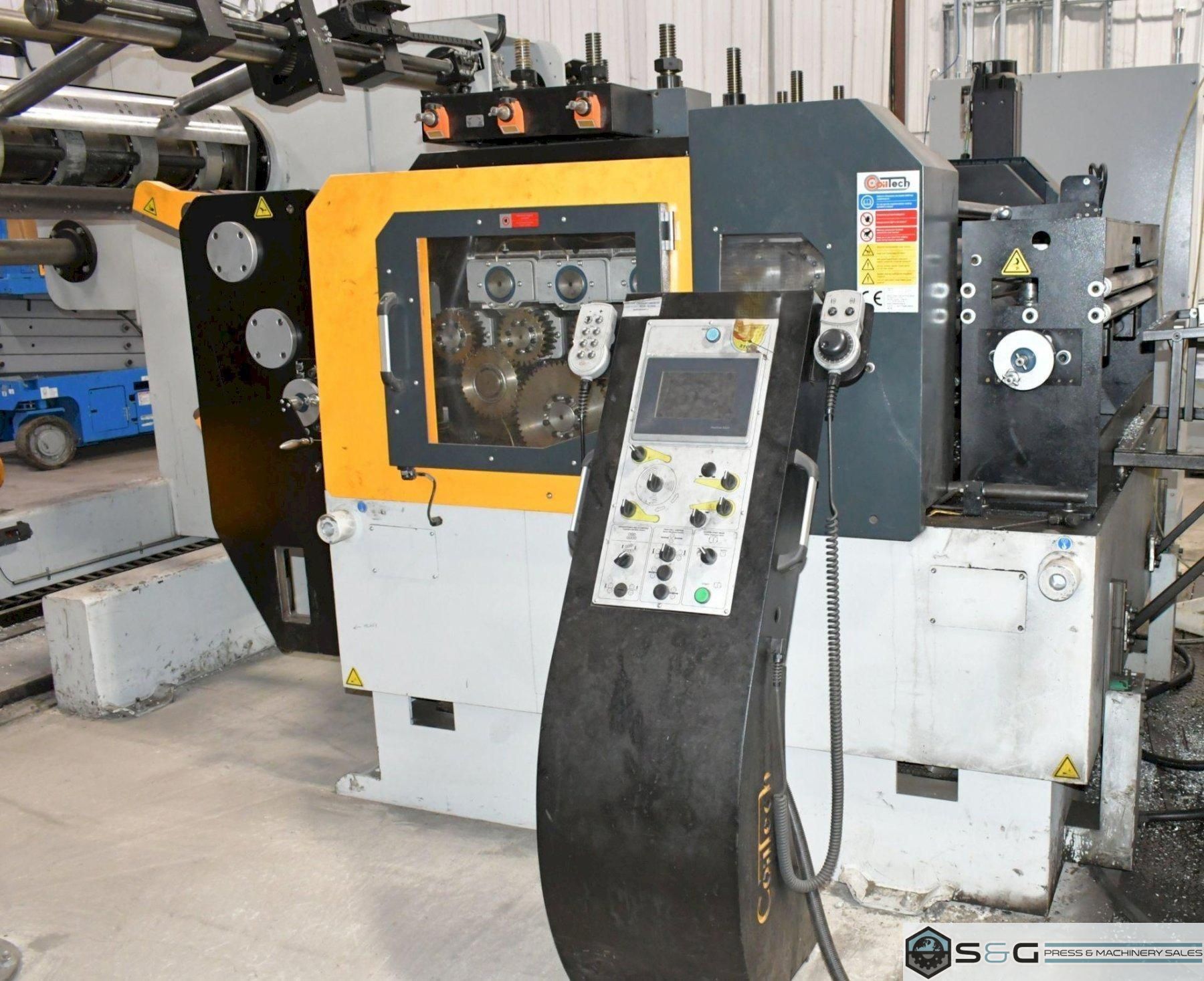

CoilTech Feed Straightener Combination

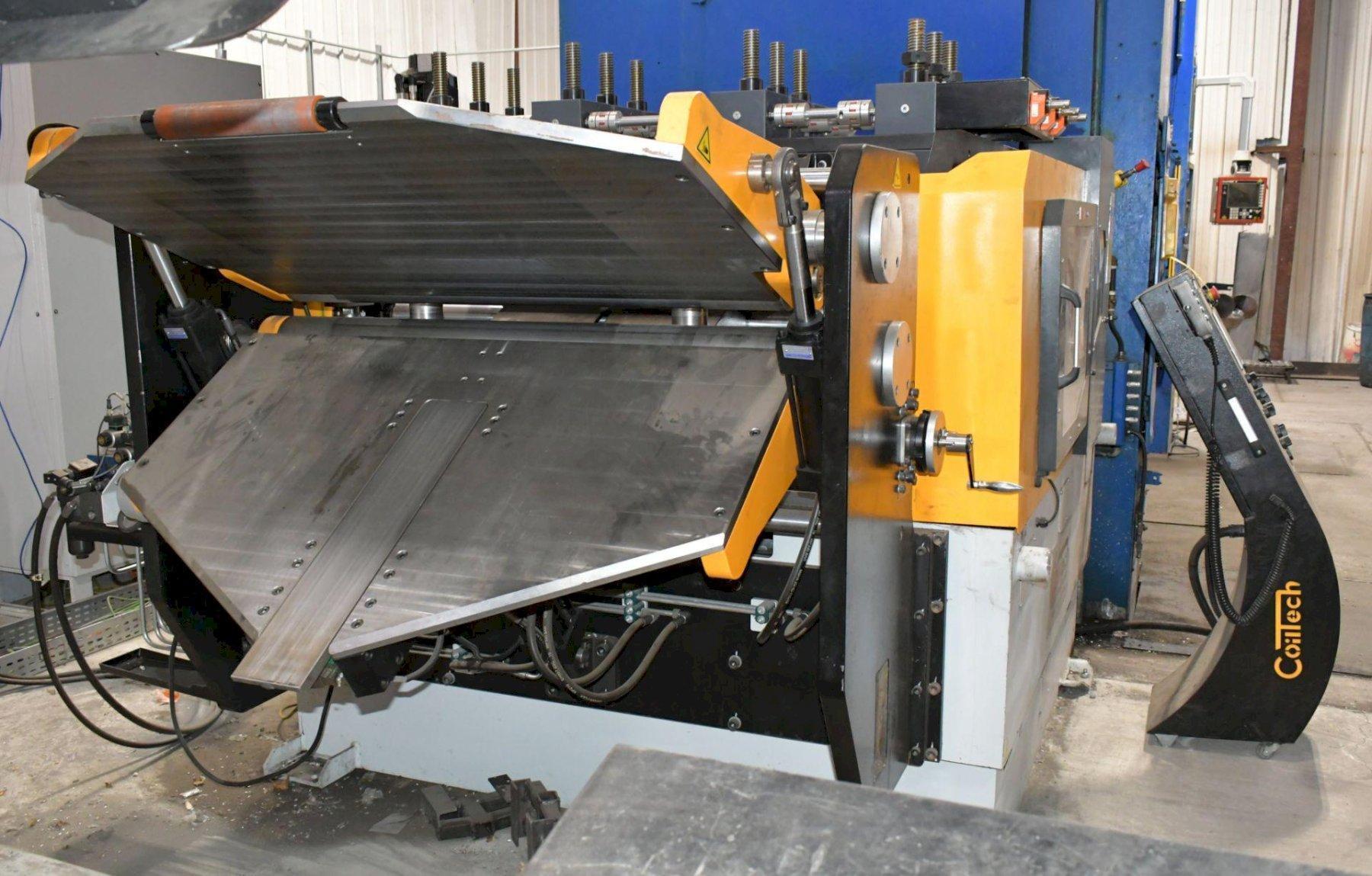

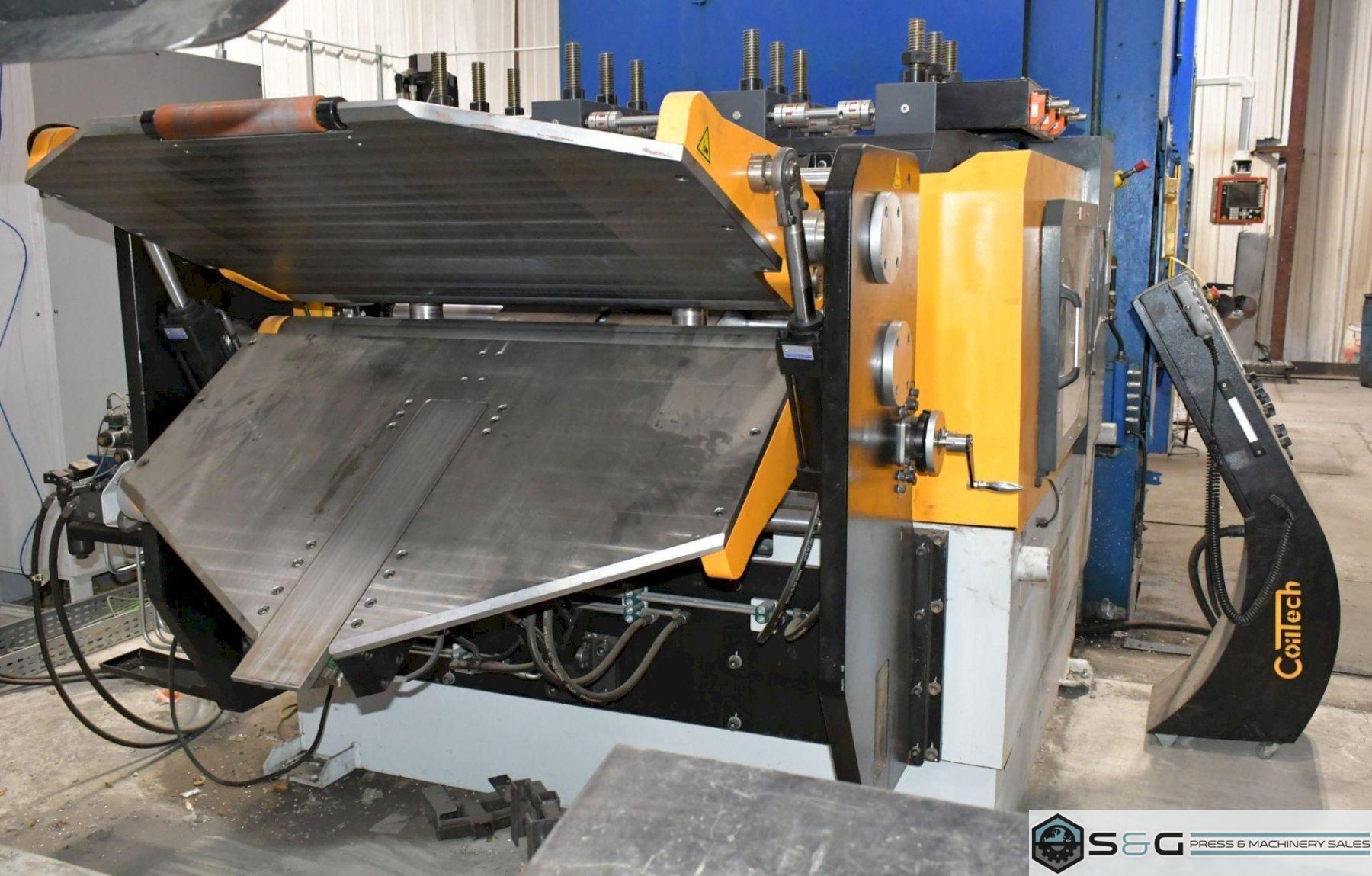

Hydraulic crocodile peeler table assembly
Entry stock width coil edge guides
Entry set of motorized pinch rolls
Seven straightening rolls x 4.92" diameter
Dual flights of upper and lower straightener roll back ups
Upper and lower feed rolls x 5.90" diameter
Air operated upper feed roll adjustment
Piloting system
Motorized pass line height adjustment

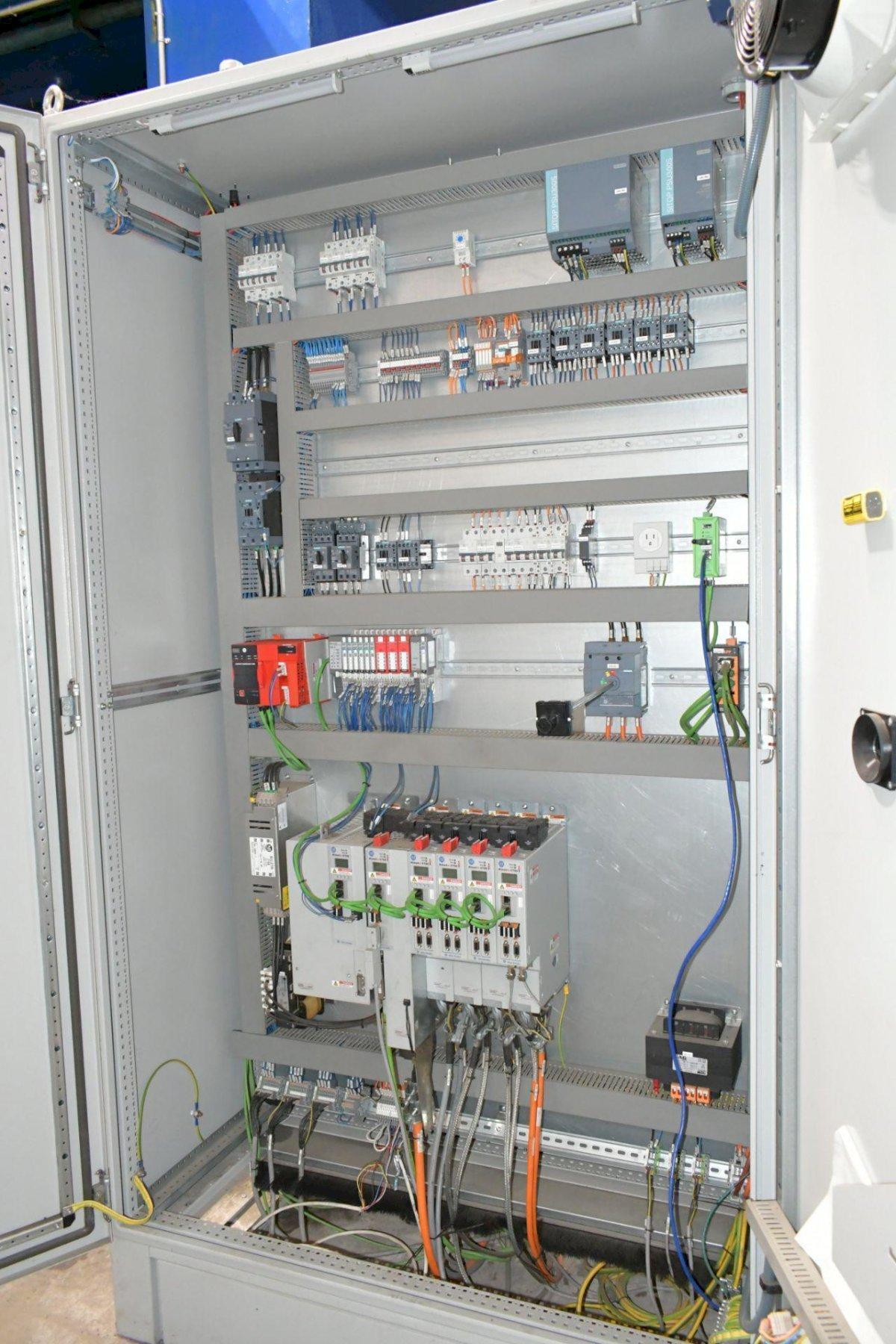

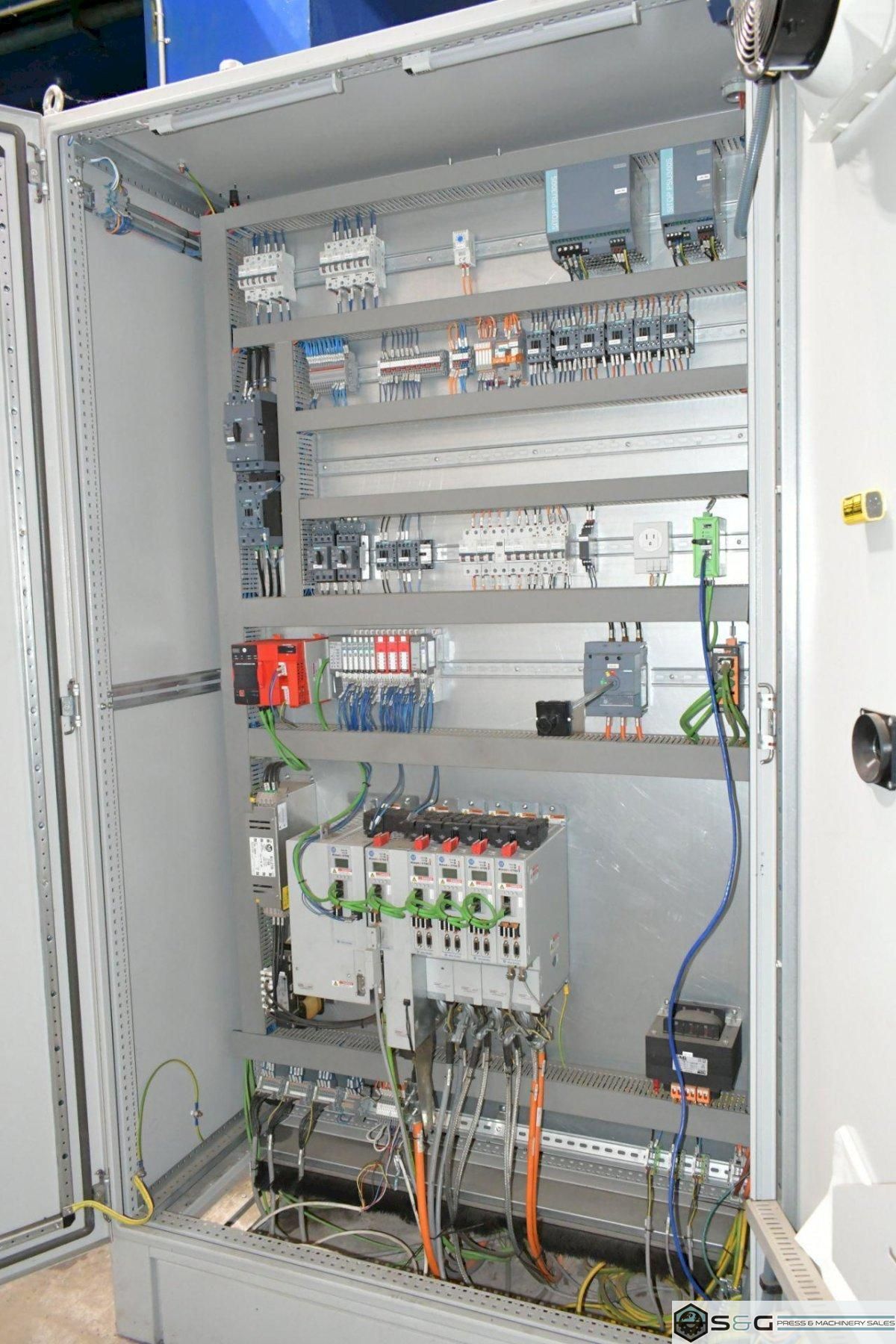

43.3-51.18 Feeder Height Adjustment Sick Laser Sensor Loop Control Siemens Speed Control Complete feed line controls
Jog forward and reverse
Auto / Run Cycle
|
|||
