SC2-600-144-60
2014
2967
Good
Specifications |
|||
|---|---|---|---|
| Tonnage | 600 |
||
| Stroke | 16 inches |
||
| Shut Height | 41 inches |
||
| Adjustment | 12 inches |
||
| Bed Size | 144" LR x 60" FB |
||
| Ram Area | 144" LR x 60" FB |
||
| SPM | 20-45 VSPM |
||
|

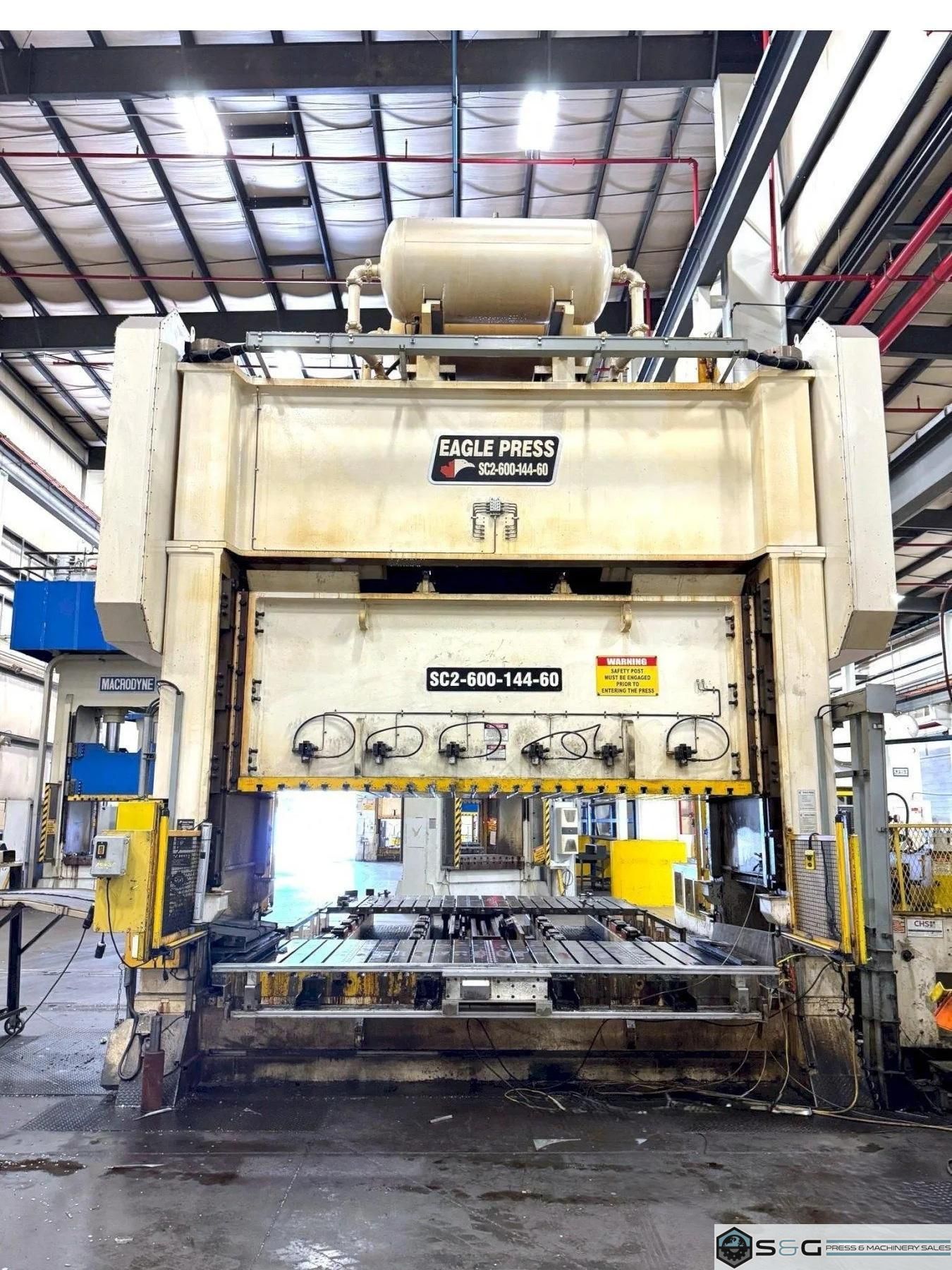

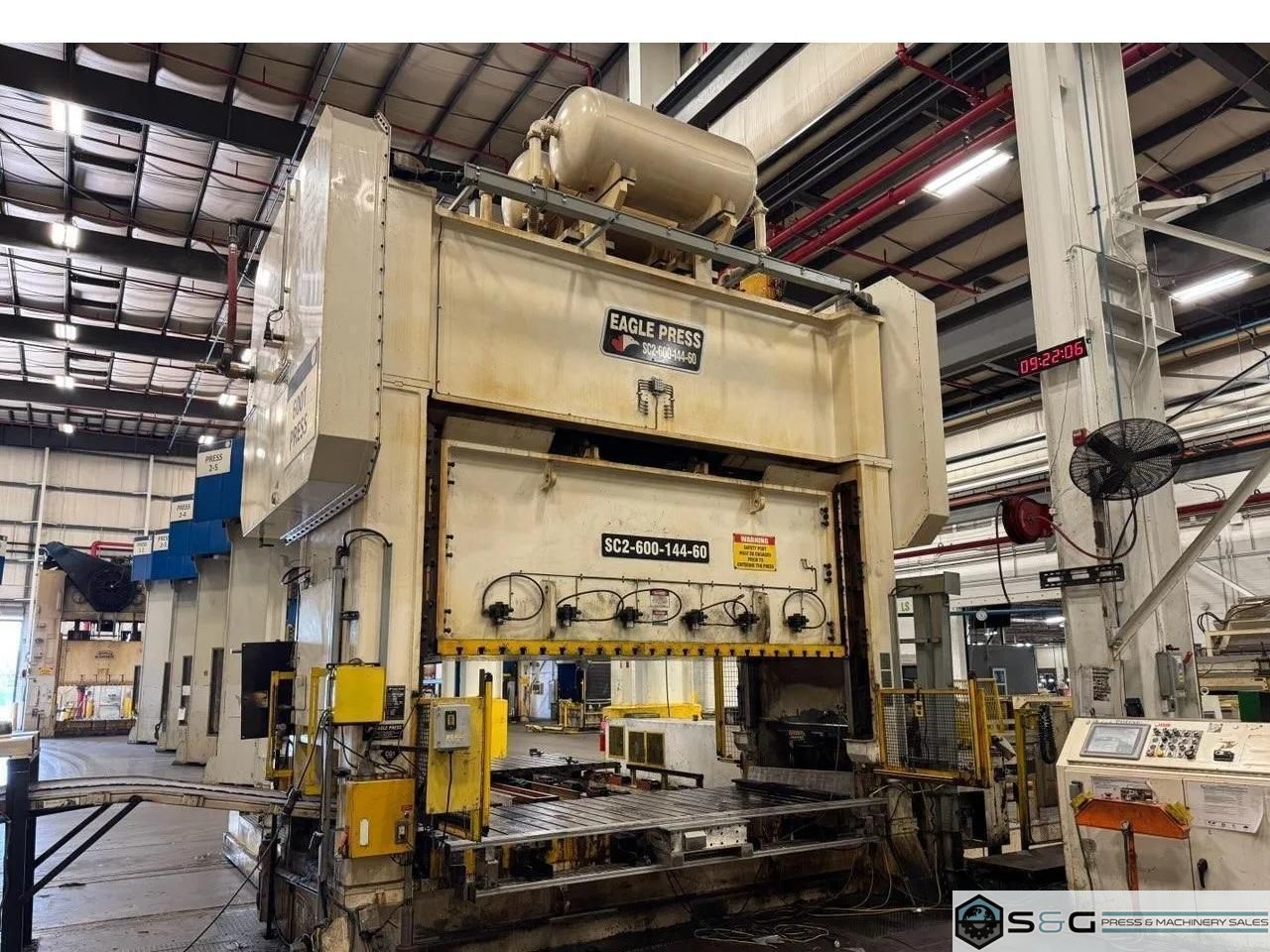

600 ton Eagle Metal Stamping
Progressive Die Press For Sale Model SC2-600-144-60 600 tons Capacity
16" Stroke
34" Shut Height on Bolster
41" Shut Height on Bed
12" Motorized Adjustment 144" LR x 60" FB Bed Area 144" LR x 60" FB Slide Area 20-45 VSPM Equipment and Features:
Allen Bradley Controls
Air Clutch & Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram & Bolster Plate
Motor and Controls
Palm Buttons
Dual Ross Air Valve
7" Thick T-Slotted Bolster Motorized Slide Adjustment
Hydraulic Tie Rod Nuts
50" Wide Windows ATLAS Die Change System
PASCAL Die Clamping System
Scrap Shaker
Can be seen under power in Livonia Michigan Facility. |
|||
Attachments |
||
|---|---|---|
| 600 ton Eagle SC2-600-144-60.pdf | Download | |
