#7D-SS
1983
2882
Not specified

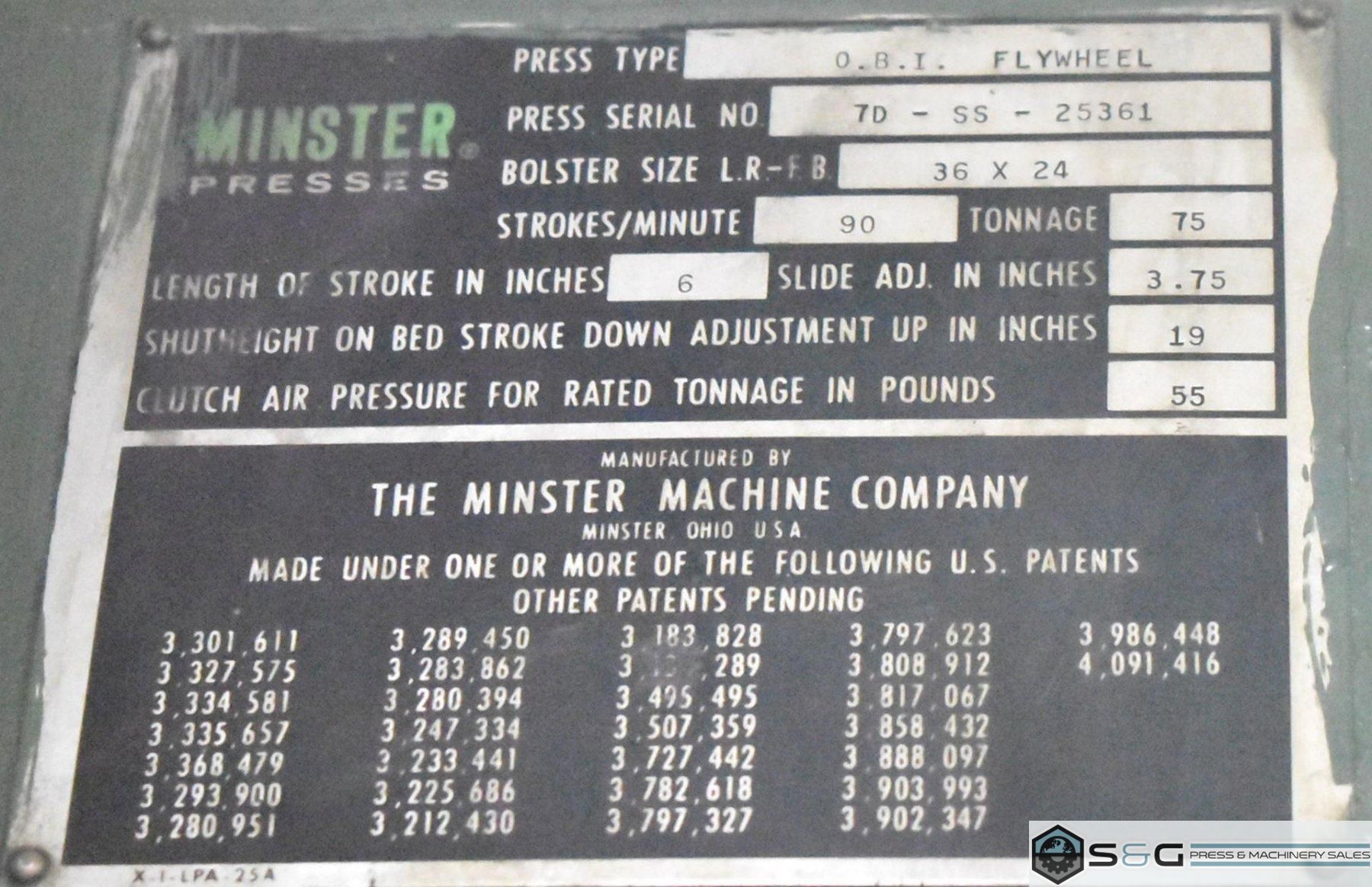

Specifications |
|||
|---|---|---|---|
| Tonnage | 75 |
||
| Stroke | 6 inches |
||
| Shut Height | 19 inches |
||
| Adjustment | 3.75 inches |
||
| Bed Size | 36" LR x 24" FB |
||
| Ram Area | 21" LR x 17" FB |
||
| SPM | 90 |
||
|

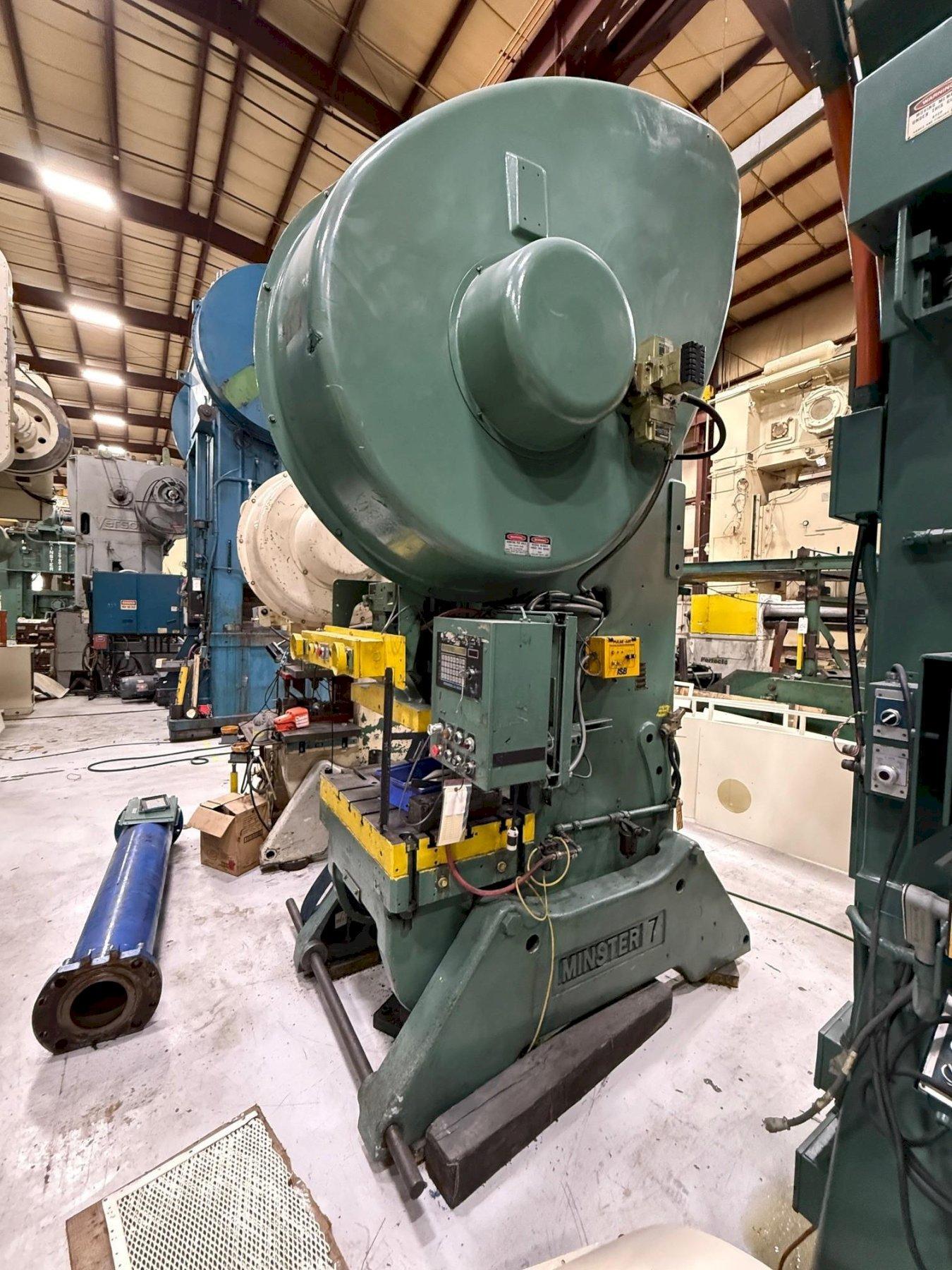

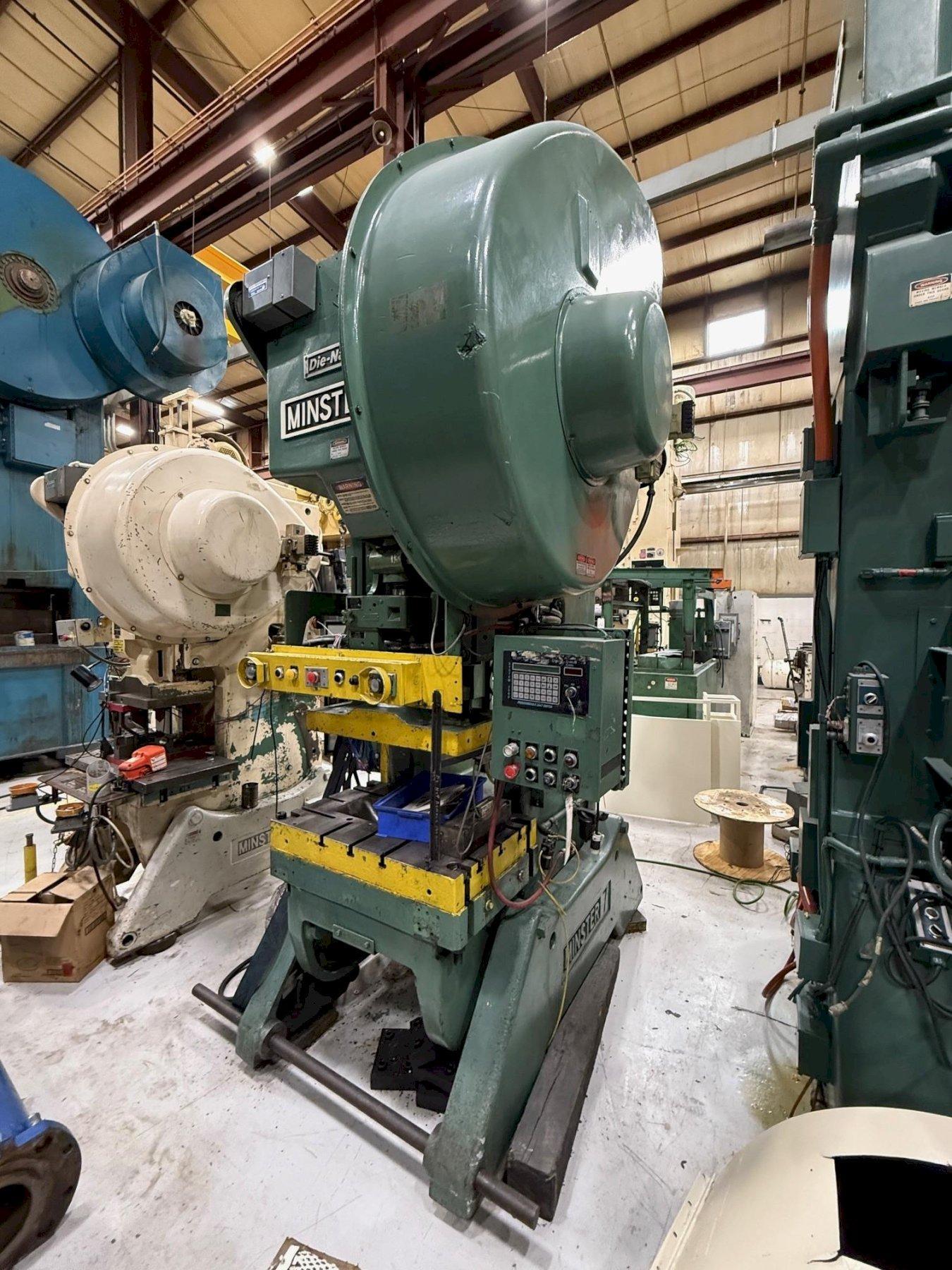

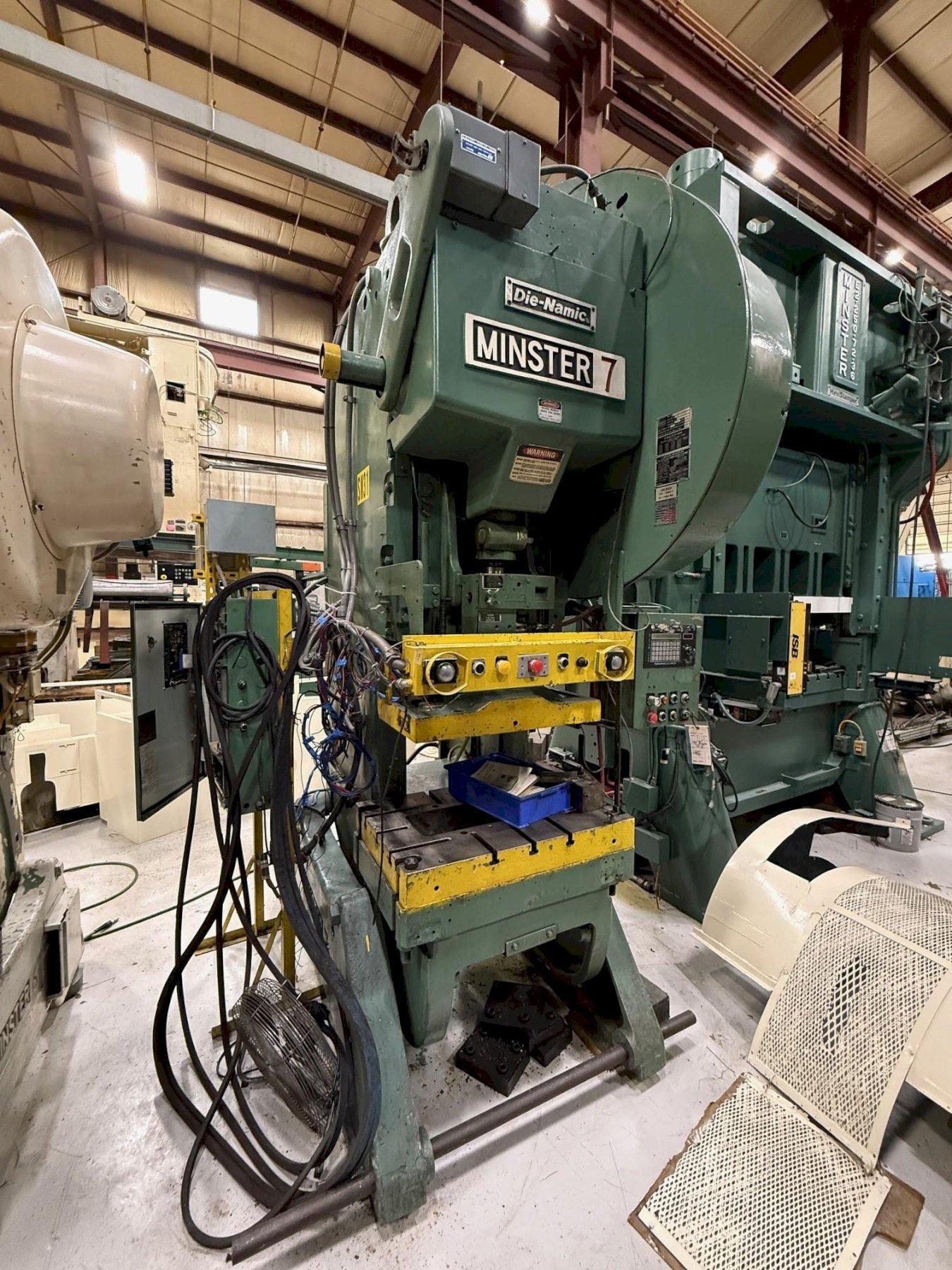

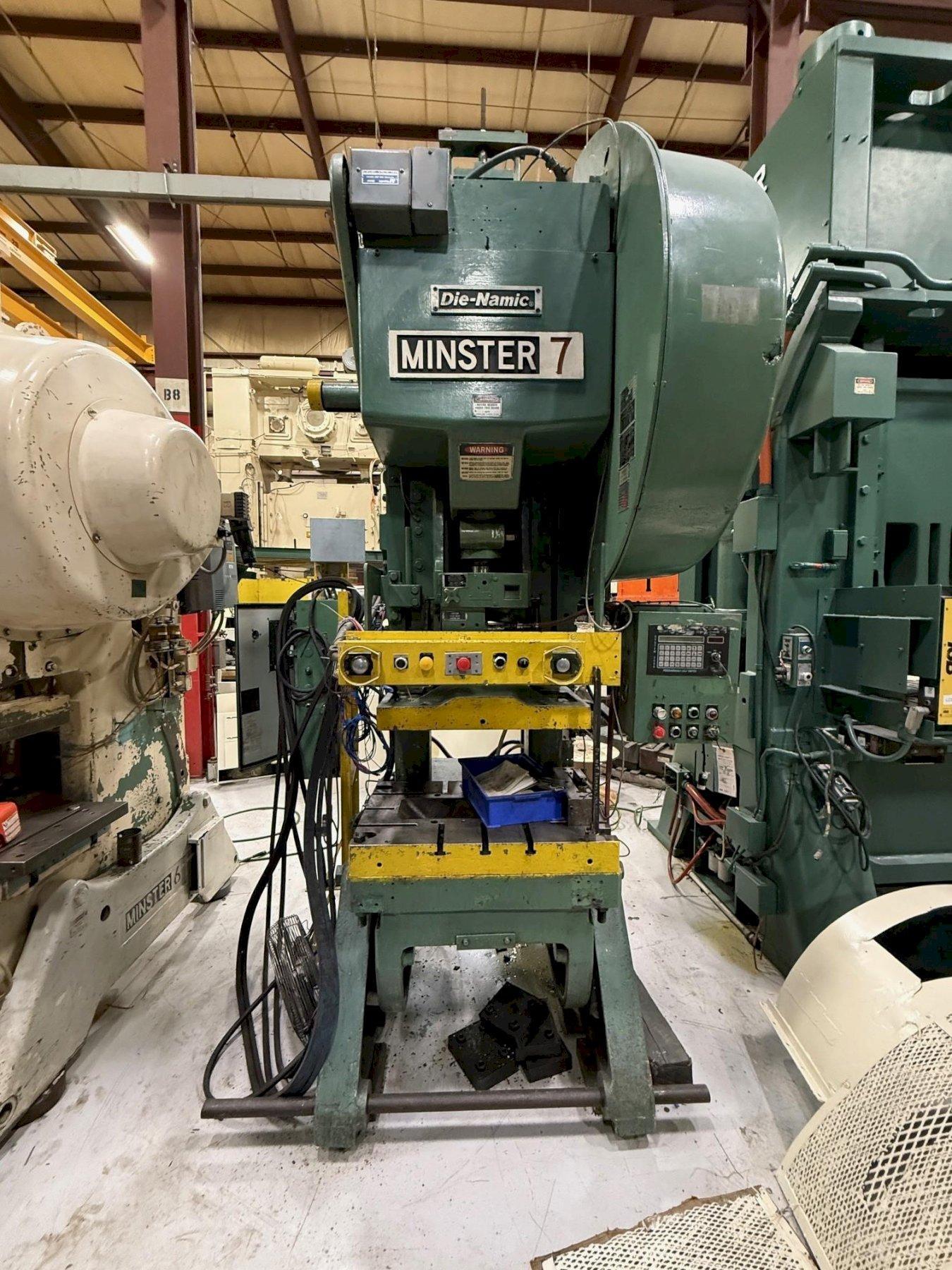

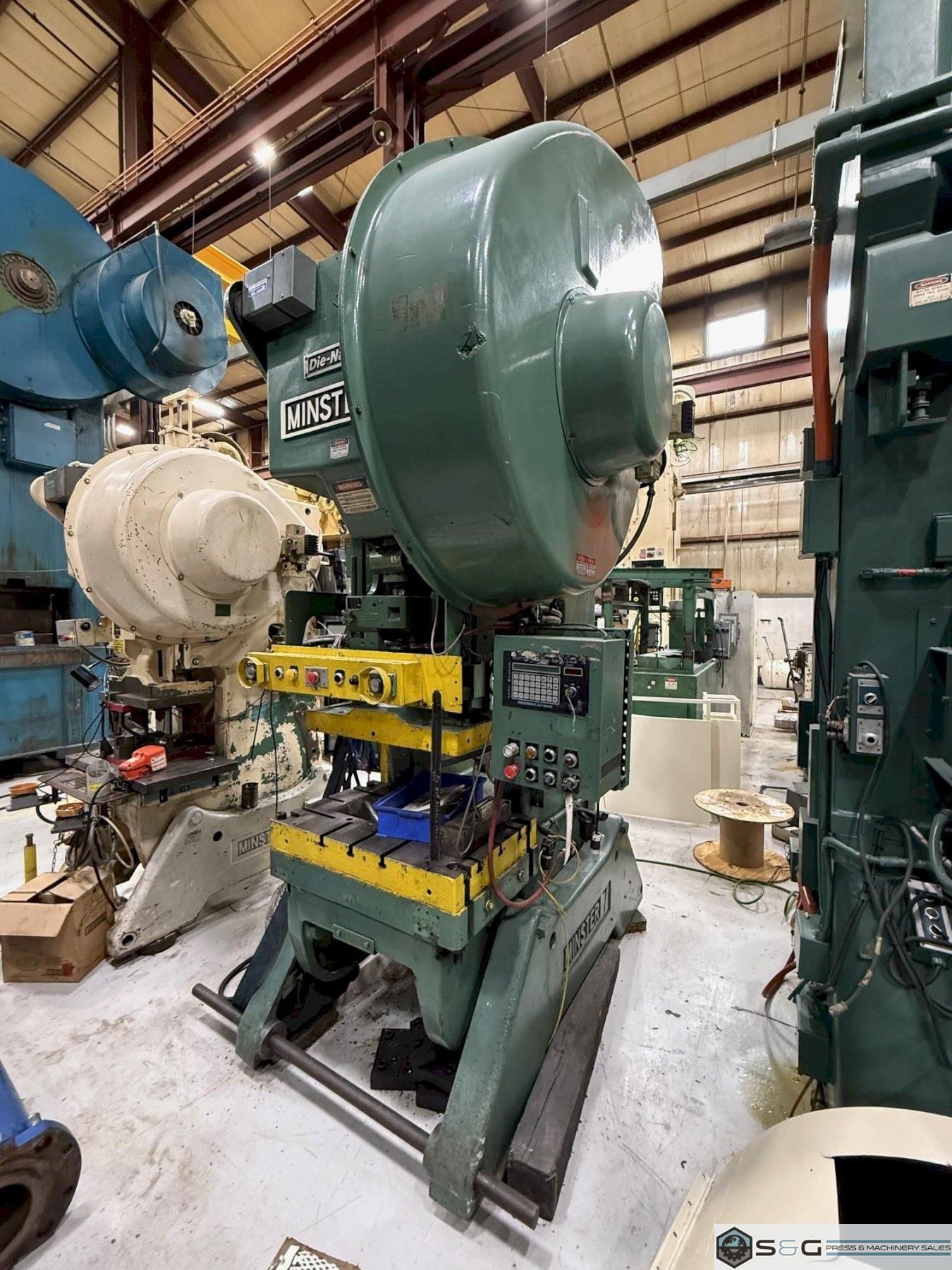

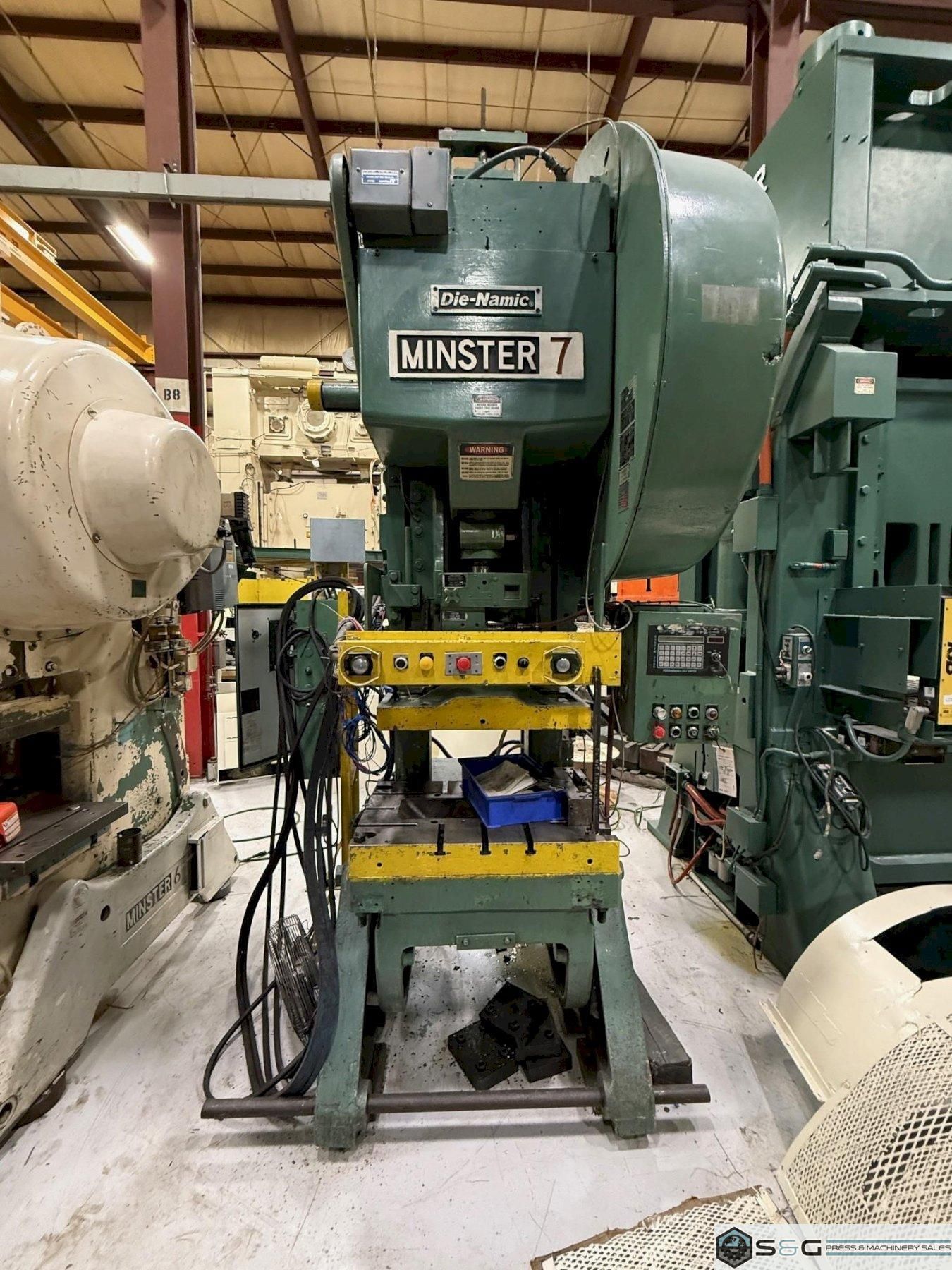

Standard Specifications 75 ton Minster Single Crank OBI Press
Model#7D-SS - sn/ 25361
75 ton Capacity
7" Stroke
18.5" Shut Height
3.5" Adjustment
36" LR x 24" FB Bed
21" LR x 17" FB Slide Area
90 VSPM
Equipment and Features
Air Clutch and Brake

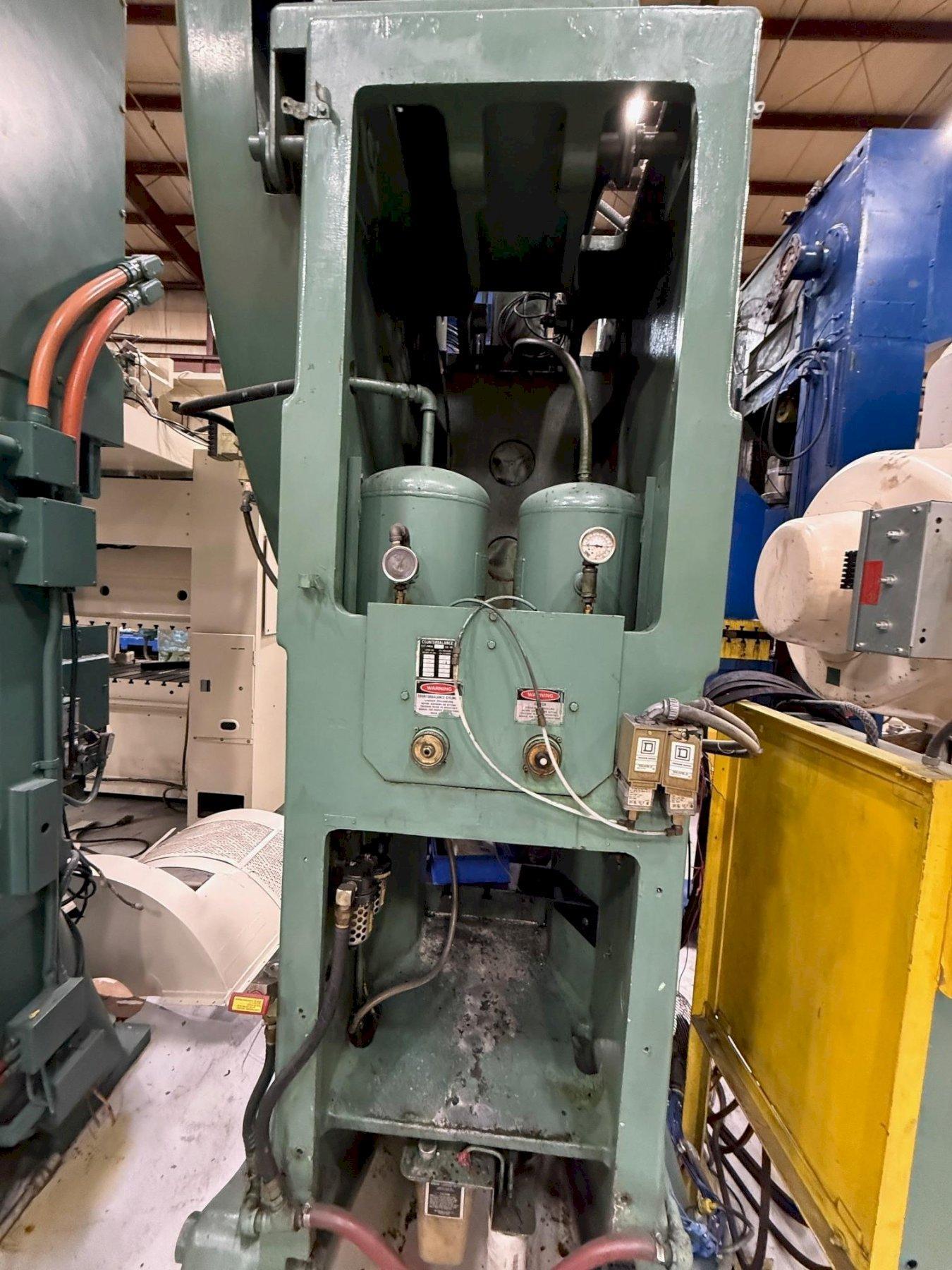

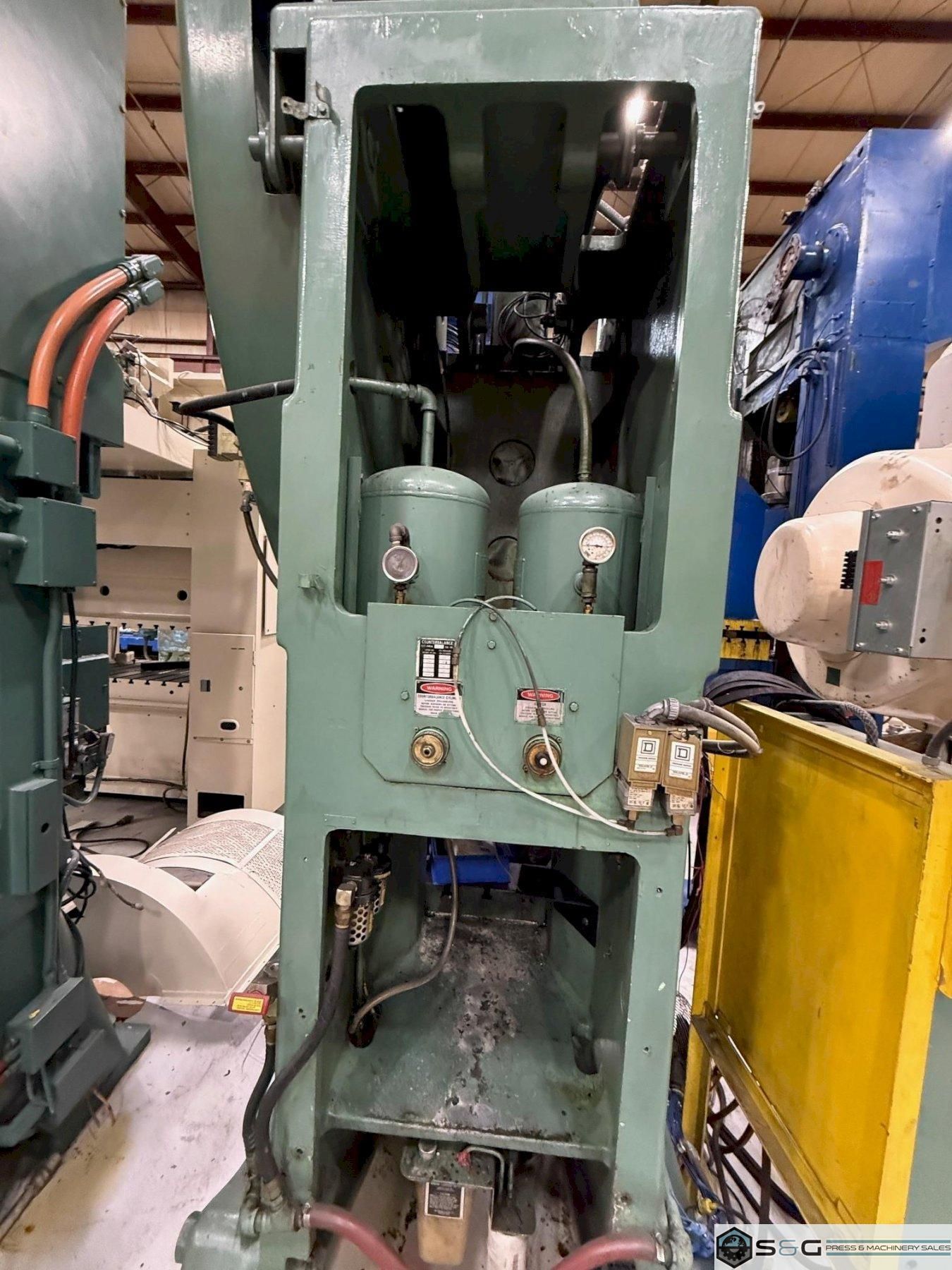

Air Counterbalances Recirculating Lube System
3.5" Thick T-Slotted Bolster
Motors and Controls

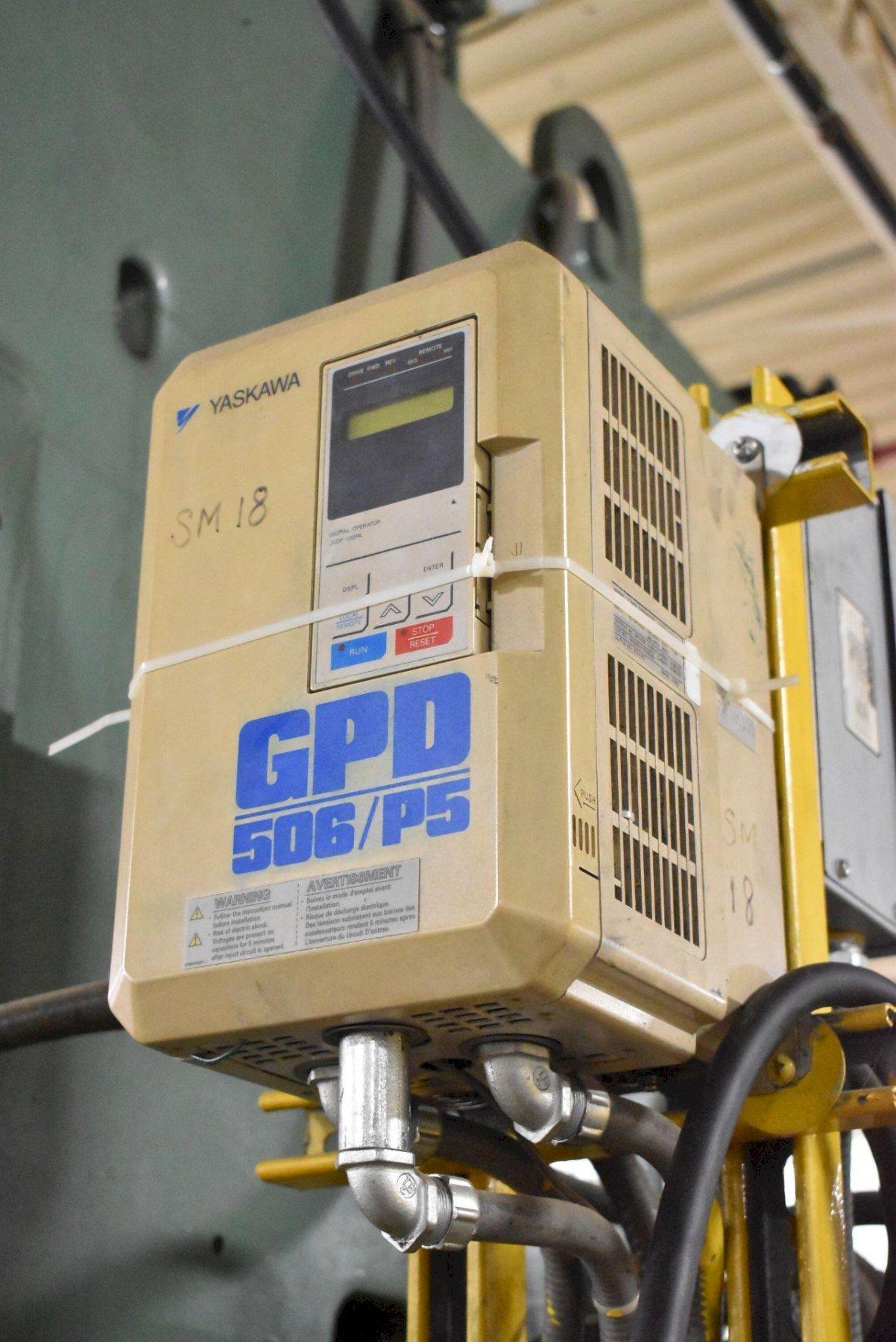

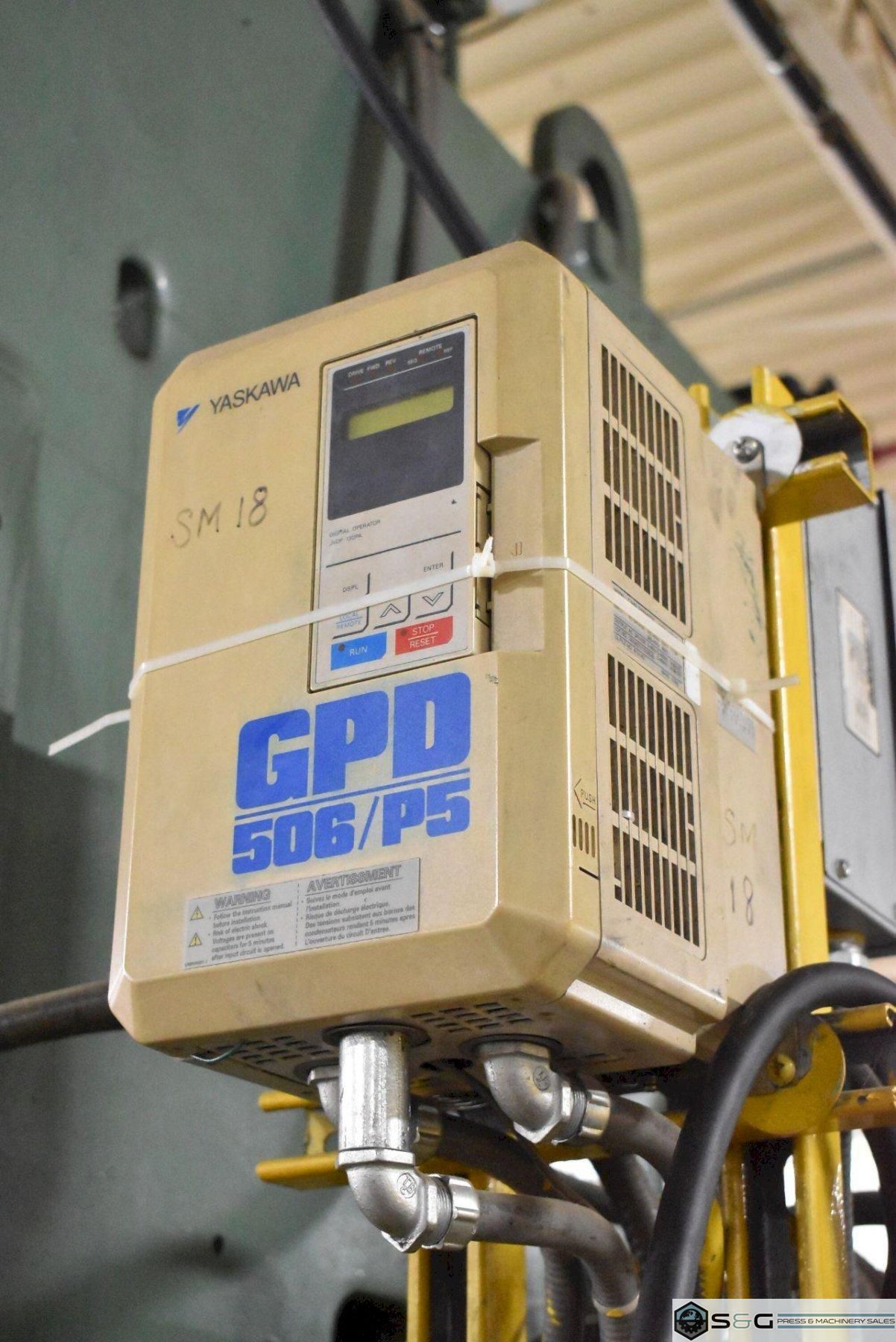

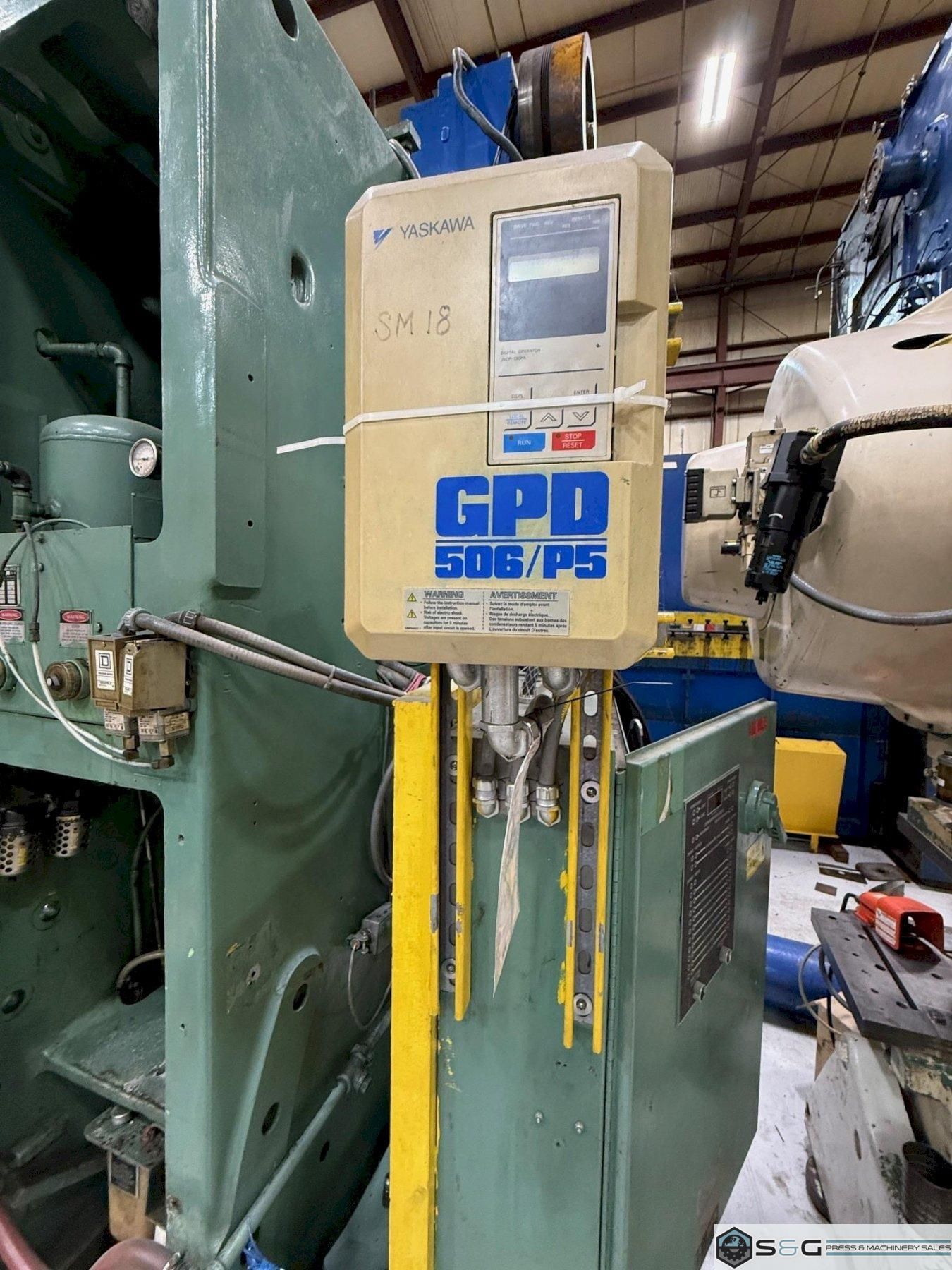

Yaskawa AC Variable Speed Drive Model GPD 506-P5
15 HP - 1800 RPM

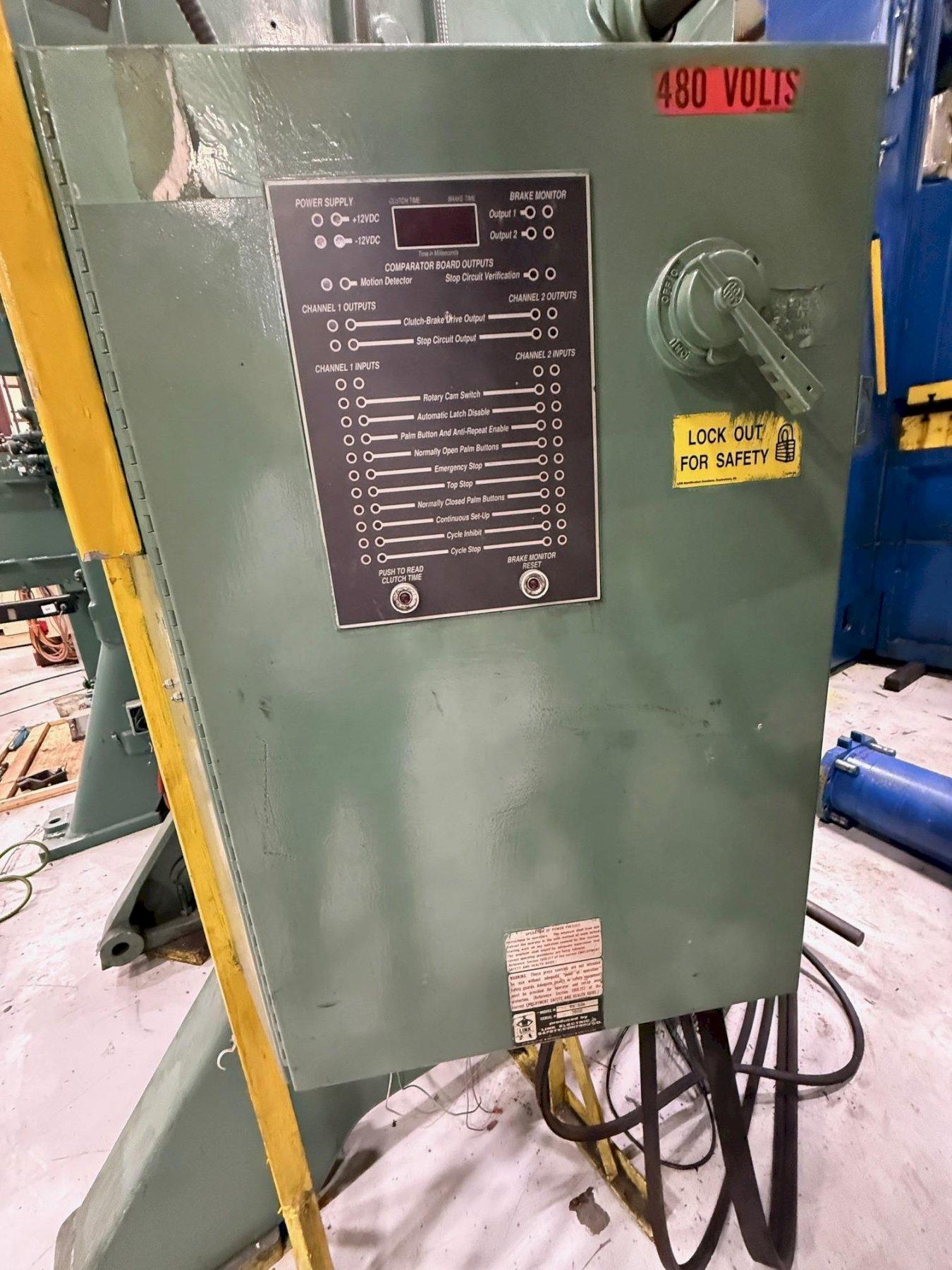

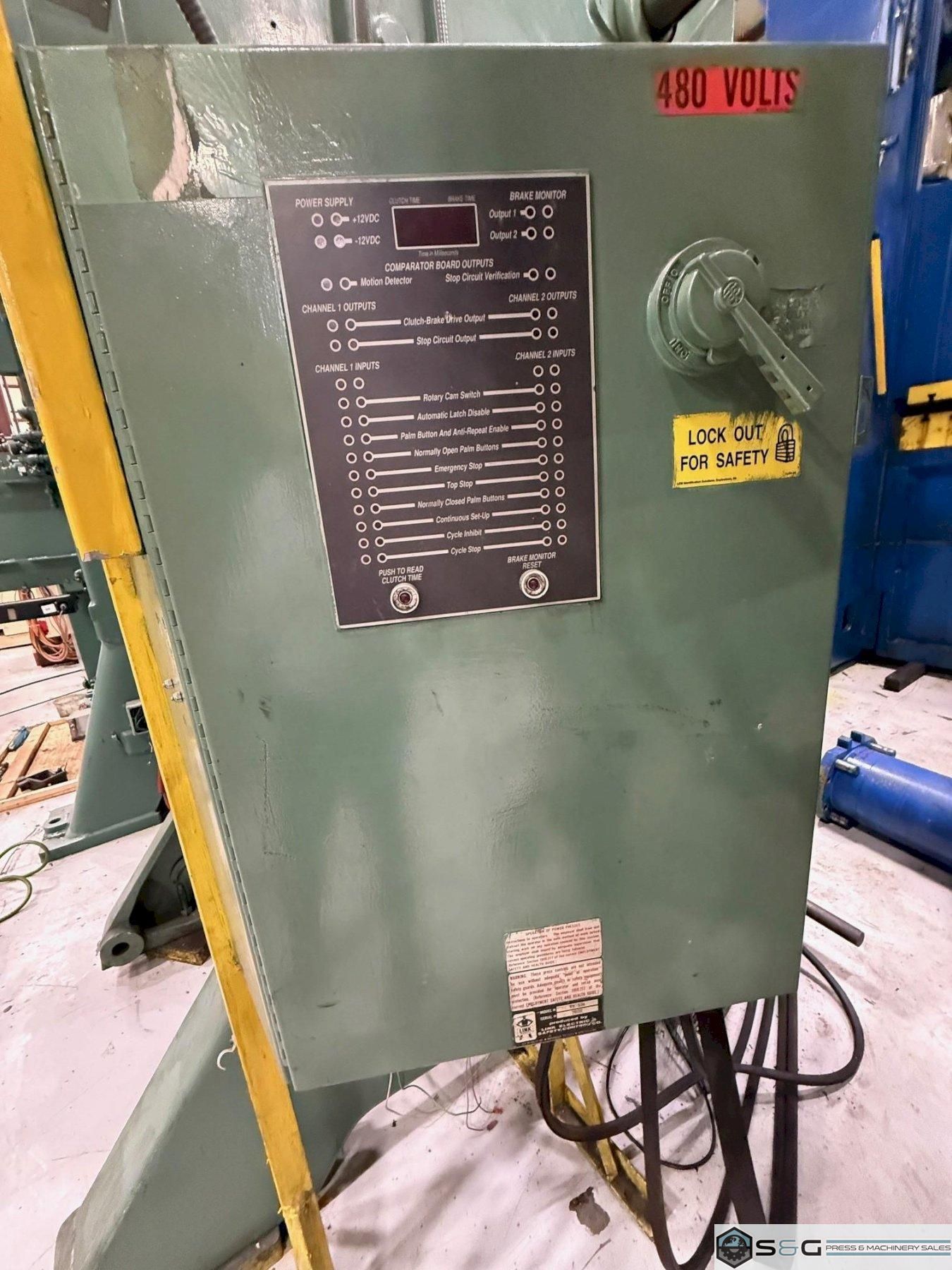

Link 501 Press Controls Link Systems 2500 Programmable Limit Switch
Single, Inch, and Continuous Operation
Flywheel Brake
Palm Button
OBI - Open Back Inclinable Base
Palm Buttons
480 Volt Press Weight: 23,100 lbs.
Overall Height: 156" Tall This Used 75-ton Minster OBI Stamping Press can be seen under power upon request in the S&G Press Livonia MI warehouse!
Minster 75 ton Capacity Mechanical Metal Stamping Single Crank OBI Press For Sale!
|
|||
