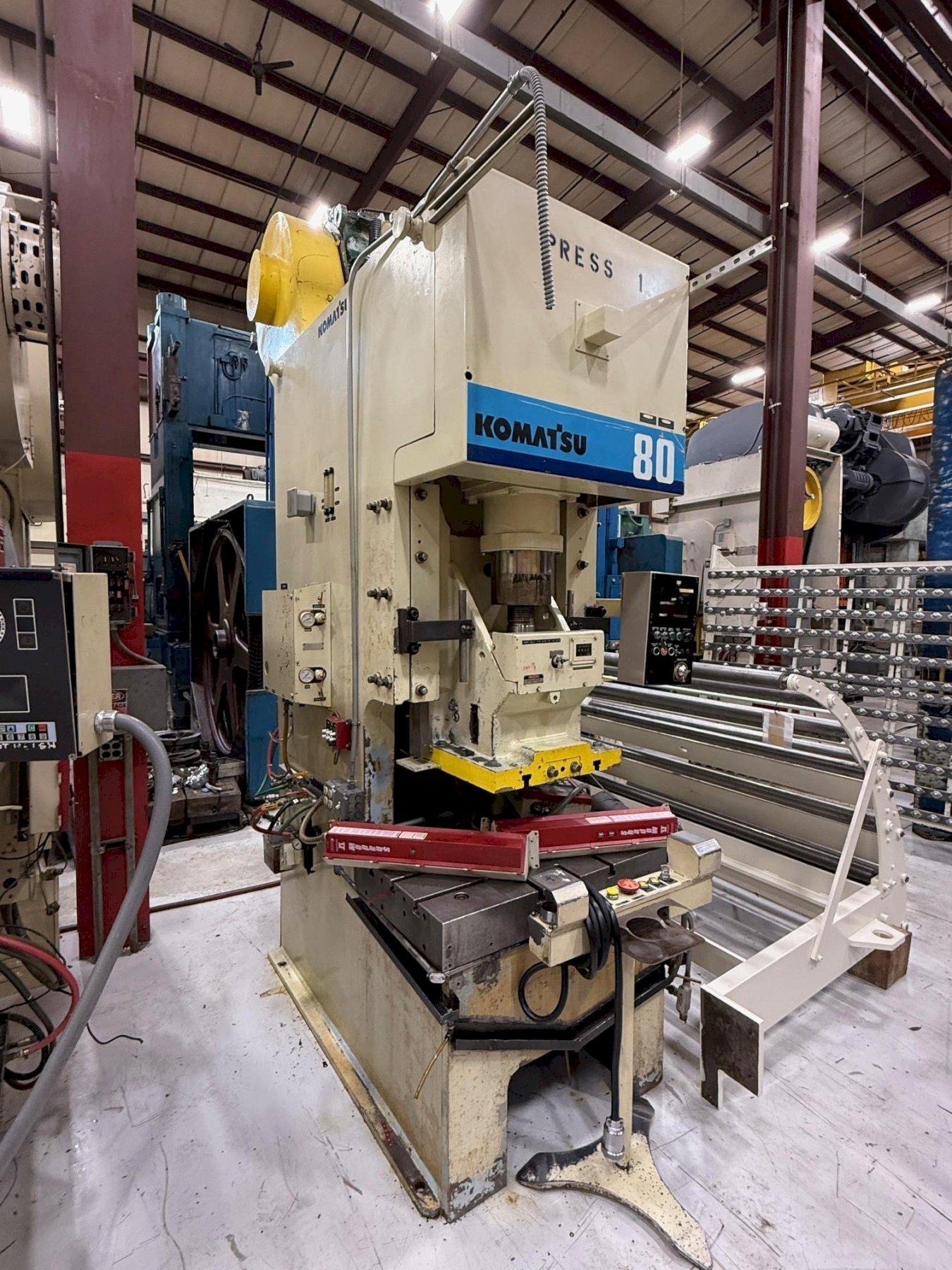

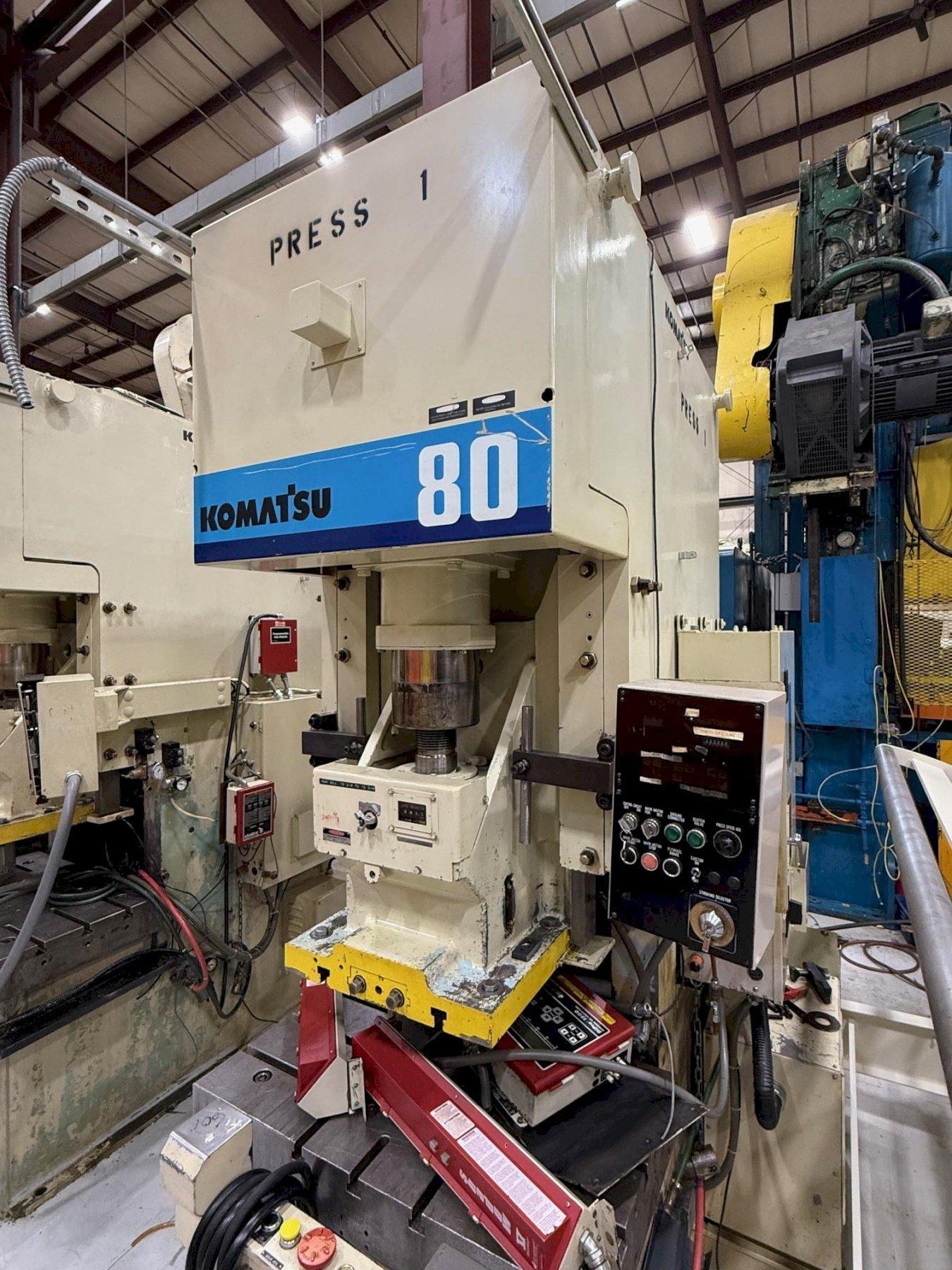

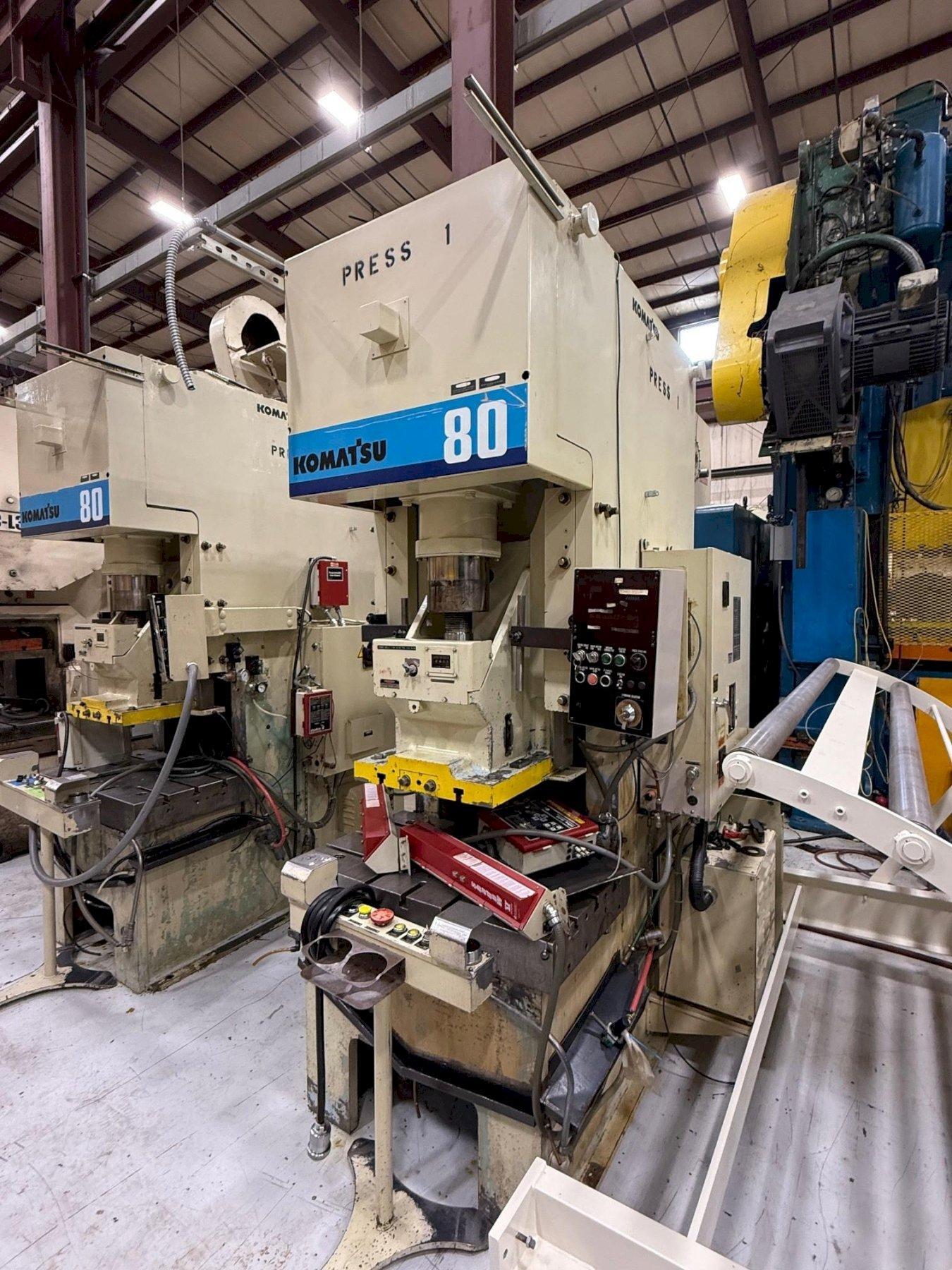

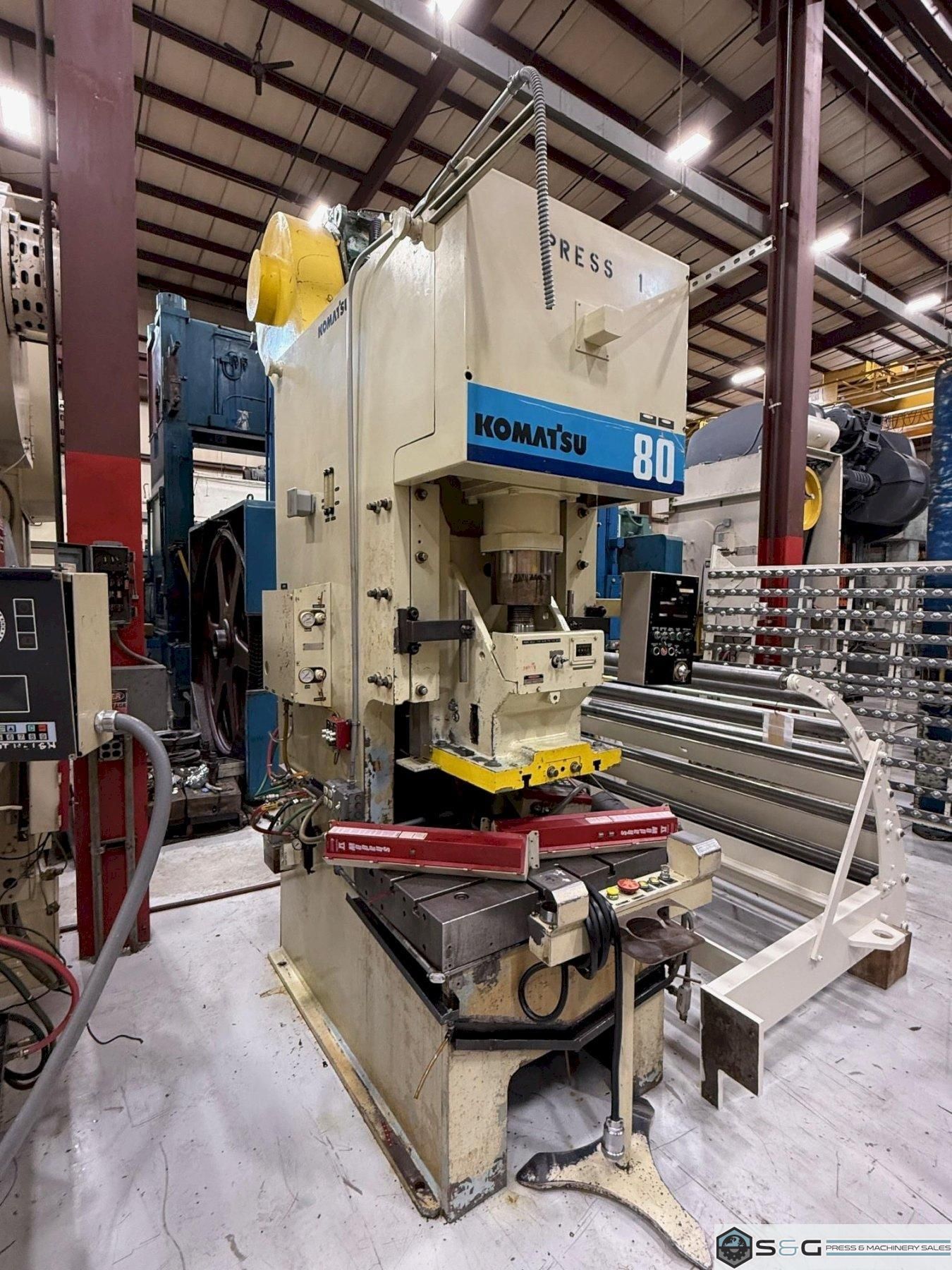

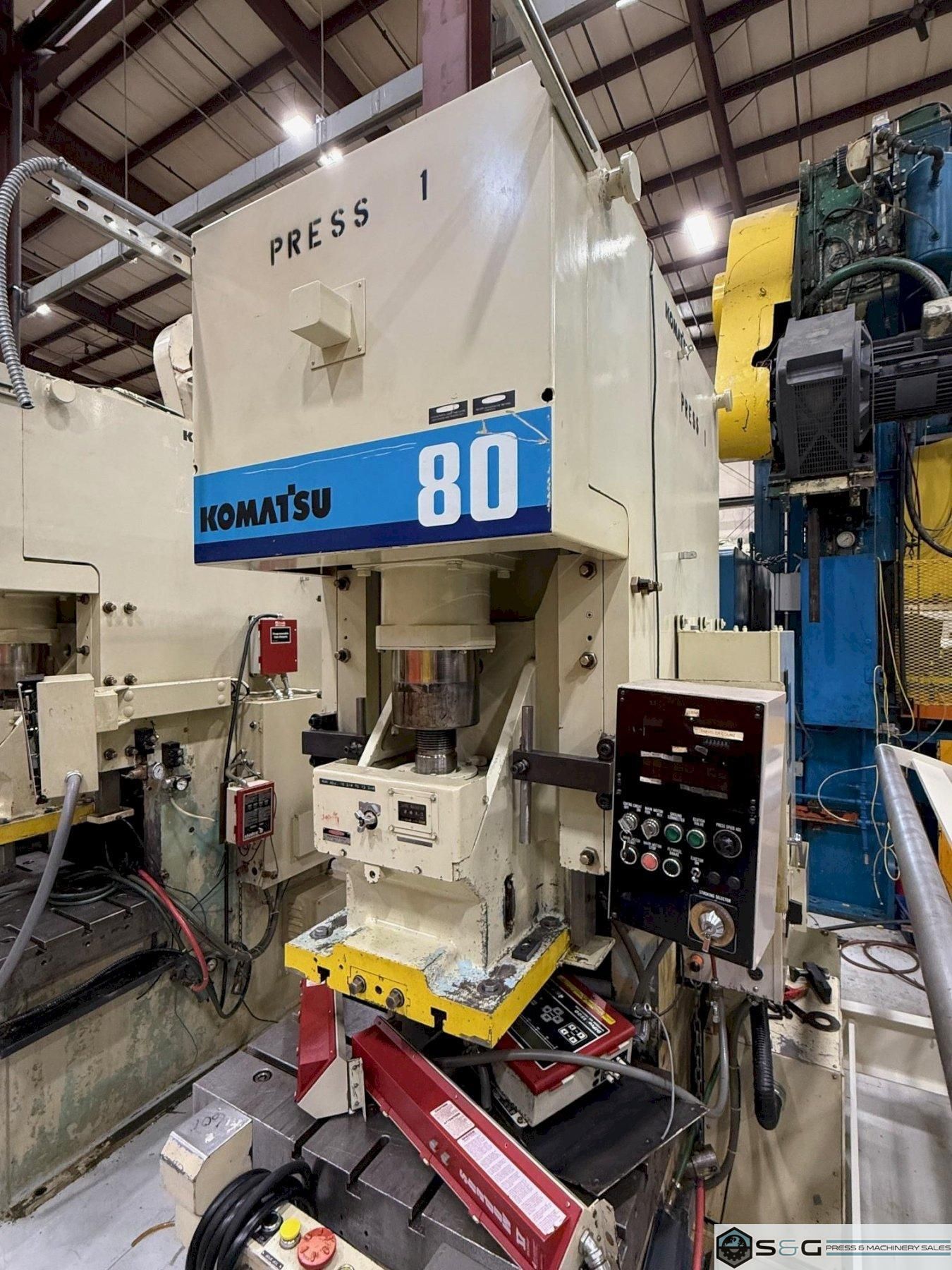

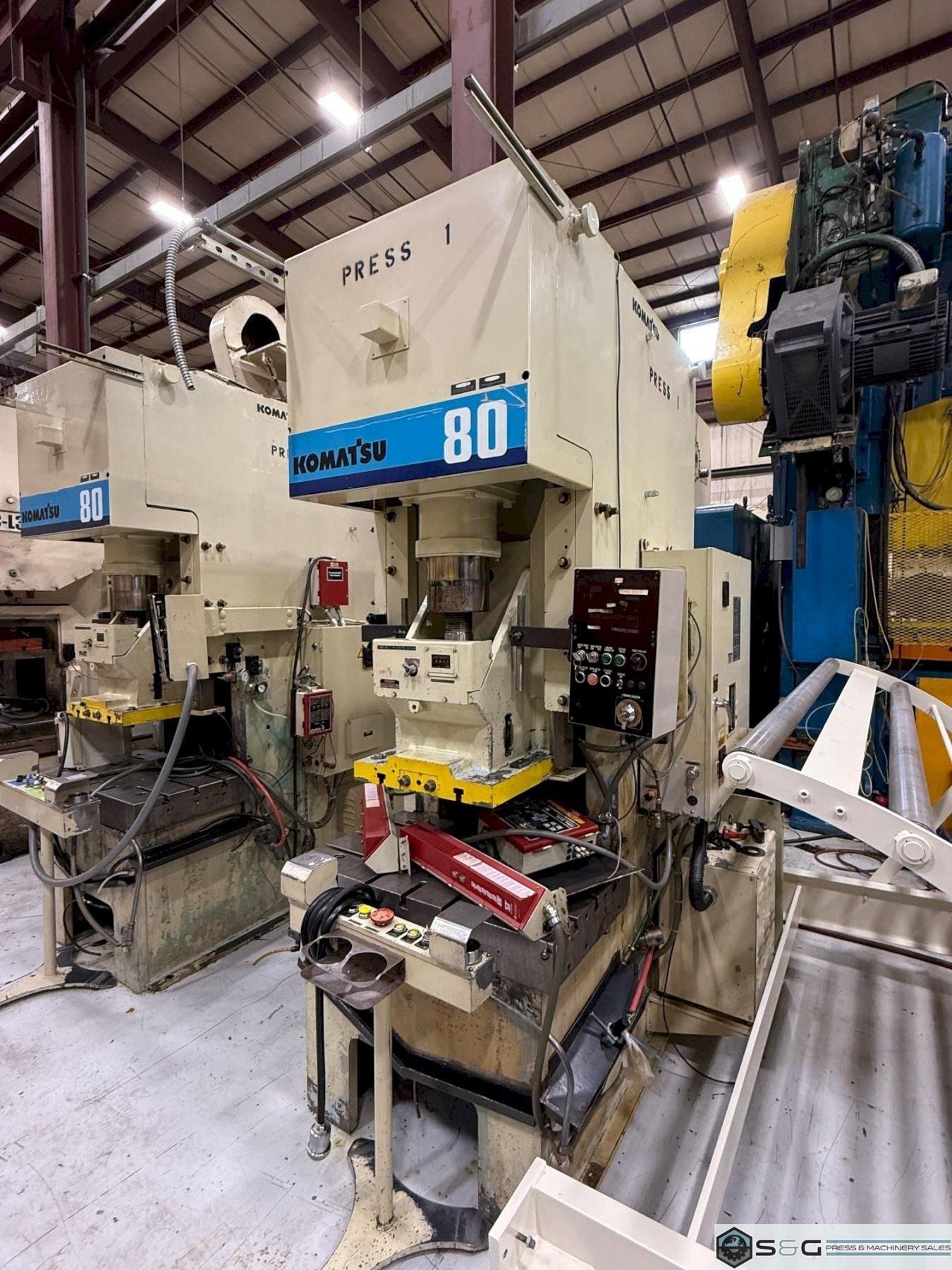

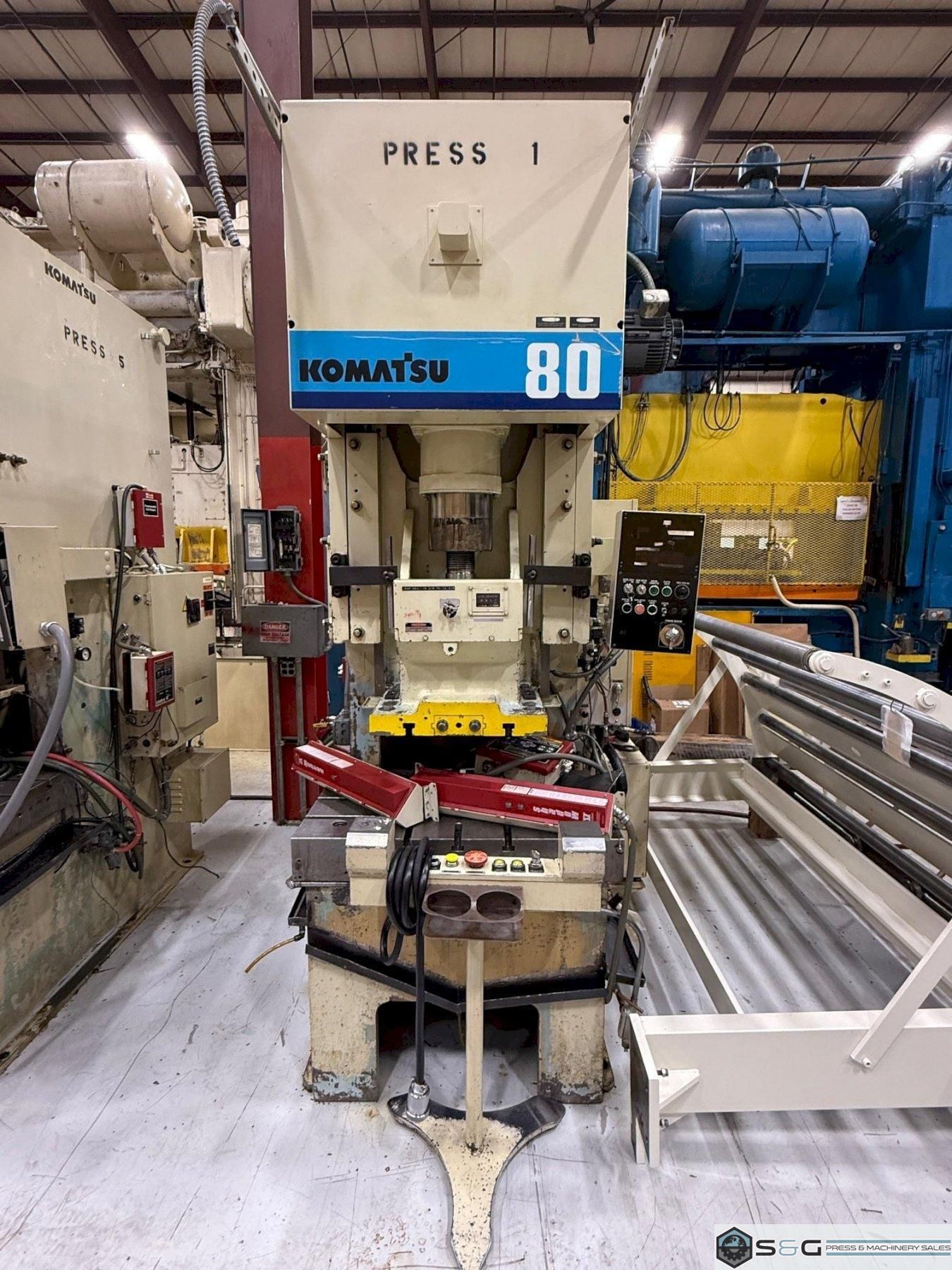

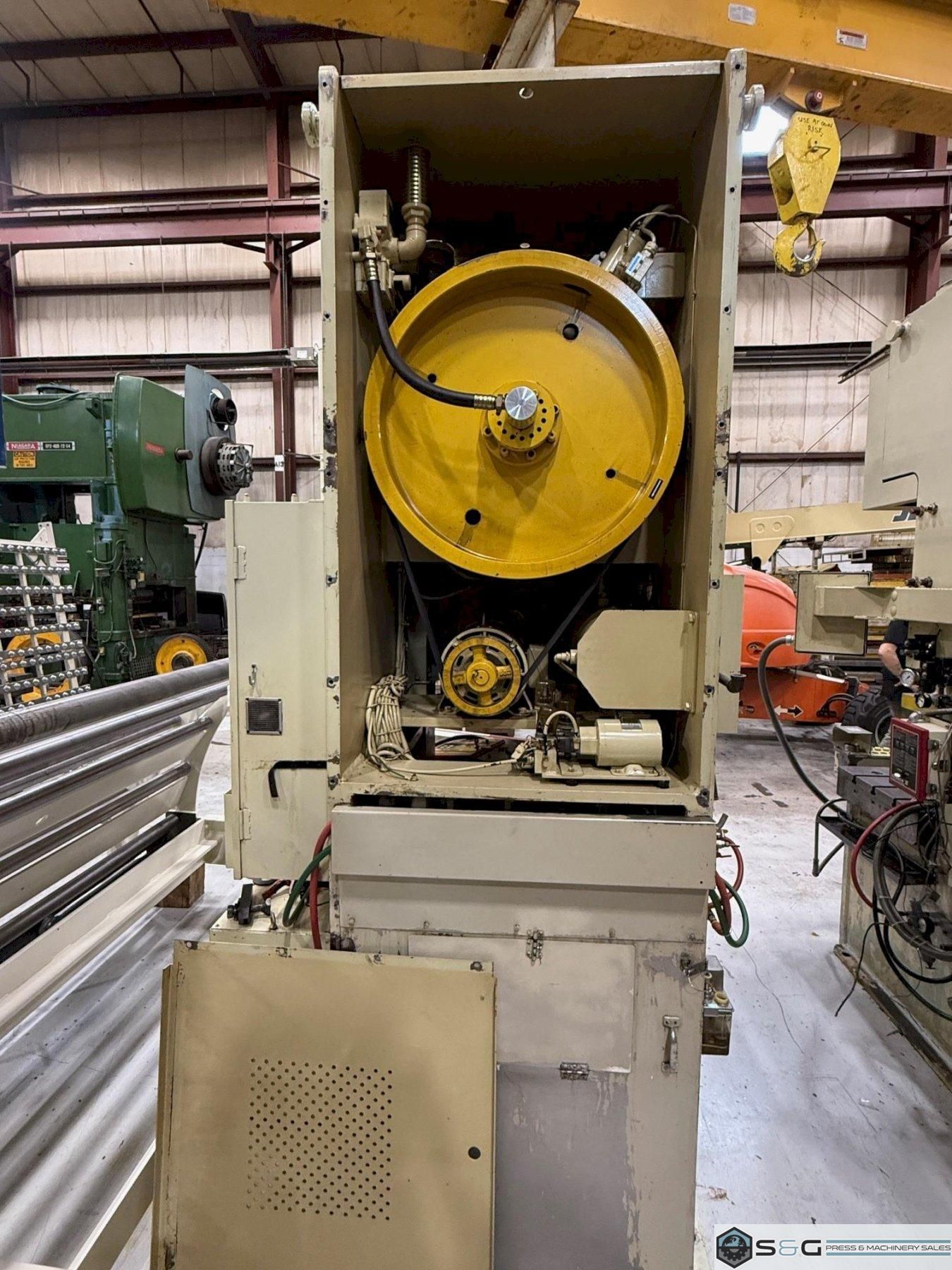

80 Ton KOMATSU OBS Press Model 80H-VS-3, Year 1995, For Sale (2) Available, Under Power in a Plant!

Standard Specifications
80-ton Komatsu OBS Press
Model 80 H-VS-3
80 ton Capacity (metric)
3.94" Stroke
13.8" Die Height over Bolster
3.15" Motorized Adjustment
39.3" LR x 23.6" FB Bed Area
21.65" LR x 17.7" FB Slide Area
60-120 VSPM

Equipment and Features
High-Torque Wet Clutch and Brake
Eccentric Shaft
Plunger Guided Ram
Heavy Duty Slide Construction
T-Slotted Ram and Bolster
T-Slotted Flanged Ram Plate
Hydraulic Over Load
Air Counterbalances
Recirculating Lube System
Wintriss Die Pro 1500
Wintriss Shadow V Light Curtains
6 Point Gibs
AC Inverter Drive
Updated Controls
Floor Standing

Can be seen under power running in the S&G Press Warehouse!
