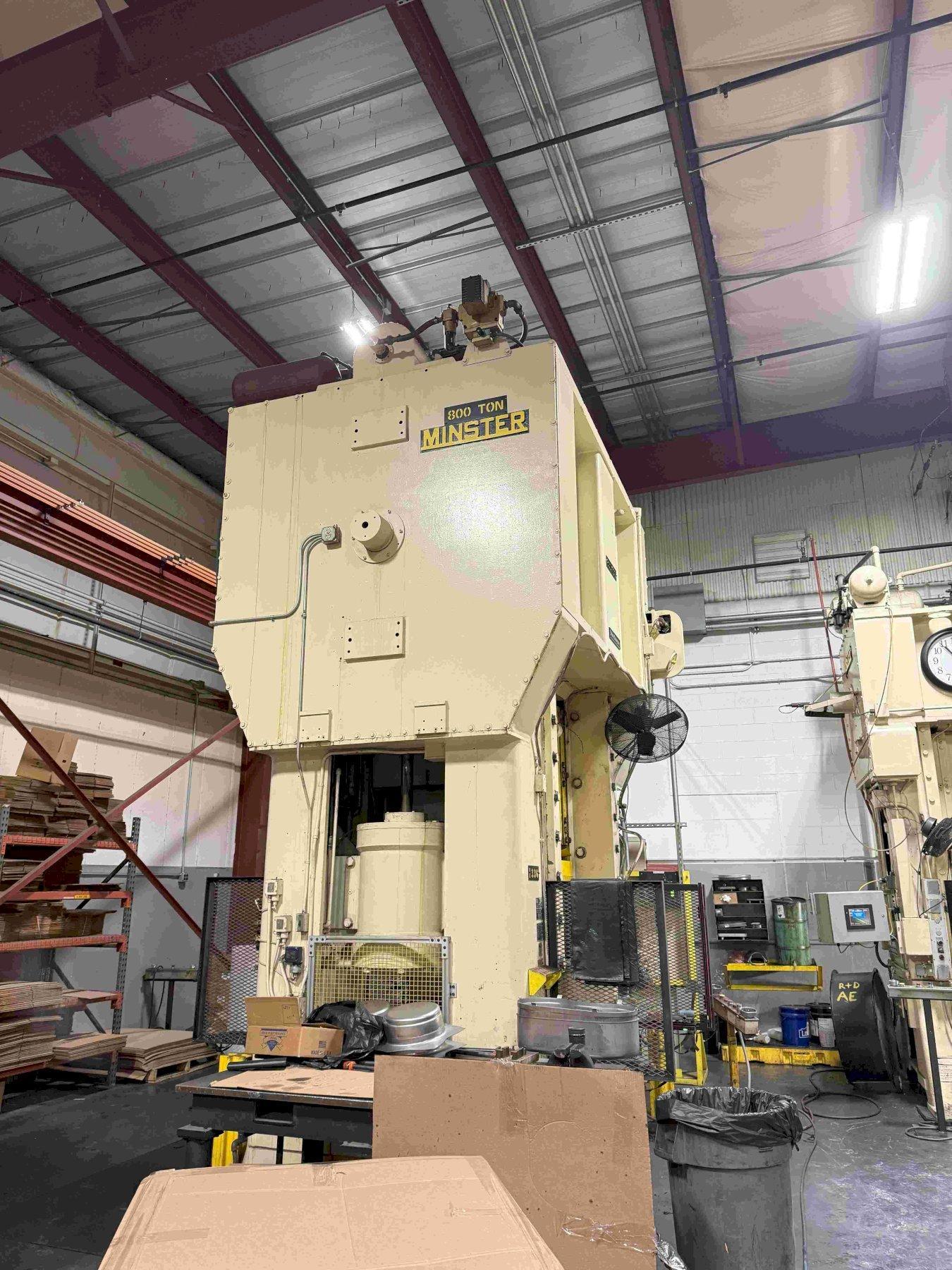

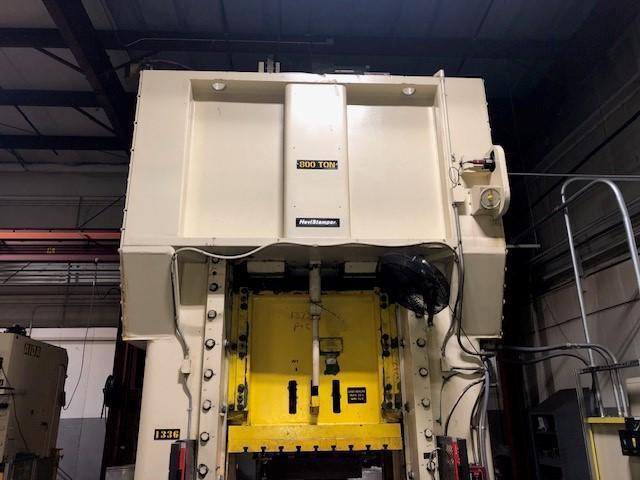

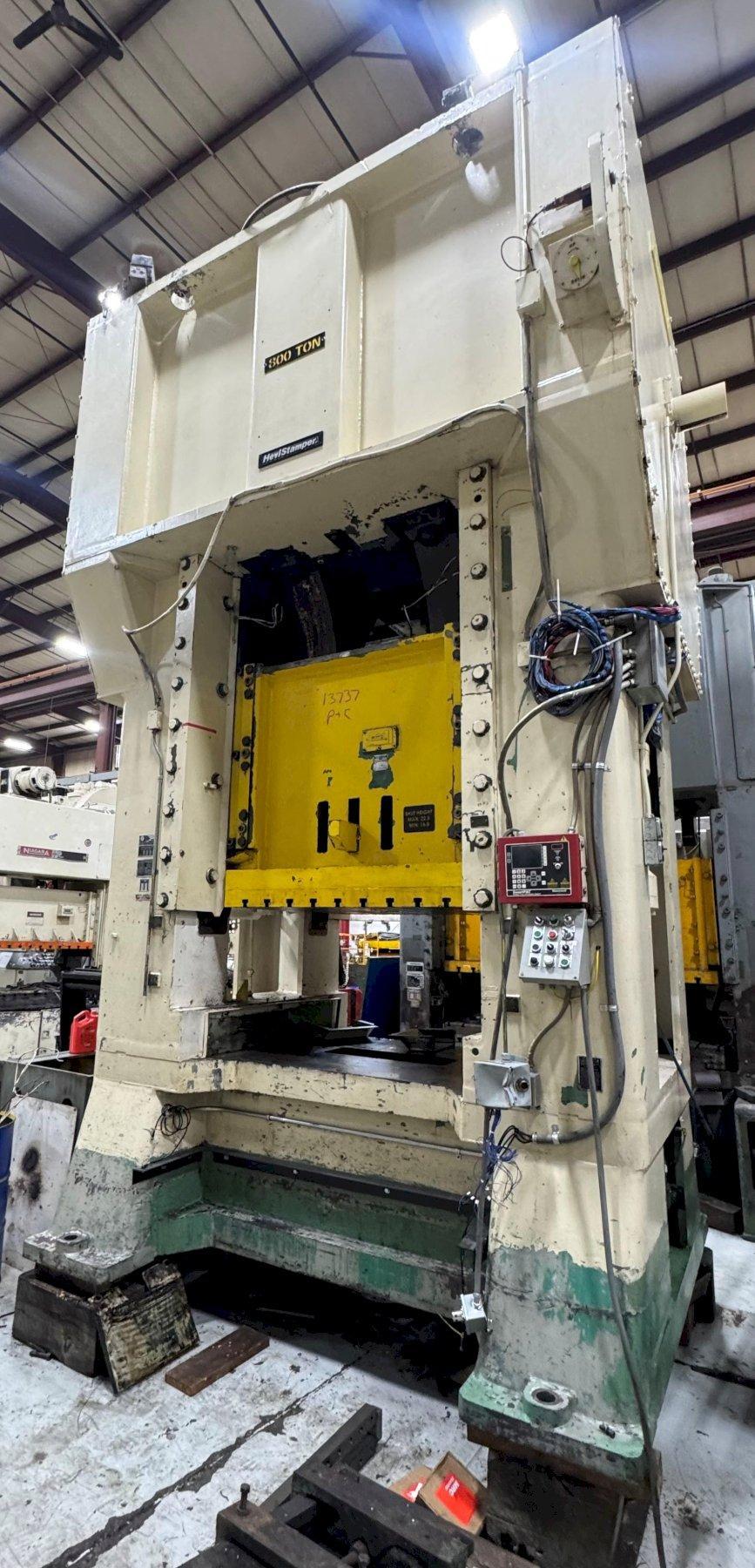

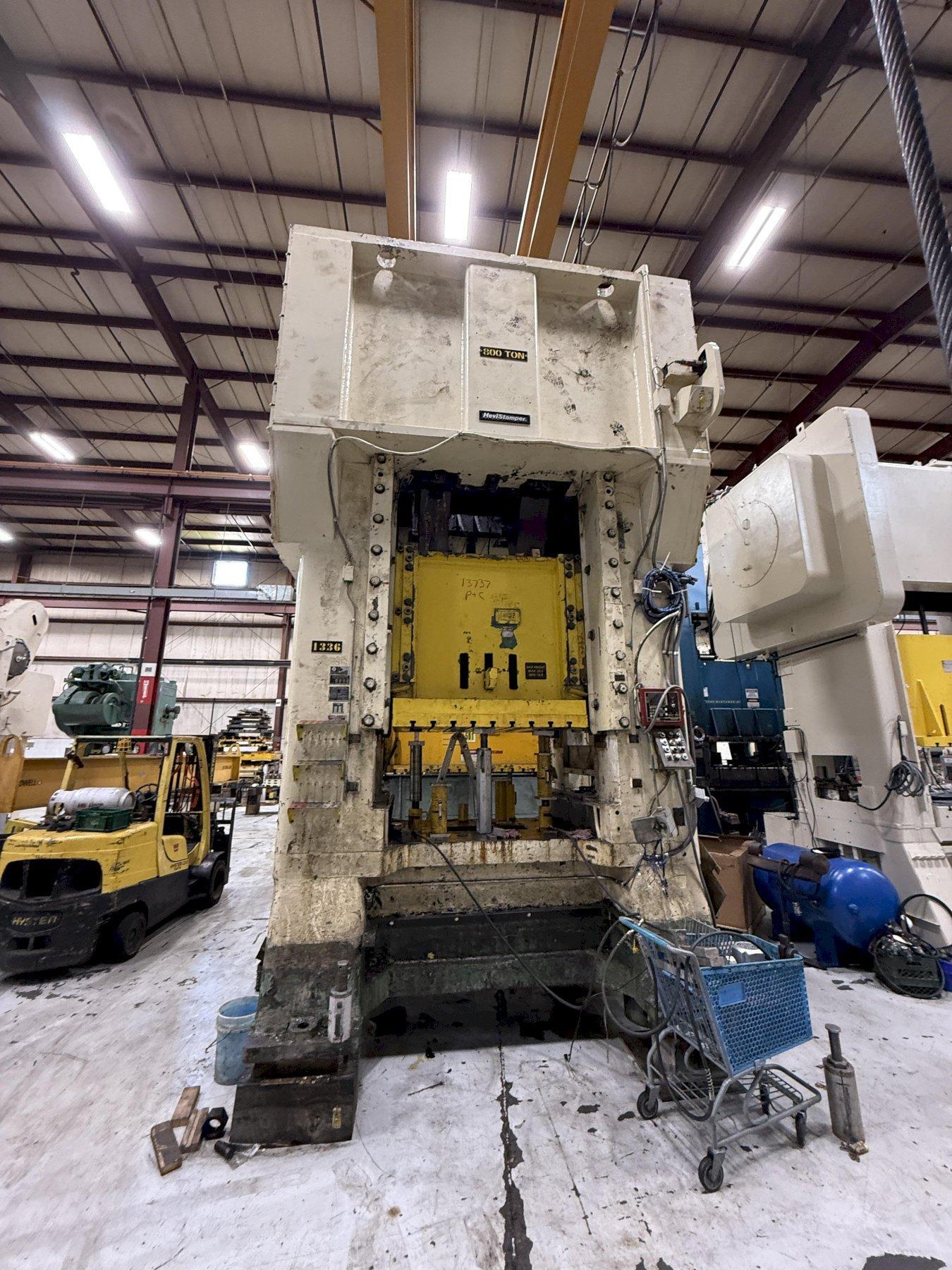

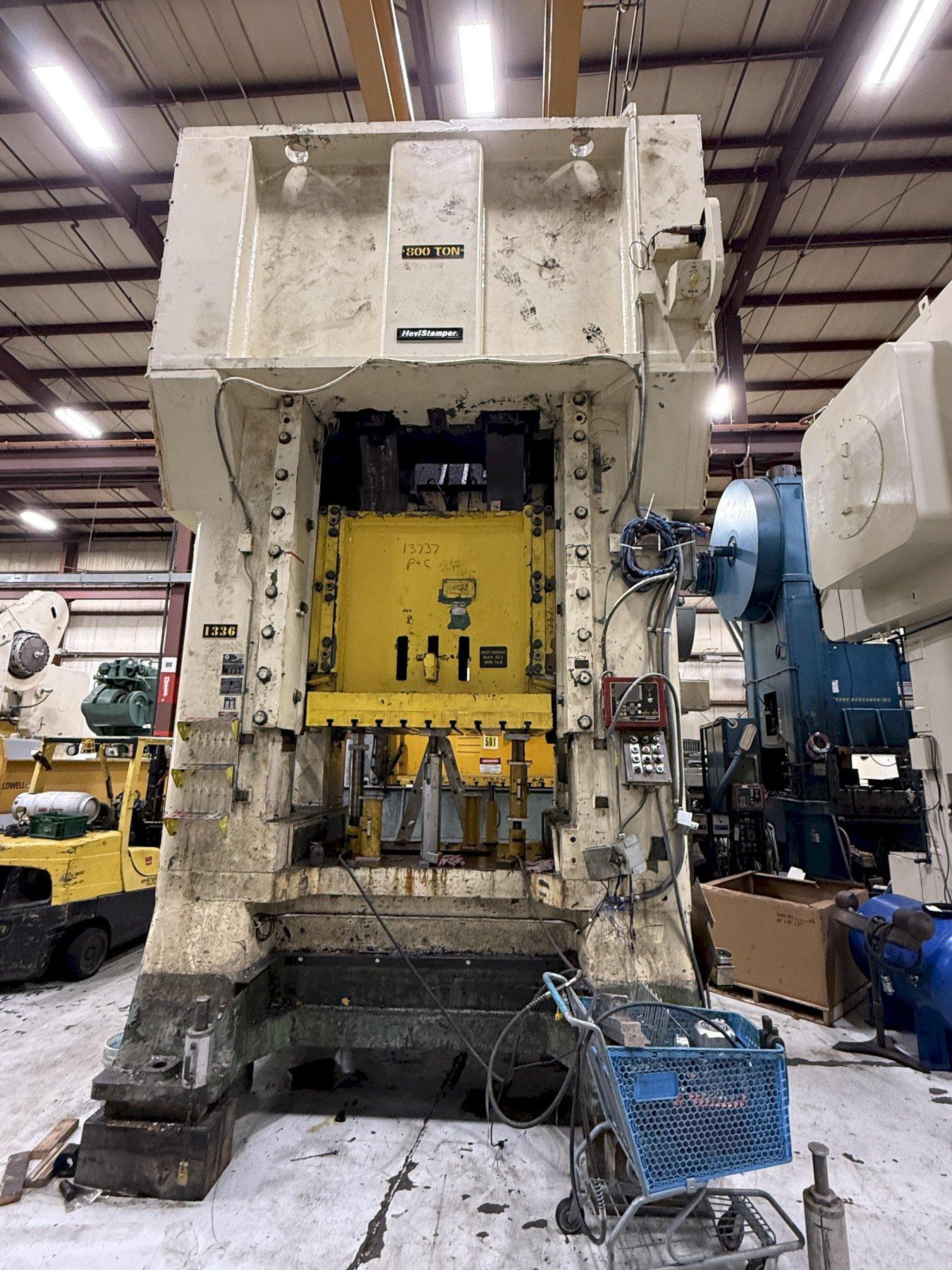

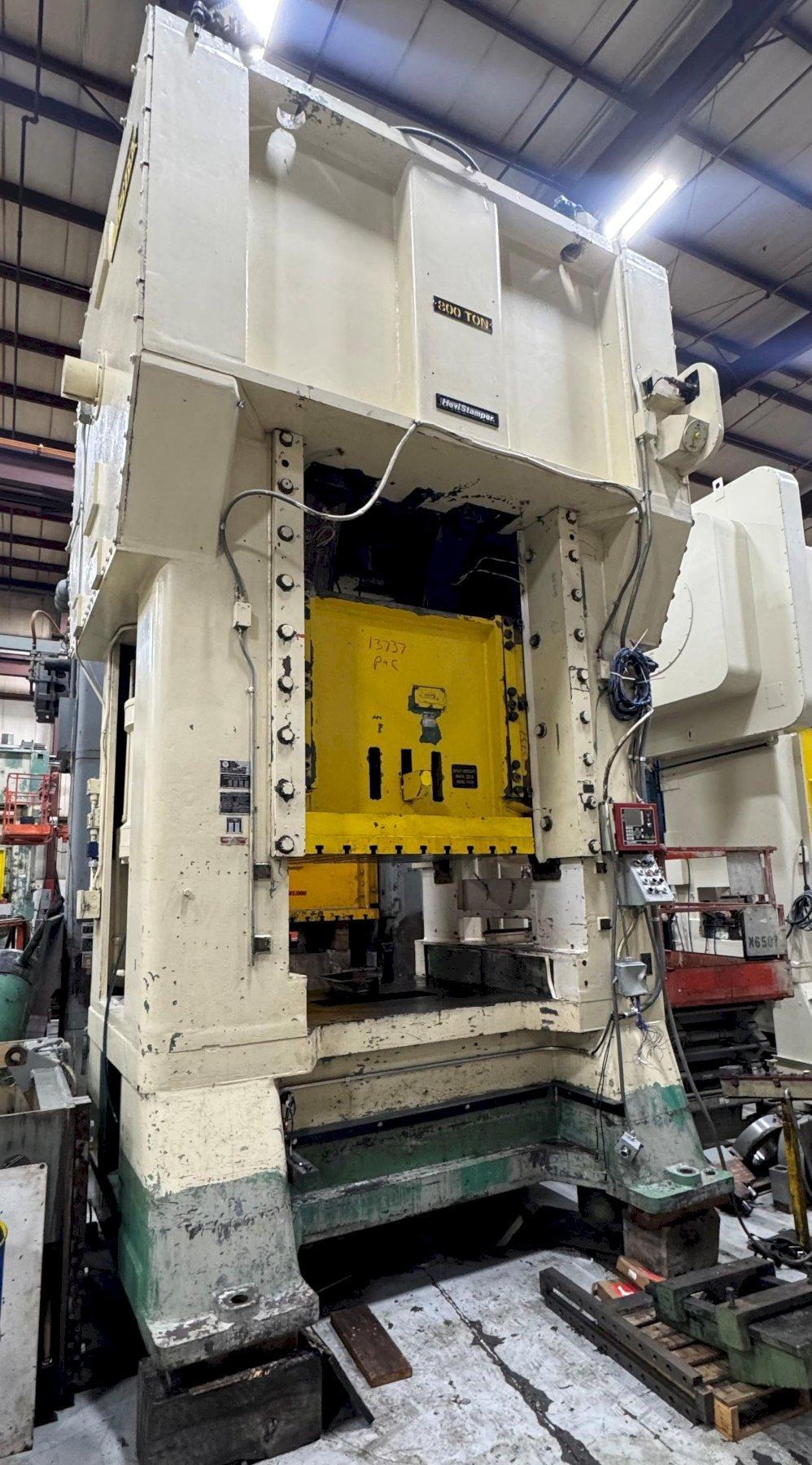

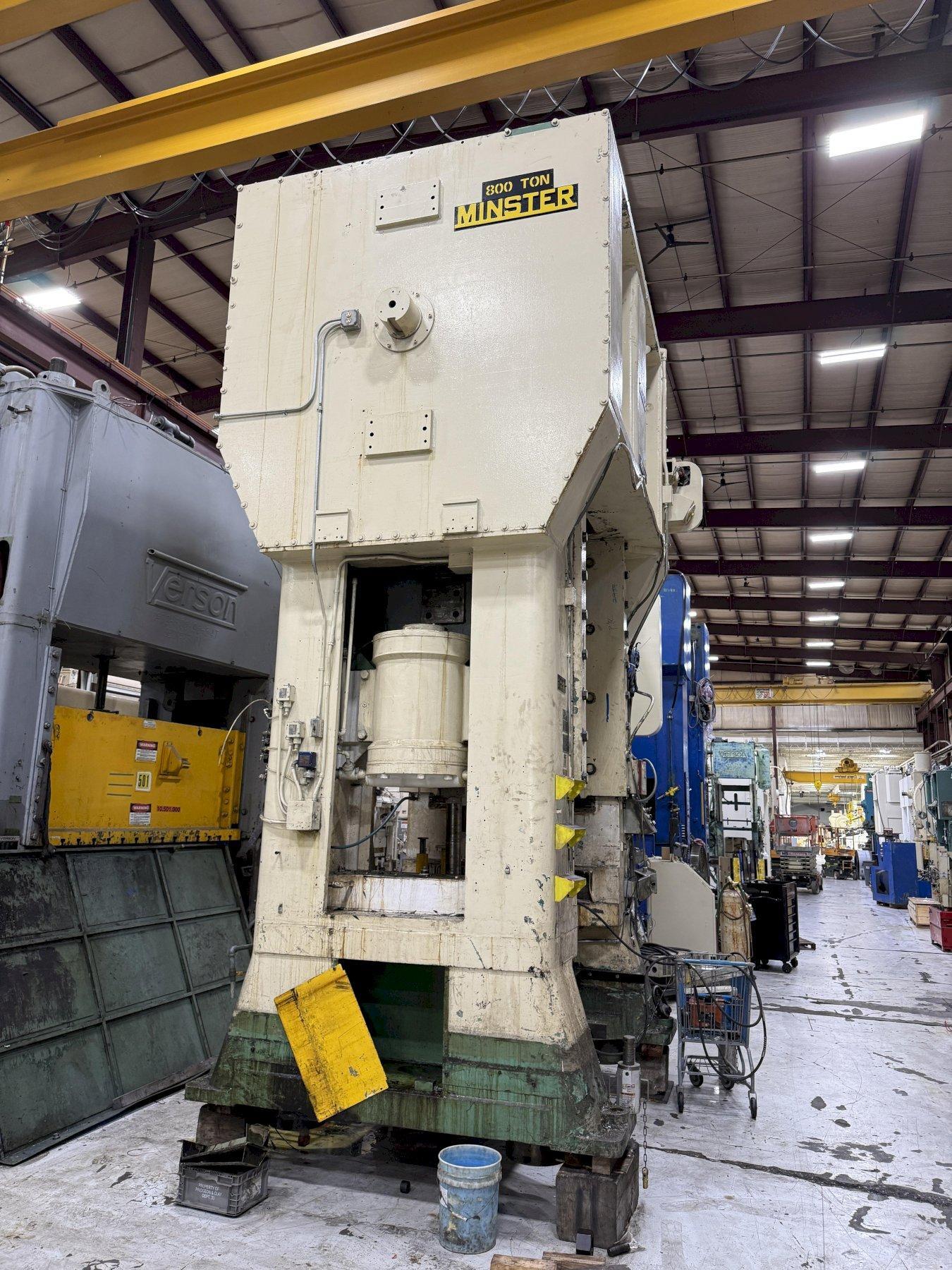

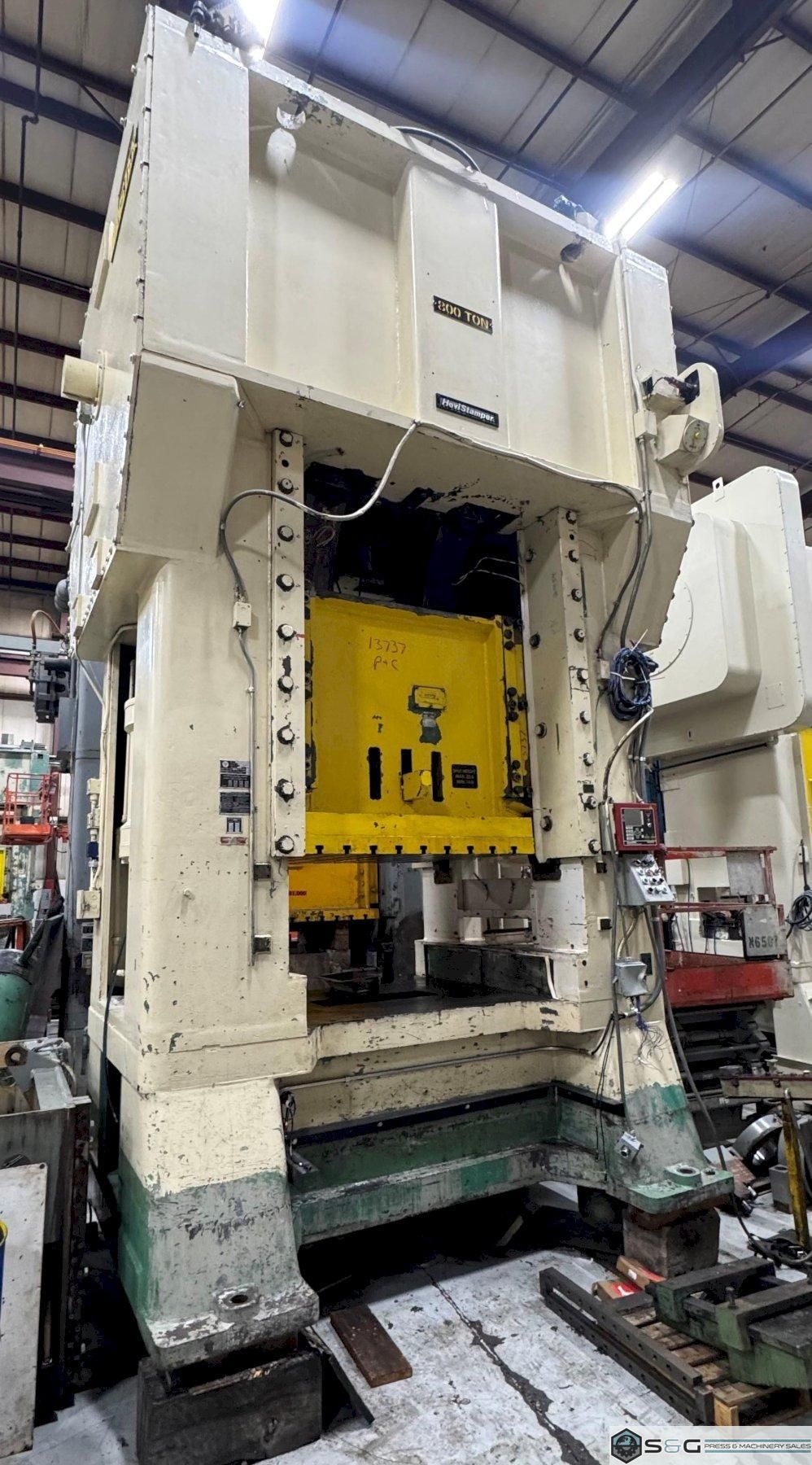

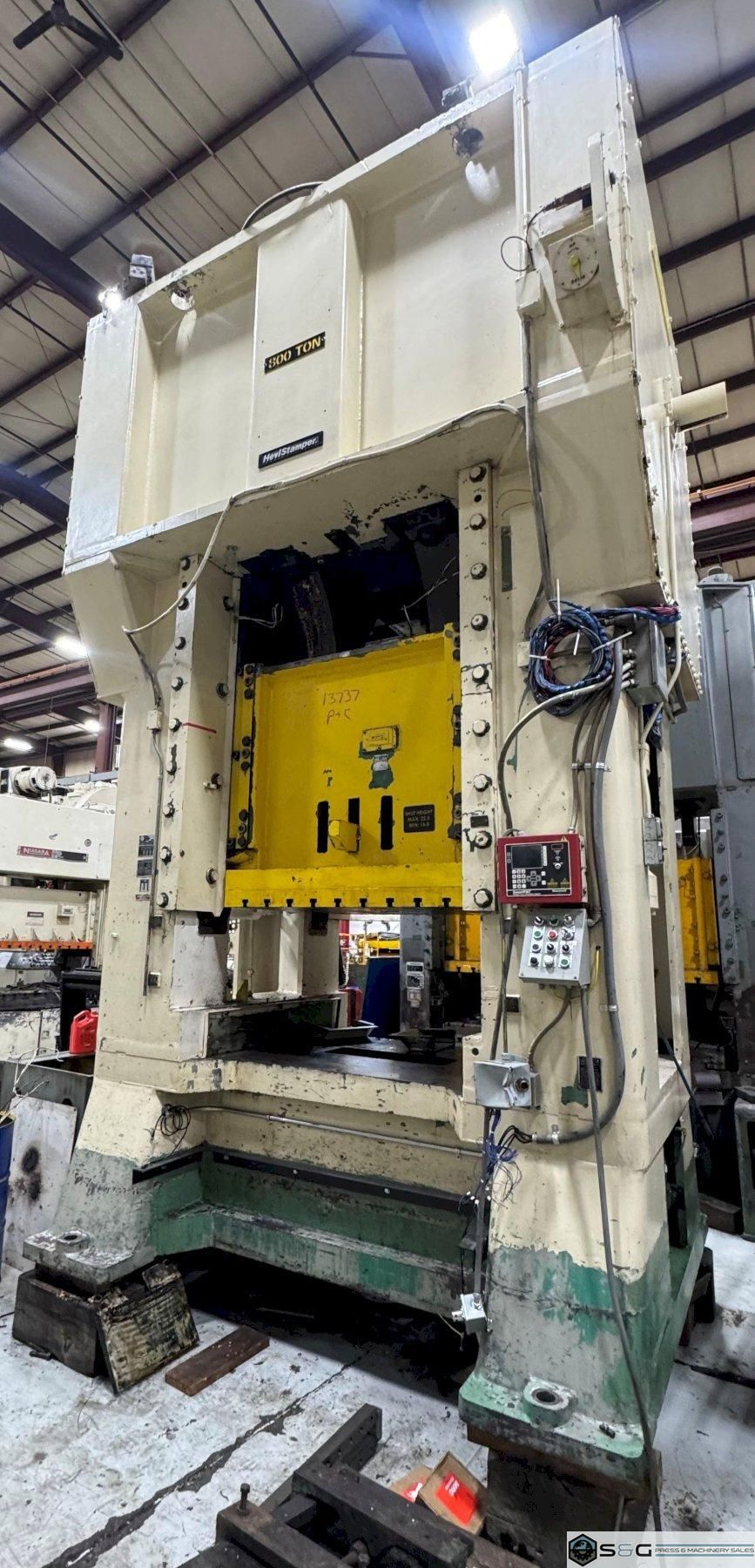

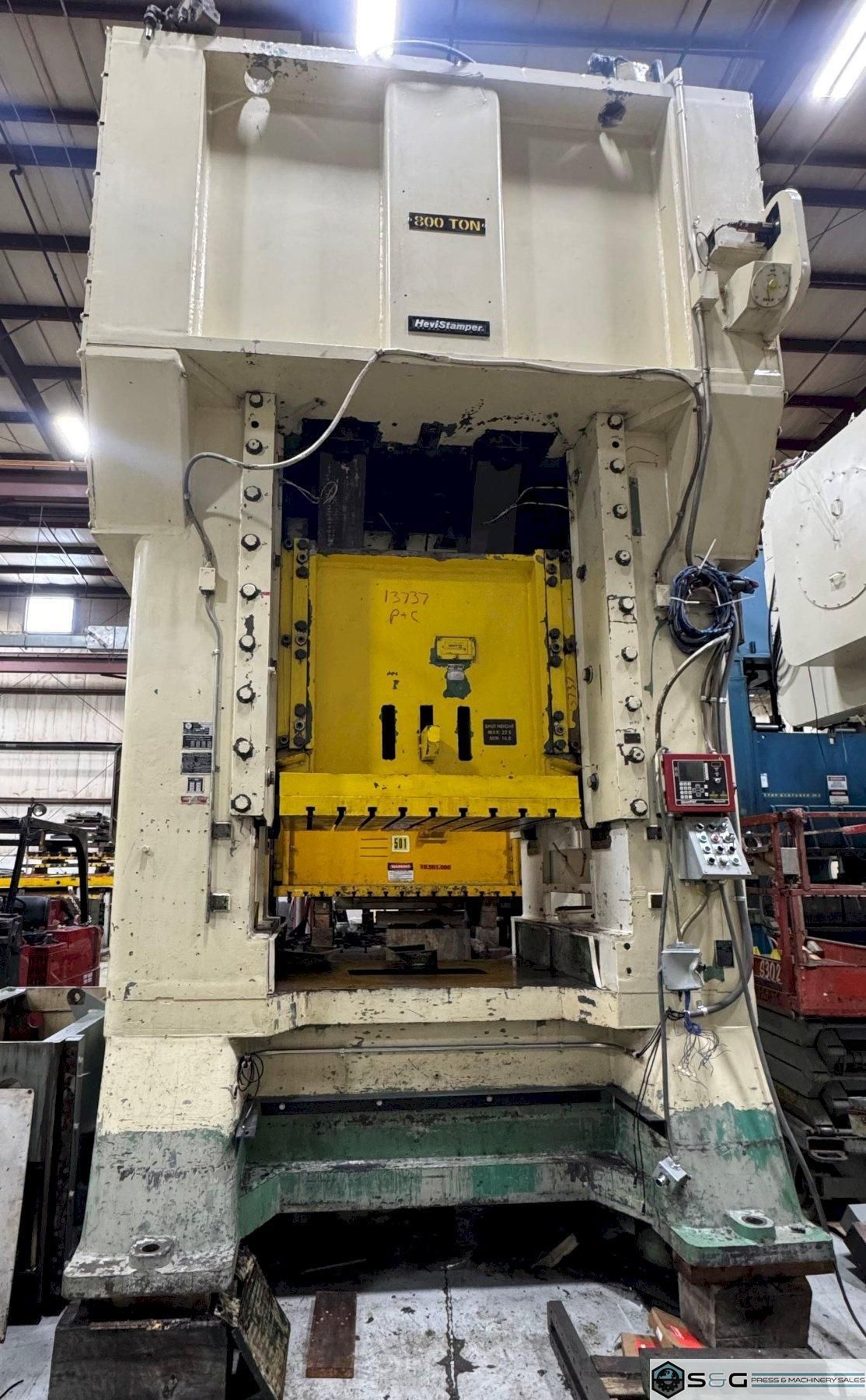

800-ton Minster E2-800-60-48 Hevi-Stamper Straight Side Stamping Press For Sale, Rebuild in Process

Preliminary Specifications
800-ton Minster Heavy Duty Blanking Press

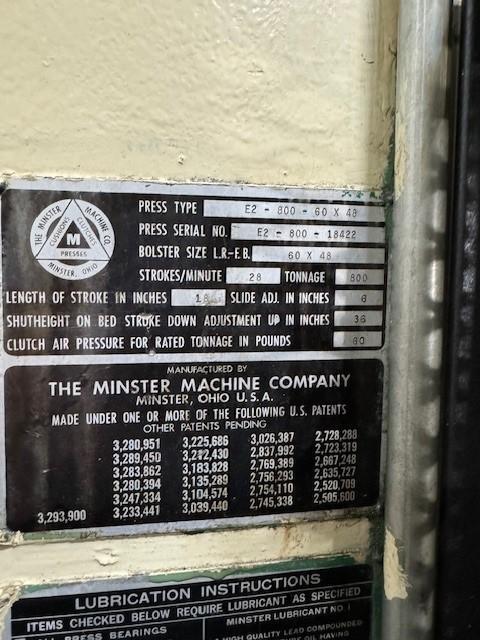

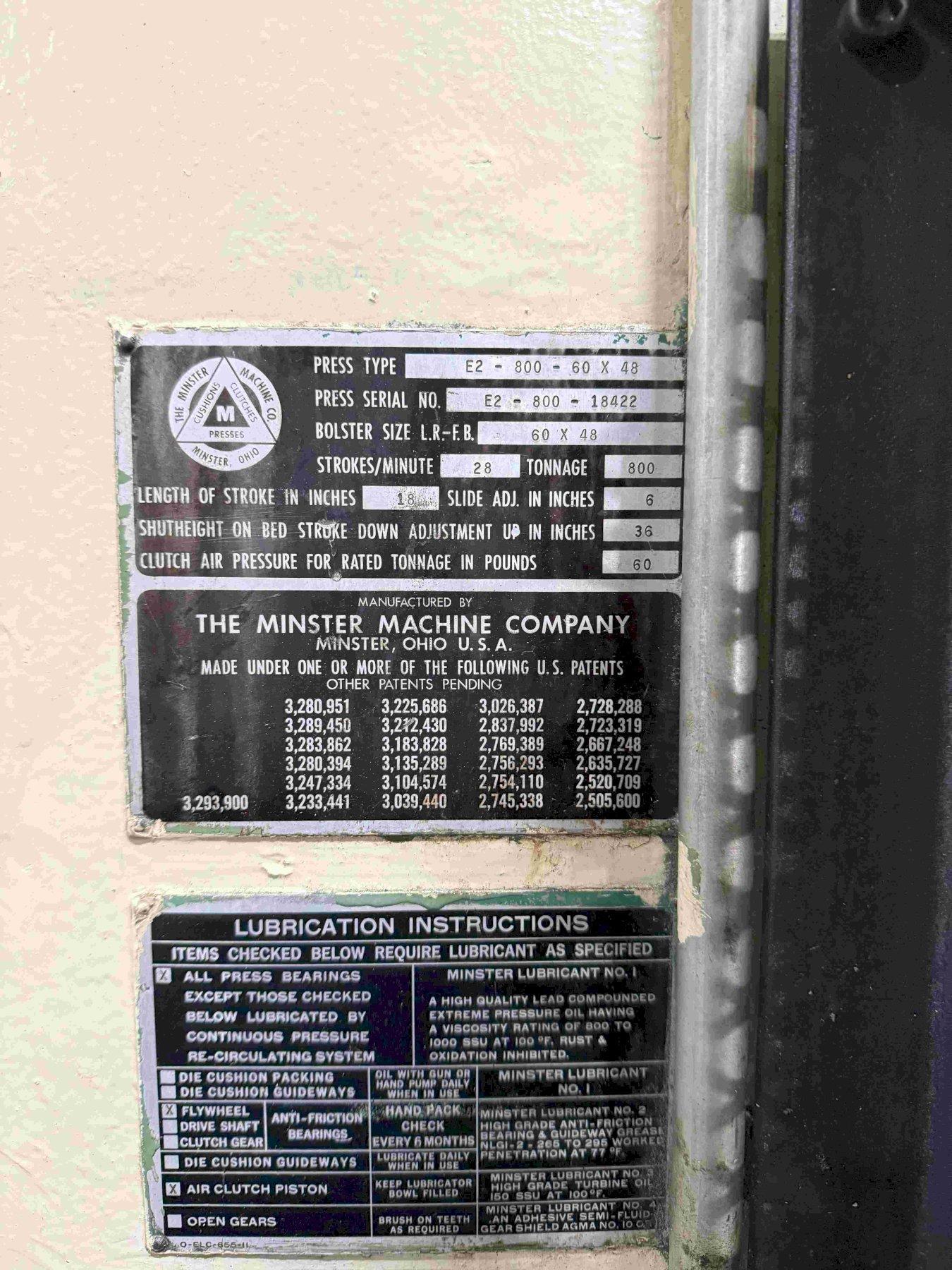

Press Model E2-800-60-48 Hevi-Stamper

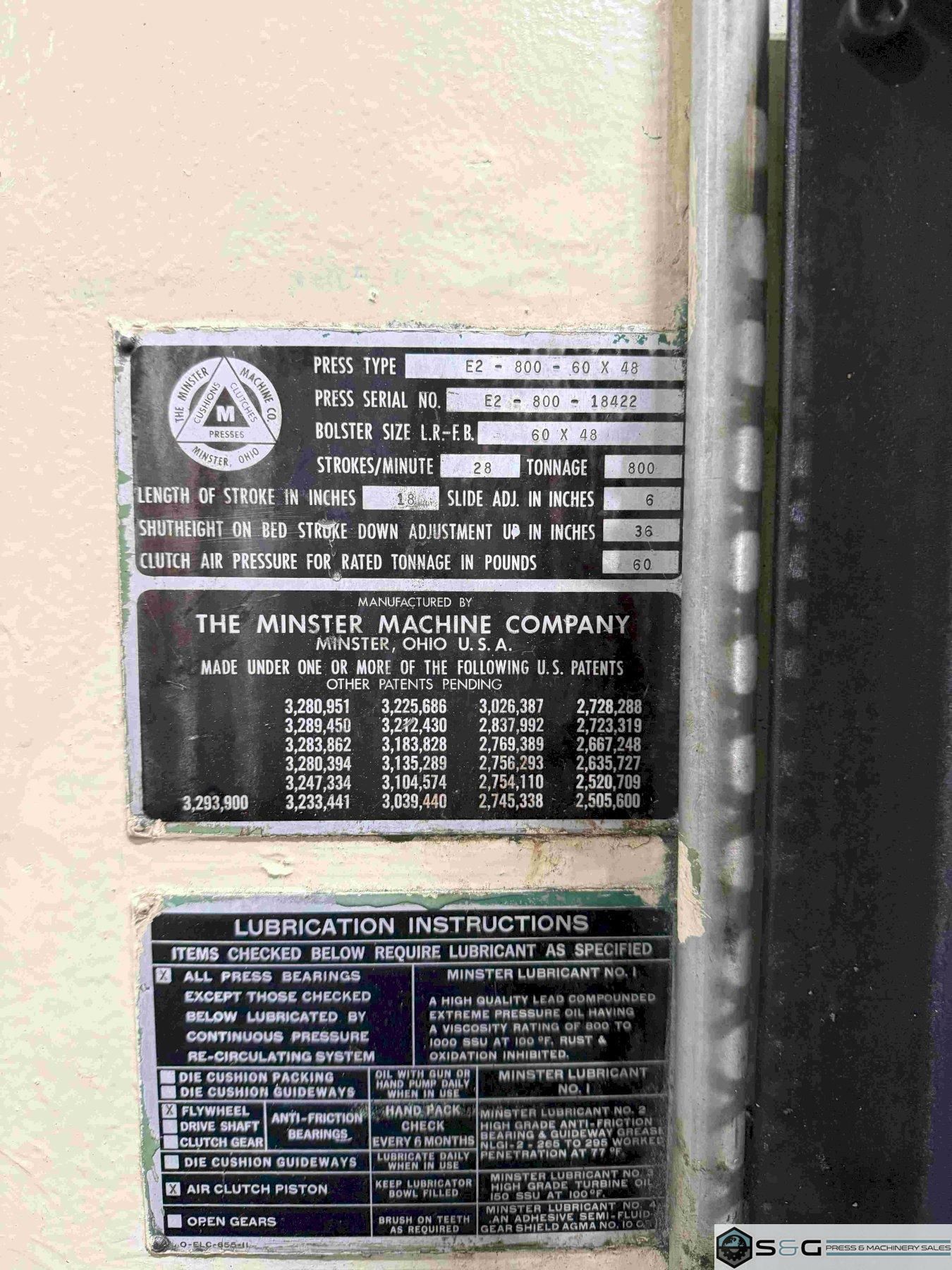

Serial Number 18422
800-ton Capacity
18" Stroke
36" Shut Height on Bed
26.25" Die Height on Bolster
6" Adjustment
60" LR x 48" FB Bed Area
60" LR x 48" FB Slide Area
28 SPM Fixed

Equipment and Features

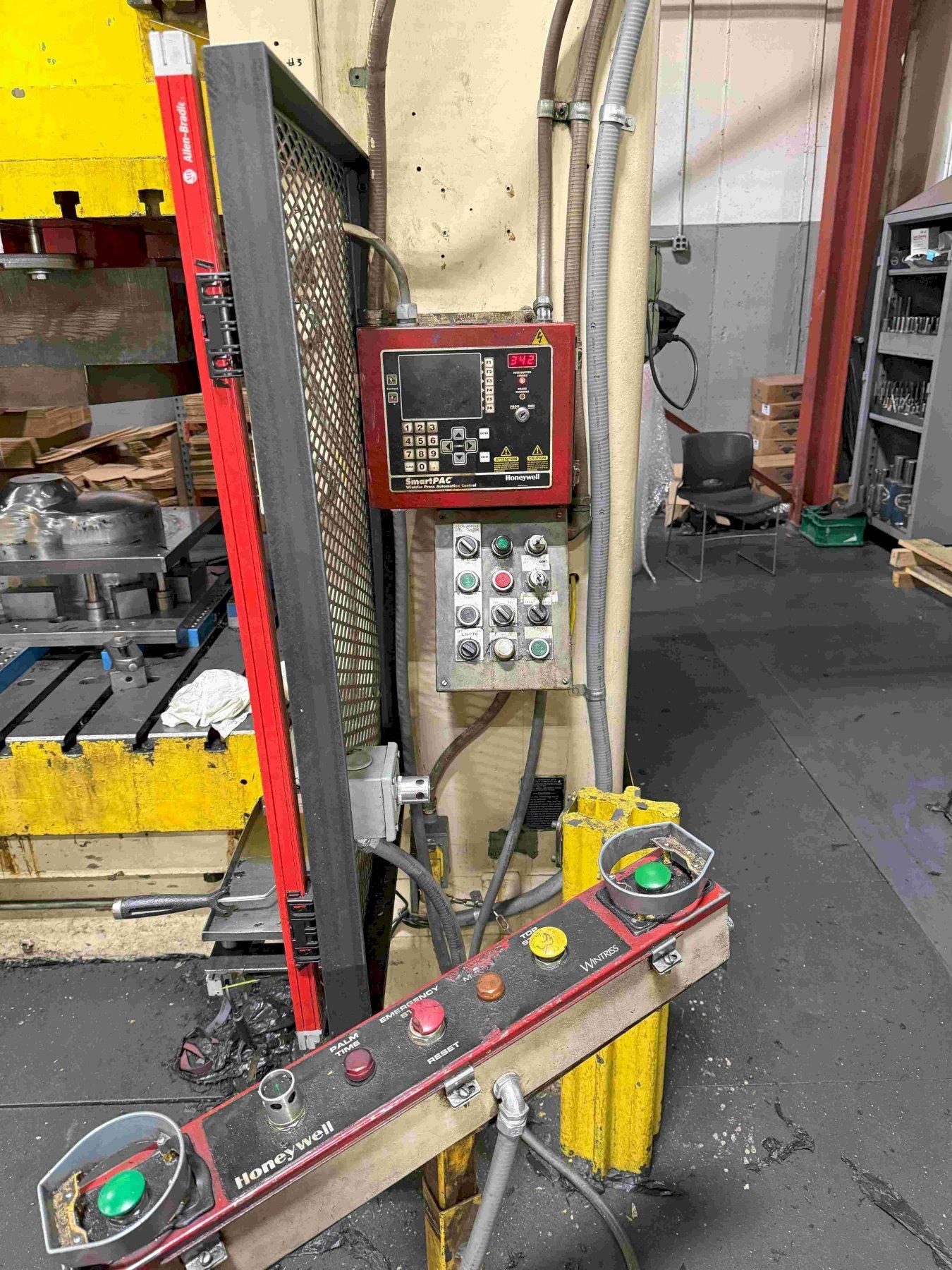

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
9.75" Thick Bolster Plate
T-Slotted Ram and Bolster
8-Point Gibing -  Bronze Lined
Motorized Adjustment
32" Wide Windows
75 HP Main Motor 1200 RPM
Floor Standing

This 800-ton Minster Hevi-stamper can be seen underpower upon request in the S&G Press Warehouse.

Click for more 800-ton Press Options For Sale

Unlock Precision and Durability with a Used Minster E2 HeviStamper Presses

Looking for a reliable, high-speed precision press? Used Minster E2 HeviStamper 800-ton presses are a proven solution for demanding progressive and transfer die applications. The 800 ton Hevi-Stamper eccentric shaft straight side press delivers unsurpassed quality. Benefit from their robust design, including a one-piece forged eccentric shaft and eight-point gibbing for precision.  Equip your operation with a Minster E2 for consistent, high-volume production. Request a quote today.
