Dallas Space Saver Coil Feed Line - 30,000 lbs. x 60" Wide Coil Capacity: For Sale Coil Feed Line

Dallas Space Saver Coil Feed Line - 30,000 lbs. x 60" Wide Coil Capacity: For Sale Coil Feed Line

Name: Dallas Space Saver Coil Feed Line - 30,000 lbs. x 60" Wide Coil Capacity: For Sale Coil Feed Line
Brand: DALLAS
SKU: 3027
Availability: InStock

Type

Coil Feed Lines

Brand

DALLAS

Model

DPR 30000x60 / DRFSH-660

Year

None

Stock #

3027

Condition

Used

Request a Quote

Let's Talk

Specifications
Coil Weight	30000 pounds
Coil Width	60 inches
Coil Thickness	.090 inches

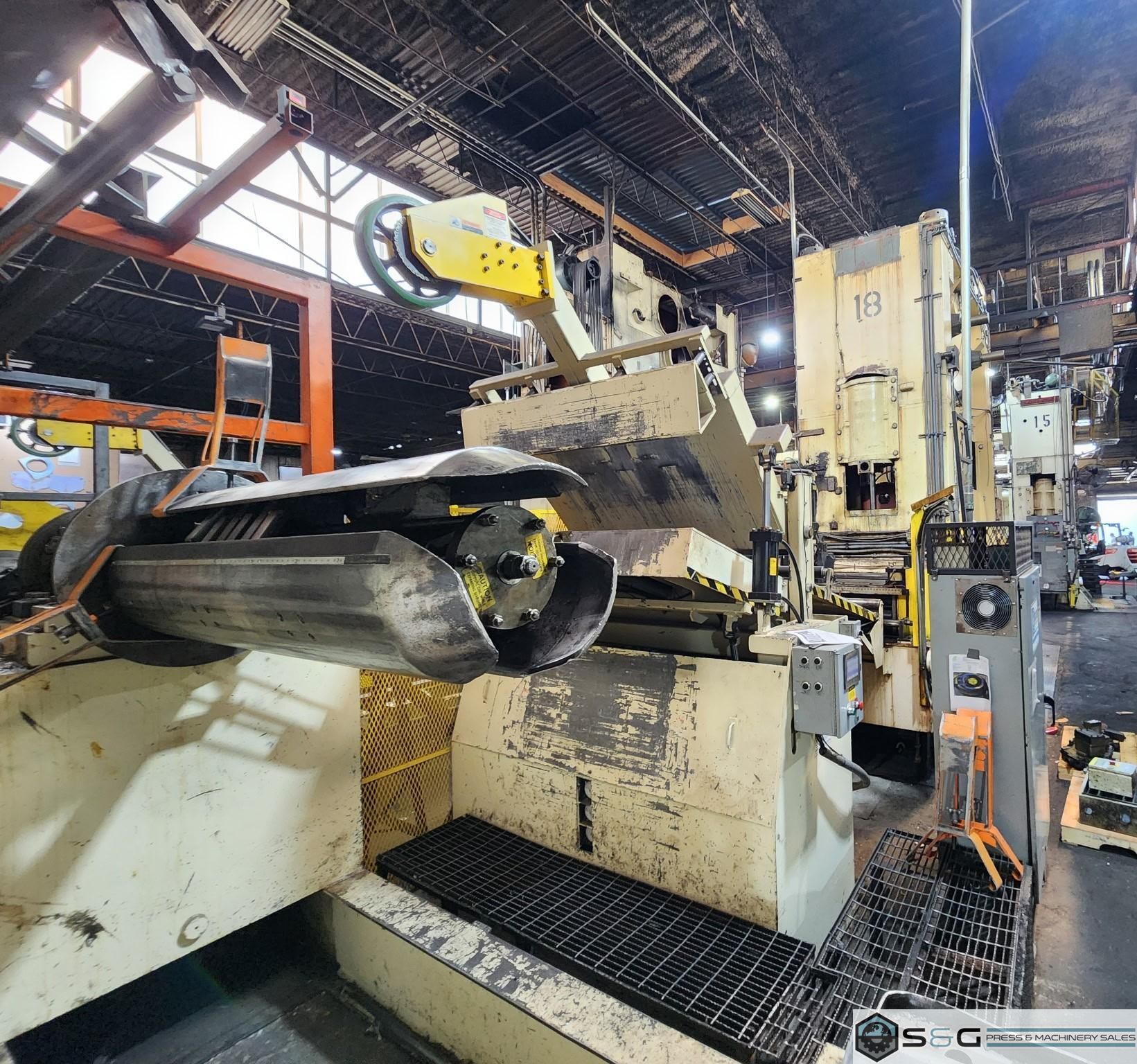

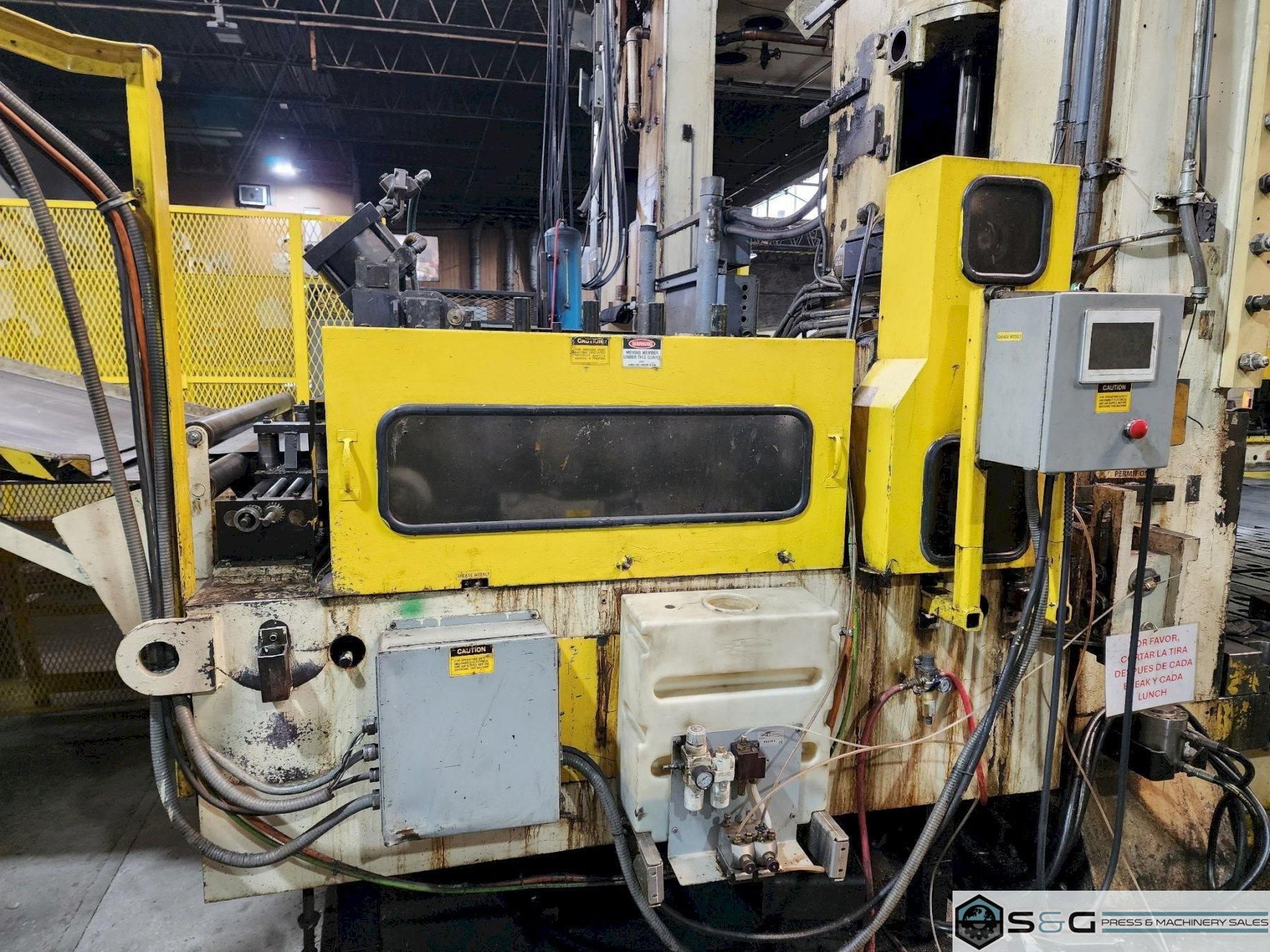

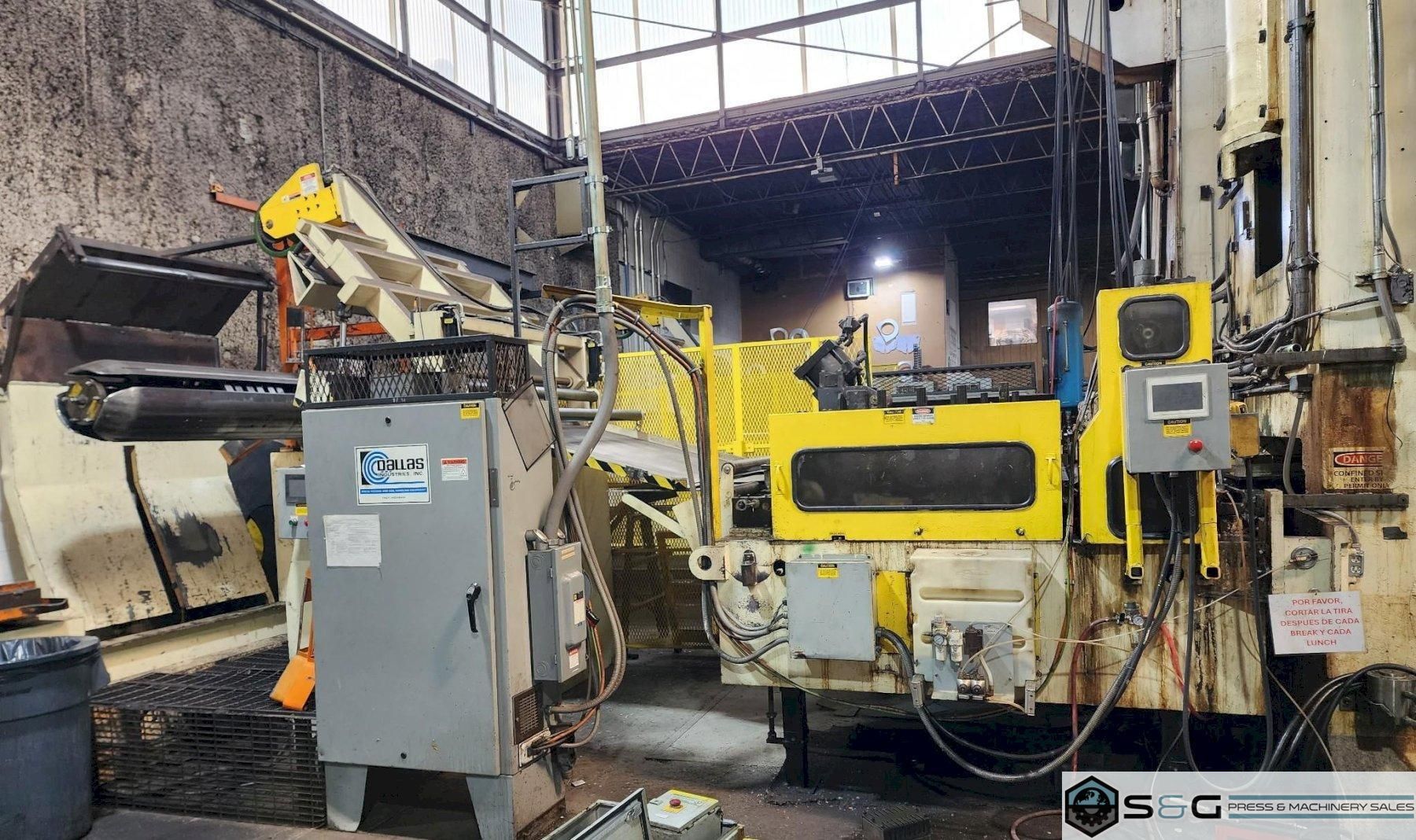

60" Wide Dallas Industries Space Saver Complete Coil Feed Line For Sale Like New Condition! Preliminary Specifications: Coil weight capacity: 30,000 Lbs. Coil width capacity: 60" Stock thickness capacity: .090" x 60 Wide Stock thickness capacity: .187" x 18 Wide Expansion range: 20" - 24" Coil OD capacity: 72" Dallas Industries Space Saver complete Coil Feed Line Equipment and Features: Dallas Industries Coil Reel Uncoiler Model No.: DPR 30000# x 60 Three leaf mandrel coil reel Hydraulic coil reel mandrel expansion Motorized variable speed coil reel payout Space saver loop control system Dallas Ind. Traveling Coil Load Car Model No.: LC-300 Coil load car track Powered lift and travel Narrow coil supports Free standing coil hold down station Hold down arm with motorized end wheel Stock threading table Stock peeler extension Dallas Ind. Servo Roll Feed Straightener Combination Press Feed Model No.: DRFSH-660 Six inch diameter full width upper and lower servo feed rolls Matte chrome finish on servo feed rolls Air operated upper servo feed roll adjustment / pilot (dual cylinder) Centralized lubrication points Roller stock width edge guides with individual or unison upper roll adjustments Cabinet base mounted with heavy duty pass line adjustment Motorized pass line adjustment Solenoid controlled pilot release Air pressure/regulators flush mounted in cabinet base Seven coil straightening rolls Individual upper coil straightening roll adjustments Motorized coil straightener pinch roll for stock threading Air operated upper coil straightener pinch roll adjustment Cascade loop support rollers Stock width reference scale AC servo roll feed drive and controls Can be seen under power in the S&G Press and Machinery Warehouse! Move More Metal: Like-New 60" Dallas Space Saver Coil Feed Line Maximize your shop floor efficiency with this like-new 60" Dallas Industries Space Saver Complete Coil Feed Line. Built to handle a massive 30,000 lbs. coil capacity, this robust system processes material up to 60" wide and thicknesses from .090" at full width to .187" at 18" wide. Featuring a DRFSH-660 Servo Roll Feed Straightener combination, a high-capacity traveling coil car, and motorized loop controls, it delivers precision and speed without consuming valuable square footage. Why Buy From S&G Press? Investing in heavy stamping machinery requires trust, technical expertise, and transparency. At S&G Press, we bring over 26 years of industrial machinery experience to ensure your capital investment is seamless. This premium Dallas Space Saver isn't just sitting in a catalog—it is fully set up and can be seen under power in our warehouse today. Don't risk buying blind; partner with S&G Press to inspect the mechanical, pneumatic, and lubrication systems firsthand before you buy.

Attachments
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information.

Machine Tags
Space Saver Coil Feed Line, Used Dallas Coil Feed Line, Dallas Coil Feed Equipment, Dallas Industries Servo Feed, Dallas Feed Equipment For Sale

Highlights
- Heavy-duty design accommodating coils up to 30,000 lbs and 60 inches in width, ensuring robust performance for demanding applications. - Space-saving layout, optimizing floor space without compromising functionality, ideal for compact production environments. - Advanced feed technology ensures precise and consistent material delivery, enhancing overall production efficiency and reducing waste. - Versatile compatibility with various coil types and materials, allowing for seamless integration into existing operations. - Reliable operation with minimal maintenance needs, promoting long-term productivity and reducing downtime.
