MINSTER MEF7-32 Servo Feeder - 32" Width, .125" Thickness

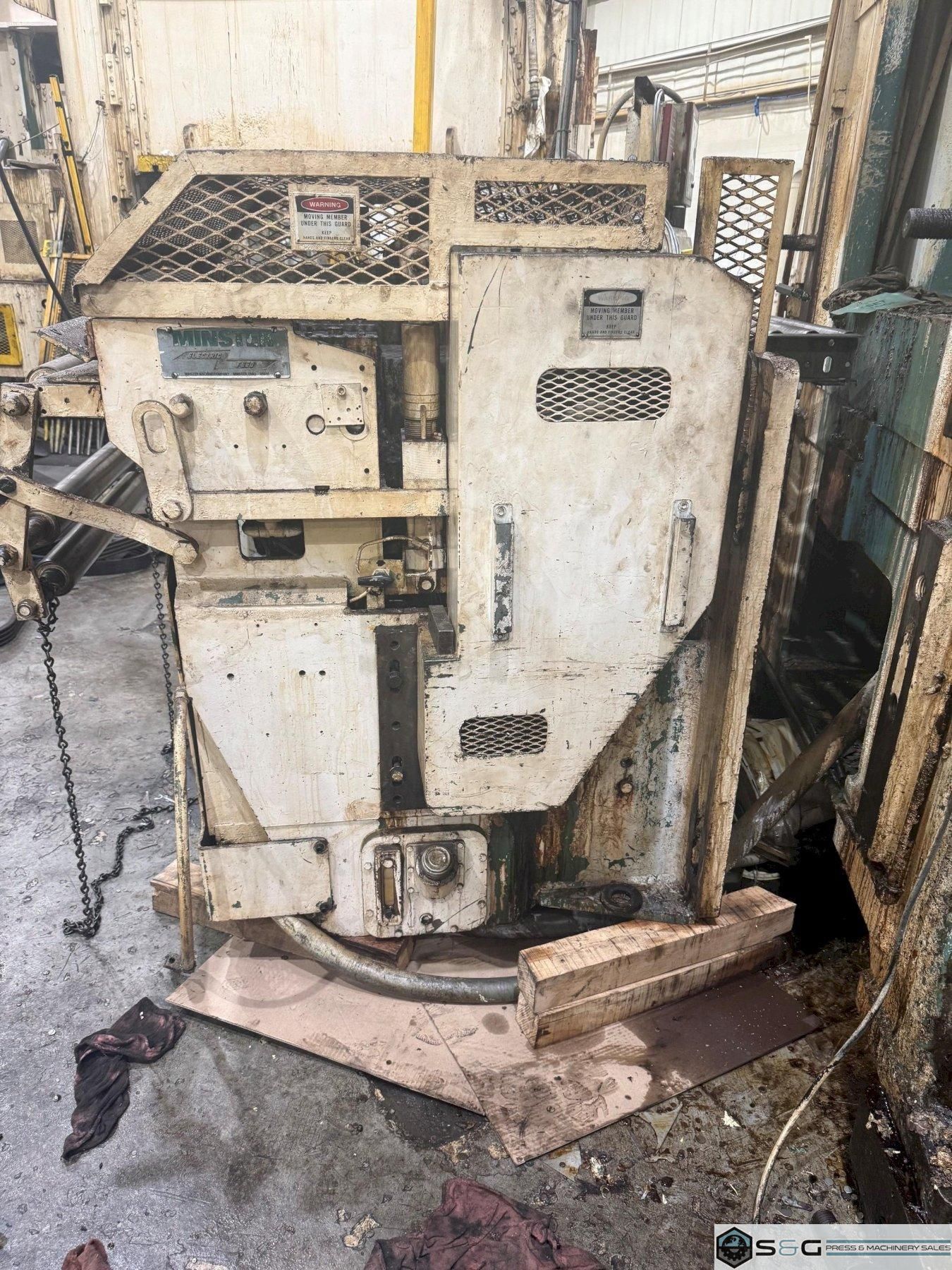

Minster Single Roll Electric Drive Feed
Model: MEF7-32

32" @ .125" Material Capacity
16" @ .250" Material Maximum Capacity

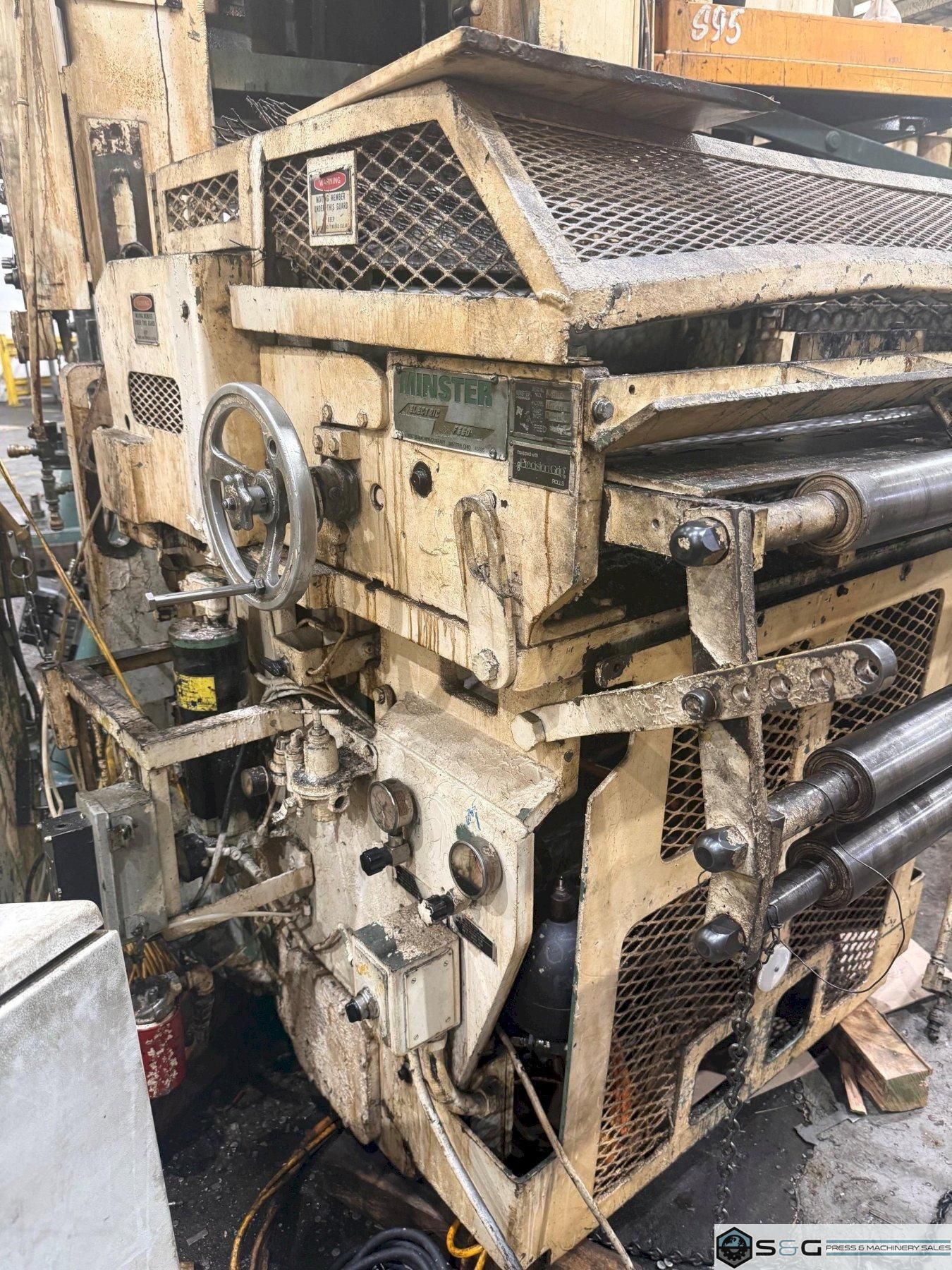

Low inertia feed rolls are 6.366" in diameter
Standard hardened and ground smooth chrome finish
Both upper and lower feed rolls are mounted in anti-friction bearings and are driven thru precision square gearing to maintain full tooth engagement during roll lift and varying material thicknesses.
Includes electro-hydraulic automatic roll lifters
Roll lift dwell and position is totally adjustable thru a programmable limit switch.
A manual control is provided to open rolls for strip
Material is automatically clamped in event of a power loss.
Power feed line height adjustment thru full range driven by a hydraulic motor

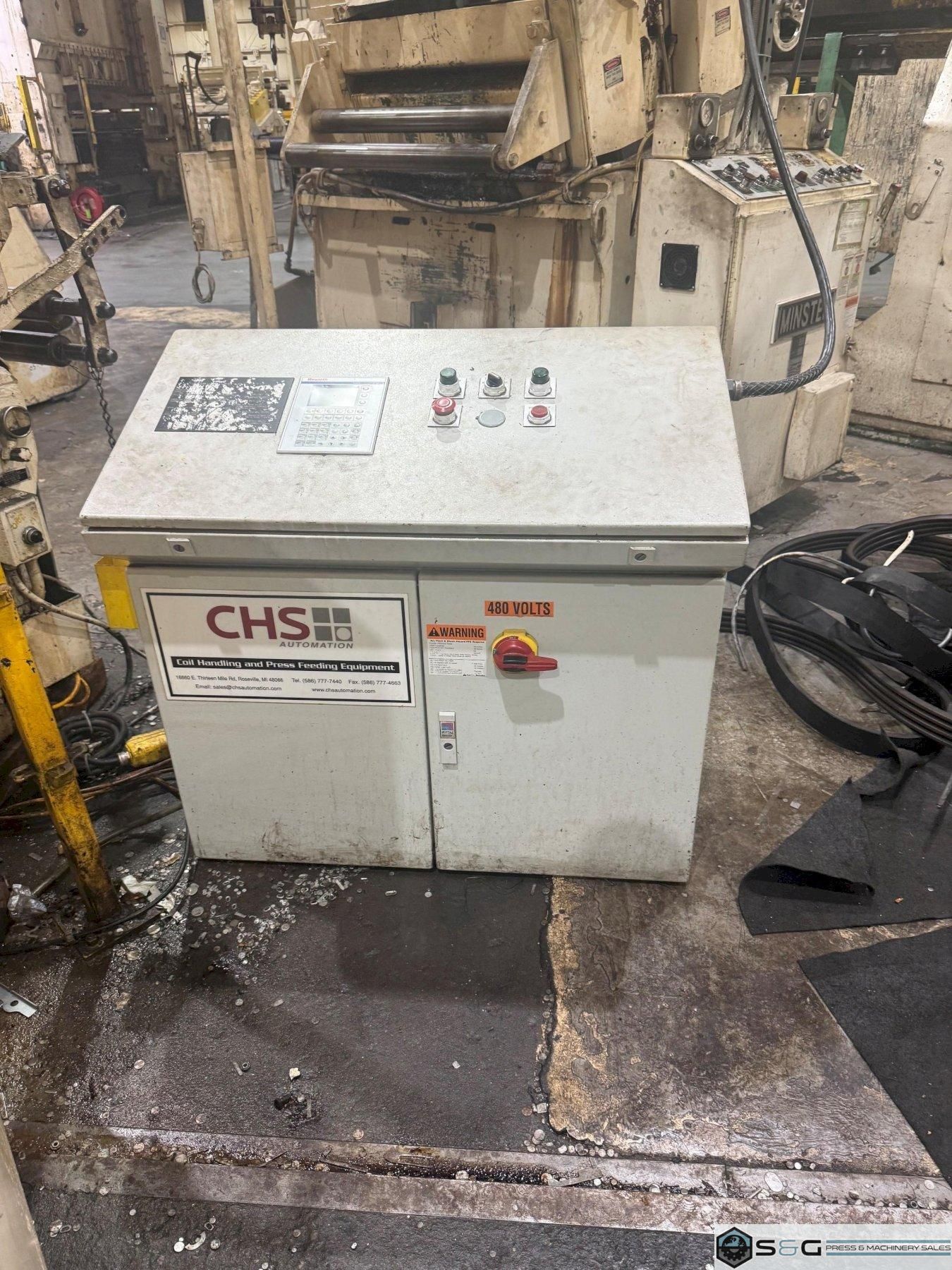

Update Rexroth Control Package - VCP-08
Voltage: 480/3/60

Maximize your stamping efficiency with this Minster Servo Feed, fully updated with advanced Rexroth VCP 08 controls. Engineered for high-precision coil feeding, this reliable servo feed delivers exceptional accuracy, seamless integration, and minimized downtime. Optimize your automotive or heavy-industrial press room production with modern control technology today.
