10000 Lbs. PERFECTO Servo Feed Line, 14" @ .250" Capacity

Brand

PERFECTO

Model

DR100-14 / 38-14-7

Year

1992

Stock #

2274

Condition

Used

Request a Quote

Specifications

Coil Weight

10000 pounds

Coil Width

14 inches

Coil Thickness

.250 inches

Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 14"
Stock thickness capacity: .250" @ 14" Wide
I.D. Expansion range: 20" Adjustable
Coil OD capacity: 60"
Serial No.: SS-91086

Equipped With:

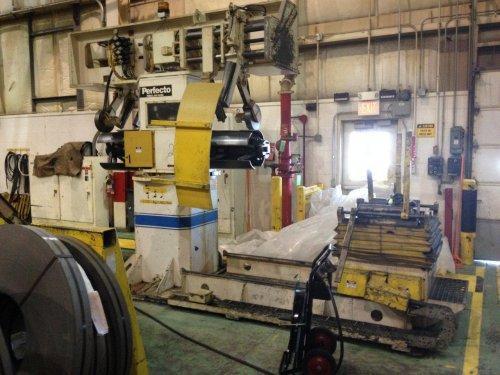

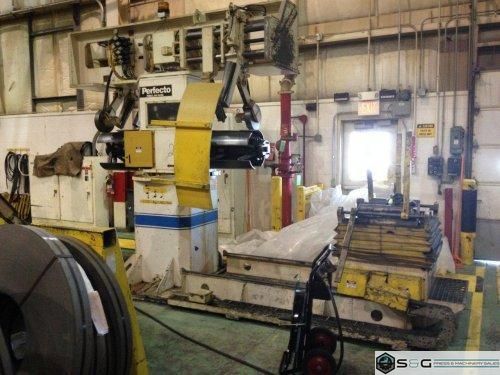

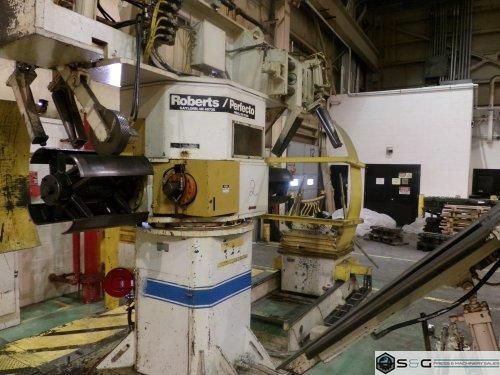

Double End Coil Reel Model No. DR100-14
Three leaf mandrels
Hydraulic mandrel expansion
Thread drives for jog forward and reverse
Powered mandrel rotation (indexing)
Air brakes mounted on main spindles
Adjustable tensioning
Coil hold down arms with motorized end wheel
Coil loading car with powered lift and travel

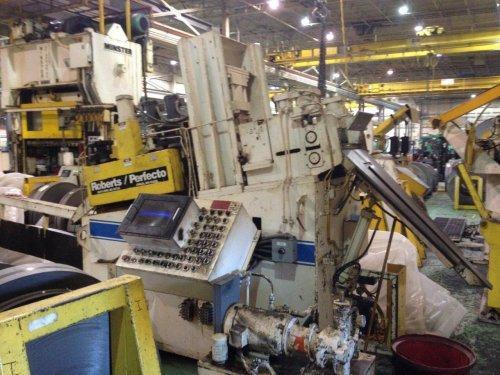

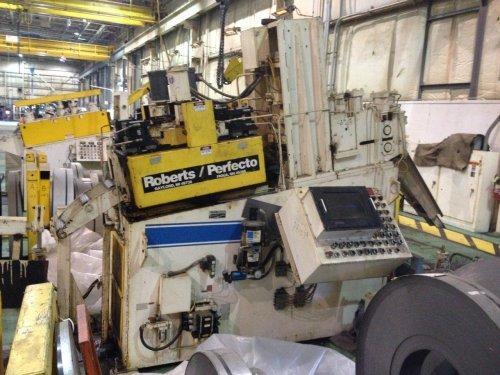

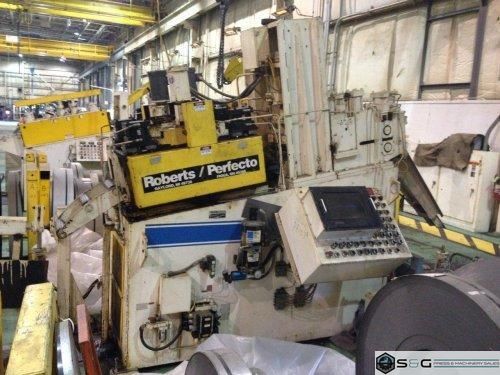

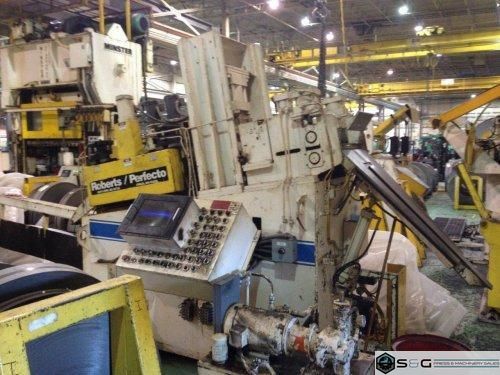

Powered Straightener Model No. 38-14-7
Entry and exit pinch rolls with air operated adjustments
Seven straightening rolls x 3.8" diameter
Motorized individual upper straightening roll adjustments
Stock peeler table with extension
Stock end de-bender
Heavy duty hand crank edge guides
Variable speed drive system
Automatic lubrication system
Exit cascade loop support rollers

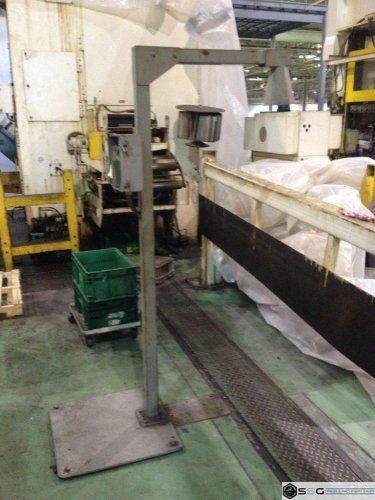

Ultrasonic variable speed loop control

Exit Thread Table Model No. ETT-14
Bomb-Bay Door style

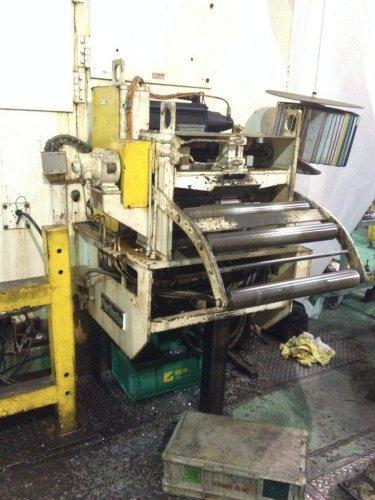

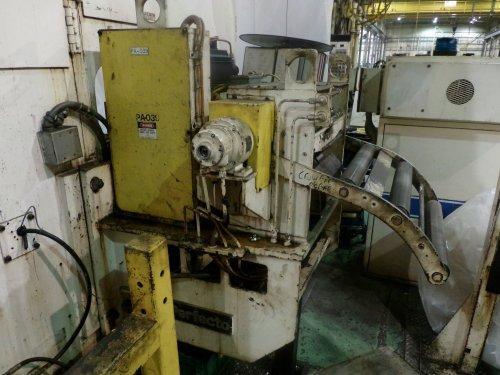

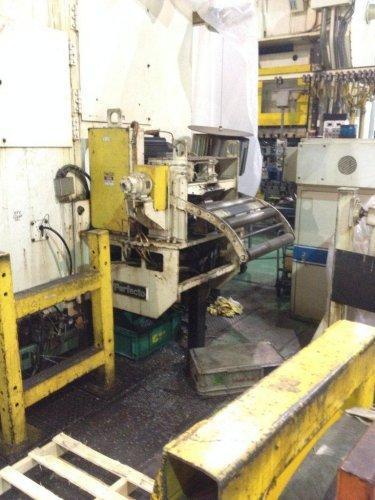

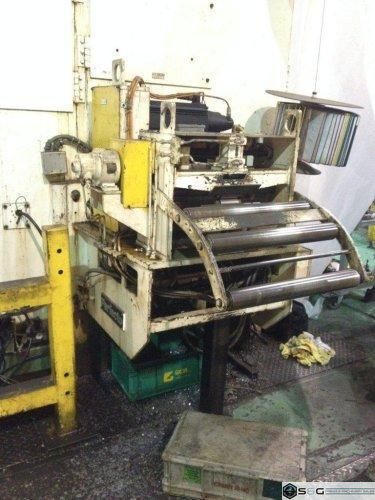

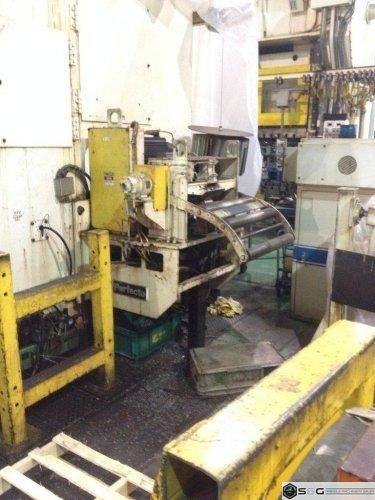

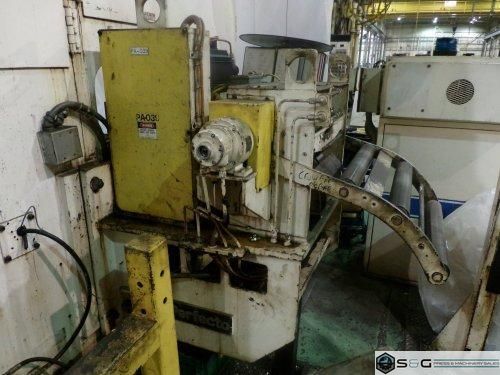

Servo Roll Feed Model No.: 600-14 / Serial No.: E6
Six inch diameter upper and lower feed rolls
Matte chrome finish on feed rolls
Air operated upper roll adjustment/pilot
Solenoid controlled pilot release
Dual adjustable edge guides - motorized
Anti back up roll - air operated
Centralized lubrication points
Press mounted
INDRAMAT AC servo drive and controls
