Specifications |
|||
---|---|---|---|
Coil Weight | 10000 pounds |
||
Coil Width | 24 inches |
||
Coil Thickness | .187 inches |
||
Standard Specification 10,000 lbs. Maximum Coil Capacity
24" Maximum Stock Width Capacity
.187" Maximum Stock Thickness At Full Width:
20"-24" ID Range
72" Maximum Coil O.D. capacity
Stock thickness capacity: .187" x 24" Wide
Stock thickness capacity: .250" x 12" Wide

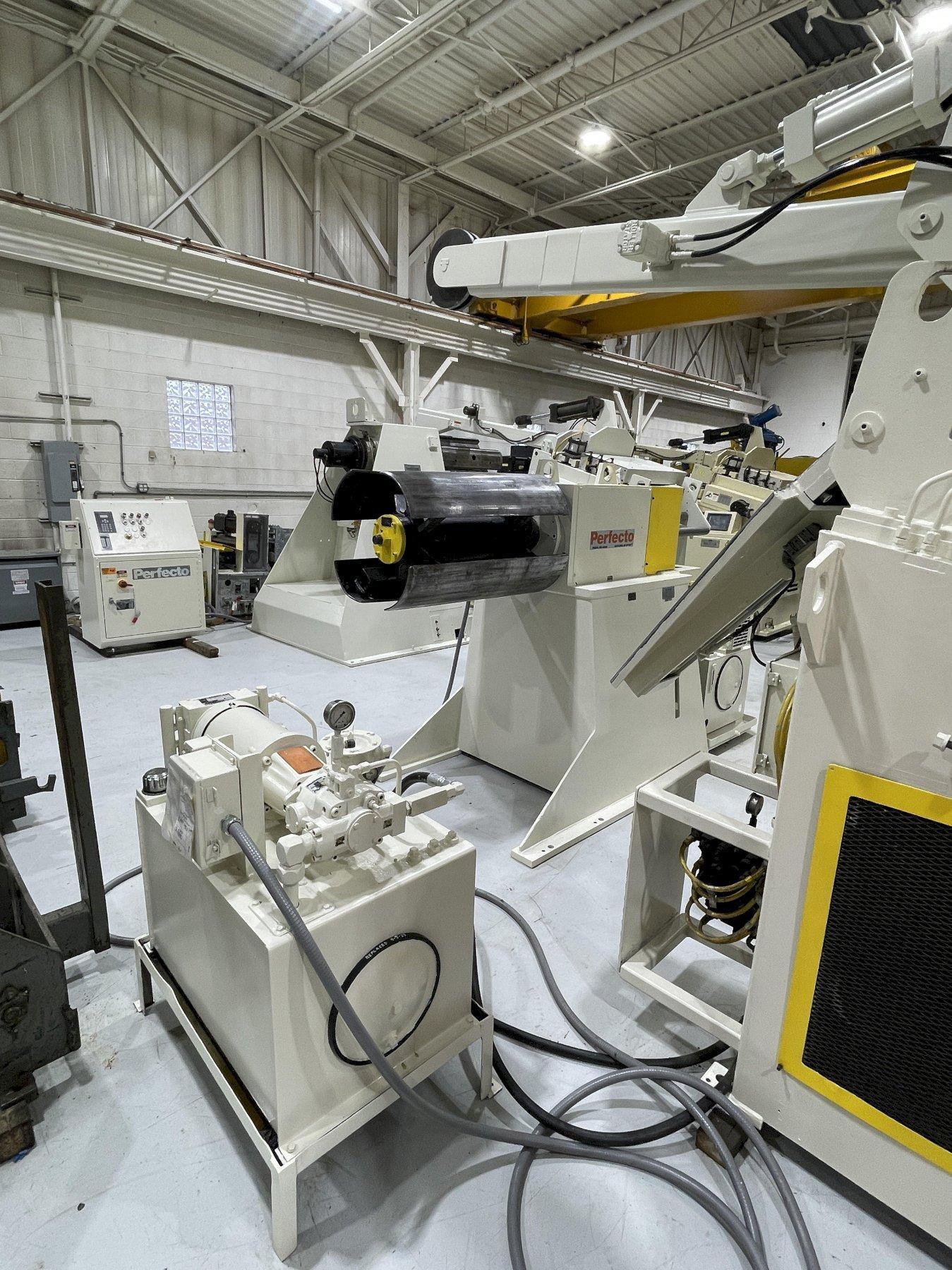

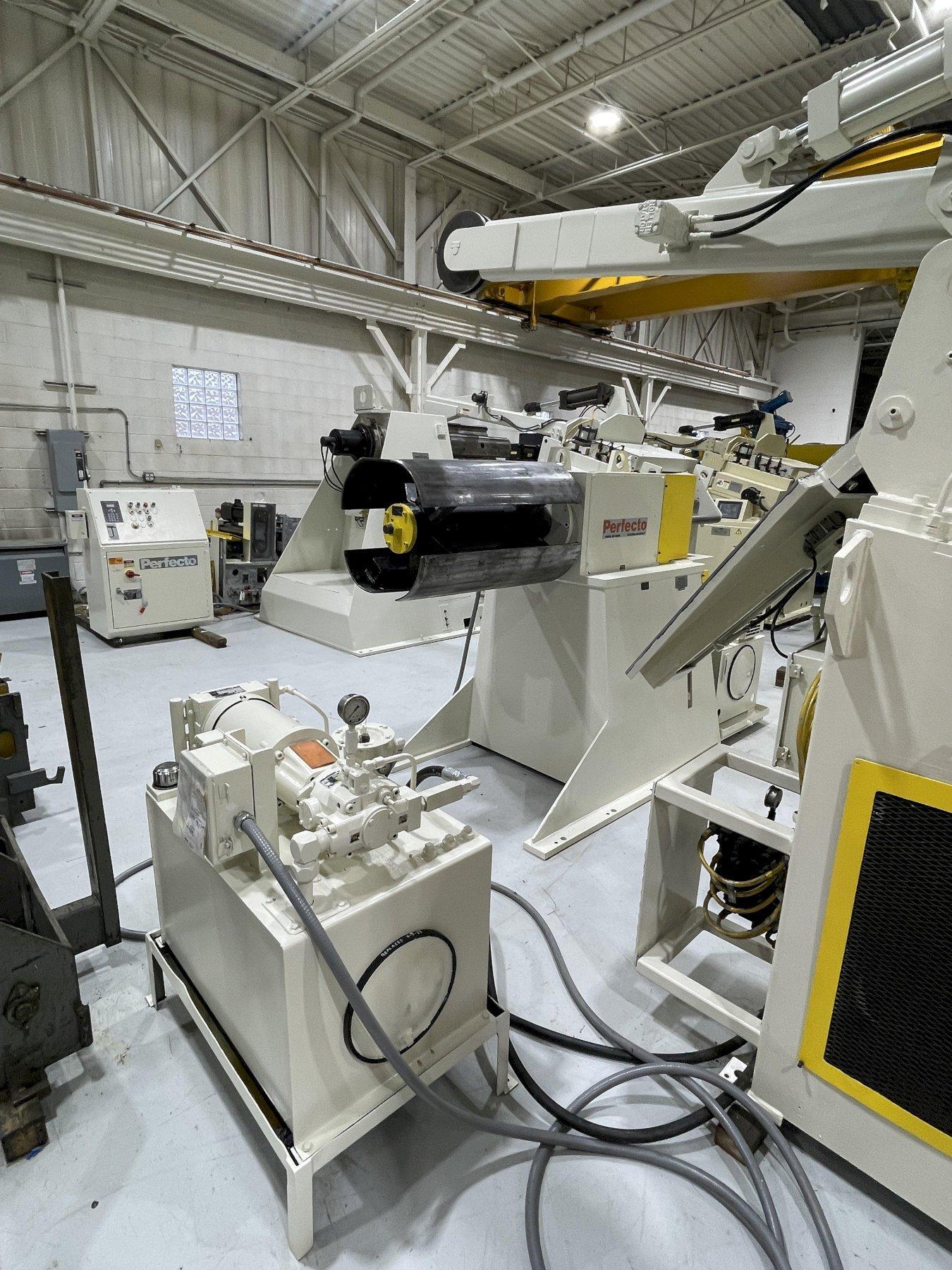

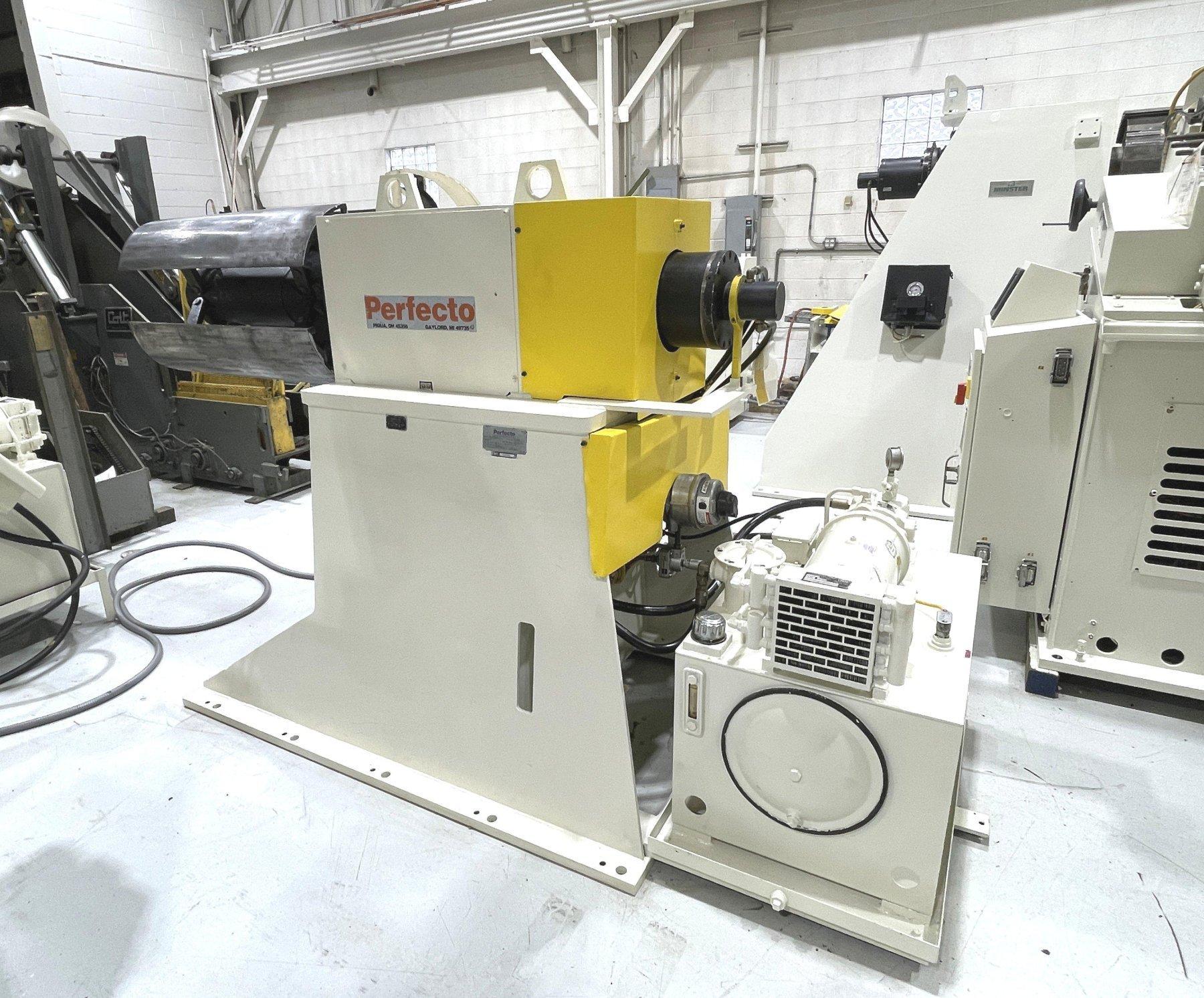

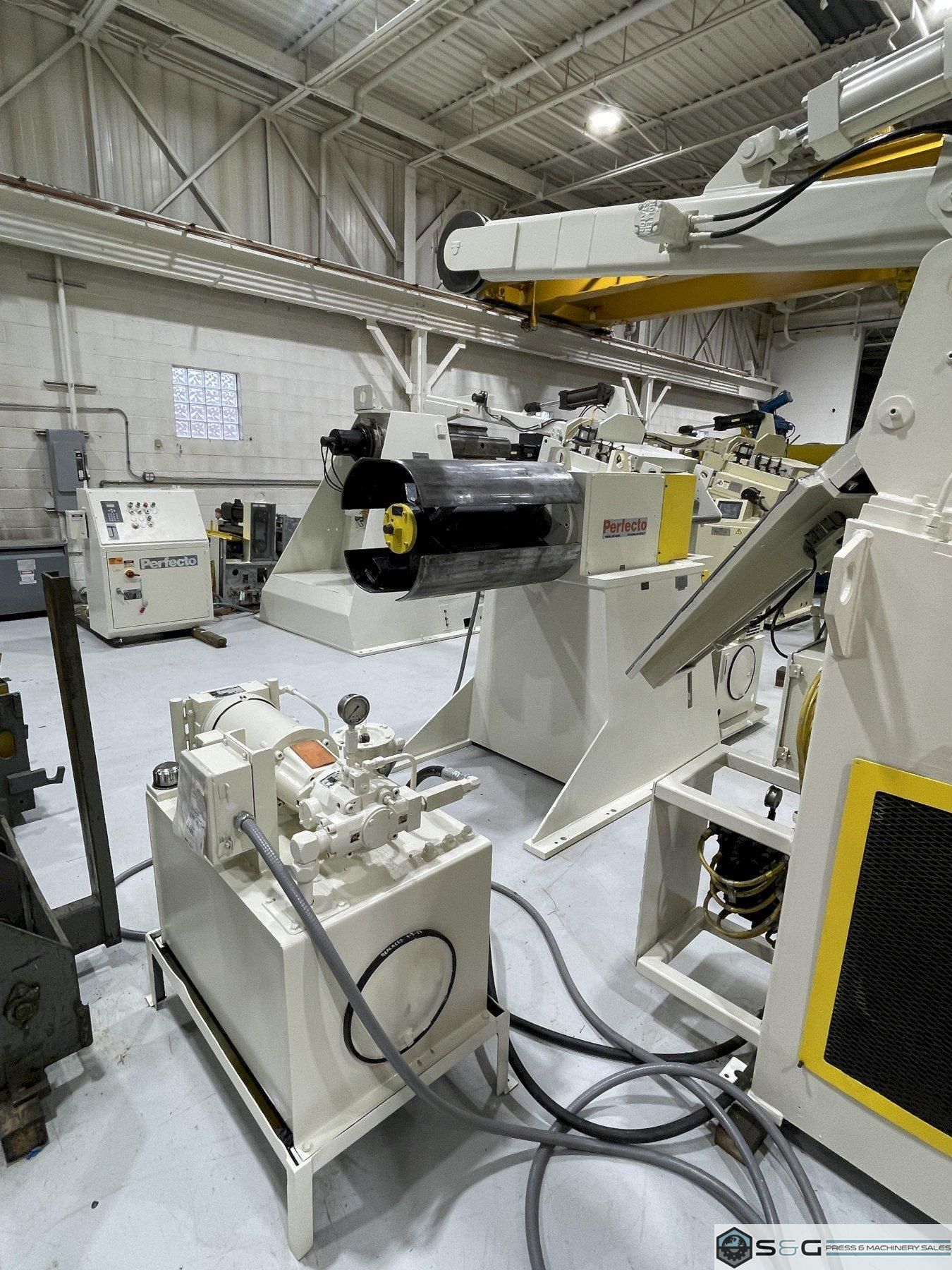

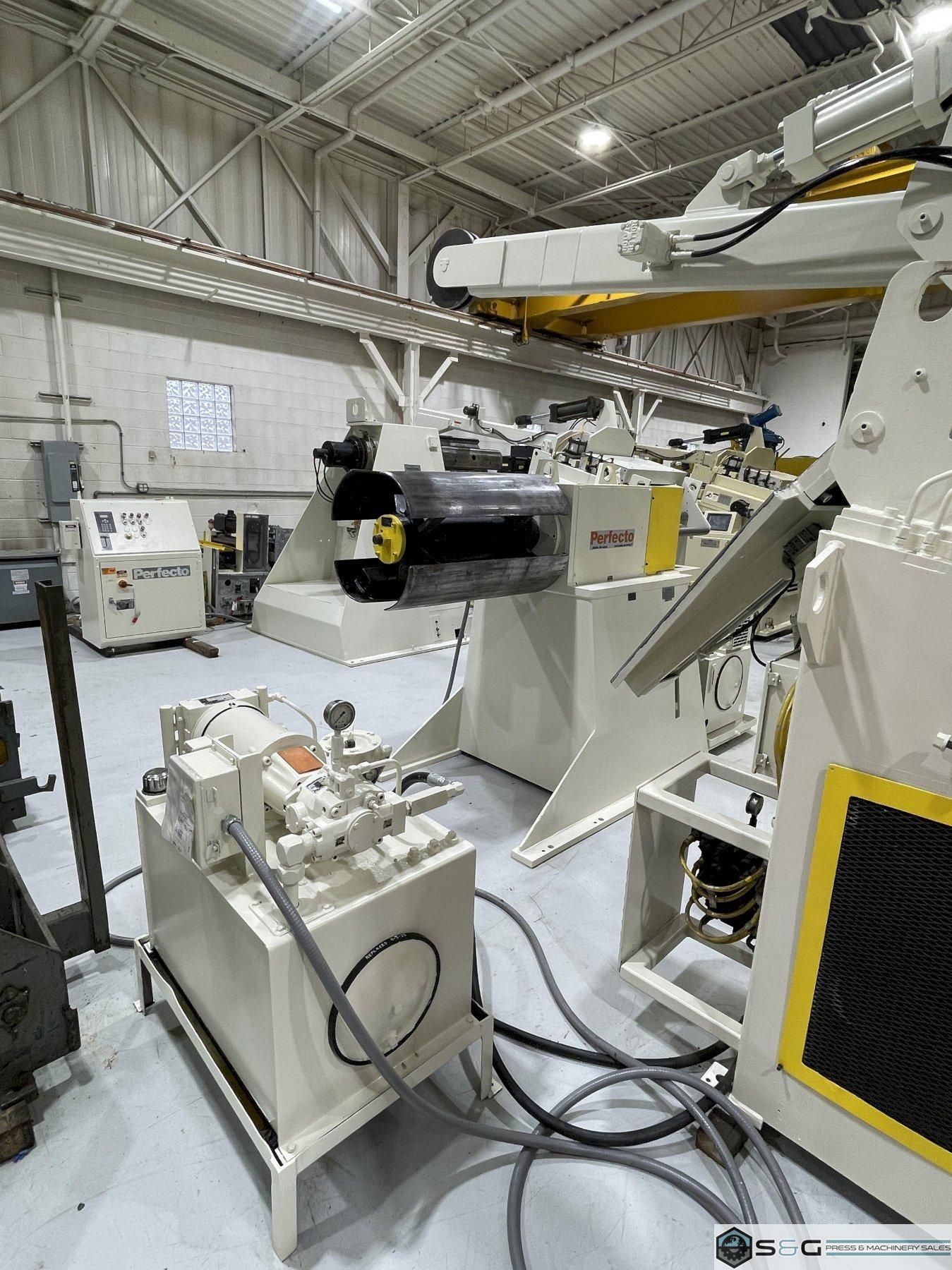

Perfecto Coil Reel Model No. RS10
Three leaf mandrel with mandrel expansion
Threading drive for jog forward and reverse
Air brake mounted on main spindle

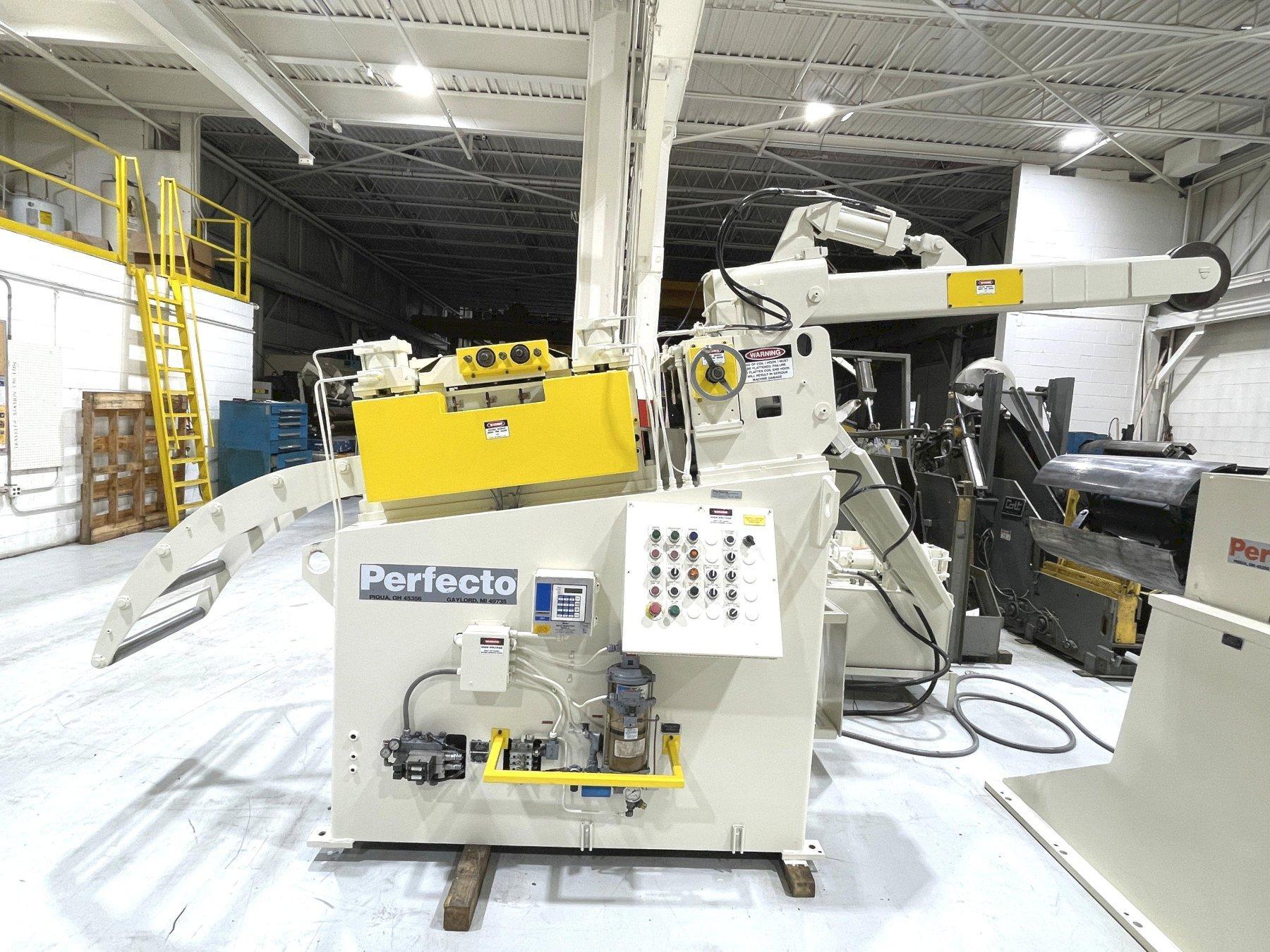

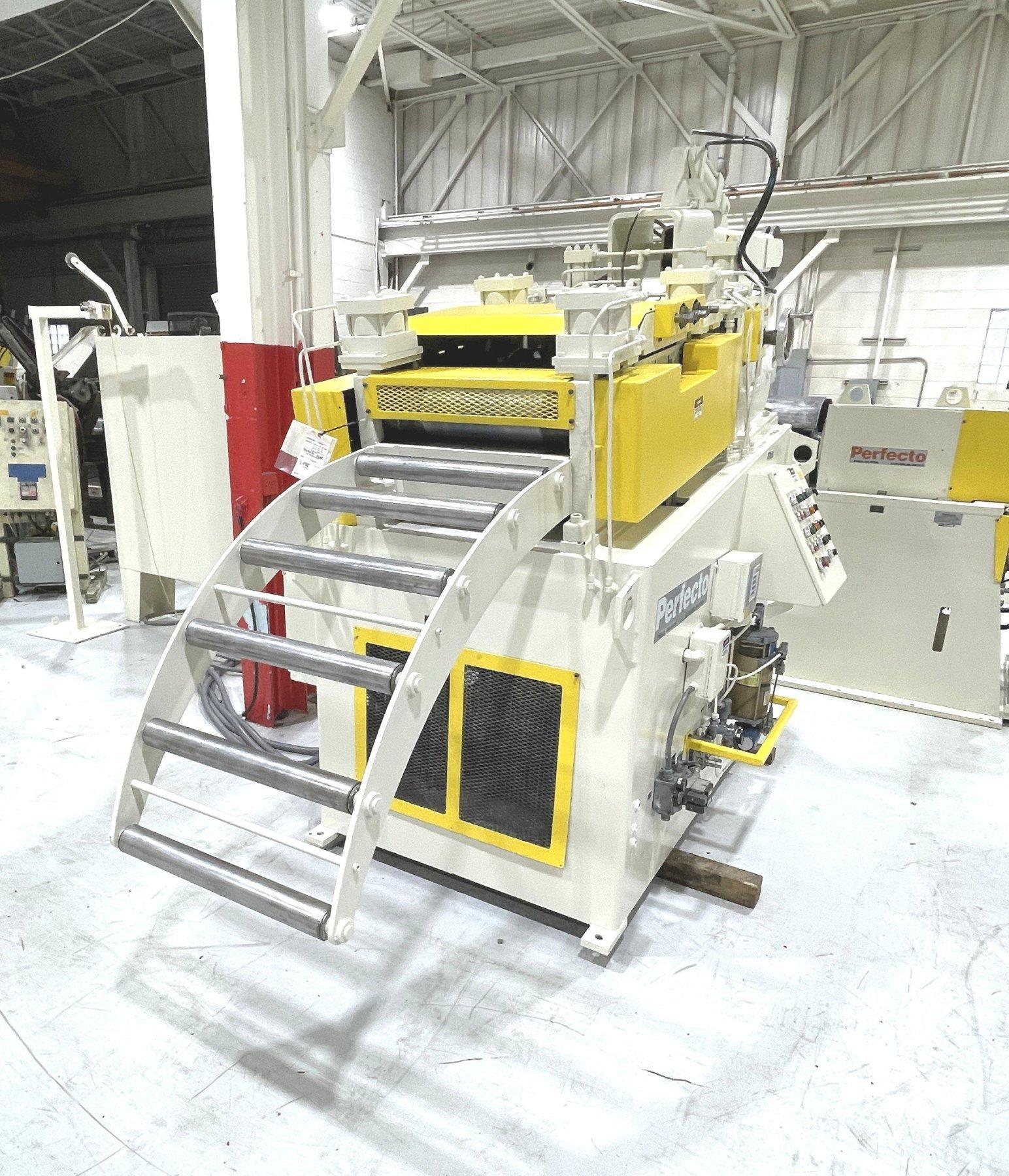

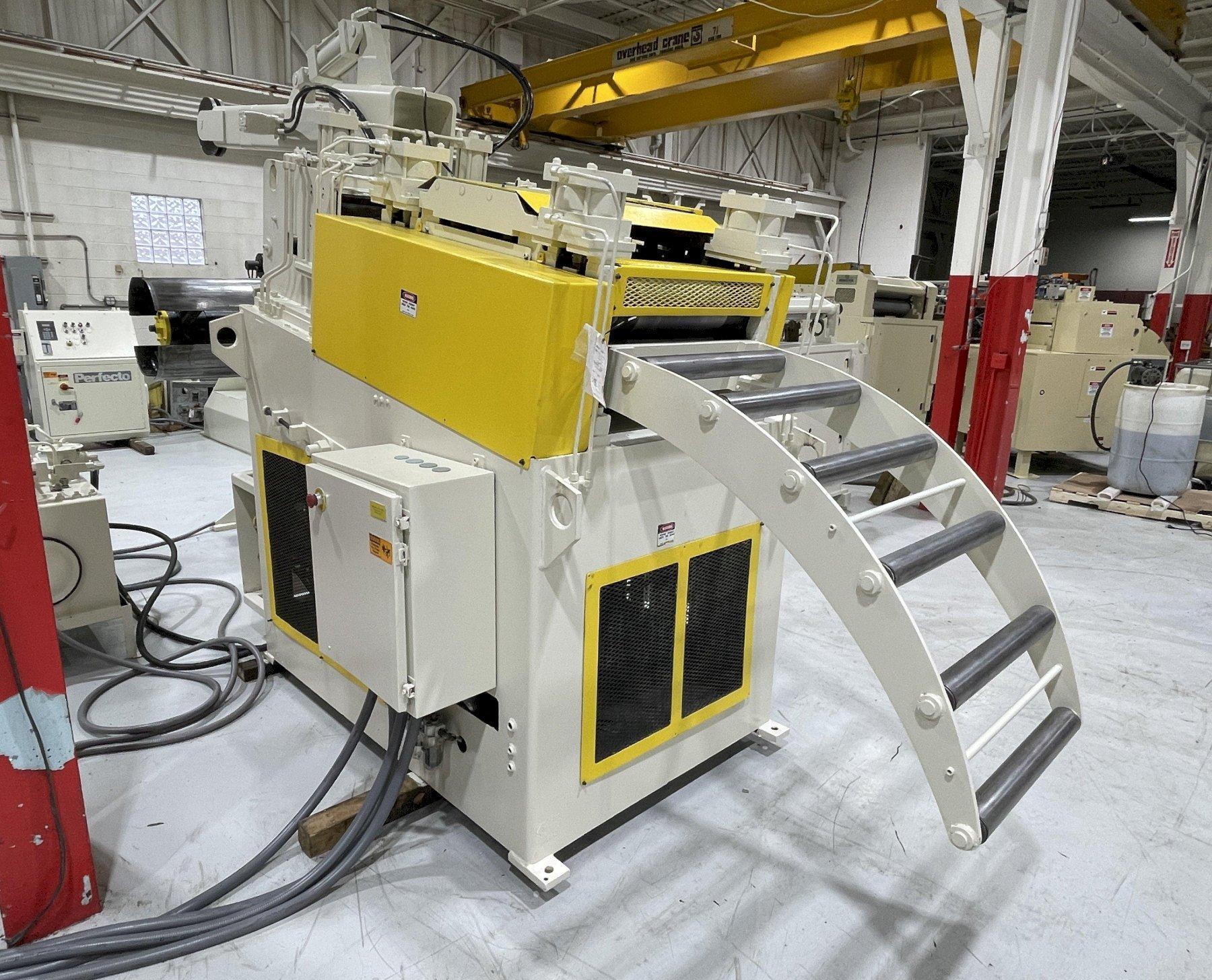

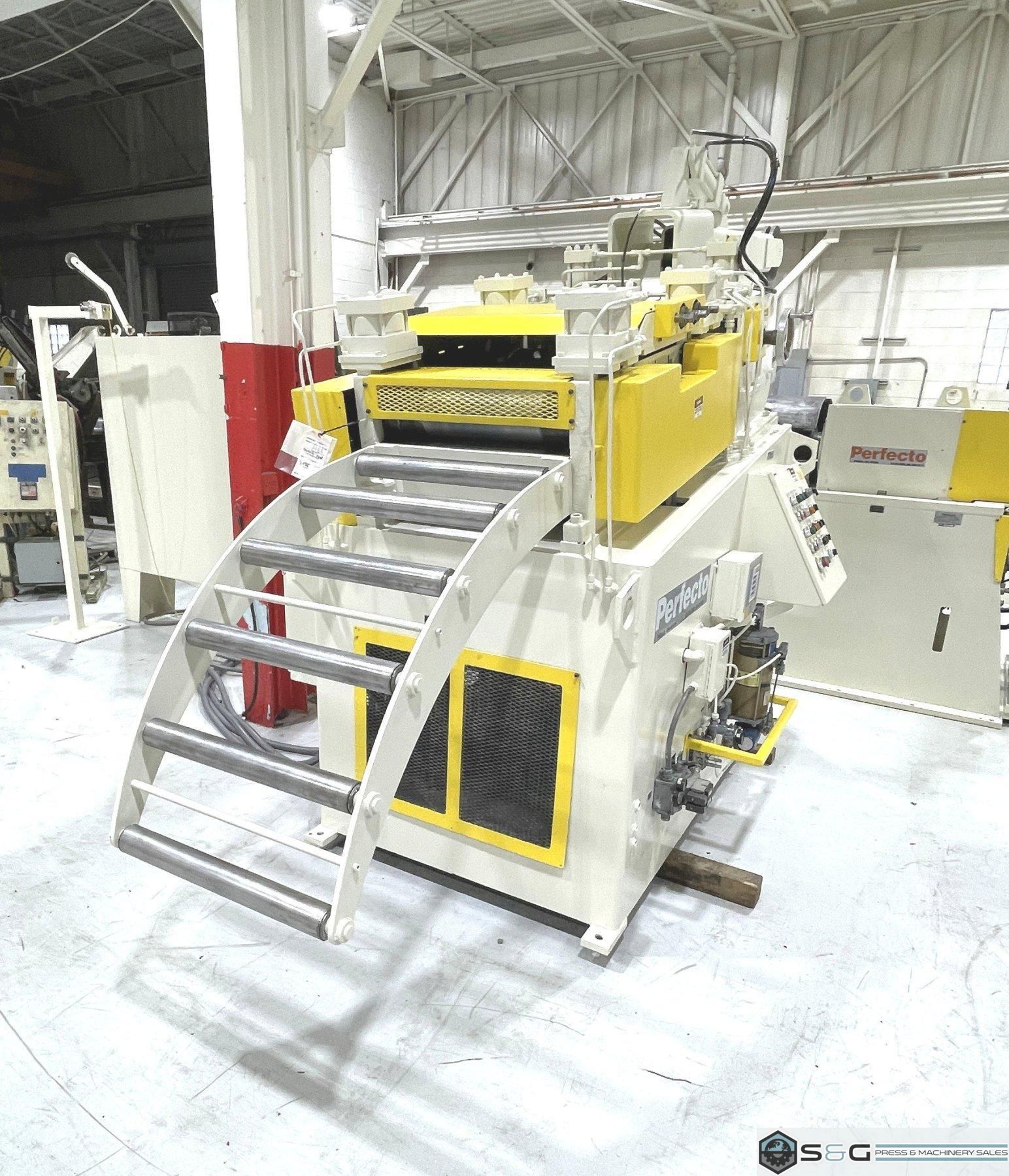

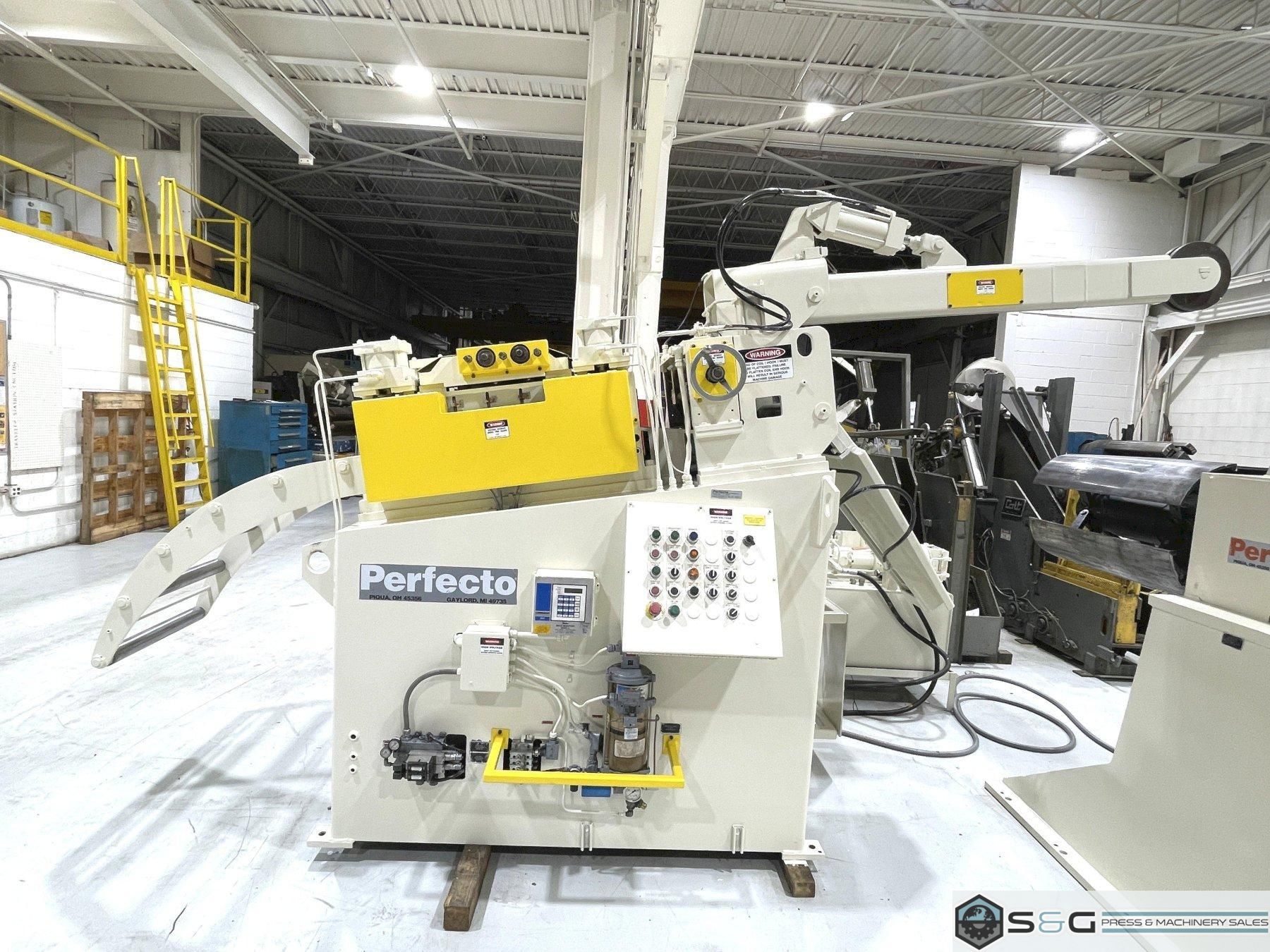

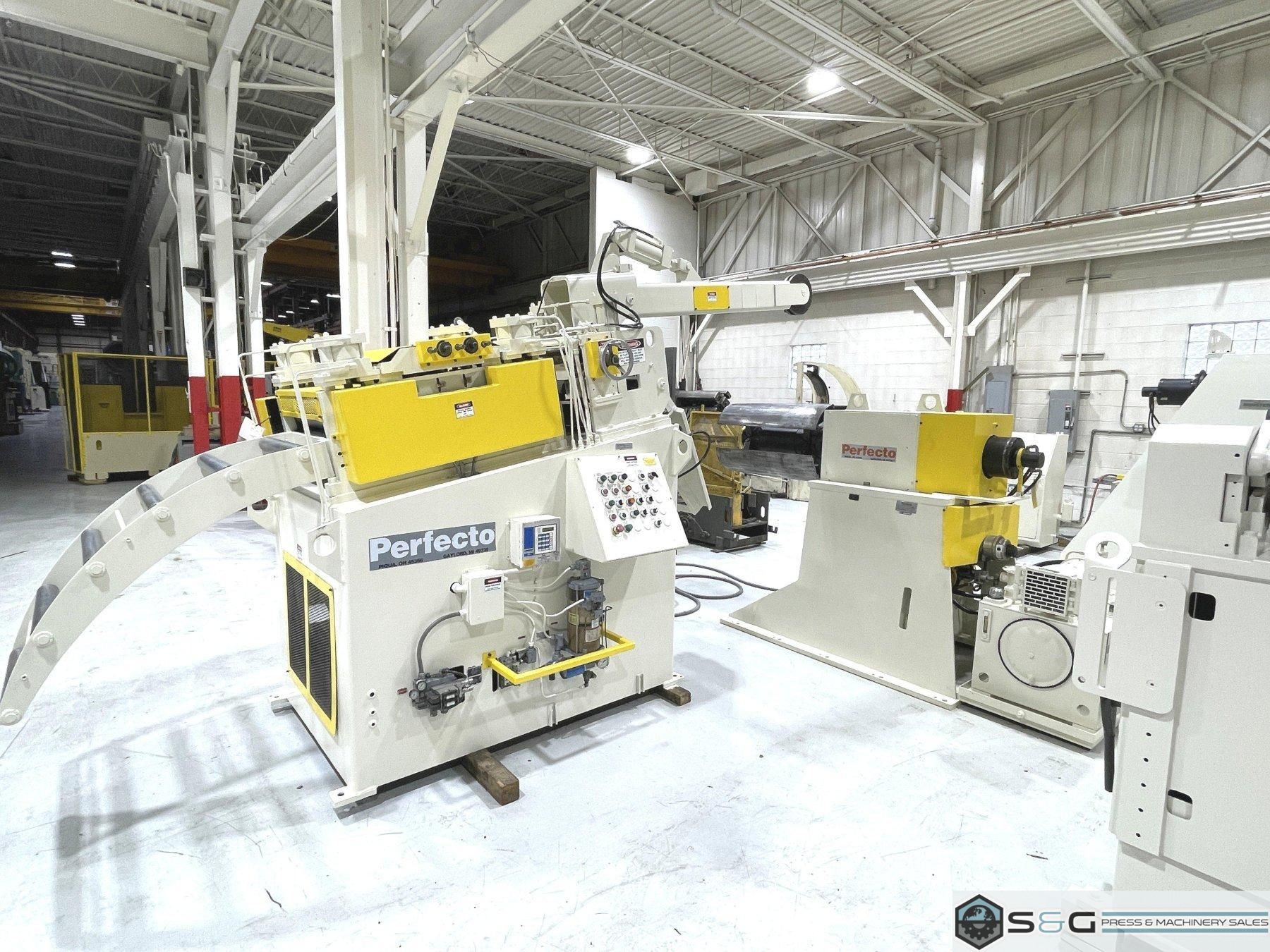

Perfecto Powered Coil Straightener Model No. 38-24-7
Seven straightening rolls x 3.8" diameter
Upper roll adjustment roll adjustments
Coil hold down arm
Stock peeler table -
Hand crank adjustable stock width edge guides
Automatic lubrication system
Operator's control station
Perfecto Servo Roll Feed
Upper and lower feed rolls
Piloting upper feed roll
Press mounted
Stock width edge guides
AC Servo controls
Can be seen under power in the S&G Press Warehouse. Perfecto Conventional Coil Feed Line For Sale |
