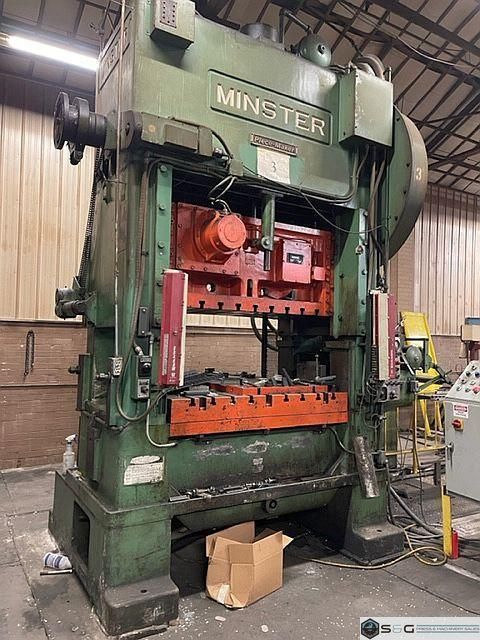

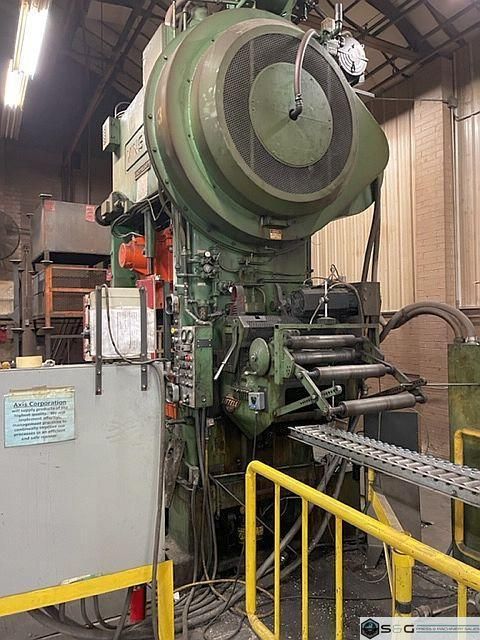

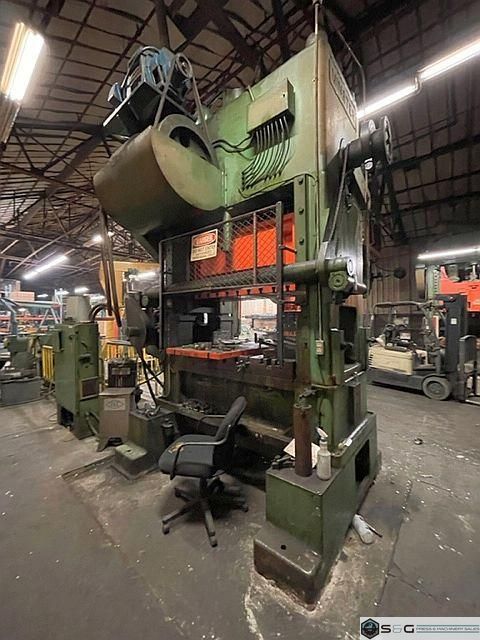

150 ton Minster P2-150-60 Piece-maker Highspeed Press

Model

P2-150-60

Year

1978

Stock #

2743

Condition

Reconditioned

Specifications

Tonnage

150

Stroke

6 inches

Shut Height

24 inches

Adjustment

4 inches

Bed Size

60" x 40"

Ram Area

60" x 23"

SPM

0-90 VSPM

Standard Specifications
150 ton Capacity
Model# P2-150-60 Piece-Maker

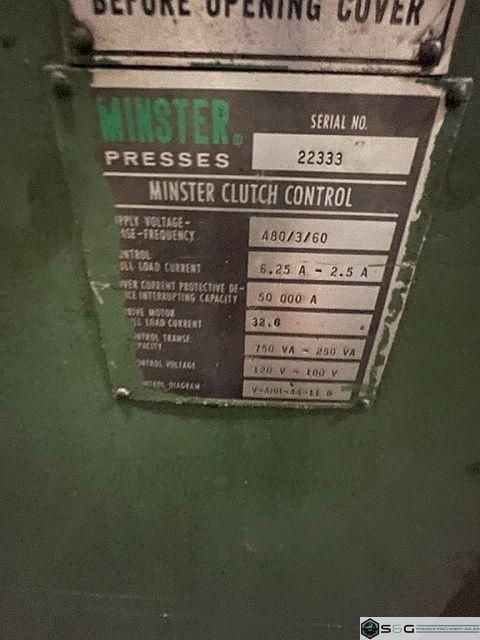

Serial Number 22333
6" Stroke
24" Shut Height
4" Motorized Adjustment
60" LR x 40" FB Bed Area
60" LR x 23" FB Slide Area
0-90 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Monitor Flow Lubrication System
Motorized Slide Adjustment
6" Thick Bolster Plate
62" Distance Between Gibs
42" Distance from Floor to Top of Bed
T-Slotted Ram and Bolster
Light Curtains
20" Wide Windows
Palm Buttons
Floor Standing

Overall Height:  13' 2" Tall (158 inches)
