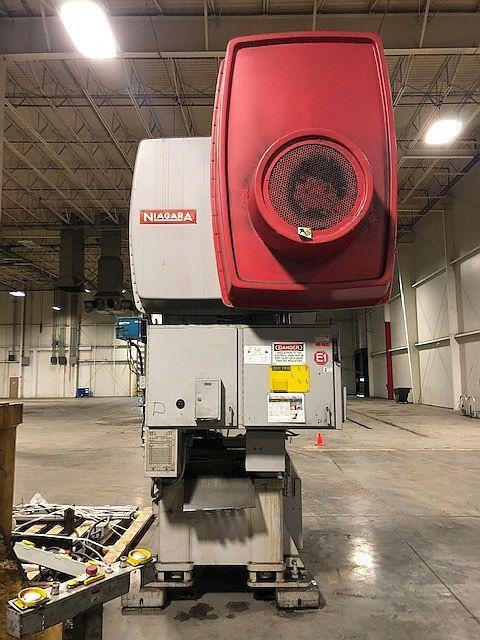

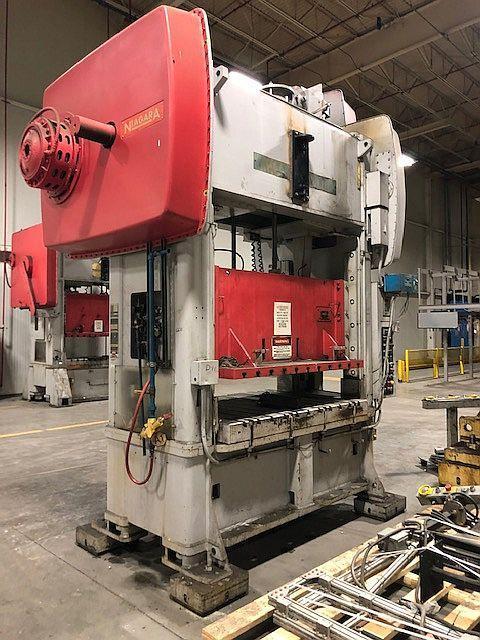

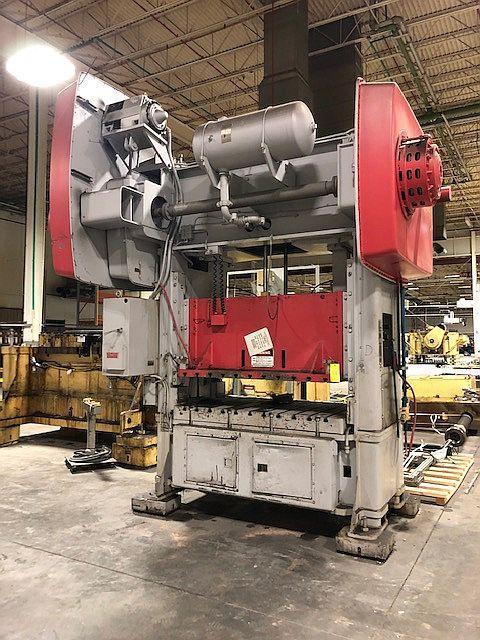

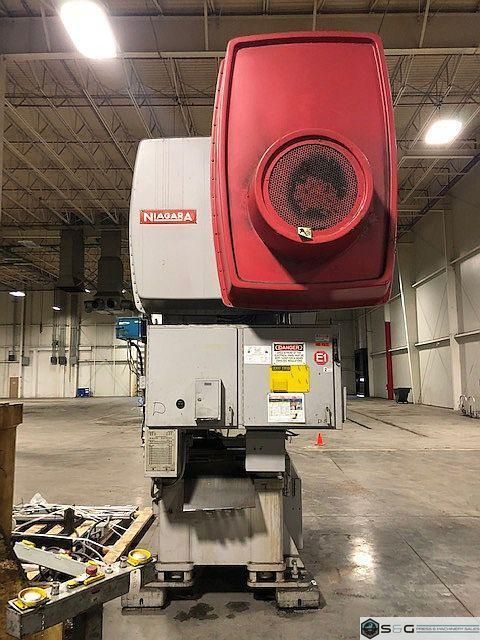

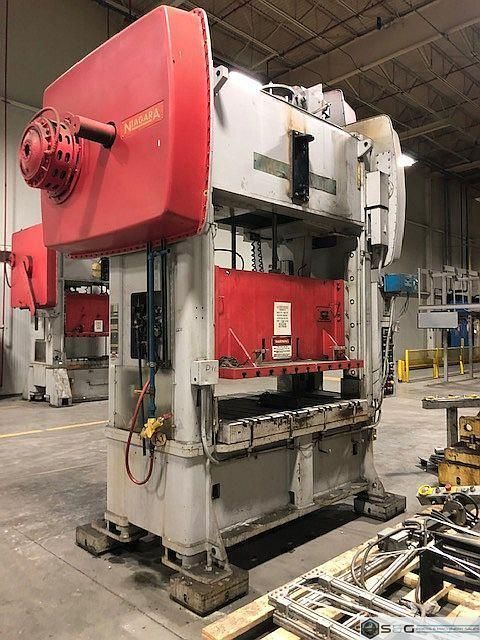

150 ton Niagara SE2-150-72-48 Straight Side Press, New 1989

Brand

NIAGARA

Model

SE2-150-72-48

Year

1989

Stock #

2600

Condition

Good

Specifications

Tonnage

150

Stroke

10 inches

Shut Height

22.5 inches

Adjustment

9 inches

Bed Size

72" LR x 48" FB

Ram Area

72" LR x 48" FB

SPM

20-40 VSPM

Standard Specifications
150 ton Capacity
10" Stroke
22.5" Shut Height On Bed
9" Motorized Adjustment
72" LR x 48" FB Bed Area
72" LR x 48" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
5.5" Thick Bolster
Set of Vibration Isolation Levelers

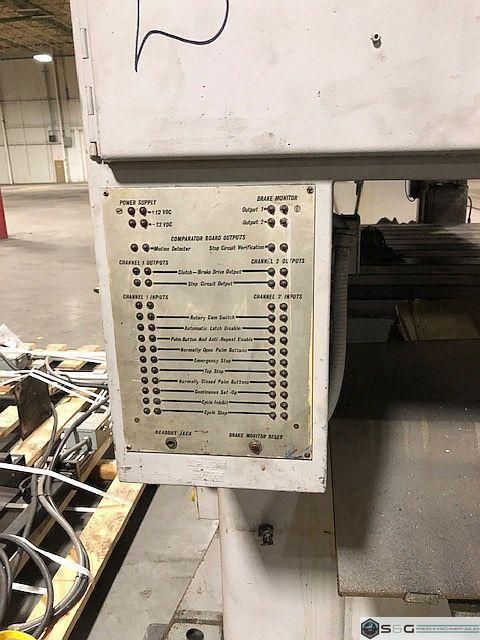

Link Logic Brake Monitor Press Control
Gemco PLS 1995
Link Logic Tonnage Monitor
8 Point Gibbing
20" Wide Windows
Floor Standing

96” LR x 58” FB Footprint Dimensions
38" Floor to top of Bed
13’9” Overall Height




Attachments

150 ton Niagara SC2-150-72-48 S&G Stock#2600.pdf Download
