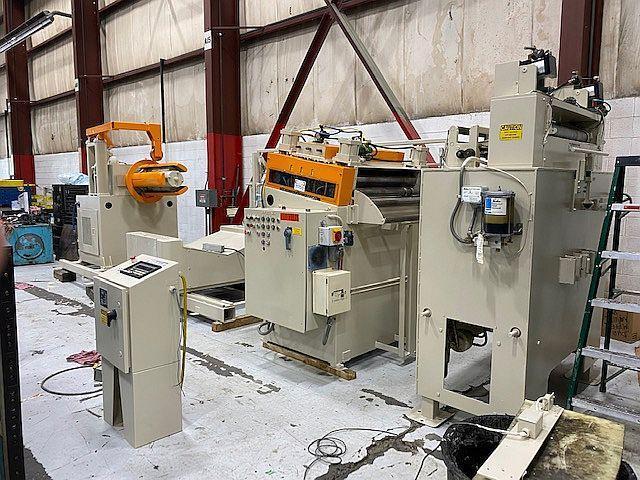

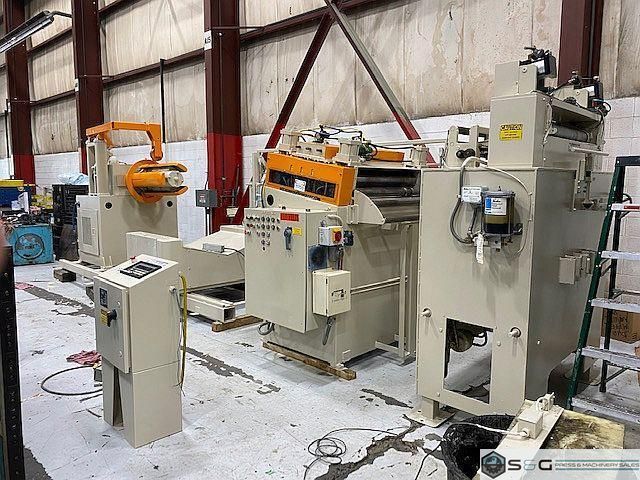

15,000 lbs x 36" Dallas and CWP Coil Feed Line







Stock #





Coil Weight

15000 pounds

Coil Width

36 inches

Coil Thickness

.125 inches

Dallas Ind.  / CWP Conventional Coil Feed Line Specifications:

Coil Weight Capacity: 15,000 lb
Coil width capacity: 36"
Stock thickness capacity: .125" x 36" Wide
Expansion range: To Be Confirmed
Coil O.D. capacity: 60"

Dallas Ind. / CWP Conventional Coil Feed Line Equipment and Features:

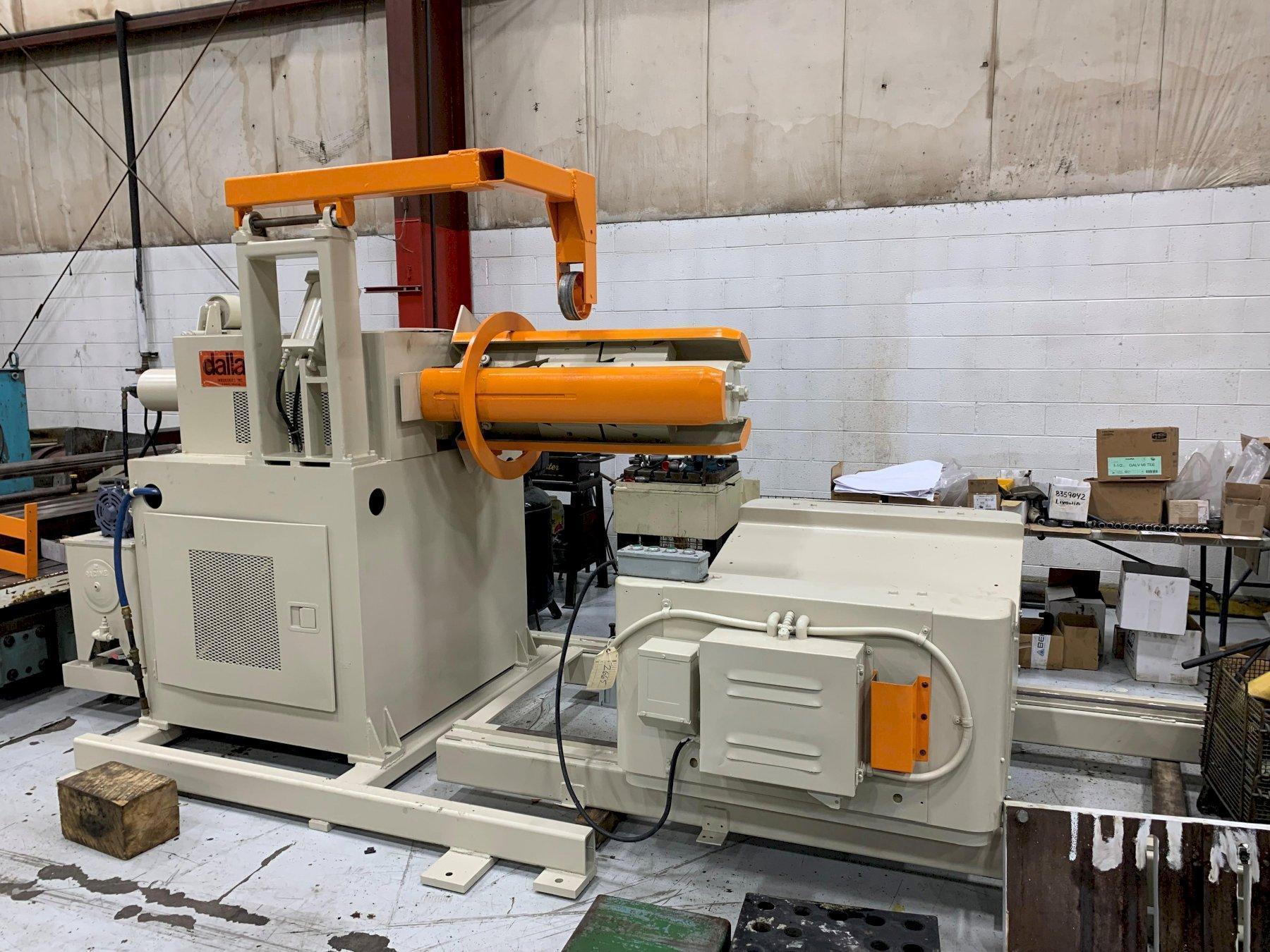

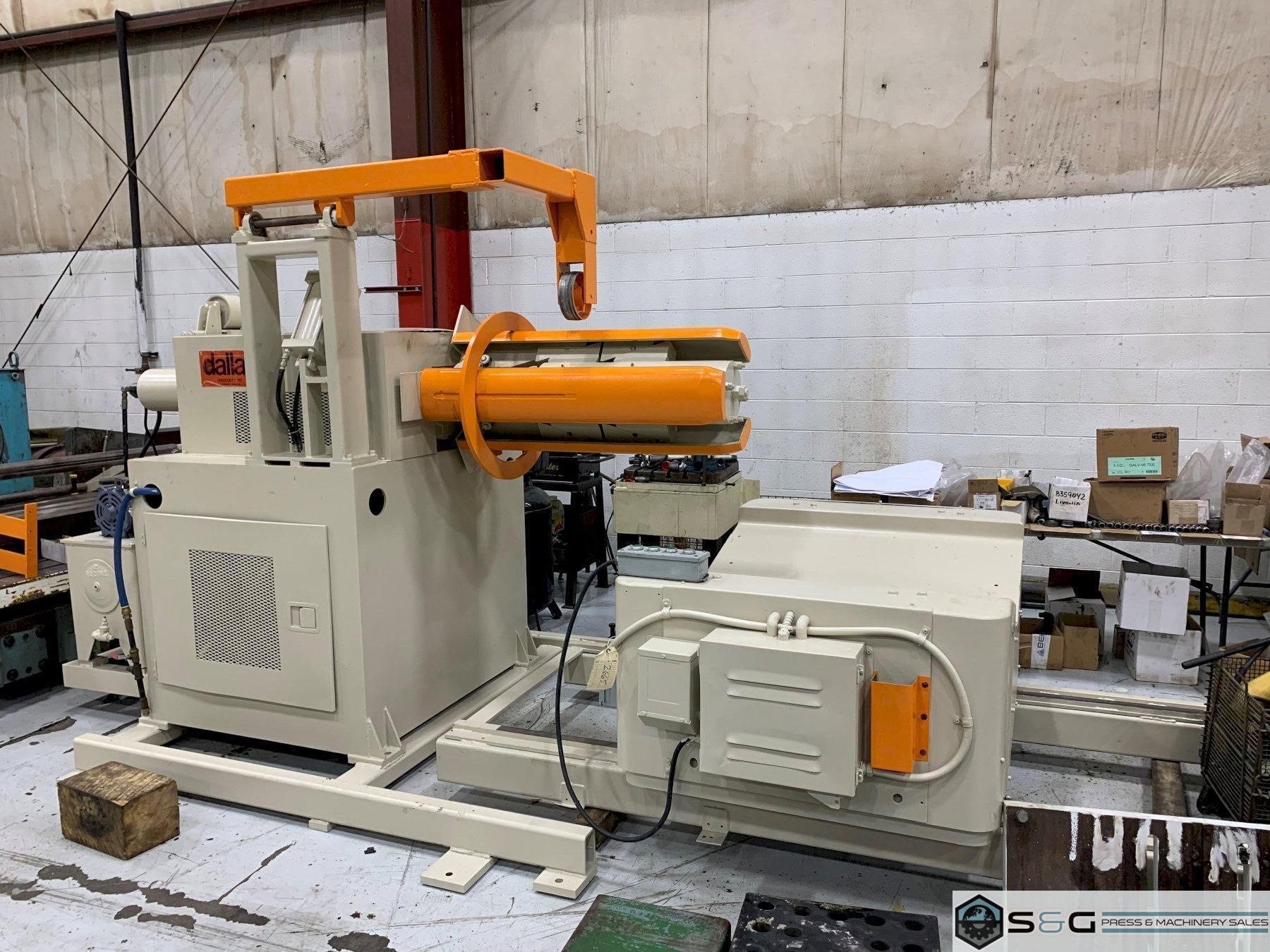

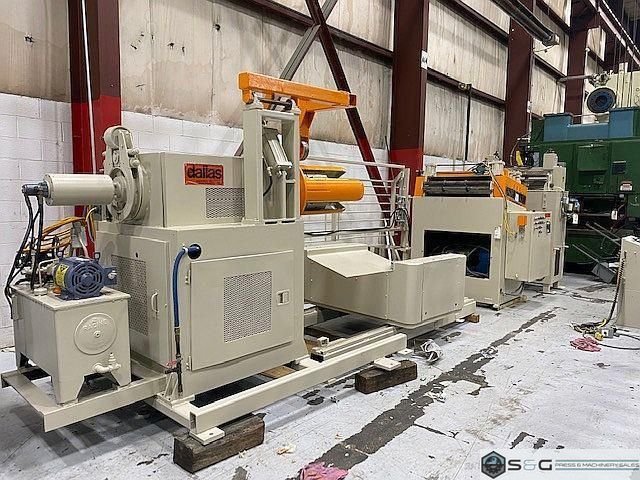

Dallas Ind. Coil Reel Uncoiler
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Coil reel keeper arms
Threading drive for jog forward and reverse
Drag brake mounted on main coil reel spindle
Adjustable tensioning
Air operated coil hold down arm
Non motorized end wheel
Traveling coil load car
Powered lift and travel
Coil car track

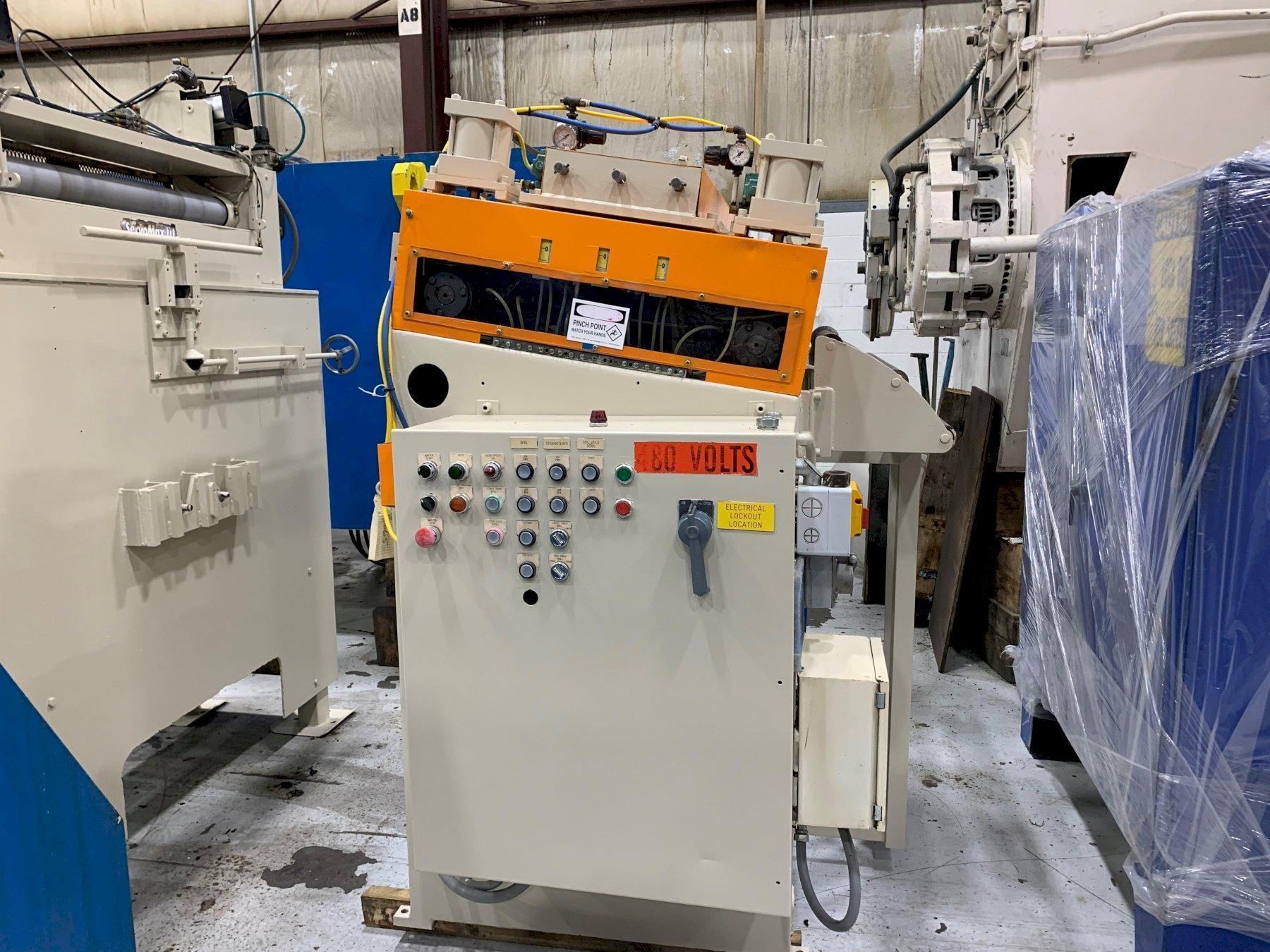

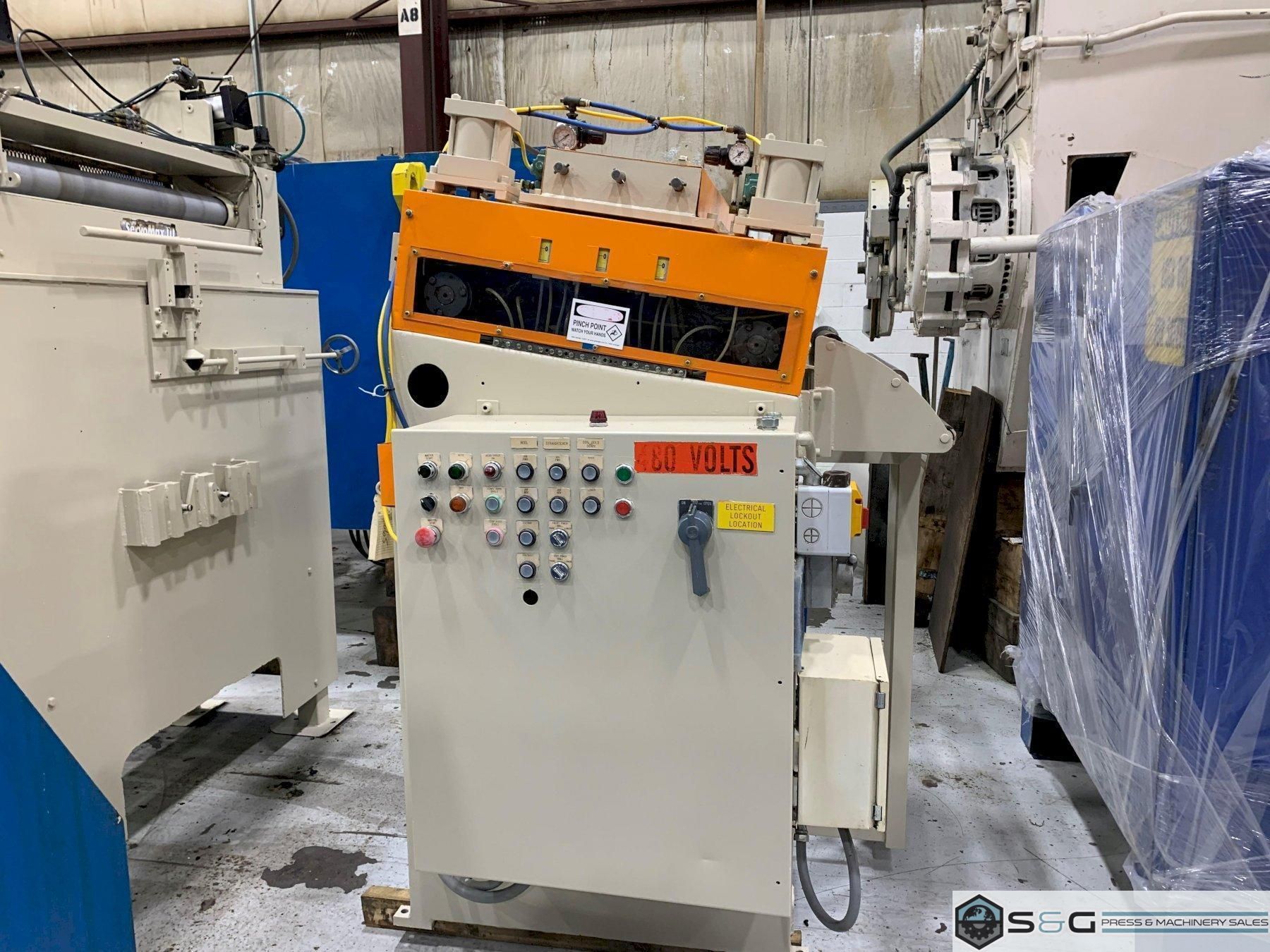

Dallas Ind. Powered Straightener
Entry and exit powered coil straightener pinch rolls
Air operated upper pinch roll adjustments
Manual upper coil straightener roll adjustments via screw jacks
Inclined power coil straightener head
Exit cascade loop support rollers
Manual lubrication system
Variable speed powered coil straightener payout
Jog forward and reverse
Auto / Run cycle
Loop control

Dallas Ind. Exit Threading Table
Bombay door style

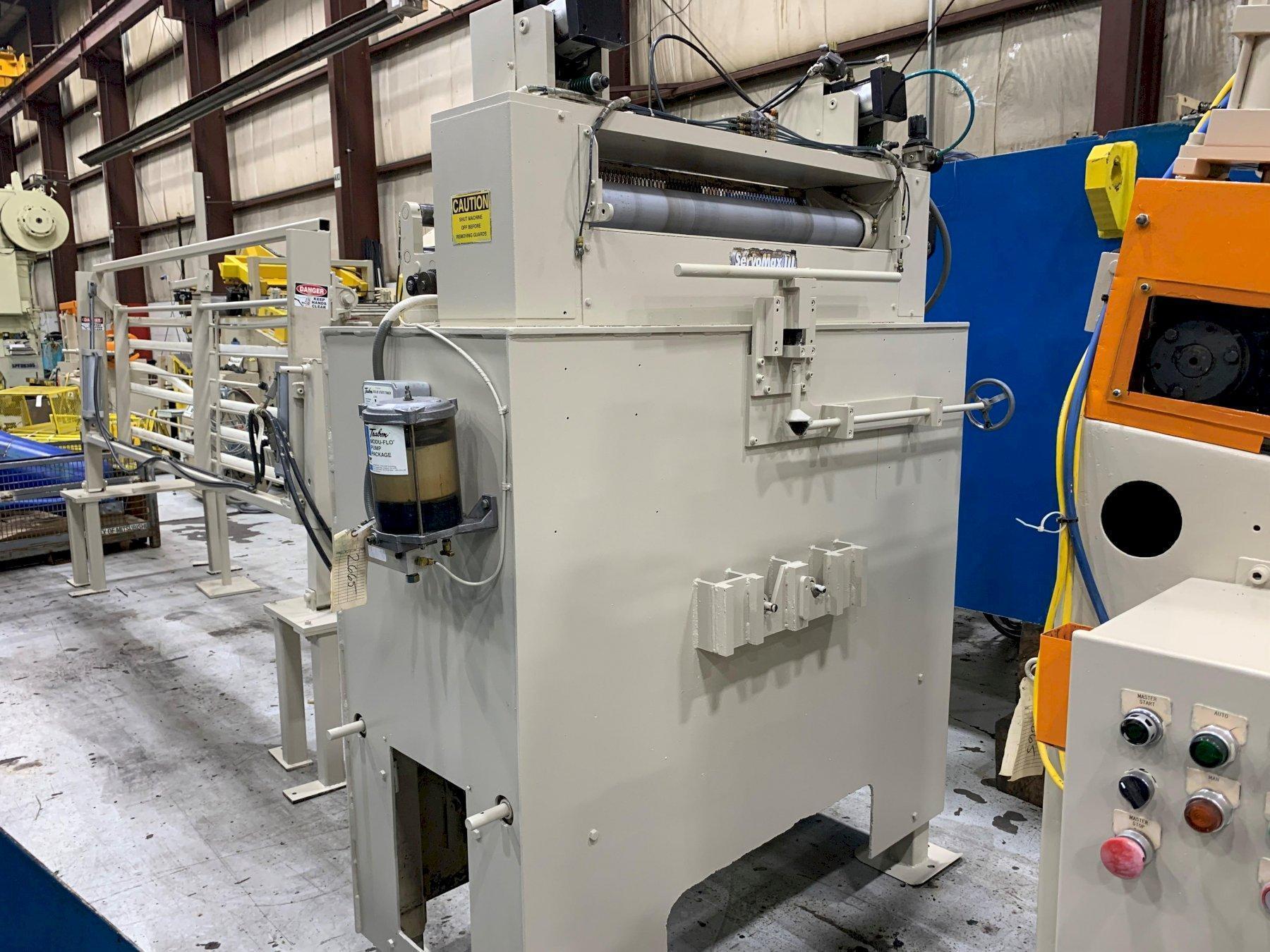

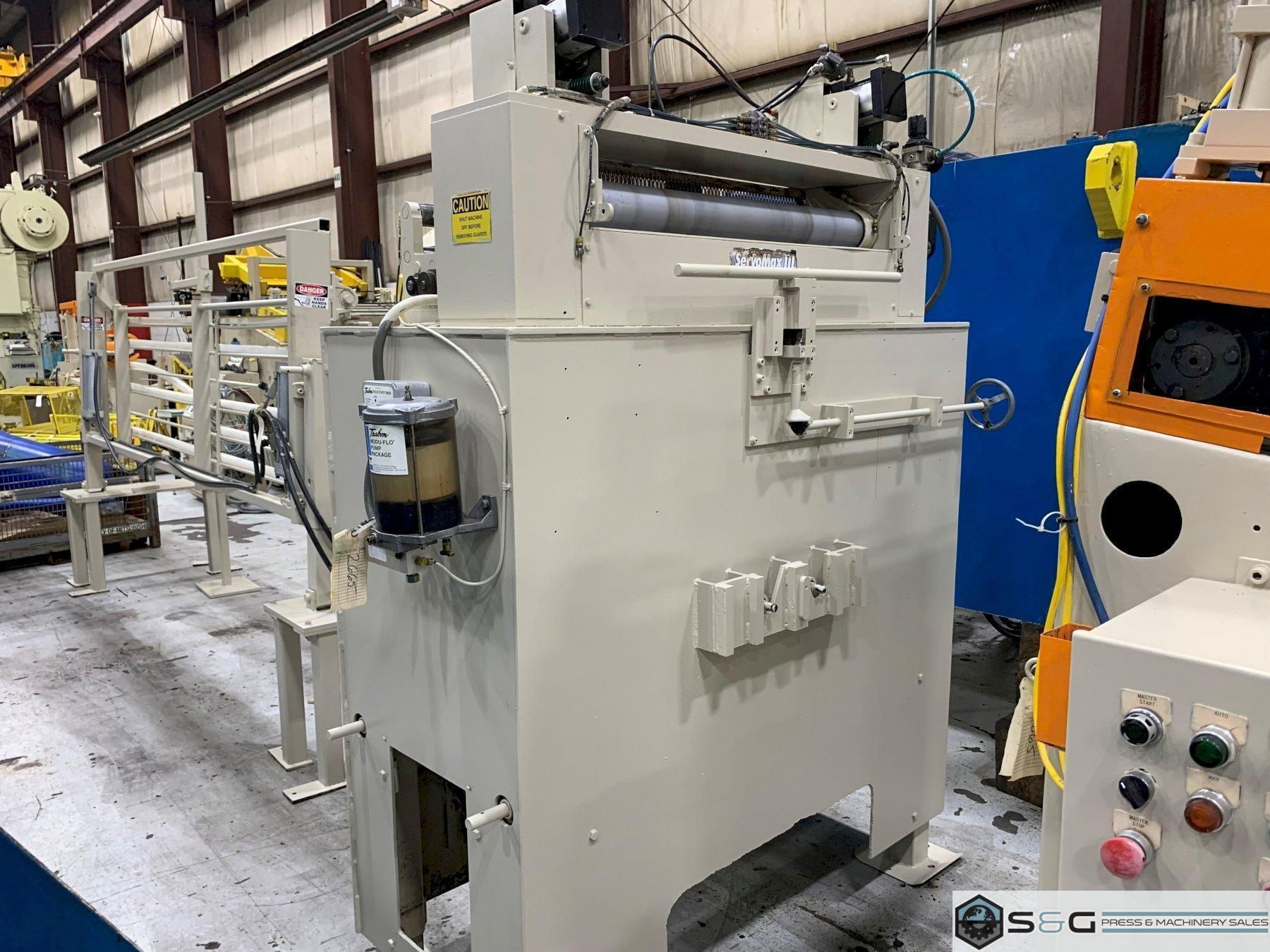

CWP Servo Roll Feed
Cabinet base mounted servo roll feed
Full width upper and lower feed rolls
Matte chrome finish on upper and lower servo feed rolls
Air operated upper servo roll lift / pilot
Automatic lubrication
Solenoid controlled pilot release
Outboard pressure regulators
Hand crank stock width edge guides (Individual / Simultaneous)
Exit cascade loop support rollers
AC servo roll feed drive and controls package (consult sales for complete details)
Job memory, batch counting, on the fly micro adjustment

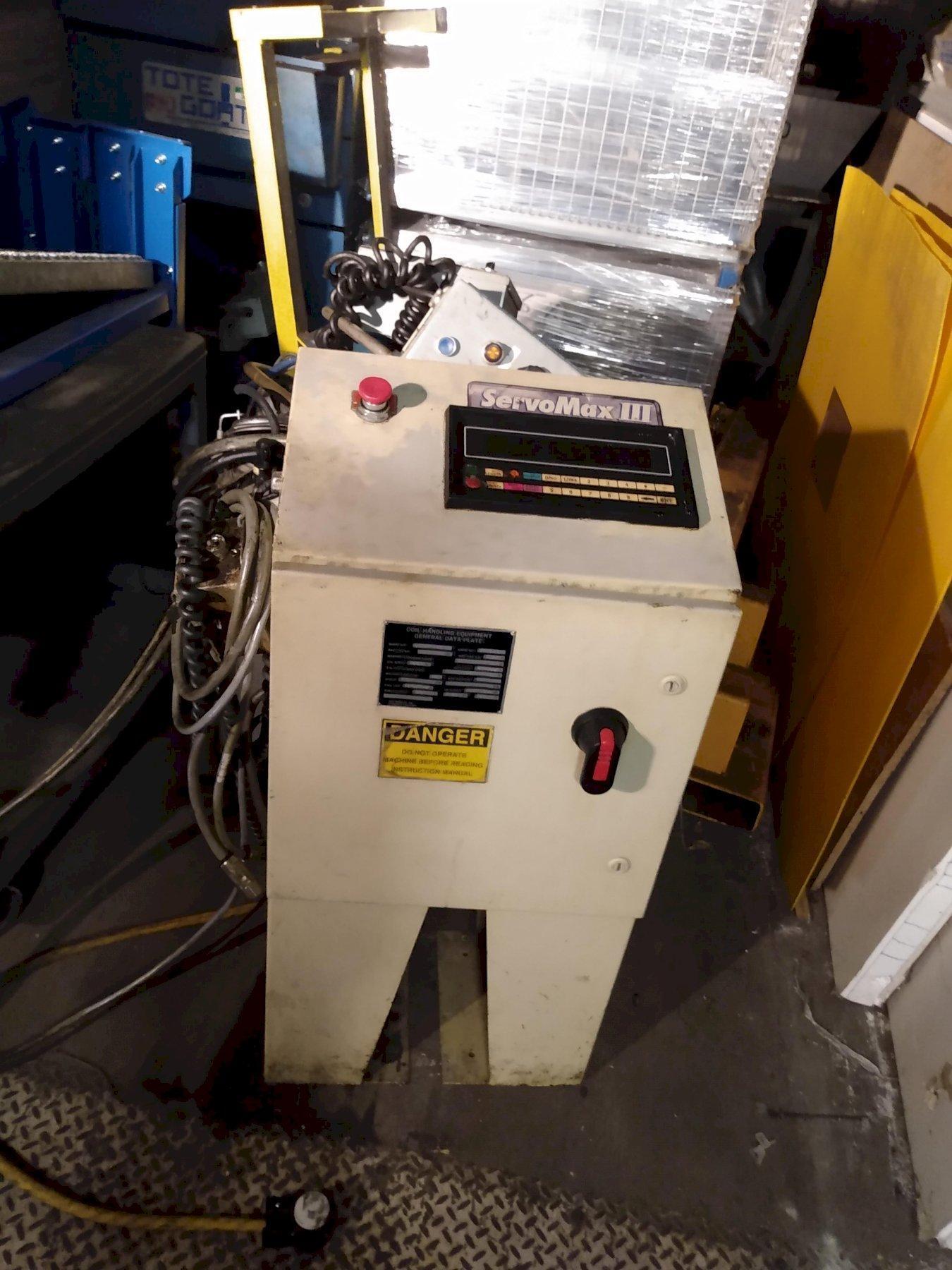

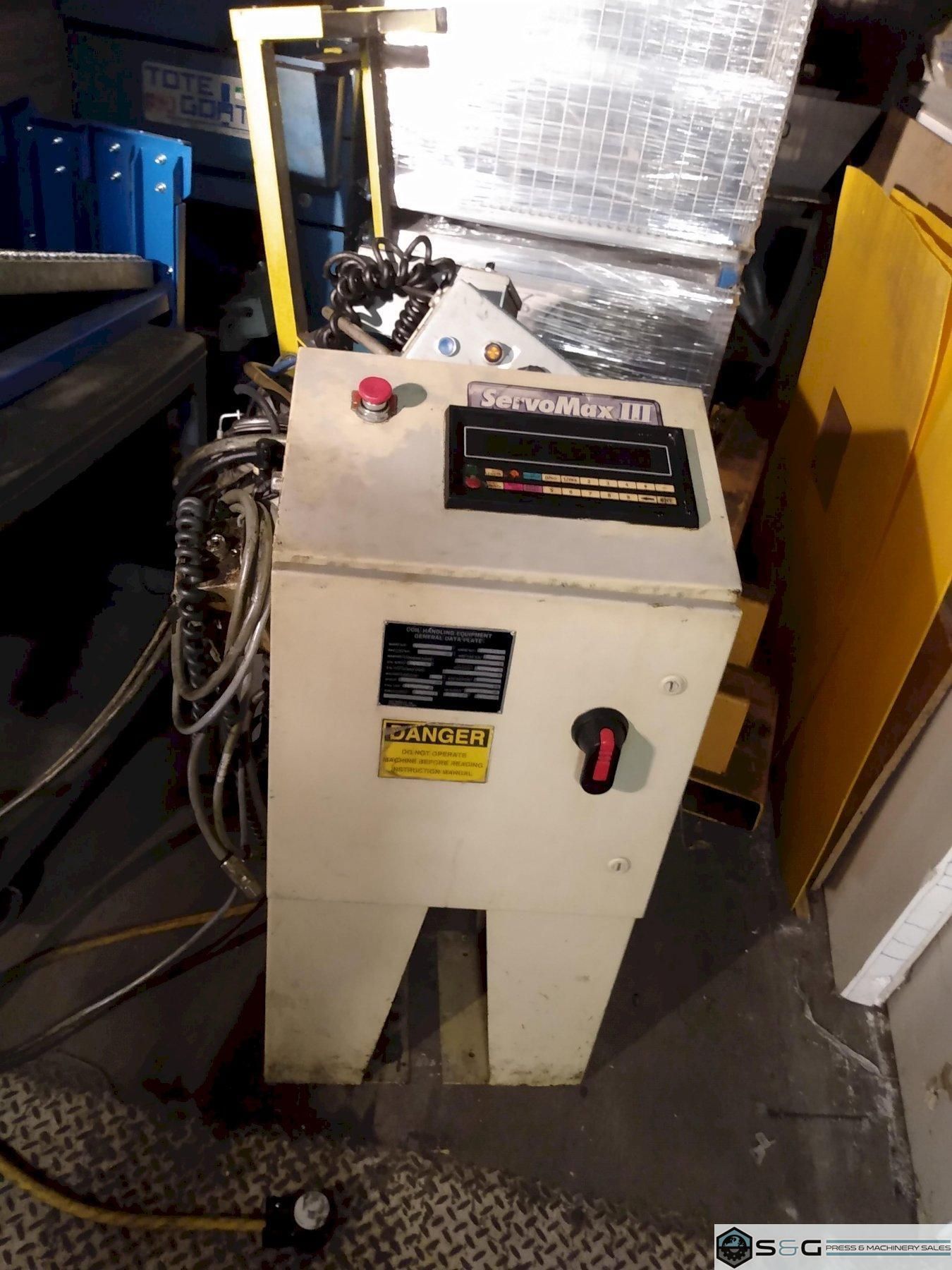

Free standing front sloped servo roll feed control console
Remote pendant control for jog forward and reverese
Fused disconnect
480 Volt


There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information.
