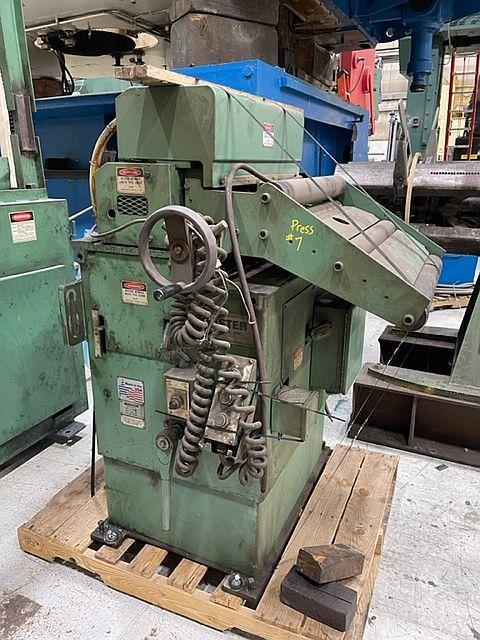

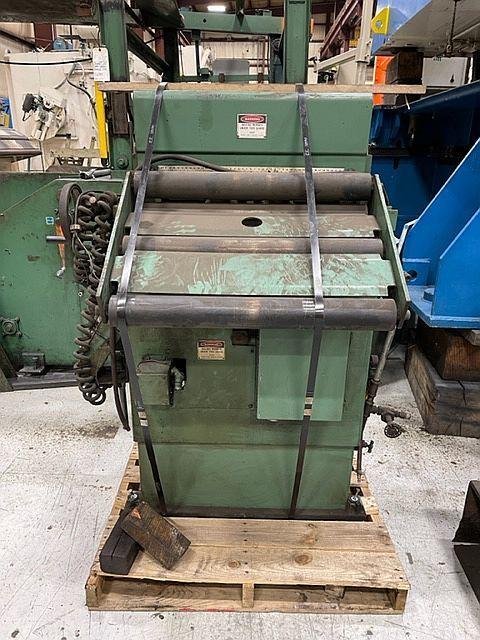

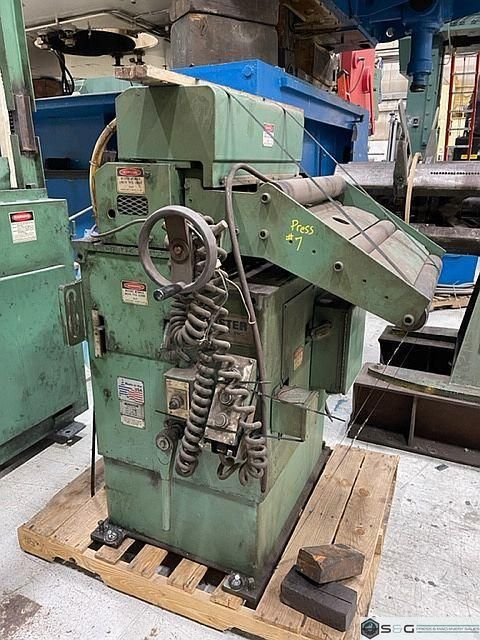

20" Minster Cabinet Mounted Servo Feed Model# MEF4-205

Model

MEF4-205

Year

1991

Stock #

2793

Condition

Used

Specifications

Coil Width

20 inches

Coil Thickness

.187 inches

Standard Specifications
20" Max Coil Width
.030" - .187" Material Range
.090" @ 20" Material at Full Width
.187" @ 8" Max Coil Thickness
44-48" Pass Height

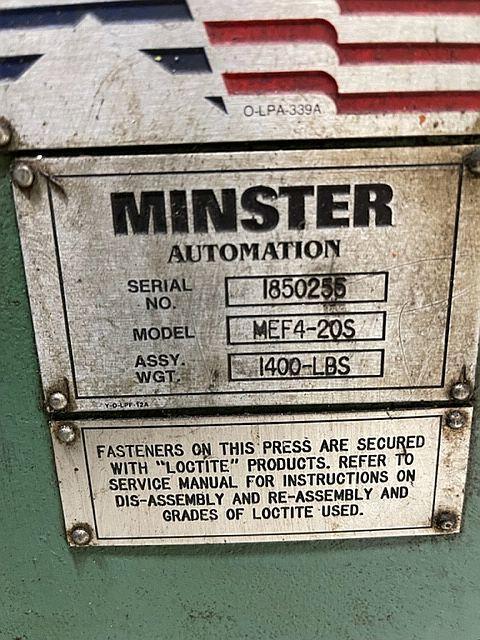

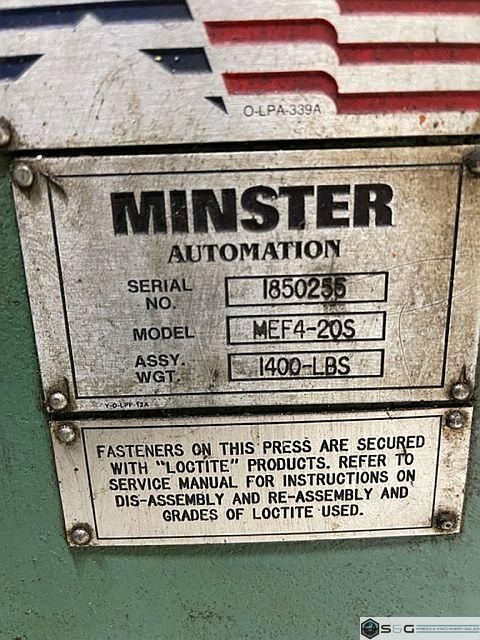

Minster Servo Model #MEF4-205
4" Diameter Feed Rolls
Jog, Forward and Reverse
Edge Guides

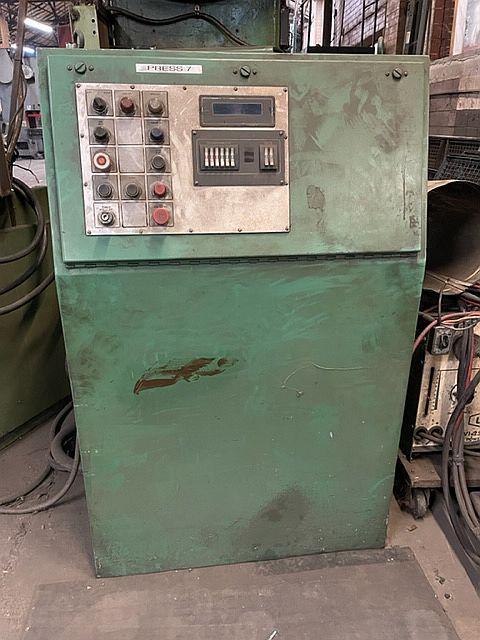

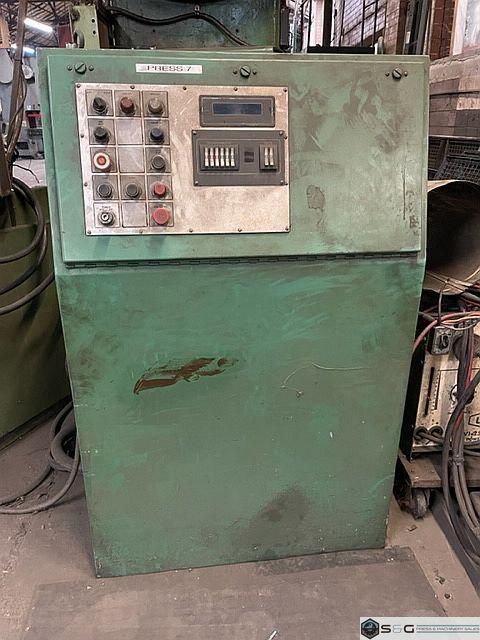

Floor Standing Console Control
Free Standing Cabinet
Adjustable Pass Line Cabinet Base
Standard - Grease Lubrication
Fixed Radius Stock Catenary Supports
Electro-pneumatic actuated roll lifters

Sold "as is - taken from service"
