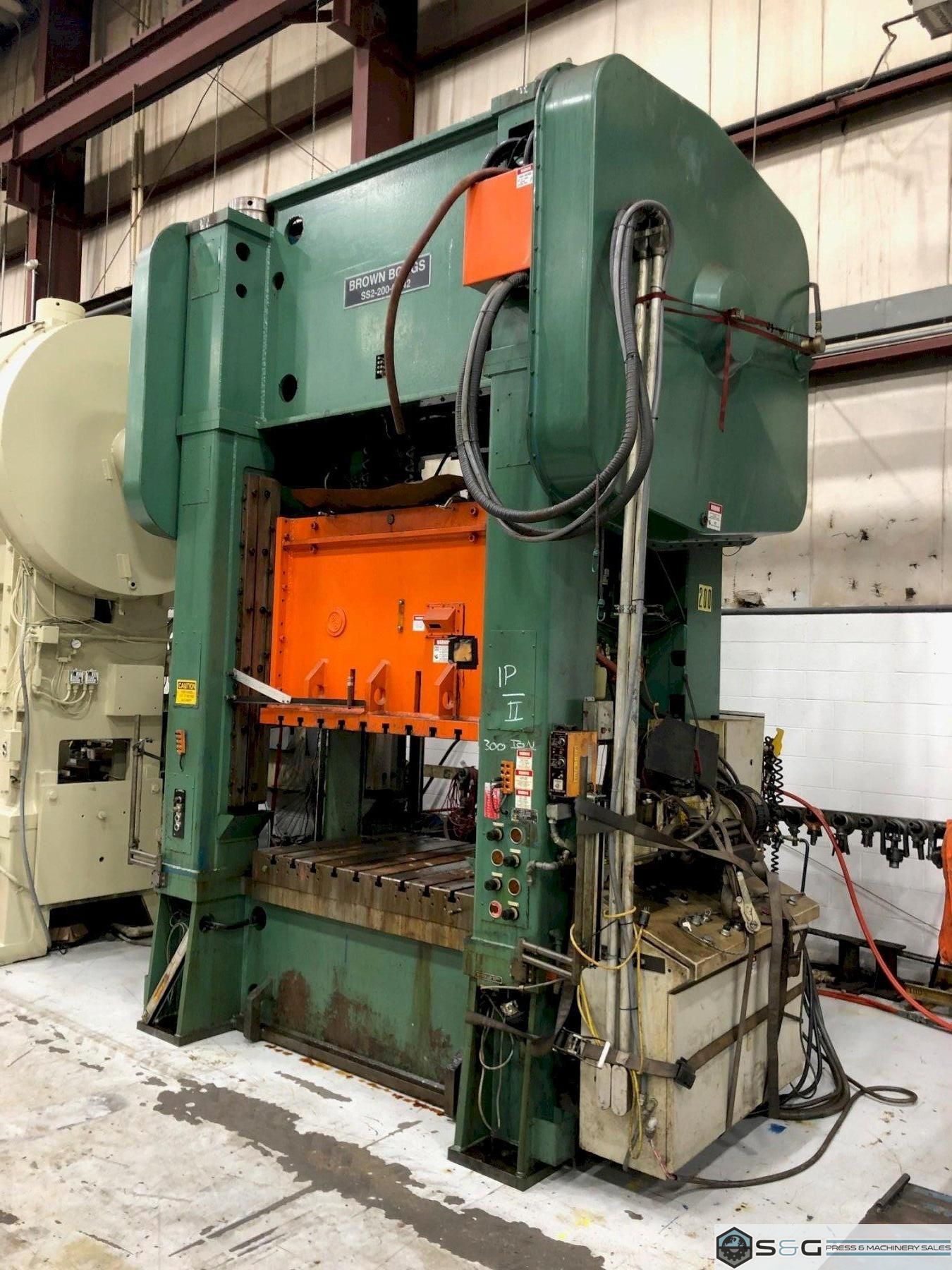

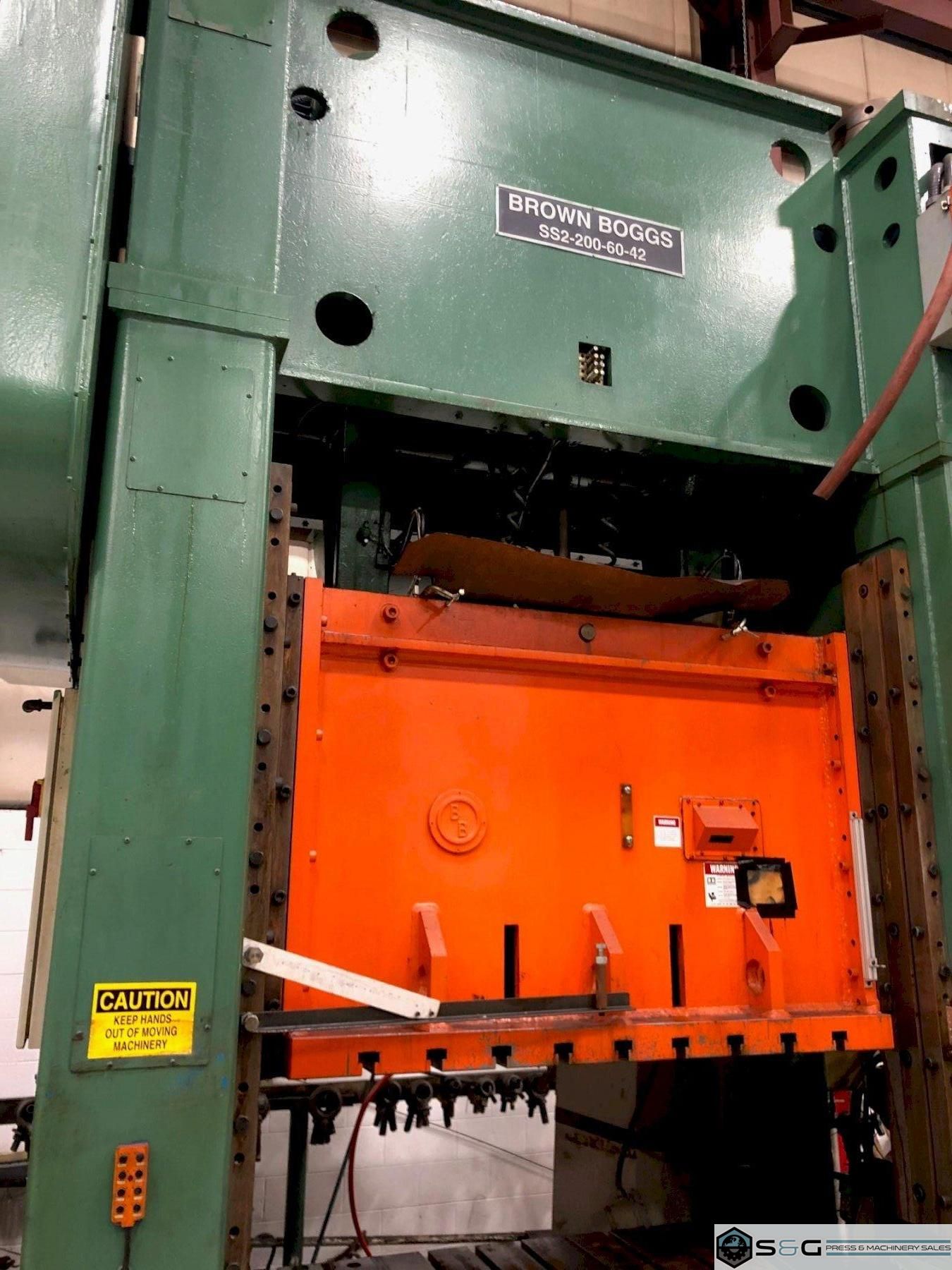

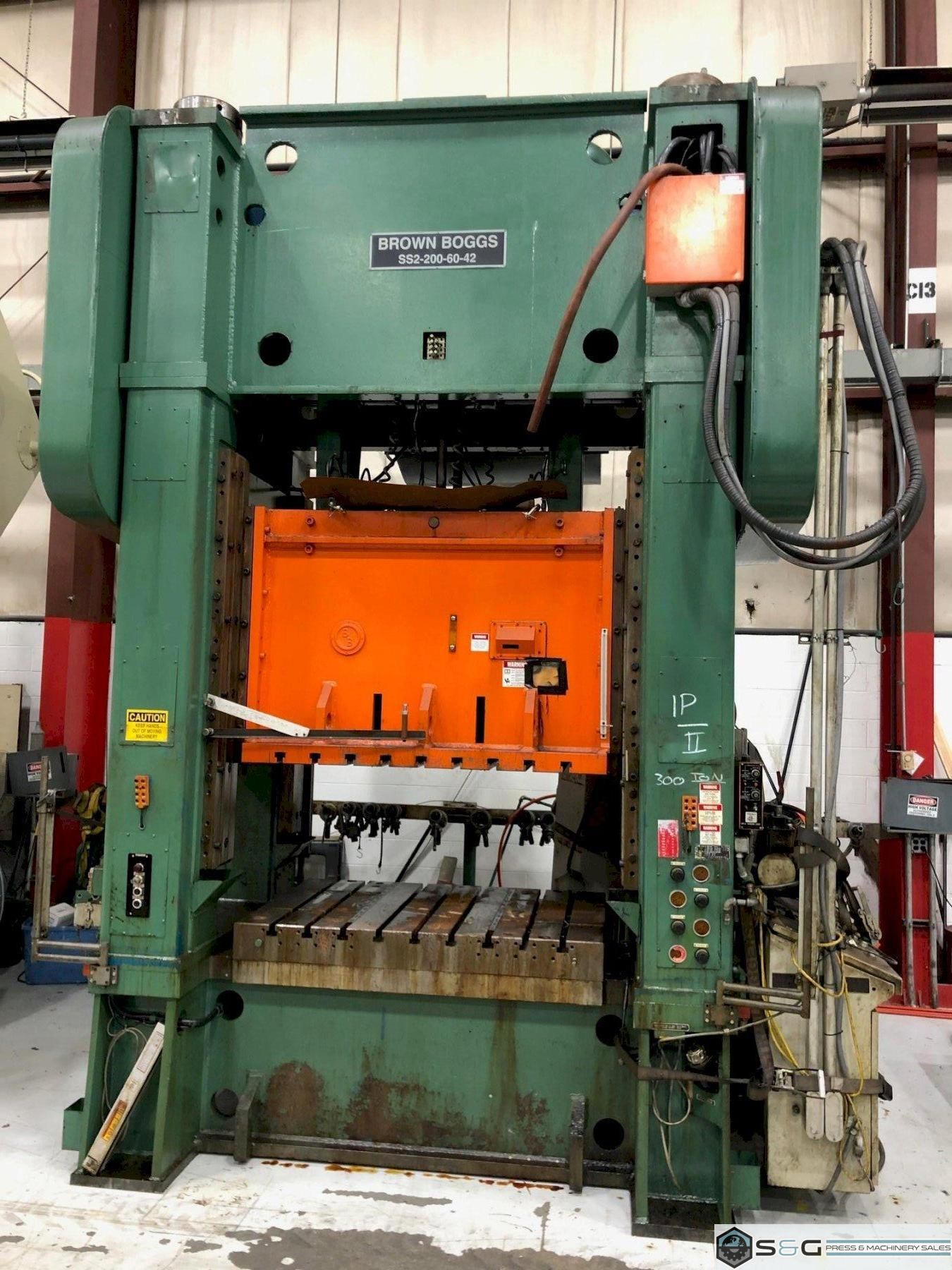

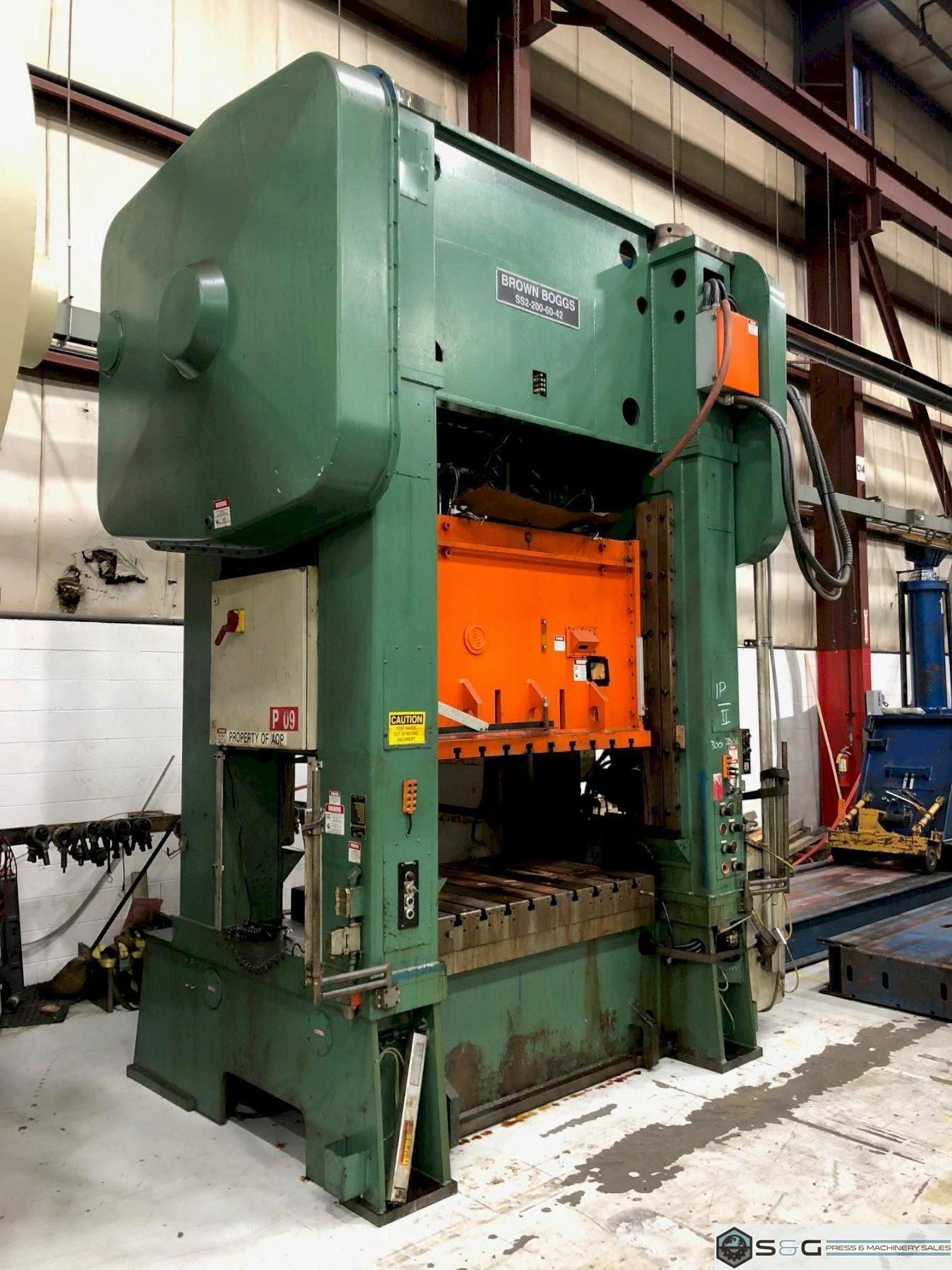

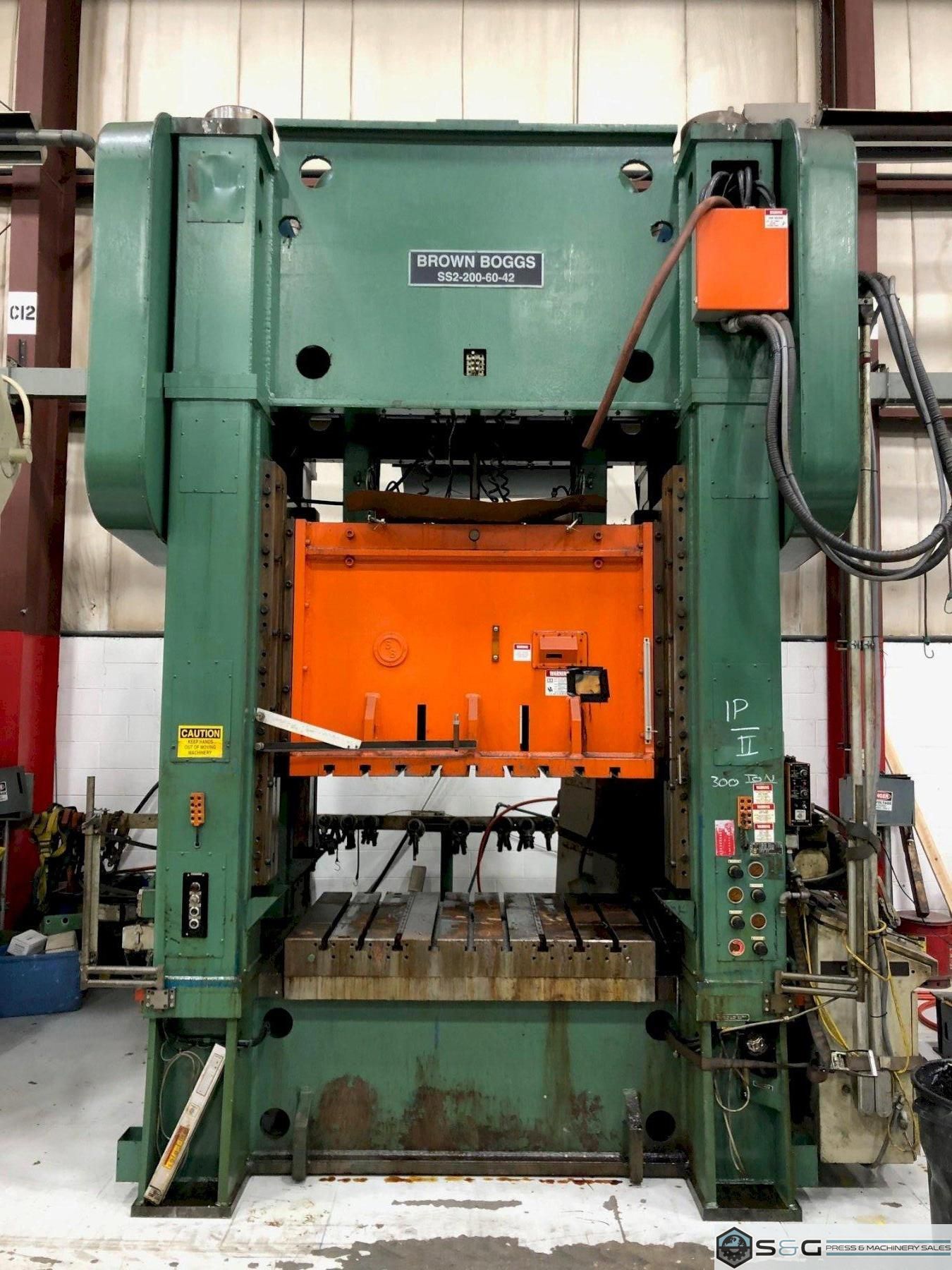

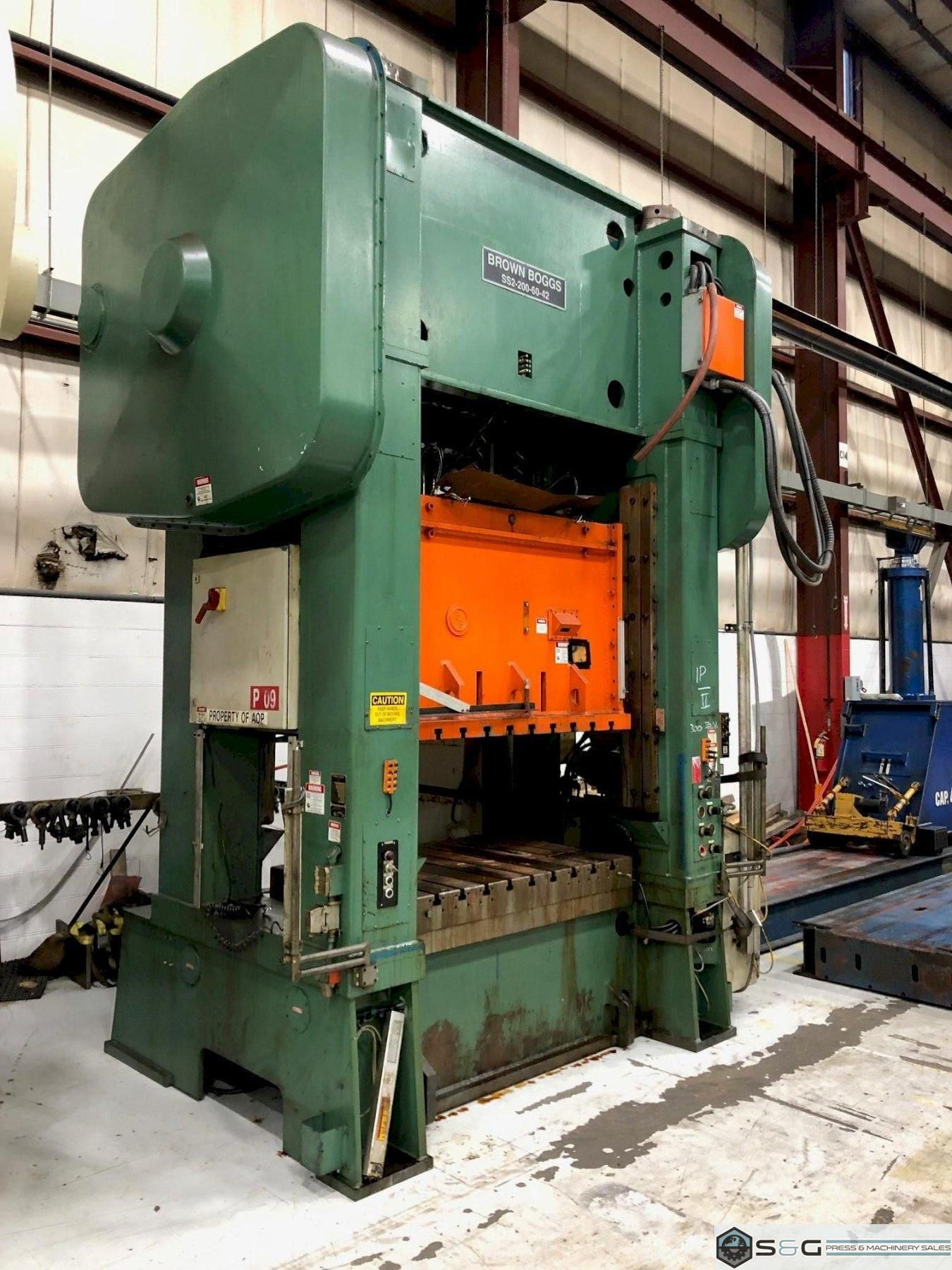

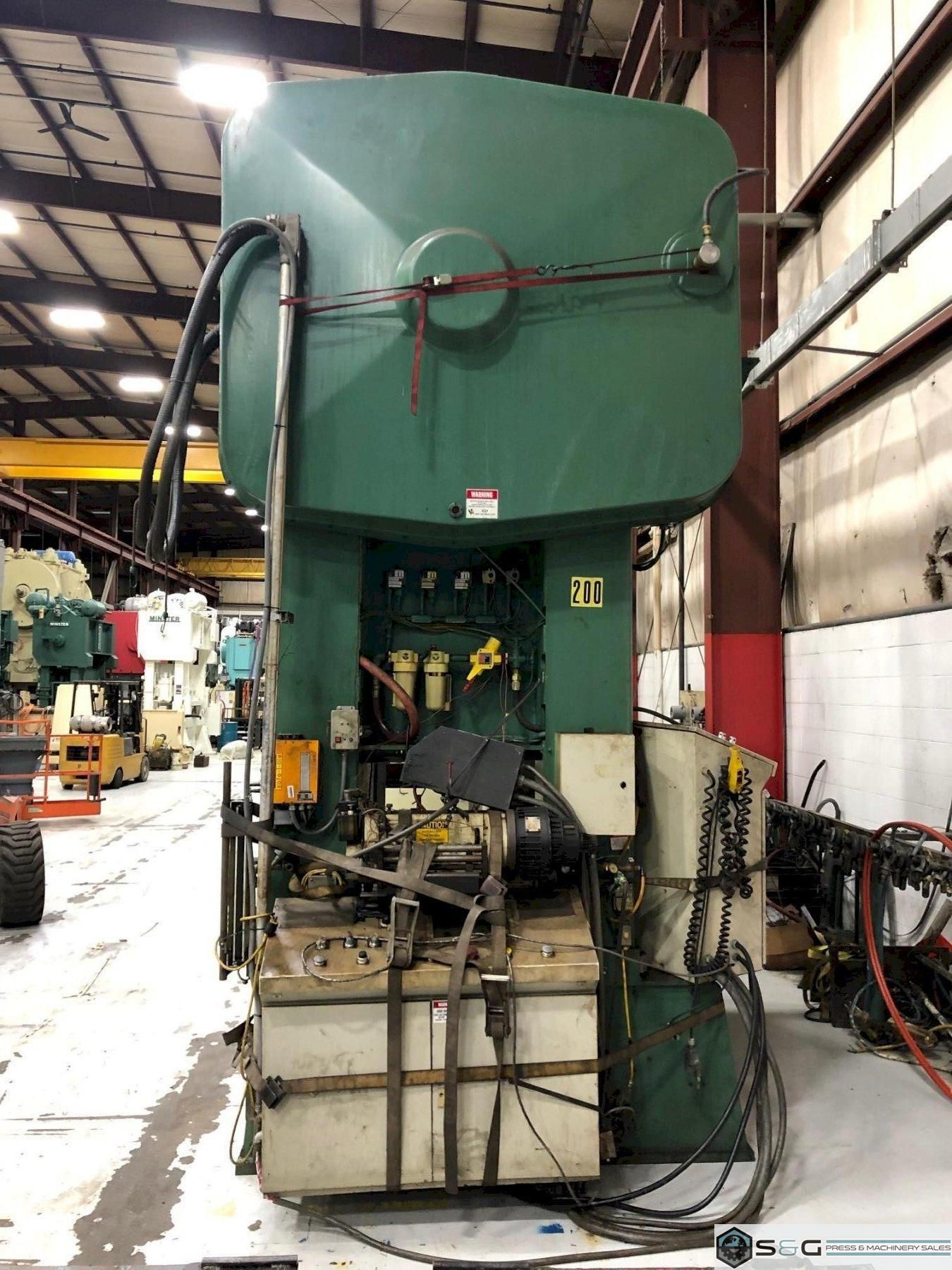

200 ton Brown Boggs SS2-200-60-42 Straight Side Press, New 1993

Model

SS2-200-60-42

Year

1993

Stock #

2633

Condition

Very Good

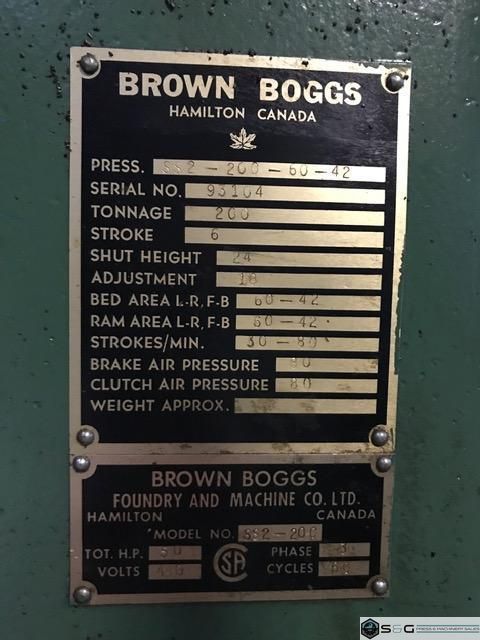

Specifications

Tonnage

200

Stroke

6 inches

Shut Height

24 inches

Adjustment

18 inches

Bed Size

60" x 42"

Ram Area

60" x 42"

SPM

30-80

Preliminary Specifications
200 ton Capacity
6" Stroke
24" Shut Height
18" Motorized Adjustment
60" LR x 42" FB Bed Area
60" LR x 42" FB Slide Area
30-80 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
30.5" wide Windows
Motors and Controls
Floor Standing

Overall Height 186" Above the Floor

Attachments

There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information.

Machine Tags

straight side press
