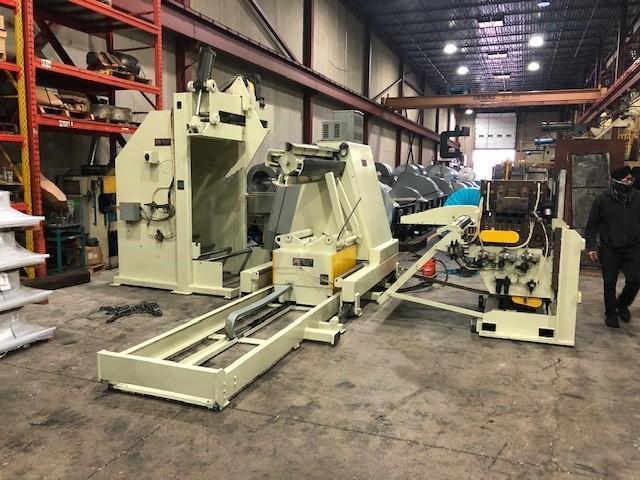

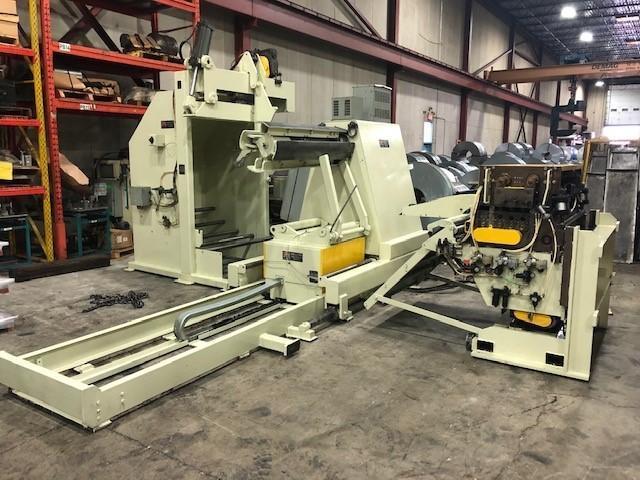

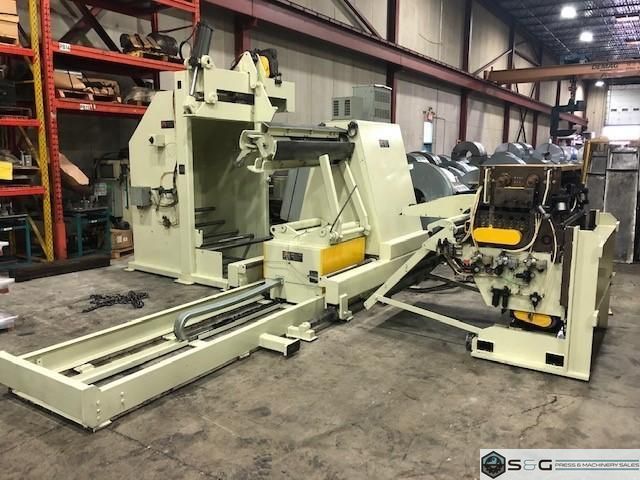

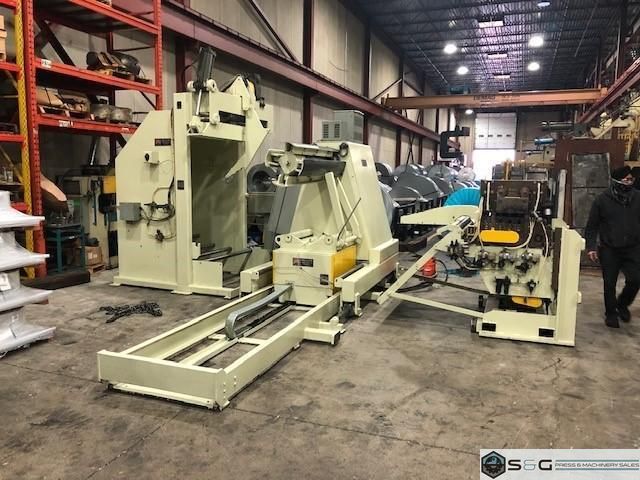

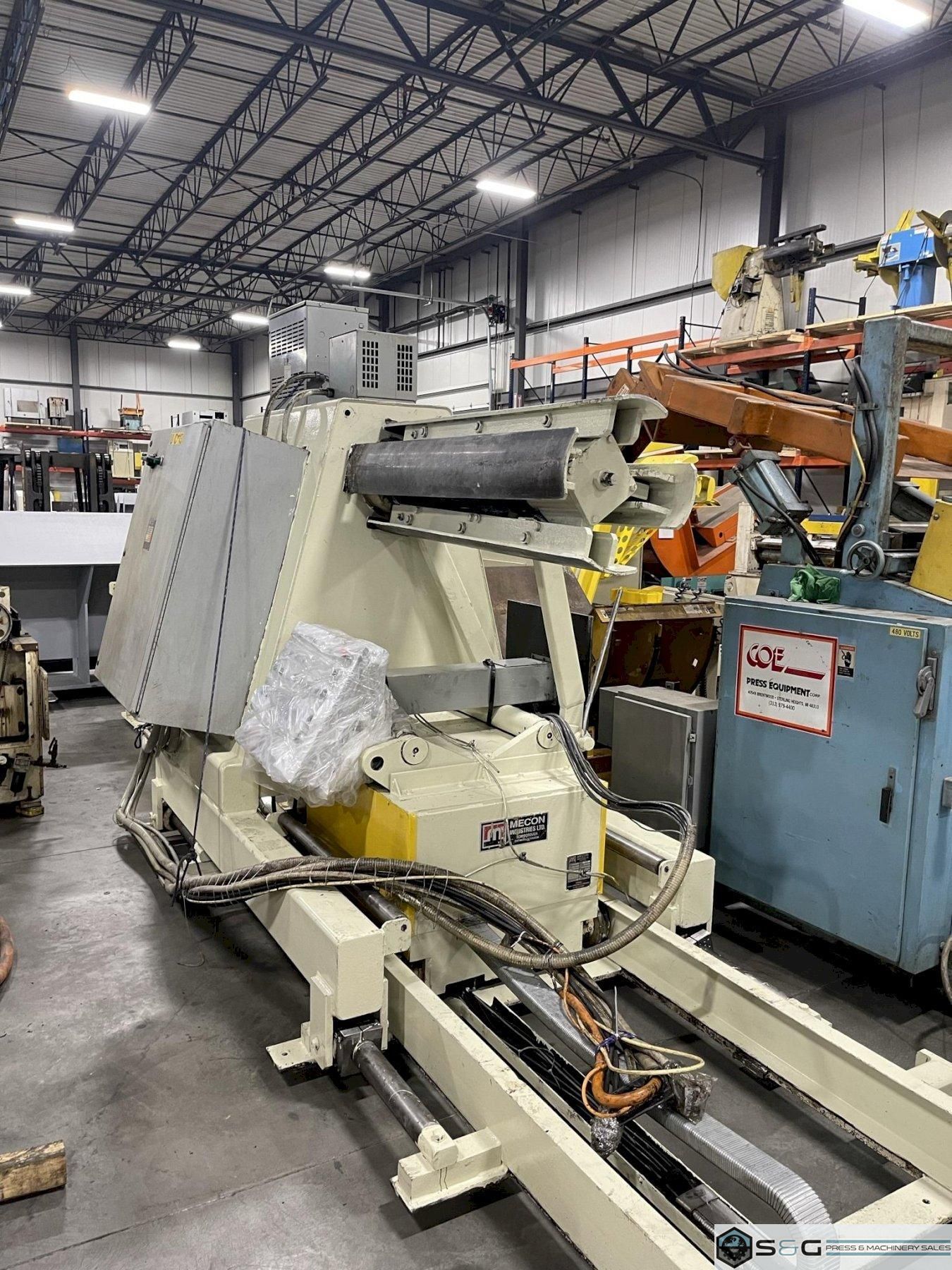

20,000 lbs x 48" Mecon Space Saver Servo Coil Feed Line

Brand

MECON

Model

200CC-IR-RT/200BTJ48/6PR48/400FSP48IXHD

Year

1998

Stock #

2730

Condition

Very Good

Specifications

Coil Weight

20000 ounces

Coil Width

48 inches

Coil Thickness

.160 inches

Standard Specifications:
Coil weight capacity: 20,000 lbs.
Coil width capacity: 48"
Stock thickness capacity: .160" x 48" Wide
Stock thickness capacity: .250" x 18" Wide

Equipped and Features:

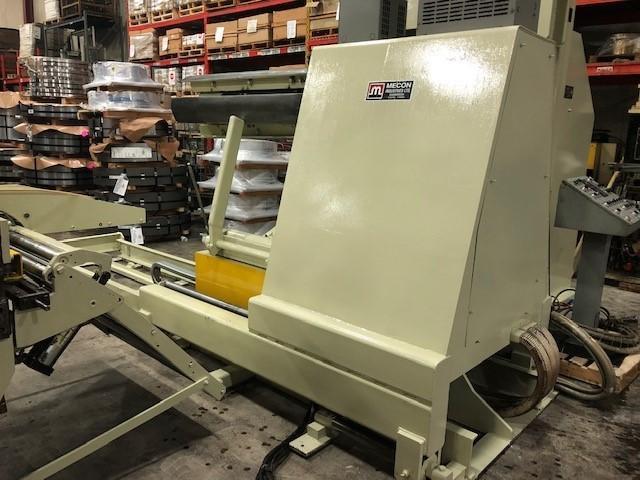

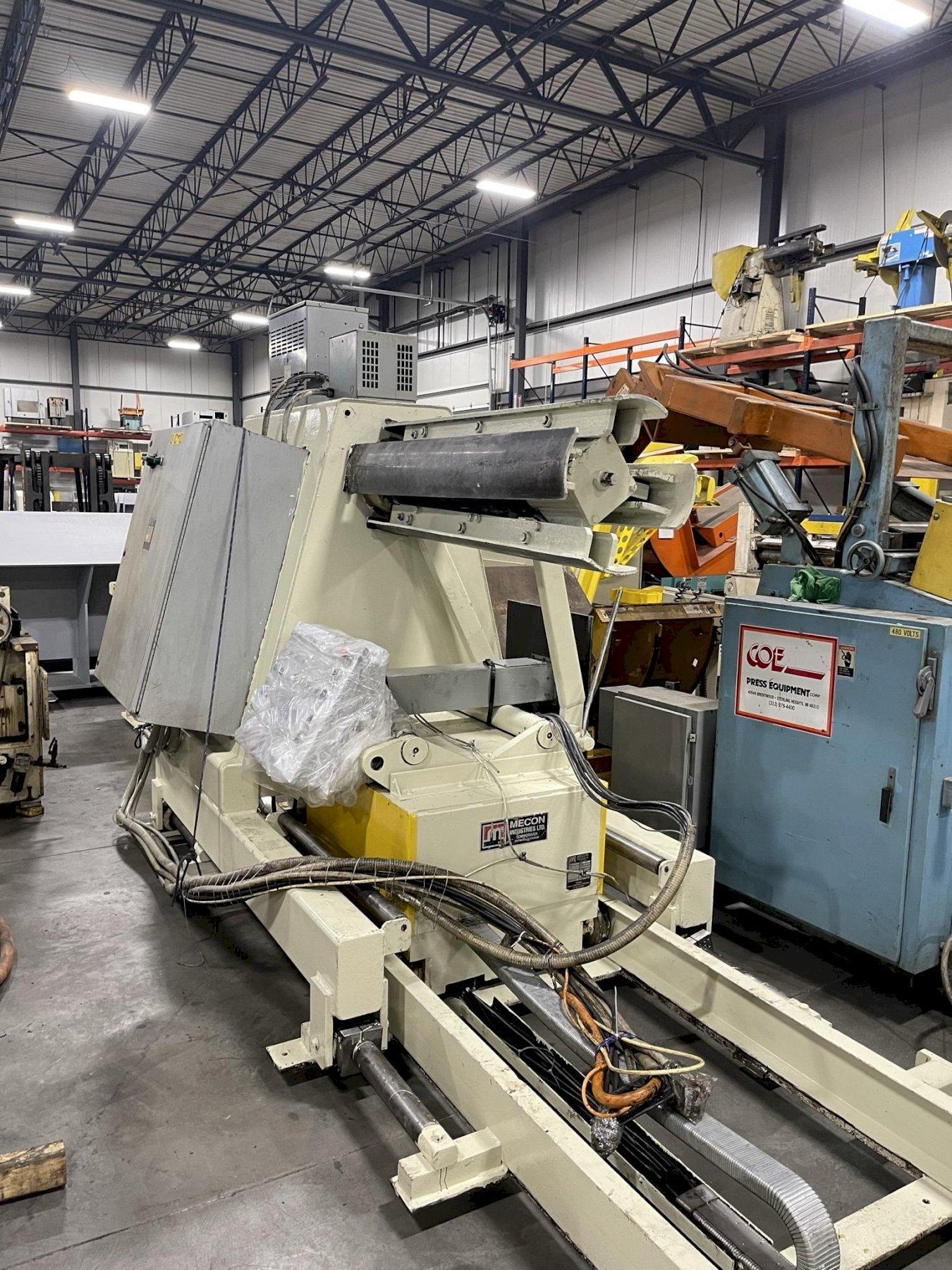

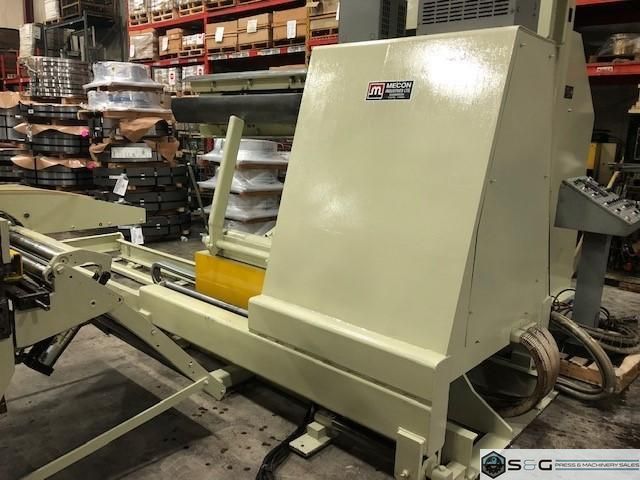

MECON Coil Reel Un-Coiler Model No. 200BTJ48
Traversing base (adjustable coil center line)
Four leaf mandrel
Hydraulic mandrel expansion
Jog drive for forward and reverse
Air brake on main spindle
Self contained hydraulic system

MECON Traveling Coil Load Car Model No. 200CC-IR-RT
Powered travel with track
Powered raise / lower
Adjustable narrow coil supports

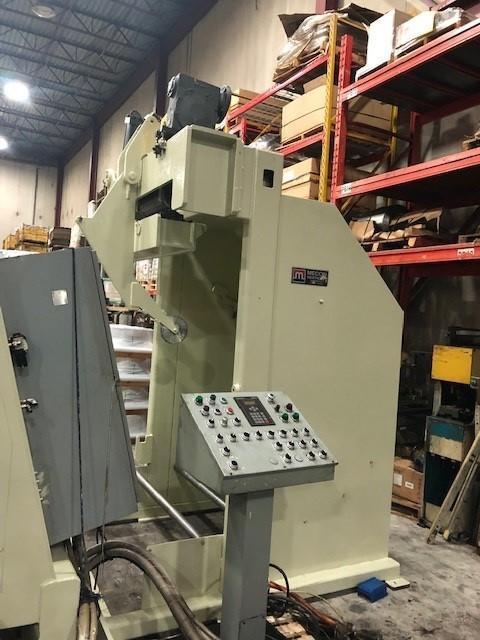

MECON Pinch Roll Station Model No. 6PR48
Coil hold down arm with motorized end wheel
Pull off pinch rolls for material payout and control
Backside loop control deflector with guide rollers

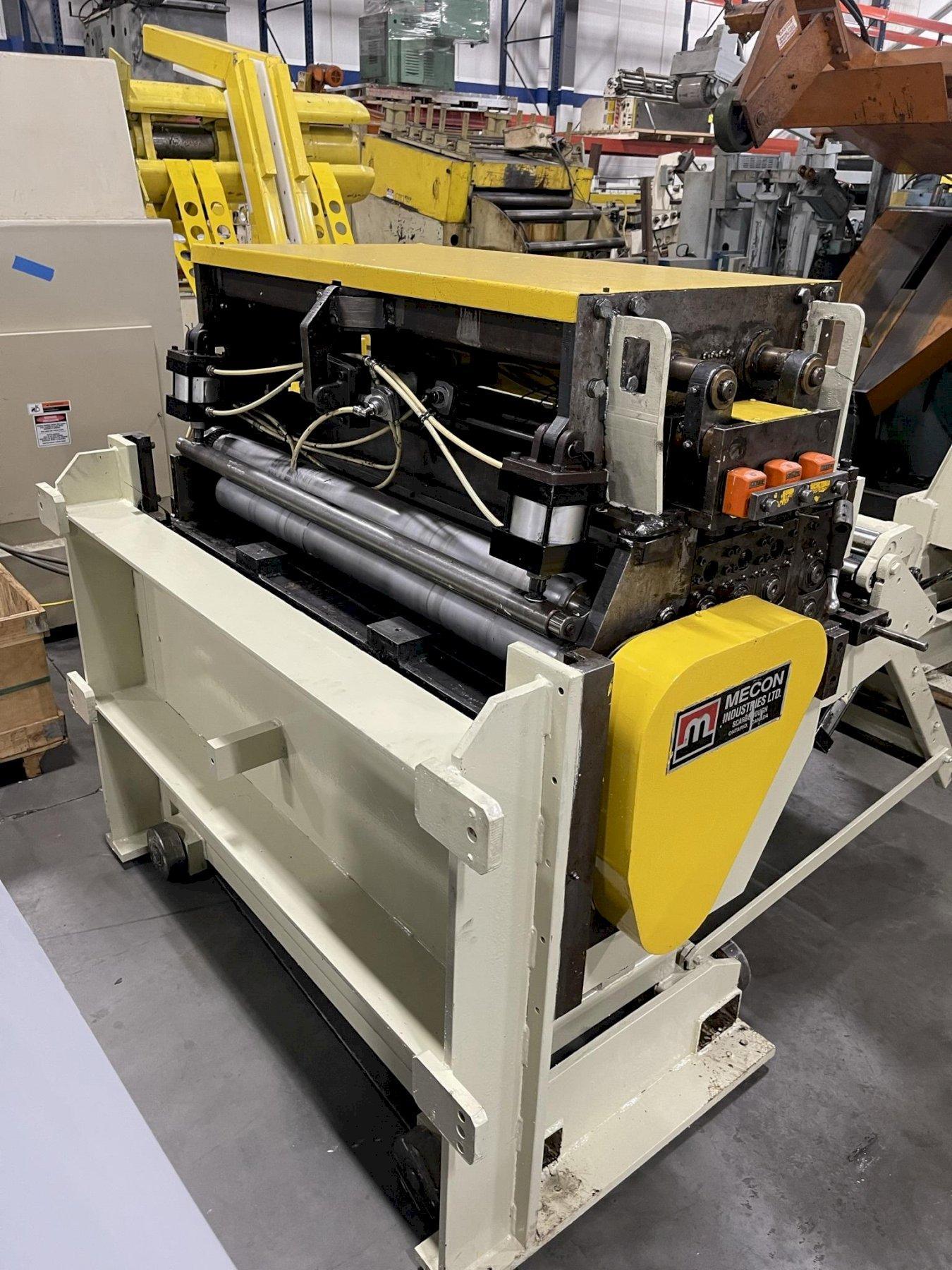

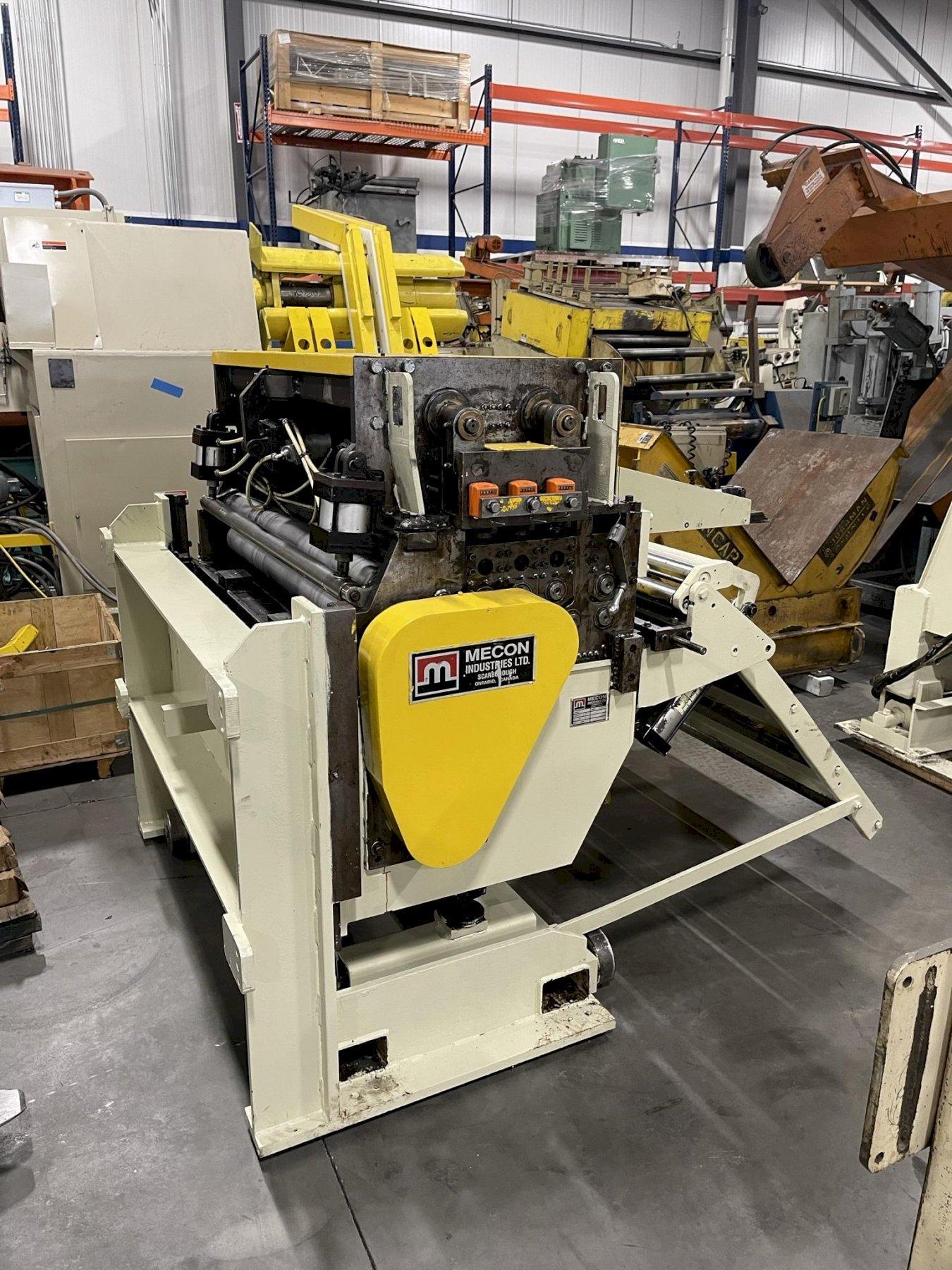

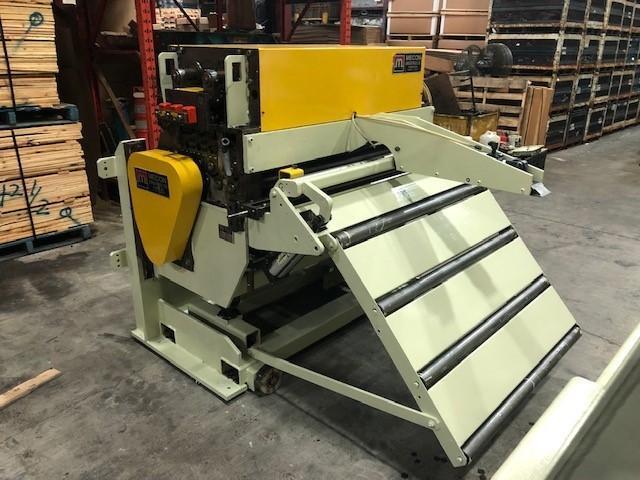

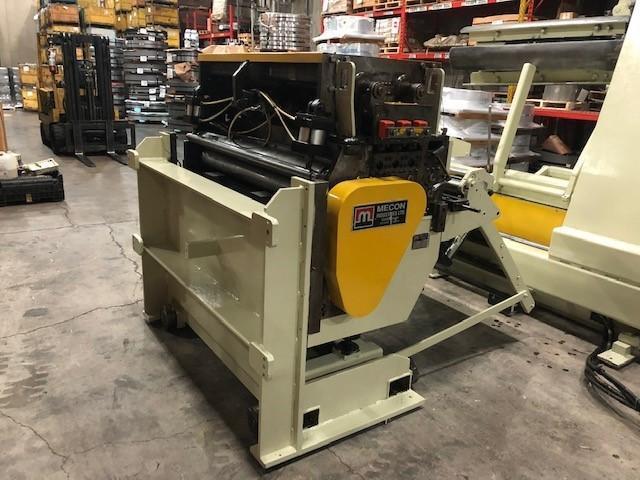

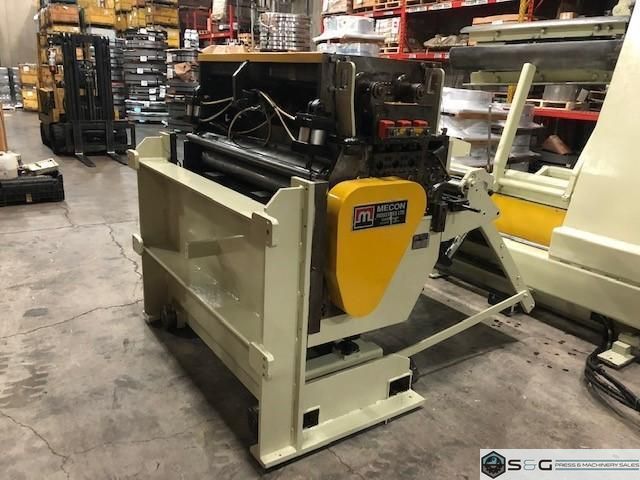

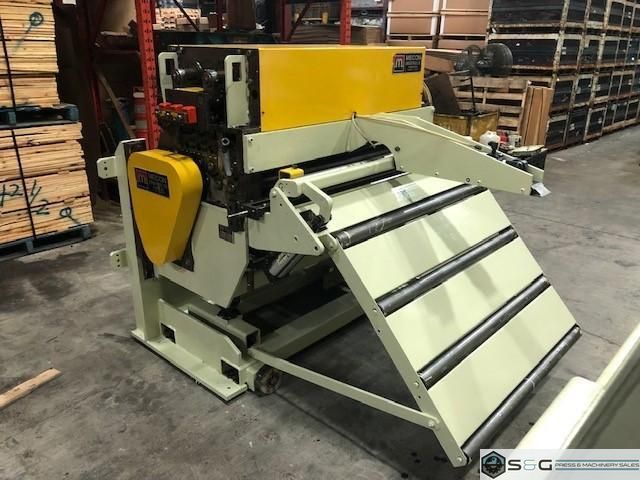

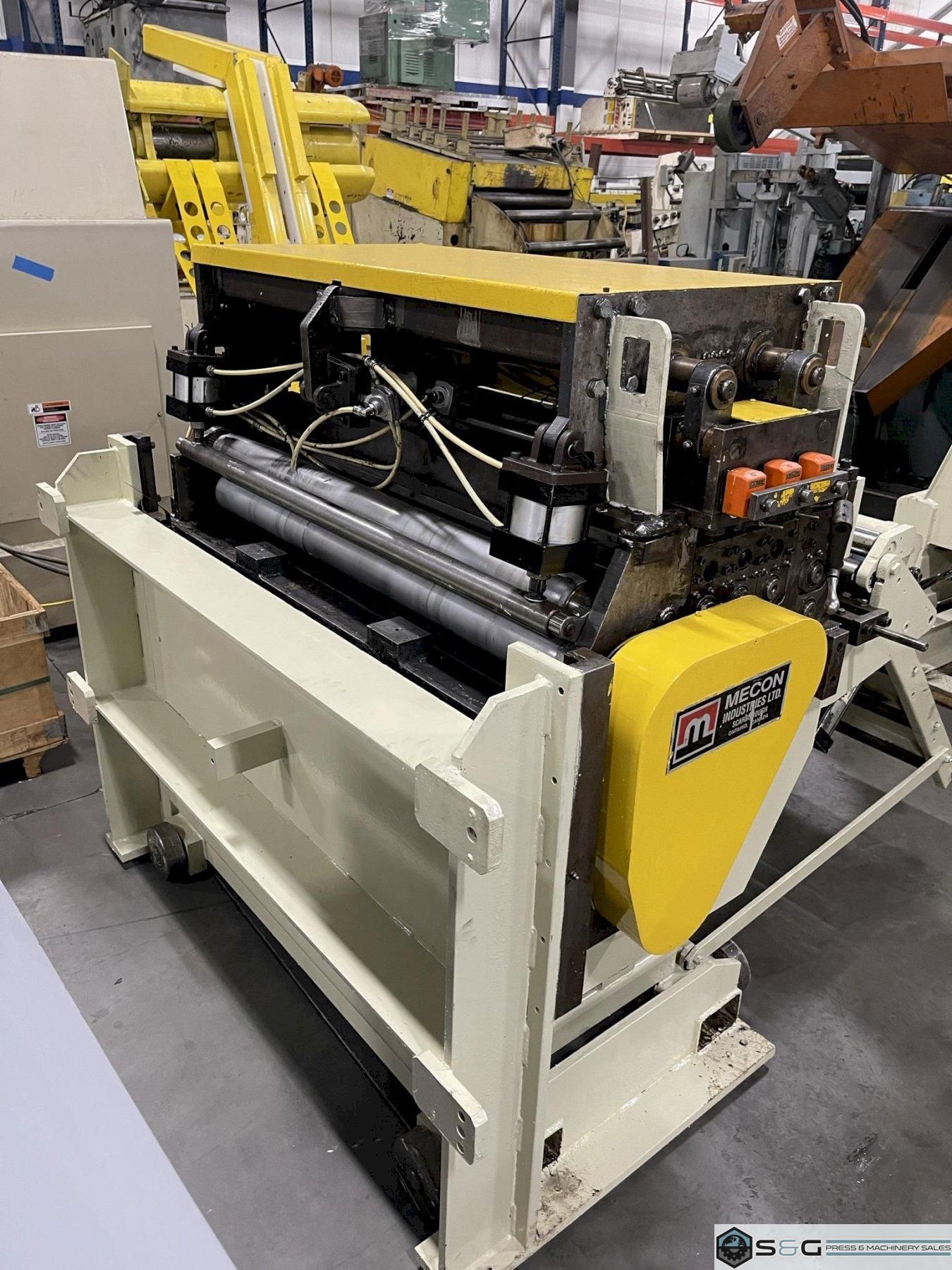

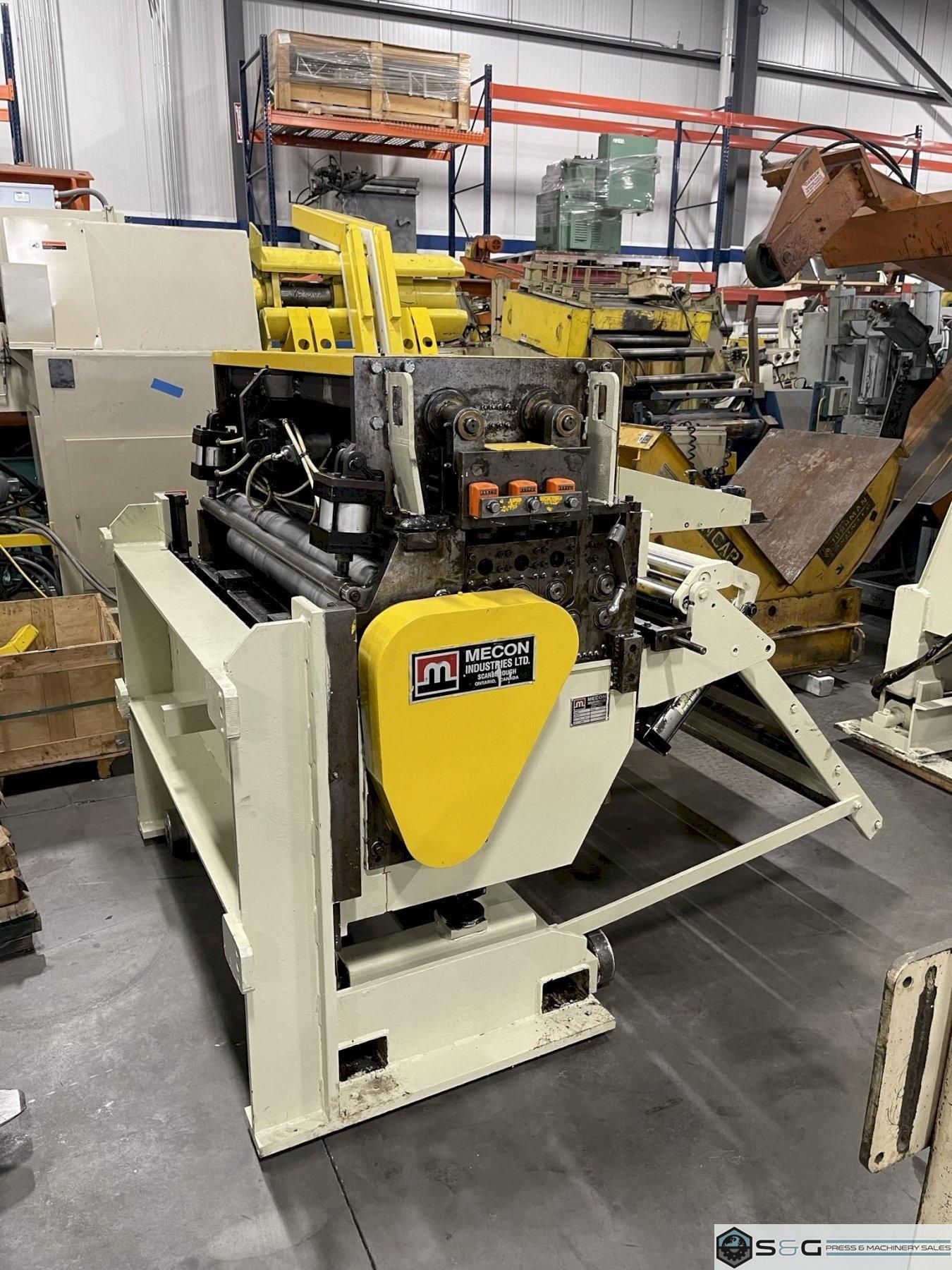

MECON Servo Roll Feed - Straightener Combination Model No. 400FSP48IXHD
Four inch diameter feed rolls
Pilot release (pneumatic)
Seven straightening rolls
Adjustable pass line (motorized)
Entry threading assist with cascade loop support rollers
AC Servo drive and controls

Attachments

20000 x 48 Mecon Space Saver SG Stock# 2730.pdf Download

Machine Tags

Servo Coil Feed Line
