24,000 lbs. x 32" Width Minster Conventional Heavy Duty Servo Coil Feed Line, Model MRH20-38S / MSH30-32-7 / MEF6-32S, Year 2007

Type

Coil Feed Lines

Brand

MINSTER

Model

MRH20-38S / MSH30-32-7 / MEF6-32S

Year

2007

Stock #

2892

Condition

Used

Request a Quote
Let's Talk

Specifications
Coil Weight

24000 pounds
Coil Width

32 inches
Coil Thickness

.156 inches

Standard Specification

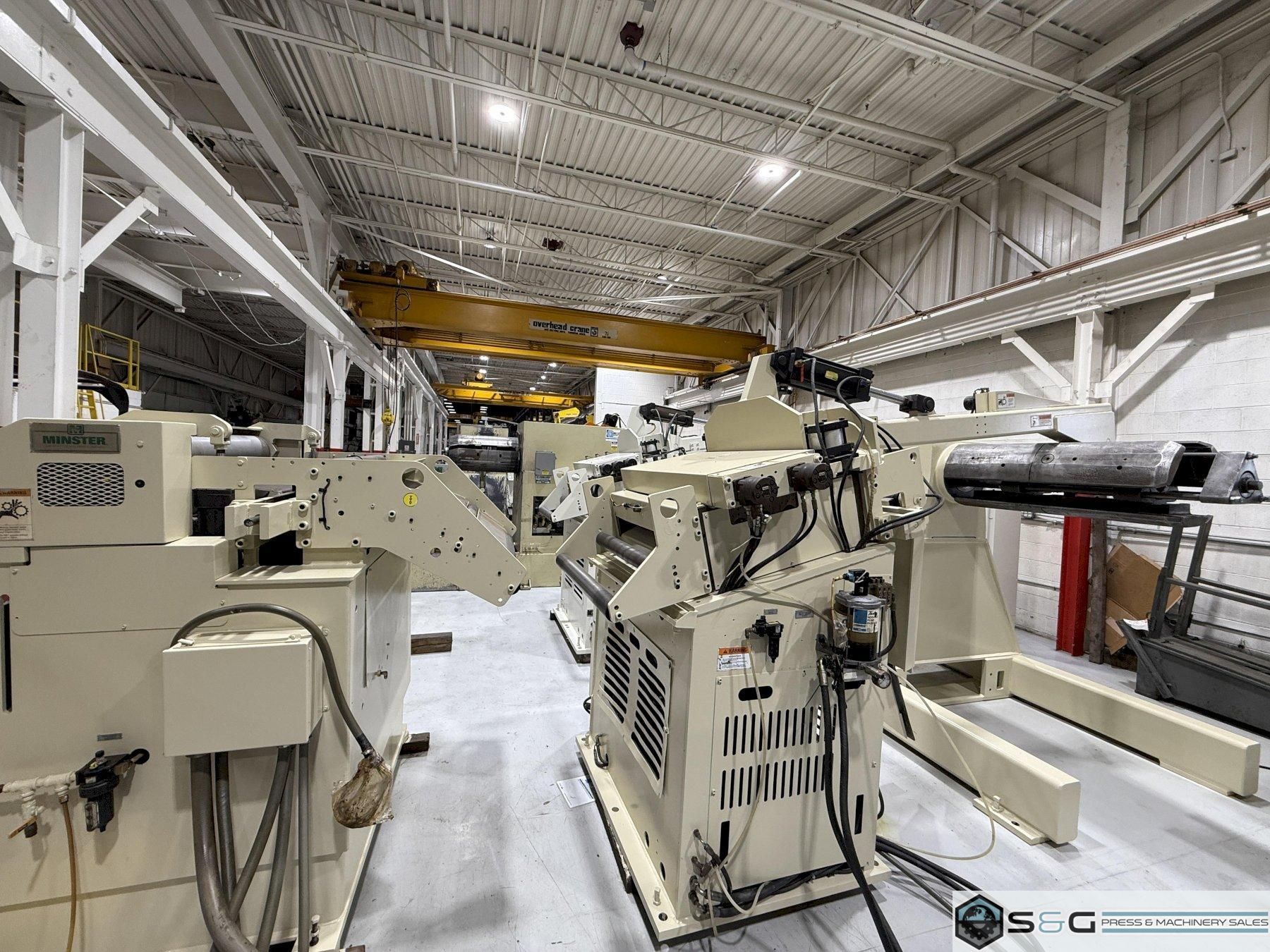

Minster Coil Reel and Minster Power Straightener
24,000 lbs. Coil Weight Capacity
32" Maximum Coil Width
.156" Material Thickness @ Full Width
.315" Maximum Thickness @ 5" coil Width
Line Speed 40-1200 in/min
20-24" I.D. Range
72" Coil O.D.

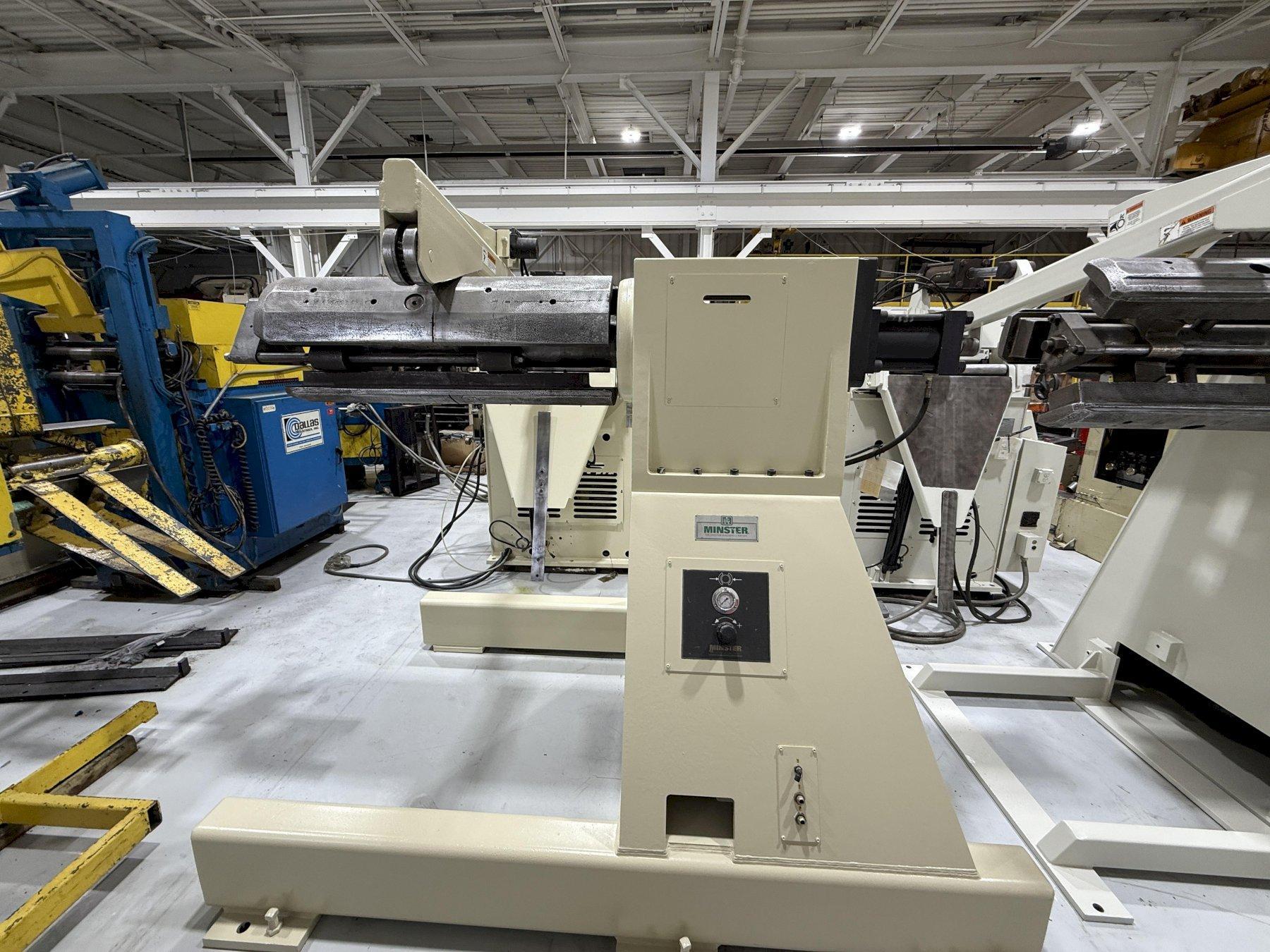

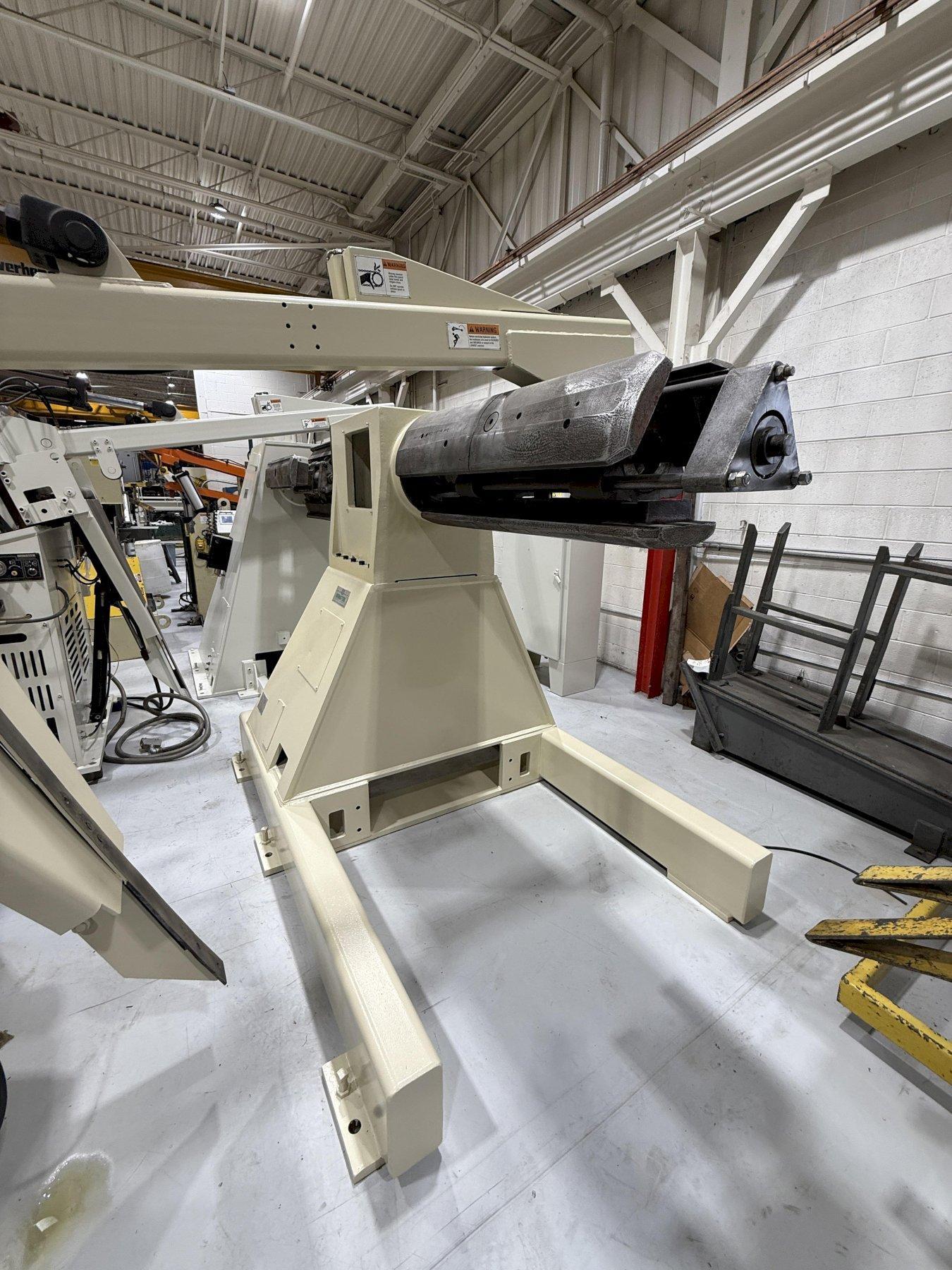

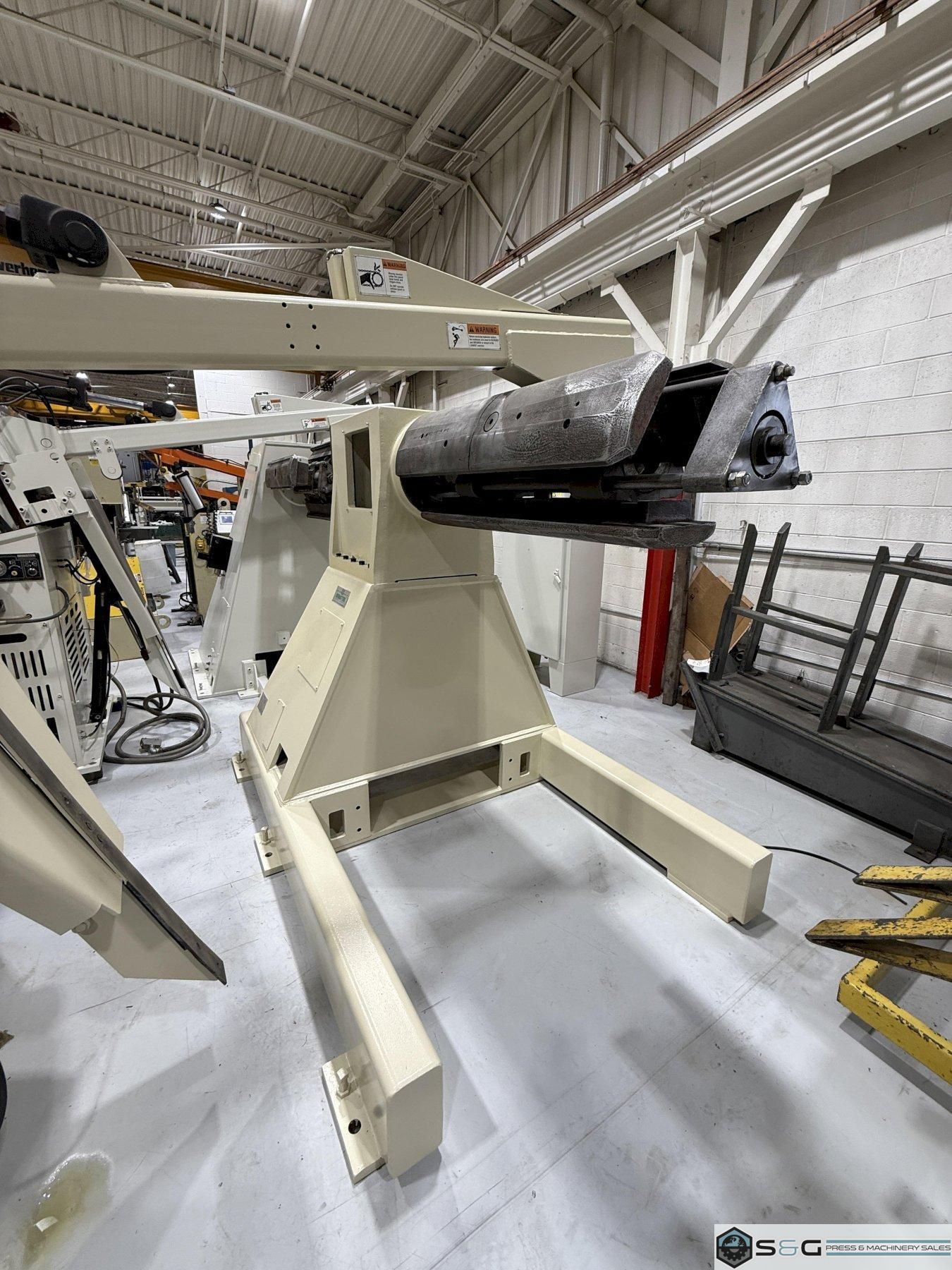

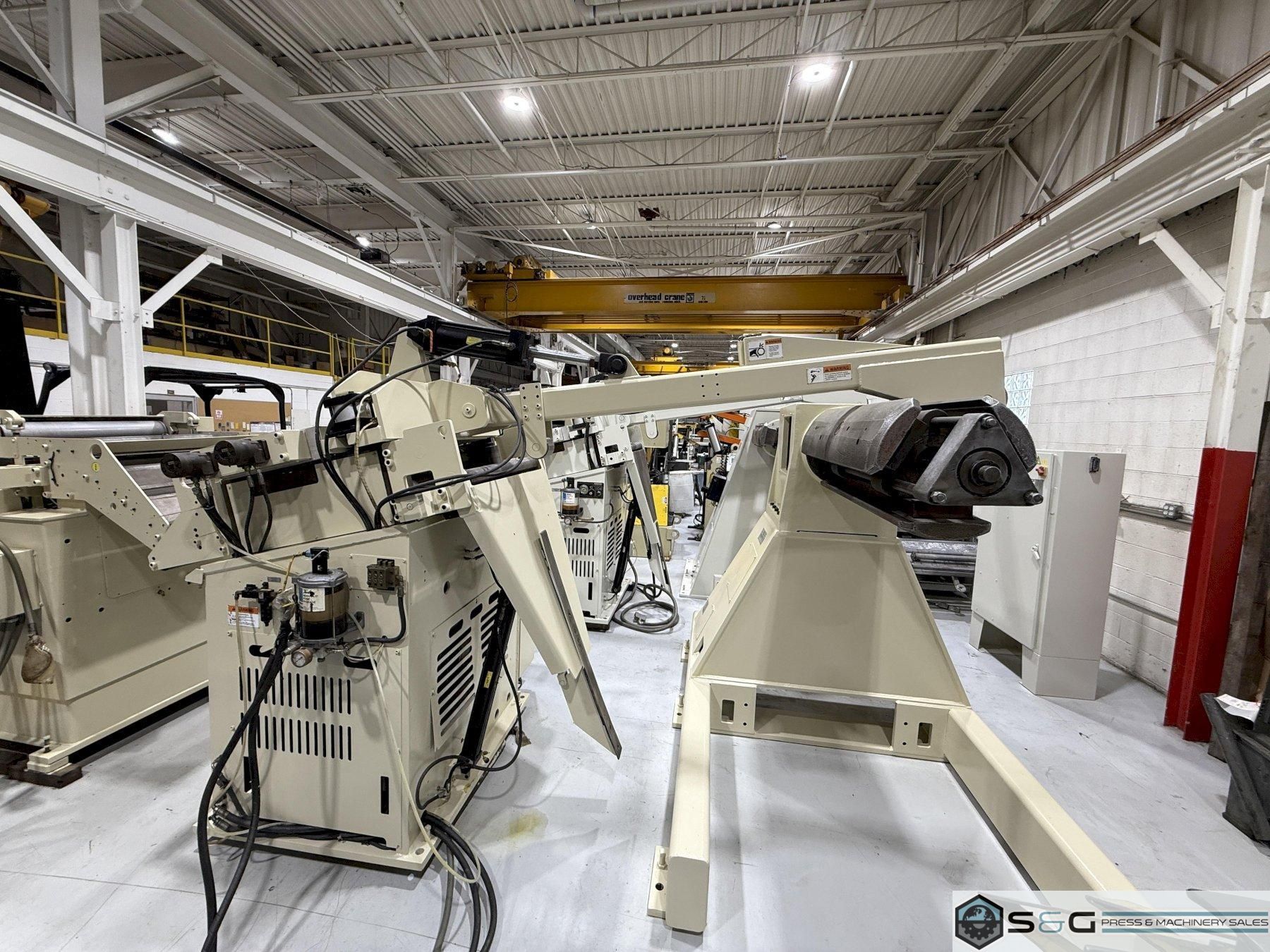

Minster Coil Reel Model MRH20-38S
Serial Number 13-70890

Three Leaf Mandrel with Coil Keeper Arms
Hydraulic Mandrel Expansion
Air Brake Mounted on Main Spindle
Adjustable Tensioning
Threading Drive for Jog / Forward / Reverse

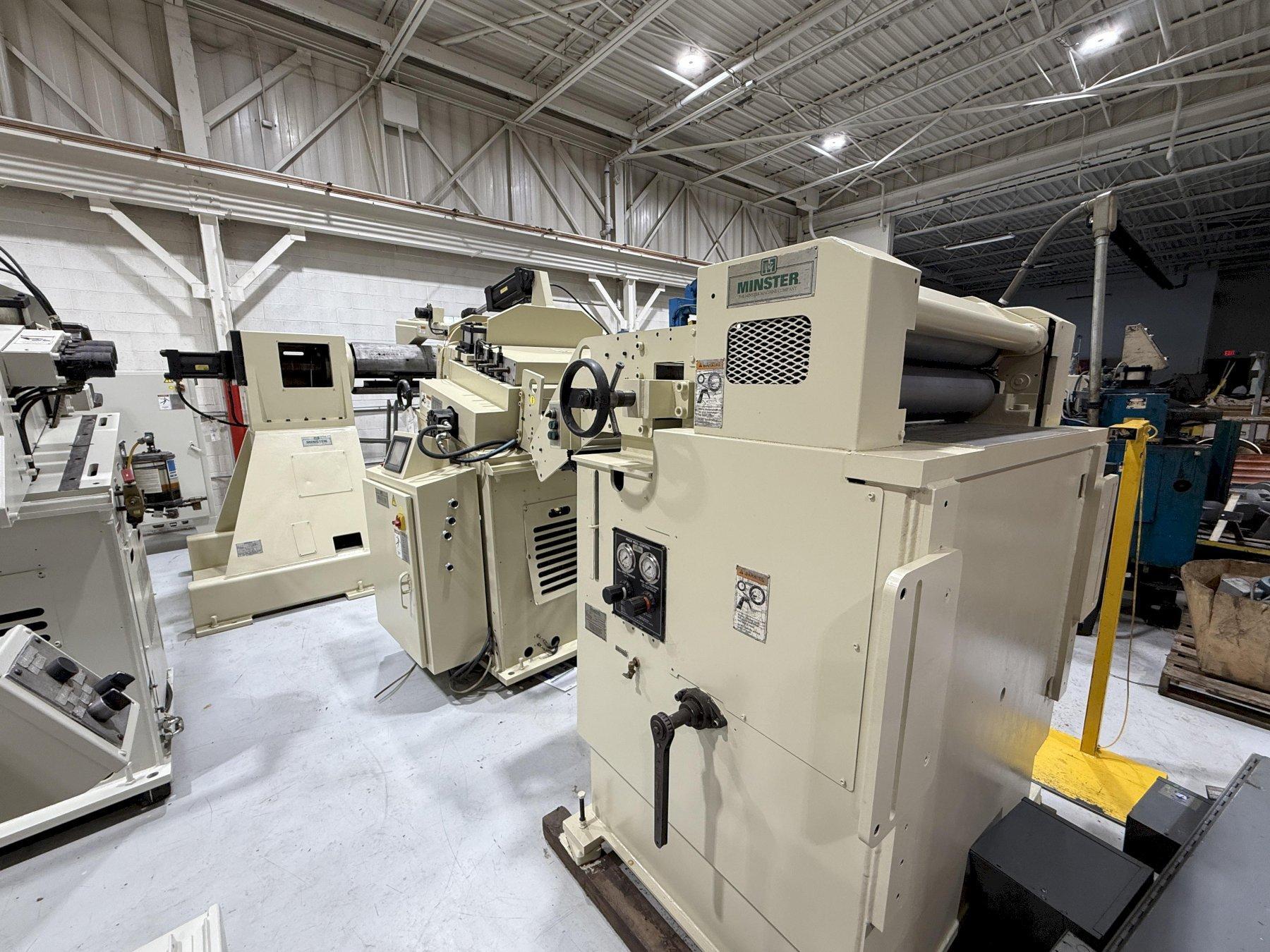

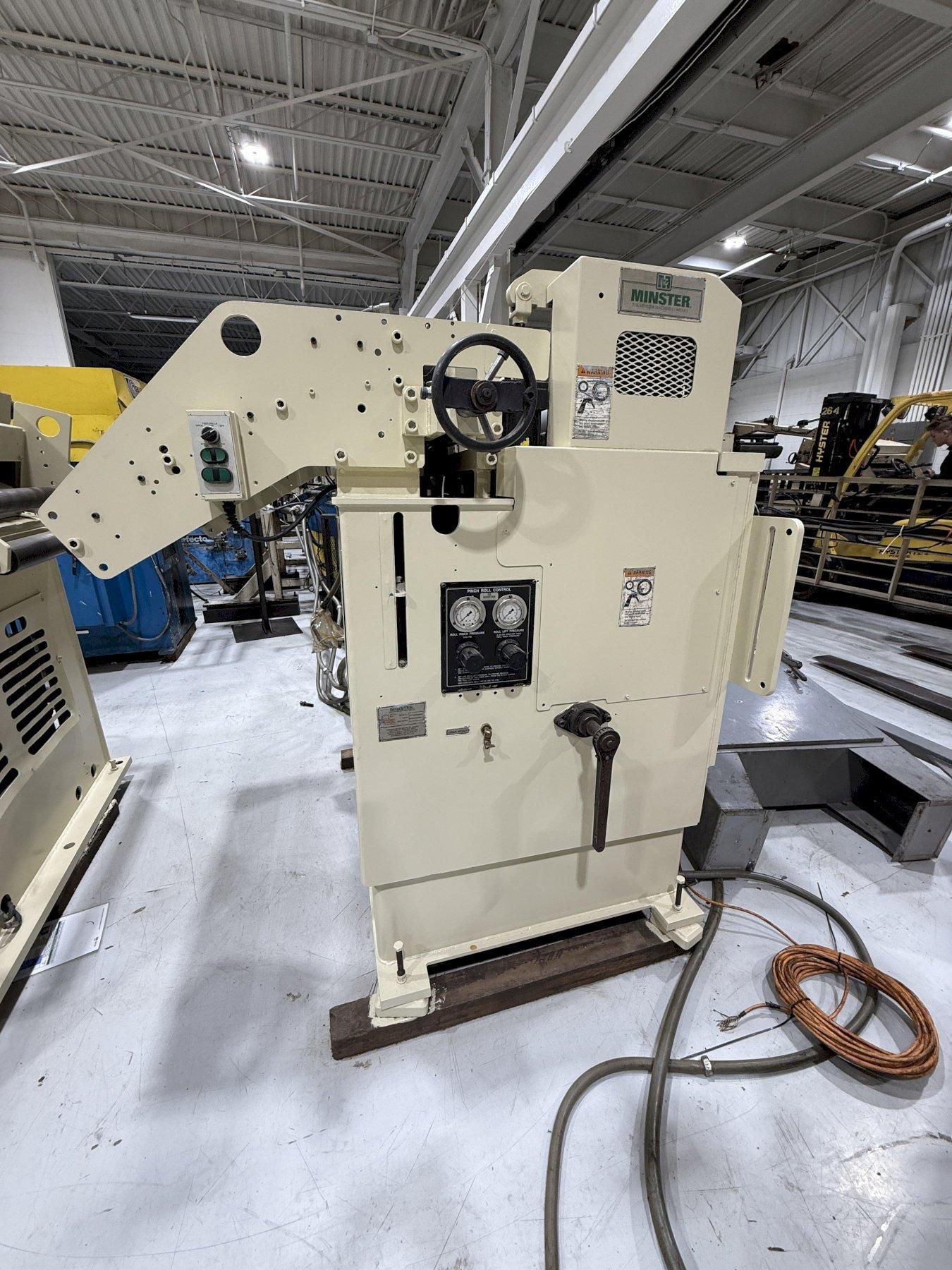

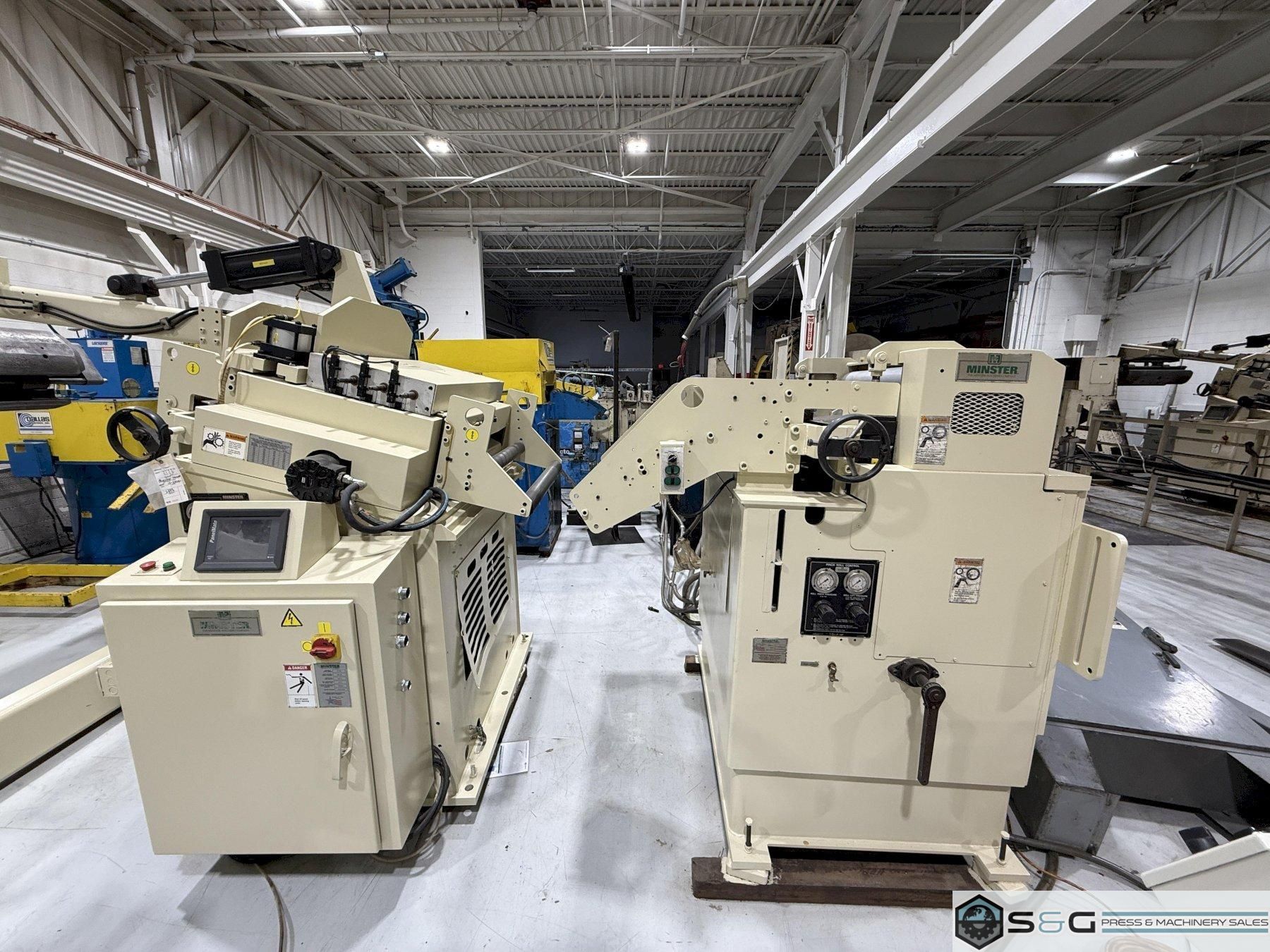

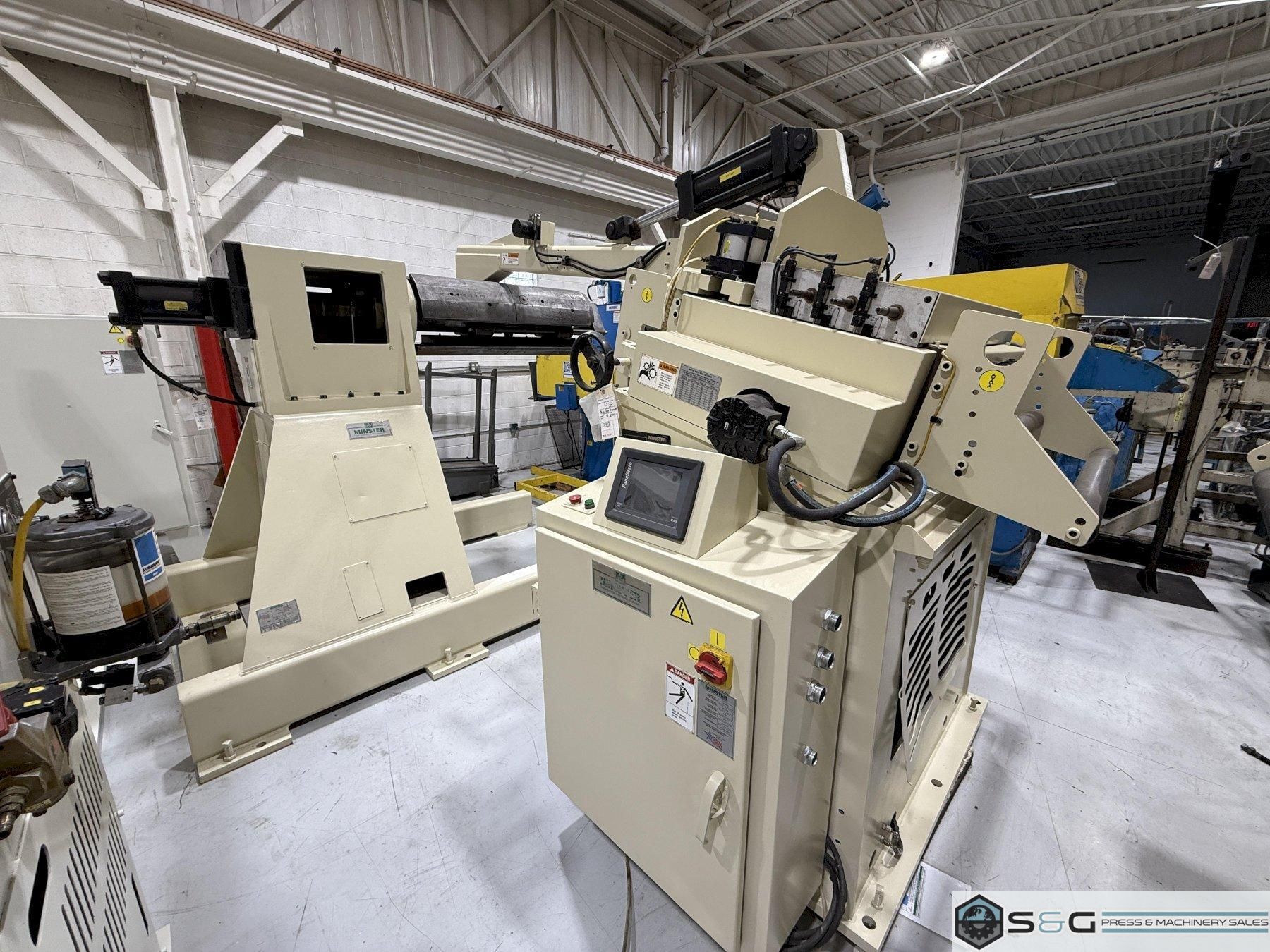

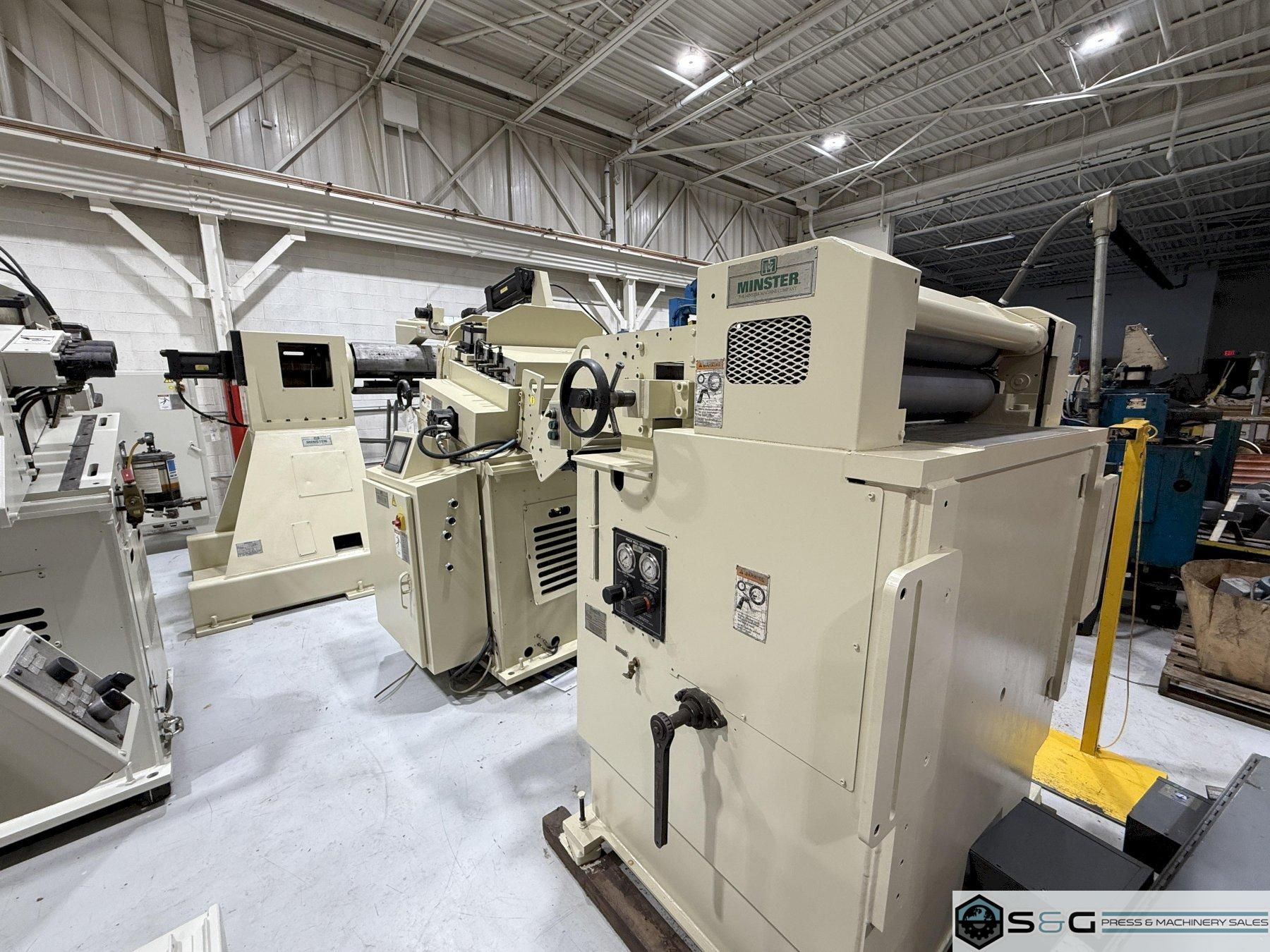

Minster Powered Straightener Model MSH-30-32-7
Serial Number 13-50761

Seven Powered Straightening Rolls x 3" Diameter
Entry Pinch Roll Assembly x 5" Diameter
Motorized Upper Straightening Roll Adjustment
Air Operated Upper Pinch Roll Adjustment
Adjustable Stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table with Spade Extension
Coil End De-bender Roll
Exit Cascade Loop Support Rollers
Variable Speed Drive
Operator's Control Station
Jog Forward and Reverse with Pendant Remote
End of Stock Sensor
Auto / Run Cycle
Variable Speed Loop Controls

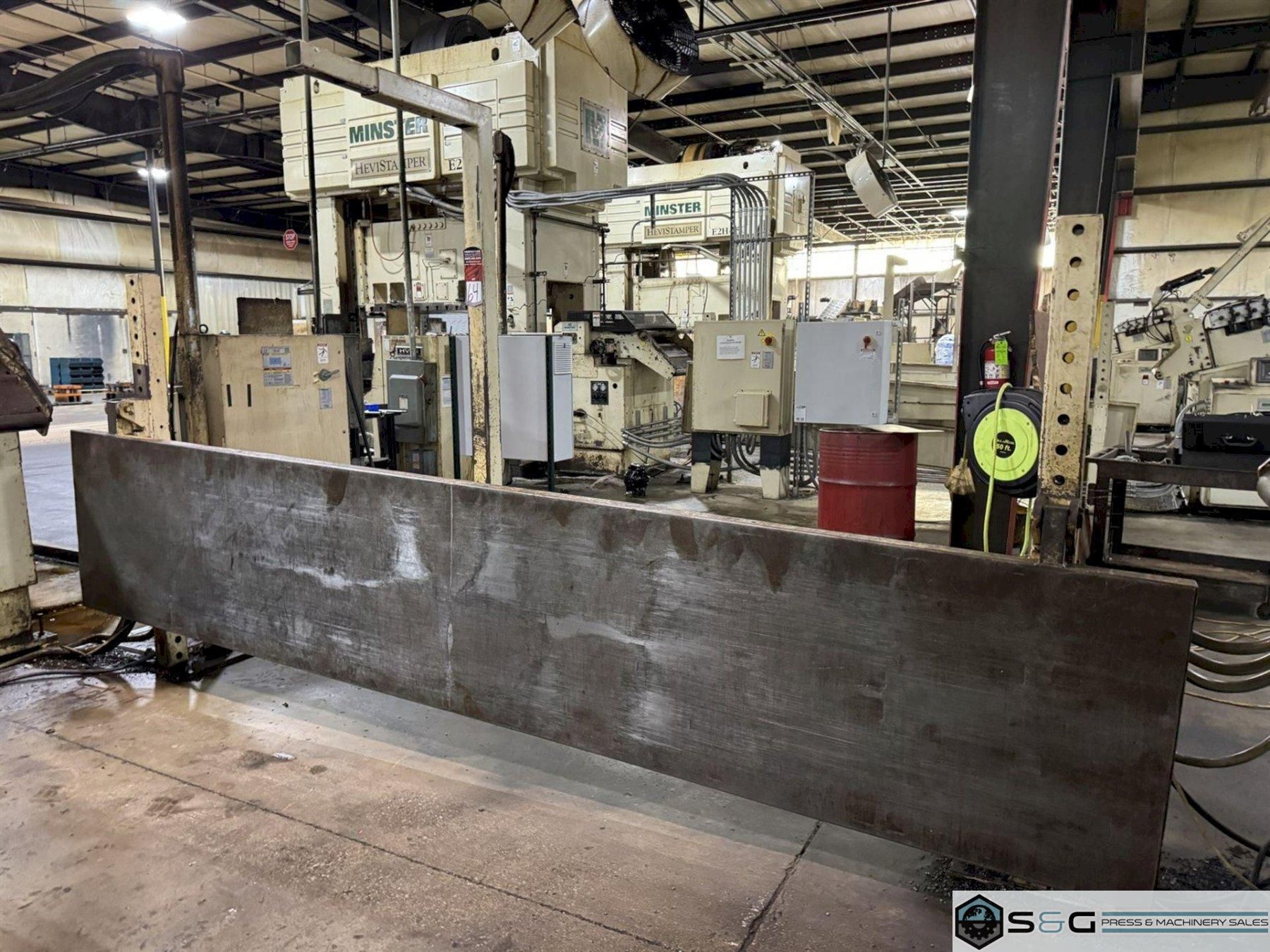

Minster Threading Table Model MTT-12-32-S
Serial Number 13-81376

Air Actuated
144" Length of Table
32" Maximum Stock Width
Bomb Bay Type

Minster Servo Feed Model MEF6-32S
Serial Number 18-51155

Can be seen under in the S & G Press and Machinery Livonia Michigan Warehouse Upon Request.

Click here for another 32" Minster Coil Feed Lines:

Why Minster Coil Feed Equipment for Metal Stamping?

 Minster coil feed lines are highly regarded in the metal stamping industry for their precision, reliability, and efficiency, making them a valuable investment for manufacturers. Their robust construction and advanced engineering contribute to consistent material feeding, minimizing downtime and maximizing productivity.

These feed lines are designed to handle a wide range of materials and thicknesses, providing versatility for diverse stamping applications. Their precise control systems ensure accurate material positioning, resulting in higher-quality stamped parts and reduced scrap rates. Minster's commitment to durability translates to a long service life, offering a reliable solution for continuous production environments.

Minster's reputation for quality and customer support adds to the appeal of their coil feed lines. Investing in Minster equipment signifies a commitment to precision and efficiency, ultimately enhancing the overall performance and profitability of metal stamping operations.

Attachments
32" Minster Feed Line - Line Drawing.pdf Download
