Specifications |
|||
|---|---|---|---|
| Coil Weight | 25000 pounds |
||
| Coil Width | 30 inches |
||
| Coil Thickness | .187 inches |
||
|

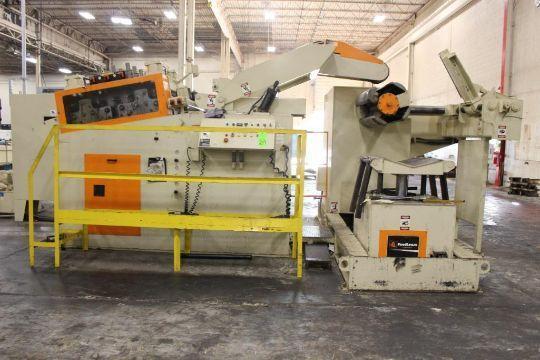

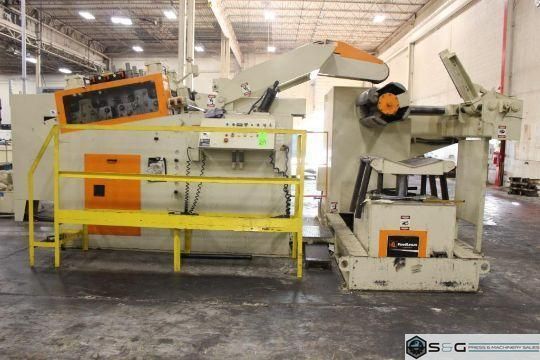

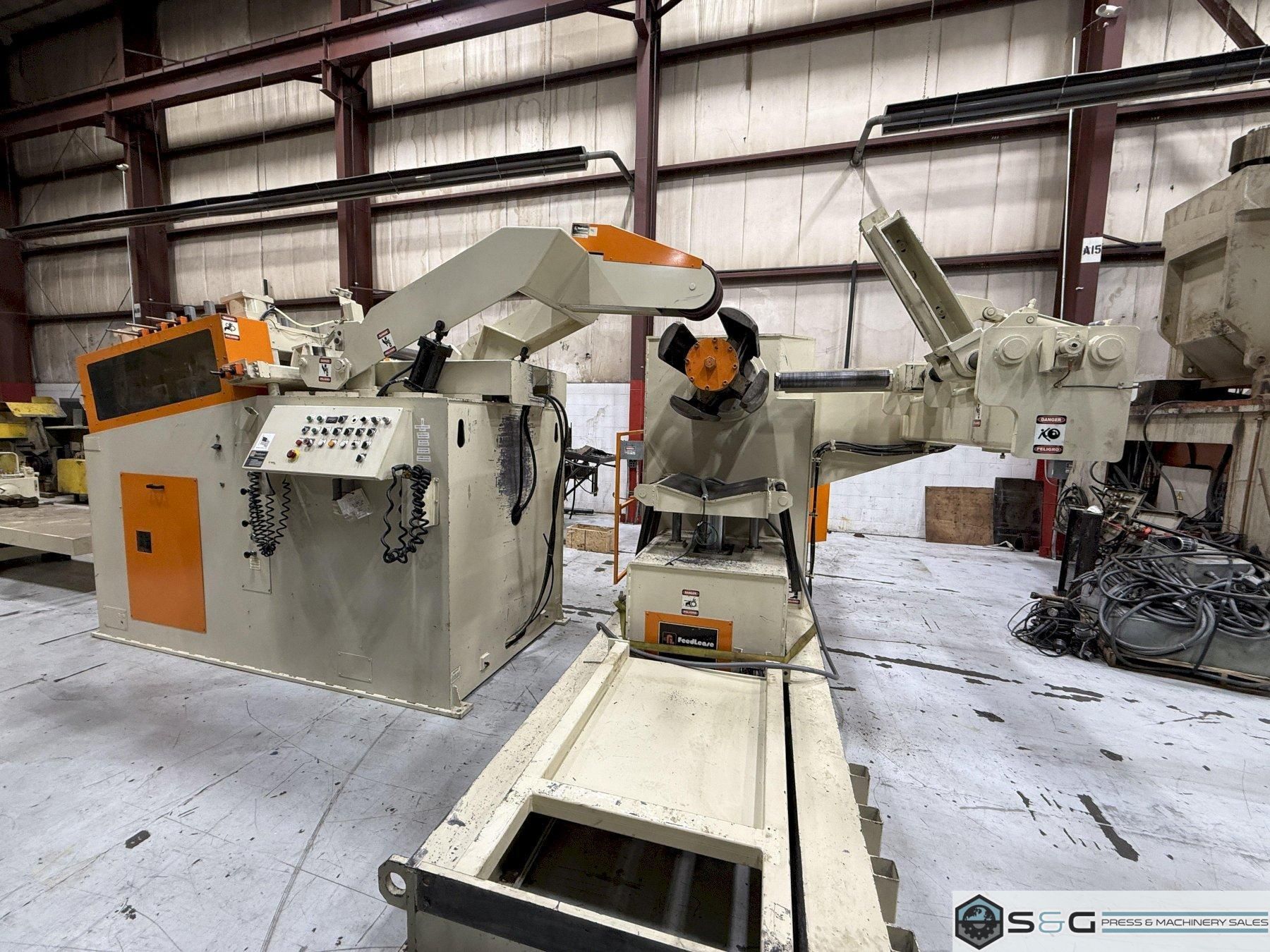

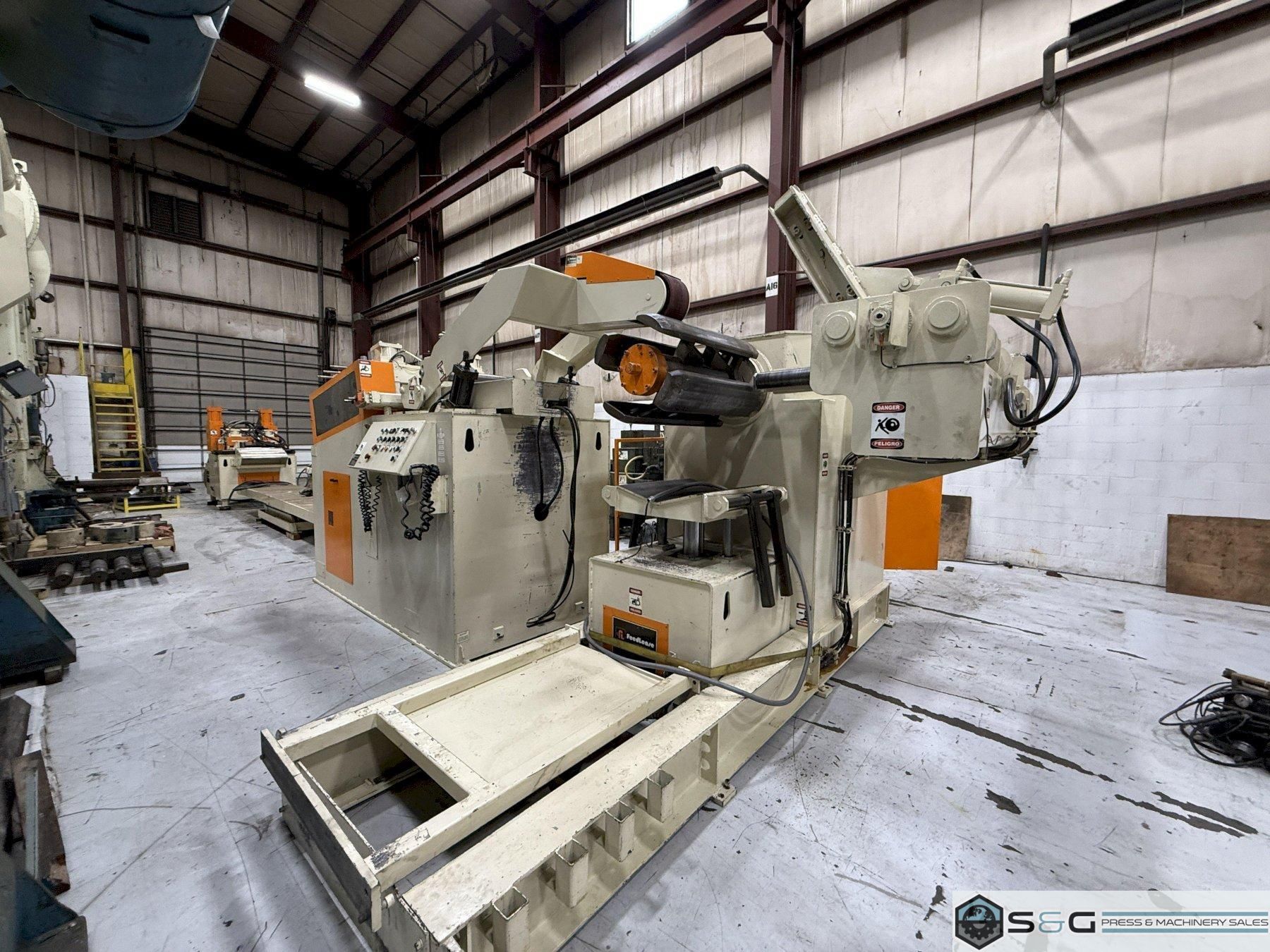

High Strength Steel Coil Feed Line Coil weight capacity: 25,000 Lbs.
Coil width capacity: 30"
High Strength Steel Material Capacities @ 80 ksi Yield Stock thickness capacity: .187" x 30" Wide High Strength Steel
Stock thickness capacity: .250" x 24" Wide High Strength Steel Maximum Coil Thickness: .312" x 12" Wide High Strength Steel Minimum Coil thickness: .060" Expansion range: 19.5" - 24.5"
Coil O.D. Capacity: 72
Feed Lease Complete "High Strength Steel" Coil Feed Line Equipment and Features:

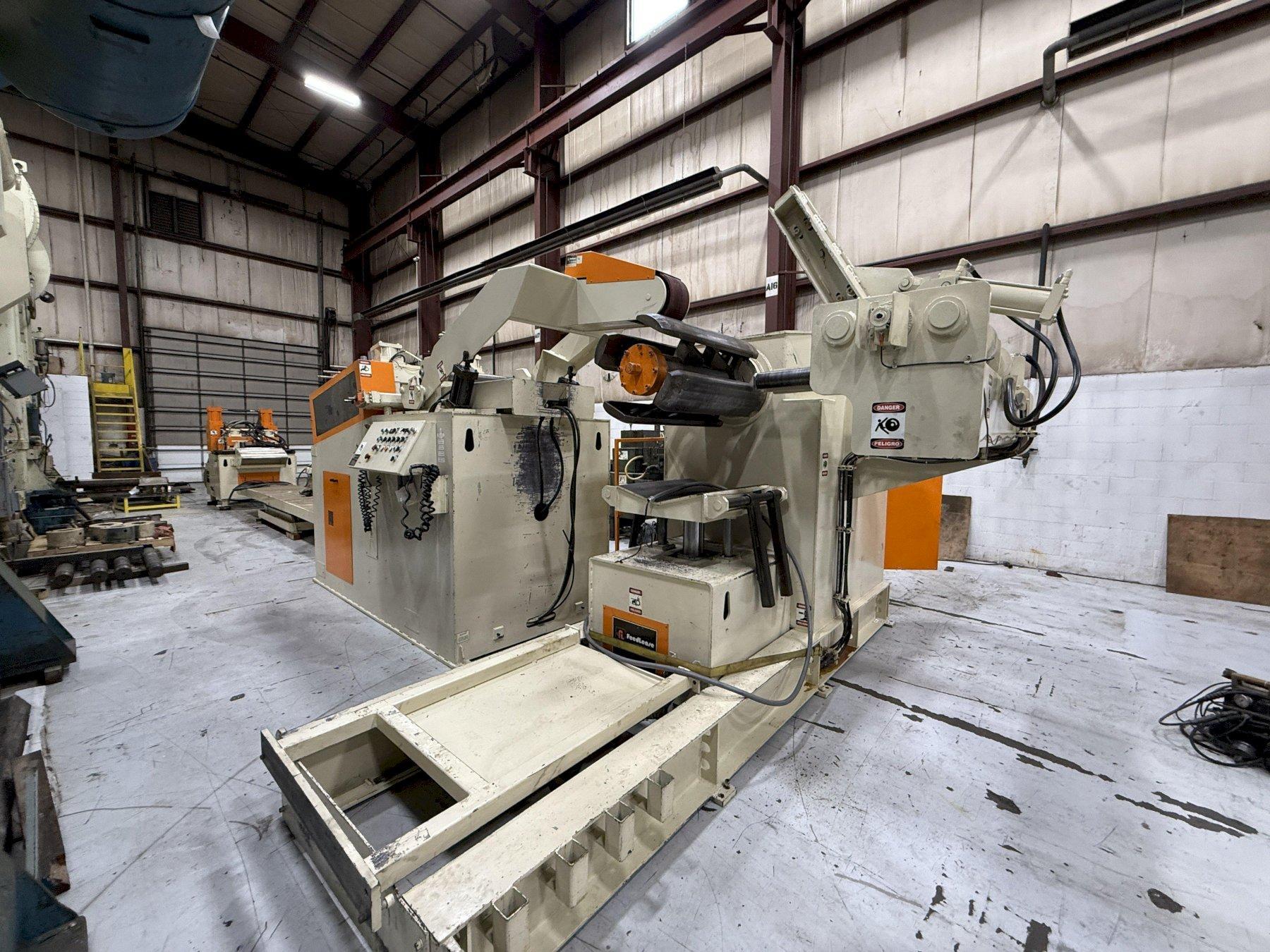

Feed Lease Coil Reel Model No.: R-25M-30, Serial No.: 5158
Four leaf mandrel with coil keeper arms
Hydraulic mandrel expansion
Failsafe Pneumatic drag brake mounted on main spindle
Adjustable tensioning
Clock spring safety guard Threading drive for jog forward and reverse

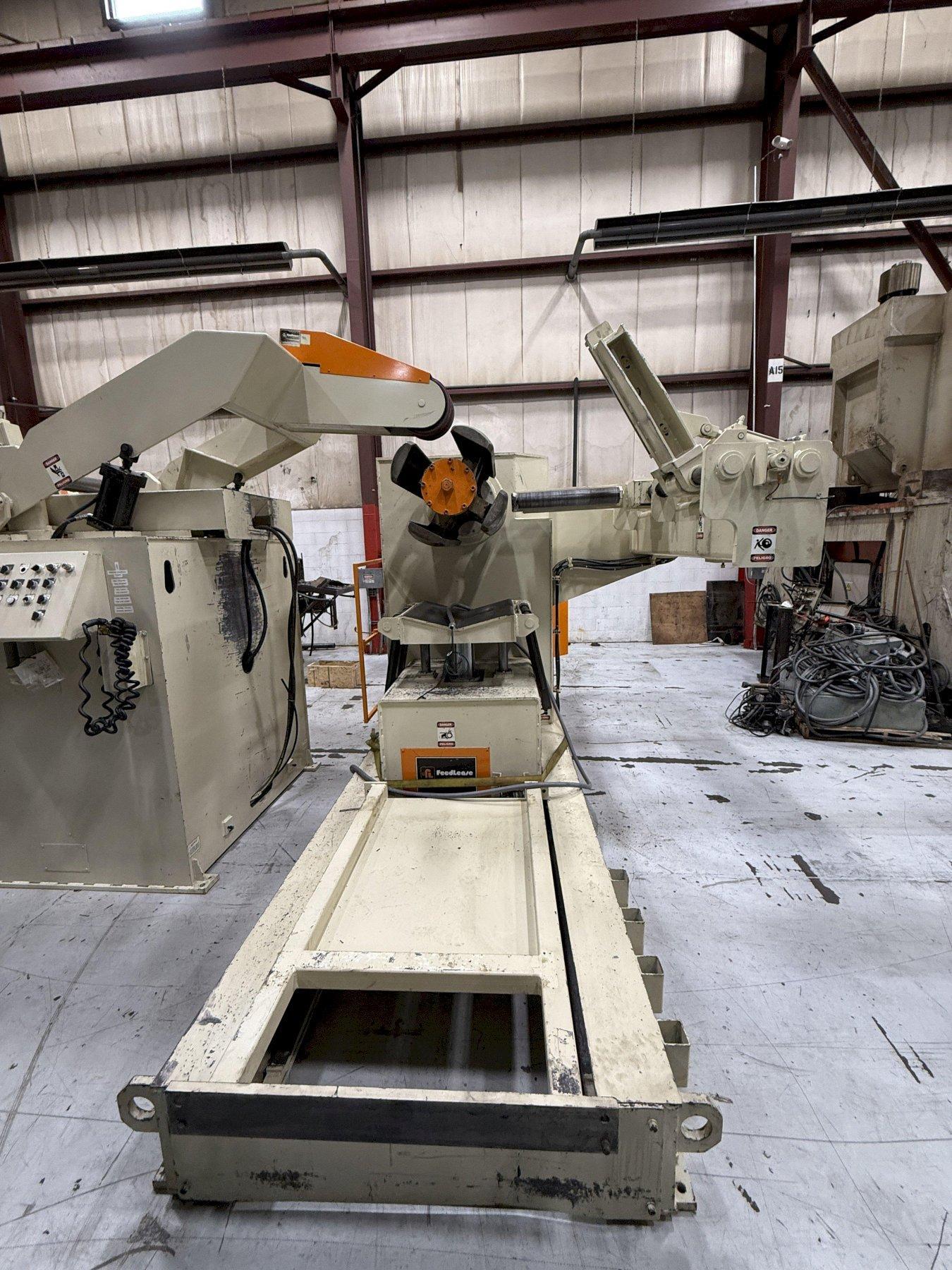

Coil Car with 24" Vertical Lift Narrow coil keepers on load car Six Button Pendant Remote

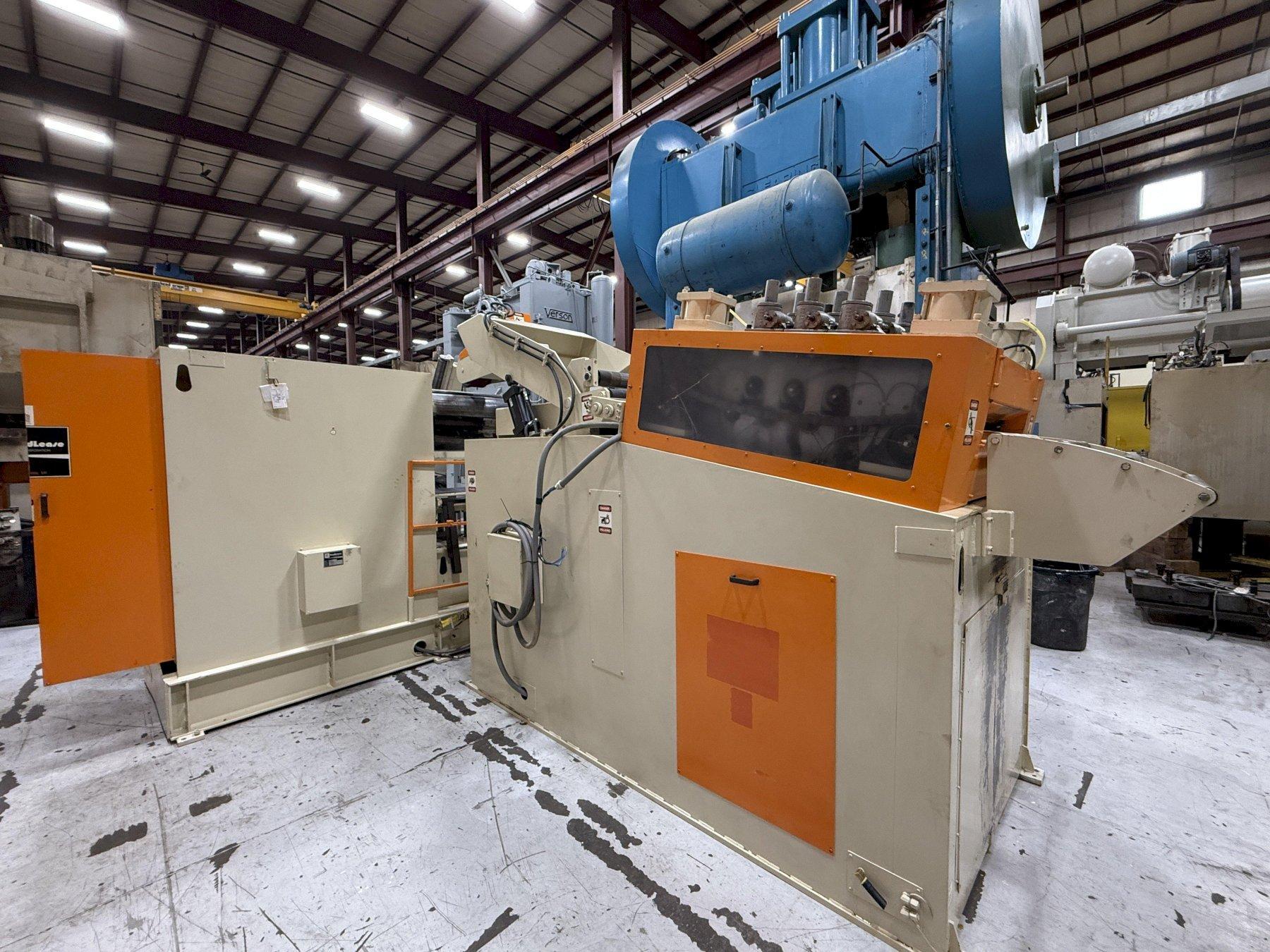

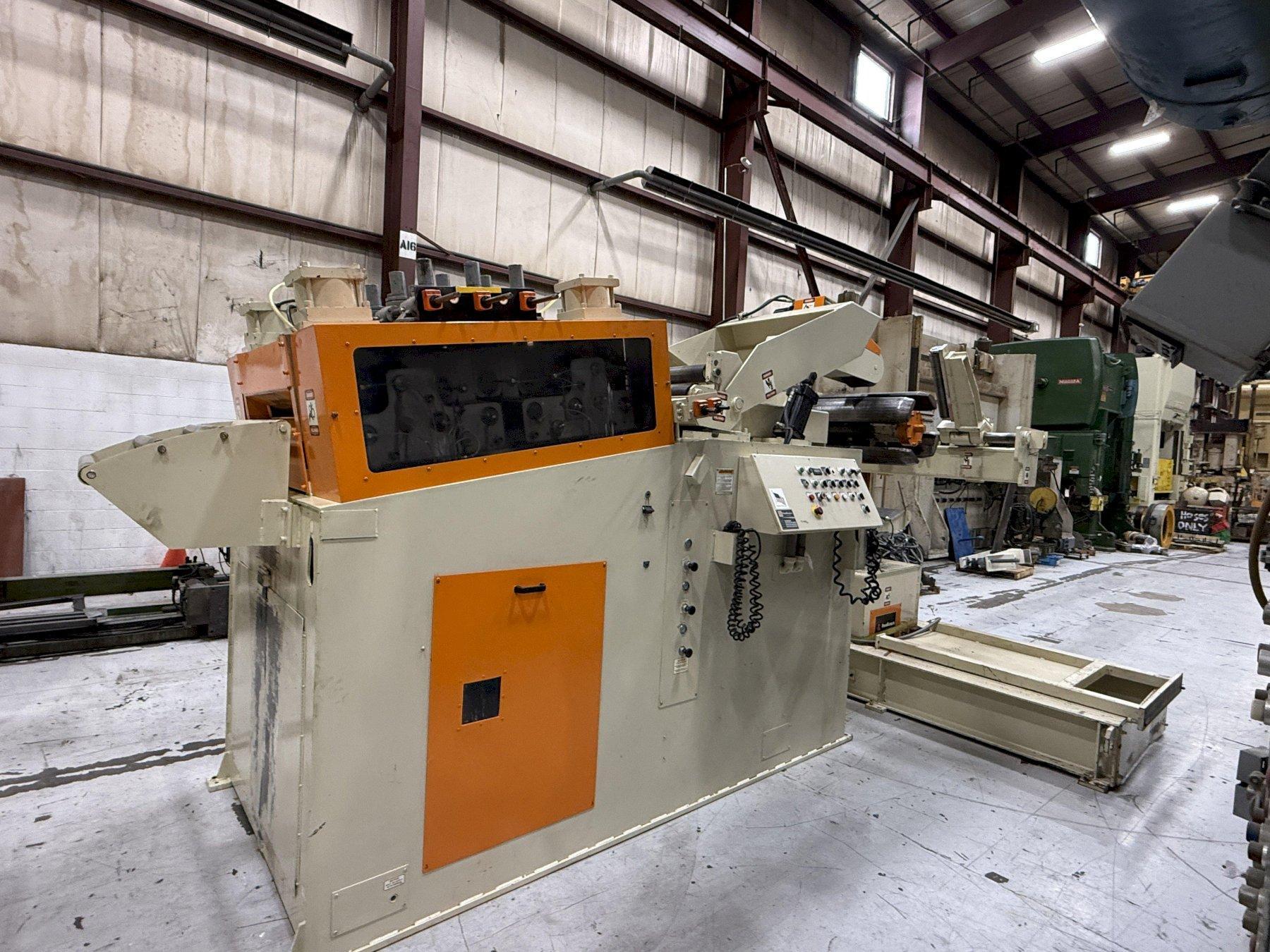

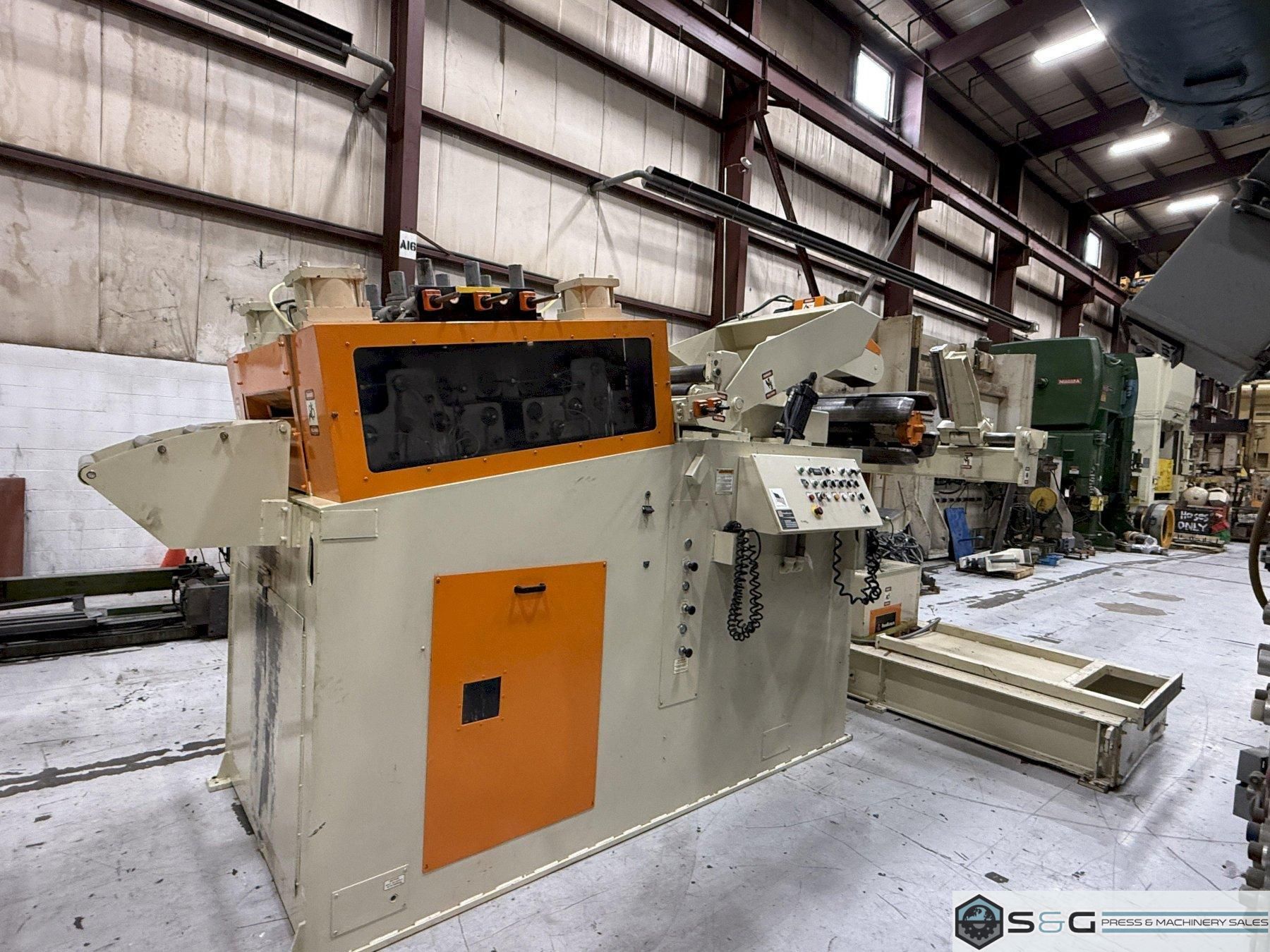

Feed Lease Powered Coil Straightener "High Strength Steel"
Model Feed Lease Powered Straightener 5-30-7 Entry pinch roll assembly x 6.5" diameter
Air operated upper pinch roll adjustment
Seven powered straightener rolls x 5" diameter
Motorized upper straightening roll adjustments
Roll depth display on main HMI
Adjustable stock width edge guides
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Coil end-debender roll
Exit cascade loop support rollers
Automatic lubrication system
40 H.P. AC Variable speed drive 15-120 Feet per Minute Pay Out Rate Operator's control station
Jog forward and reverse w/ remote pendant
End of stock sensor
Auto / Run cycle
Laser Style Variable speed loop control

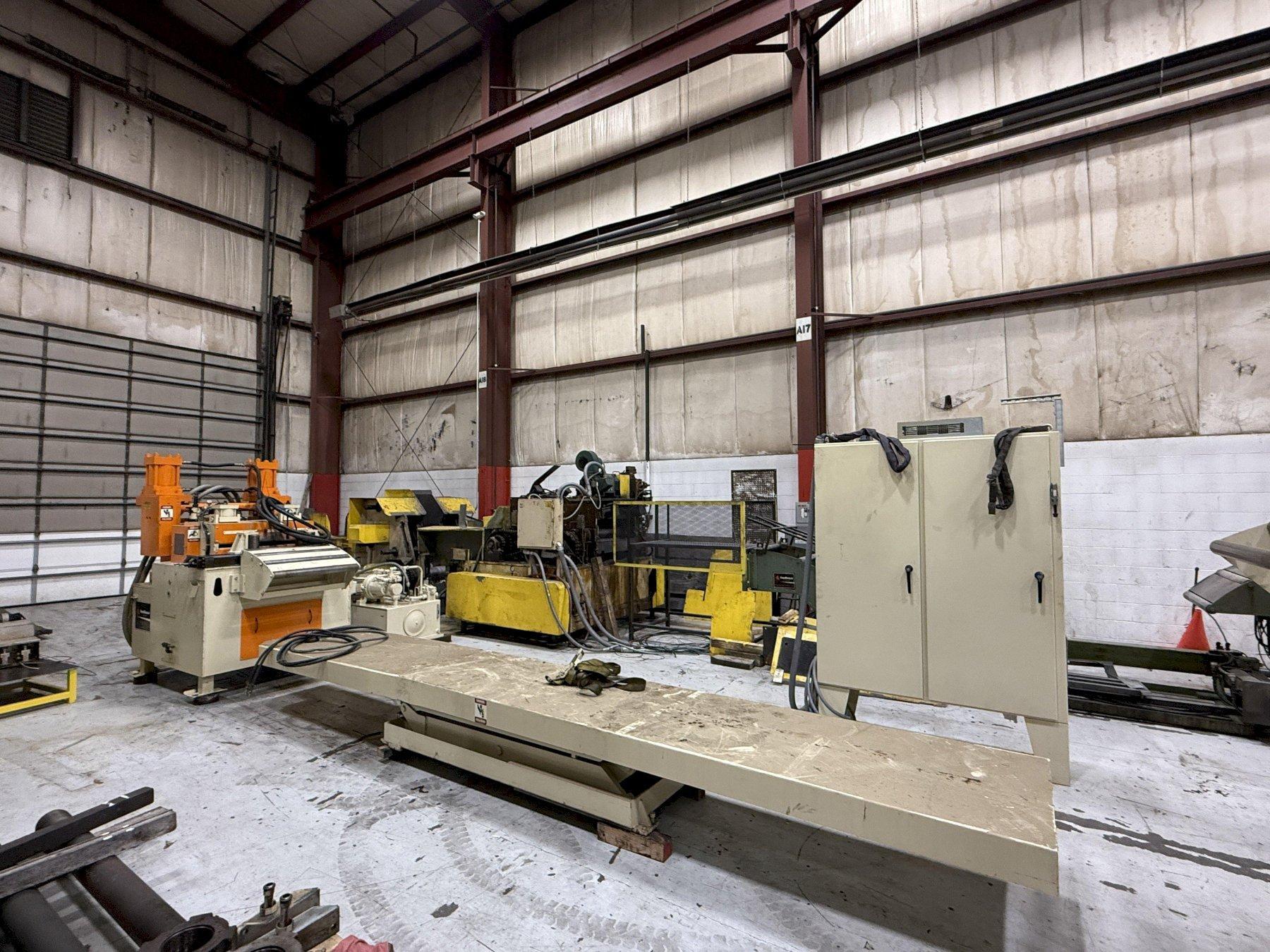

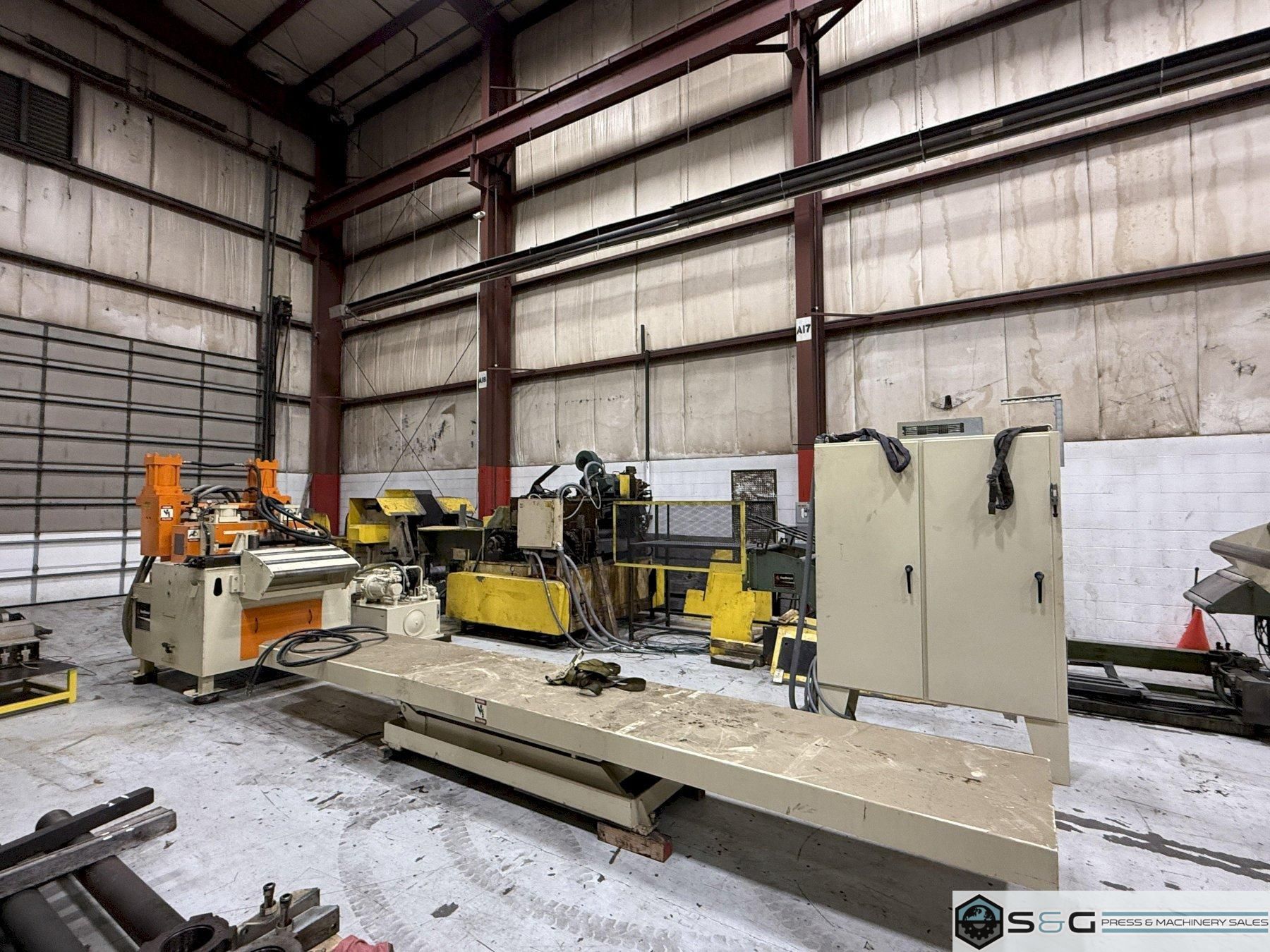

Feed Lease Threading Table
Hydraulic actuated
Scissor Lift Style Table design

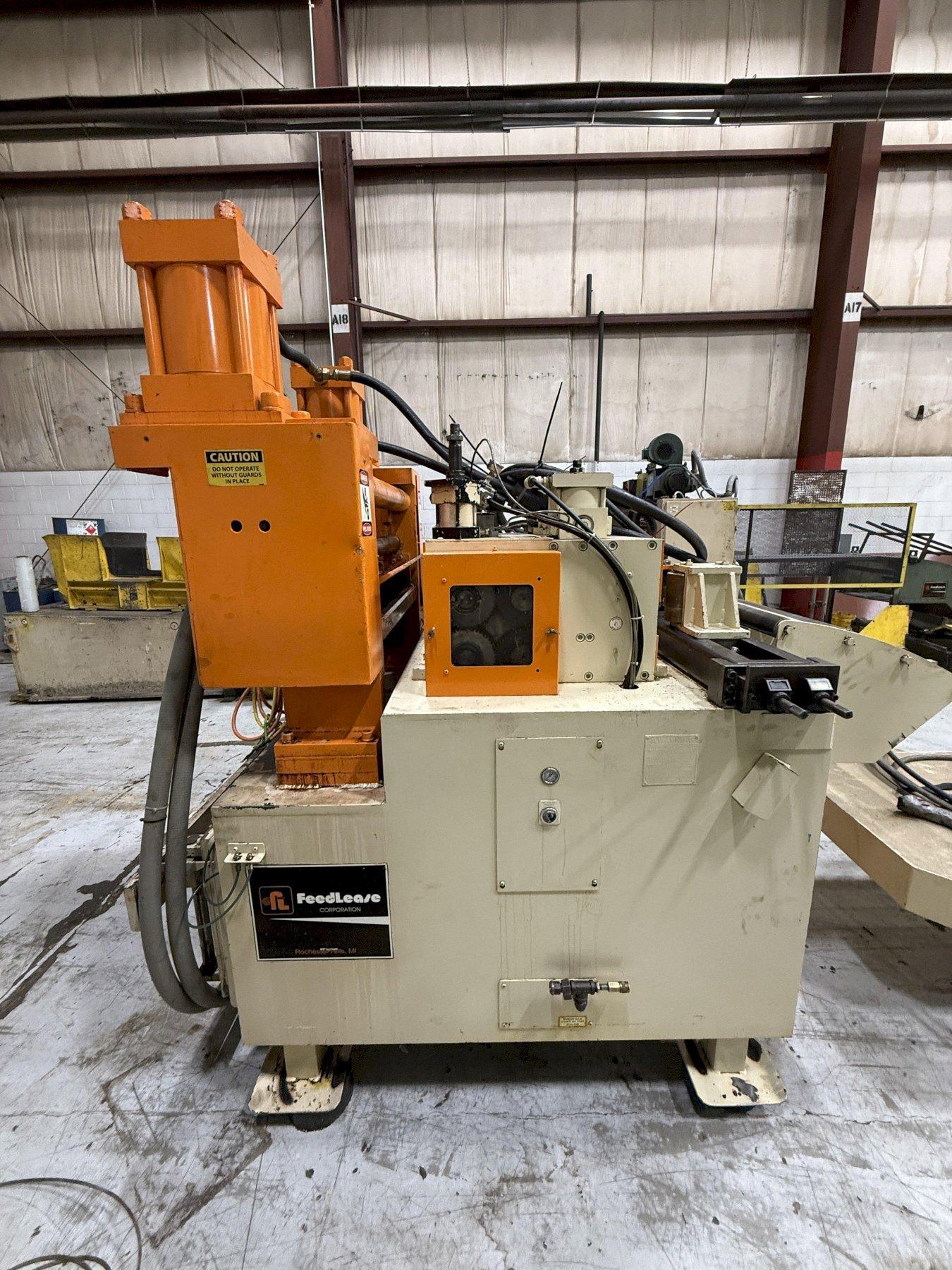

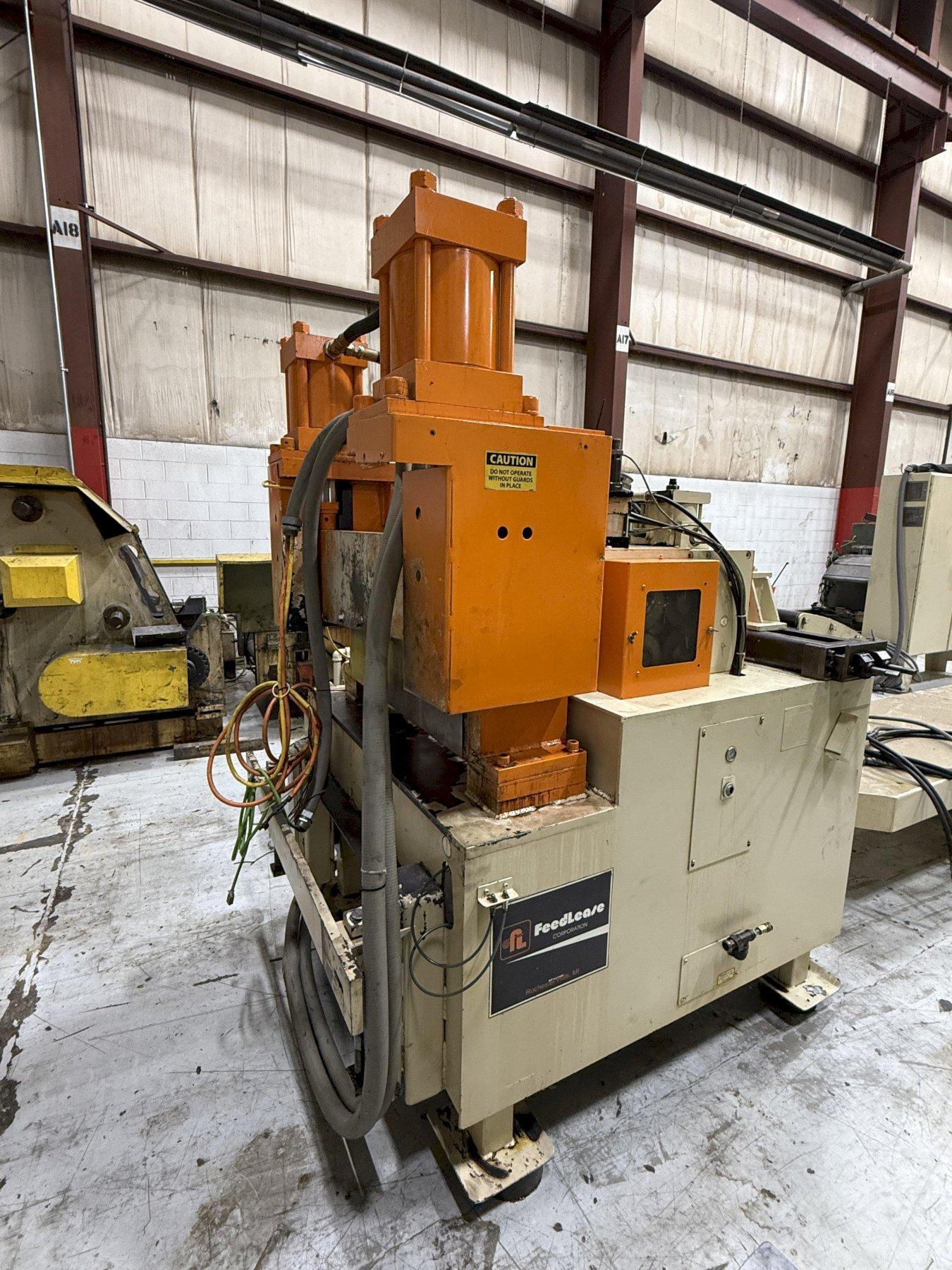

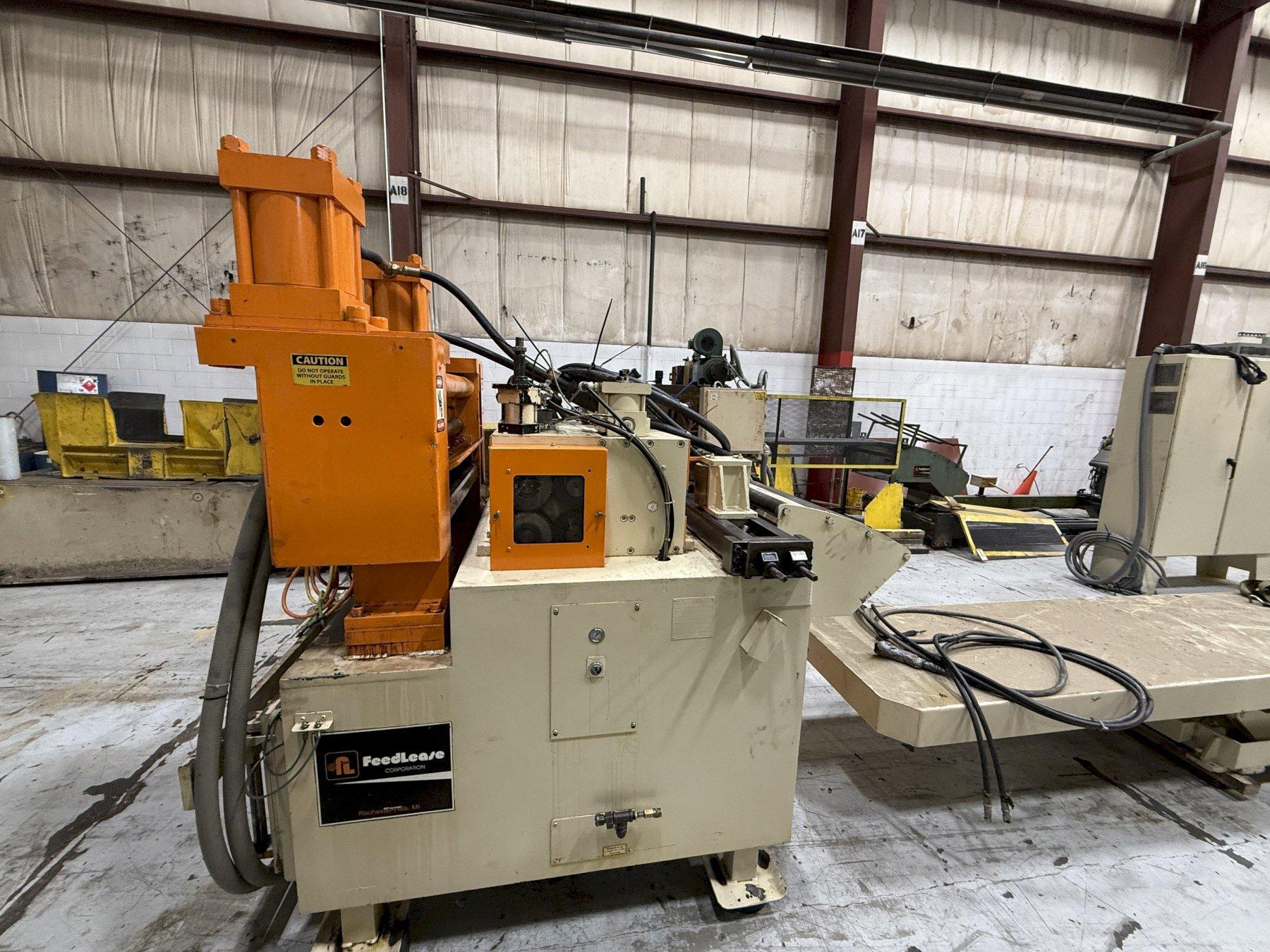

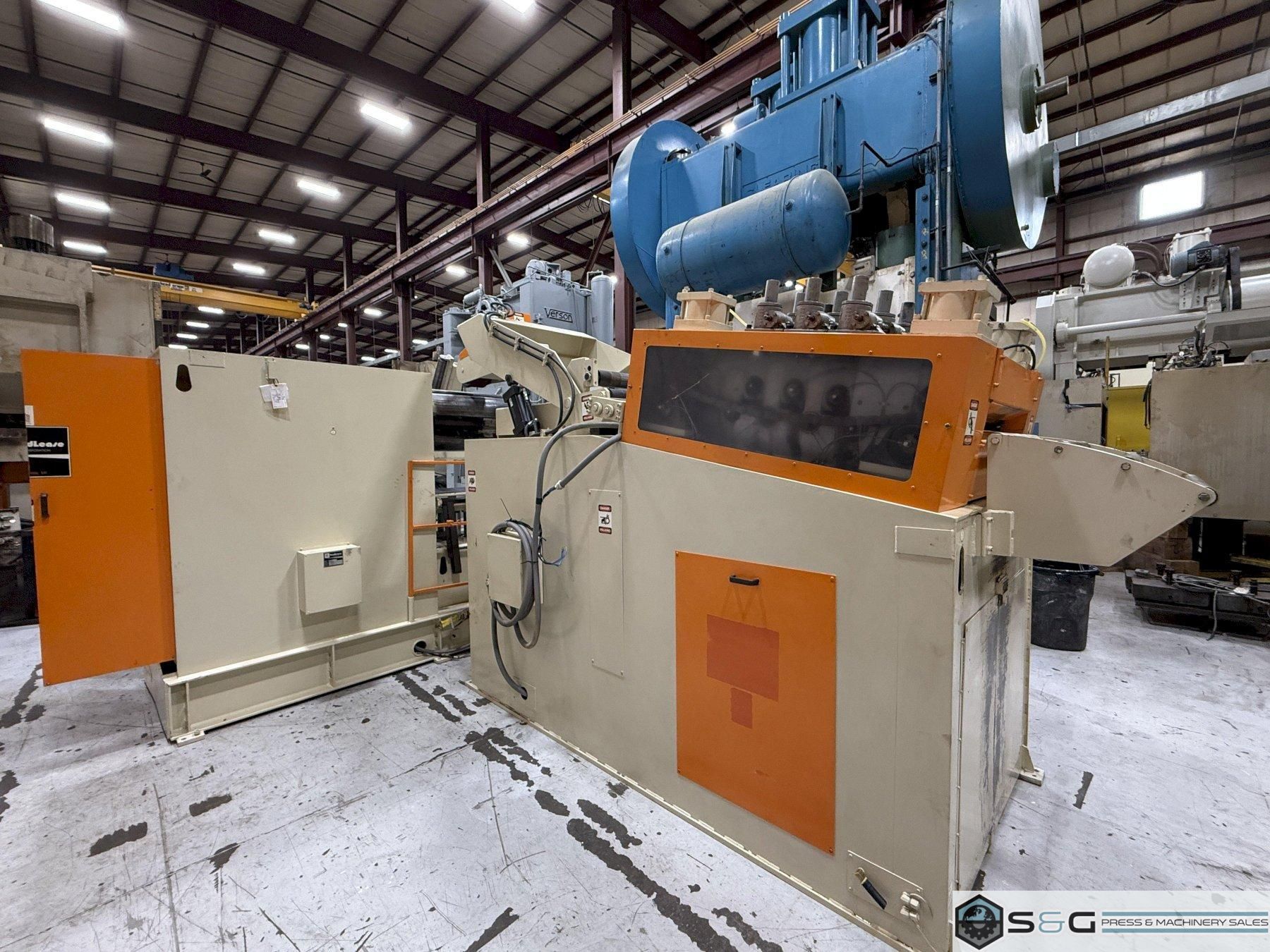

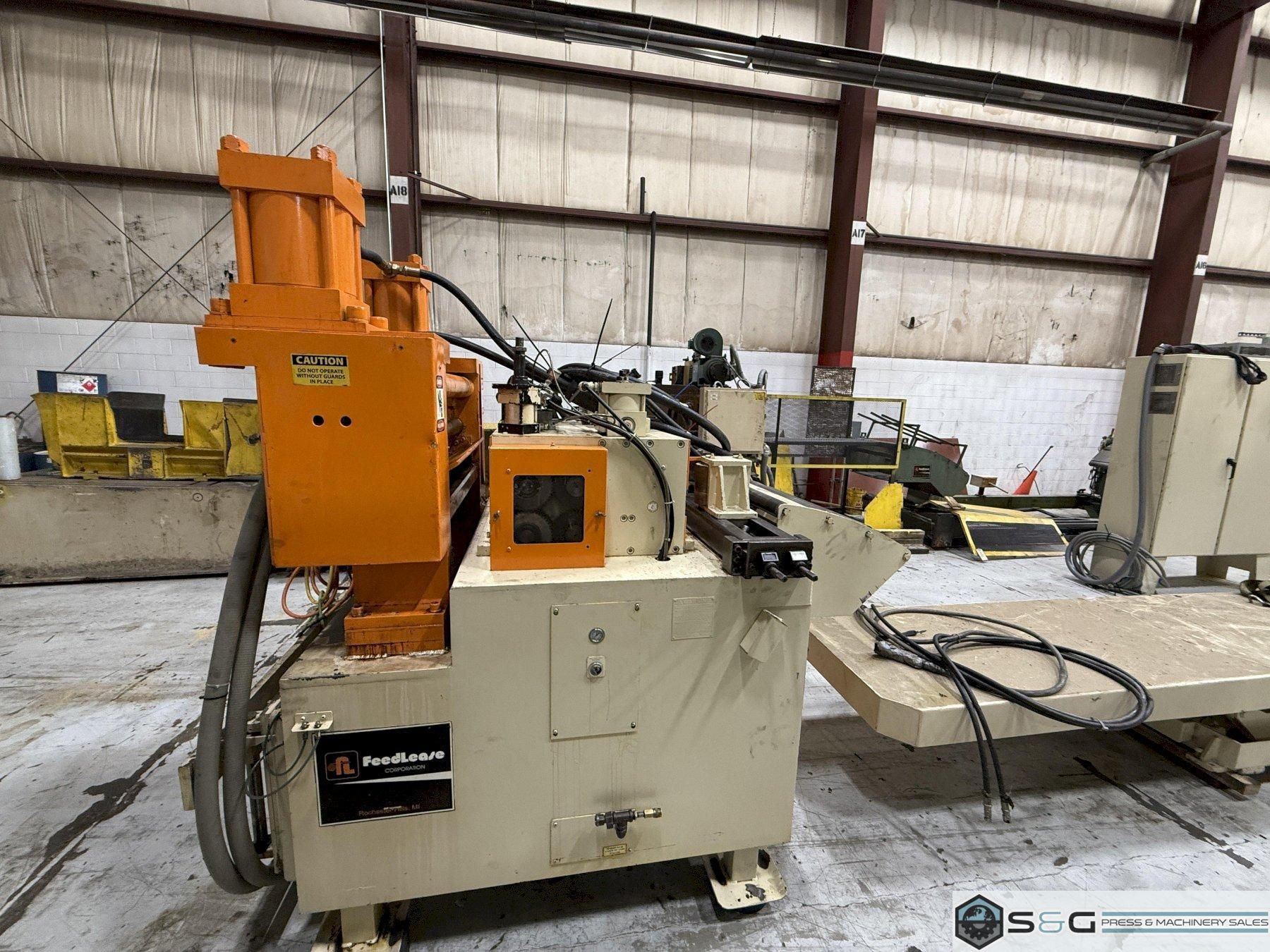

Feed Lease Servo Roll Feed
Cabinet Mounted Feed Model # R.F. 6 x 30 6" diameter full width upper and lower servo feed rolls
Maximum Feed Length 0 to 999.99 inches Matte chrome finish on servo feed rolls
DUAL 4” diameter acme screw adjusted edge guides Four gear cluster arrangement transfers power to the upper feed roll Rated feeder Speed 46 inches per second Air operated upper servo feed roll adjustment / pilot
Entry side cascade material support section
Stock width edge guides
Automatic lubrication system from powered straightener
Solenoid controlled pilot release
Air pressure/regulator
Cabinet base mounted w/ adjustable pass line height
52" Motorized pass line height - adjustment +/-5”

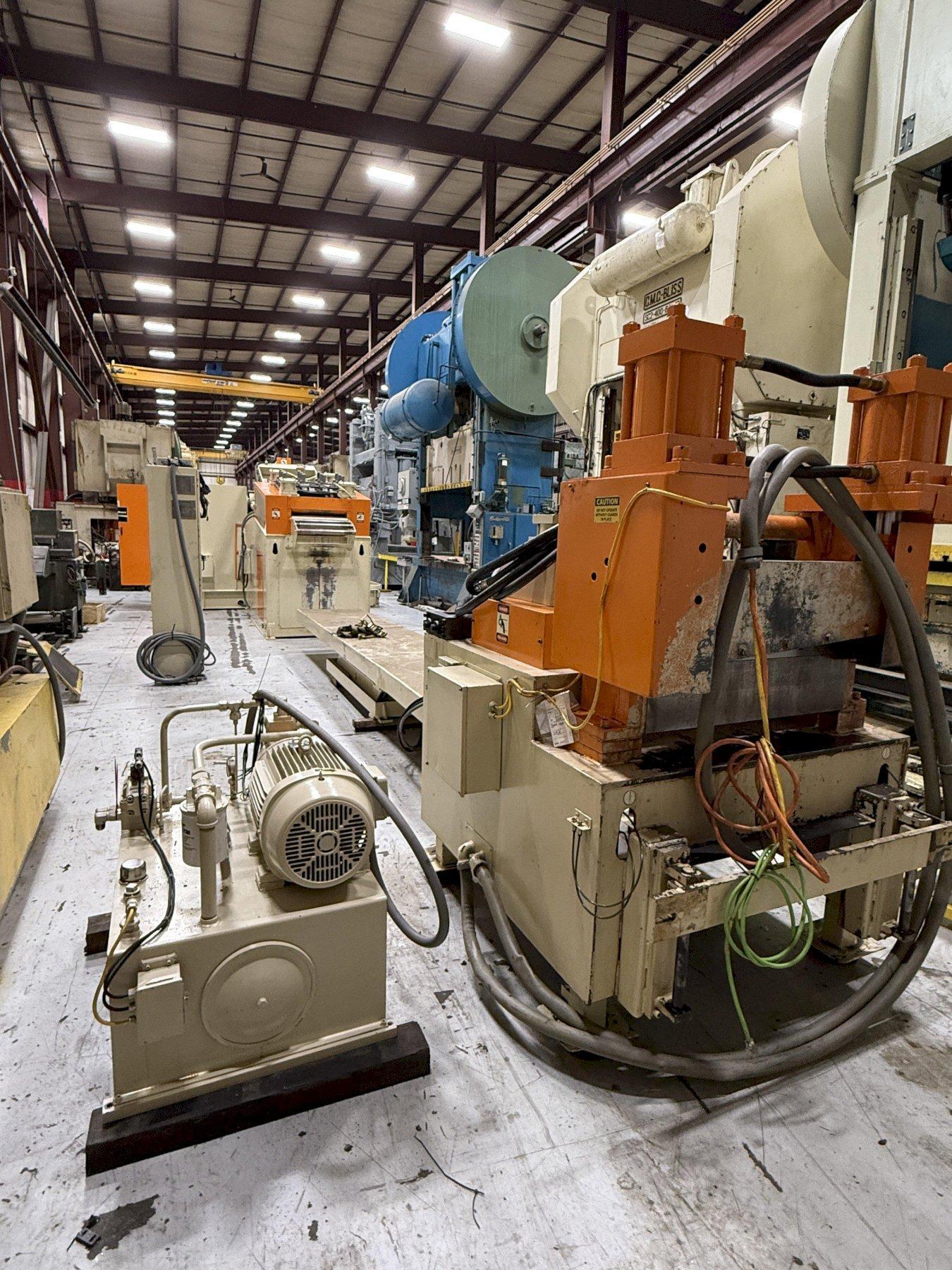

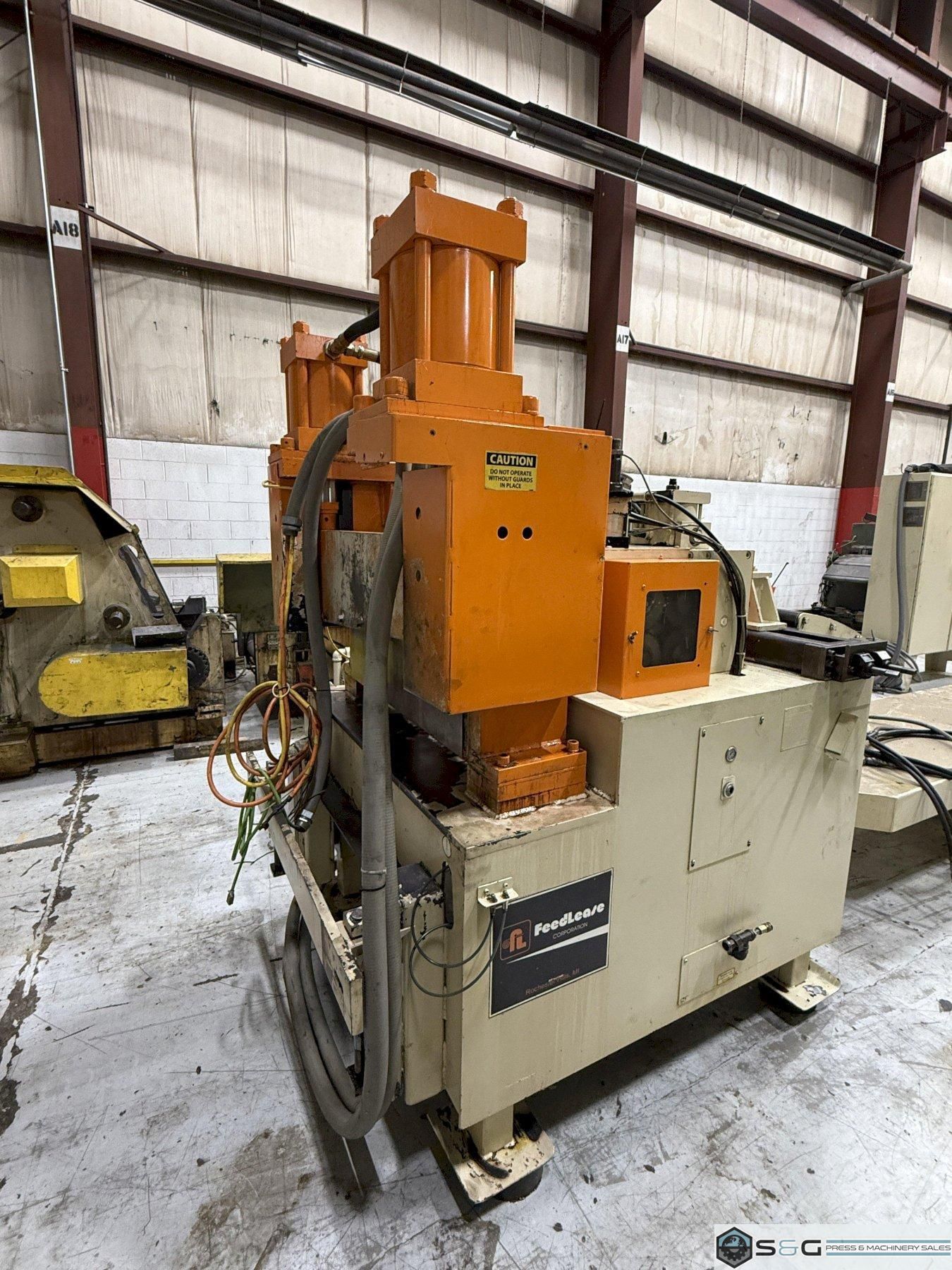

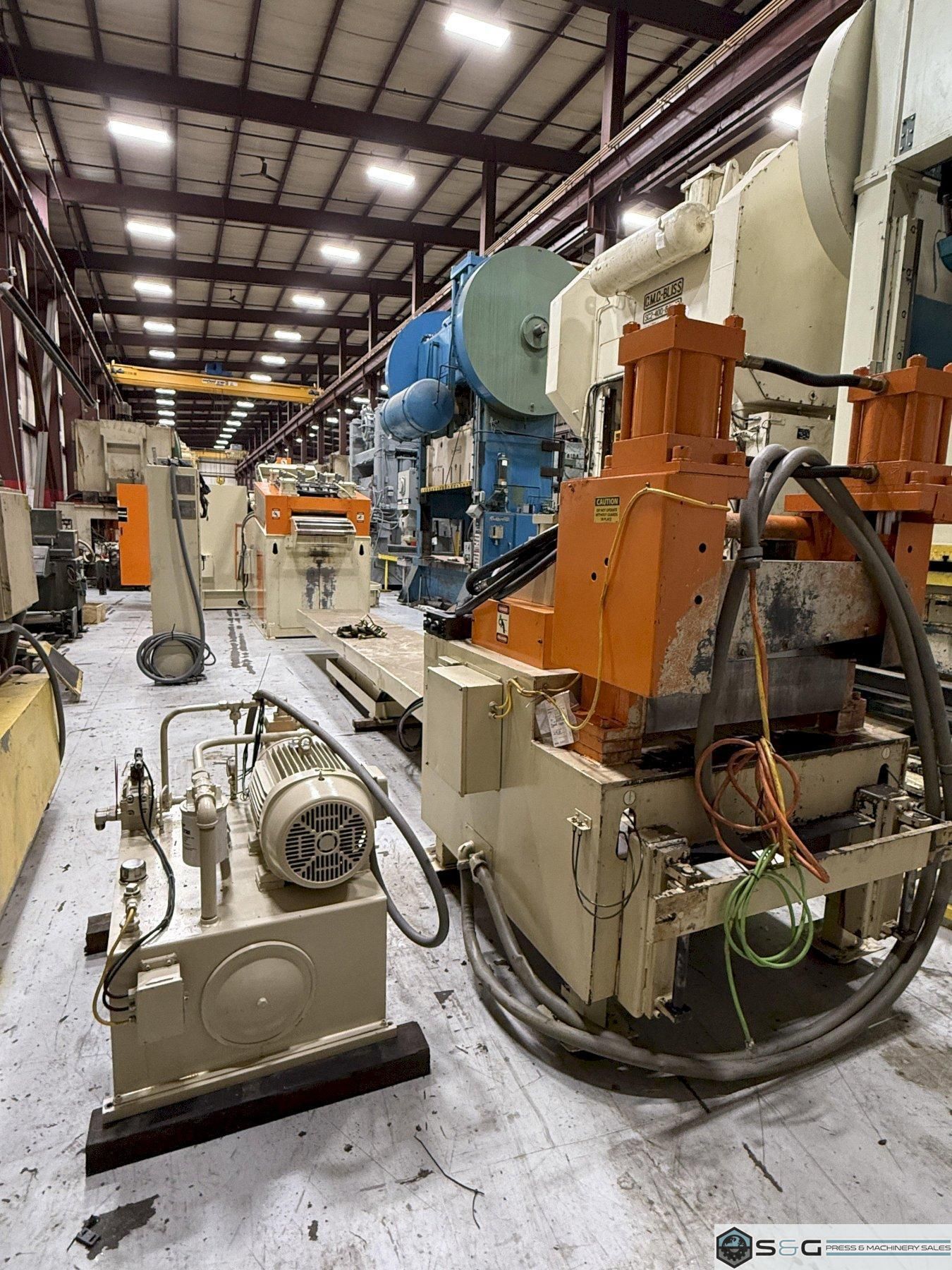

End of Stock SensorAir operated anti back up rolls, solenoid valve actuated Includes Famco Crop Shear Model P-31H32LB Hydraulic Low Boy Series Squaring Shear Mild steel, 50,000 PSI shear strength ..................................................................312"
Maximum cutting length .........................................................................................32"
Slope, upper blade in./ft. ........................................................................................38"
Blade opening, low end ........................................................................................1.0"
Strokes per minute .................................................................................................10
Blade section (inches)................................................................................1”x 3”x 38”
Feed Lease high strength coil feed lines are designed to handle heavy-duty applications with high-strength steel coils. These lines are built to withstand the rigors of continuous operation and high-speed production processes. They feature robust construction, advanced straightener technology, and precise servo-controlled feed systems to ensure accurate and reliable material delivery. Can be seen under power upon request in the S & G Press Livonia Michigan Warehouse! High-strength material coil feed line for sale |
|||
