SC2-400-84-48 SSDC
1986
2817
Used

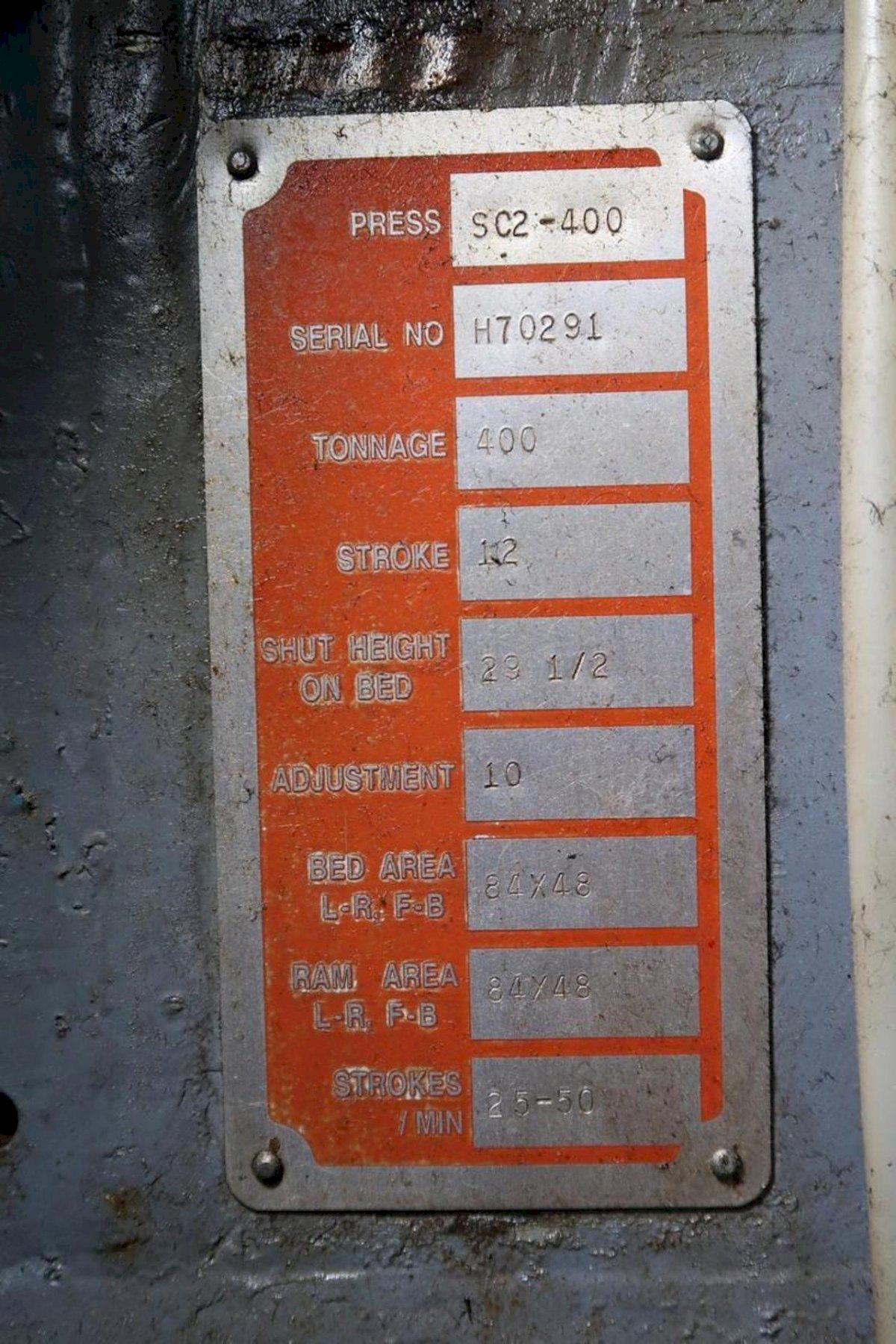

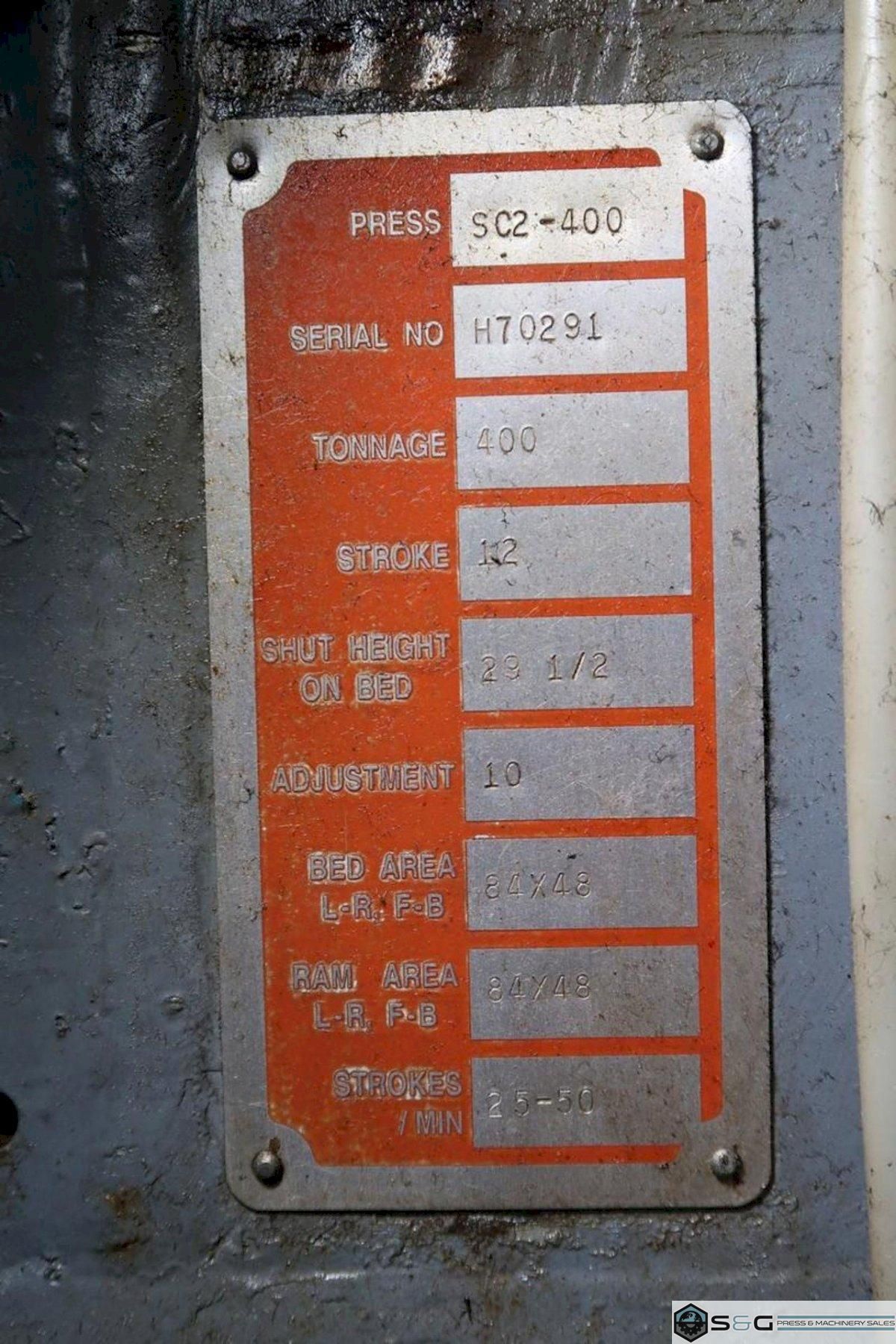

Specifications |
|||
---|---|---|---|
Tonnage | 400 |
||
Stroke | 12 inches |
||
Shut Height | 39.5 inches |
||
Adjustment | 10 inches |
||
Bed Size | 84" LR x 48" FB |
||
Ram Area | 84" LR x 48" FB |
||
SPM | 25-50 VSPM |
||

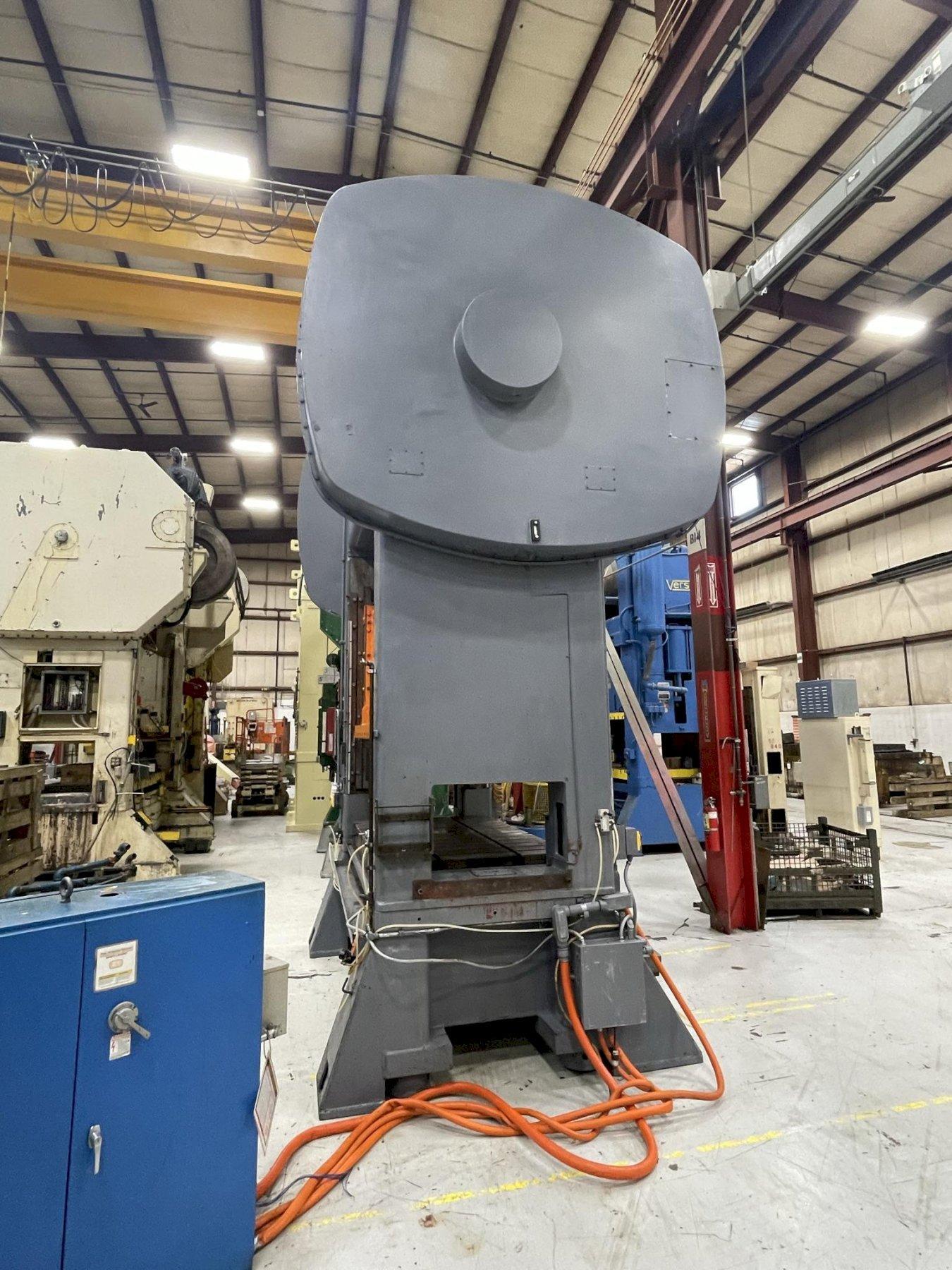

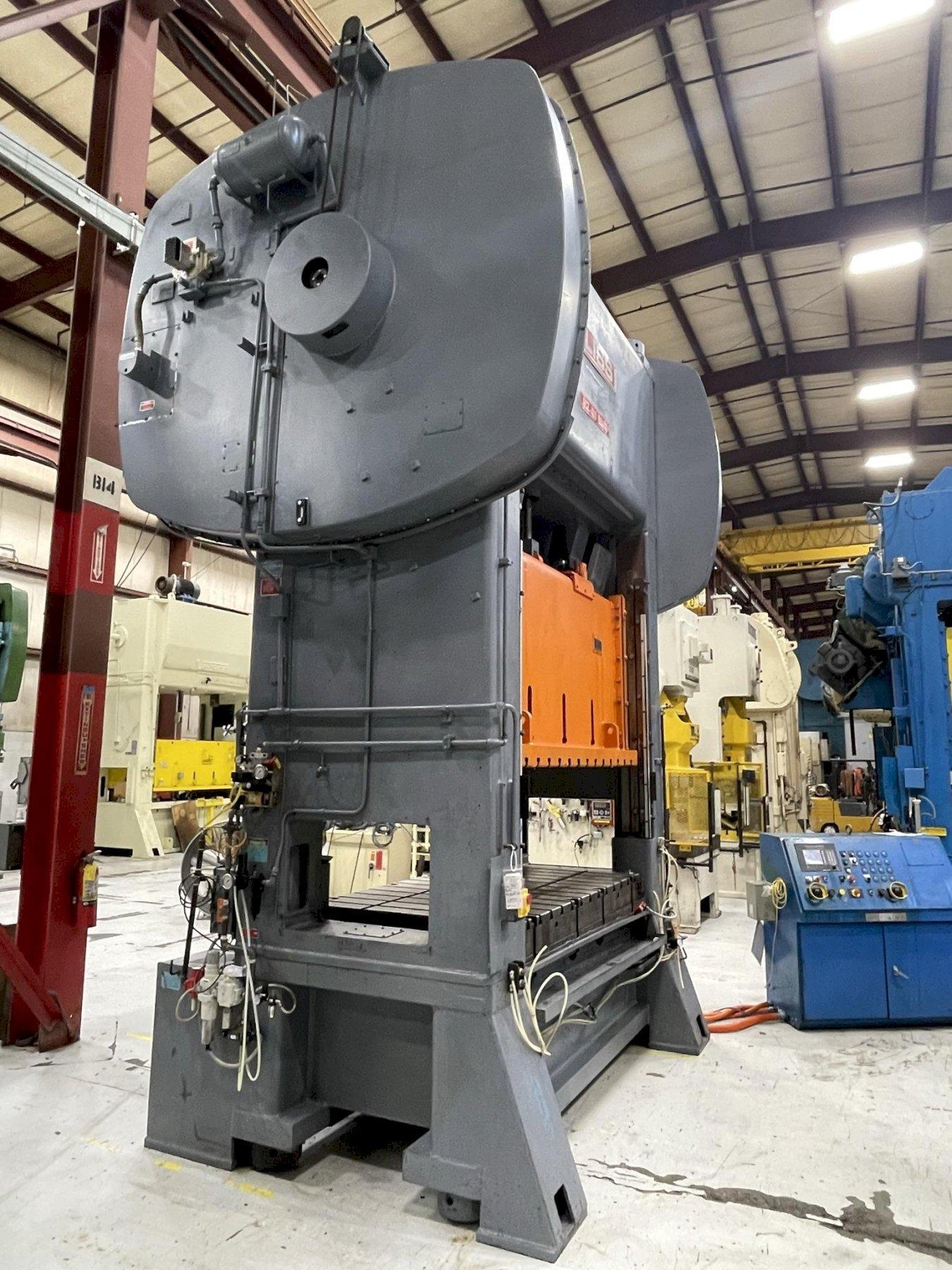

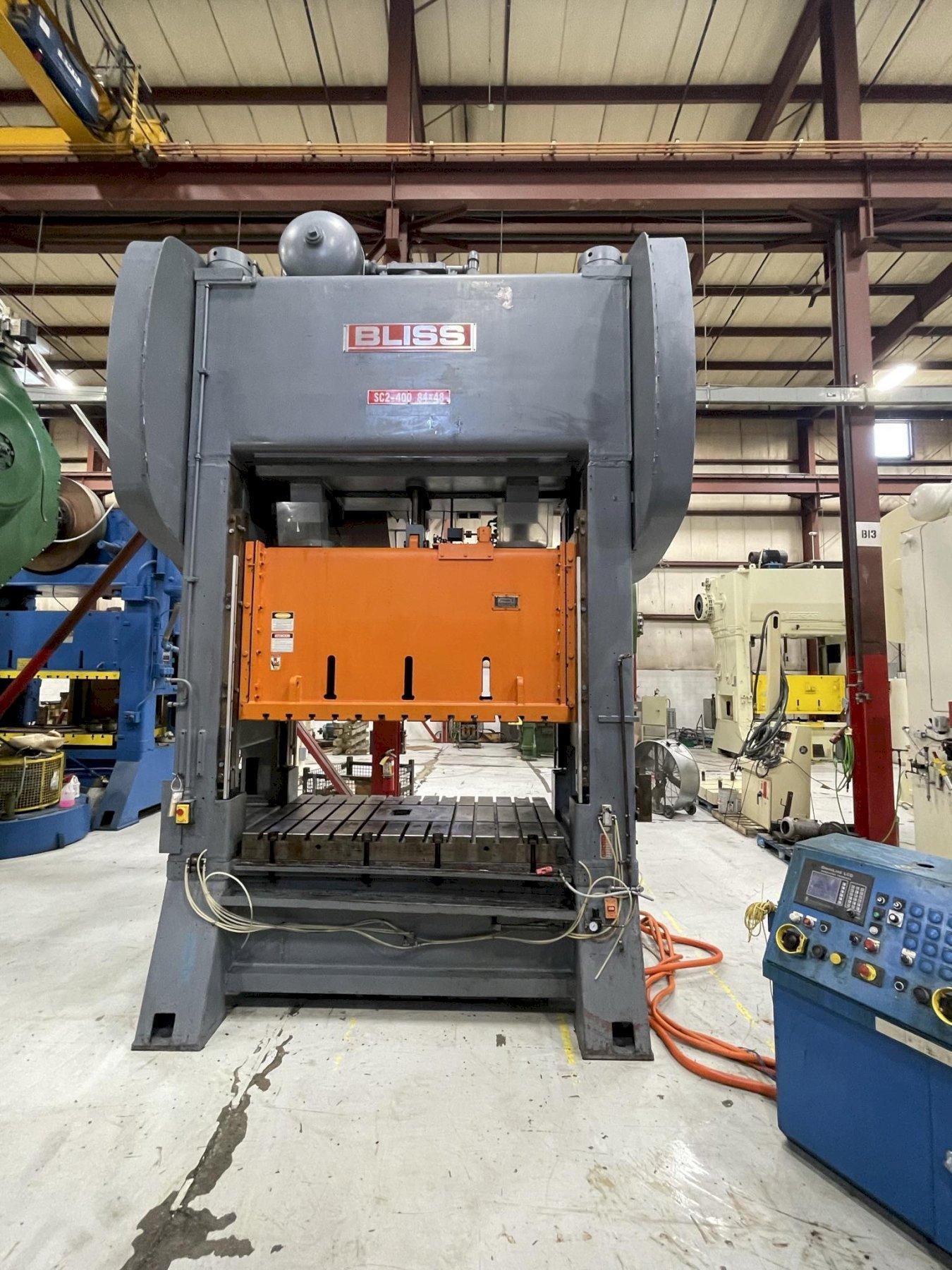

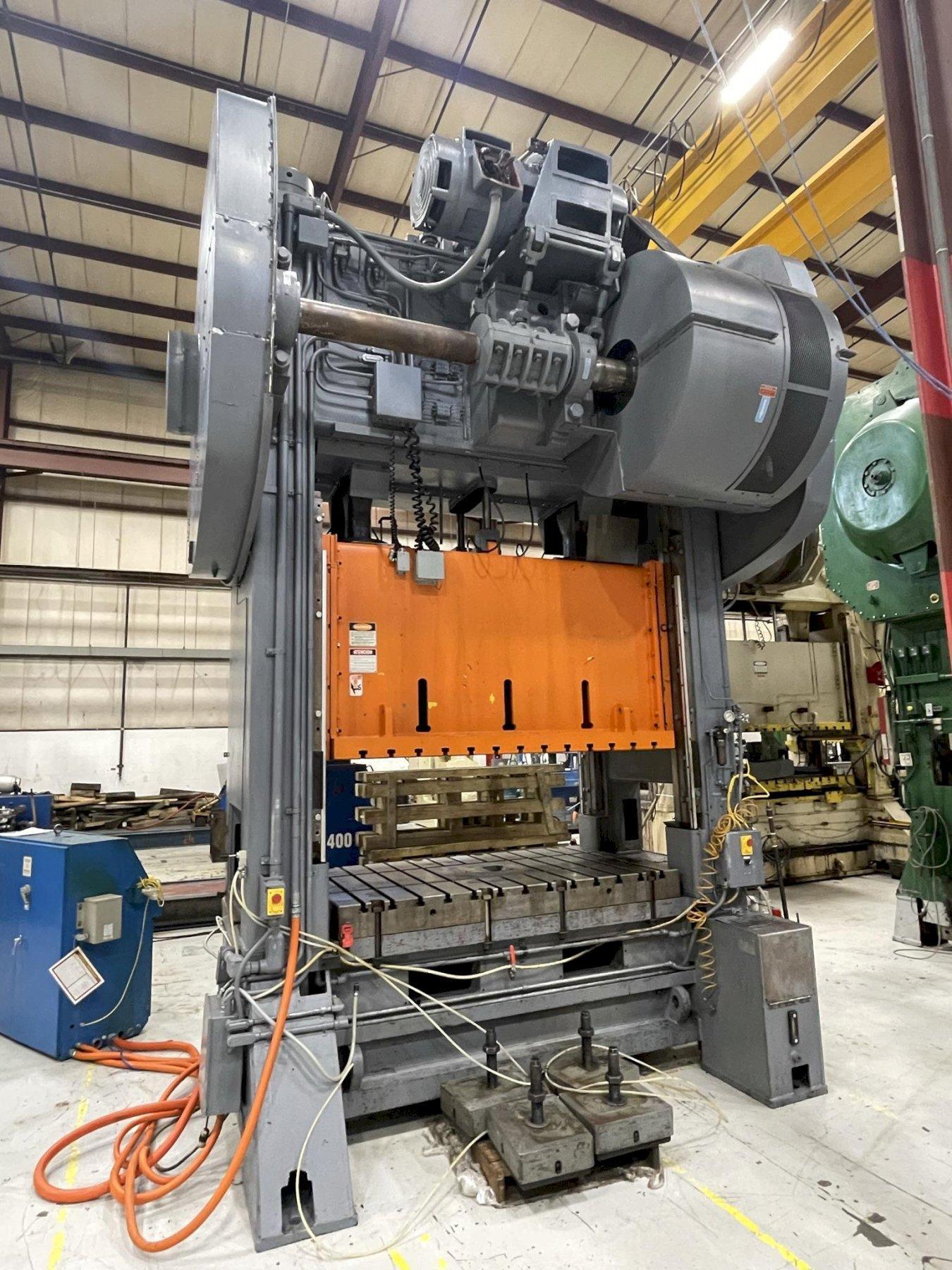

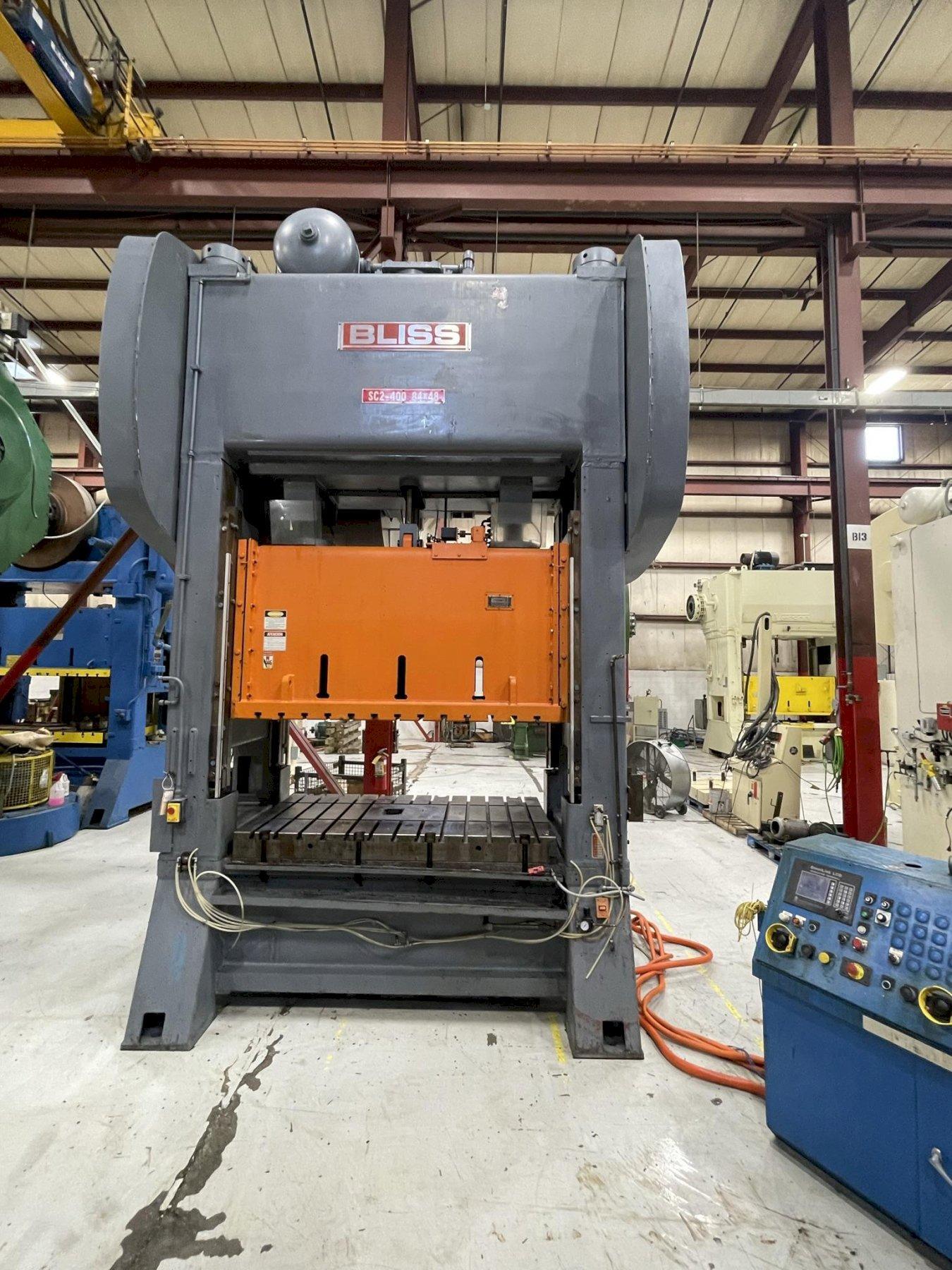

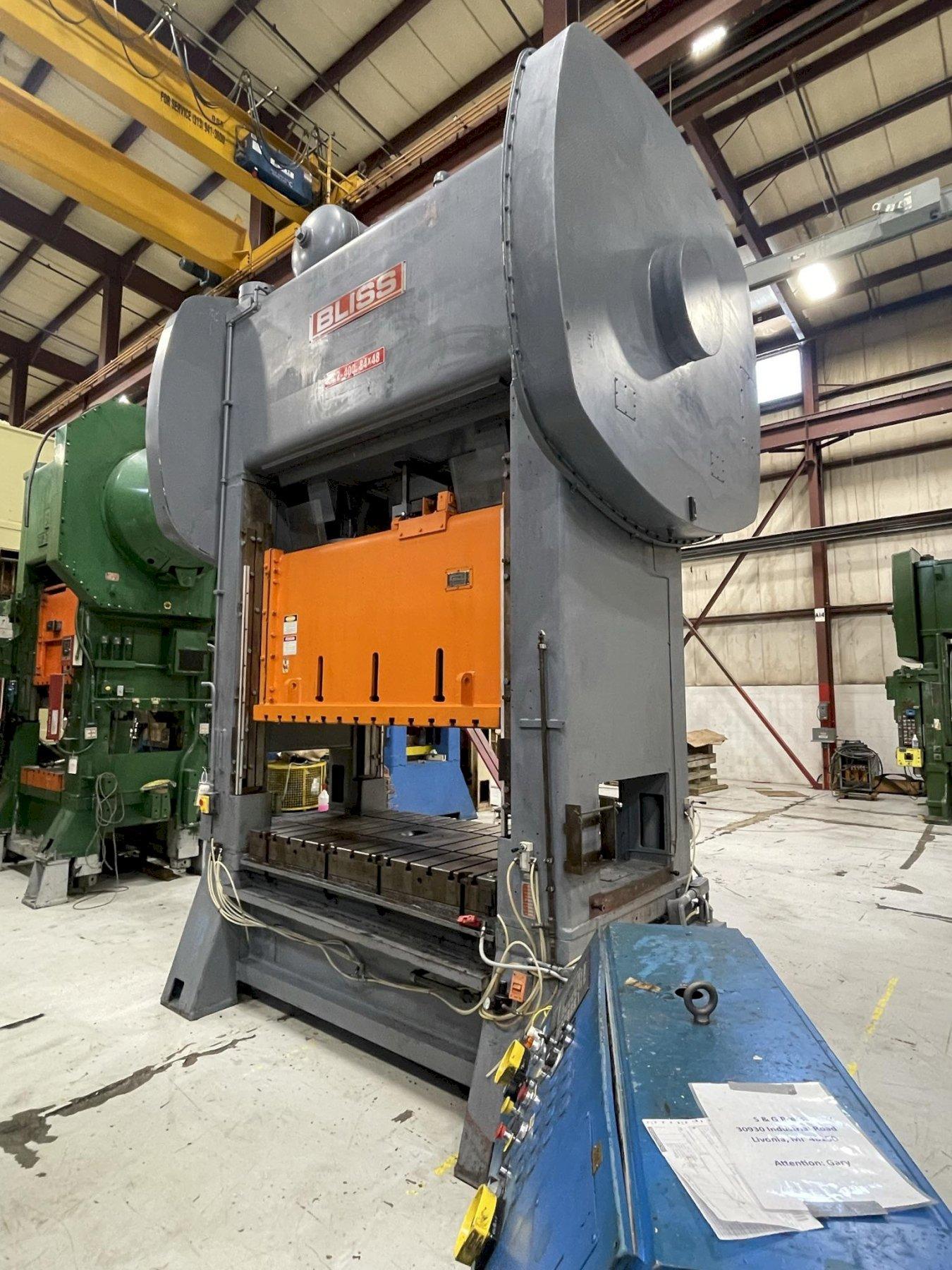

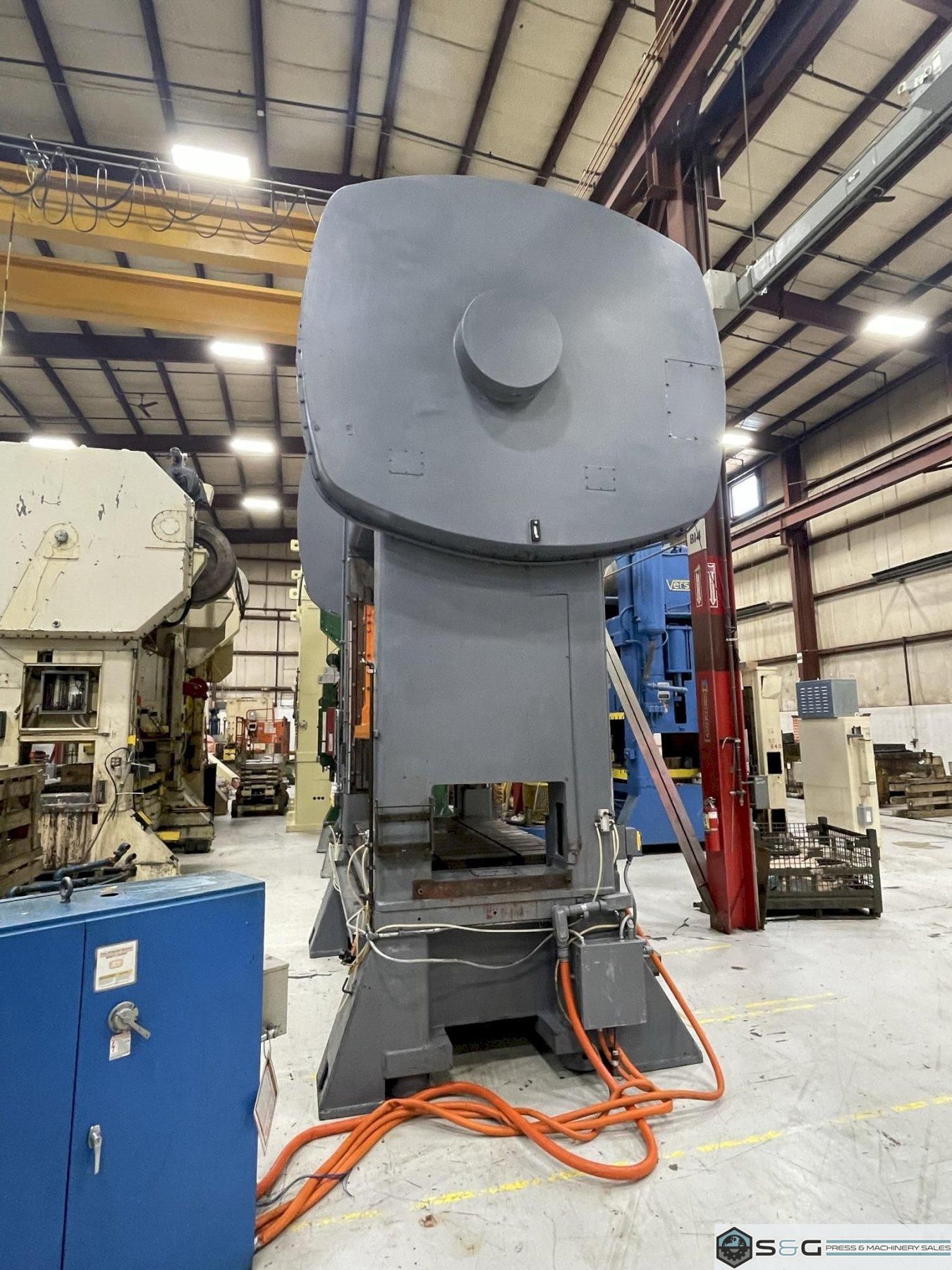

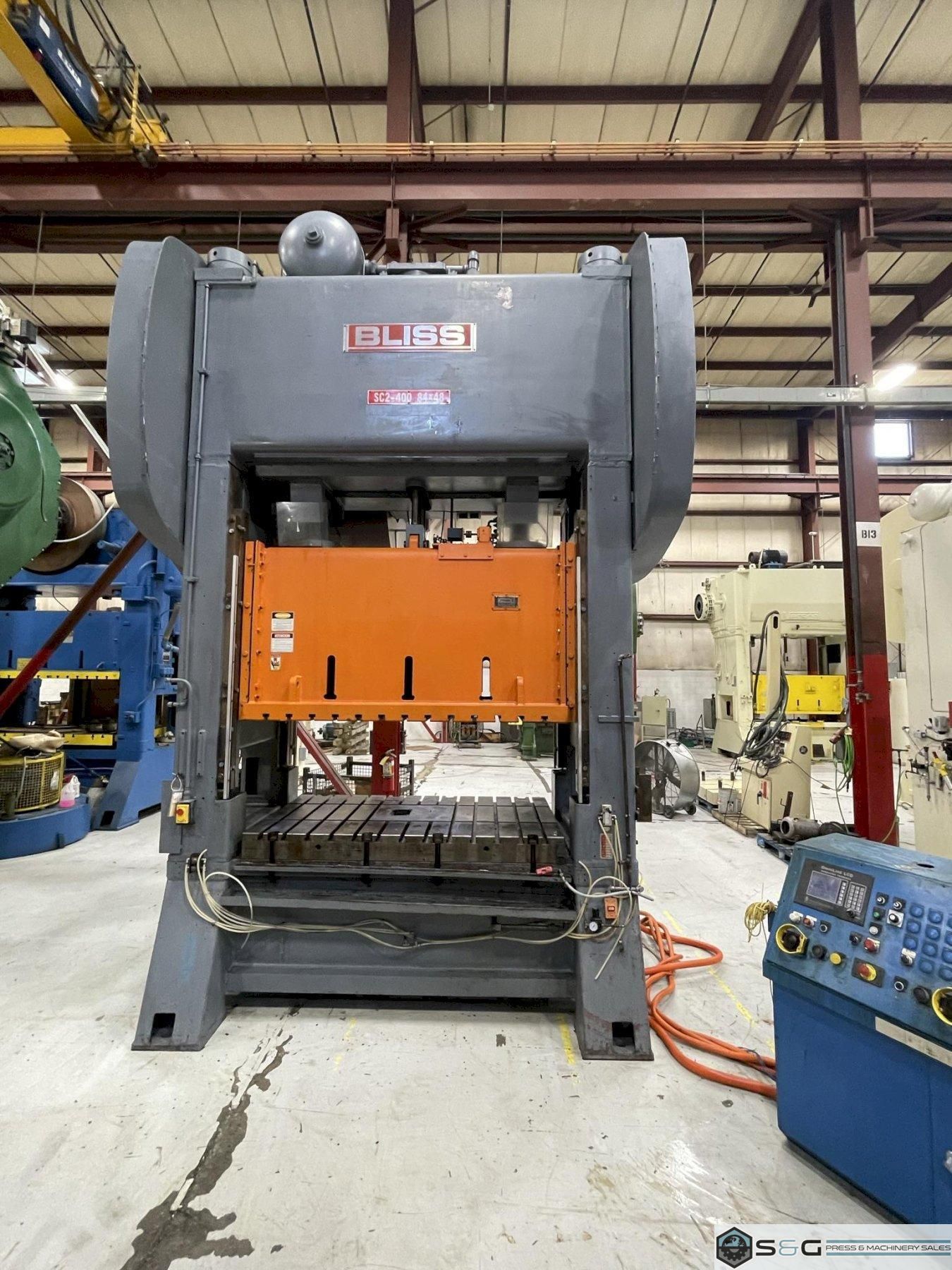

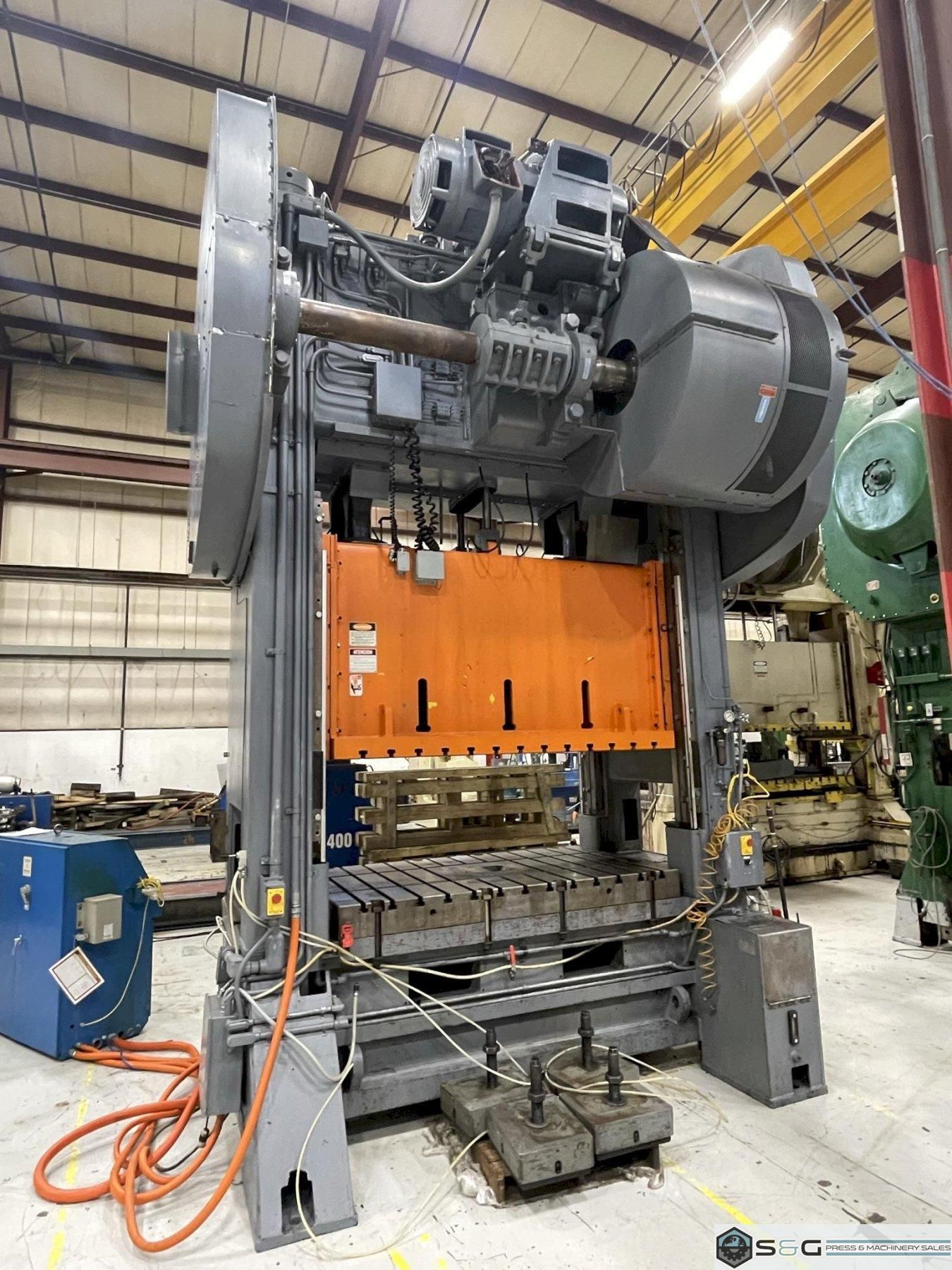

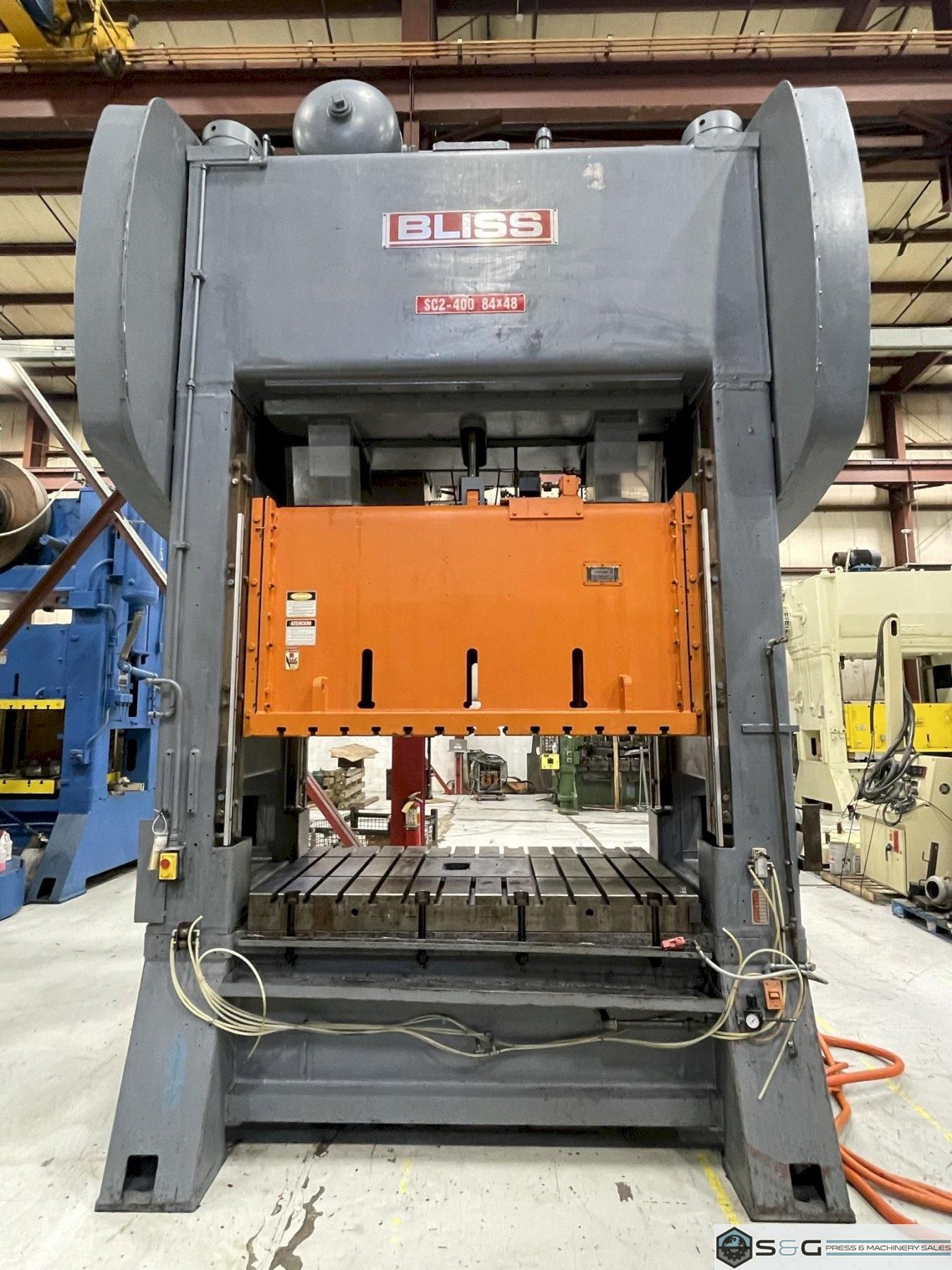

Standard Specifications Looking for a powerful and reliable straight side mechanical press?This Used Bliss Model SC2-400-84-48 is an excellent choice. This robust 400-ton capacity press, serial number H70291, is designed for demanding metal stamping applications, offering precision and strength for your production needs. It features a 12-inch stroke, 29.5-inch shut height, and 10-inch motorized adjustment for quick setups. The spacious 84-inch LR x 48-inch FB bed and slide areas accommodate diverse tooling, operating at 25-50 VSPM. Equipped with an air clutch and brake, air counterbalances, and a recirculating lube system, this floor-standing Bliss press ensures smooth, durable operation. It includes T-slotted ram and bolster with a 7.5-inch bolster plate, and hydraulic tie rod nuts. Modernized with Link 5000 Press Controls, an OmniLink LCD Operator Terminal, and an Allen Bradley 8 Cam Limit Switch, it provides intuitive control. Vibro Dynamic Isolation Pads minimize vibration, making this used Bliss 400-ton press a prime asset for your facility. |
Attachments |
||
---|---|---|
Used 400 ton Bliss Press SC2-400-84-48 S&G Press Stock 2817 General Assembly Drawing.pdf | Download | |
S&G Press Preliminary Inspection Report Stock #2817 - 400 ton Bliss (2).pdf | Download |
