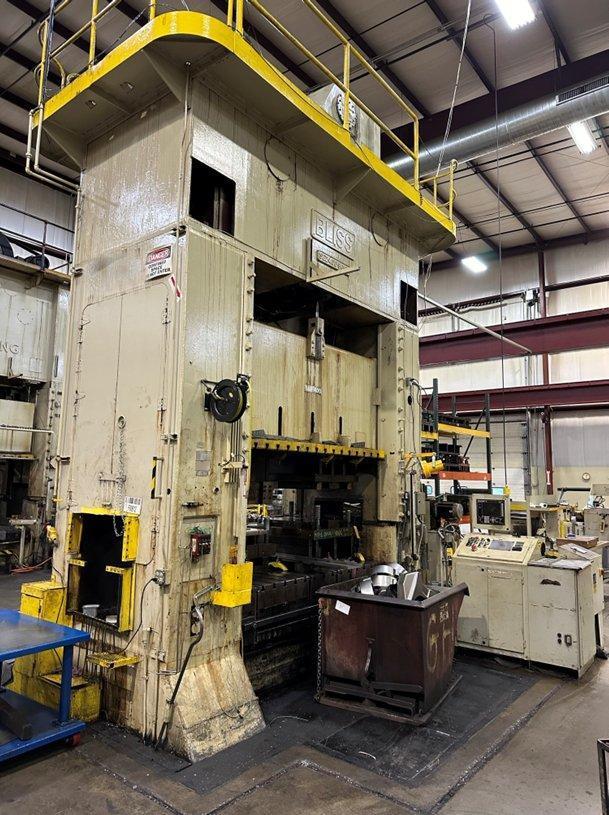

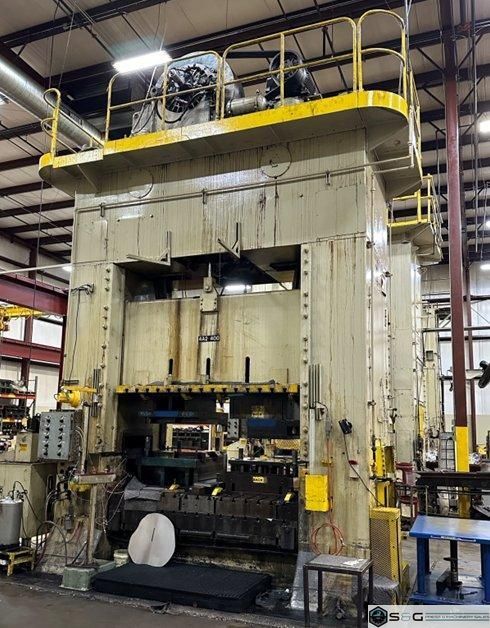

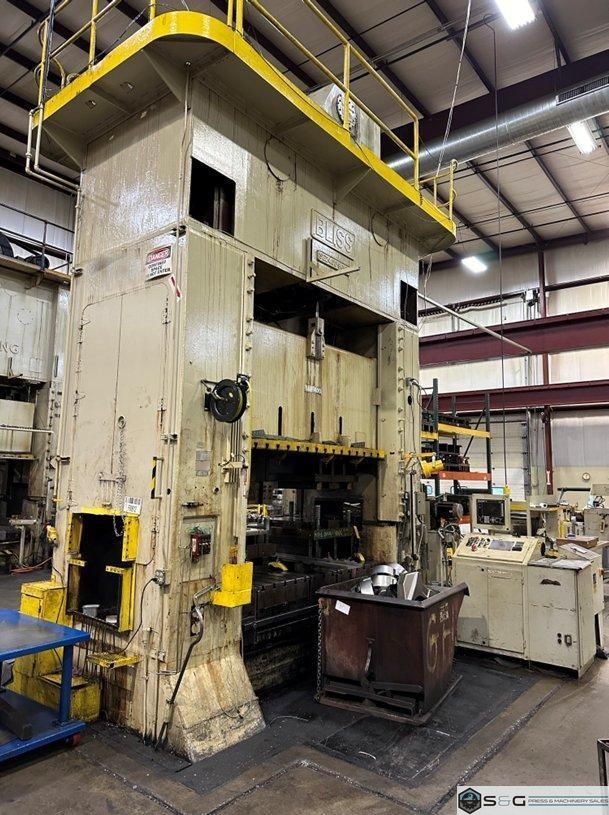

400-ton Bliss SE2-400-96-60 Straight Side Metal Stamping Press For Sale

Model

S2-400-96-60

Year

None

Stock #

2901 C

Condition

Not specified

Specifications

Tonnage

400

Stroke

24 inches

Shut Height

49.5 inches

Adjustment

16 inches

Bed Size

96 x 60

Ram Area

96 x 60

SPM

12

MUST MOVE PRESS!

Standard Specifications
Bliss Straight Side Double Crank
Mechanical Press
400-ton Capacity
24" Stroke
49.5" Shut Height
16" Adjustment
96" LR x 60" FB Bed Area
96" LR x 60" FB Slide Area
12 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Lube System
T-Slotted Ram and Bolster
32" Windows
(2) Air Cushions
Light Curtains
Wintriss Smart Pac 2 Press Controls
T-Stand Palm Button Controls

This 400-ton Bliss Press Can Be Seen Under Power in the Plant Upon Request!

Used Straight Side Mechanical Stamping Press For Die Try-Out or Single Hit Stamping Operations.
