SS2-400-96-48
1985
3000
Used
Specifications |
|||
|---|---|---|---|
| Tonnage | 400 |
||
| Stroke | 10 inches |
||
| Shut Height | 32 inches |
||
| Adjustment | 10 inches |
||
| Bed Size | 96" LR x 48" FB |
||
| Ram Area | 96" LR x 48" FB |
||
| SPM | 26-61 |
||

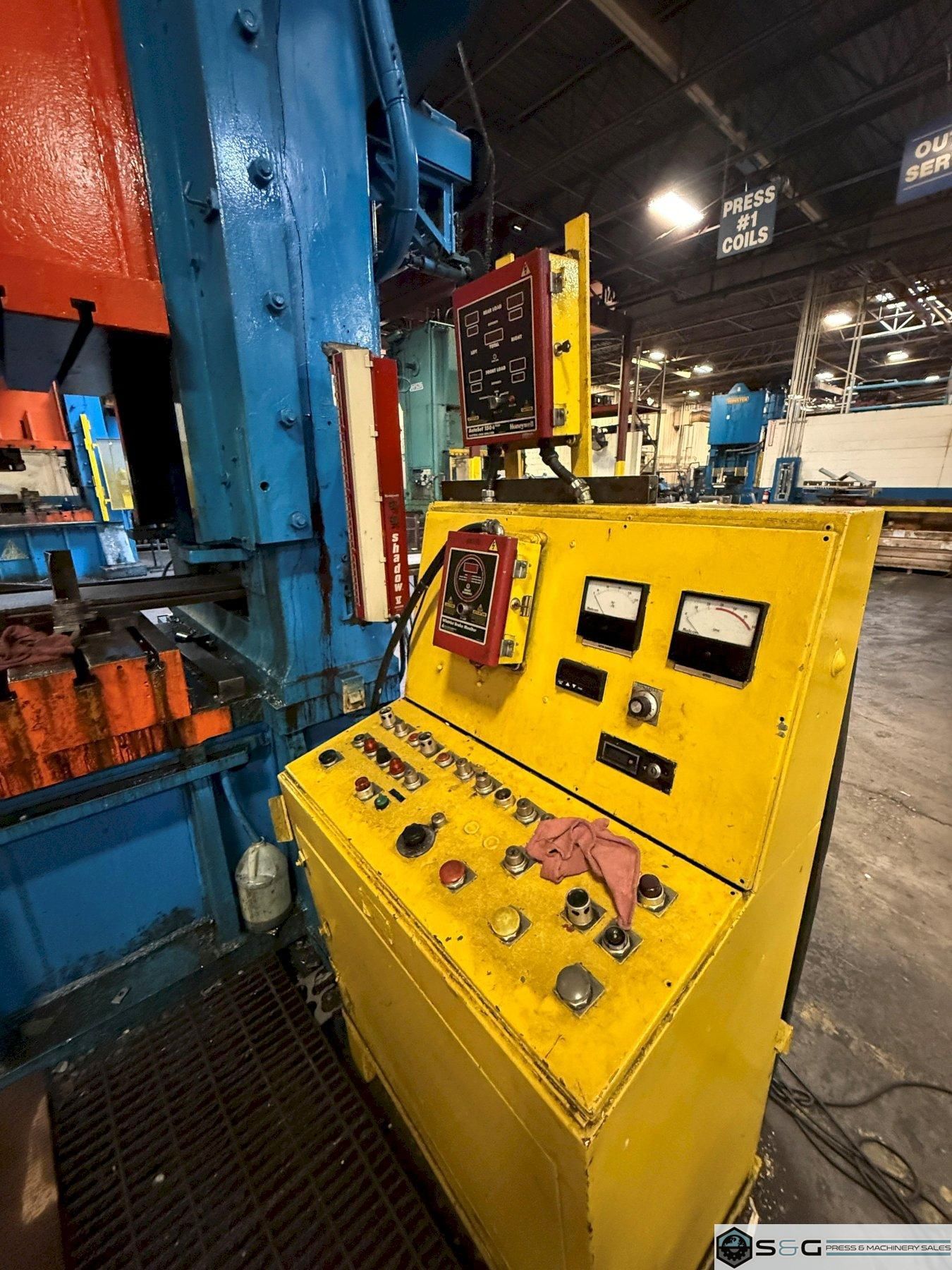

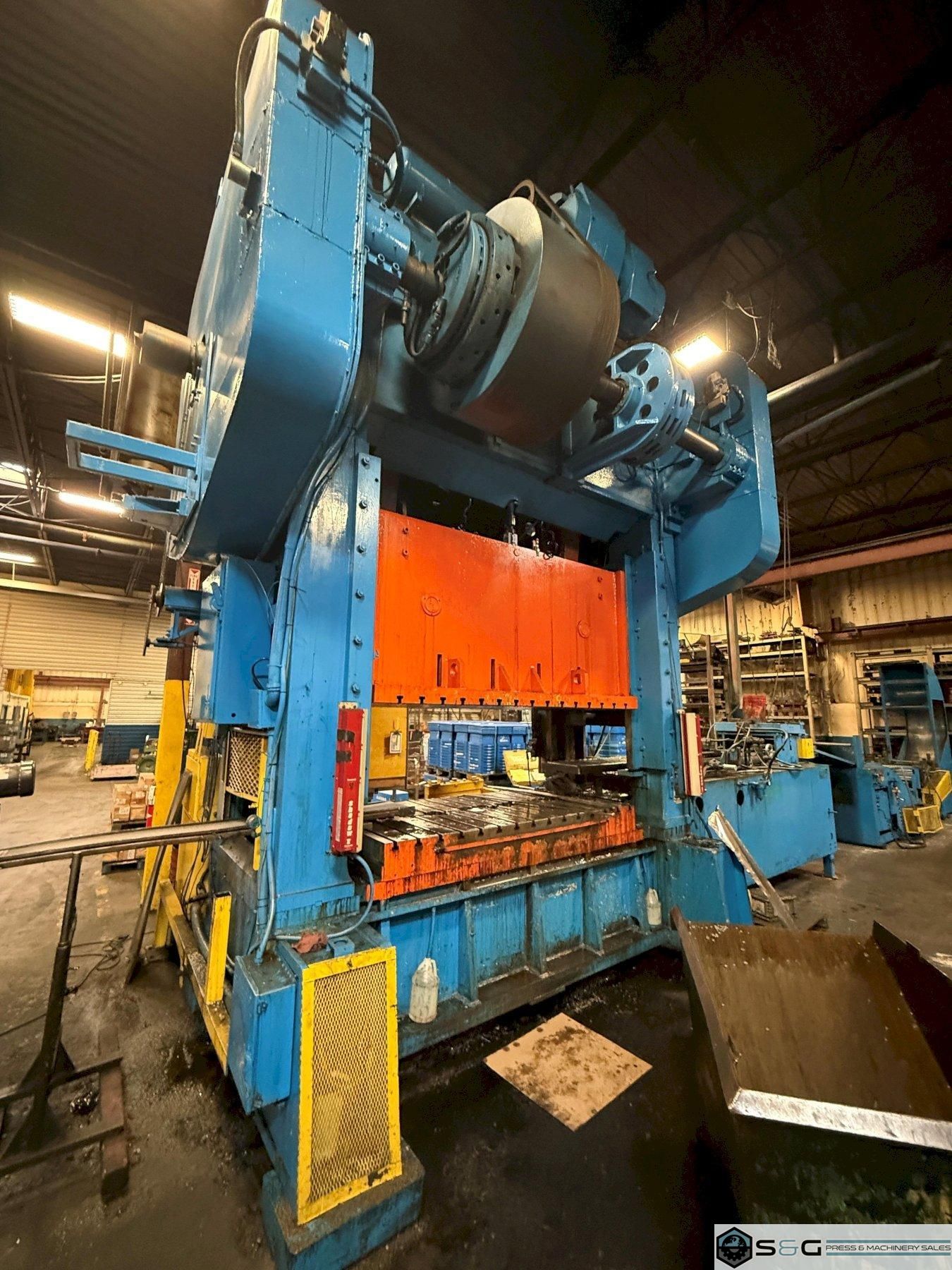

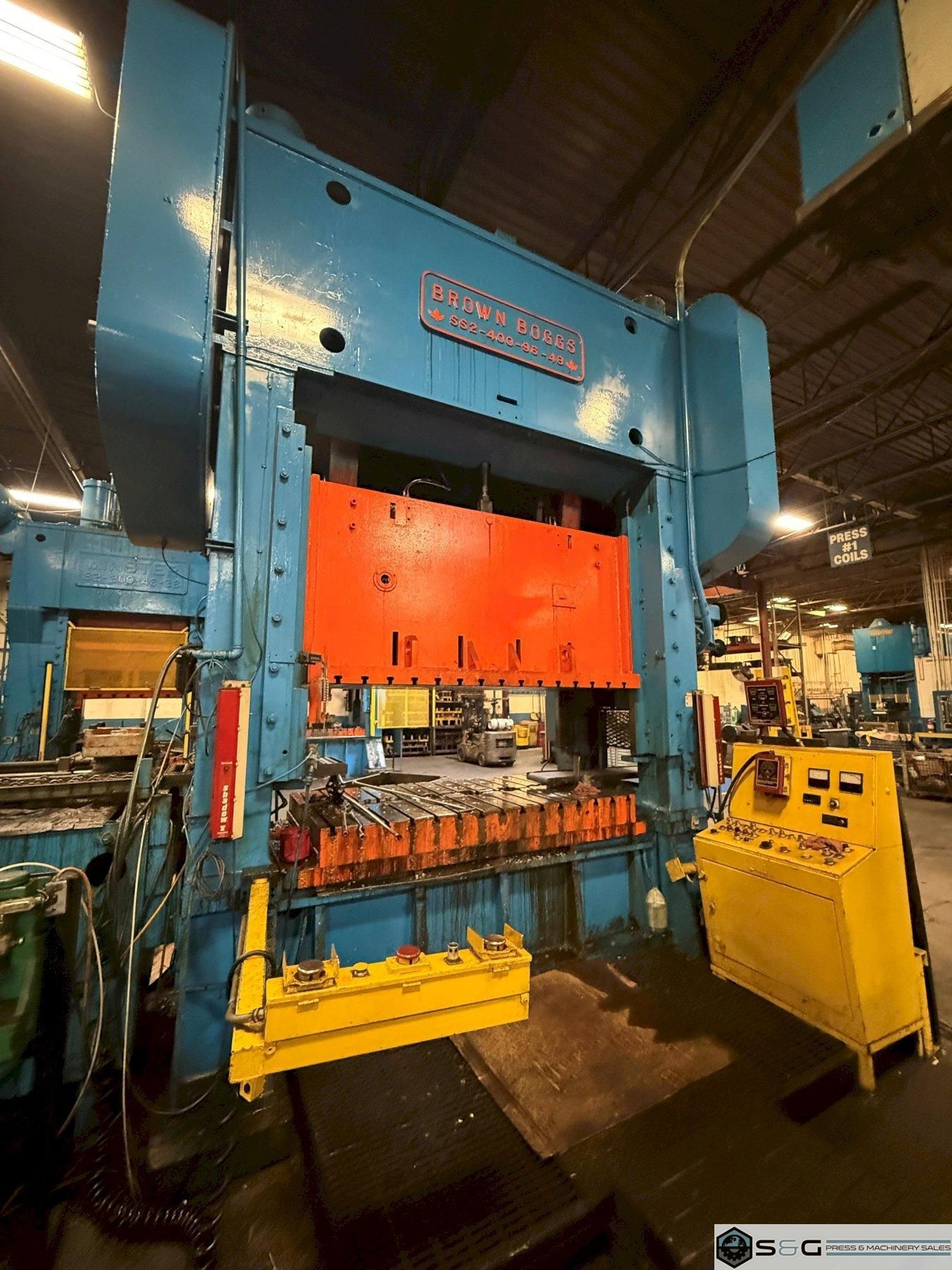

Brown Boggs Straight Side Mechanical Stamping Press400-ton Capacity Metal Stamping / Progressive DieModel # SS2-400-96-48400-ton Capacity10" Stroke 32" Shut Heigh on Bed 24" Shut Heigh on Bolster 10" Motorized Adjustment 96" LR x 48" FB Bed Area 96" LR x 48" FB Slide Area 21-61 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System 8" Thick T-Slotted Ram and Bolster Wintriss Shadow V Light Curtains Wintriss AutoSet 1504 Wintriss Brake Monitor Free Standing Console Controls Wide Windows Vibro Dynamic Floor Pads Floor Standing Can be seen underpower in stamping operation. For more details or to schedule an inspection please do not hesitate to call or email. Optimize your metalforming production with this heavy-duty 400-ton Brown Boggs SS2-400-96-48, a high-performance straight side mechanical stamping press. Engineered for precision progressive die applications, it features a massive 96" x 48" bed, 10" stroke, and variable speeds of 21–61 VSPM. Equipped with Wintriss Shadow V light curtains and AutoSet 1504 controls, this floor-standing used mechanical press ensures maximum safety and accuracy. Available for immediate inspection under power in a professional stamping operation. |
|||
Attachments |
||
|---|---|---|
|
There are no files attached to this listing currently. If you have any further questions regarding this listing, please contact us for more information. |
||
Machine Tags |
||
|---|---|---|
| Brown Boggs Press, 400 ton Mechanical Press, 400 ton Straight Side Press For Sale, 400 ton Press For Sale, 400-ton Metal Stamping Press, Used 400 ton Stamping Press For Sale, Used 400-ton Straight Side Press For Sale | ||
Highlights |
||
|---|---|---|
| - Robust 400-ton Brown & Boggs straight side mechanical press - High precision with a stroke of 10 and shut height of 32 - Versatile adjustment capability of 10 for varied applications - Spacious bed size of 96" LR x 48" FB for accommodating large workpieces - Efficient ram area matching bed size for consistent performance - Impressive speed range of 26-61 SPM for enhanced productivity - Ideal for metal stamping applications requiring substantial force - Trusted Brown & Boggs quality offering reliability and durability - Excellent value proposition for a used 400-ton straight side press - Located in Michigan, USA for convenient inspection and pickup |
||
