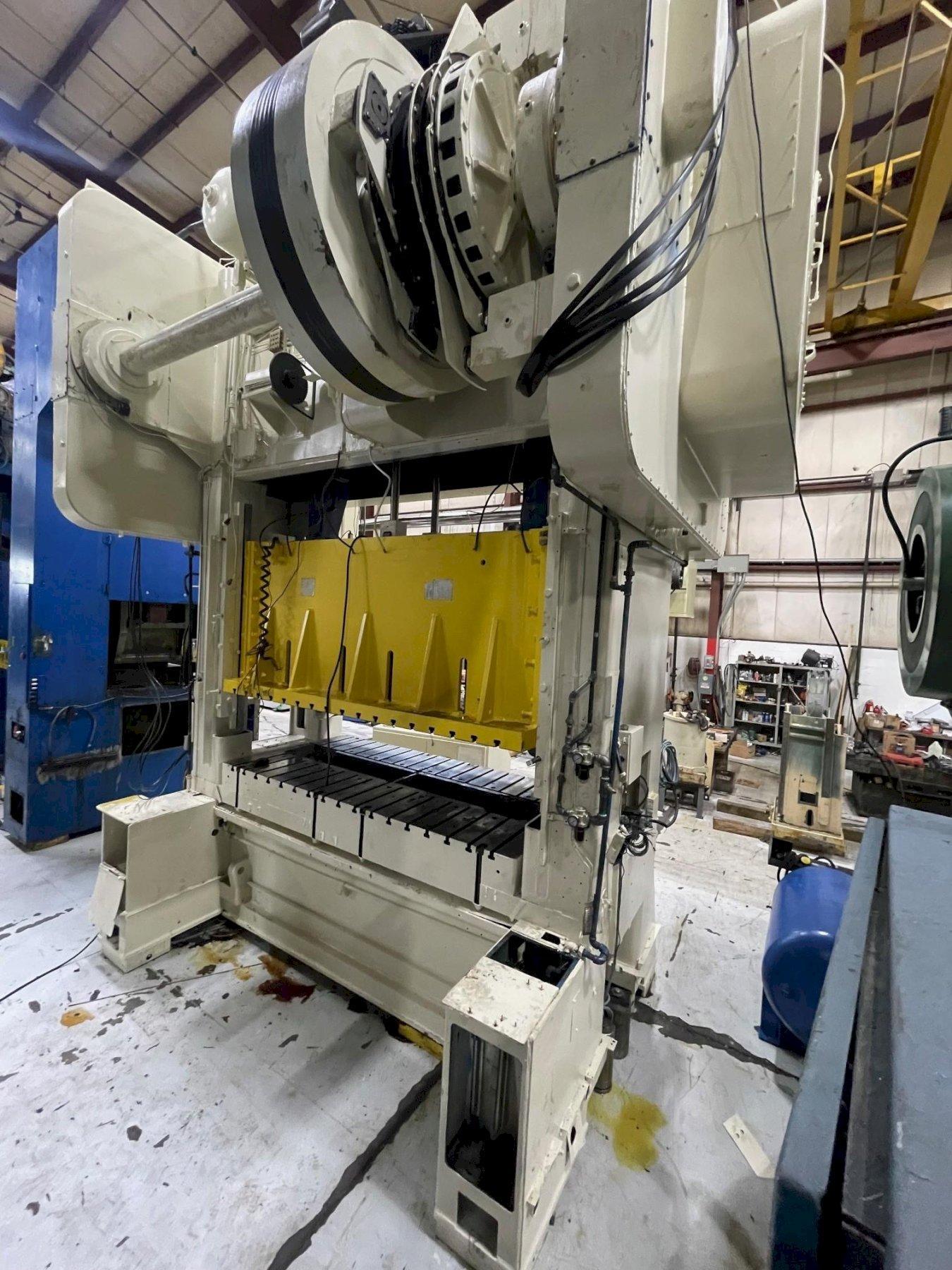

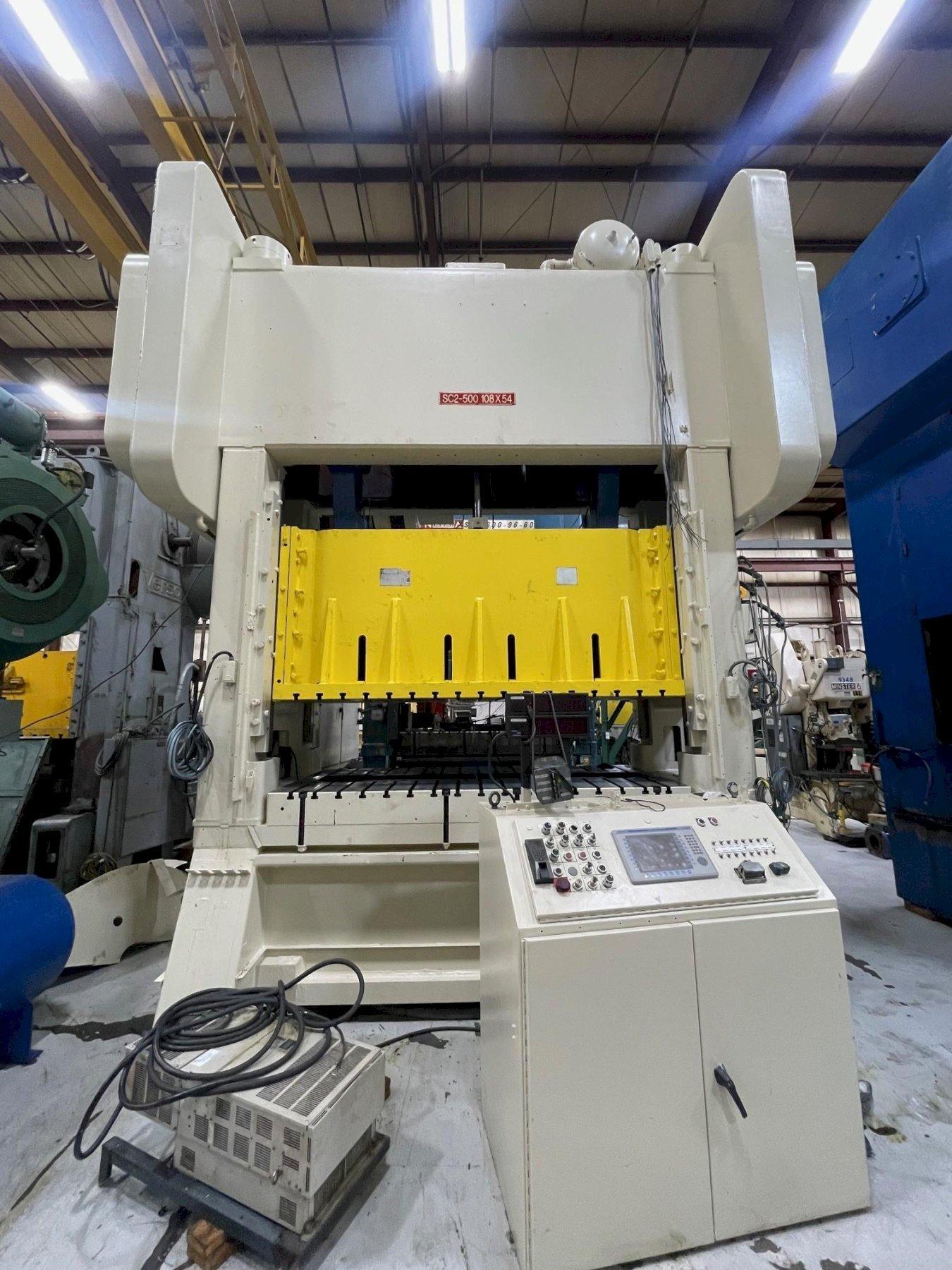

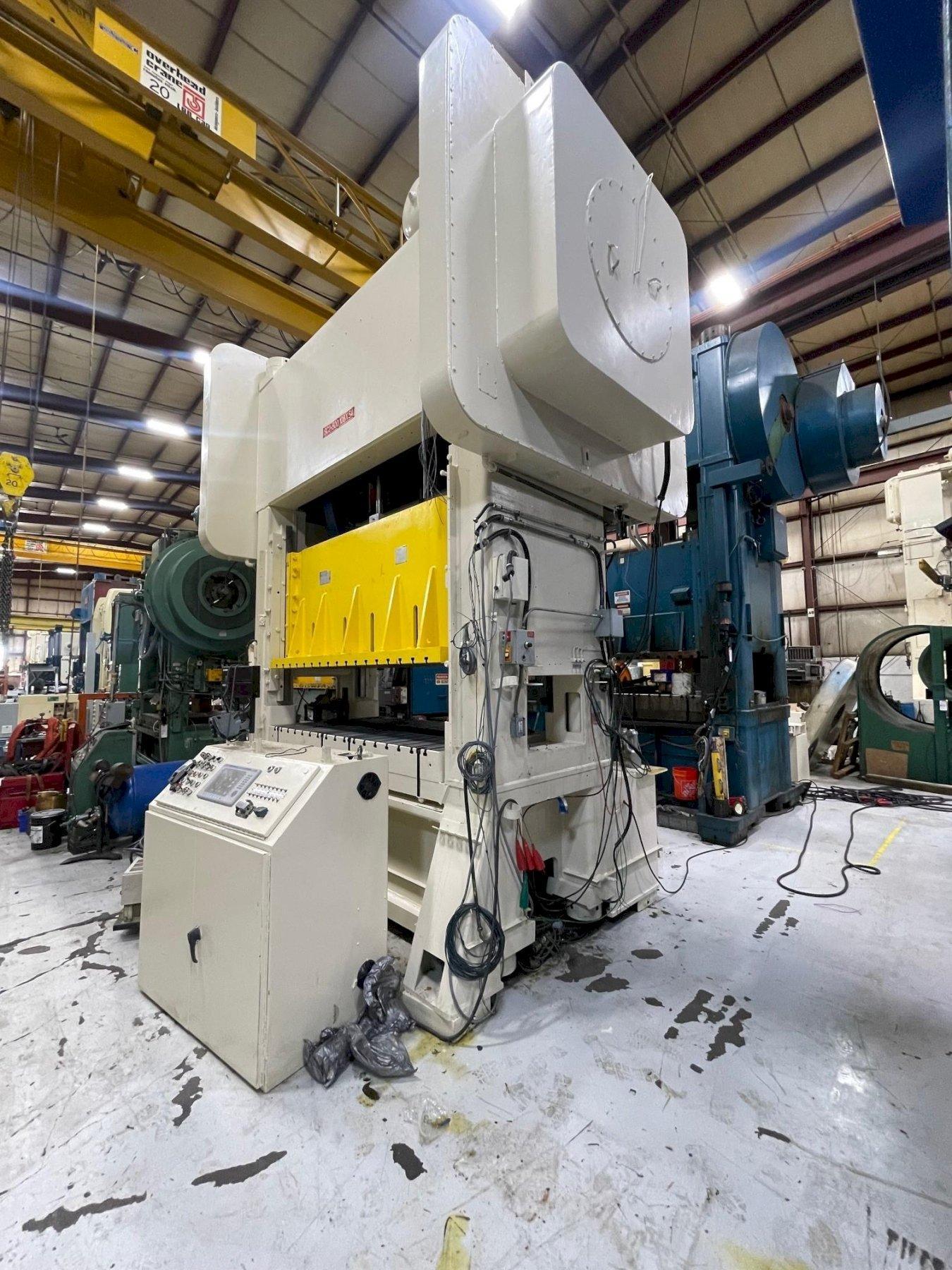

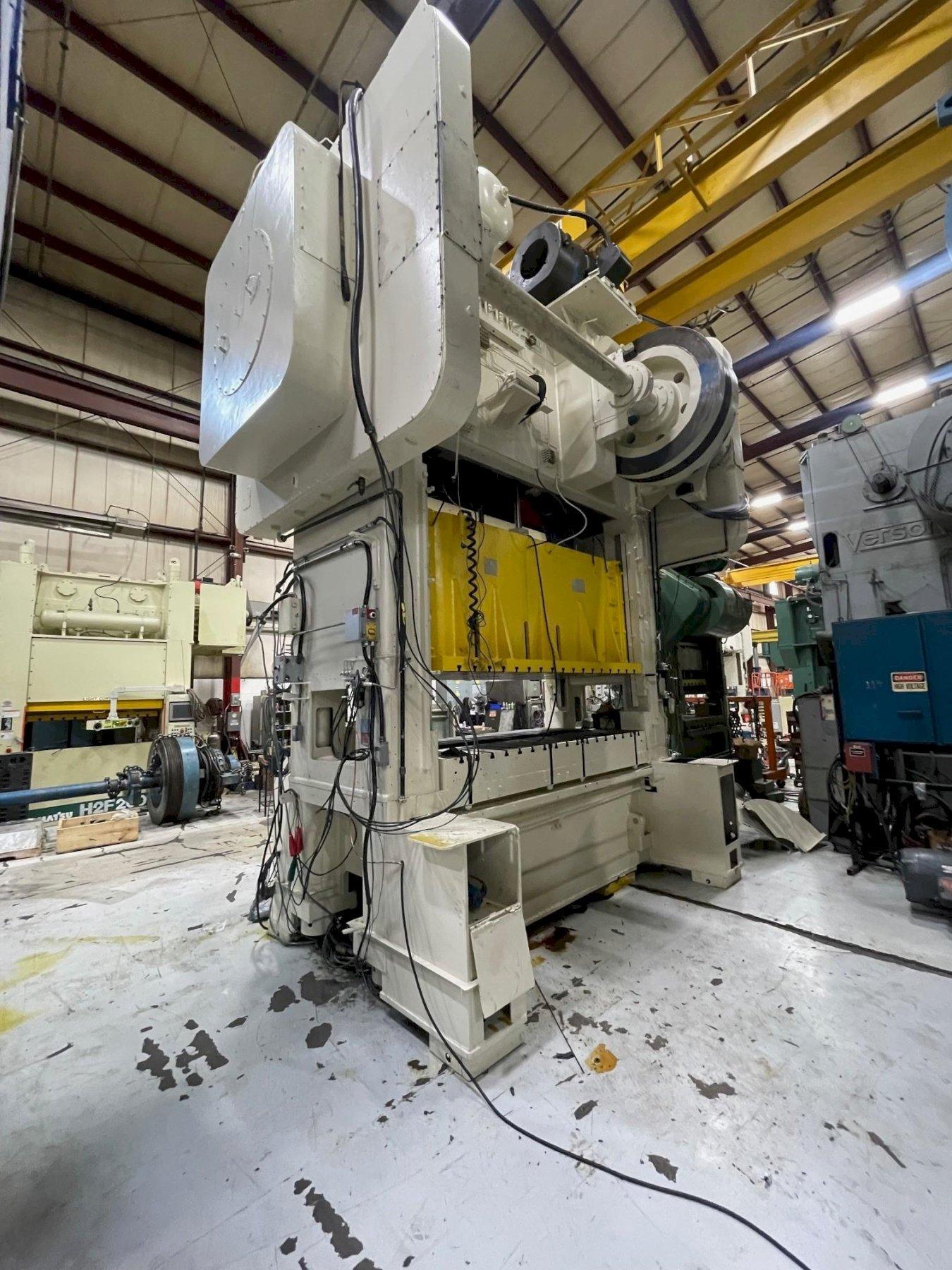

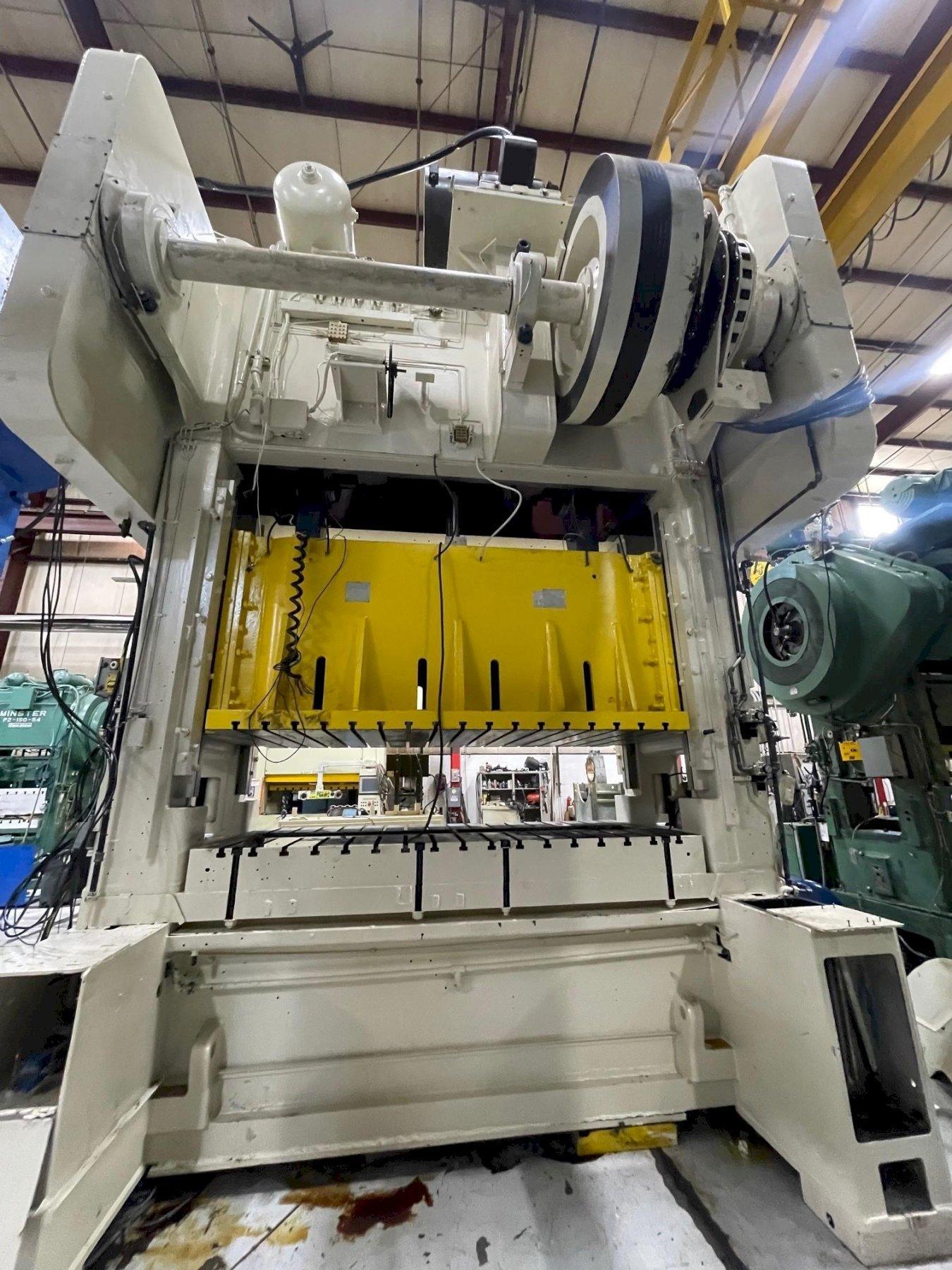

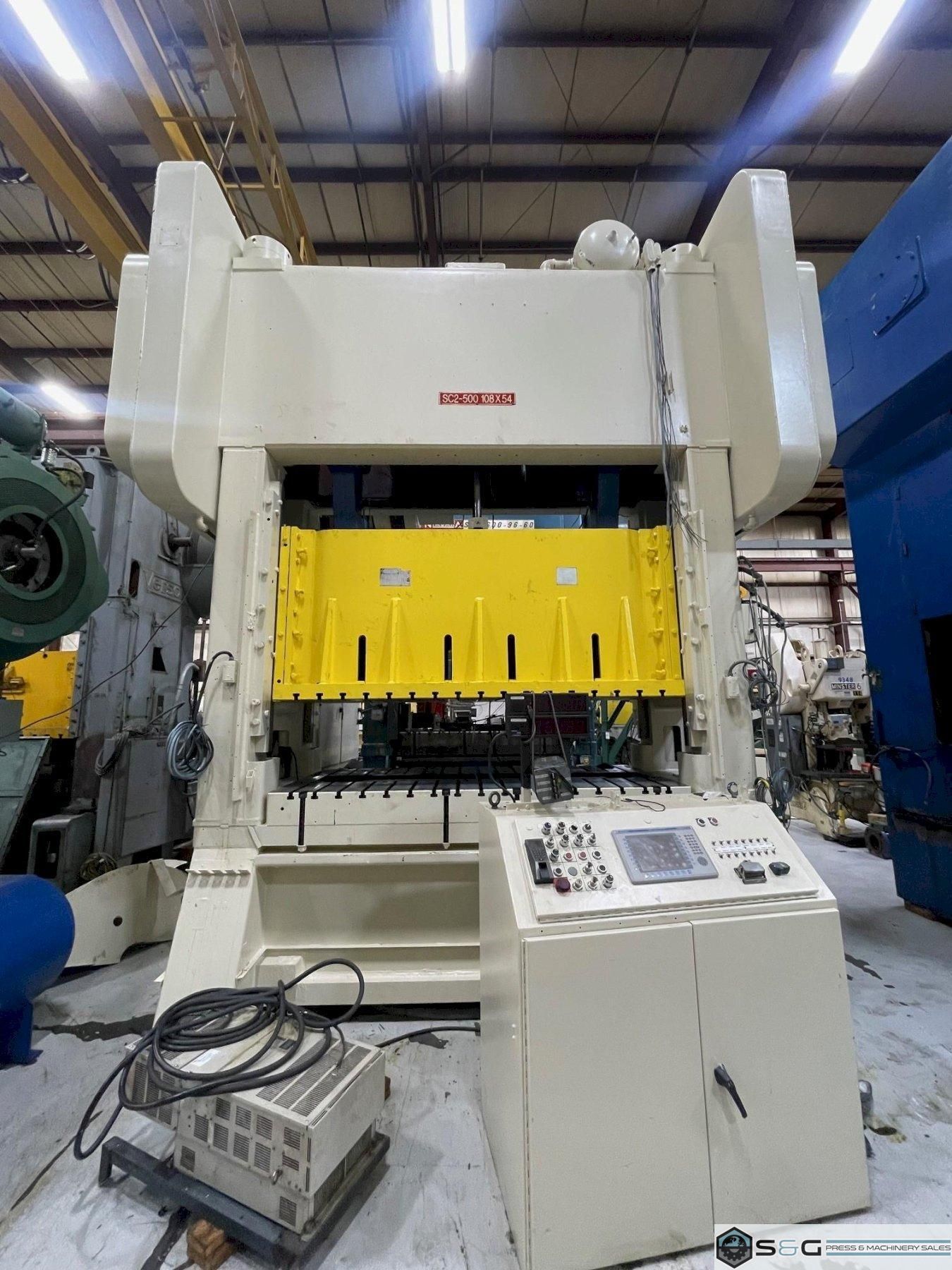

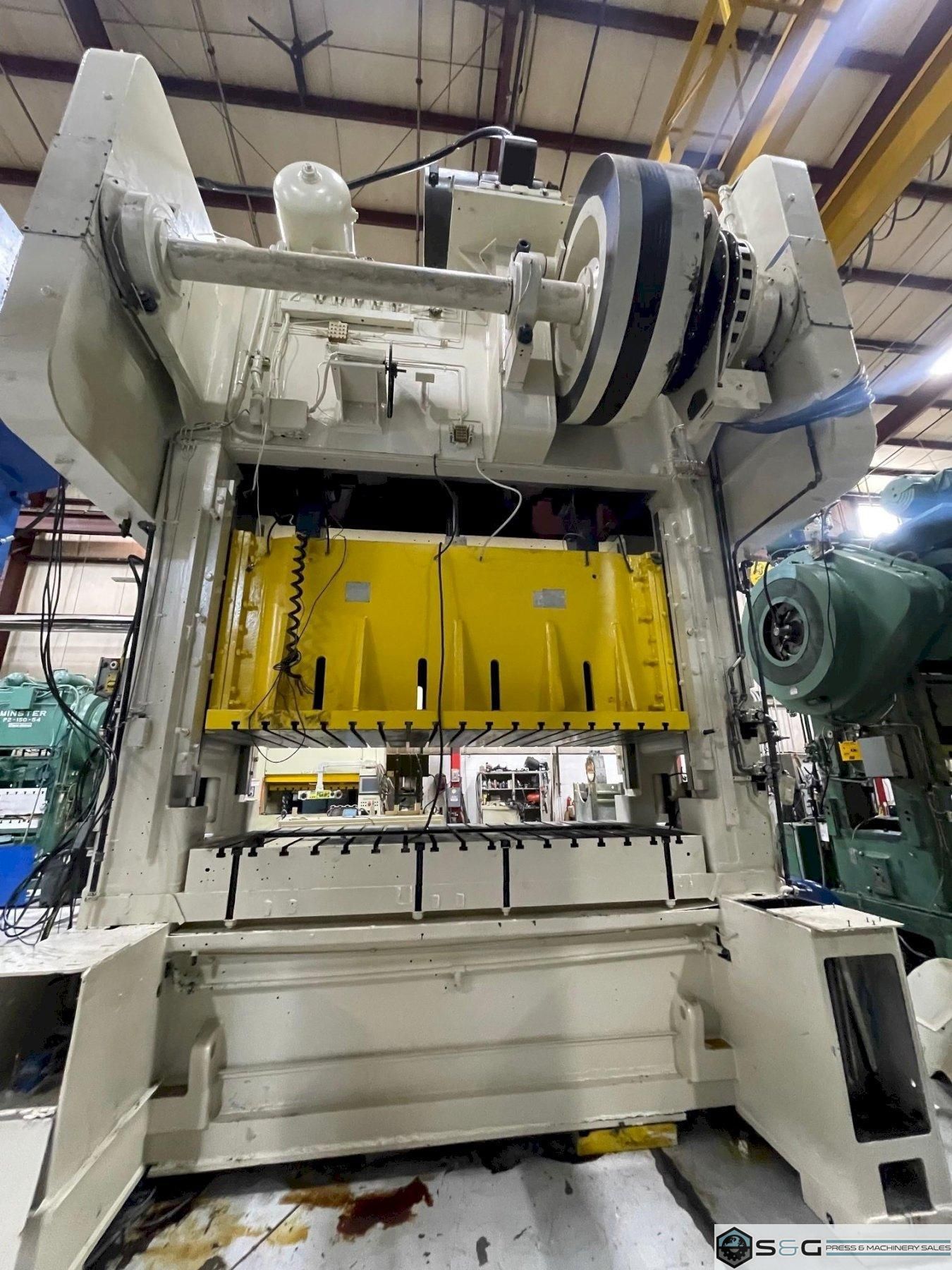

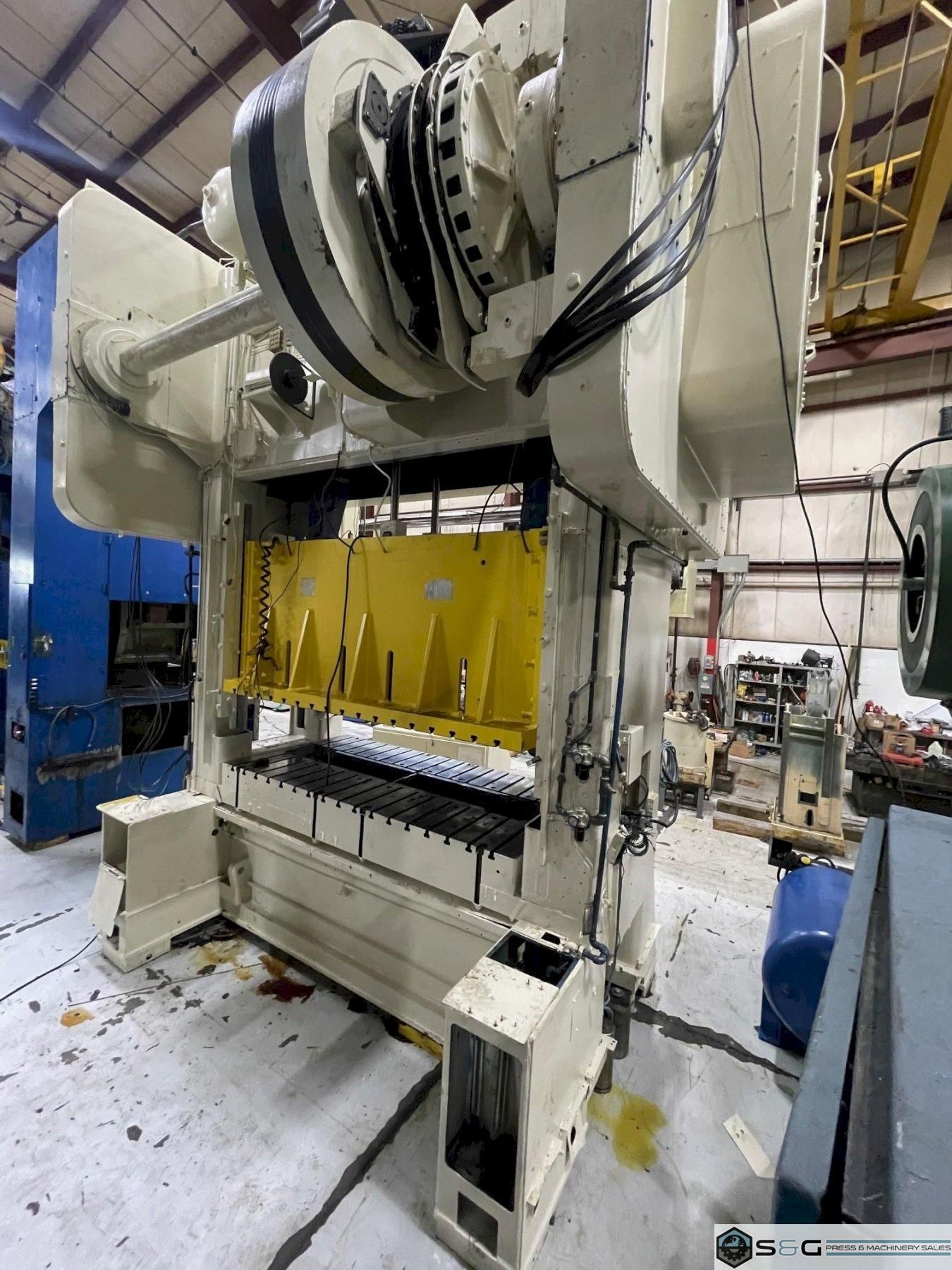

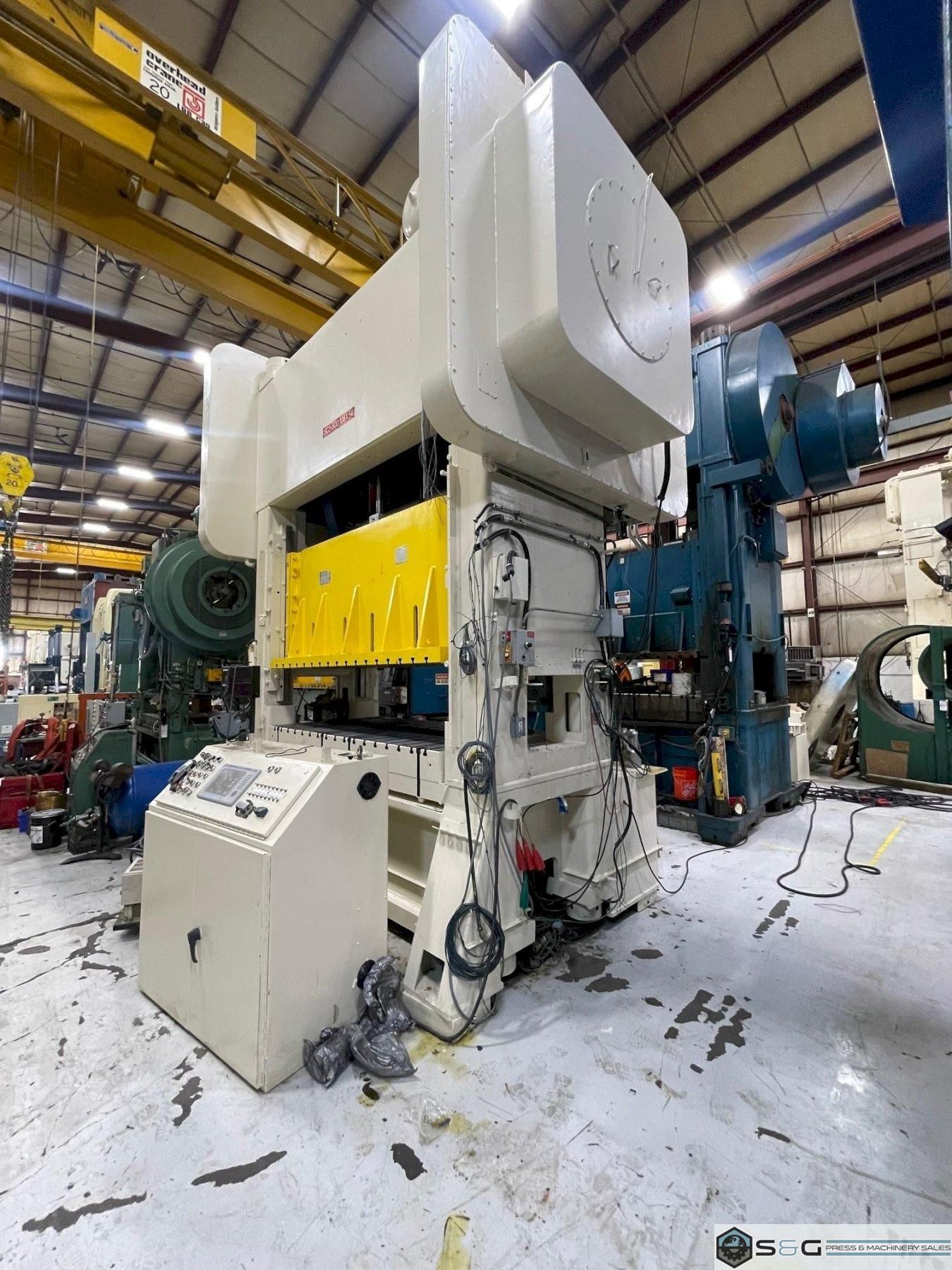

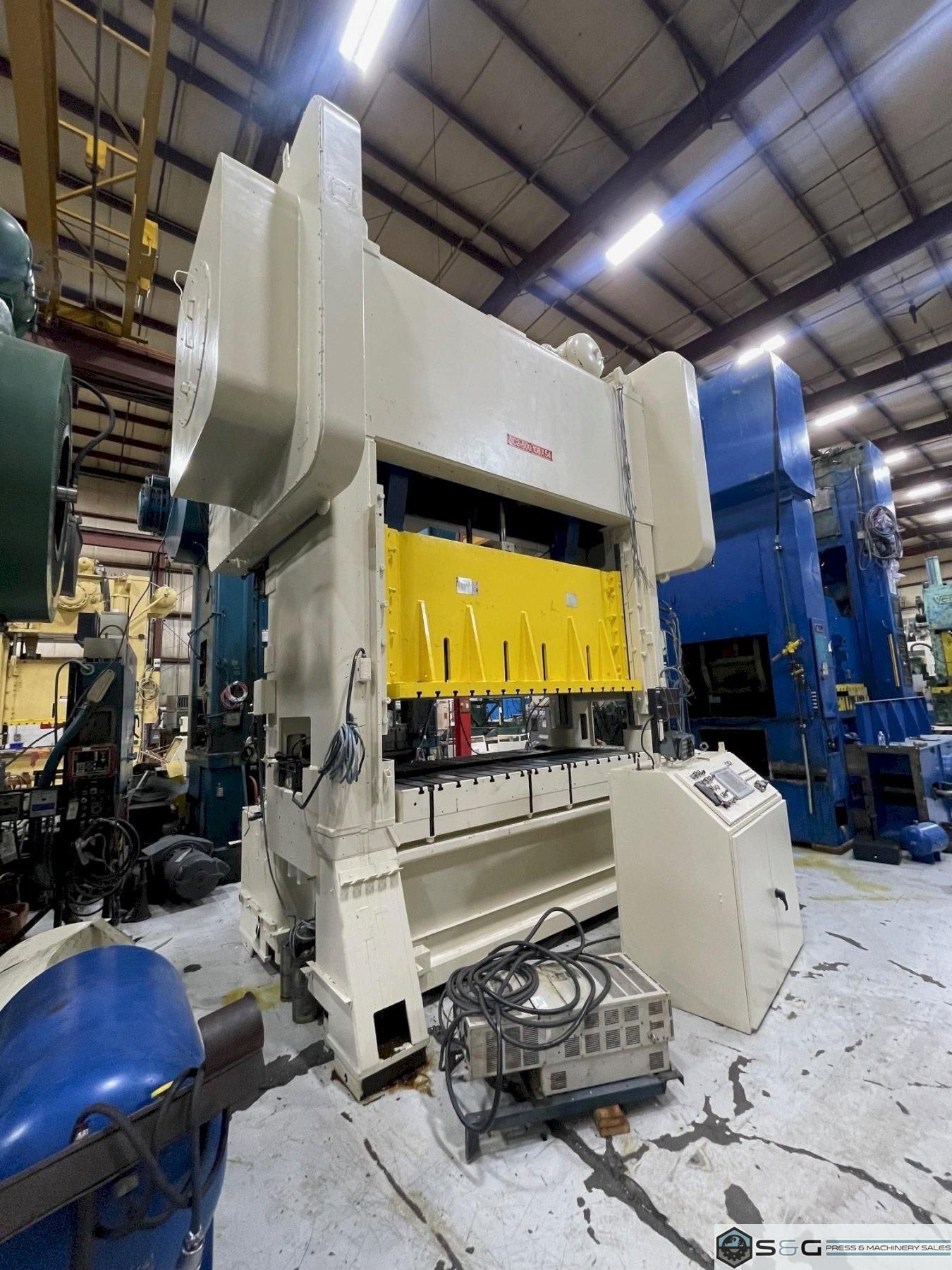

500 ton Bliss SC2-500-108-54 Used Straight Side Mechanical Metal Stamping "Link Drive" Press, Year New 1989, Rebuild in Process 2024!

Standard Specifications
Used Bliss Press Model SC2-500-108-54
"Link Drive" Straight Side Double Crank
Mechanical Metal Stamping Press
500 ton Capacity Press
10" Stroke
33" Shut Height On Bed
13"-25" Die Height on Bolster
12" Adjustment
108" LR x 54" FB Bed Area
108" LR x 54" FB Slide Area
30-60 VSPM

Equipment and Features
Rebuild in Process Completion - 2025
First Quarter / Early 2nd Quarter
"Link Drive" Motion Press
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
8" Thick Bolster Plate
26" x 20" Windows
Hydraulic Tie Rod Nuts
Dual Ross Valve
100 HP Dynamatic Main Motor
Twin End Drive
Allen Bradley PLC Controls
Free Standing Console
Motors and Controls
Floor Standing Design

234.5" Max Overall Height
144.5" LR x 94" FB Footprint
168,000 lbs Approximate Weight

Full Scope of Rebuild Work Performed Upon Request

This used 500 ton Bliss Mechanical Metal Stamping Straight Side Press can be seen under power in the S&G Press Livonia Michigan Warehouse!

Click this link for more 500-ton Press Options at S&G Press.

S & G Press & Machinery Sales! We specialize in selling reconditioned and rebuilt high-quality used metal stamping and coil feed equipment. Upgrade your production with a refurbished Bliss SC2-500-108-54 press. Originally built in 1989, this 500-ton powerhouse is undergoing a complete rebuild. Enjoy top-notch quality and reliability with SG Press. Don't miss out on this opportunity to invest in your business's future. Contact us today to learn more or schedule a viewing.
