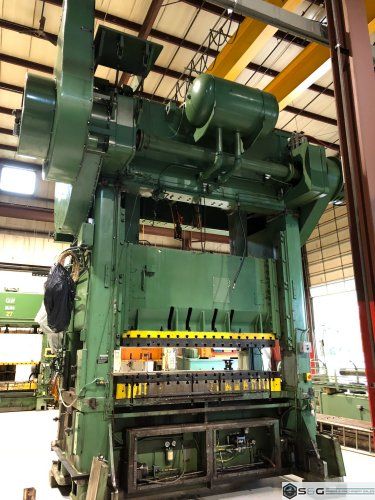

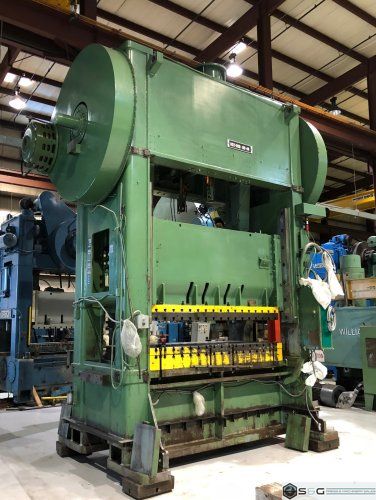

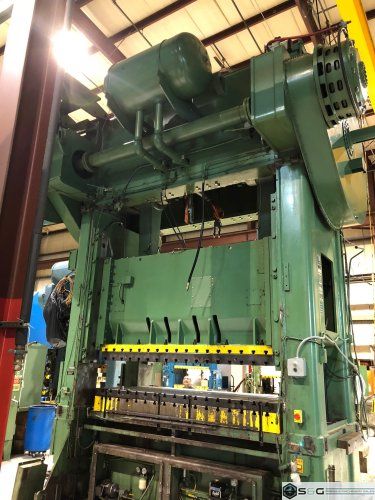

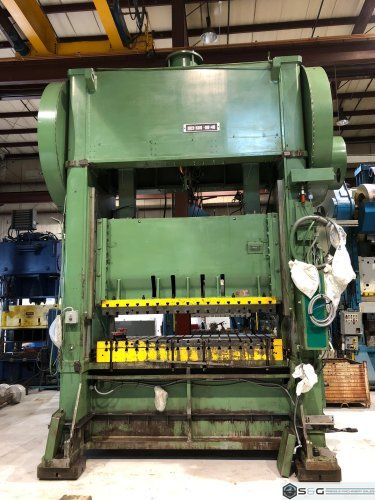

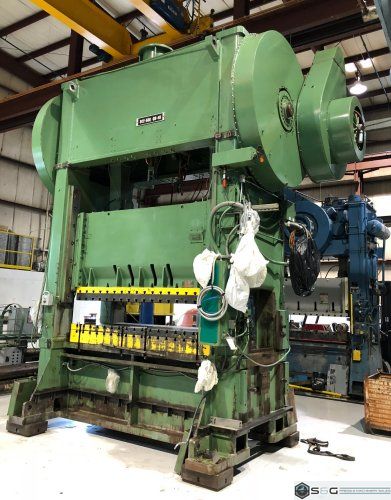

500 Ton NIAGARA SC2-500-108-48 Straight Side Mechanical Metal Stamping Press

Standard Specifications
500 ton Capacity
12" Stroke
38" Shut Height
15" Motorized Adjustment
108" LR x 48" FB Bed Area
108" LR x 48" FB Slide Area
20-40 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8" Thick T-Slotted Bolster
5" Thick T-Slotted Riser on Ram
Additional 108" x 48" x 4" T-Slotted Bolster
37" Wide Windows
(2) Sets of 30" Light Curtains

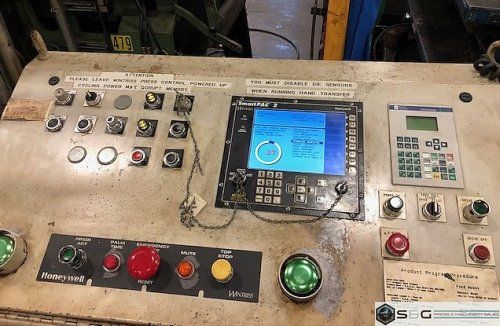

Wintriss Smart Pac 2 Control
Wintriss Tonnage Monitor
Wintriss Die Protection
Wintriss Programmable Outputs
Wintriss Resolver
8 Point Gibbing
Floor Standing

Footprint Dimensions..........146" LR x 104" FB
Overall Height............ 21\'2" floor to top of Motor

Includes: Minster Press Mounted Servo Feed
Model #626-S/R with updated Rexroth Indramat System 200BTV04 Controls


Can be seen under power in our Warehouse upon request
