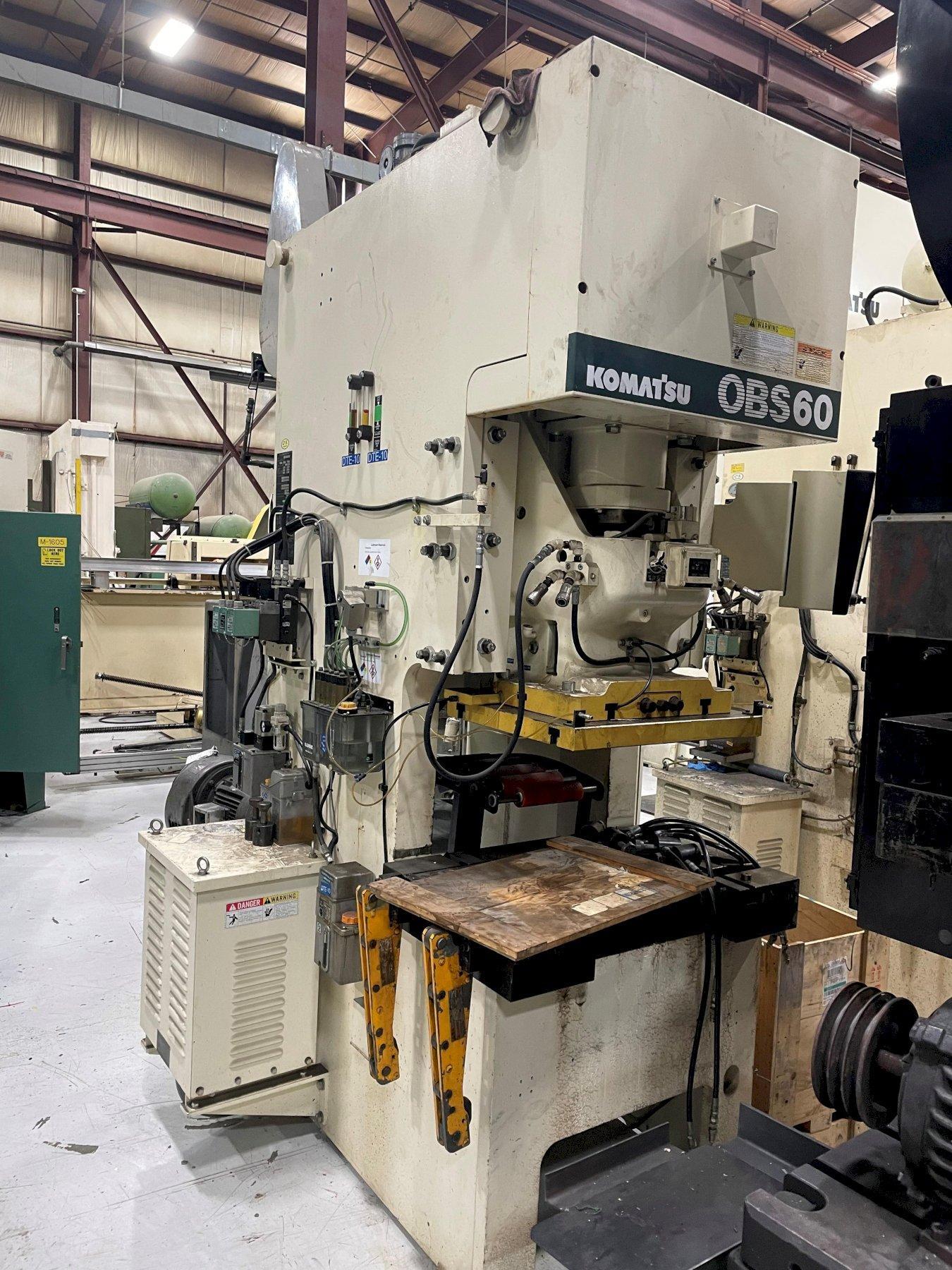

60 ton Komatsu OBS-60 Single Point Gap Frame Press, New 2011

Brand

KOMATSU

Model

OBS-60 Single Crank Gap

Year

2011

Stock #

2760

Condition

Used

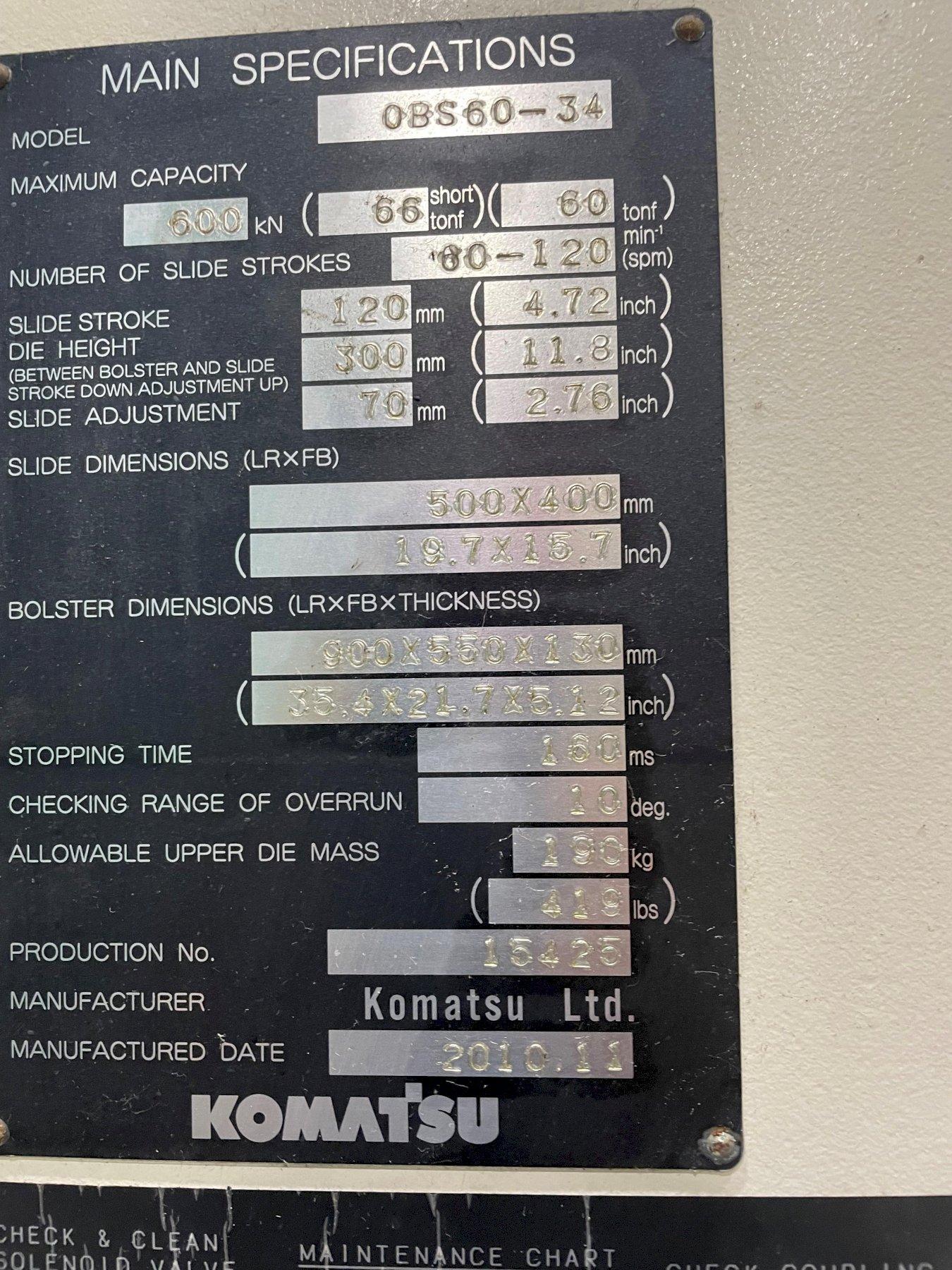

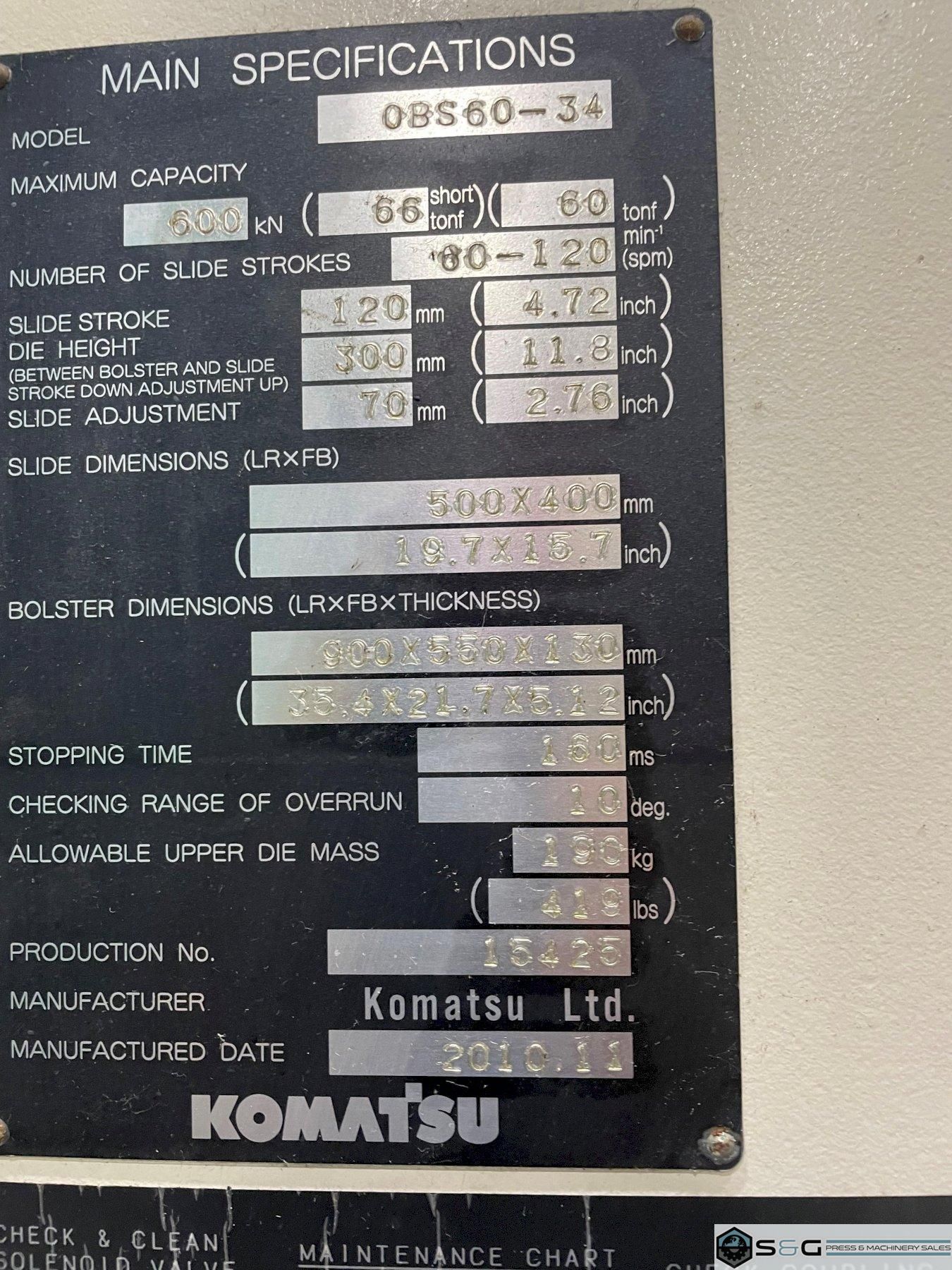

Specifications

Tonnage

60

Stroke

4.72 inches

Shut Height

16.9 inches

Adjustment

2.76 inches

Bed Size

35.4" x 21.7"

Ram Area

19.7" x 15.7"

SPM

60-120

Standard Specifications
60 Metric Ton Capacity
66 Short Ton Capacity
4.72" Stroke
16.9" Shut Height on Bed
11.8" Die Height on Bolster
2.76" Motorized Adjustment
35.4" LR x 21.7" FB Bed Area
19.7" LR x 15.7" FB Slide Area
60-120 Strokes Per Minute

Equipment and Features
High Torque Wet Clutch and Brake
Pneumatic Counterbalances
Plunger Guided Design
T-Slotted Ram and Bolster
5.1" Thick Bolster Plate
Quick Die Change - Die Clamping
Komatsu Press Controls
Hydraulic Overloads
Heavy Plate, Rigid Frame Construction
Pendant Mounted Controls
T-Stand Palm Buttons
Eccentric Shaft
Floor Standing
Vibration Isolation Levelers

Dimensions
106" Tall
12,000 lbs. Approx. Weight

Attachments

60 ton Komatsu OBS-60 Flyer.pdf Download
