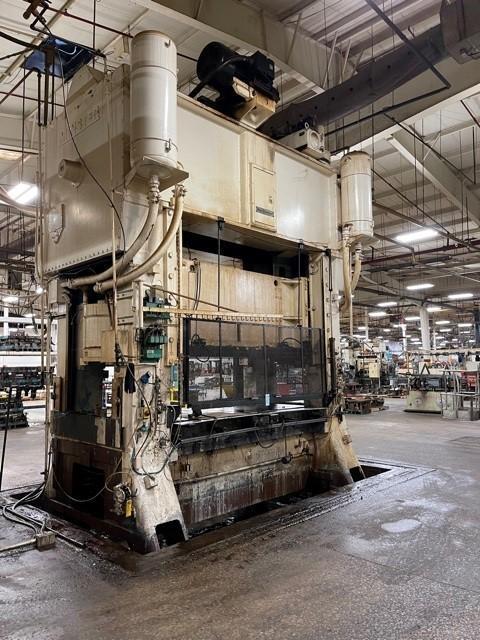

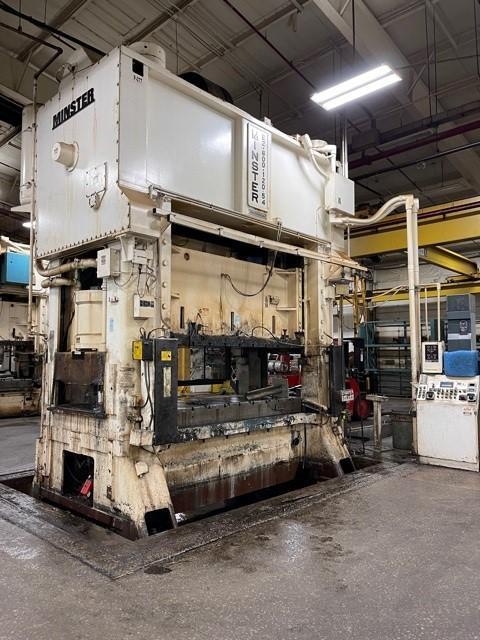

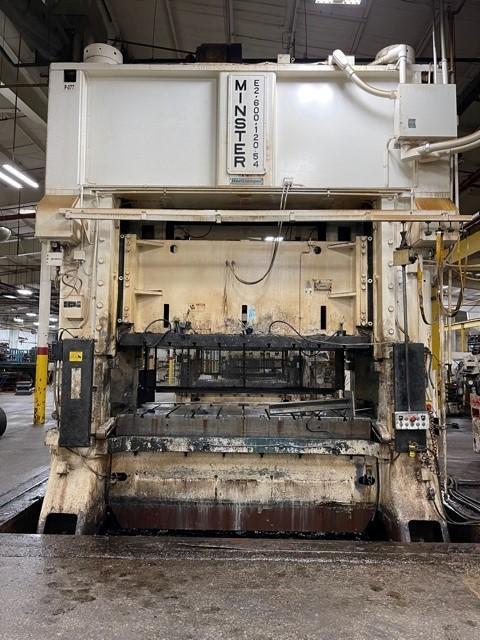

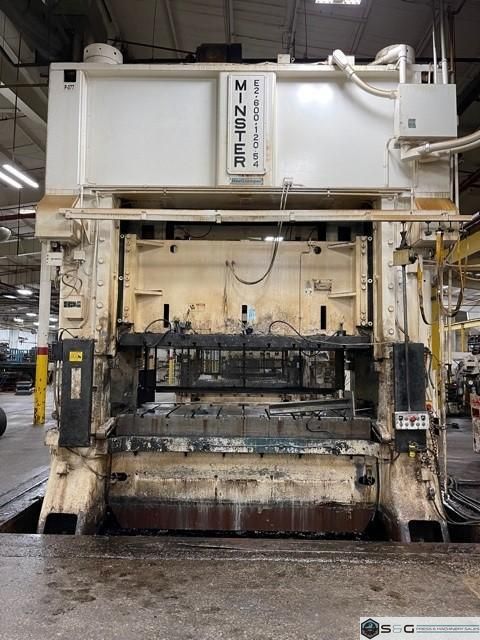

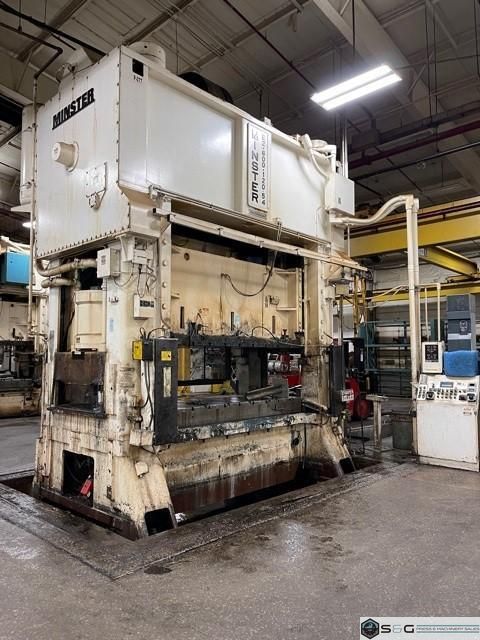

600 ton Minster E2-600-120-54 Hevi-Stamper Press, New 1992

Brand

MINSTER

Model

E2-600-120-54 Hevi-Stamper

Year

1992

Stock #

2689

Condition

Very Good

Request a Quote

Specifications

Tonnage

600

Stroke

14 inches

Shut Height

43 inches

Adjustment

6 inches

Bed Size

120" x 54"

Ram Area

120" x 54"

SPM

0-60

Standard Specifications
600 ton Capacity
Model# E2-600-120-54 Hevi-Stamper
14" Stroke
43" Shut Height
6" Motorized Adjustment
120" LR x 54" FB Bed Area
120" LR x 54" FB Slide Area
0-60 VSPM

Equipment and Features
Combination Hydraulic Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrication System
T-Slotted Ram and Bolster
48" Wide Windows
Micro Shut Height Indicator
Light Curtains
Hydraulic Tie Rod Nuts

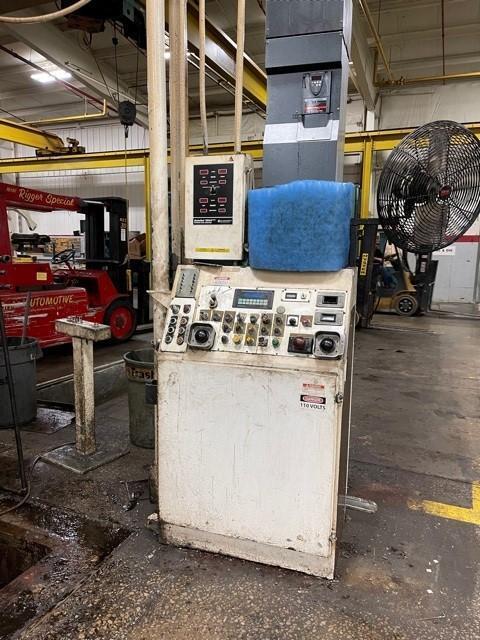

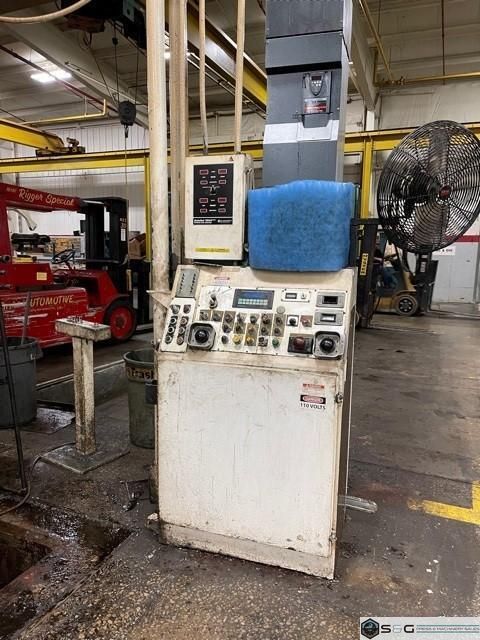

Free Standing Console Press Controls
Floor Standing Design

Overall Height:  21' 6" Tall
Foot Print:  173" x 112"

Can be seen under power upon request in the S&G Press Livonia Warehouse!
