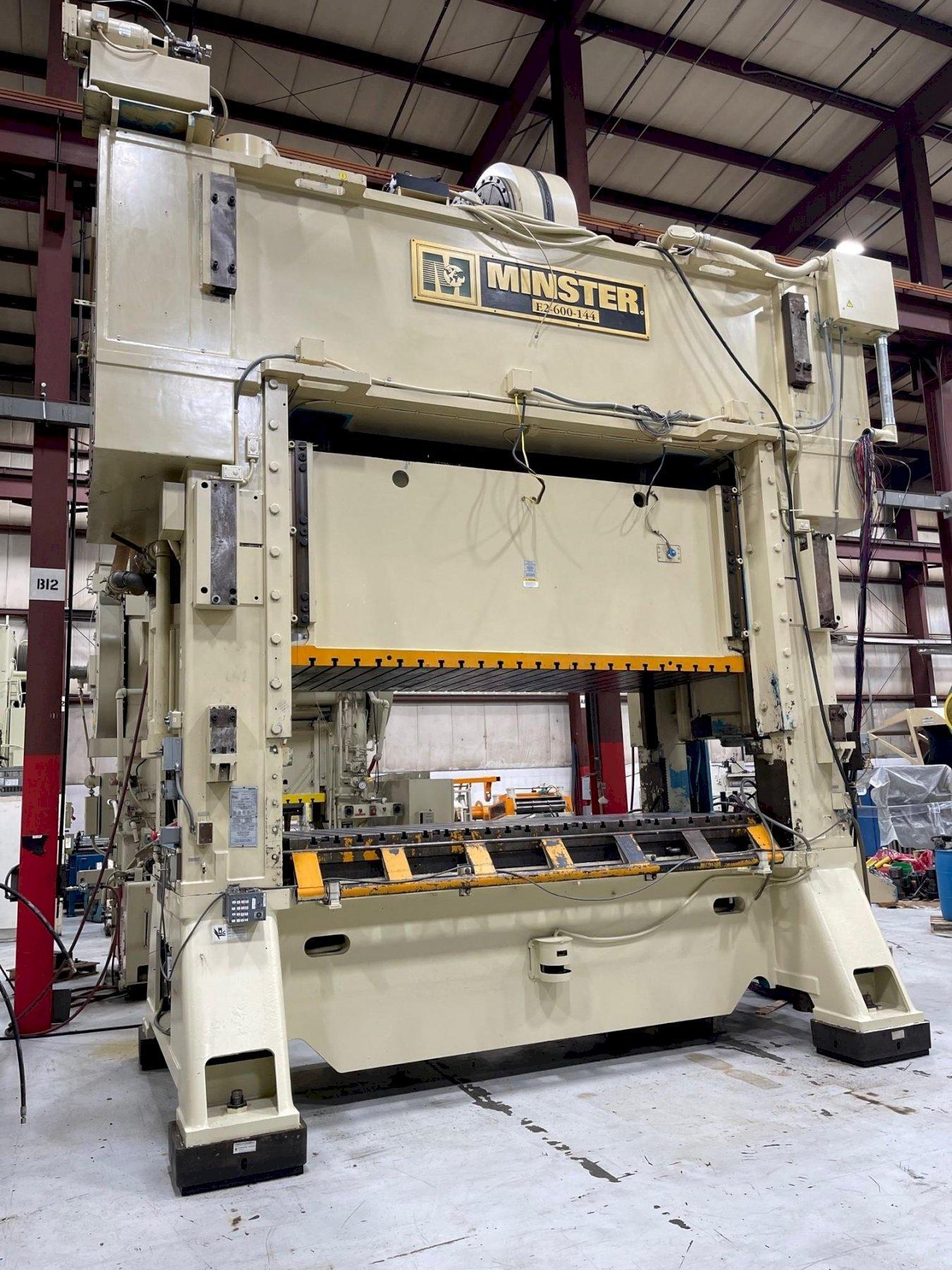

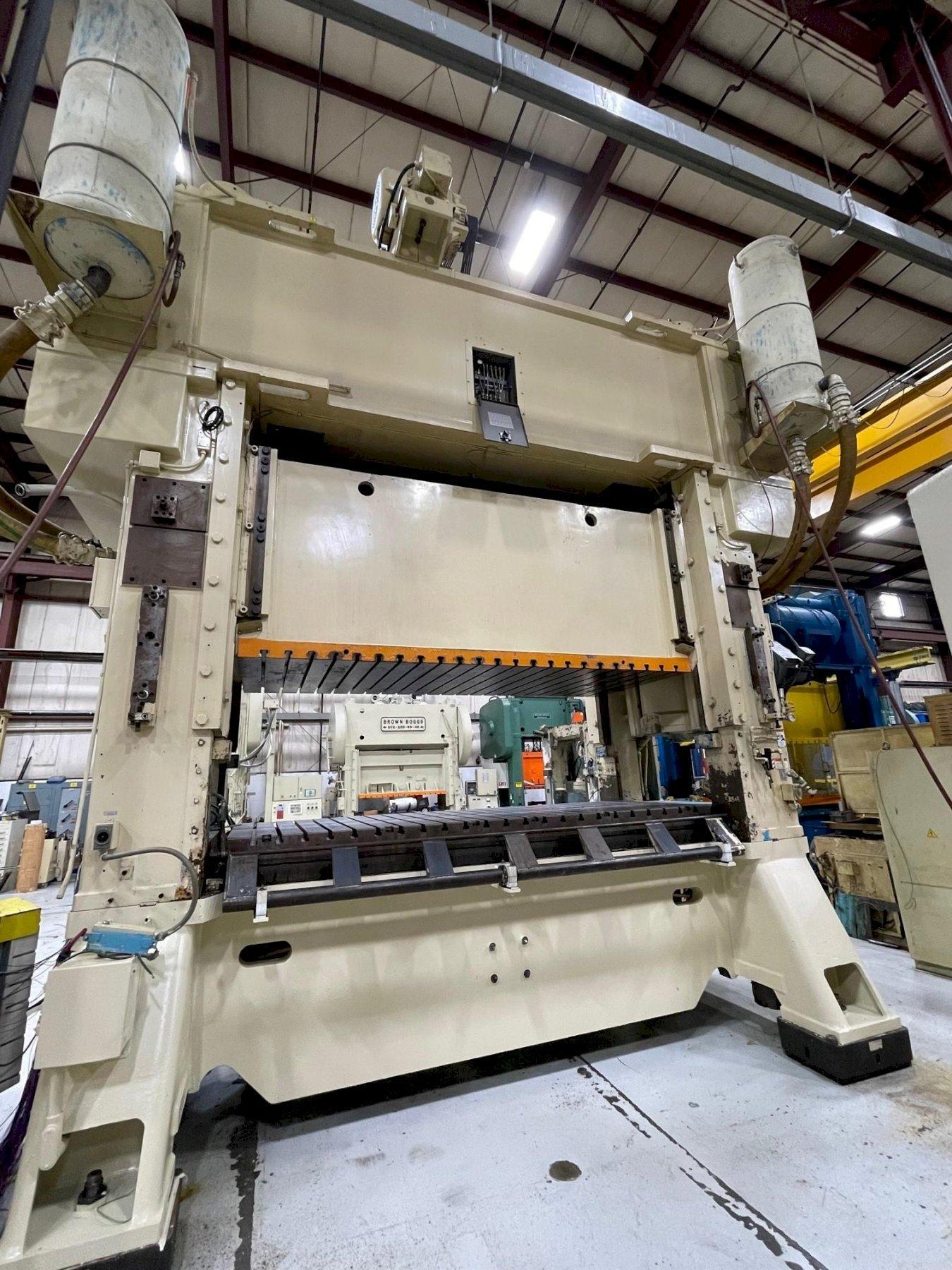

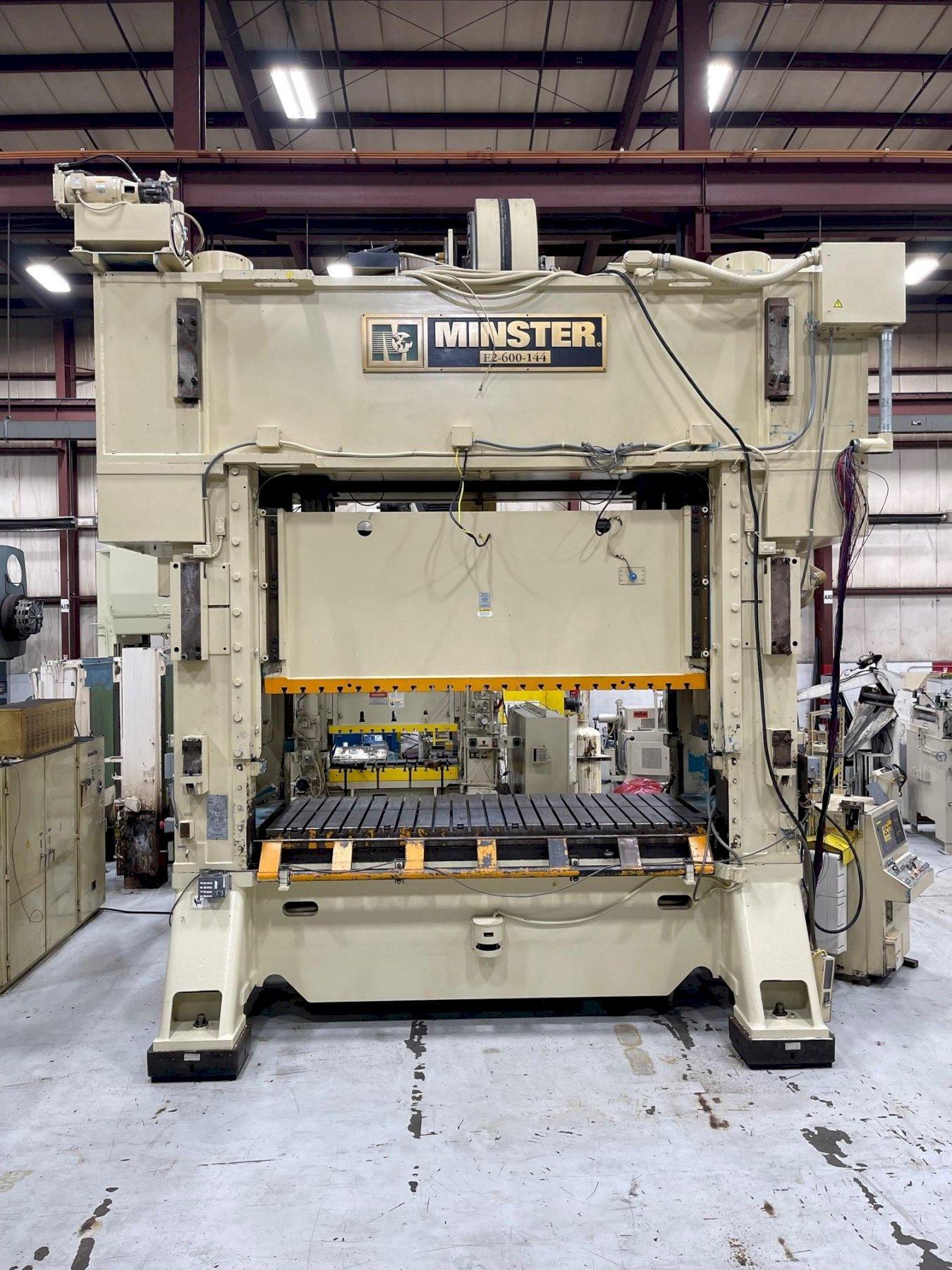

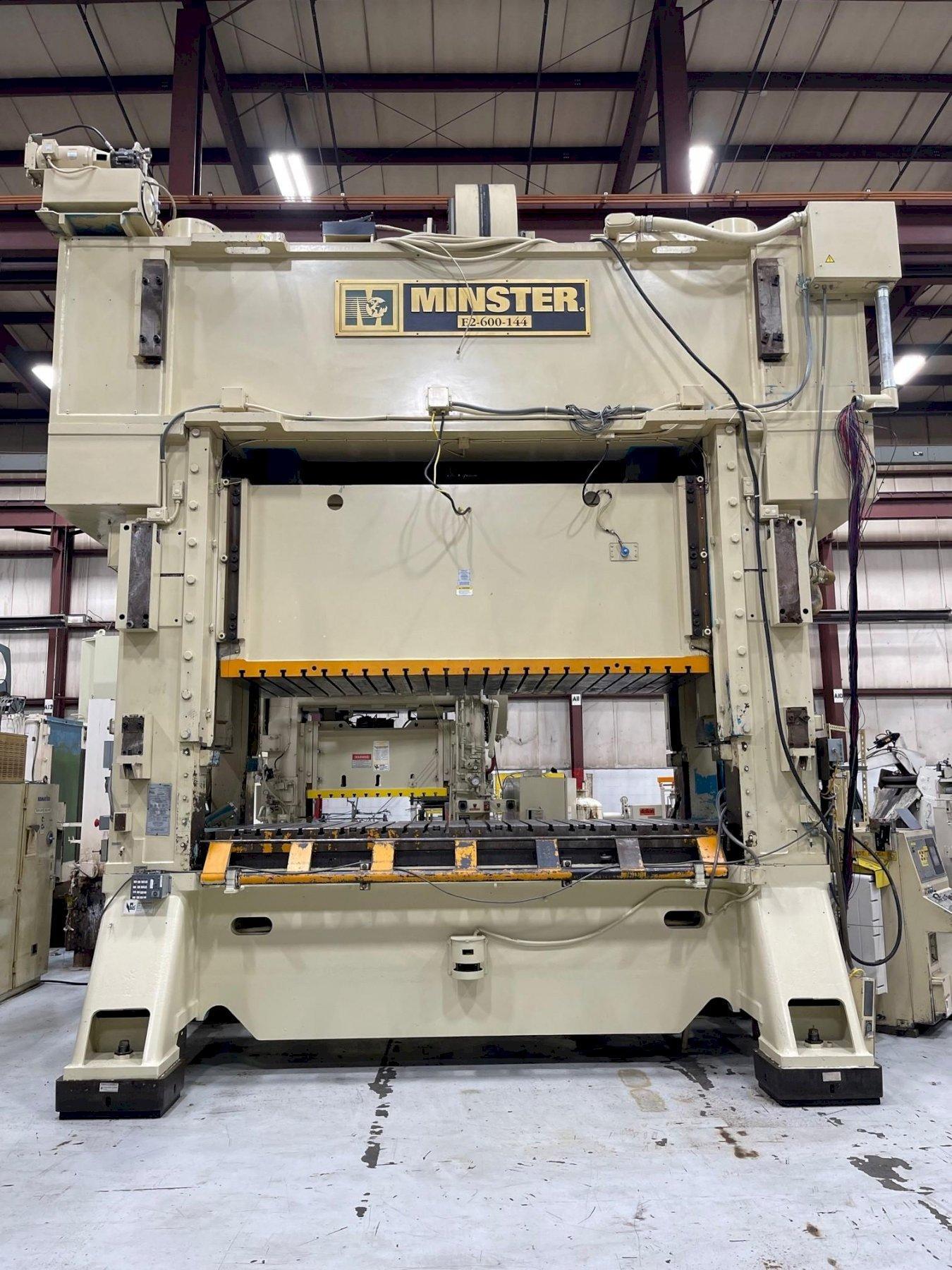

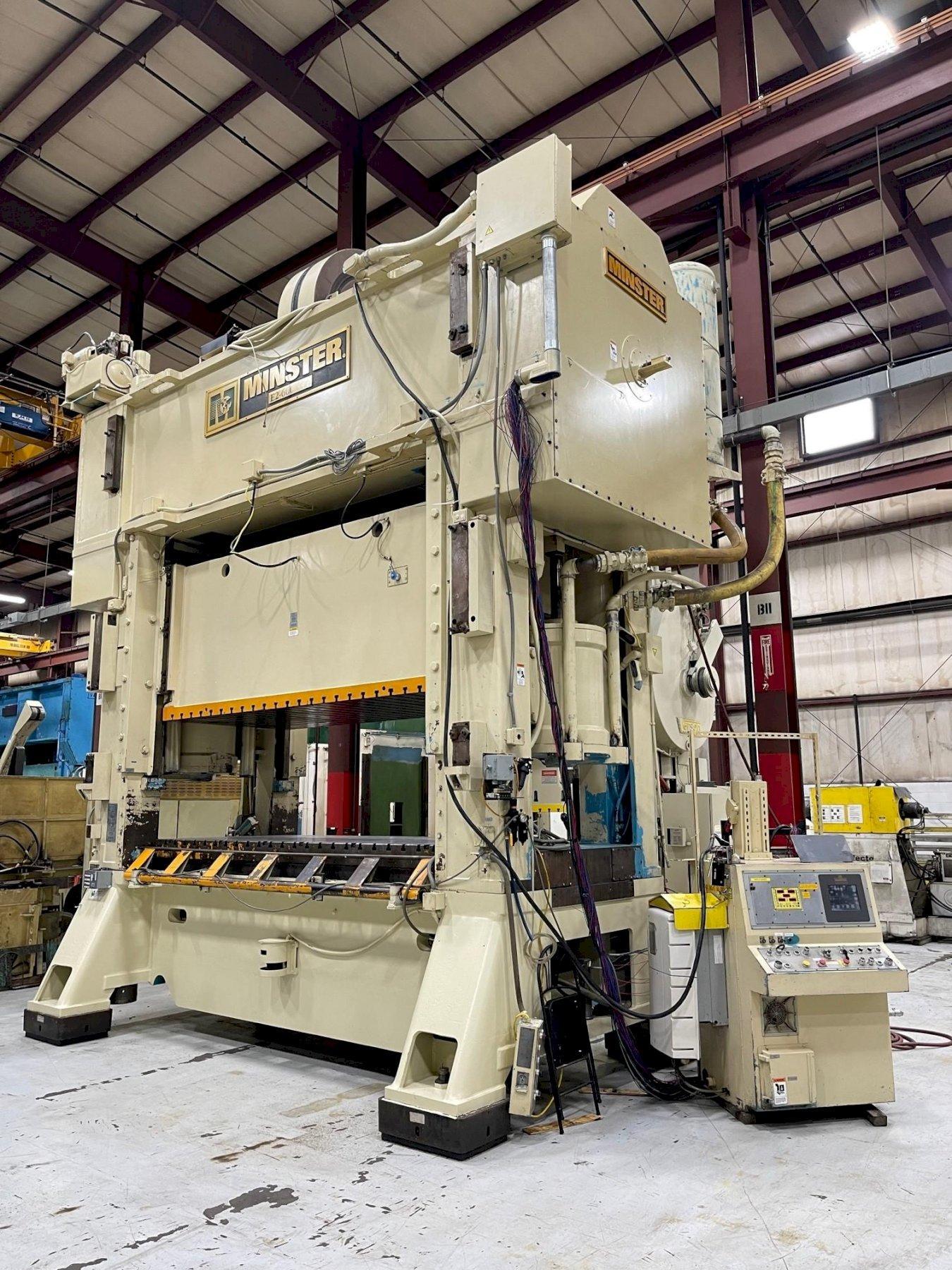

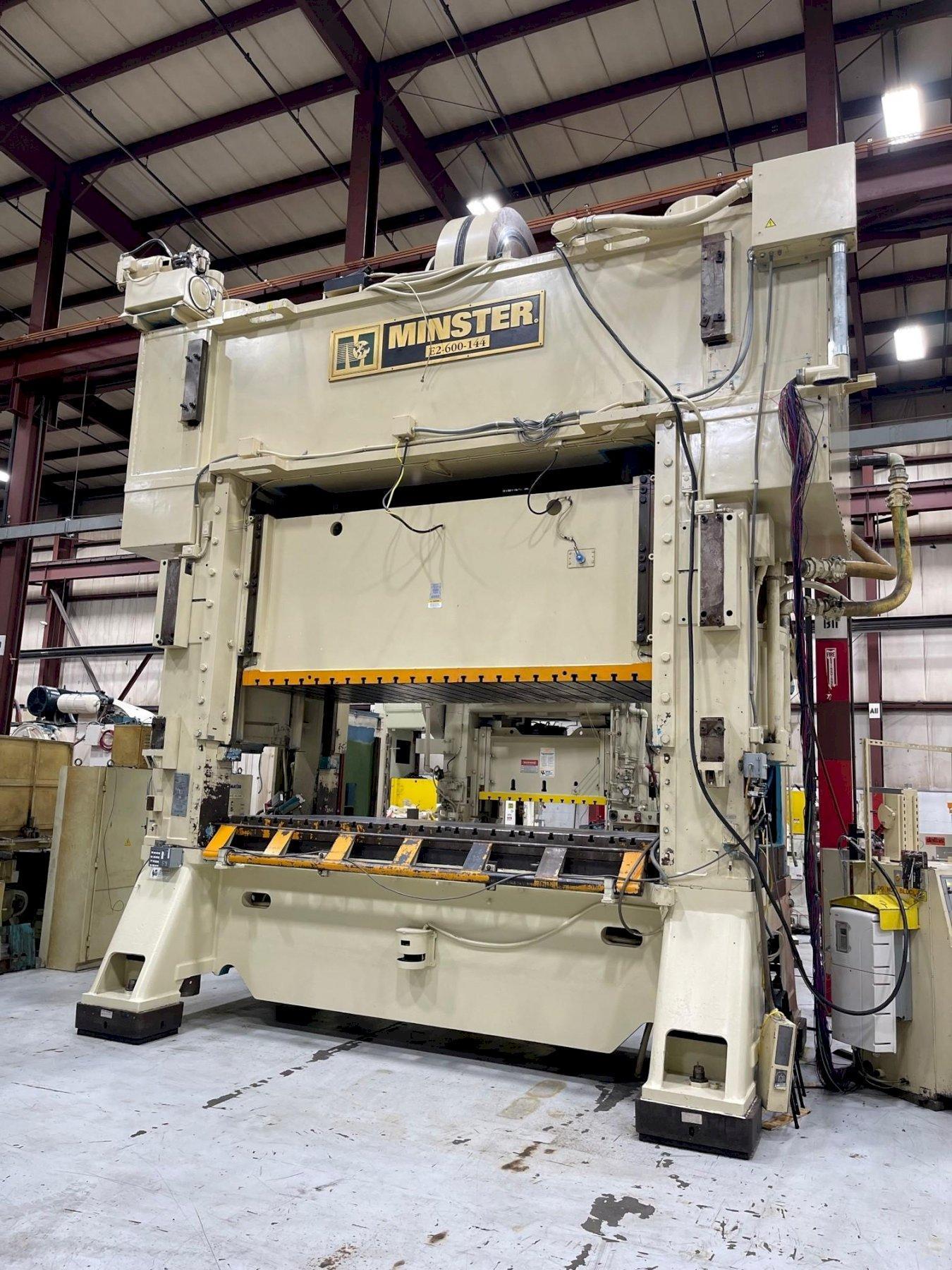

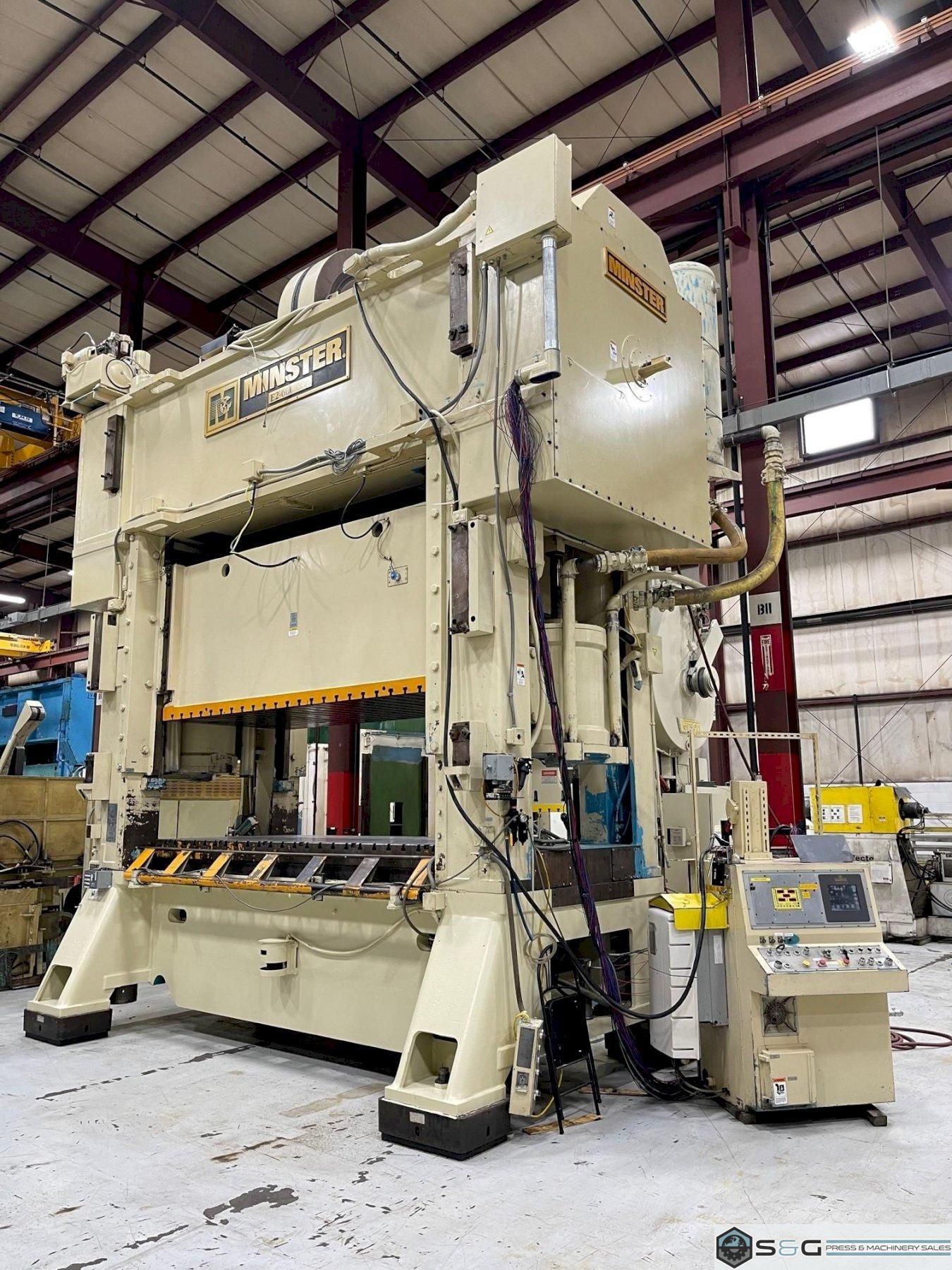

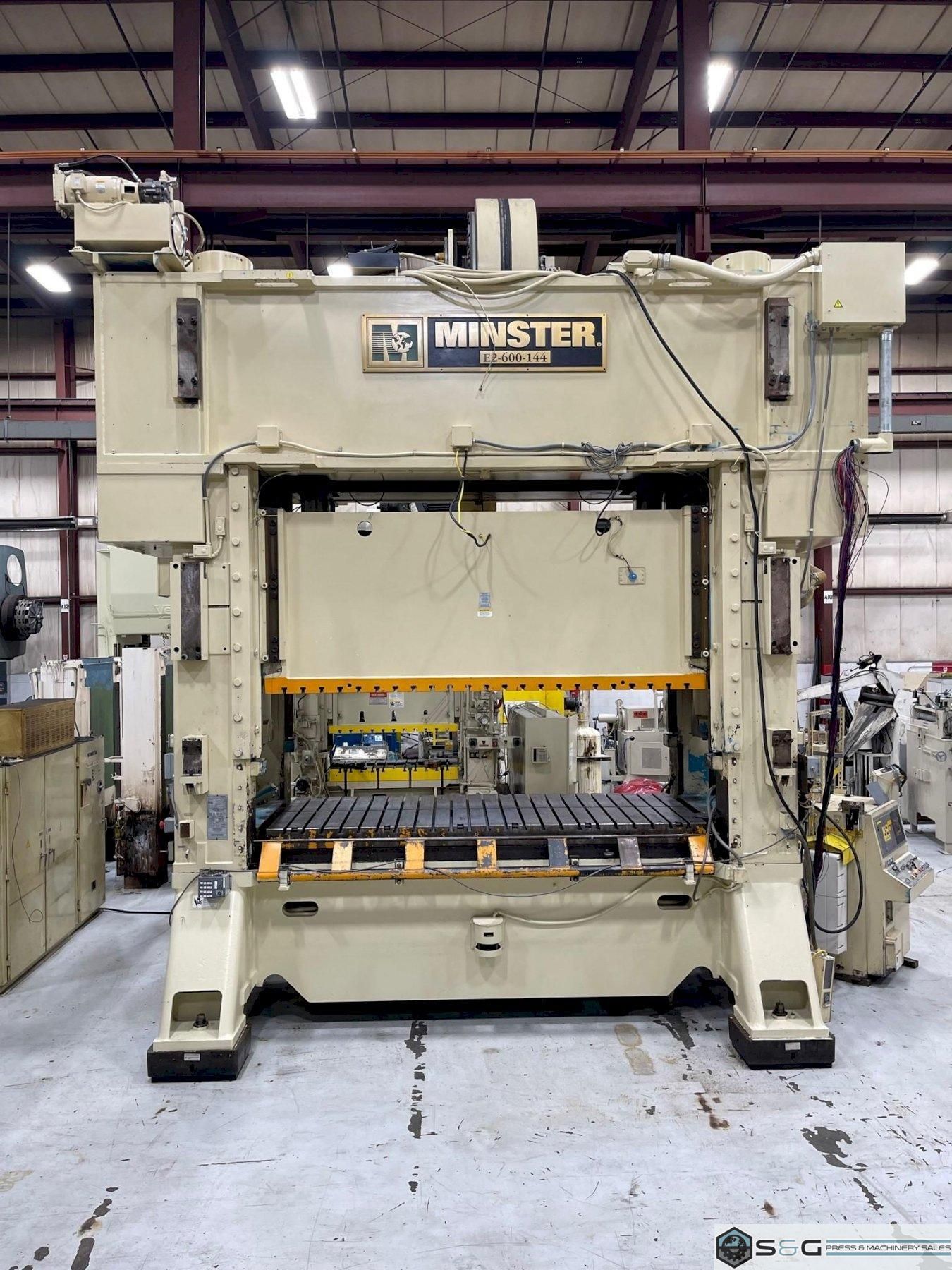

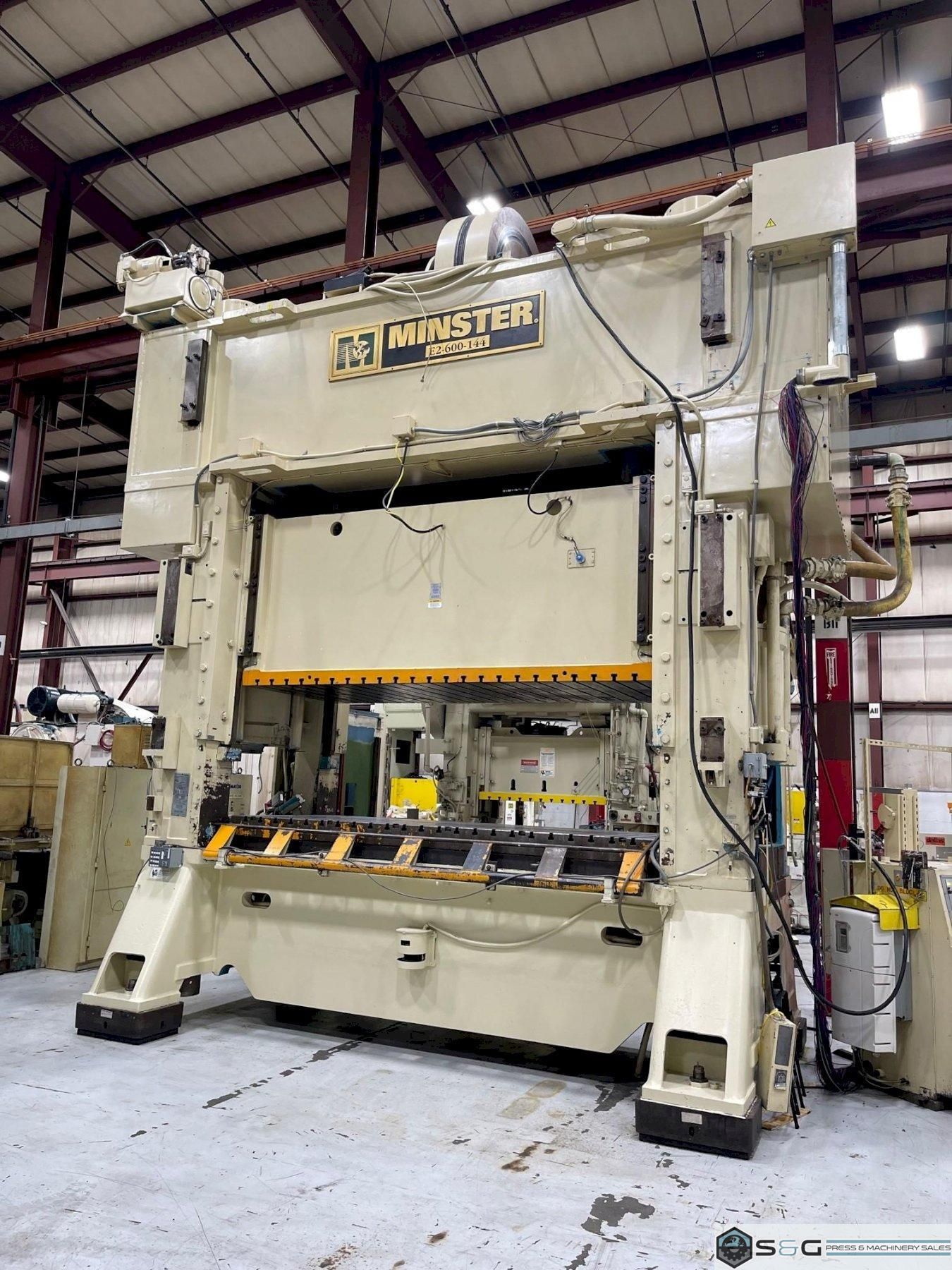

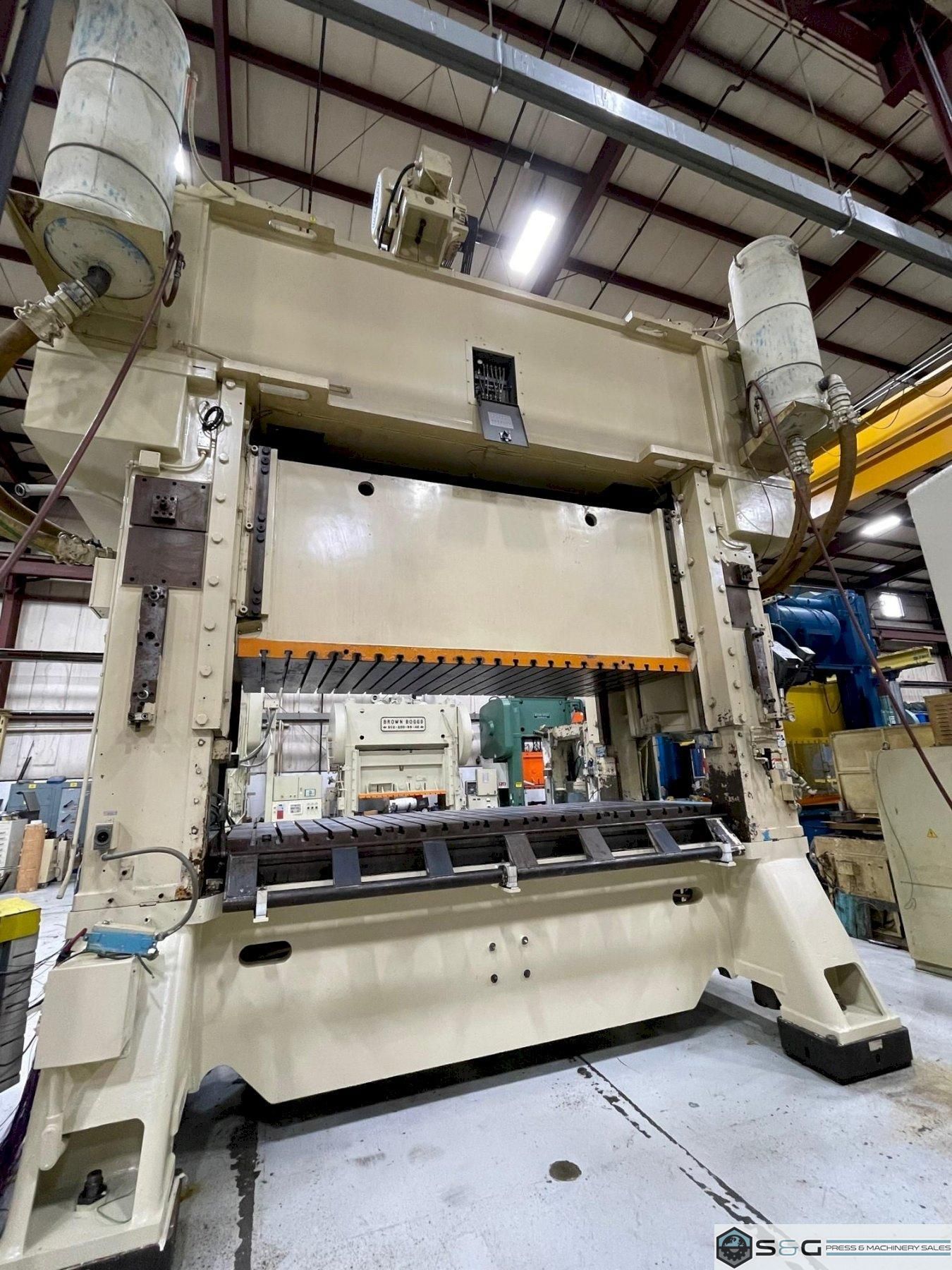

600 ton Minster E2-600-144-60 Hevi-stamper, New 2004

Brand

MINSTER

Model

E2-600-144-60

Year

2004

Stock #

2620

Condition

Excellent

Request a Quote

Specifications

Tonnage

600

Stroke

16 inches

Shut Height

47 inches

Adjustment

12 inches

Bed Size

144" LR x 60" FB

Ram Area

144" LR x 60 FB

SPM

25-50 VSPM

Standard Specifications
600 ton Capacity
16" Stroke
47" Shut Height on Bed
40" Shut Height on Bolster
12" Motorized Adjustment
144" LR x 60" FB Bed Area
144" LR x 60 FB Slide Area
25-50 VSPM

Equipment and Features
Combination Hydraulic Clutch and Brake
Air Counterbalances
Minster Monitorflow Automatic Lubrication System
Air Operated Fly Wheel Brake
Automatic Counterbalance Adjustment
Automatic Shut Height Adjustment
Hydraulic Tie Rod Nuts
7" Thick T-Slotted Bolster
T-Slotted Ram
51.5" Wide Windows
Includes (4) Strain Links Mounted on Uprights
Motors and Controls
Free Standing Minster Console Controls
Vibro Dynamic Foot Pads

22' 7" Overall Height
202.5" LR x 121" FB Footprint Dimensions
55.5" Floor to Top of Bed
Floor Standing Design


Price includes be a Wayne Trail Servo Transfer System.

Available to be seen Under Power!  Call immediately for details.

Attachments

Press 21 GA Drawing.pdf Download
