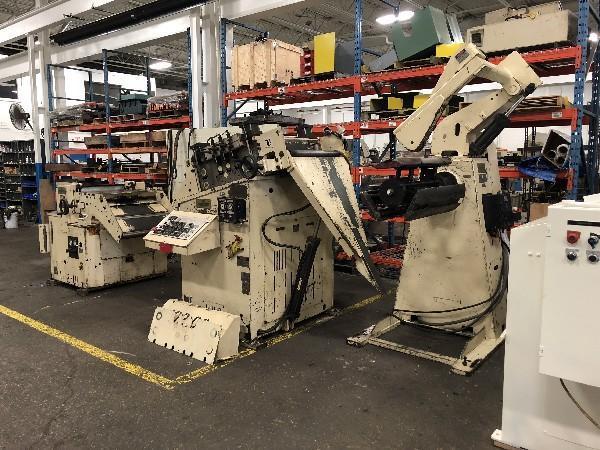

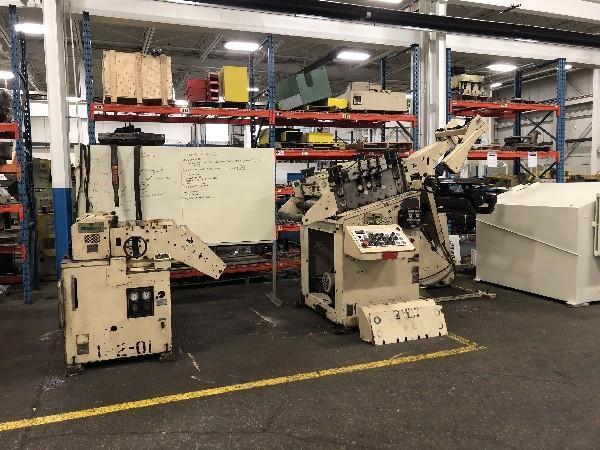

6,000 lbs x 26" Minster Conventional Servo Feed Line

Model

MR6-26S \ MS30-26-7 \ MEF-526

Year

None

Stock #

2748

Condition

Reconditioned

Specifications

Coil Weight

6000 pounds

Coil Width

26 inches

Coil Thickness

.140 inches


Minster Conventional Complete Coil Feed Line Specifications:
Coil weight capacity: 6,000 Lbs.

Coil width capacity: 26"
Stock thickness capacity: .140" x 26" Wide
Stock thickness capacity: .200" x 05" Wide
Expansion range: 16" - 20"
Coil O.D. capacity: 60"

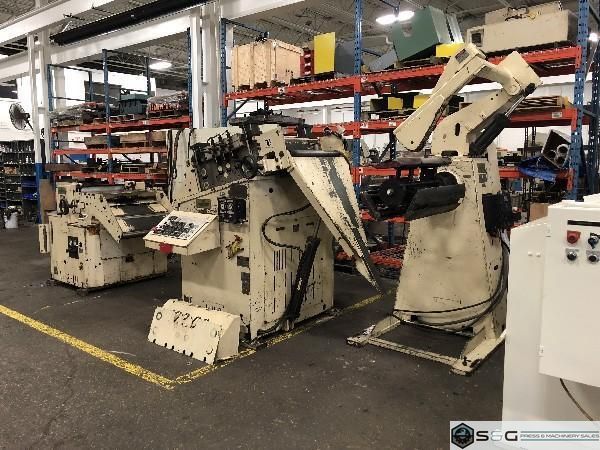

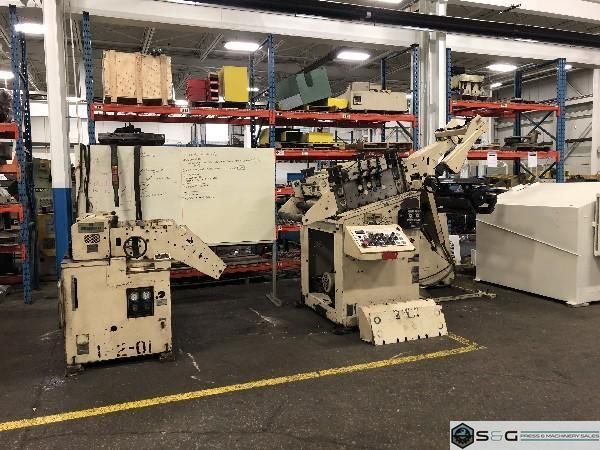

Minster Conventional complete Coil Feed Line Equipment and Features:

Minster Coil Reel Uncoiler Model No.: MR6-26S
Serial No.: 13-70324

Three leaf mandrel coil reel
Full set coil reel keeper arms
Hydraulic coil reel mandrel expansion
Air brake mounted on main coil reel spindle
Adjustable tensioning
Coil hold down arm with motorized end wheel
Self contained hydraulic unit

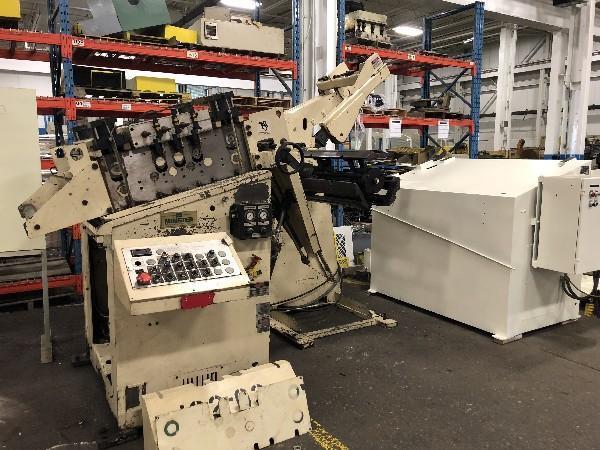

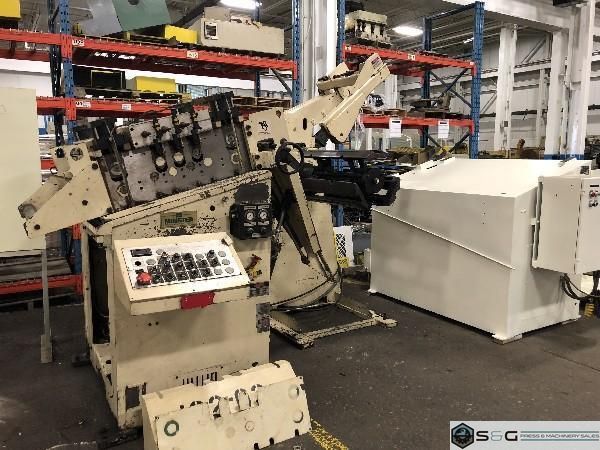

Minster Powered Coil Straightener Model No.: MS-30-26-7
Serial No.: 13-50277

Entry and exit powered coil straightener pinch rolls x 5" diameter
Air operated upper powered coil straightener pinch roll adjustment
Seven coil straightening rolls x 3" diameter
Manual upper coil straightening roll adjustments
Upper coil straightening roll position indicators
Hand crank adjustable stock width edge guides
Inclined powered coil straightener head
Stock peeler table with spade extension
Automatic lubrication system

Minster  Exit Threading Table
Bomb Bay Door Design
Bridges loop area for stock threading
Air operated raise and lower

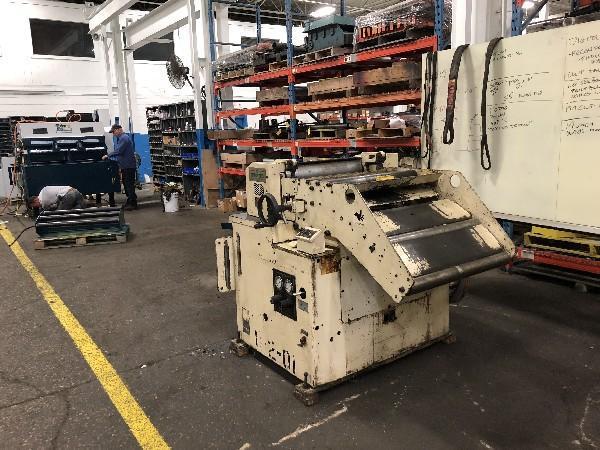

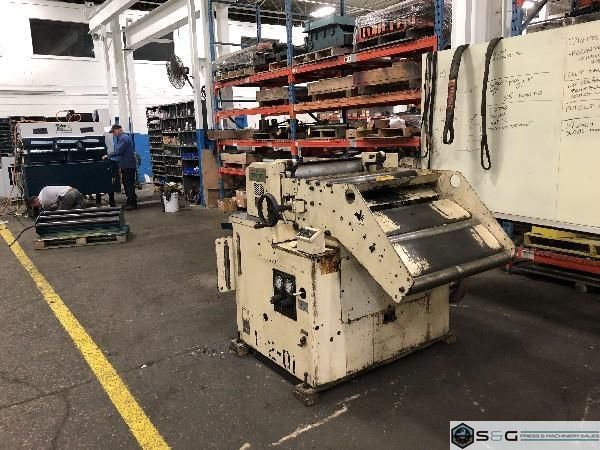

Minster Servo Roll Feed Press Feed Model No.: MEF-526
Serial No.: 18-50529

Five inch diameter upper and lower servo feed rolls
Air operated servo feed roll lift / pilot
Outboard air pressure regulators
Hand crank adjustable stock width edge guides
Cabinet base mounted with powered pass line adjustment
3 roll loop support section

NEW AC servo roll feed drive and controls (servo feed)
Job memory micro adjust batch count etc.
Pilot pin mode
Free standing sloped front servo roll feed control console
Fused disconnect
New Variable Frequency drive and control package (straightener and reel)
Operator's control station
Remote pendant control for jog forward and reverse
Laser variable speed loop control with remote stand
480 Volt

* Consult your sales person for full details on new control system.
